Plan 46383LA
3-Bed New American House Plan with Main-Floor Master
Heated S.F.
2,716
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • This inviting 3-bedroom New American house plan features a lovely clapboard exterior with a welcoming front porch and French-doors that open to the foyer.
  • Just inside, you'll find an airy dining room with a tray ceiling. Through the foyer, a spacious vaulted family room with a fireplace awaits.
  • Designed for maximum efficiency, the well-appointed kitchen includes an oversized island and a convenient walk-in pantry.
  • Your main-floor master suite offers privacy, an elegant tray ceiling, a 5-piece bath, a generously sized walk-in closet and access to the laundry room.
  • On the upper level, you'll discover a versatile loft space, two bathrooms that share a full bath and a finished bonus room over the garage.
  • Related Plan: Get a version with a 2-car garage with house plan 46358LA.
What's Included
This plan set has the following pages:

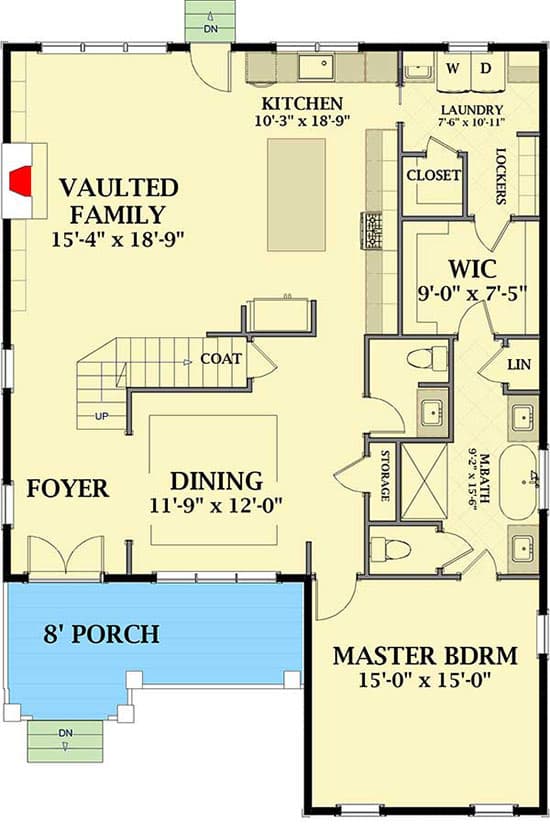

  1. First floor plan with window and door schedules

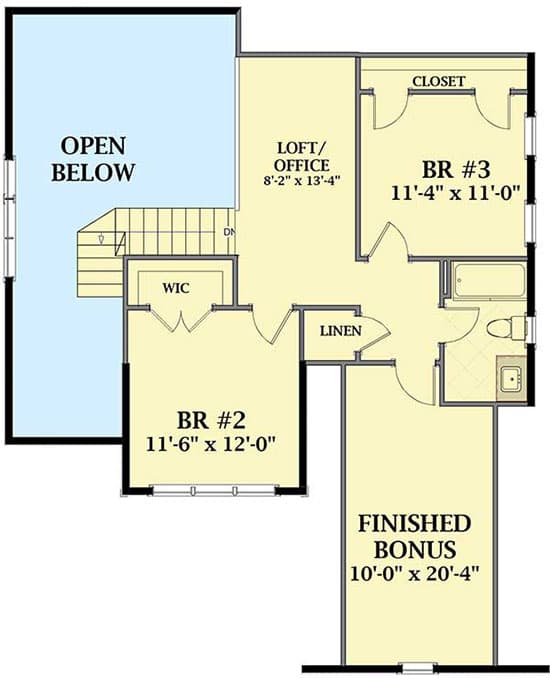

  2. Second floor plan
  3. Roof plan
  4. Front and left elevations

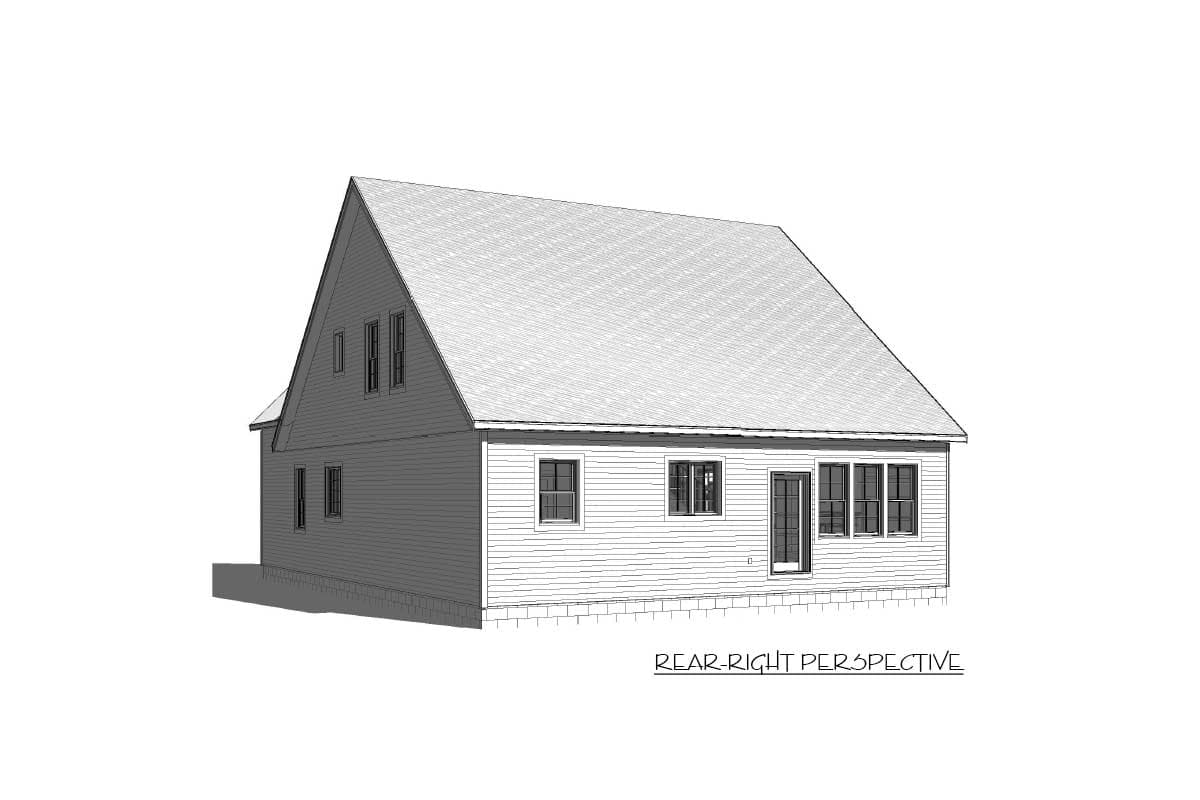

  5. Rear and right elevations

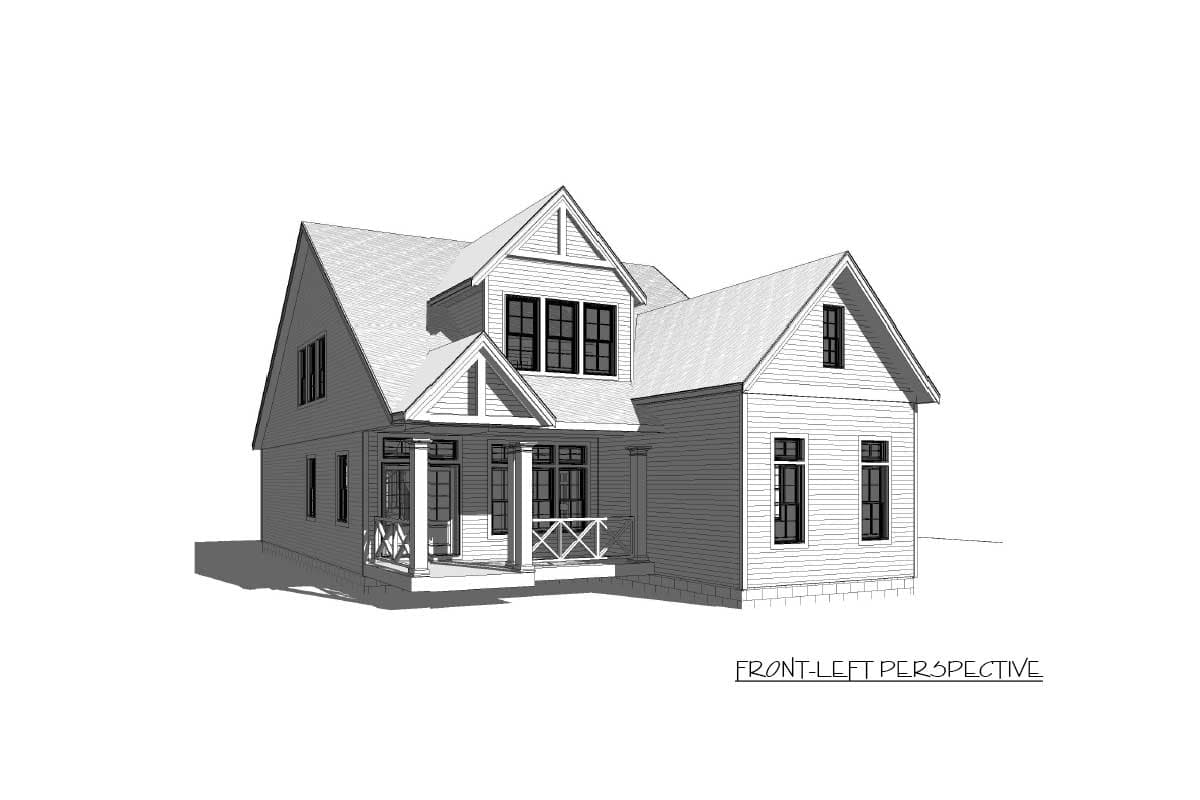

  6. Front and rear perspectives
  7. Building section; typical stair detail; eave detail
  8. Interior perspective; kitchen elevations (4)

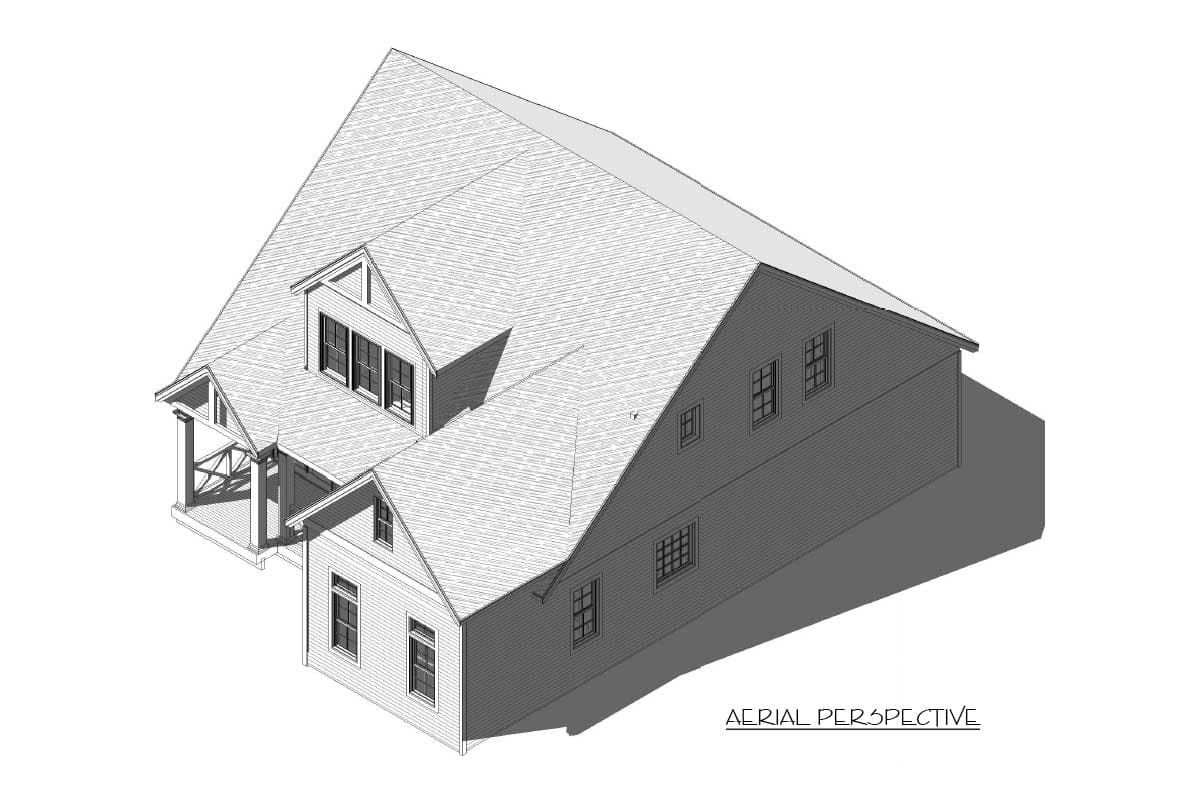

  9. Aerial perspective; front rendering
  10. First floor electric
  11. Second floor electric
  12. Foundation plan
  13. First floor framing
  14. Second floor framing
  15. Second floor ceiling framing
  16. Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed New American House Plan with Main-Floor Master

  • 2,716

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,716 sq. ft.
  • 1st Floor: 1,524 sq. ft.
  • 2nd Floor: 1,192 sq. ft.

Dimensions

  • Width: 35' 11"
  • Depth: 51' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
