3-Bed Ranch Home Plan with Game and Exercise Rooms

Plan 54029LK

  • 3,381

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Elevate your one-level living experience in this 3-bedroom Ranch home plan, which features an open floor plan, game room, exercise room, and pocket office.
  • From the foyer, you will enjoy the views through the great room and onto the rear covered porch. A corner fireplace anchors the great room that seamlessly flows into the adjacent kitchen.
  • A chef's dream; this spacious kitchen boasts a 6-person breakfast bar attached to the island, wine bar, and nearby walk-in pantry.
  • Just past the exercise room, discover the master suite that is joined by an oversized shower in the attached bathroom and a pass-through closet that leads to the laundry room.
  • Two additional bedroom suites, each with a full bath, can be found on the opposite side of the home, as well as a generous game room with a wet bar.
  • A friend's entry neighbors the 3-car garage, and a nearby drop zone helps you keep outdoor gear organized.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

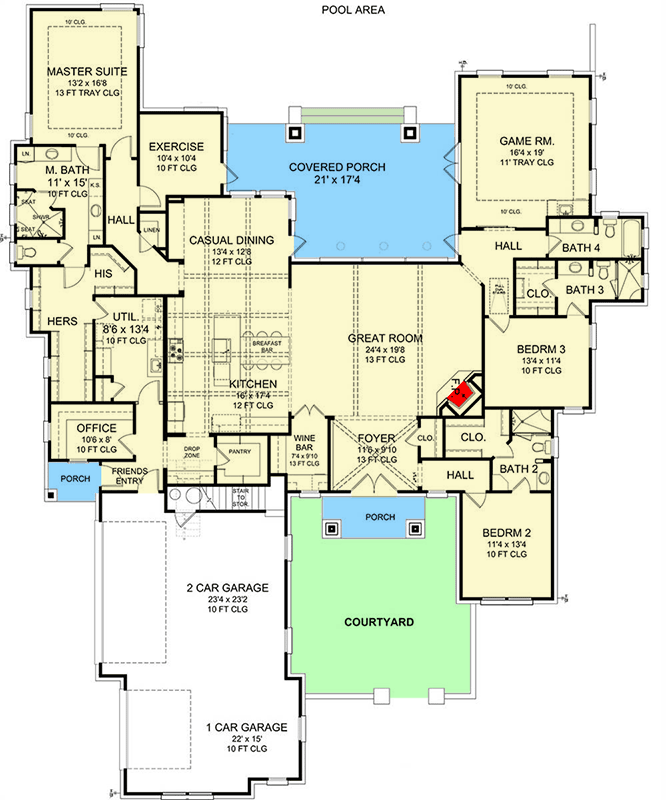

3-Bed Ranch Home Plan with Game and Exercise Rooms - 54029LK floor plan - Main Level

3-Bed Ranch Home Plan with Game and Exercise Rooms

  • 3,381

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,381 sq. ft.
  • 1st Floor: 3,381 sq. ft.

Dimensions

  • Width: 81' 3"
  • Depth: 101' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 938 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
