Plan 42688DB

3-Bed Ranch with Split-bed Layout

Heated S.F.
1,861
Beds
3
Baths
2
Stories
1
Cars
3

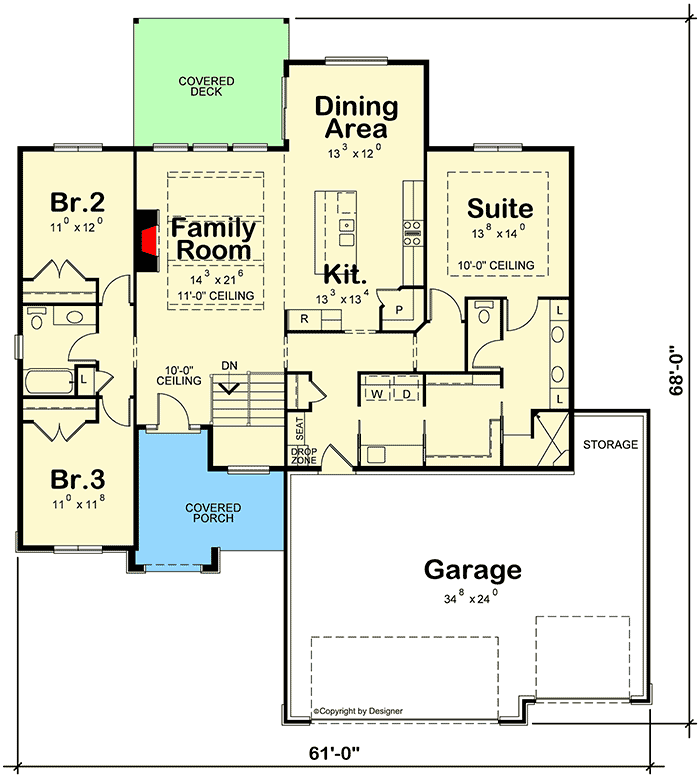

Floor Plan

Plan 42688DB

Main Level
Main Level

Plan 42688DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 42688DB: 3-Bed Ranch with Split-bed Layout - Floor Plan - Main Level - Contemporary, Prairie, Ranch

Plan Details

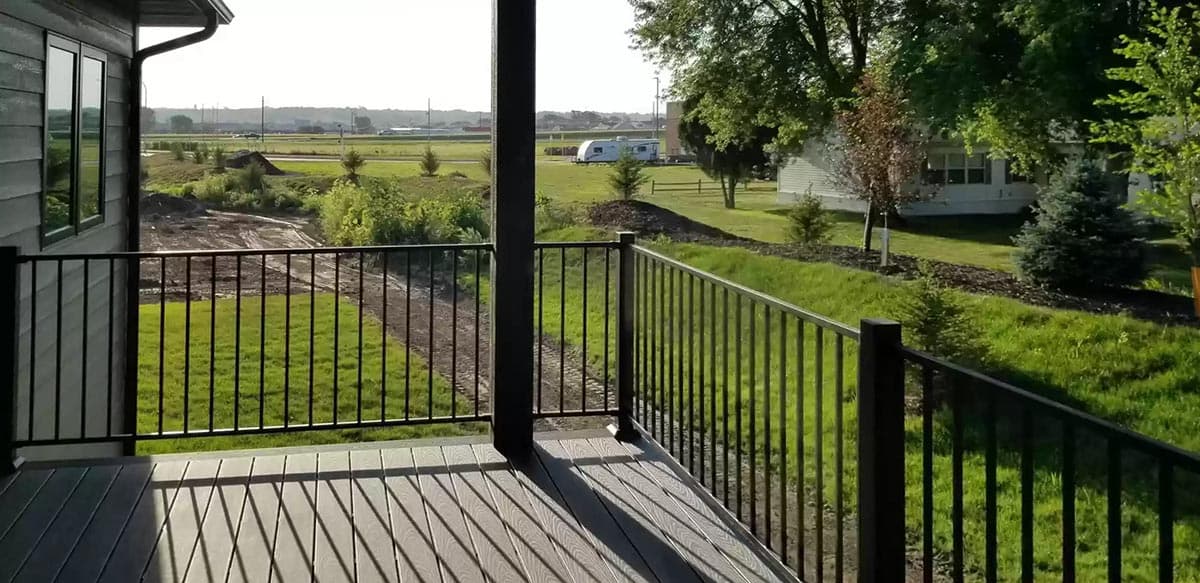

  • Front and back outdoor living spaces in this 3-bedroom Ranch provide delightful opportunities to enjoy fresh air while being sheltered from the rain.

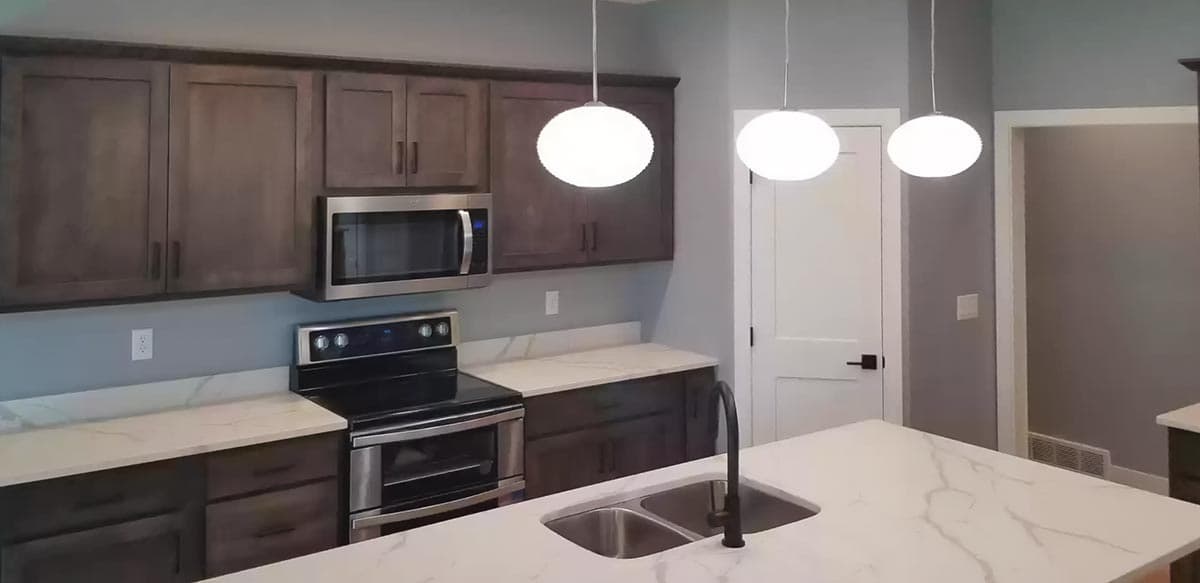

  • Inside, the 11'-high beamed ceiling in the family room is open to the island kitchen and dining area, brightened by glass on two sides.

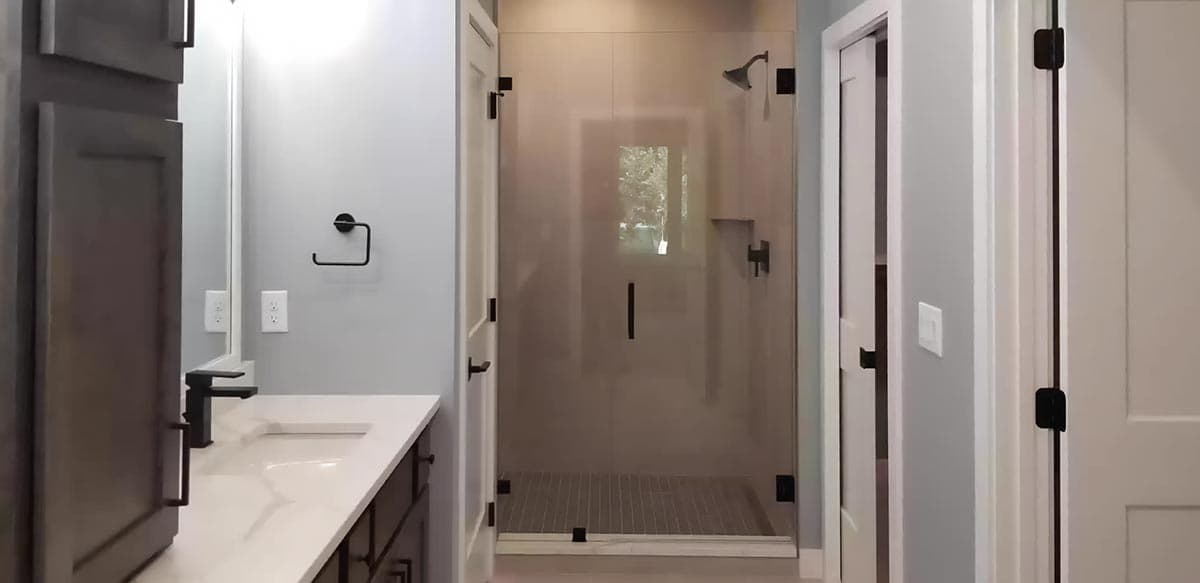

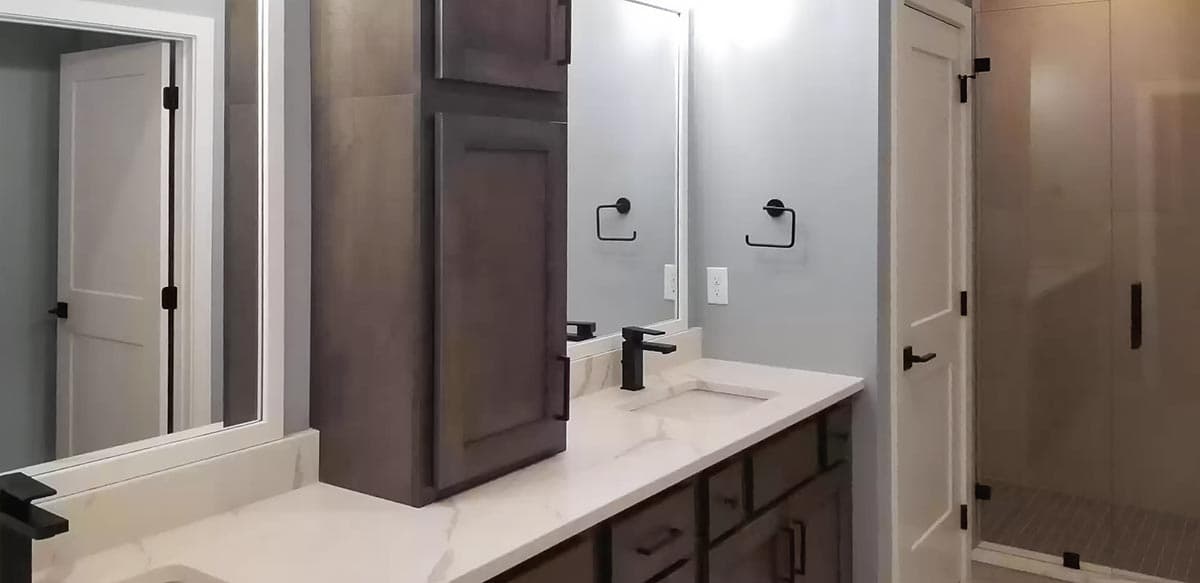

  • A private toilet area, two sinks, and doorless walk-in shower are suite amenities, as is the step-saving connection between the laundry room and walk-in closet.
  • Two secondary bedrooms line the left side of the home and share the full bath that separates them.
  • Take advantage of the extra storage space in the garage and avoid weaving and navigating your path around bikes, toys, and lawn tools when unloading groceries.

What's Included

  • General Notes

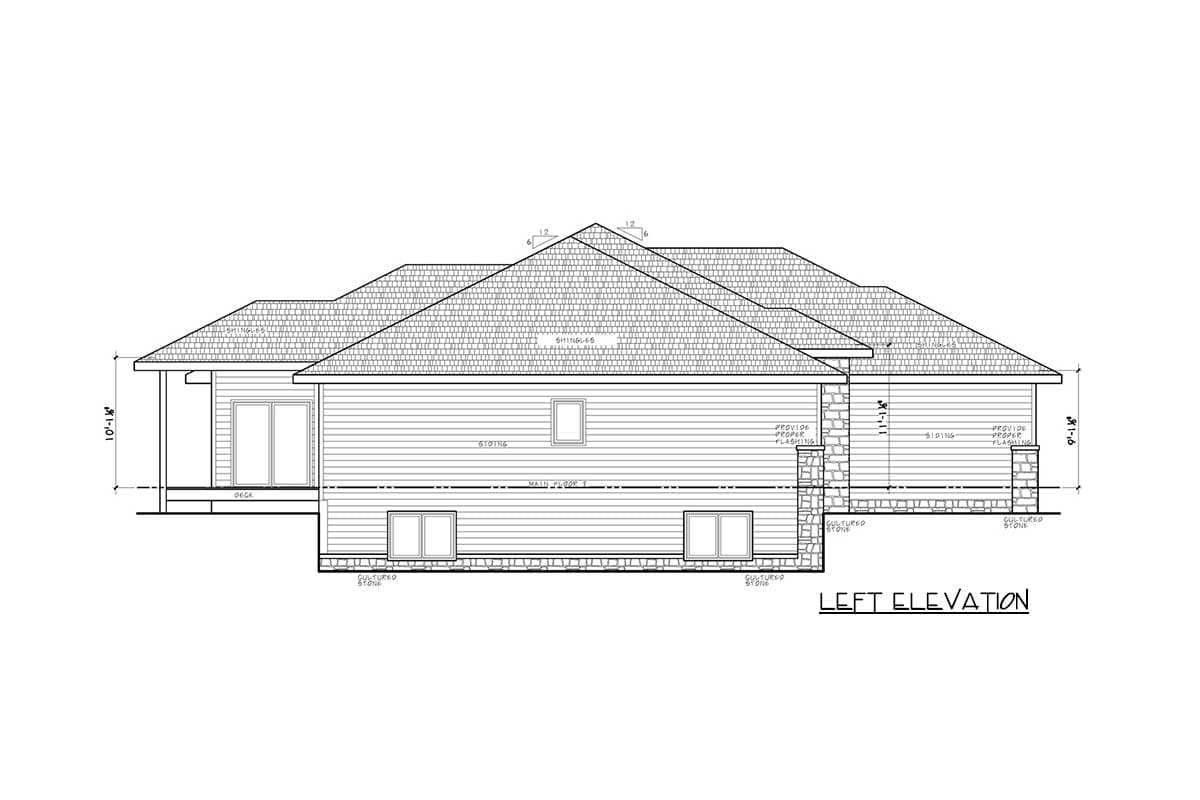

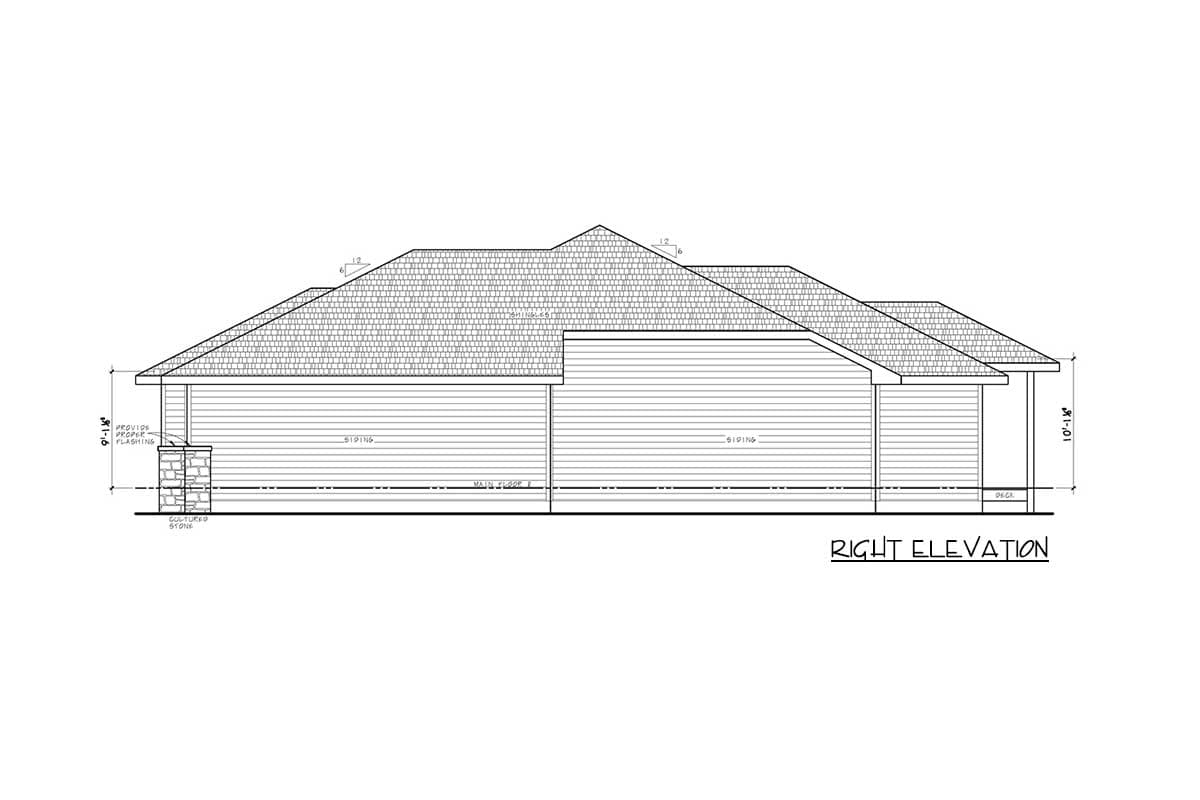

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,861 sq. ft.

1st Floor

1,861 sq. ft.

Porch, Front

151 sq. ft.

Porch, Rear

181 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

68' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

879 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Prairie

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,861 sq. ft.

1st Floor

1,861 sq. ft.

Porch, Front

151 sq. ft.

Porch, Rear

181 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

68' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

879 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Prairie

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
