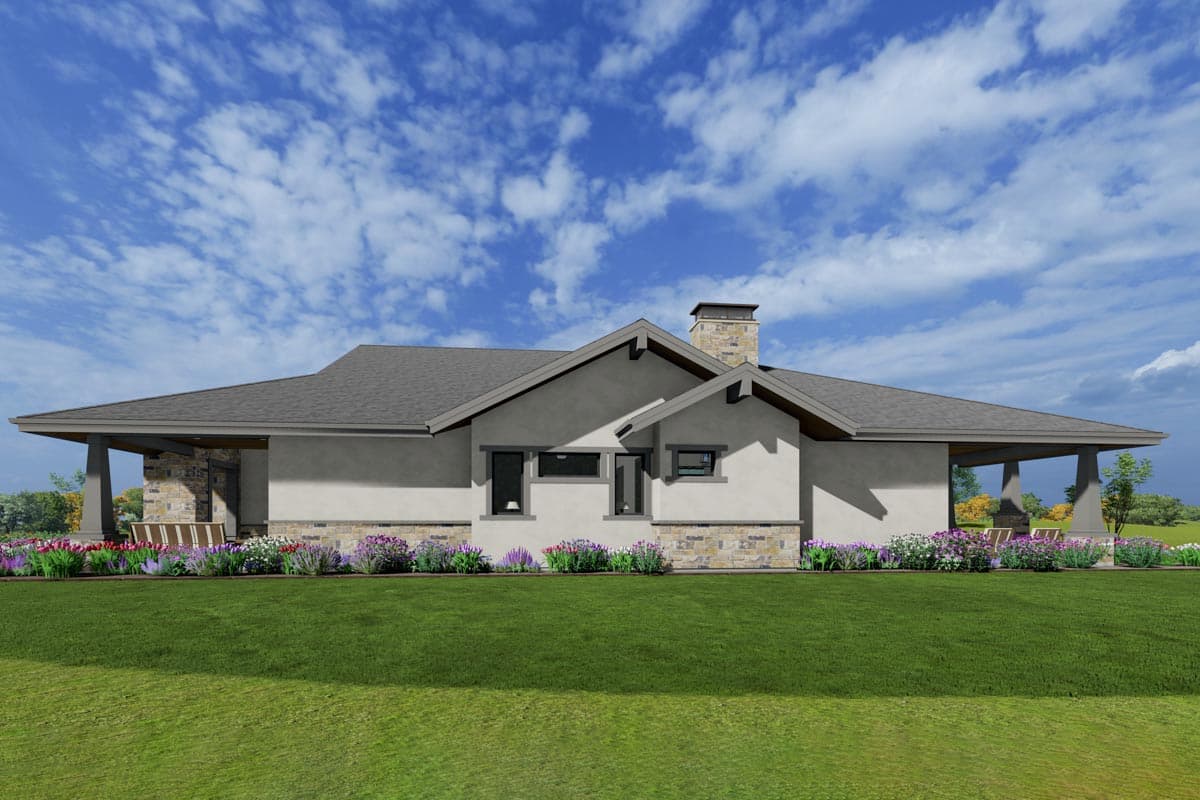

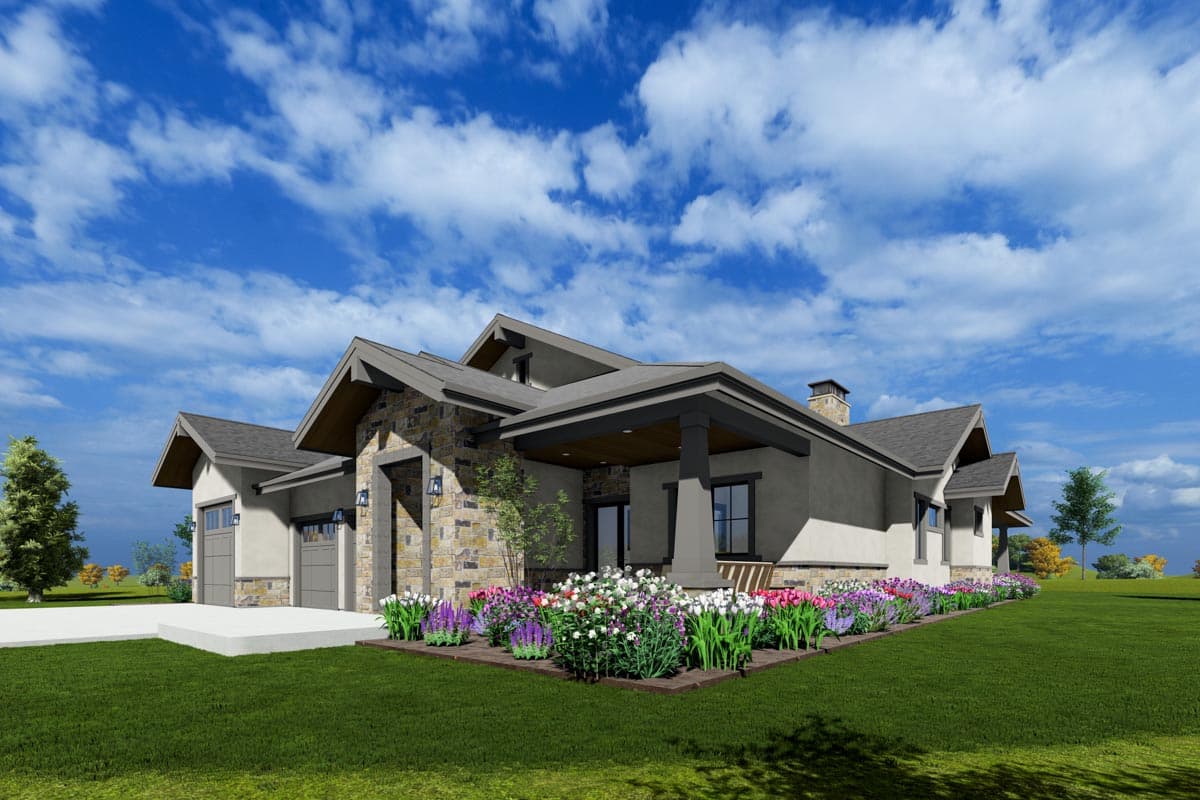

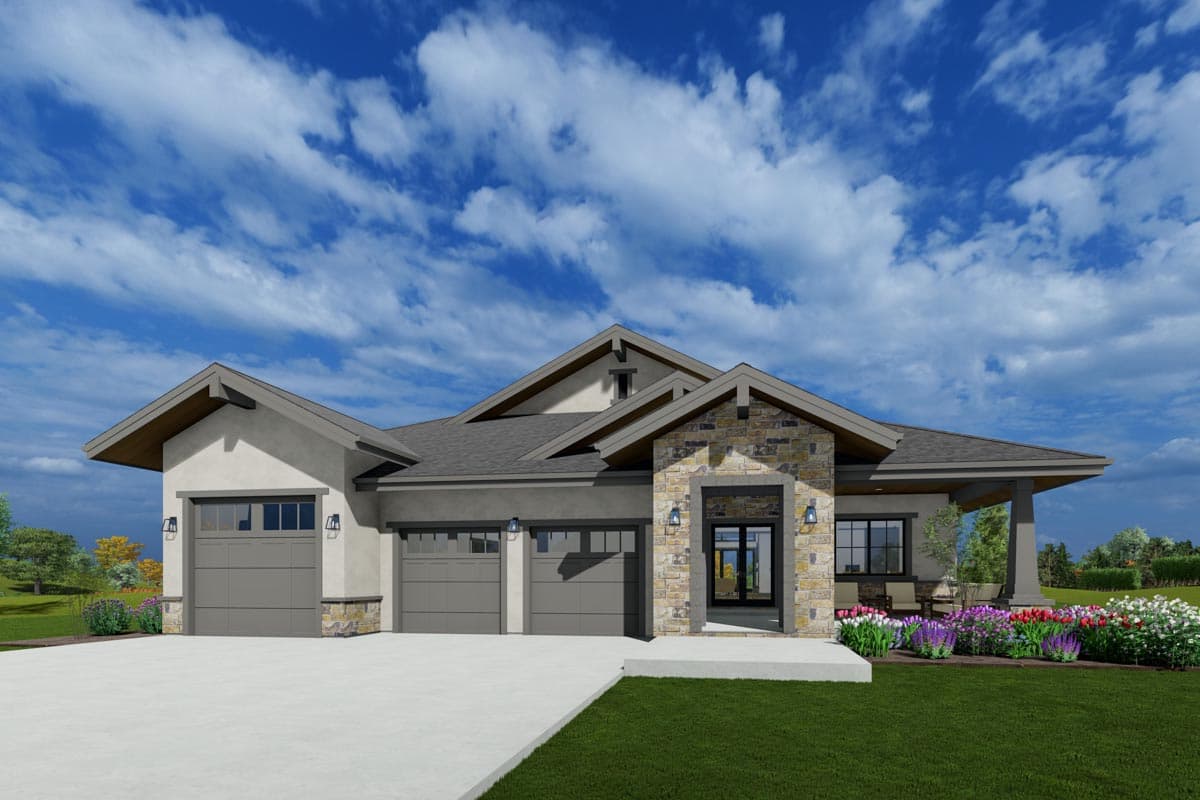

3-Bed Rustic Ranch Plan with Exposed Beams Defining the Living Spaces

Plan 64537SC

  • 3,163

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Rustic Ranch home plan totals 3,163 square feet of living space and gives you 3 bedrooms and 3.5 baths.

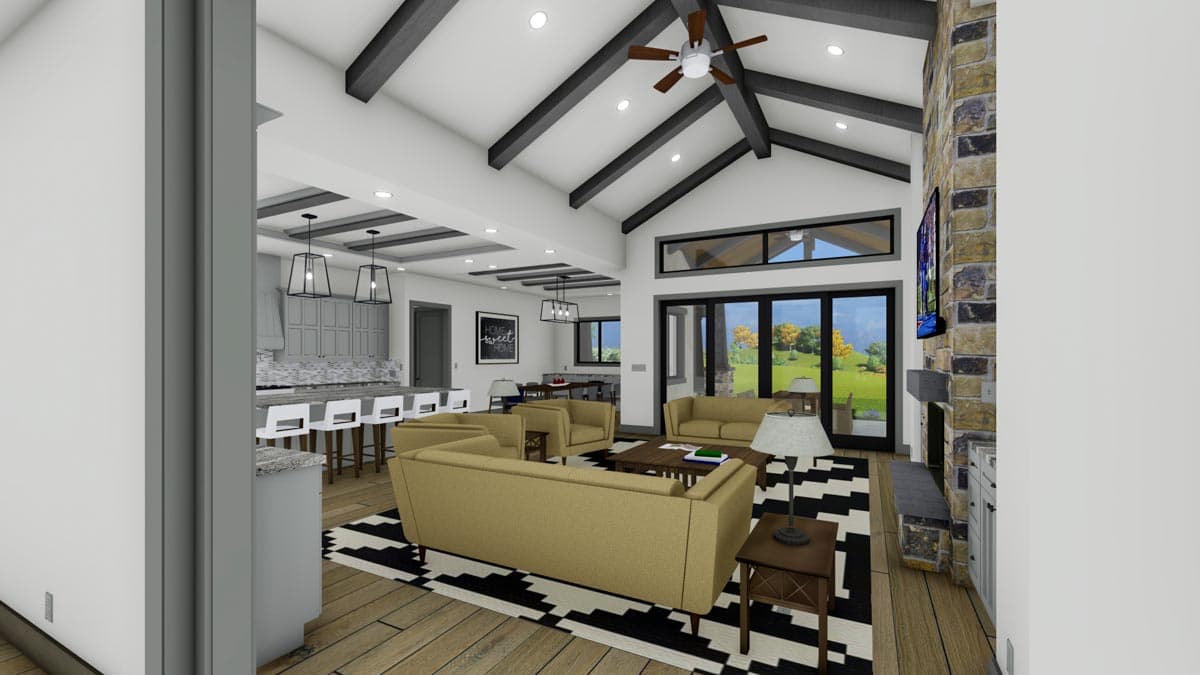

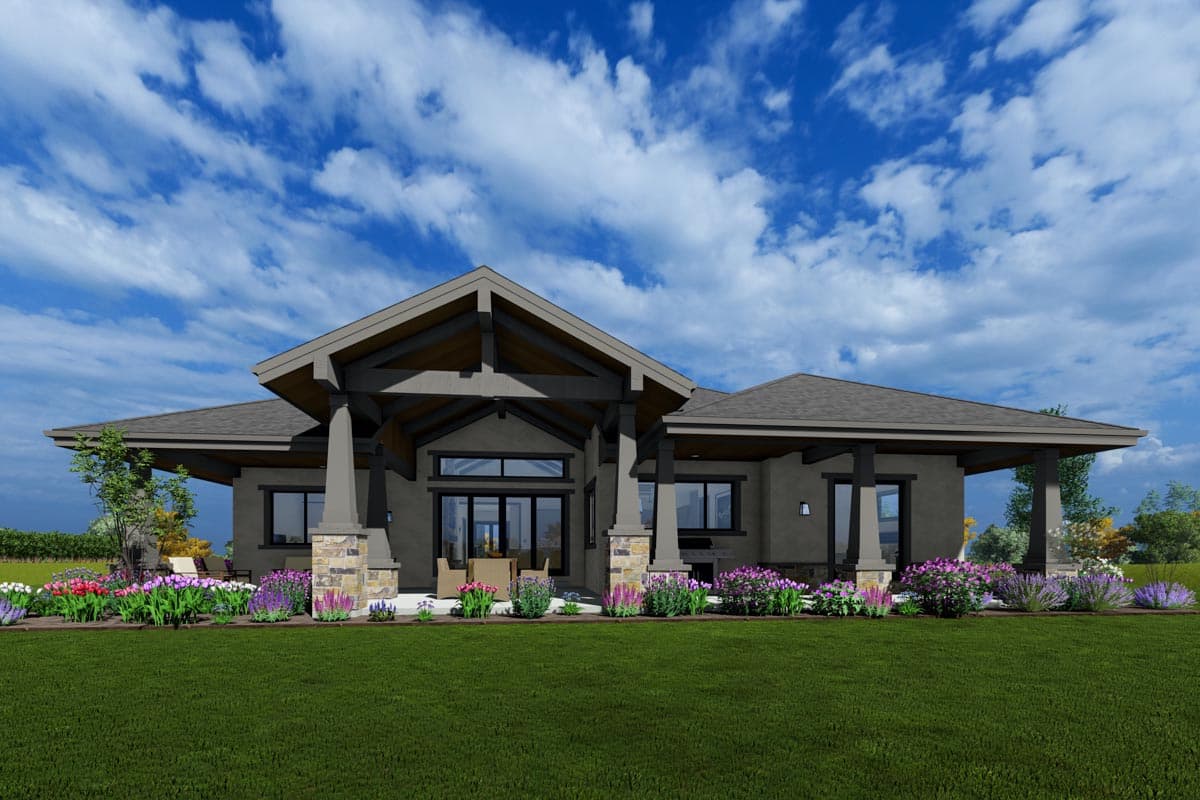

  • One-level living has never been more comfortable due to the open, central living space that opens onto the covered patio that extends the entire width of the home.

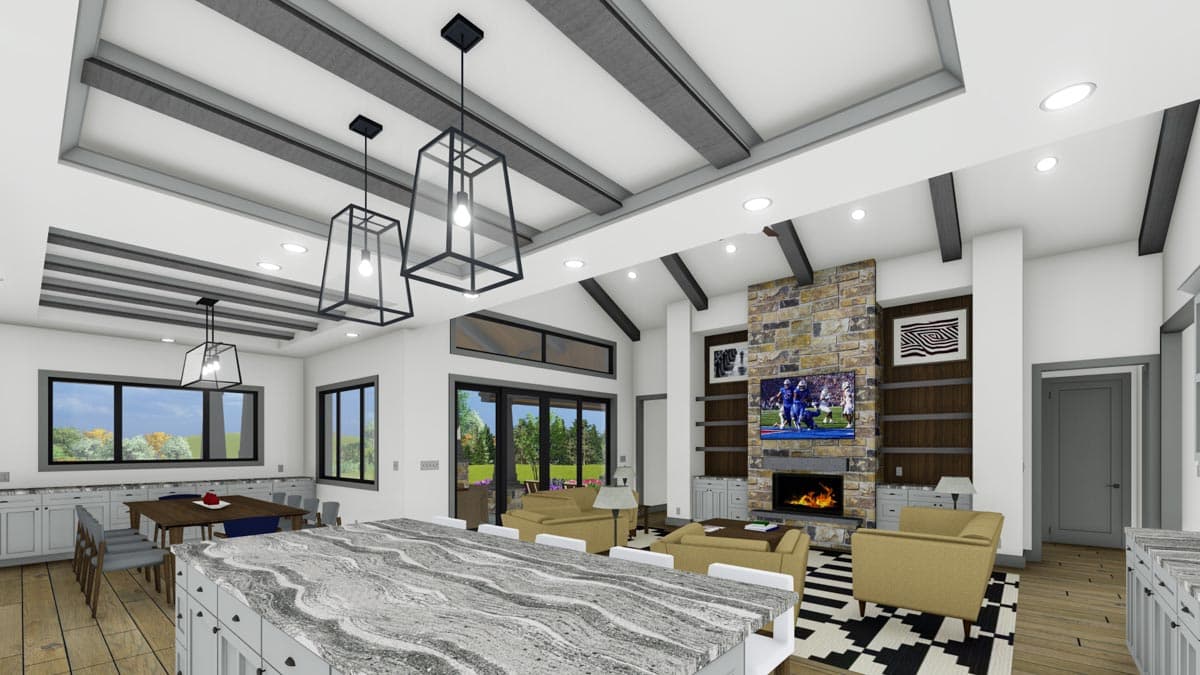

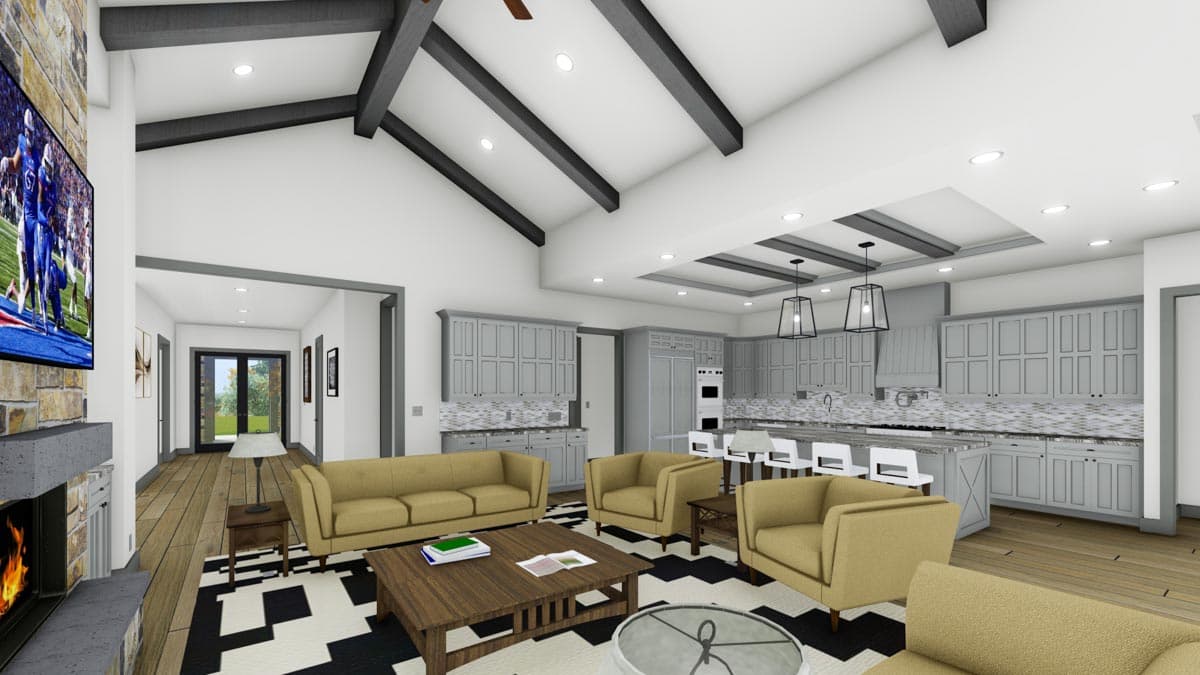

  • A large island anchors the kitchen with exposed beams overhead, while the pantry across the hall will evoke envy from others due to its size and cabinetry.

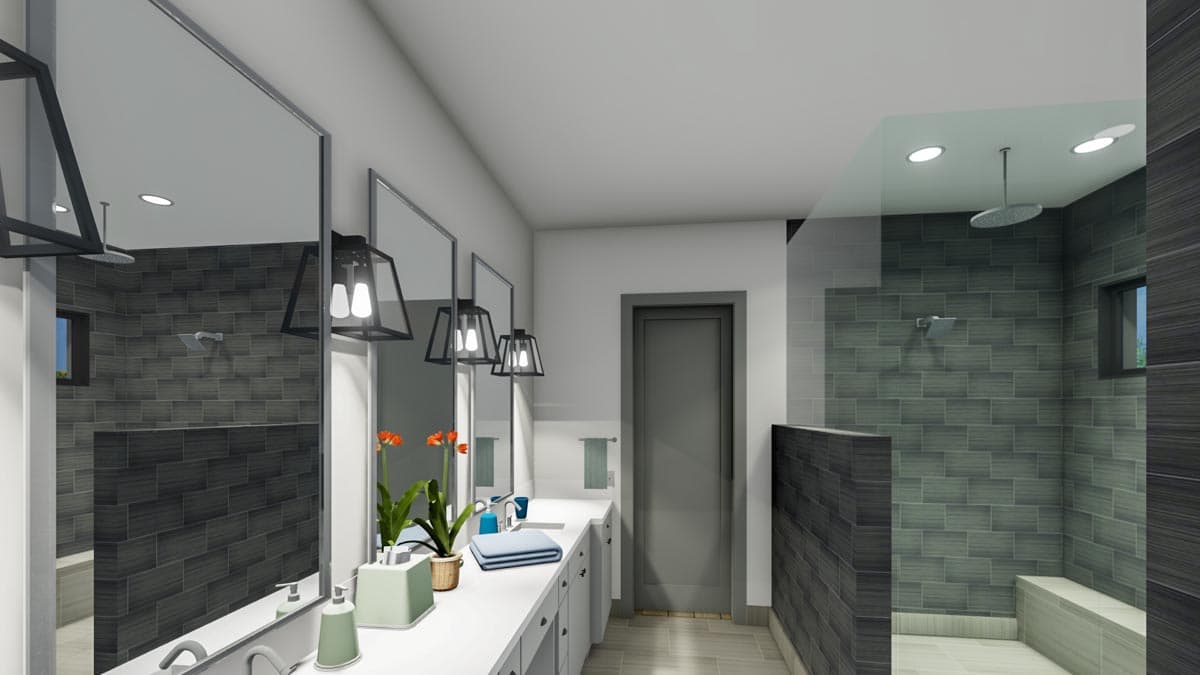

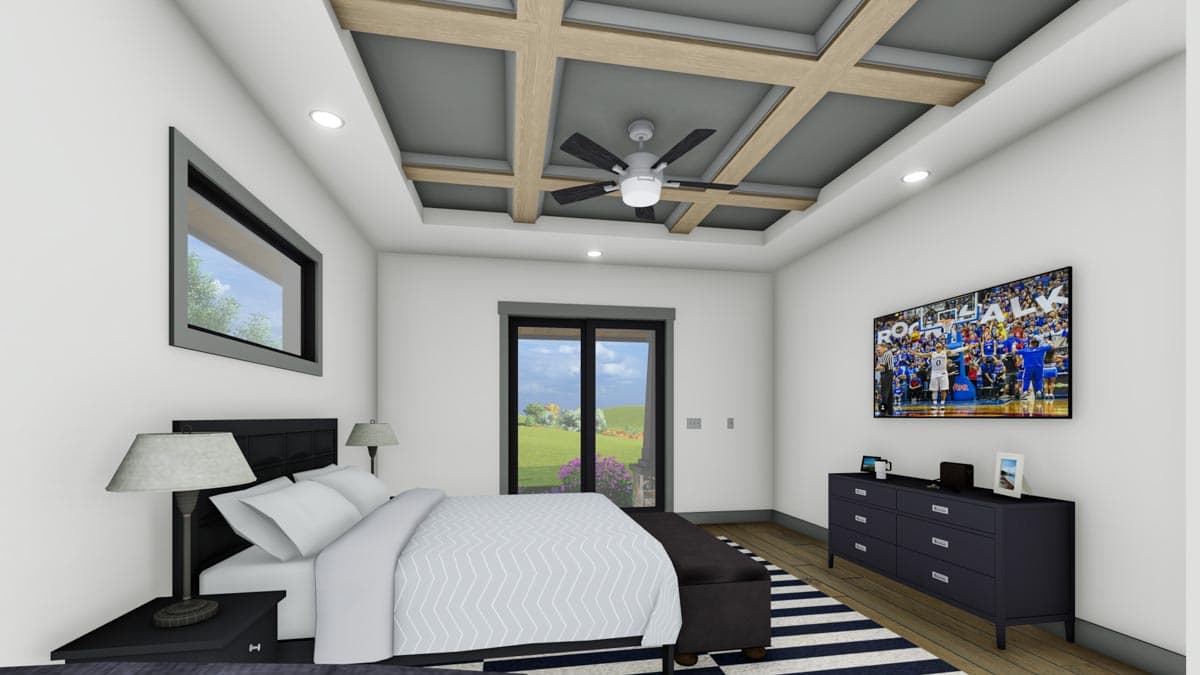

  • Lining the left side of the home, discover the master bedroom that boasts a rain shower and toilet room in the ensuite. A dresser island can be found in the master closet, as well as a shortcut to the laundry room.

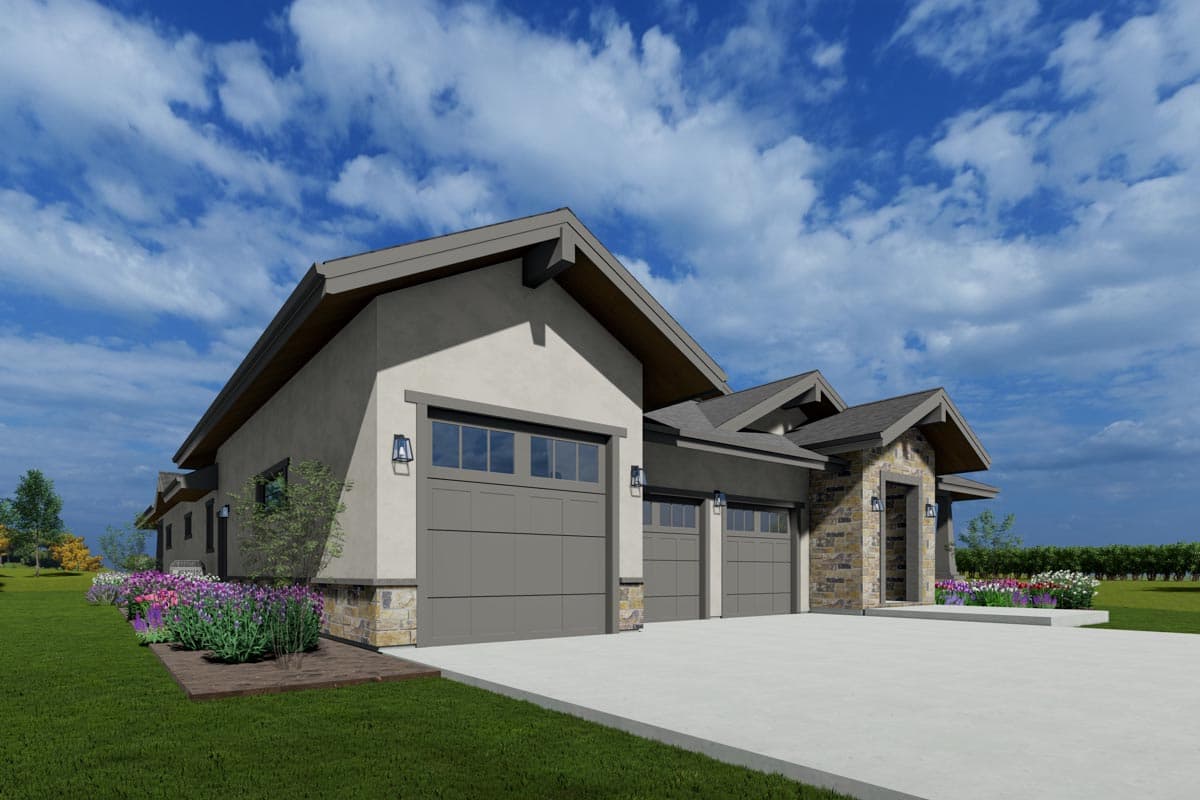

  • Two bedroom suites, a home office, and 3-car garage complete the design.
  • Related Plan: Shorten the RV garage and get a fitness room with house plan 64542SC (3,651 sq. ft.).

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.

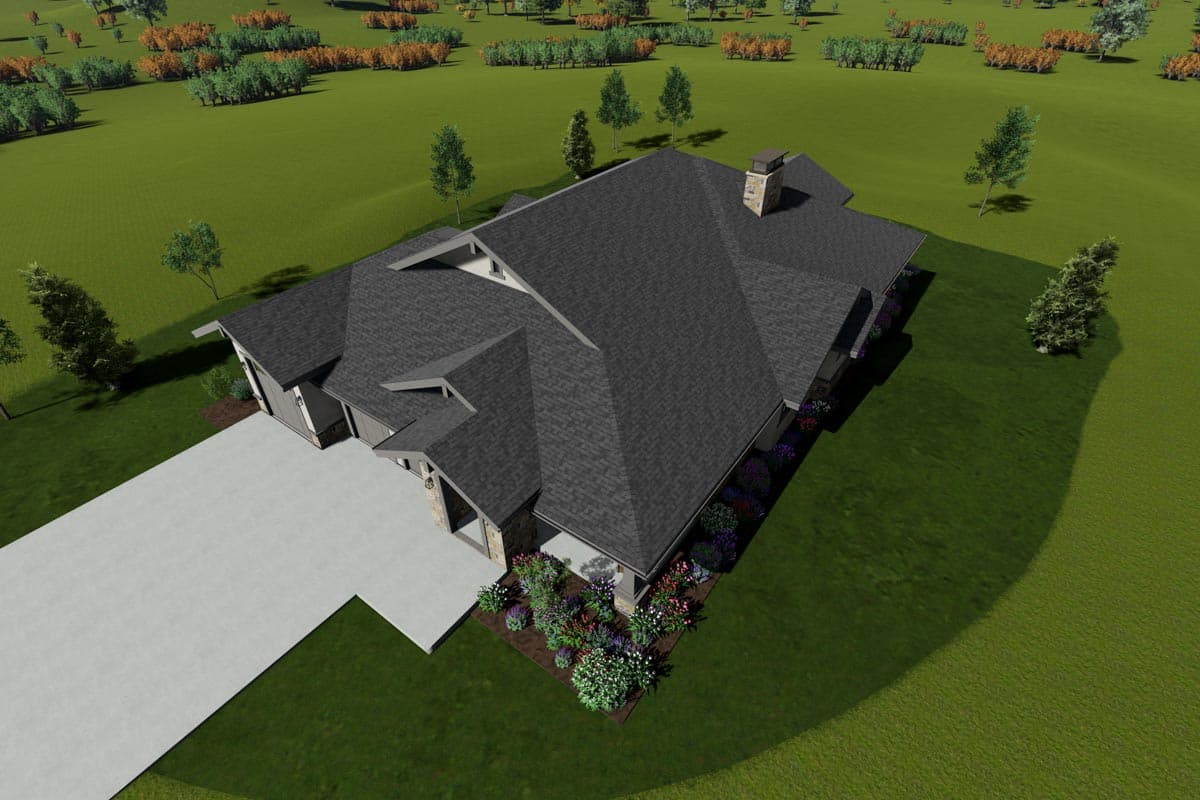

  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

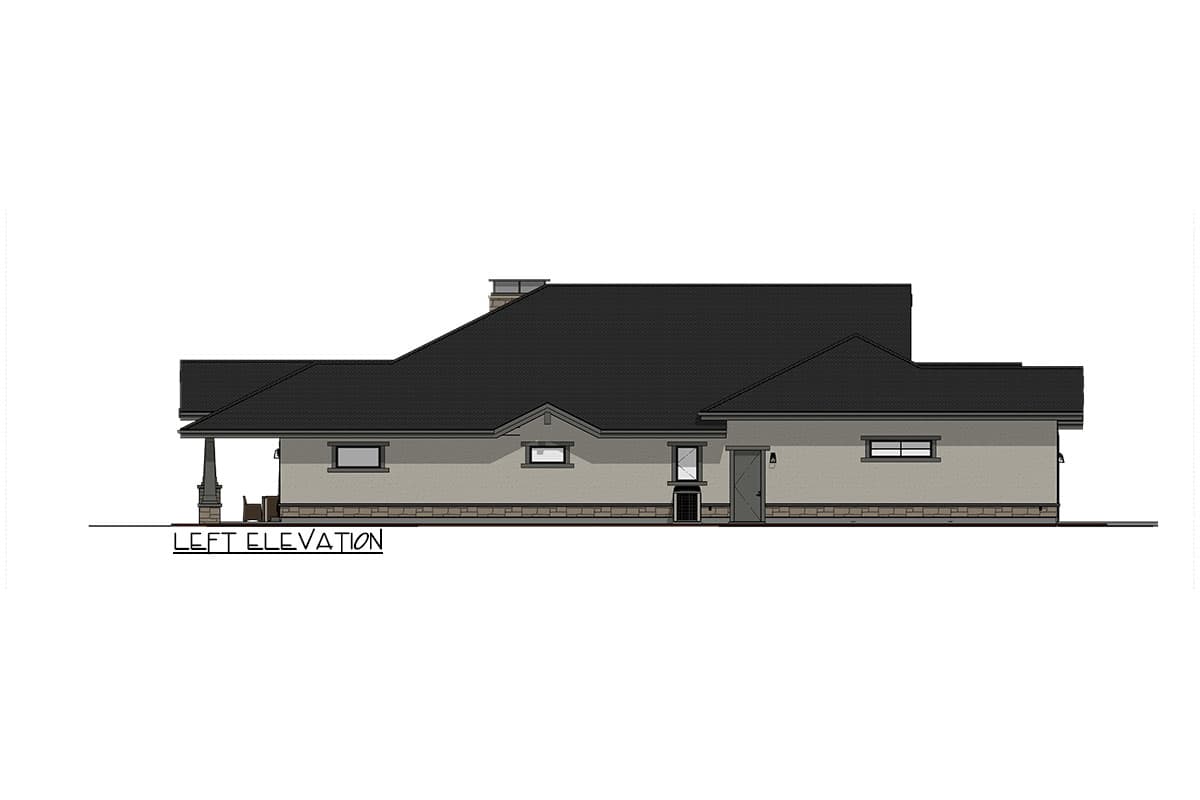

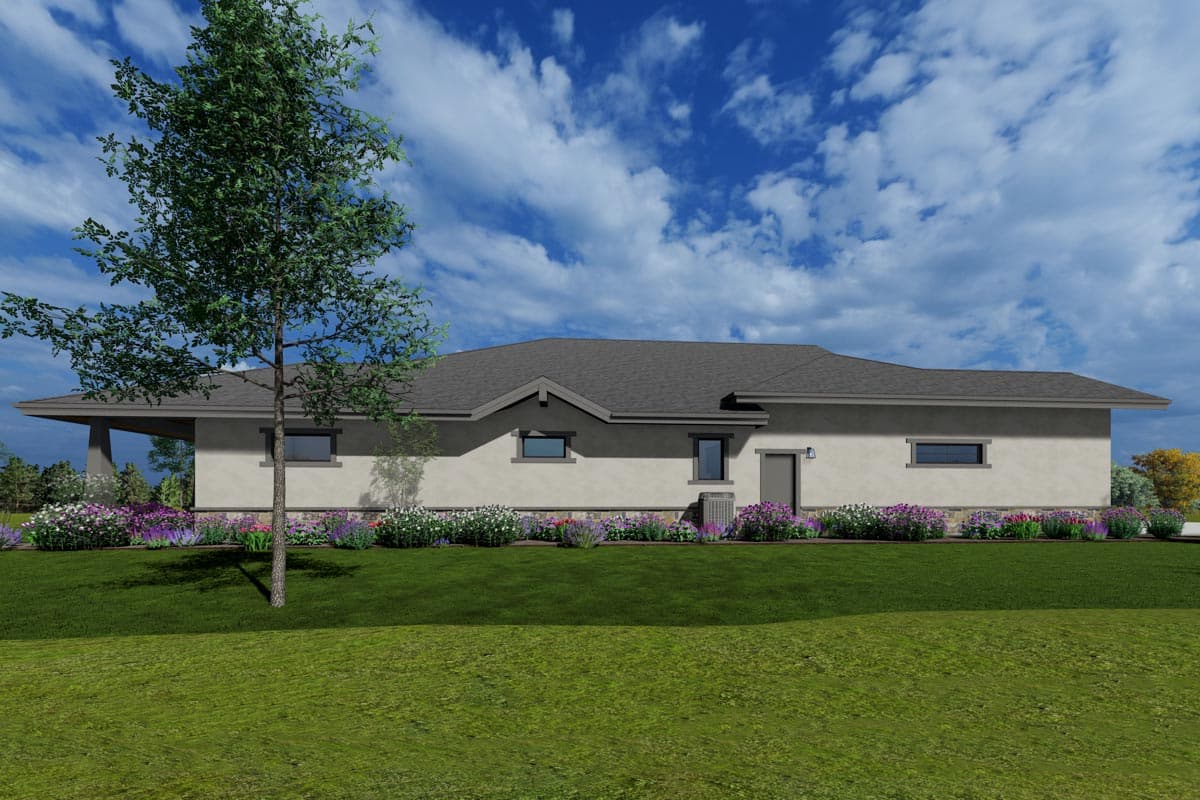

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

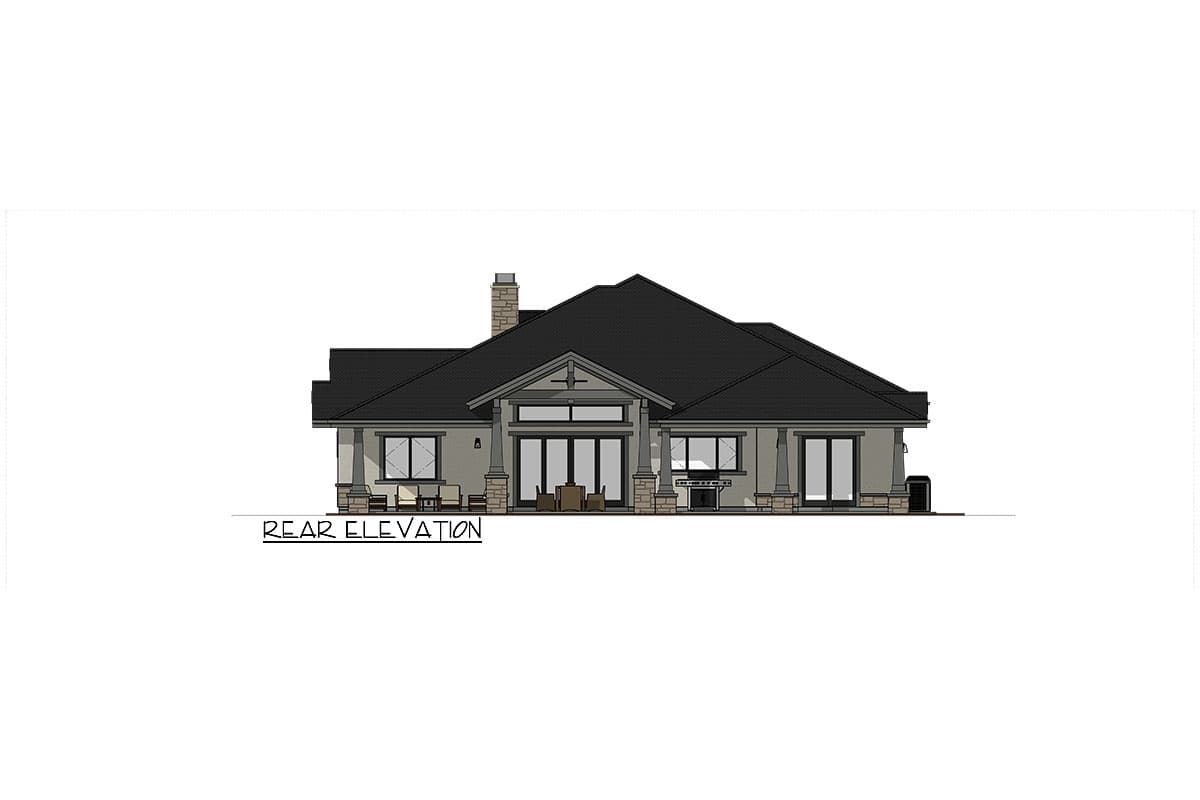

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

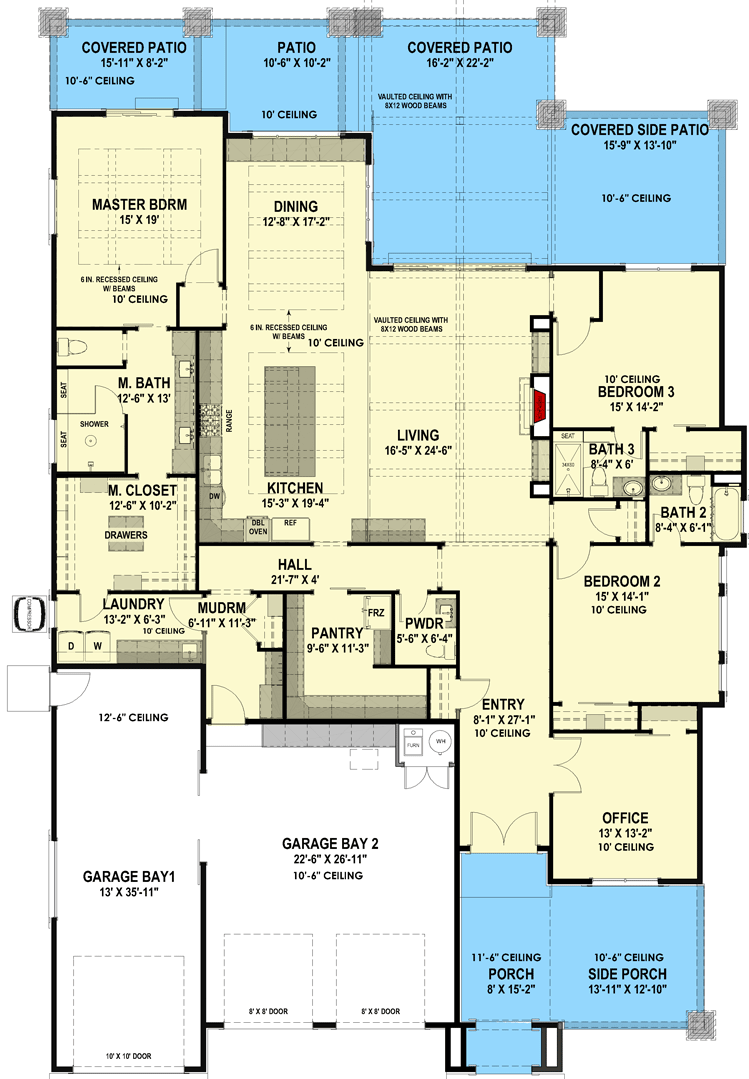

3-Bed Rustic Ranch Plan with Exposed Beams Defining the Living Spaces - 64537SC floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,163 sq. ft.
  • 1st Floor: 3,163 sq. ft.
  • Covered Patio: 855 sq. ft.
  • Porch, Front: 356 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement, Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 96' 2"
  • Max ridge height: 26' 3"

Garage

  • Type: RV Garage, Attached
  • Area: 1137 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 6
  • Framing Type: Stick And Truss

Architectural Style

Special features

3-Bed Rustic Ranch Plan with Exposed Beams Defining the Living Spaces

  • 3,163

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • PDF - Unlimited Build $2,095
  • CAD + PDF - Single-Build $2,195
  • CAD + PDF - Unlimited Build $2,895
  • View all purchase option online

About This Plan

  • This Rustic Ranch home plan totals 3,163 square feet of living space and gives you 3 bedrooms and 3.5 baths.
  • One-level living has never been more comfortable due to the open, central living space that opens onto the covered patio that extends the entire width of the home.
  • A large island anchors the kitchen with exposed beams overhead, while the pantry across the hall will evoke envy from others due to its size and cabinetry.
  • Lining the left side of the home, discover the master bedroom that boasts a rain shower and toilet room in the ensuite. A dresser island can be found in the master closet, as well as a shortcut to the laundry room.
  • Two bedroom suites, a home office, and 3-car garage complete the design.
  • Related Plan: Shorten the RV garage and get a fitness room with house plan 64542SC (3,651 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,163 sq. ft.
  • 1st Floor: 3,163 sq. ft.
  • Covered Patio: 855 sq. ft.
  • Porch, Front: 356 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement, Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 96' 2"
  • Max ridge height: 26' 3"

Garage

  • Type: RV Garage, Attached
  • Area: 1137 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 6
  • Framing Type: Stick And Truss
Plan 64537SC
View this and more for this plan by visiting www.architechtecturaldesigns.com/64537SC
|
