3-Bed RV-Friendly Barndo-Style House Plan Under 3100 Square Feet
Heated S.F.
3,079
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • The right half of this Farmhouse-inspired Barndominium features a 2,600 square foot garage / workshop with an RV-friendly garage with doors both front and back. A staircase in the garage leads to a second-level loft - with mechanical space as well - that can serve as an office or storage space.
  • From the 10'-deep wraparound porch, French doors open into a combined great room, kitchen with 5' by 8' island and dining area which features a fireplace and a cathedral ceiling.
  • Beds 2 and 3 share a Jack and Jill bath and have walk-in closets. The master bedroom is tucked into the rear of the design and includes a 4-fixture bathroom with a linen closet and a walk-in closet with direct laundry access.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plans: Get smaller versions with house plans 135199GRA (2,050 sq. ft.), 135072GRA (2,039 sq. ft.) and 135173GRA (2,770 sq. ft.). Get larger versions with house plans 135196GRA (4,110 sq. ft.) and get a version with an apartment on the right with house plan 135209GRA.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed RV-Friendly Barndo-Style House Plan Under 3100 Square Feet

  • 3,079

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

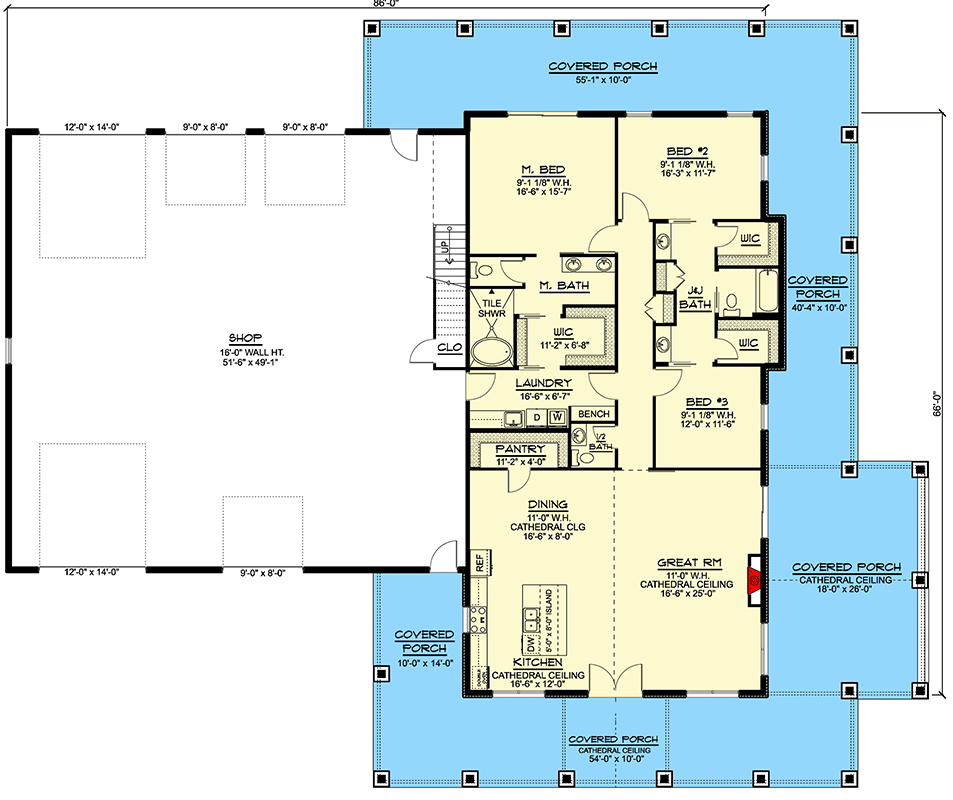

  • Main Level

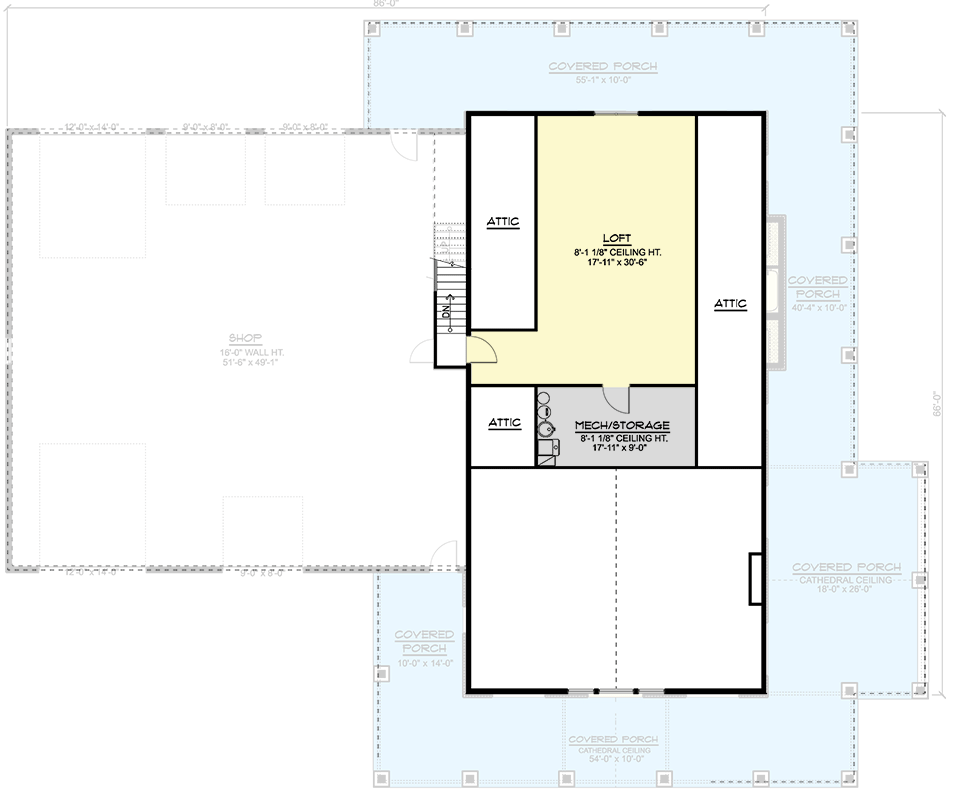

  • 2nd Floor
