Plan 33241ZR

3-Bed Southern Coastal Contemporary Home Plan with Den and Spacious Lanai

Name: Plan 33241ZR: 3-Bed Southern Coastal Contemporary Home Plan with Den and Spacious Lanai
Brand: Architectural Designs
SKU: 33241ZR
Price: 1585.89 USD
Availability: InStock

Heated S.F.

2,894

Beds

Baths

Stories

Cars

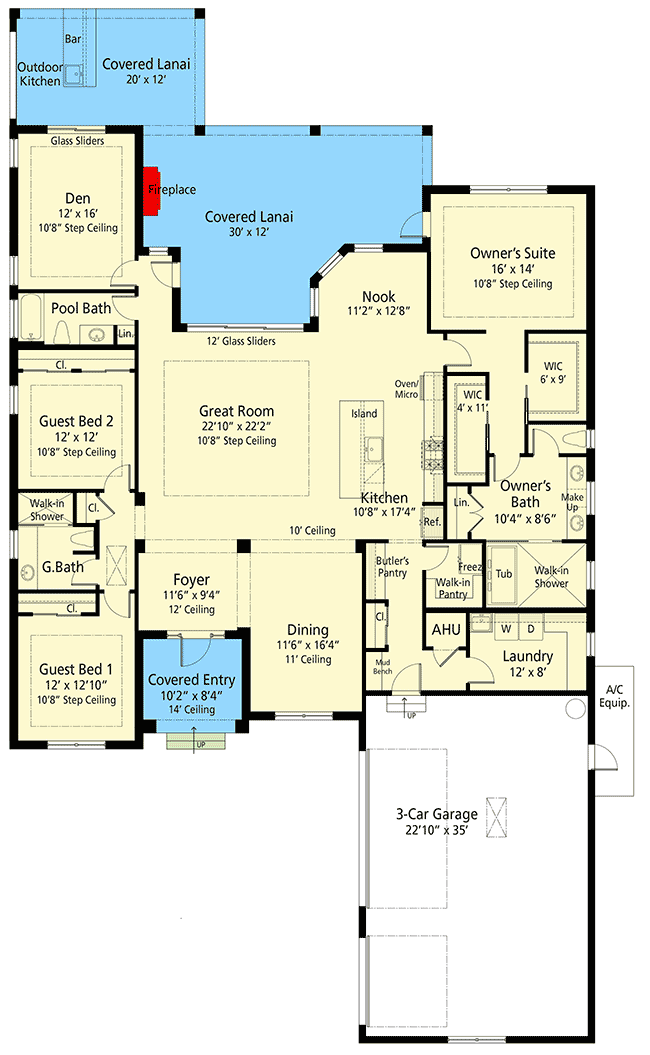

Floor Plan

Main Level

Plan Details

A prominent elevated entry adds to the eye-catching curb appeal on this Southern Coastal Contemporary home plan. The 3-bedroom layout offers a central living space that extends onto a spacious covered lanai.
Serve up snacks at the kitchen's island or sit down for an elegant meal in the dining room. The second freezer in the walk-in pantry makes buying in bulk an option.
The owner's suite opens to the lanai, and offers two large walk-in closets, with a generous owner's bath with dual vanities.
Secluded on the other side of the home are two guest bedrooms that share a full bath. A large den sits at the rear of the home, with sliders that open to the bar and lanai.
The 3-car garage steps up to a mud bench with handy closet. Nearby is the utility room where dirty clothes can be dropped off; rounding out the perfect home for family and entertaining.

What's Included

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

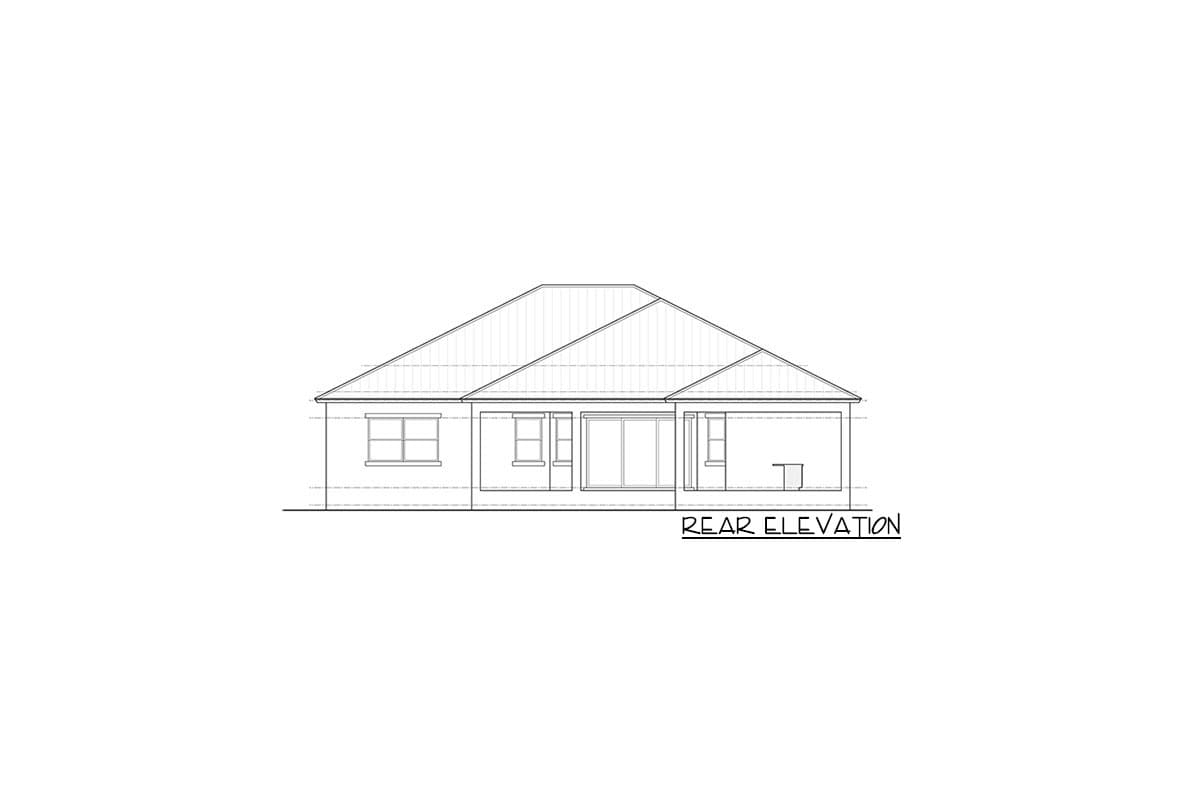

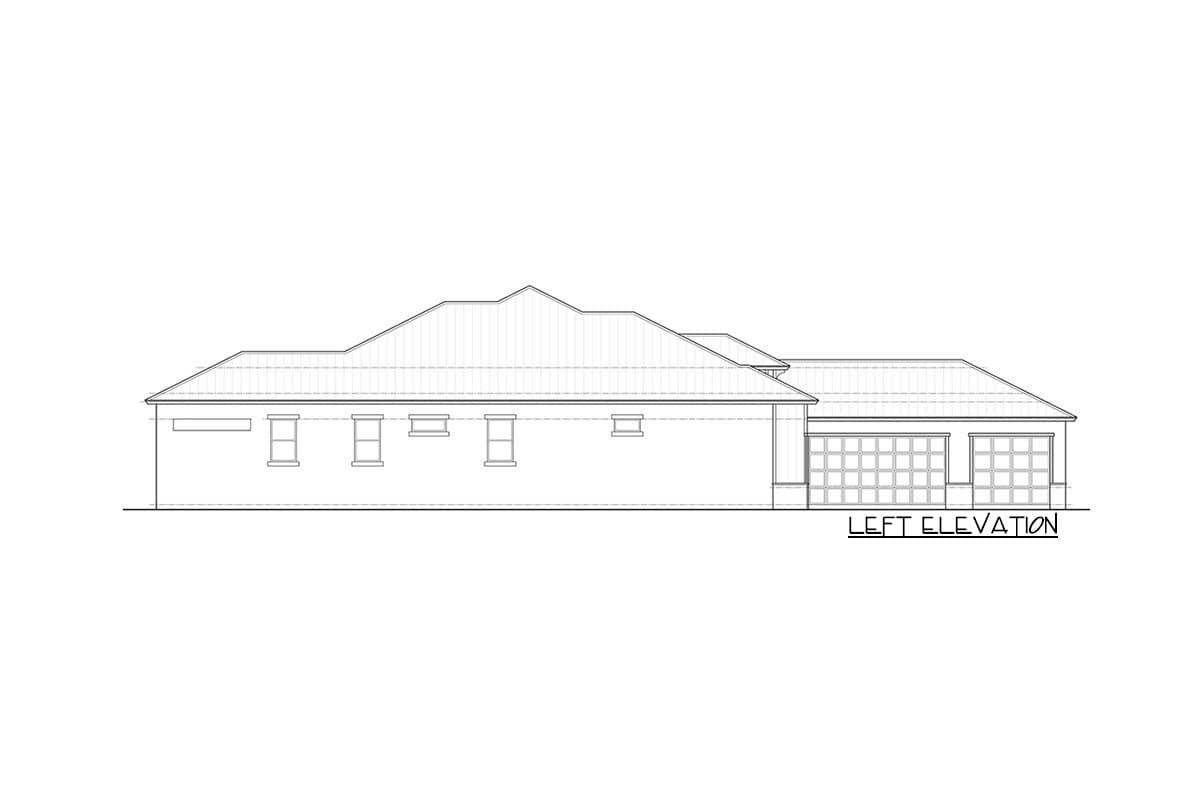

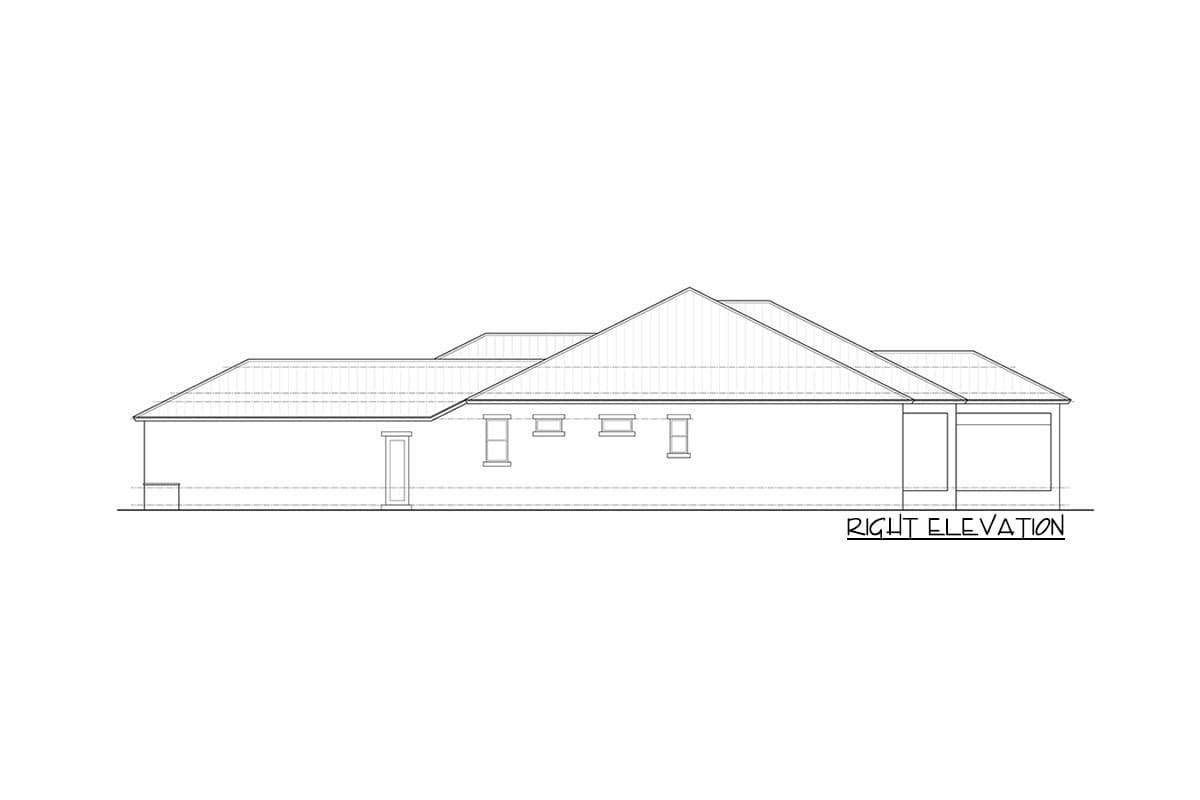

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
