Plan 72696DA

3 Bed Town Home Plan With Options

Heated S.F.

1,710

Beds

3

Baths

2.5

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

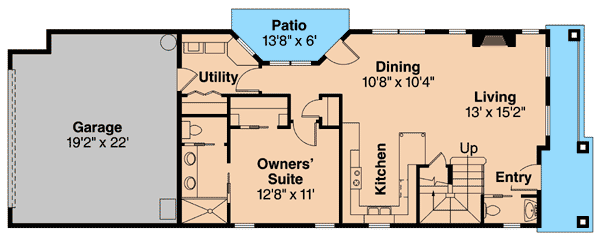

3 Bed Town Home Plan With Options - 72696DA floor plan - Main Level

2nd Floor

Reverse Floor Plan

3 Bed Town Home Plan With Options - 72696DA floor plan - 2nd Floor

Optional

Reverse Floor Plan

3 Bed Town Home Plan With Options - 72696DA floor plan - Optional

Plan Details

Bold stucco columns support the gently arched opening that frames the entry of this 3 bedroom town home plan. A railed covered porch spanning the rest of the front facade can comfortably fit outdoor furniture.
The foyer opens into the living room on the right. A small, conveniently placed bathroom hides behind the pocket door on the left side of the foyer. Stairs to the second floor are right around the corner.
A fireplace serves as a focal point in the living room, which is completely open to the dining area. Natural light washes in through high windows that flank the fireplace. The dining area is open to the C-shaped kitchen, and offers direct access to a covered patio.
The kitchen gives you wide peninsular counter section fronts on both the living and dining rooms. This area can be outfitted as an eating bar, and double as a buffet for larger scale entertaining. One alternate floor plan angles that counter in and seats the sink there, facing into the spacious gathering area. Another angles it in, but leaves the sink facing out a side window.
The owners' suite is at the rear of the ground floor, as is a pass-through utility room that connects with the 2-car garage.
Two more bedrooms, a roomy loft, and a two-section bathroom are upstairs. The loft overlooks the foyer, at the top of the second floor landing. This bright loft space makes an ideal location for a shared study and/or office space, and could easily house two or more desks and computers, plus an extensive library.
Related Plan: Get an alternate exterior with house plan 72695DA.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

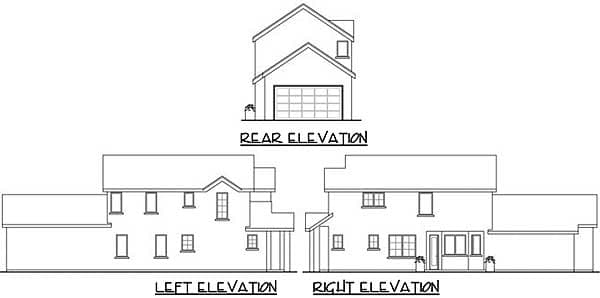

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,710 sq. ft.

1st Floor:

951 sq. ft.

2nd Floor:

759 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Crawl

Optional Foundations:

Basement, Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

23' 0"

Depth:

67' 6"

Max Ridge Height:

27' 9"

Garage

Type:

Attached

Area:

442 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch:

8 on 12

Architectural Style

Special Features

Master Suite - 1st Floor

Plan Collections
