3-Bed Vacation House Plan with 2-Story Windows in Back

Plan 80748PM

  • 1,696

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Windows soar two stories high in the back of this vacation house plan - ideal for a rear sloping lot - giving you incredible views and abundant natural light.
  • A large open air deck is in back giving you room to enjoy the outdoors. Access is gained from the master bedroom and the open living room.
  • The living room has skylights and has a 2-story ceiling. The fireplace is flanked by matching sets of sliding glass doors.
  • The kitchen shares views to the back. A large working island also has seating for four and the nook - with skylights - gives you another eating option.
  • The bedroom on this level has a walk-in closet and easy laundry access.
  • The upstairs gives you two bedrooms with a shared bath plus a roomy play/media area with views below and to the back.

Plan sets include the following:

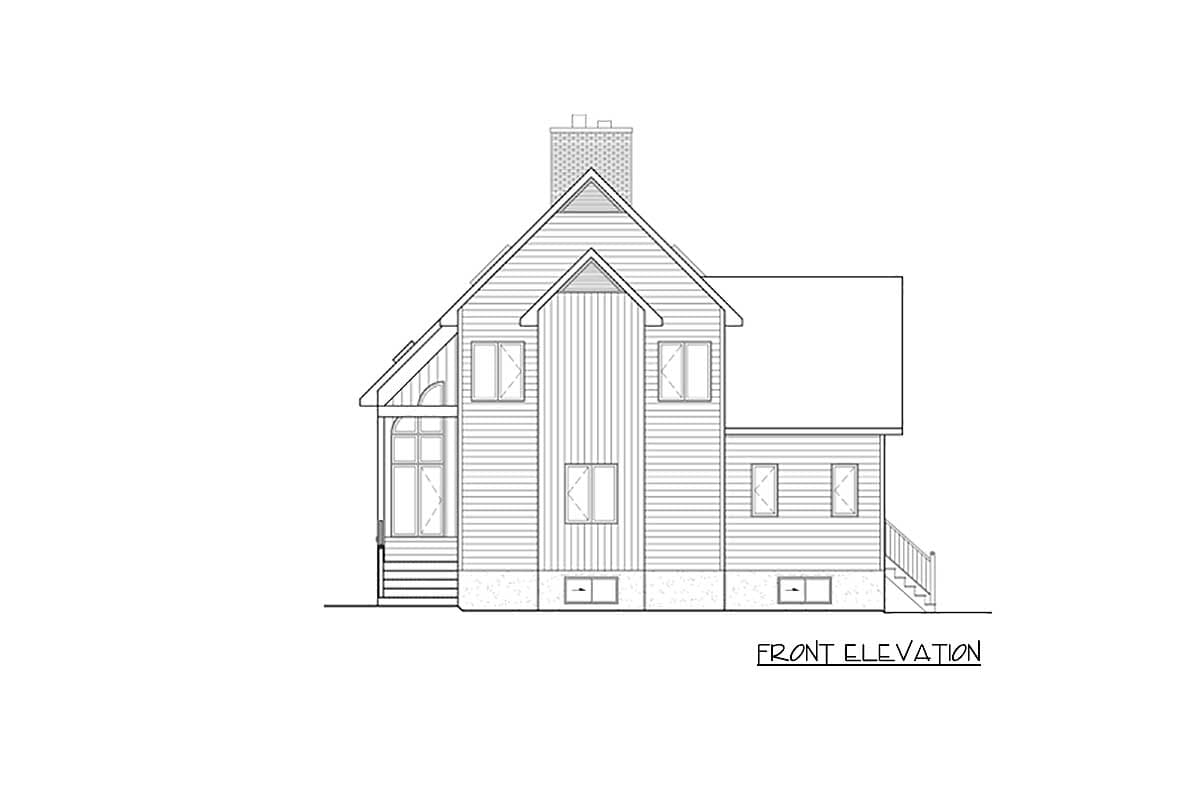

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

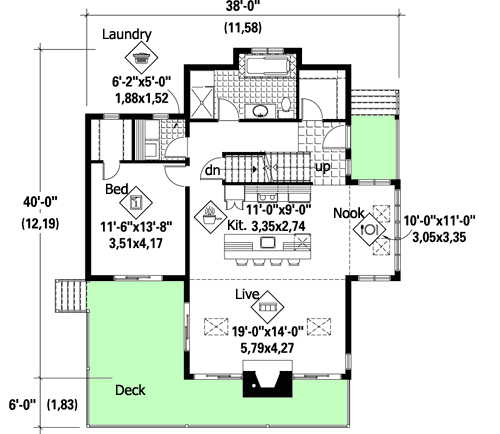

3-Bed Vacation House Plan with 2-Story Windows in Back - 80748PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

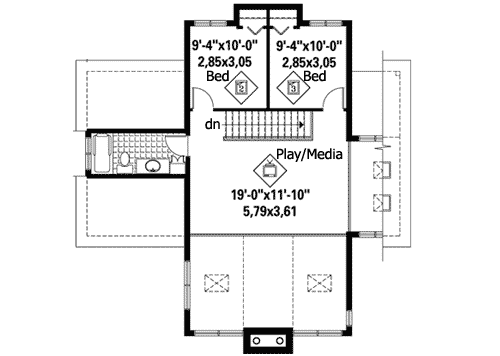

3-Bed Vacation House Plan with 2-Story Windows in Back - 80748PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,696 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • 2nd Floor: 608 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 37' 2"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bed Vacation House Plan with 2-Story Windows in Back

  • 1,696

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $912
  • 8 Sets $959
  • PDF - Single-Build $1,193
  • CAD - Single-Build $1,813
  • View all purchase option online

About This Plan

  • Windows soar two stories high in the back of this vacation house plan - ideal for a rear sloping lot - giving you incredible views and abundant natural light.
  • A large open air deck is in back giving you room to enjoy the outdoors. Access is gained from the master bedroom and the open living room.
  • The living room has skylights and has a 2-story ceiling. The fireplace is flanked by matching sets of sliding glass doors.
  • The kitchen shares views to the back. A large working island also has seating for four and the nook - with skylights - gives you another eating option.
  • The bedroom on this level has a walk-in closet and easy laundry access.
  • The upstairs gives you two bedrooms with a shared bath plus a roomy play/media area with views below and to the back.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,696 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • 2nd Floor: 608 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 37' 2"

Roof

  • Framing Type: Truss
