Plan 68630VR 3 Bedroom Modern House Plan with 3rd Floor Mezzanine

3 Bedroom Modern House Plan with 3rd Floor Mezzanine

Plan 68630VR

  • 2,030

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Stories

  • The flat roof and cube shape lend a modern air to this minimalist house plan.
  • The main living space is on the first level, including an eat-in kitchen and attached living room, a powder bath, and a laundry / mud room.
  • The bedrooms can be found on the second level. The forward-facing master includes a balcony, walk-in closet, and 4-fixture bathroom.
  • The second bedroom neighbors a full bath, and an office nook near the stairs provides space for a desk.
  • The third floor boasts a third bedroom, a bonus room with a wet bar and full bath, along with a large scenic mezzanine for stargazing.
  • Related Plans: Move upper mezzanine to the front with 2-bed house plan 68589VR (1,834 sq. ft.) and get a smaller version with house plan 68637VR (1,465 sq. ft.)..

This plan set has the following details:

Cover Page

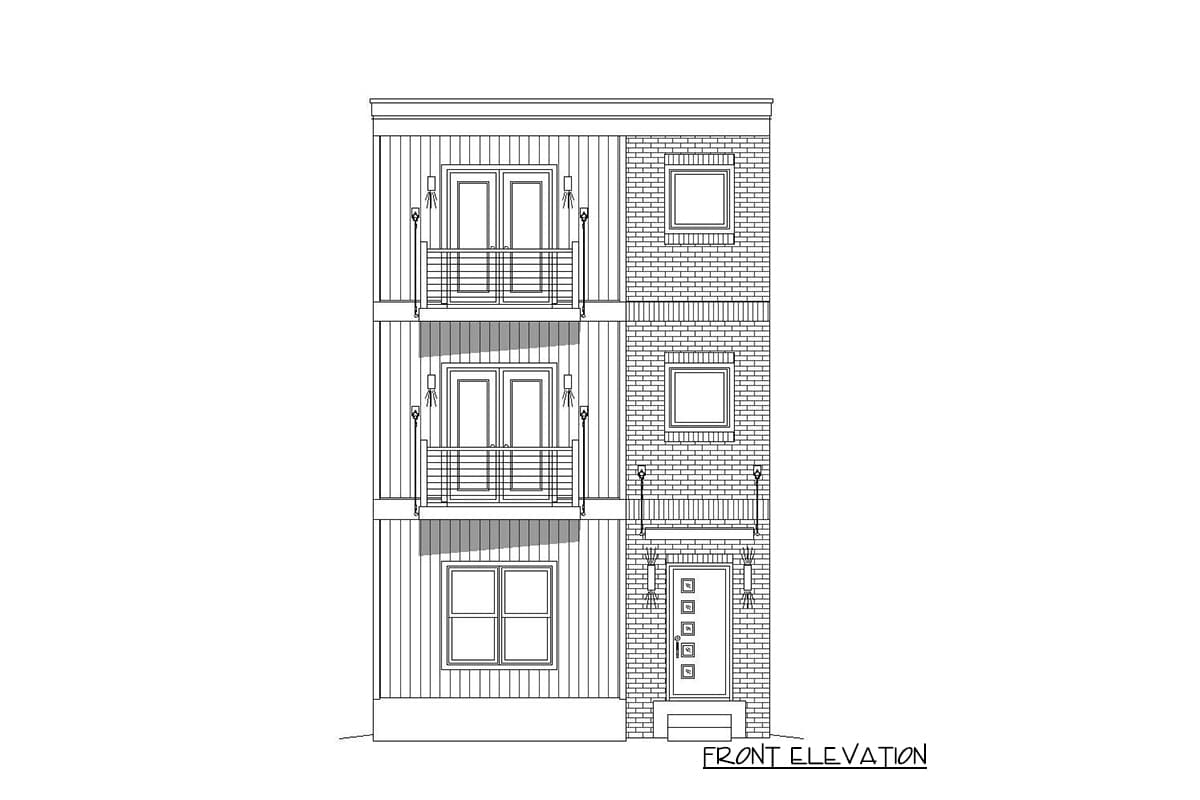

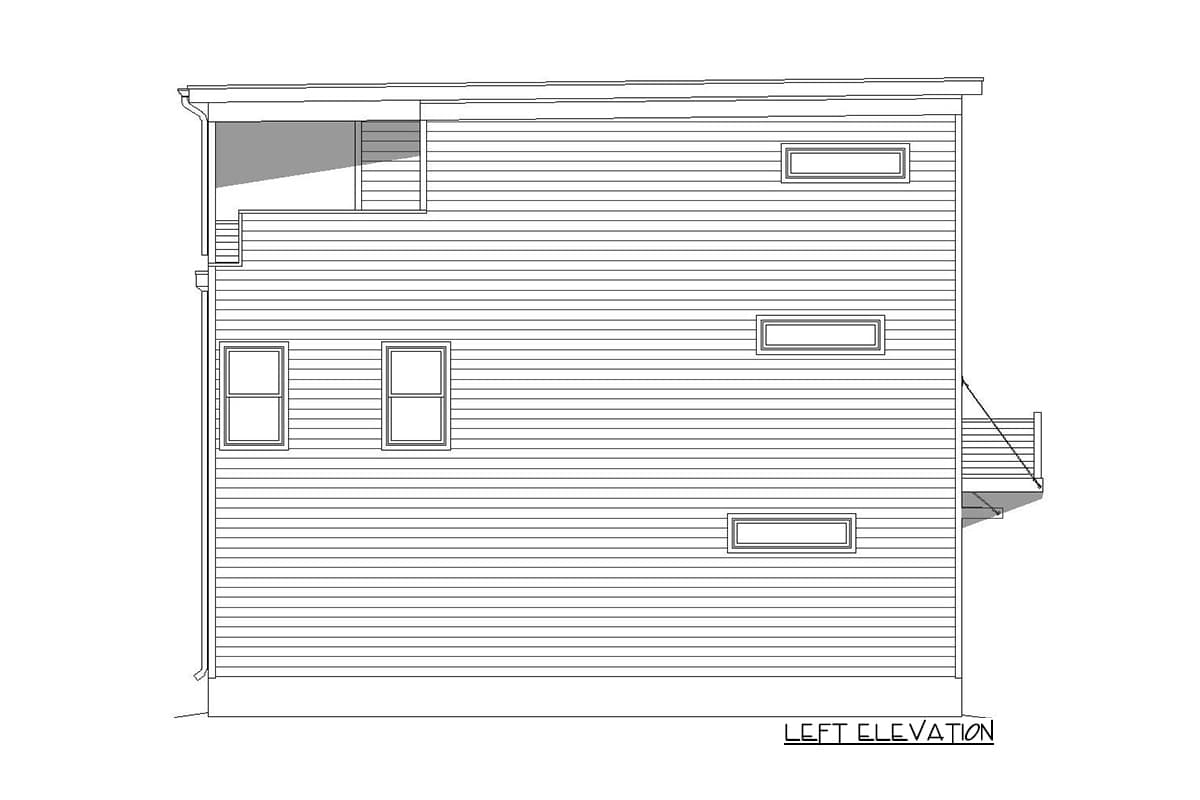

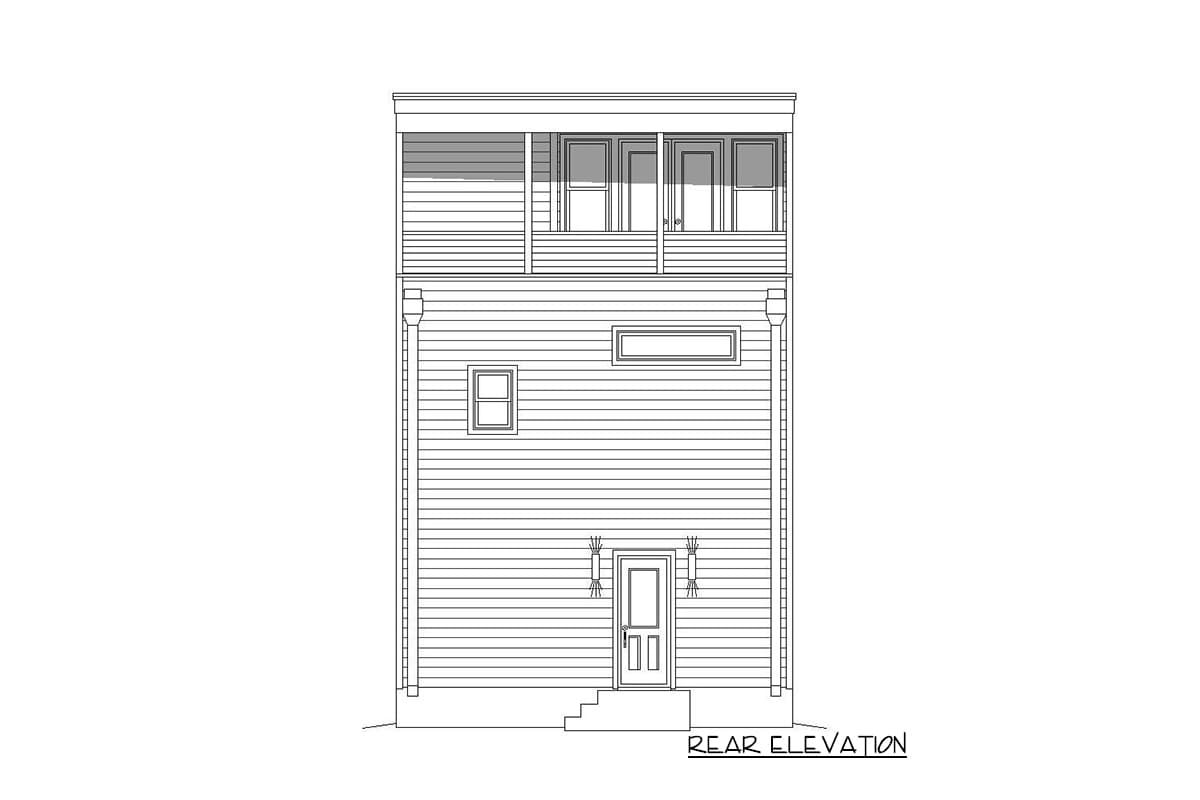

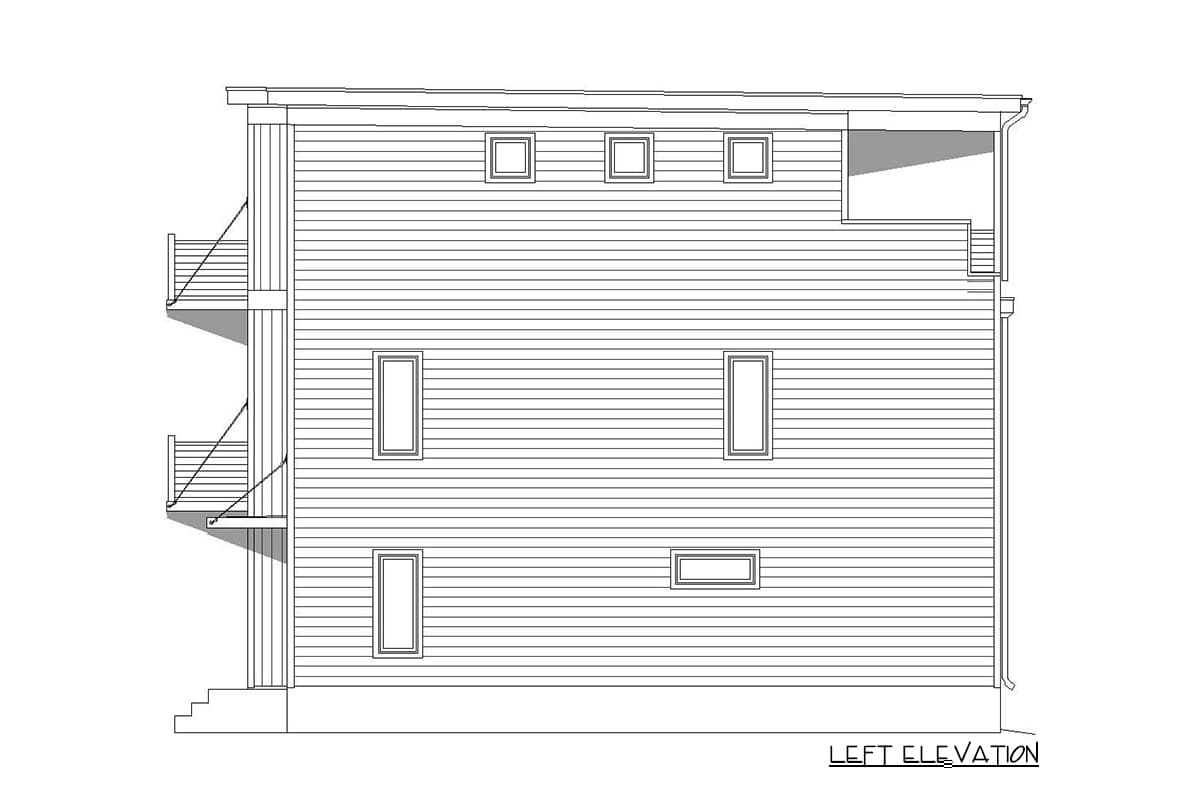

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

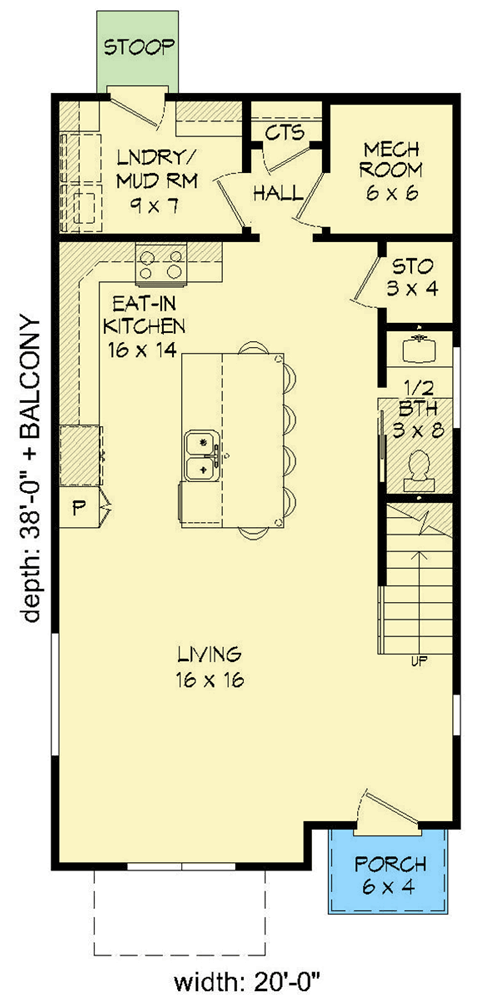

3 Bedroom Modern House Plan with 3rd Floor Mezzanine - 68630VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

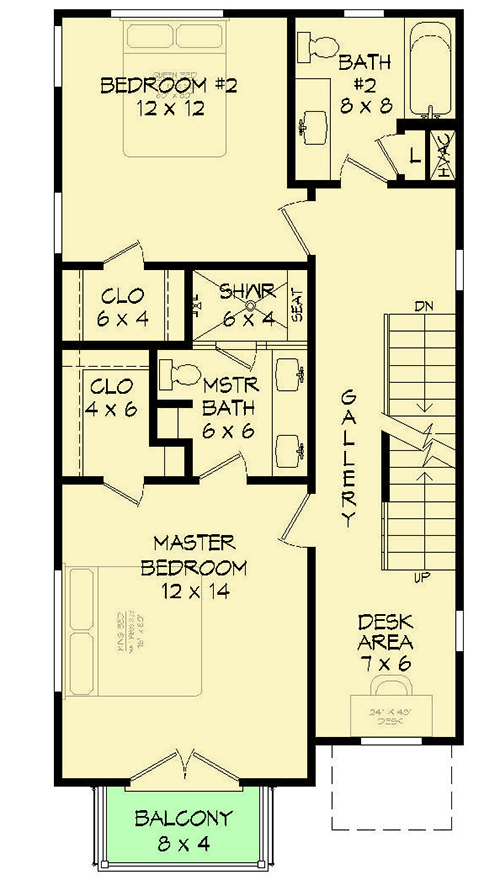

3 Bedroom Modern House Plan with 3rd Floor Mezzanine - 68630VR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

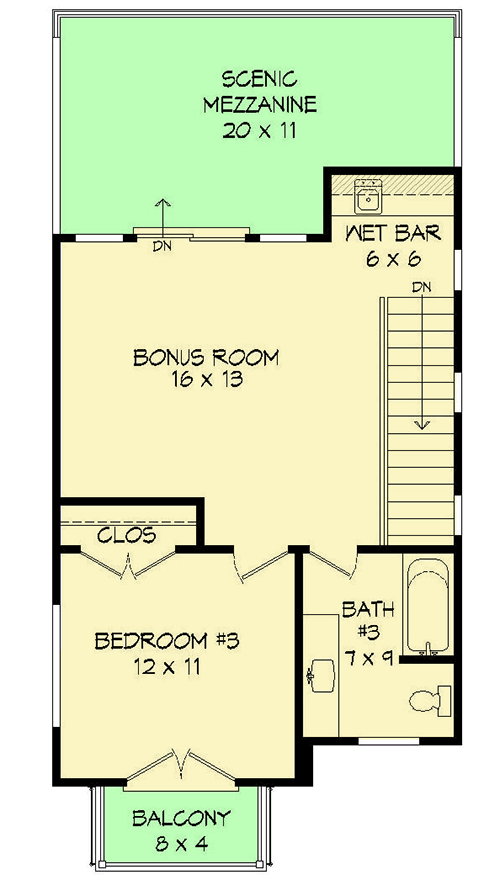

3 Bedroom Modern House Plan with 3rd Floor Mezzanine - 68630VR floor plan - 3rd Floor

Plan details

3 Bedroom Modern House Plan with 3rd Floor Mezzanine

  • 2,030

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets $1,360
  • 5 Sets + PDF $1,411
  • CAD + PDF - Single-Build $1,745
  • View all purchase option online

About This Plan

  • The flat roof and cube shape lend a modern air to this minimalist house plan.
  • The main living space is on the first level, including an eat-in kitchen and attached living room, a powder bath, and a laundry / mud room.
  • The bedrooms can be found on the second level. The forward-facing master includes a balcony, walk-in closet, and 4-fixture bathroom.
  • The second bedroom neighbors a full bath, and an office nook near the stairs provides space for a desk.
  • The third floor boasts a third bedroom, a bonus room with a wet bar and full bath, along with a large scenic mezzanine for stargazing.
  • Related Plans: Move upper mezzanine to the front with 2-bed house plan 68589VR (1,834 sq. ft.) and get a smaller version with house plan 68637VR (1,465 sq. ft.)..

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,030 sq. ft.
  • 1st Floor: 749 sq. ft.
  • 2nd Floor: 749 sq. ft.
  • 3rd Floor: 532 sq. ft.
  • Balcony / Veranda: 94 sq. ft.
  • Deck: 193 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 38' 0"
  • Max ridge height: 30' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
