Plan 59138ND

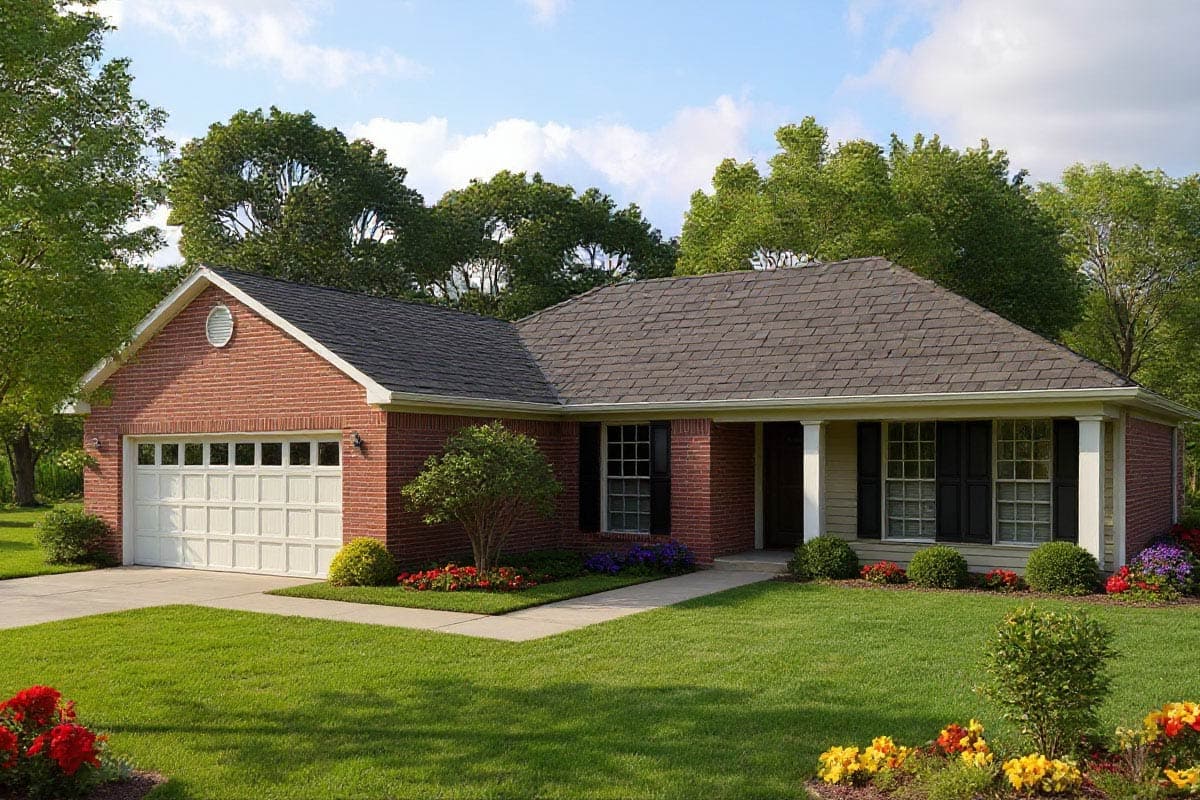

3 Bedroom Traditional House Plan with C-Shaped Kitchen - 1210 Sq Ft

Heated S.F.
1,210
Beds
3
Baths
2
Stories
1
Cars
2

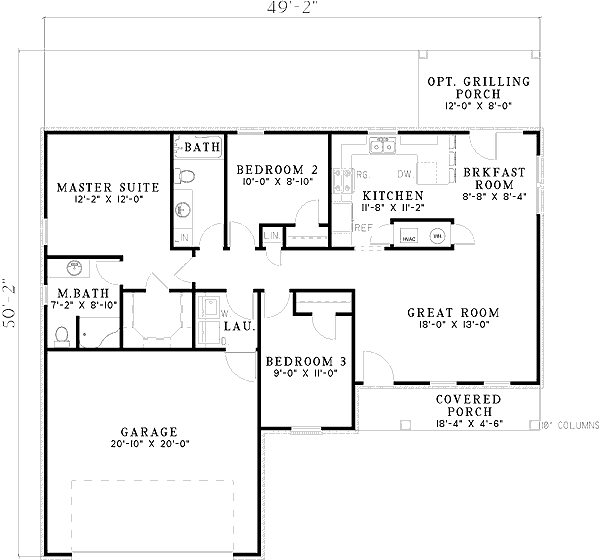

Floor Plan

Plan 59138ND

Main Level
Main Level

Plan 59138ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59138ND: 3 Bedroom Traditional House Plan with C-Shaped Kitchen - 1210 Sq Ft - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Traditional stylings make this home plan a neighborhood favorite.
  • Boxed columns on both the front and rear grilling-porch, as well as, window shutters give this design a bit of country appeal.
  • This compact floor plan has three bedrooms and two full bathrooms giving the entire family plenty of space.
  • The breakfast room and spacious kitchen share a bar with extra seating - making a handy buffet while entertaining friends and family.
  • Related Plans: Get an alternate version with house plans 59059ND (985 sq. ft.), 59137ND (1,023 sq. ft.), 59303ND (1,250 sq. ft.), 59780ND (1,356 sq. ft.), and 59782ND (1,356 sq. ft.).

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,210 sq. ft.

1st Floor

1,210 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 2"

Depth

50' 2"

Max Ridge Height

17' 6"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,210 sq. ft.

1st Floor

1,210 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 2"

Depth

50' 2"

Max Ridge Height

17' 6"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
