Plan 42511DB
3-Family House Plan With Private Covered Porches
Heated S.F.
5,226
Units
3
Width
120'
Depth
62'
Cars
3
What's Included
Floor Plan
PRINT PLANS

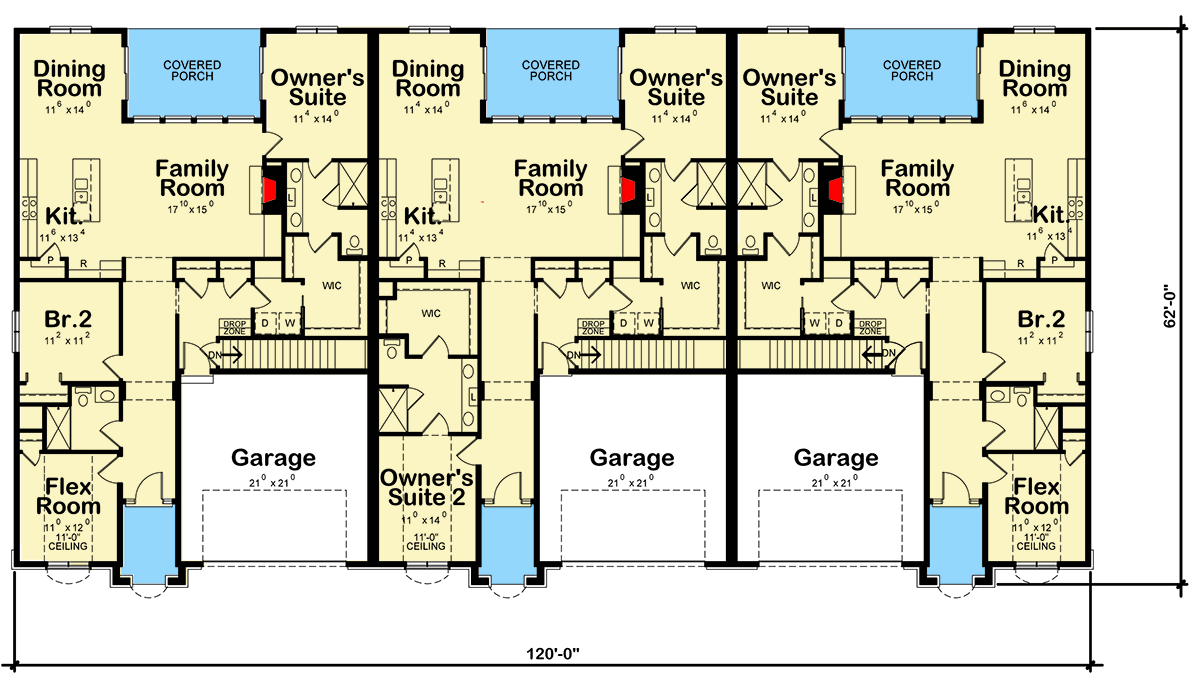

Main Level
Reverse Floor Plan
3-Family House Plan With Private Covered Porches - 42511DB floor plan - Main Level

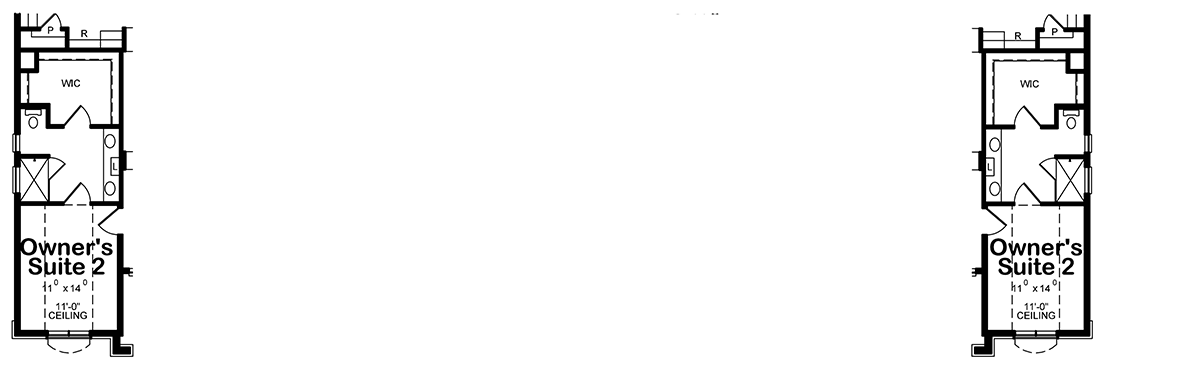

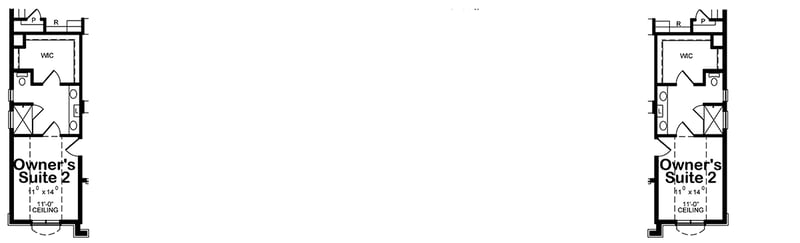

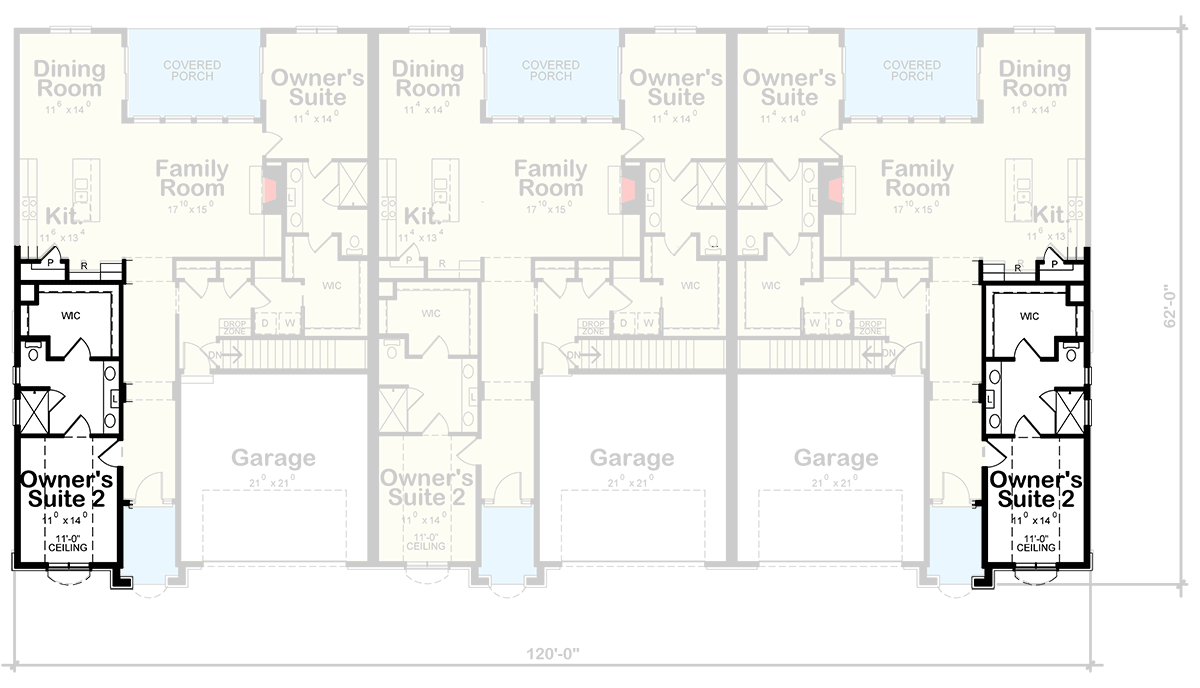

Optional Owner Suite
Reverse Floor Plan
3-Family House Plan With Private Covered Porches - 42511DB floor plan - Optional Owner Suite
Plan Details
  • Each unit in this 3-family house plan gives you 1,742 square feet of heated living space.
  • The flex room in front of the end units can be used as a bed or an office. The center unit's front room gives you a second master suite.
  • Covered porches in back are cleverly placed between the dining room and the owner's suite giving everyone privacy.
Unit A
1,742 Sq. Ft.
1742 Sq. Ft. 1st Floor
2 or 3 Beds
2 Full Baths
1 Vehicle
Attached
466 Sq. Ft.
40' w 62' d 27' 6" h
Unit B
1,742 Sq. Ft.
1742 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
466 Sq. Ft.
40' w 62' d 27' 6" h
Unit C
1,742 Sq. Ft.
1742 Sq. Ft. 1st Floor
2 or 3 Beds
2 Full Baths
1 Vehicle
Attached
466 Sq. Ft.
40' w 62' d 27' 6" h
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Family House Plan With Private Covered Porches

  • 5,226

    Heated s.f.

  • 3

    Units

  • 120'

    Width

  • 62'

    Depth

Floor Plan

  • Main Level

  • Optional Owner Suite

Plan Details

Square Footage Breakdown

  • Total: 5,226 sq. ft.
  • 1st Floor: 5,226 sq. ft.

Dimensions

  • Width: 120' 0"
  • Depth: 62' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 6, 7, or 8
  • Full bathrooms: 6

Garage

  • Type: Attached
  • Area: 1398 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

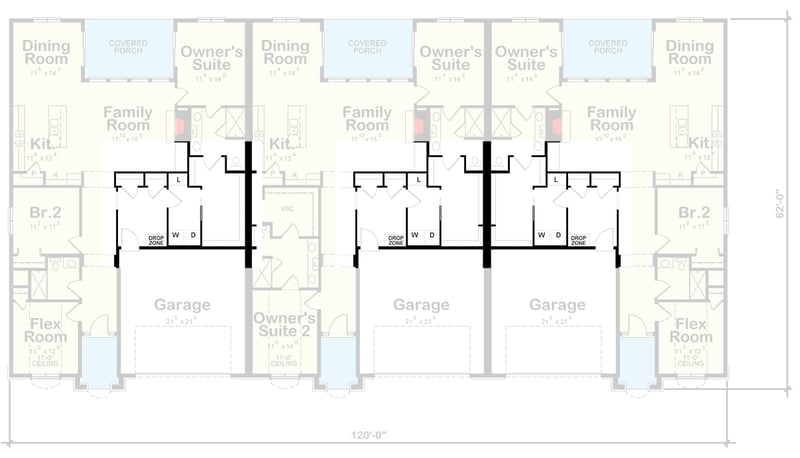

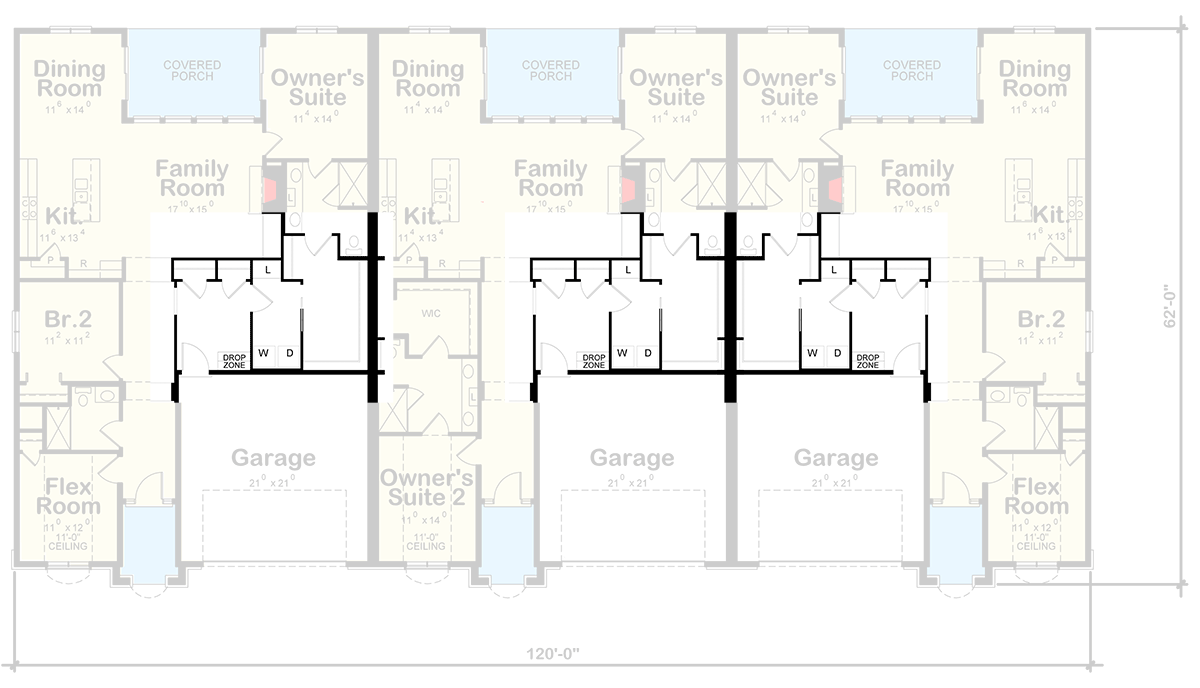

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
