Plan 68699VR 3-level Garage Apartment with 2 Drive-through Bays

2,528 2 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-level Garage Apartment with 2 Drive-through Bays

Plan 68699VR

  • 2,528

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

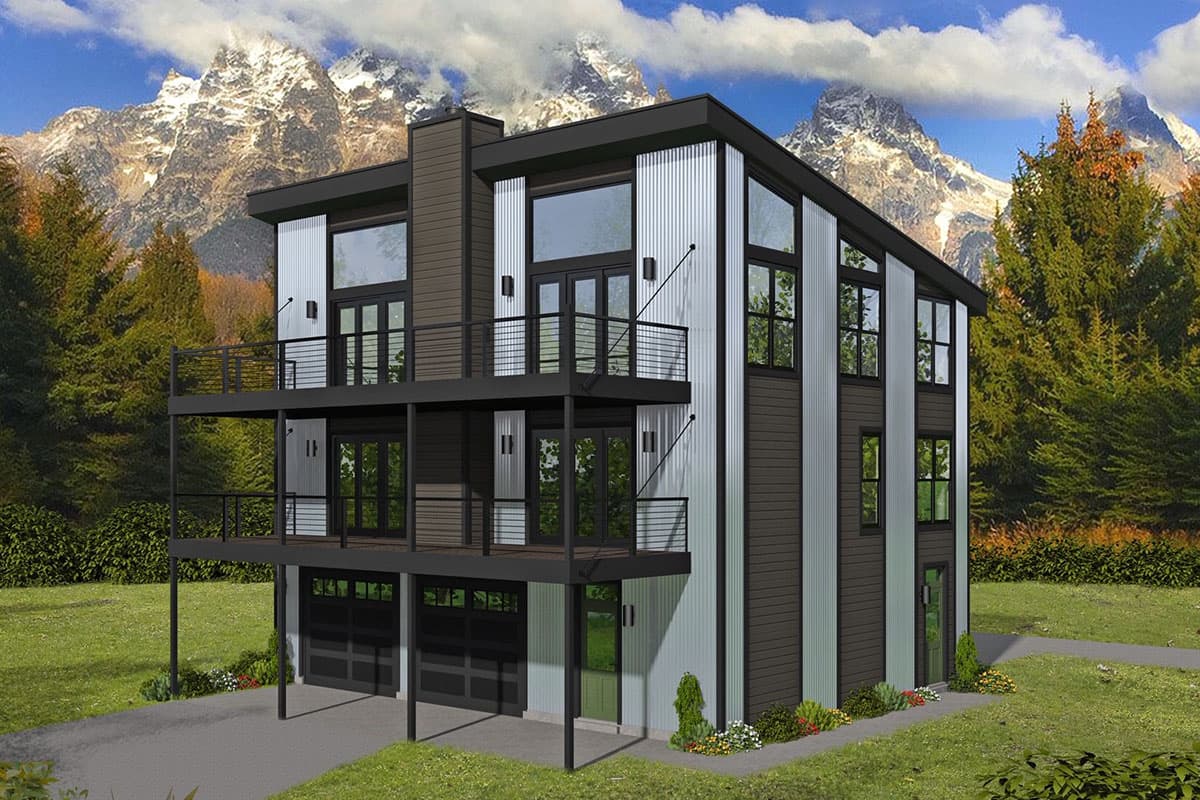

  • This modern garage apartment plan gives you two living levels above the ground floor parking.
  • On the ground level, there are two garage bays with drive-through access. Stairs go to the second floor where a covered deck extends over the front and is accessible through sliding doors in the eating area and the living room. The third floor has a balcony above the deck accessible in the same manner.
  • The second and third floors have identical layouts and have their own kitchens, living rooms, bedrooms and bathrooms.
  • Related Plan: Eliminate the top floor with house plan 68648VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

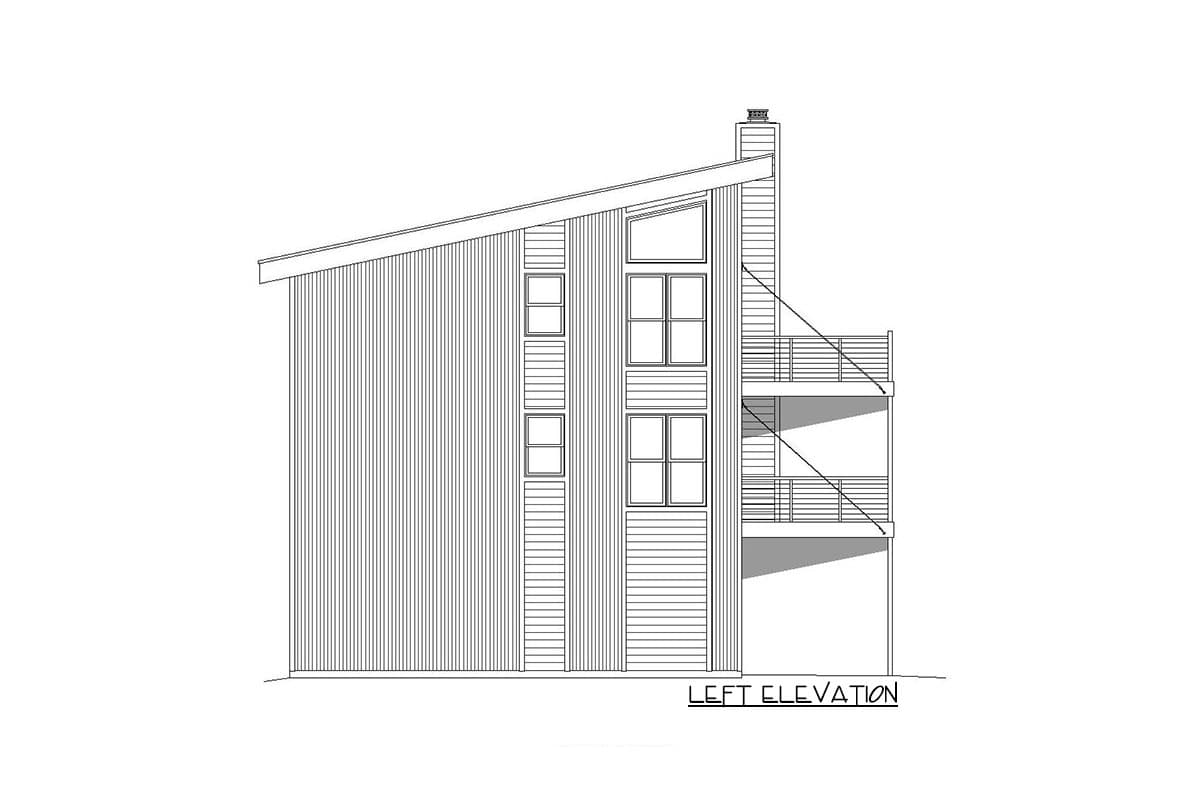

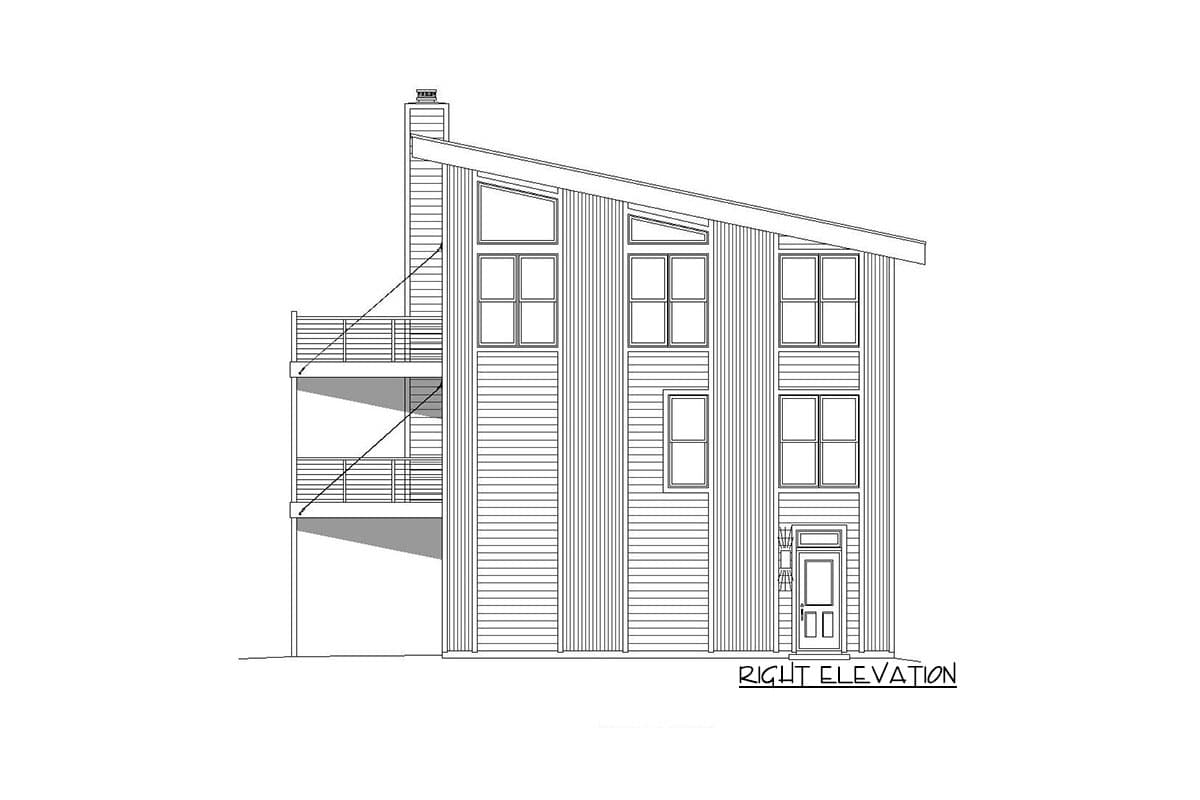

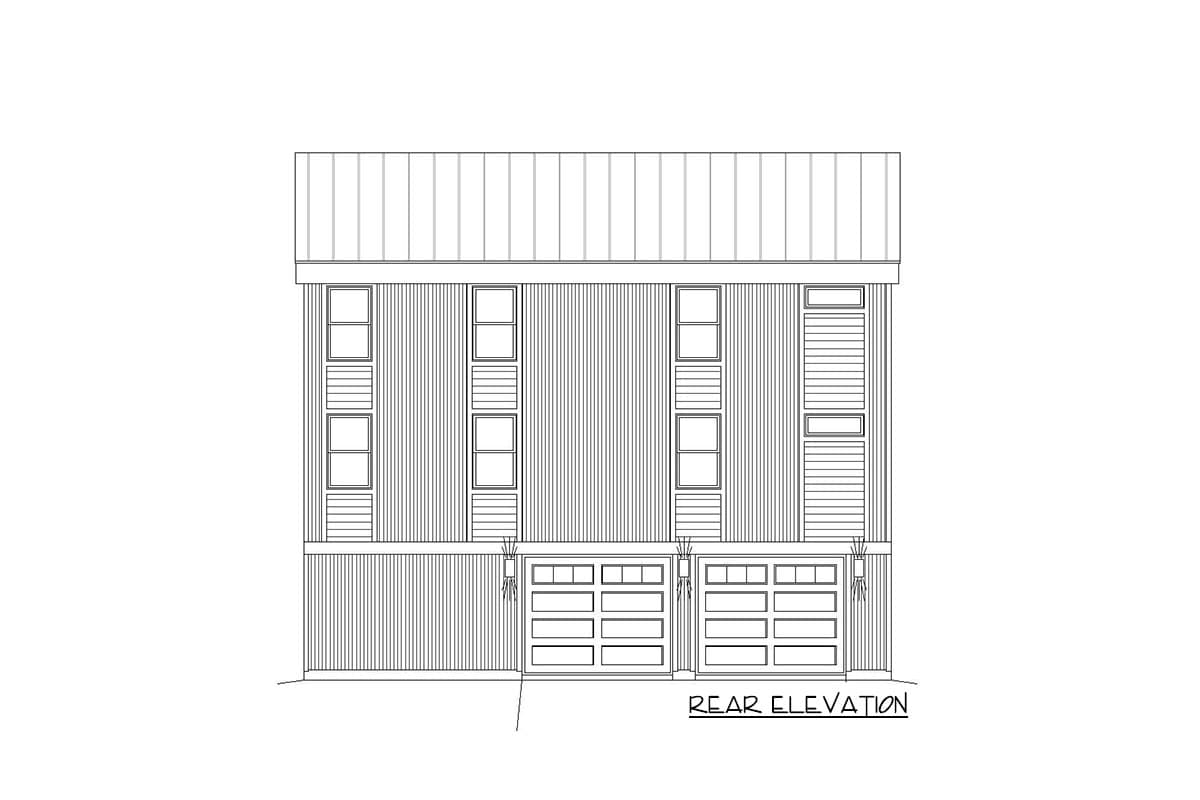

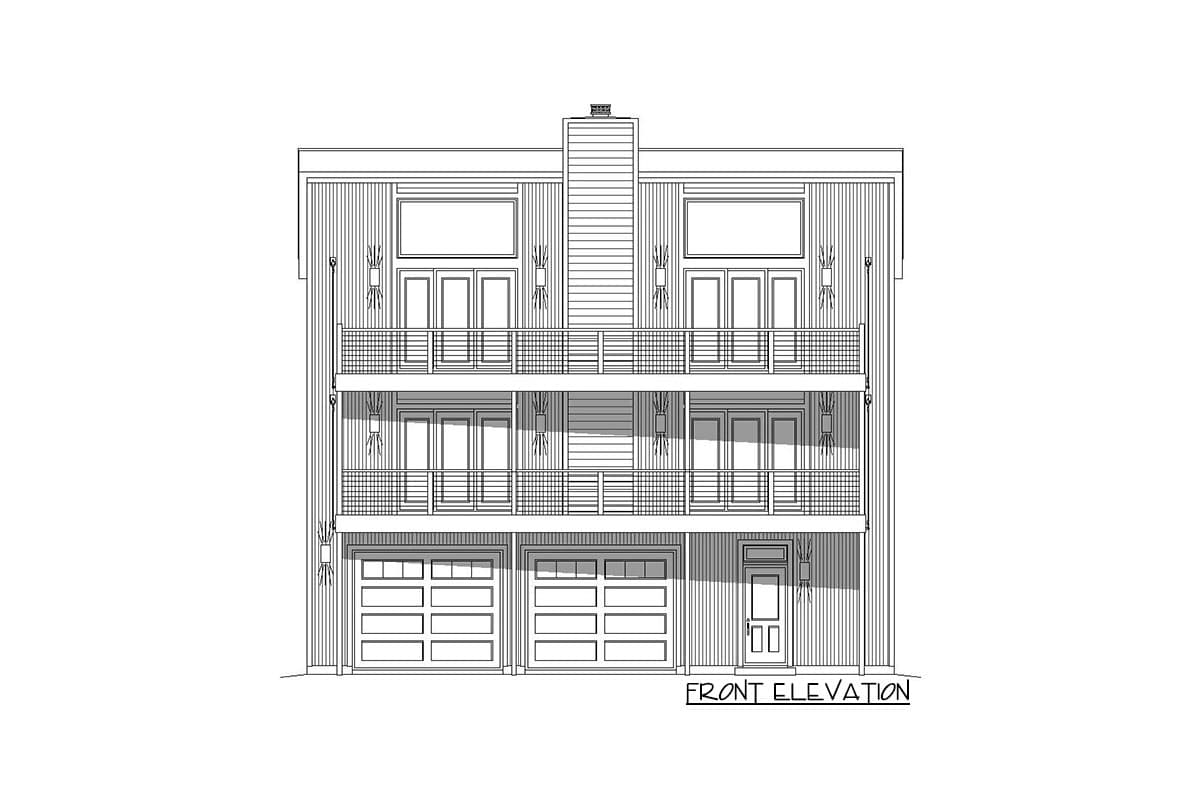

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

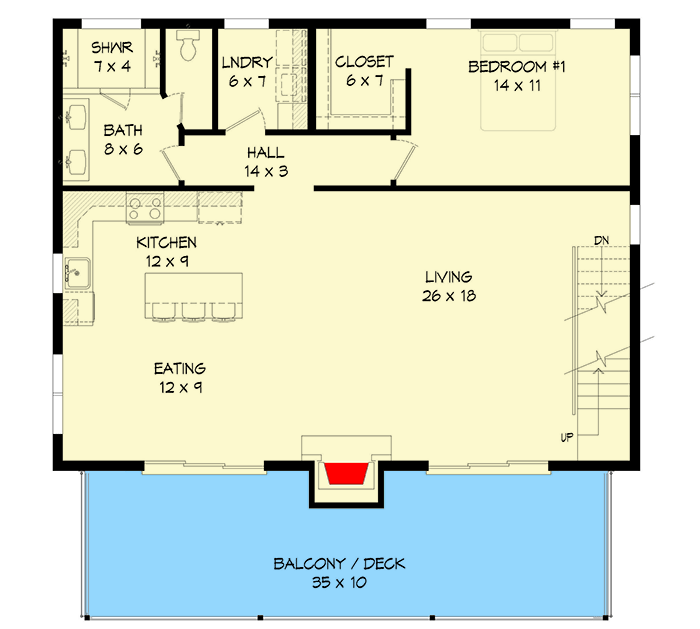

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-level Garage Apartment with 2 Drive-through Bays - 68699VR floor plan - 2nd Floor

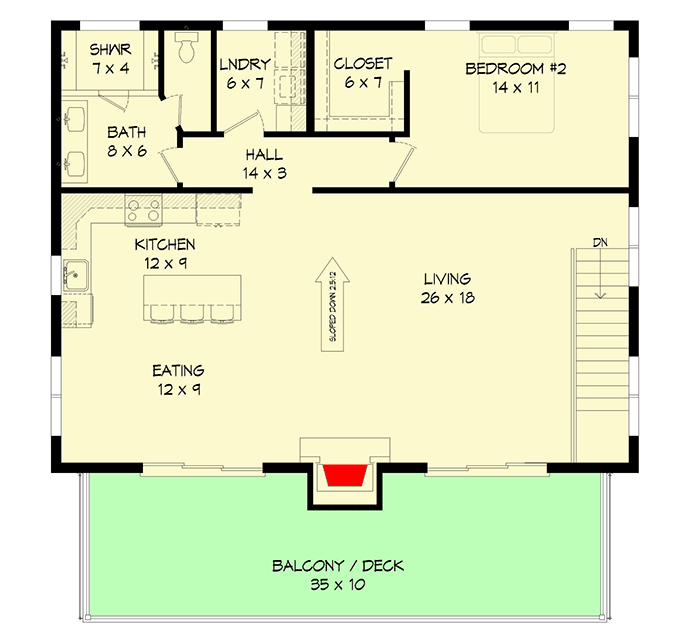

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-level Garage Apartment with 2 Drive-through Bays - 68699VR floor plan - 3rd Floor

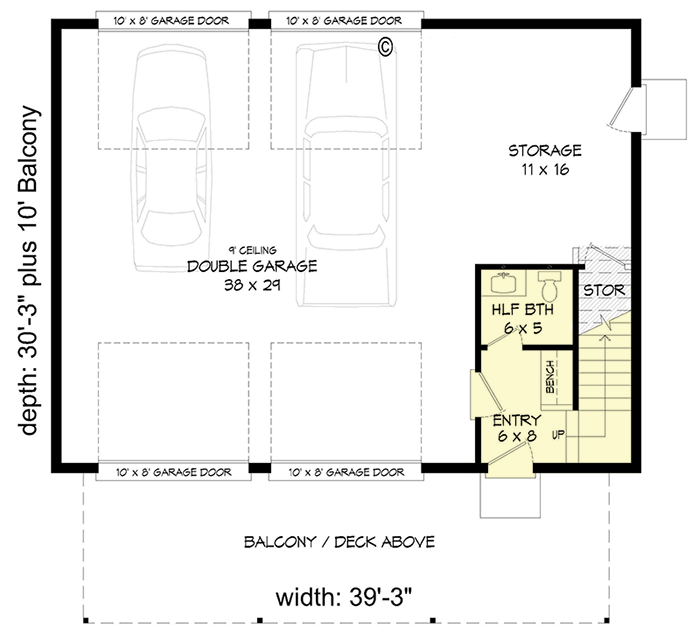

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-level Garage Apartment with 2 Drive-through Bays - 68699VR floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,528 sq. ft.
  • 1st Floor: 154 sq. ft.
  • 2nd Floor: 1,187 sq. ft.
  • 3rd Floor: 1,187 sq. ft.
  • Balcony / Veranda: 680 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 3"
  • Depth: 40' 3"
  • Max ridge height: 32' 3"

Garage

  • Type: Drive Under
  • Area: 1033 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 2.5 on 12

Architectural Style

Special features

3-level Garage Apartment with 2 Drive-through Bays

  • 2,528

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,475
  • 5 Sets $1,560
  • 5 Sets + PDF $1,702
  • CAD + PDF - Single-Build $2,025
  • View all purchase option online

About This Plan

  • This modern garage apartment plan gives you two living levels above the ground floor parking.
  • On the ground level, there are two garage bays with drive-through access. Stairs go to the second floor where a covered deck extends over the front and is accessible through sliding doors in the eating area and the living room. The third floor has a balcony above the deck accessible in the same manner.
  • The second and third floors have identical layouts and have their own kitchens, living rooms, bedrooms and bathrooms.
  • Related Plan: Eliminate the top floor with house plan 68648VR.

Floor Plans

  • 2nd Floor

  • 3rd Floor

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,528 sq. ft.
  • 1st Floor: 154 sq. ft.
  • 2nd Floor: 1,187 sq. ft.
  • 3rd Floor: 1,187 sq. ft.
  • Balcony / Veranda: 680 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 3"
  • Depth: 40' 3"
  • Max ridge height: 32' 3"

Garage

  • Type: Drive Under
  • Area: 1033 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 2.5 on 12
Plan 68699VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68699VR
|
