3-Story Mountain House Plan with 1-Car Garage - 2669 Sq Ft

Plan 680226VR

  • 2,669

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 3

    Stories

  • 1

    Cars

  • A timber-frame truss lends character to the front porch of this 3-story, mountain house plan with large covered deck.
  • The window-filled interior features a two-story great room with a vaulted ceiling. The adjoining eat-in kitchen includes a multi-purpose island and access to the dining area which has access to the deck and covered porch.
  • The master bedroom is located on the main floor as is laundry for your convenience. Two more bedrooms are on the ground floor along with a family room and the garage.
  • A third story loft overlooks the great room below.
  • Related Plan: Get an alternate version with house plan 68856VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

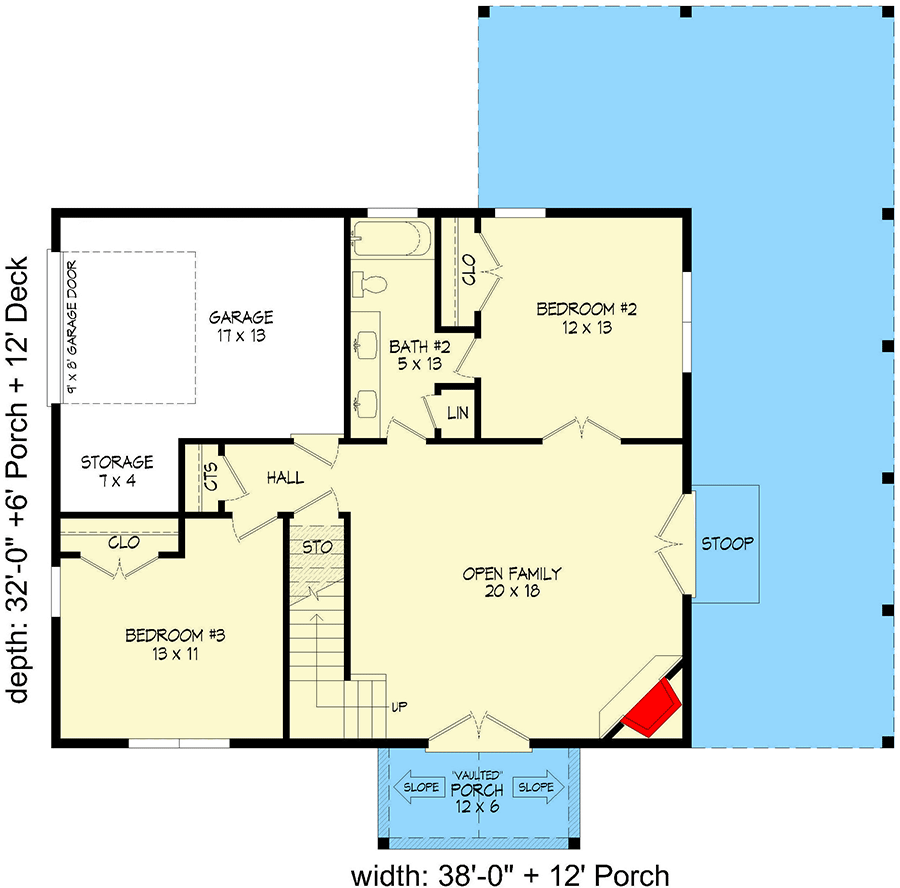

3-Story Mountain House Plan with 1-Car Garage - 2669 Sq Ft - 680226VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

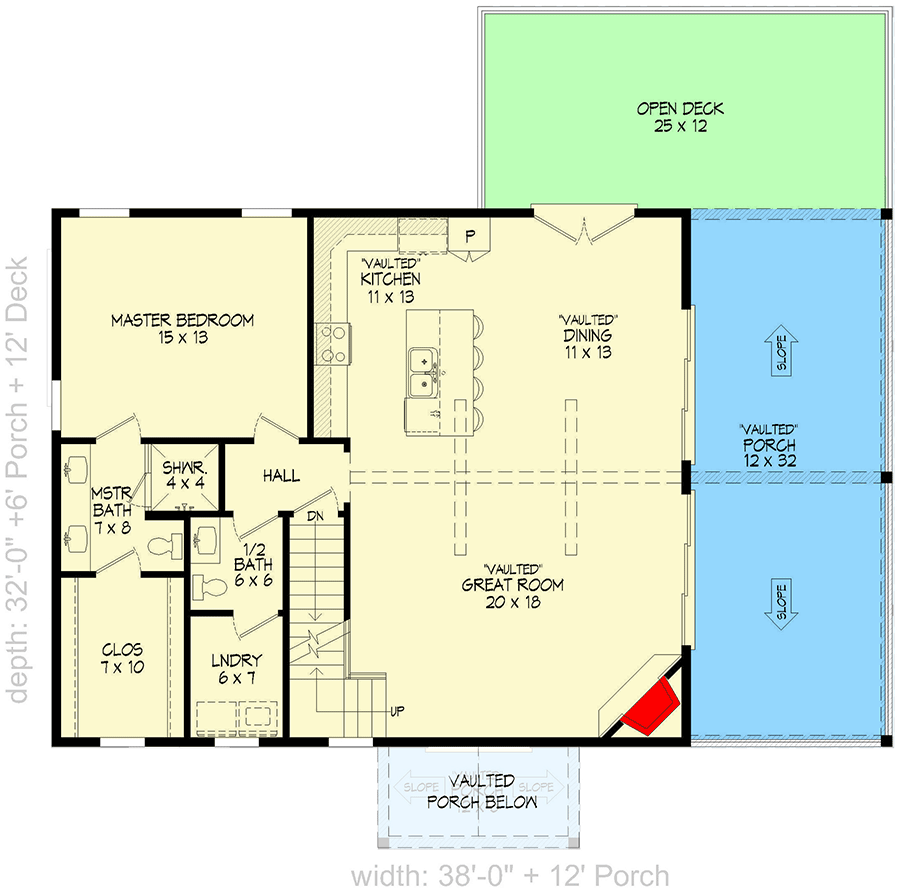

3-Story Mountain House Plan with 1-Car Garage - 2669 Sq Ft - 680226VR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

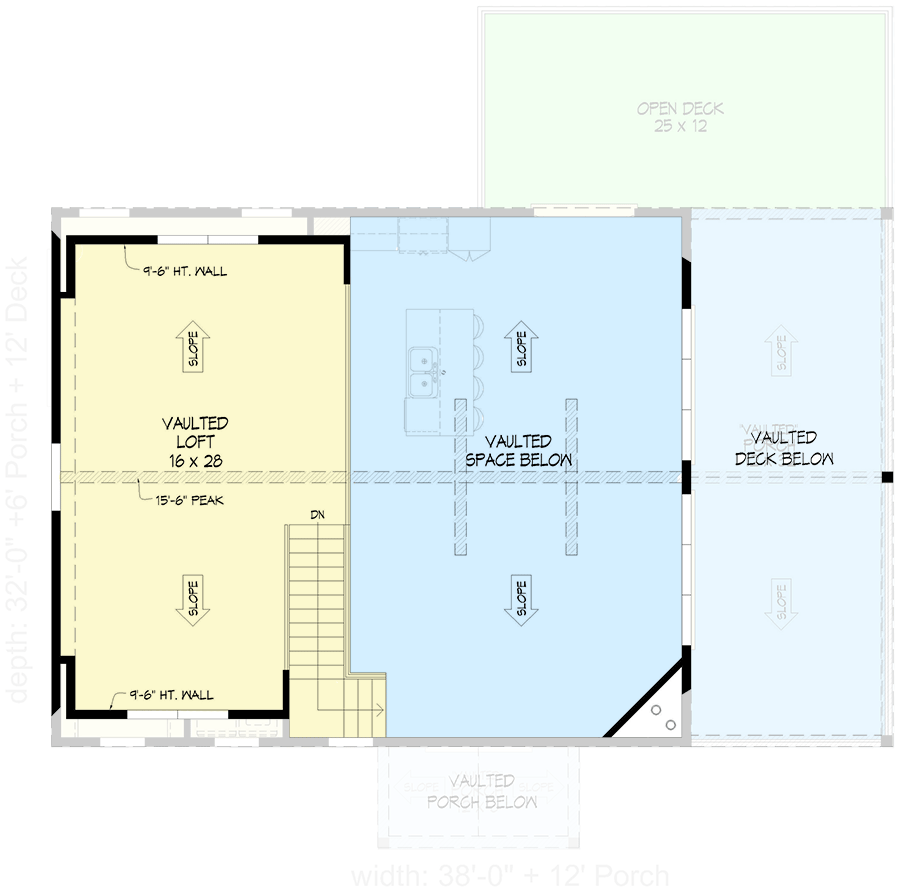

3-Story Mountain House Plan with 1-Car Garage - 2669 Sq Ft - 680226VR floor plan - 3rd Floor

3-Story Mountain House Plan with 1-Car Garage - 2669 Sq Ft

  • 2,669

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 3

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,669 sq. ft.
  • 1st Floor: 949 sq. ft.
  • 2nd Floor: 1,216 sq. ft.
  • 3rd Floor: 504 sq. ft.
  • Covered Deck: 384 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 37' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 267 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Third Floor 15' 6"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
