3700 Square Foot New American House Plan with Second Floor Master Suite with Deck
Heated S.F.
3,724
Beds
5
Baths
4.5
Stories
2
Cars
4
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

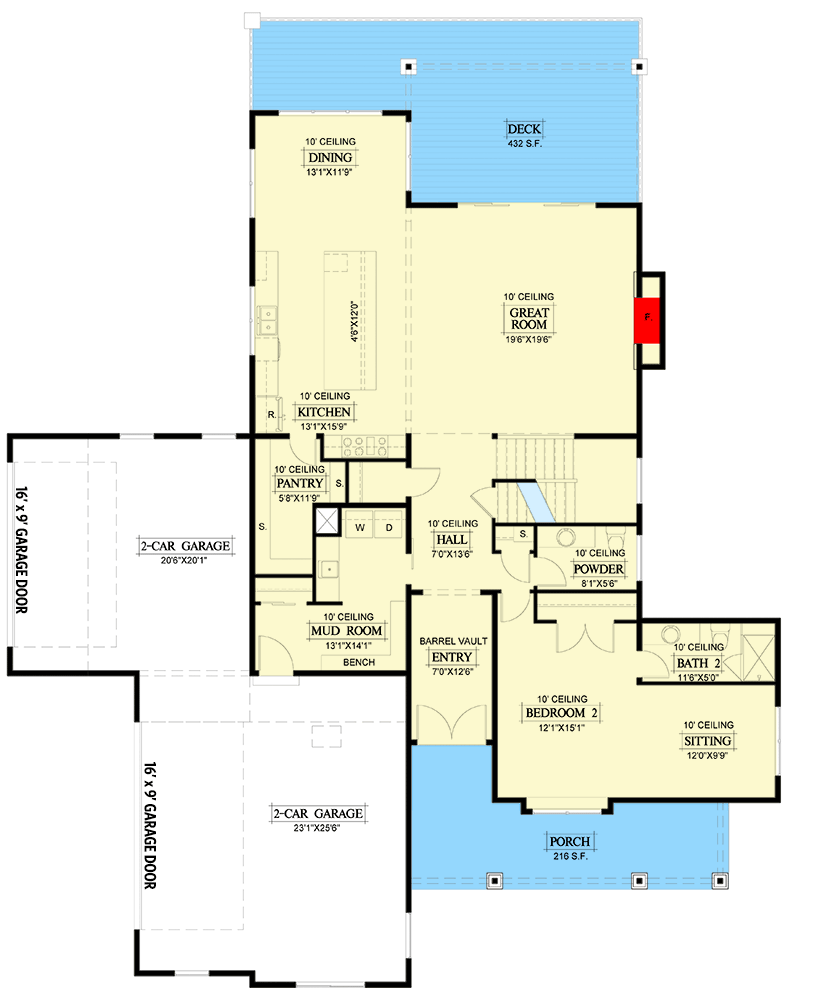

3700 Square Foot New American House Plan with Second Floor Master Suite with Deck - 365046PED floor plan - Main Level
2nd Floor
Reverse Floor Plan

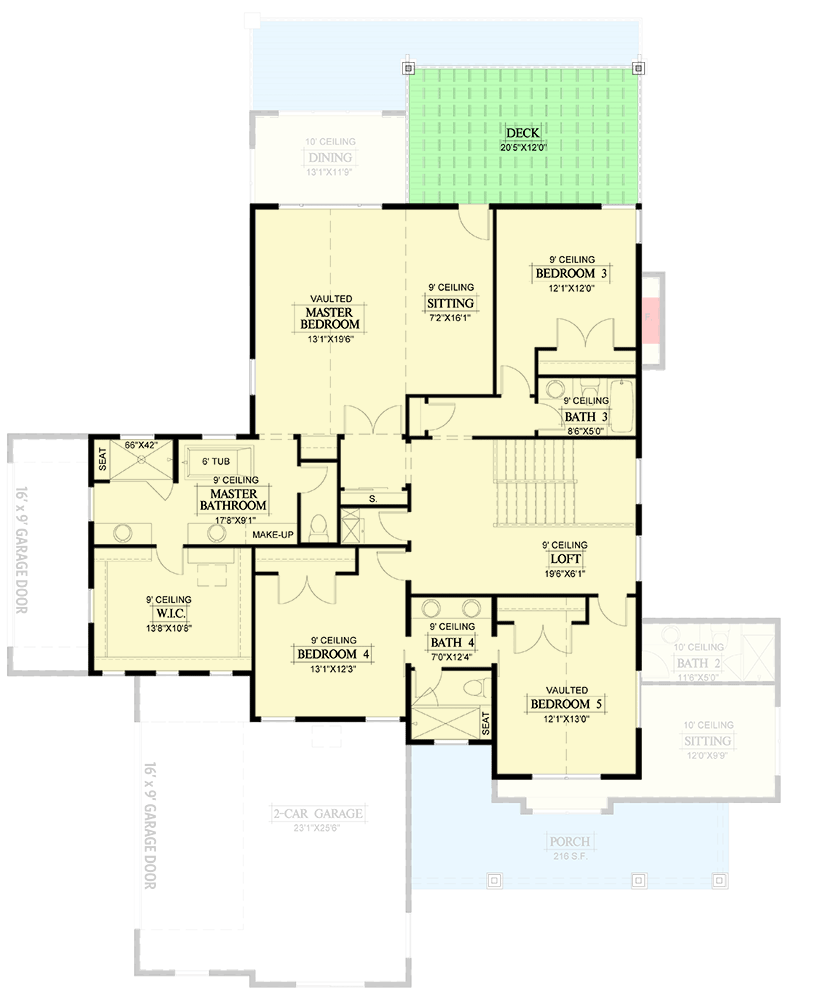

3700 Square Foot New American House Plan with Second Floor Master Suite with Deck - 365046PED floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

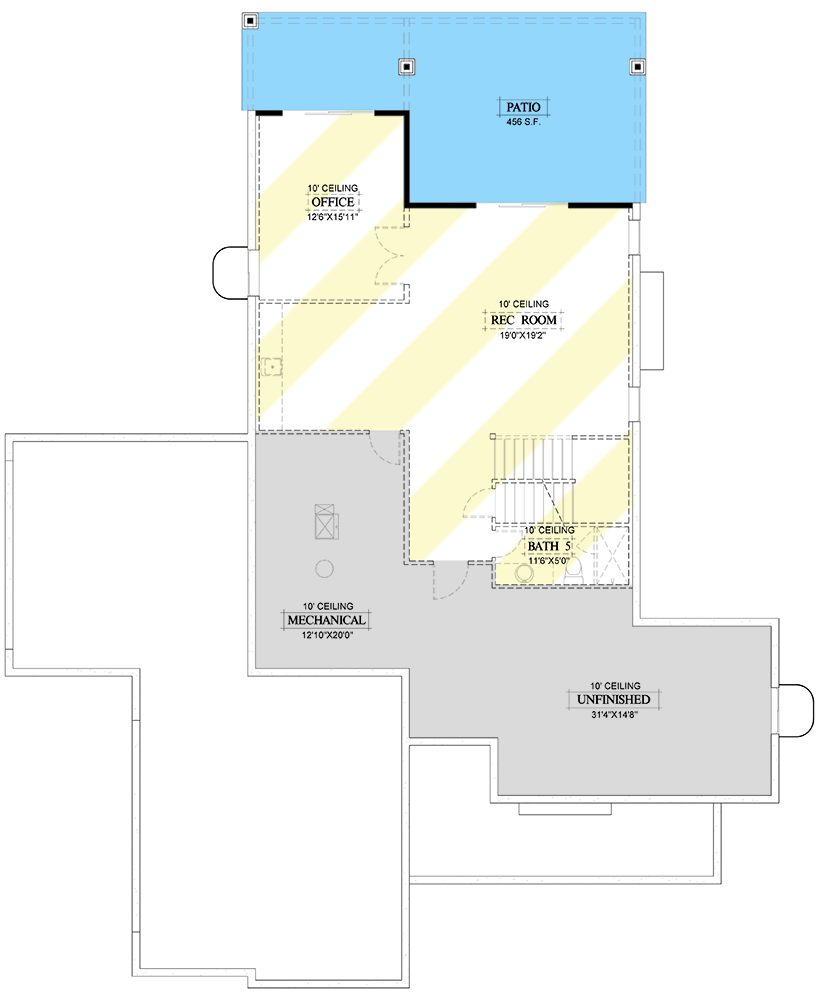

3700 Square Foot New American House Plan with Second Floor Master Suite with Deck - 365046PED floor plan - Optional Lower Level
Plan Details
  • This 5 bed, 4.5 bath New American-style house plan gives you 3,724 square feet of 2-story living with parking  for 4-cars (1,117 square feet) and lower level expansion.
  • One bedroom is on the main floor - a guest suite - has a private bathroom and living room.
  • The bulk of the main floor features a generously sized kitchen with a 12' island and walk-in butlers pantry that is open to a dining room and a great room with fireplace and sliding door access to a large rear deck.
  • A second deck is located upstairs off the master suite sitting room. Three more beds - plus a loft lounge at the top of the stairs - complete the second floor.
What's Included
  • Cover sheet with general information
  • Detailed floor plans for each floor

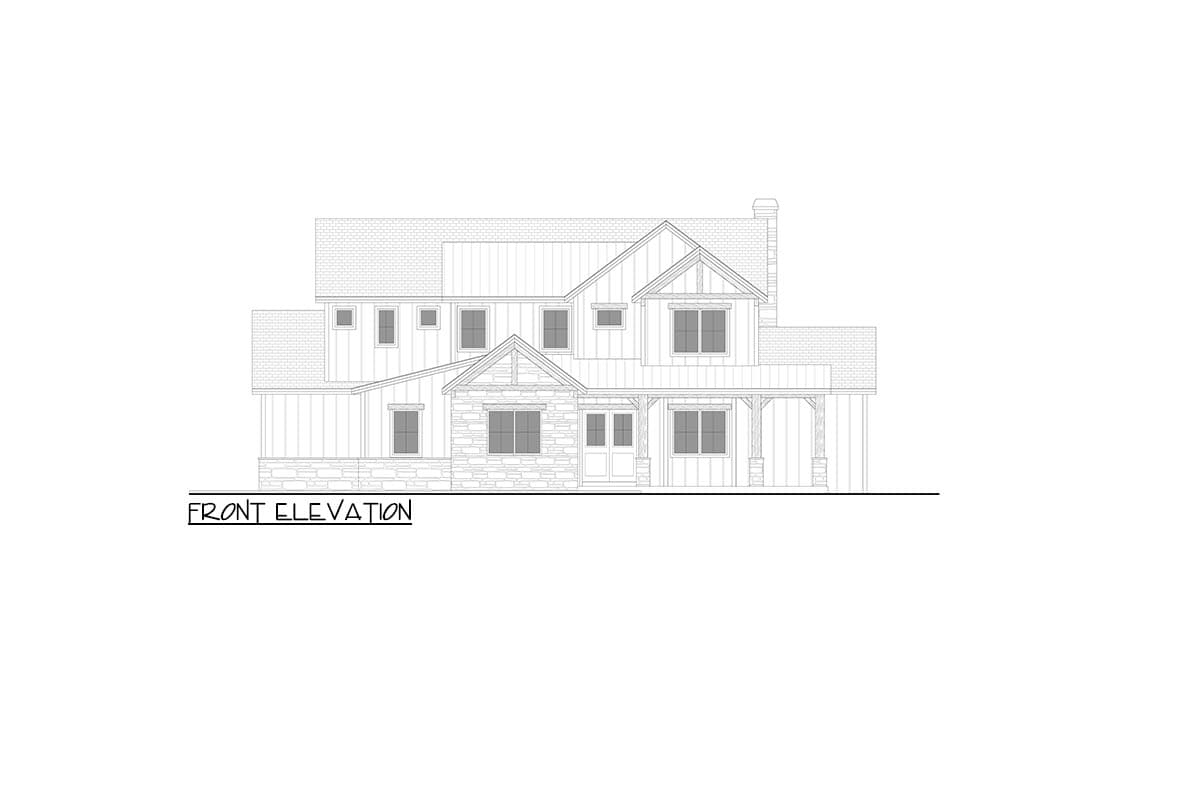

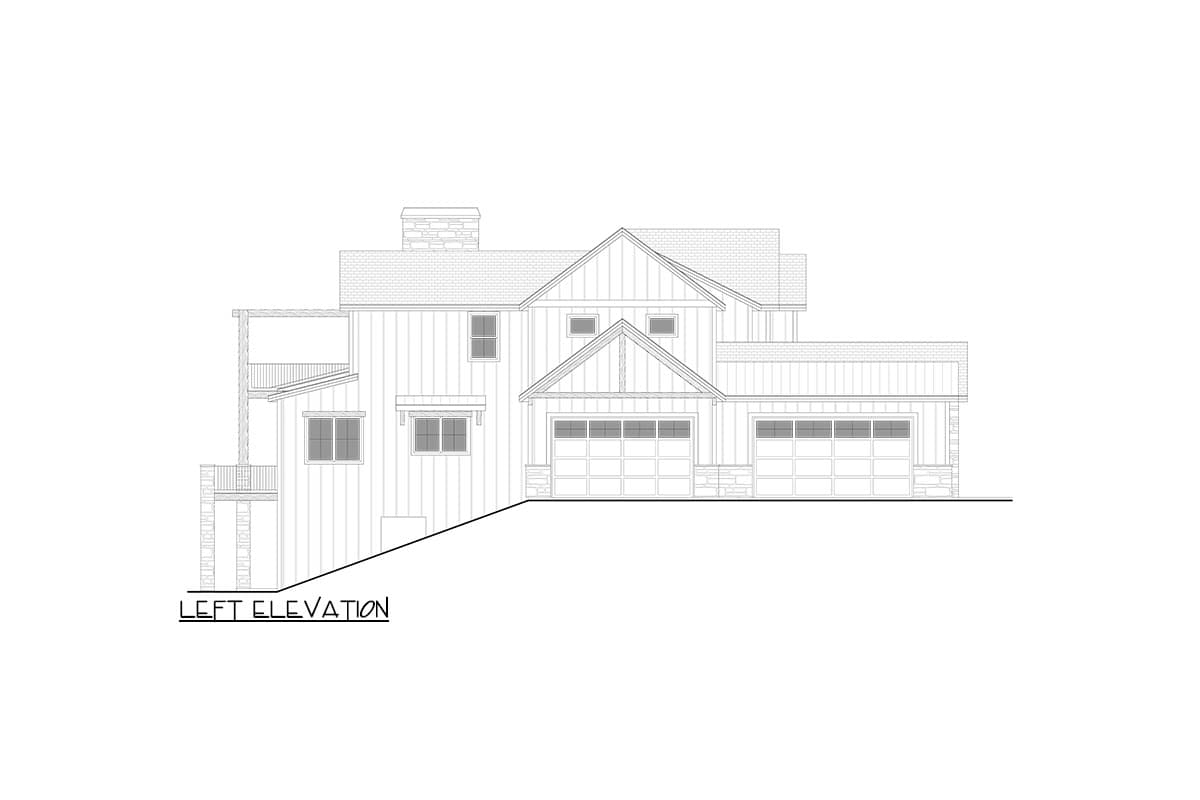

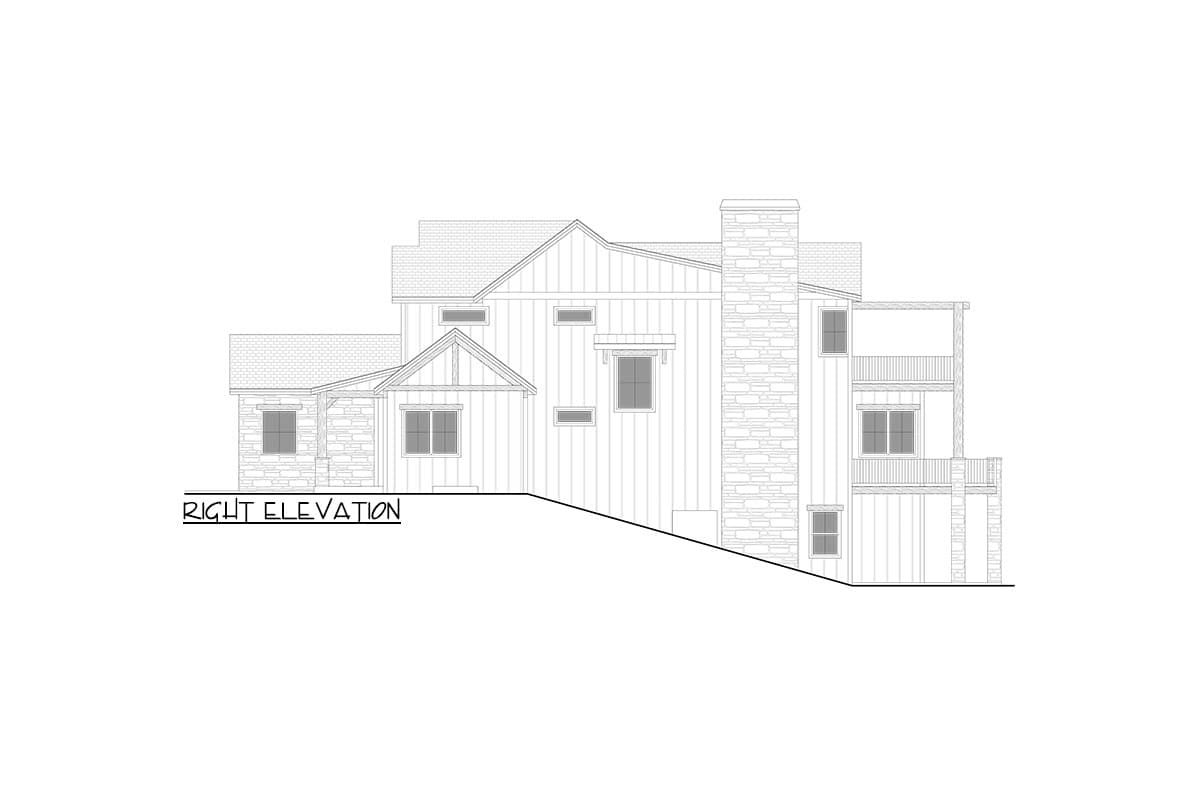

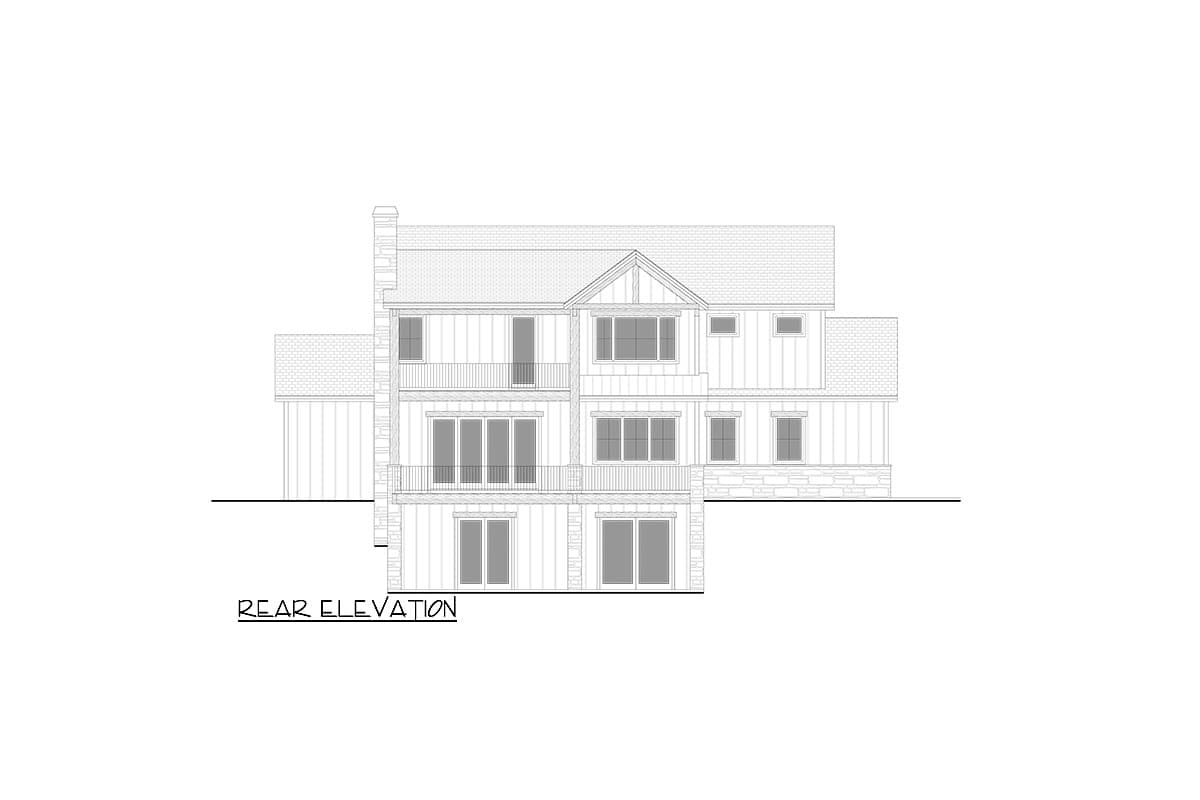

  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3700 Square Foot New American House Plan with Second Floor Master Suite with Deck

  • 3,724

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,724 sq. ft.
  • 1st Floor: 1,911 sq. ft.
  • 2nd Floor: 1,813 sq. ft.

Dimensions

  • Width: 67' 0"
  • Depth: 84' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1077 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
