4 Bed Coastal Contemporary House Plan with Great Outdoor Living - 4100 Sq Ft

Name: Plan 66325WE: 4 Bed Coastal Contemporary House Plan with Great Outdoor Living - 4100 Sq Ft
Brand: Architectural Designs
SKU: 66325WE
Price: 2500.0 USD
Availability: InStock

Heated S.F.

4,100

Beds

Baths

4.5

Stories

Cars

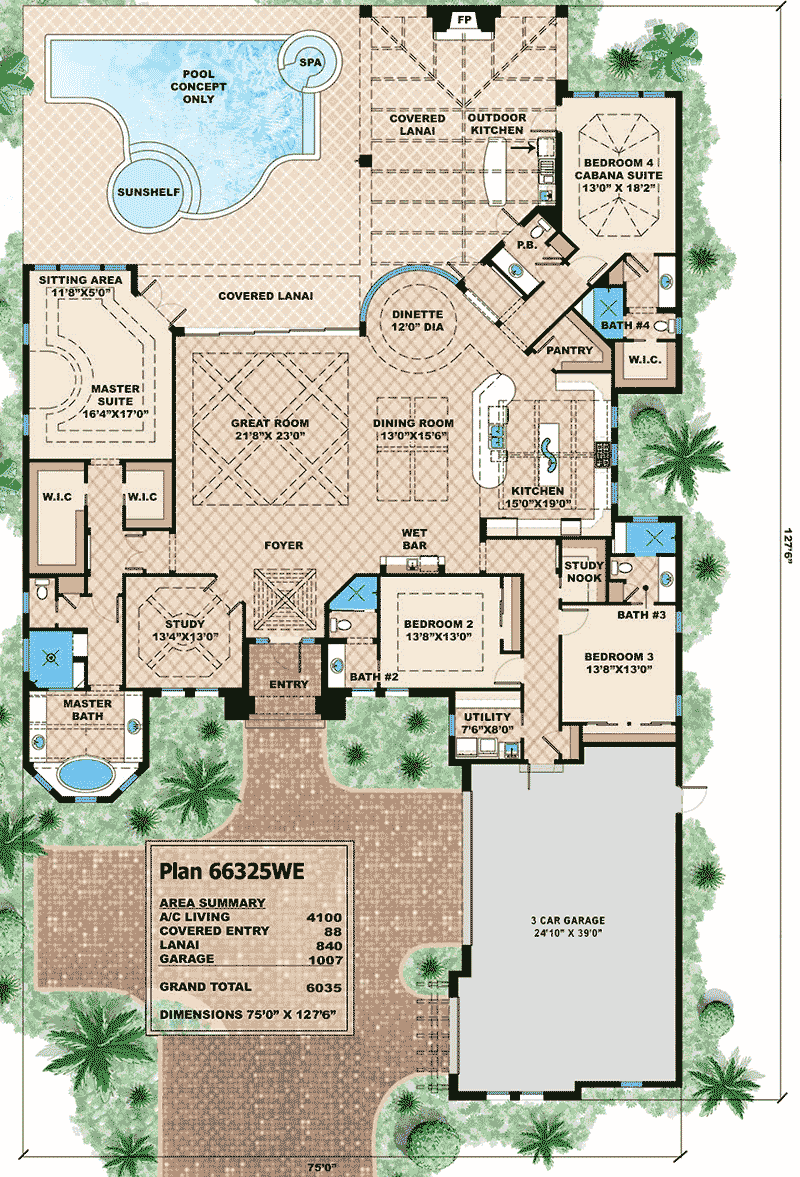

Floor Plan

Main Level

Plan Details

You'll love the elaborate ceiling detailing that adorns nearly every room in this luxurious 4 bedroom Mediterranean house plan. It is designed to blend the outdoors with the indoors and has marvelous views across the back of the home.
The rear wall of the great room is collapsible and opens to the covered lanai. The great room is open to the dining room and the spacious gourmet kitchen with two islands and views of the dinette, dining room and great room.
A door by the dinette takes you to the vaulted covered lanai with outdoor kitchen and fireplace. You'll be spending lots of time there if built in a temperate climate.
The master suite has a sitting area and double doors to the lanai. The soaking tub in the master bathroom is huge and is set in a light-filled bay with three windows.
Bed 4 is a great space. It has a tray vaulted ceiling and access to the lanai. Beds 2 and 3 are smaller and have their own baths.
The side load 3 car garage is oversized and perfect for a courtyard entry.
BUILDING RESTRICTIONS: This house plan cannot be built in the state of Florida. Contact us for details.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
