4-Bed Coastal Home Plan with Mediterranean Vibes

Plan 86096BW

  • 3,051

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A classic stucco exterior with arched openings to the covered porch and vaulted entry - along with a tile roof - give this 4-bed coastal home plan a Mediterranean vibe. Bright and sunny, transoms let extra light get inside.
  • The 44'8"-wide footprint gives you a large floor plan in narrow confines.
  • A wall of sliding glass doors in the spacious great room gives you views and access to the outdoor living room complete with fireplace and optional outdoor kitchen.
  • You'll find tons of counter space in the kitchen with a long L-shaped counter plus the big island.
  • The master suite is secluded at the back of the house away from the other bedrooms and has direct outdoor living access.
  • Related Plan: Get a 3-bed version with house plan 86014BW.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

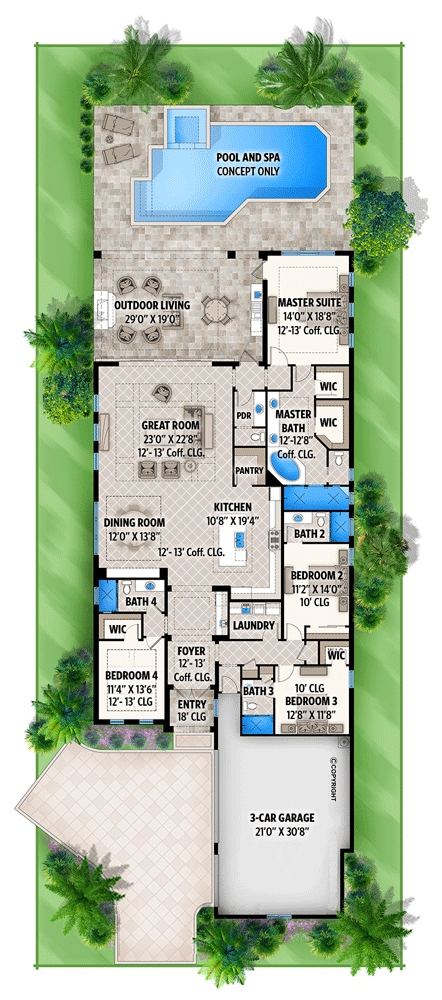

4-Bed Coastal Home Plan with Mediterranean Vibes - 86096BW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,051 sq. ft.
  • 1st Floor: 3,051 sq. ft.
  • Lanai: 551 sq. ft.
  • Entry: 58 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 44' 8"
  • Depth: 114' 8"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 766 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Foyer Coffered 12' 0" to 13' 0"
Entry Flat 18' 0"
Great Room Coffered 12' 0" to 13' 0"
Dining Room Coffered 12' 0" to 13' 0"
Kitchen Coffered 12' 0" to 13' 0"
Master Bedroom Coffered 12' 0" to 13' 0"
Master Bath Coffered 12' 0" to 12' 8"
Bedroom 2 Flat 10' 0"
Bedroom 3 Flat 10' 0"
Bedroom 4 Coffered 12' 0" to 13' 0"
Lanai Coffered 12' 0" to 13' 0"
Laundry Room Flat 12' 0"
Garage Flat 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

4-Bed Coastal Home Plan with Mediterranean Vibes

  • 3,051

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $2,745
  • PDF - Single-Build $2,745
  • View all purchase option online

About This Plan

  • A classic stucco exterior with arched openings to the covered porch and vaulted entry - along with a tile roof - give this 4-bed coastal home plan a Mediterranean vibe. Bright and sunny, transoms let extra light get inside.
  • The 44'8"-wide footprint gives you a large floor plan in narrow confines.
  • A wall of sliding glass doors in the spacious great room gives you views and access to the outdoor living room complete with fireplace and optional outdoor kitchen.
  • You'll find tons of counter space in the kitchen with a long L-shaped counter plus the big island.
  • The master suite is secluded at the back of the house away from the other bedrooms and has direct outdoor living access.
  • Related Plan: Get a 3-bed version with house plan 86014BW.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,051 sq. ft.
  • 1st Floor: 3,051 sq. ft.
  • Lanai: 551 sq. ft.
  • Entry: 58 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 44' 8"
  • Depth: 114' 8"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 766 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
