Plan 23773JD 4-Bed Contemporary House Plan with Bonus Room and 2 Covered Decks - 3459 Sq Ft

3,459 4 4 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Contemporary House Plan with Bonus Room and 2 Covered Decks - 3459 Sq Ft

Plan 23773JD

  • 3,459

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

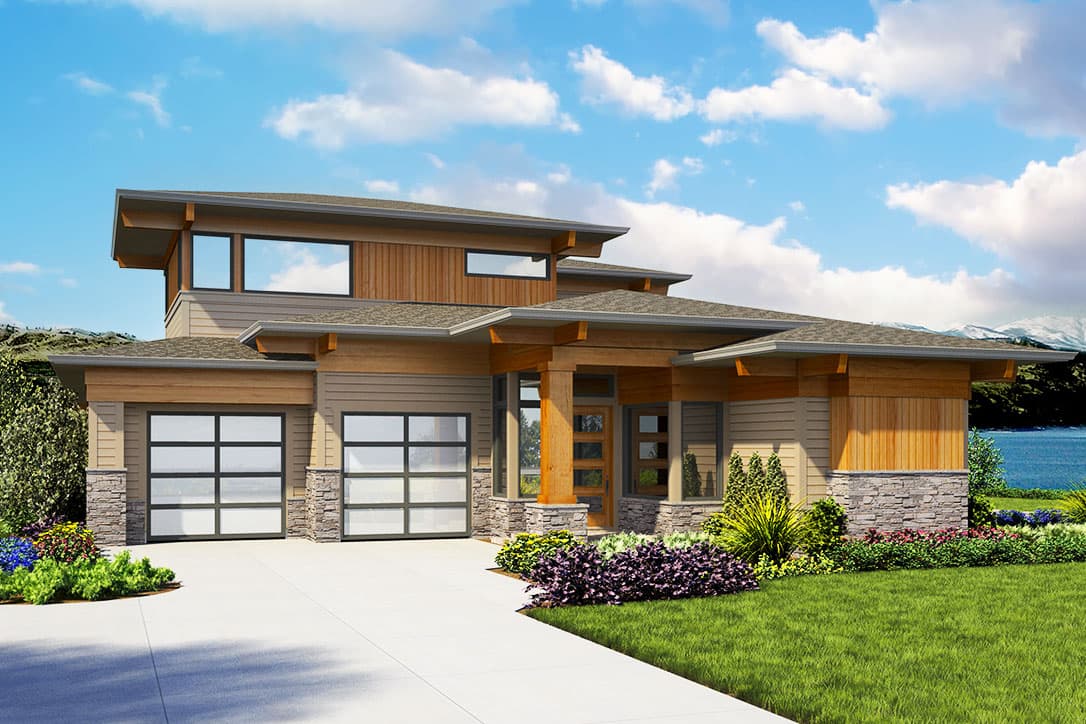

  • Pyramid and simple hip roof lines, natural wood tones, and stone accents give this contemporary 4-bedroom house plan eye-catching, curb appeal.
  • Enjoy outdoor living like never before with three retractable, glass walls in the great room and dining room, which open to the back decks. The open-concept floor plan provides abundant natural light, and the kitchen's oversized island offers seating for four and plenty of workspace. A walk-in pantry and laundry room sit adjacent the kitchen for easy access.
  • Discover your first-floor, master bedroom which offers a wall of sliding glass doors to extend your living to the back, covered deck. The master bathroom provides dual sinks, a separate tub and shower, and a large walk-in closet.
  • Upstairs, three additional bedrooms can also enjoy the outdoors through french doors that lead to a covered deck. A large, bonus room awaits your final touches.
  • A secluded den, or guest bedroom, is situated towards the front of the home with access to the main-level full bathroom, which doubles as the pool bath. The 3-car, tandem garage opens to the laundry room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Contemporary House Plan with Bonus Room and 2 Covered Decks - 3459 Sq Ft - 23773JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Contemporary House Plan with Bonus Room and 2 Covered Decks - 3459 Sq Ft - 23773JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,459 sq. ft.
  • 1st Floor: 2,147 sq. ft.
  • 2nd Floor: 1,312 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 90' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

4-Bed Contemporary House Plan with Bonus Room and 2 Covered Decks - 3459 Sq Ft

  • 3,459

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Pyramid and simple hip roof lines, natural wood tones, and stone accents give this contemporary 4-bedroom house plan eye-catching, curb appeal.
  • Enjoy outdoor living like never before with three retractable, glass walls in the great room and dining room, which open to the back decks. The open-concept floor plan provides abundant natural light, and the kitchen's oversized island offers seating for four and plenty of workspace. A walk-in pantry and laundry room sit adjacent the kitchen for easy access.
  • Discover your first-floor, master bedroom which offers a wall of sliding glass doors to extend your living to the back, covered deck. The master bathroom provides dual sinks, a separate tub and shower, and a large walk-in closet.
  • Upstairs, three additional bedrooms can also enjoy the outdoors through french doors that lead to a covered deck. A large, bonus room awaits your final touches.
  • A secluded den, or guest bedroom, is situated towards the front of the home with access to the main-level full bathroom, which doubles as the pool bath. The 3-car, tandem garage opens to the laundry room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,459 sq. ft.
  • 1st Floor: 2,147 sq. ft.
  • 2nd Floor: 1,312 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 90' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
