Plan 42839MJ 4-Bed Contemporary House Plan with One-Story Living

4-Bed Contemporary House Plan with One-Story Living

Plan 42839MJ

  • 3,224

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A covered French door entry flanked by tall windows greet you to this 4-bed contemporary house plan with one-story living.
  • The foyer opens to the great room with a back wall that opens to the covered patio in back.
  • French doors open to reveal the study with double-tray ceiling.
  • Hallways are minimal, a hallmark of this designer's house plans.
  • The kitchen has two islands and great counter seating.
  • The master suite occupies the entire left side of the home. Across the home, three beds share two baths.
  • Related Plan: Get an alternate version with house plan 4214MJ (3,002 sq. ft.).
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

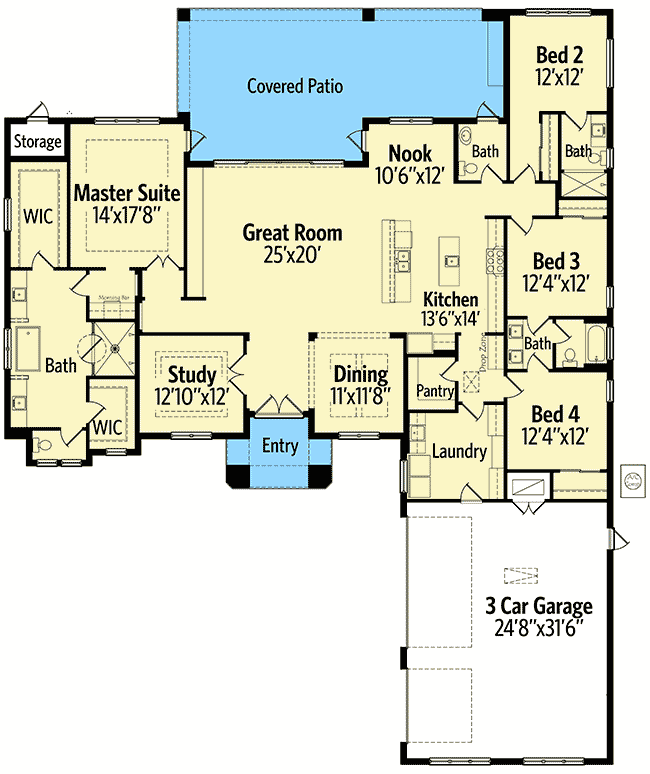

4-Bed Contemporary House Plan with One-Story Living - 42839MJ floor plan - Main Level

Plan details

4-Bed Contemporary House Plan with One-Story Living

  • 3,224

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • CAD + PDF - Single-Build $1,995
  • View all purchase option online

About This Plan

  • A covered French door entry flanked by tall windows greet you to this 4-bed contemporary house plan with one-story living.
  • The foyer opens to the great room with a back wall that opens to the covered patio in back.
  • French doors open to reveal the study with double-tray ceiling.
  • Hallways are minimal, a hallmark of this designer's house plans.
  • The kitchen has two islands and great counter seating.
  • The master suite occupies the entire left side of the home. Across the home, three beds share two baths.
  • Related Plan: Get an alternate version with house plan 4214MJ (3,002 sq. ft.).
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,224 sq. ft.
  • 1st Floor: 3,224 sq. ft.
  • Porch, Combined: 647 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 74' 8"
  • Depth: 92' 8"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
