Plan 42027MJ

4-Bed Contemporary House Plan with Rooftop Deck - 3196 Sq Ft

Heated S.F.
3,196
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 42027MJ

Main Level
Main Level
2nd Floor
2nd Floor
Rooftop Deck
Rooftop Deck

Plan 42027MJ

M-F 9am-5pm EST |

1-203-761-8500

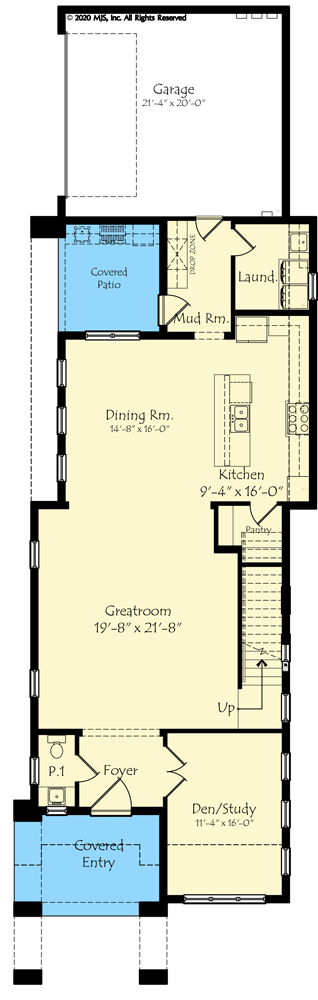

Main Level

Plan 42027MJ: 4-Bed Contemporary House Plan with Rooftop Deck - 3196 Sq Ft - Floor Plan - Main Level - Coastal, Contemporary, Florida-Style

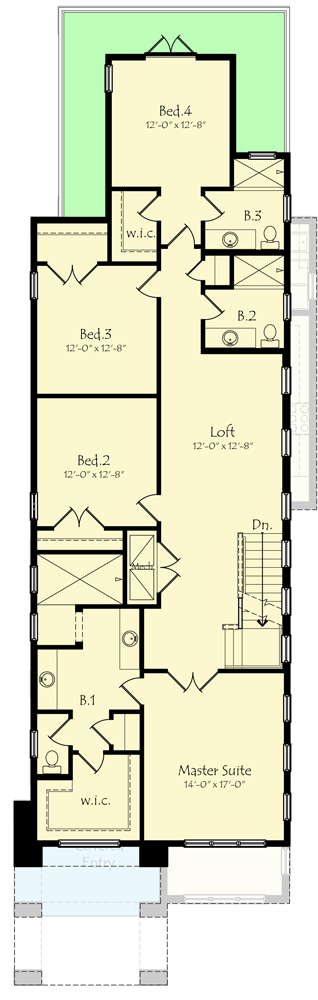

2nd Floor

Plan 42027MJ: 4-Bed Contemporary House Plan with Rooftop Deck - 3196 Sq Ft - Floor Plan - 2nd Floor - Coastal, Contemporary, Florida-Style

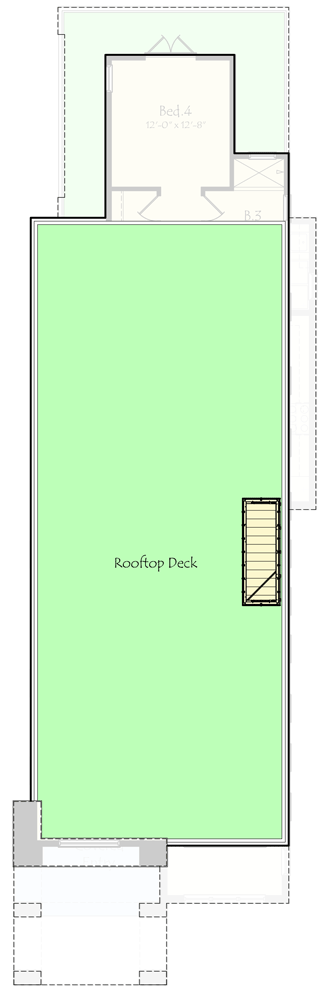

Rooftop Deck

Plan 42027MJ: 4-Bed Contemporary House Plan with Rooftop Deck - 3196 Sq Ft - Floor Plan - Rooftop Deck - Coastal, Contemporary, Florida-Style

Plan Details

  • This 4-bedroom contemporary house plan is perfectly suited for your coastal property with an appealing exterior from all sides and a large rooftop deck to enjoy views in any direction. This home is well suited for a narrow and long lot with a footprint that is 29'-8" wide and 96' deep and features 4-bedrooms, 3.5 bathrooms and a 2-car garage with a side entry located at the rear of the home - ideal for corner lots.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,196 sq. ft.

1st Floor

1,484 sq. ft.

2nd Floor

1,712 sq. ft.

Entry

146 sq. ft.

Balcony / Veranda

232 sq. ft.

Covered Patio

107 sq. ft.

Roof Deck

1,599 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

29' 8"

Depth

96' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 8"

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Florida-Style

Special Features

Bedrooms - Split

Den

Home Office

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Walk-in Pantry
