Plan 666052RAF

4-Bed Contemporary House Plan with Second-Level Sleeping Rooms - 4000 Sq Ft

Heated S.F.
4,001
Beds
4
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 666052RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666052RAF

M-F 9am-5pm EST |

1-203-761-8500

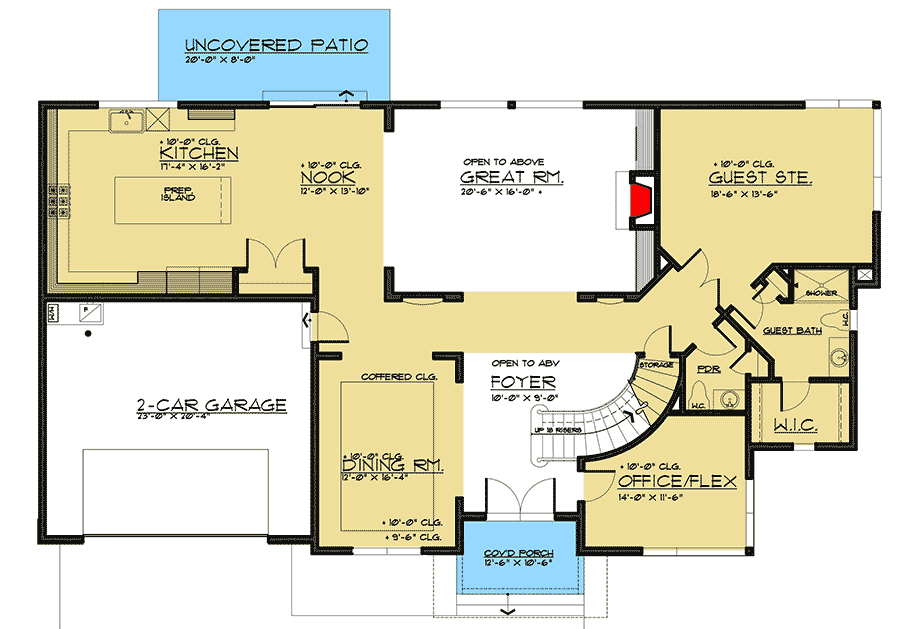

Main Level

Plan 666052RAF: 4-Bed Contemporary House Plan with Second-Level Sleeping Rooms - 4000 Sq Ft - Floor Plan - Main Level - Contemporary, Northwest

2nd Floor

Plan 666052RAF: 4-Bed Contemporary House Plan with Second-Level Sleeping Rooms - 4000 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

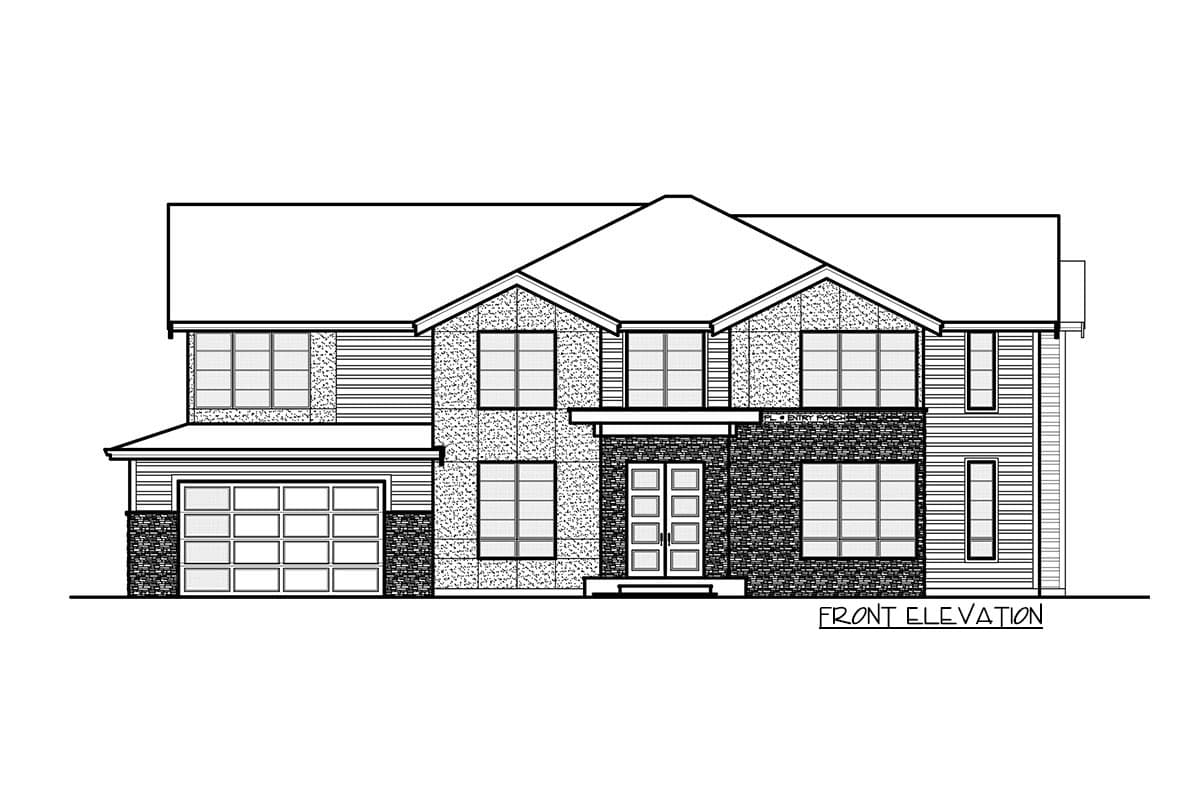

  • A blend of textures and warm tones strike the perfect balance on the exterior of this contemporary, two-story home plan.
  • Tall ceilings in the foyer and a custom curved stairway provide a grand first impression upon entering. An office, or flex room, is tucked behind the stairs for privacy when needed.
  • Oversized windows in the great room allow natural light to filter in and the open layout combines the nook / kitchen / great room into one living space.
  • A prep island in the kitchen is surrounded by counters providing ample workspace, while sliding doors lead to an uncovered patio for grilling or lounging.
  • The master suite is privately located on the right side of the second level, and features a dressing area outside of the walk-in closet and a lavish 5-fixture bathroom.
  • A bridge-style hallway leads to three additional bedrooms, one with a full bath, along with a spacious laundry room.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,001 sq. ft.

1st Floor

2,157 sq. ft.

2nd Floor

1,844 sq. ft.

Porch, Combined

68 sq. ft.

Covered Patio

160 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 6"

Depth

39' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

4,001 sq. ft.

1st Floor

2,157 sq. ft.

2nd Floor

1,844 sq. ft.

Porch, Combined

68 sq. ft.

Covered Patio

160 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 6"

Depth

39' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Home Office
