4-Bed Contemporary Northwest Home Plan with Bonus Room and Den

Plan 23887JD

  • 3,032

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Wrapped in modern siding materials and oversized picture windows, this Contemporary Northwest home plan features 4 bedrooms, open communal spaces, and a double garage.
  • A grand fireplace anchors the left wall of the great room, which seamlessly flows into the eat-in kitchen. Plenty of cabinets offer storage space for kitchen items and a pocket door reveals a walk-in pantry in the corner.
  • Discover a quiet den, or home office, near the foyer with a powder bath next door.
  • Four bedrooms, a bonus and laundry rooms can be found upstairs, including the forward-facing master bedroom, which includes a 5-fixture bathroom and walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 23888JD.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

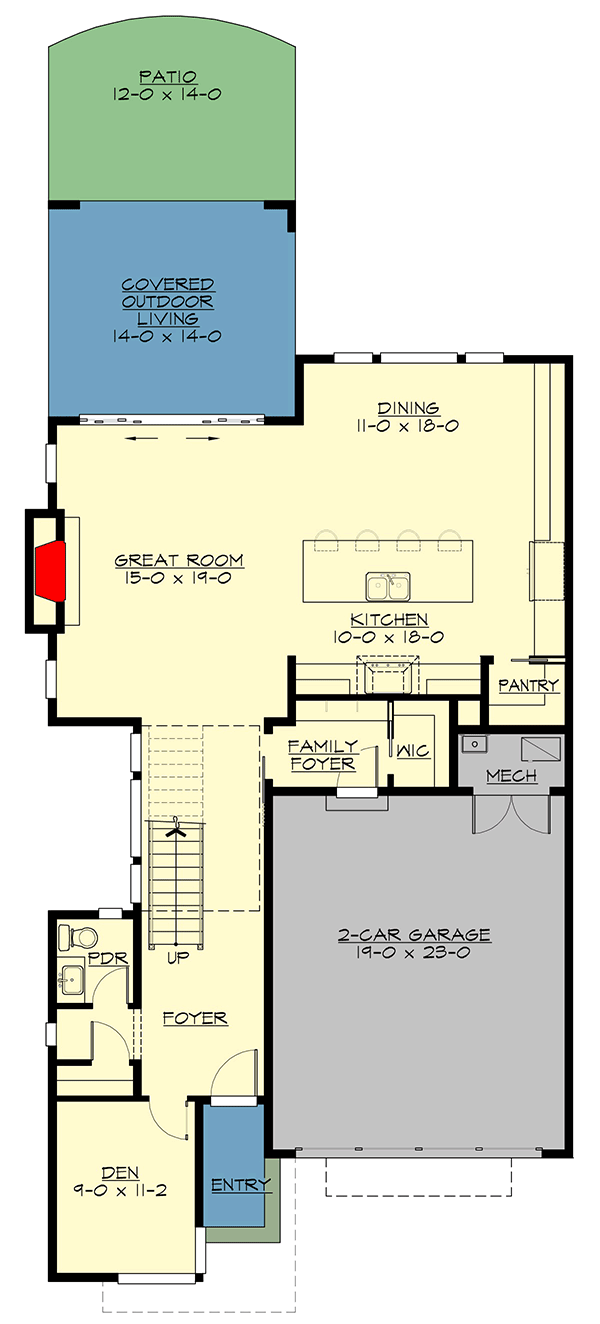

4-Bed Contemporary Northwest Home Plan with Bonus Room and Den - 23887JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

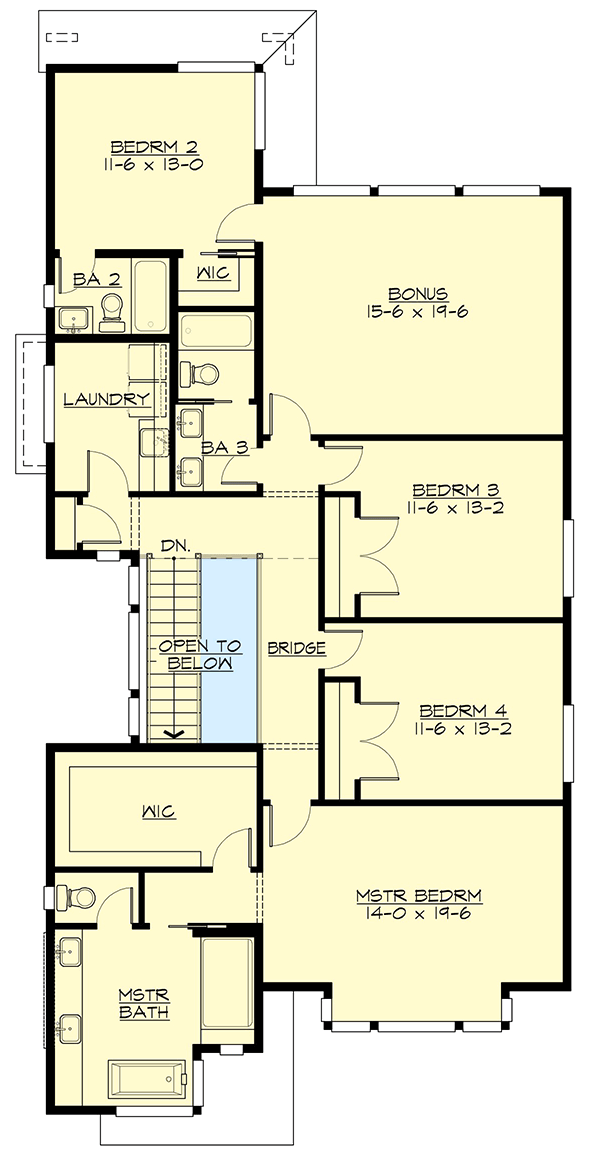

4-Bed Contemporary Northwest Home Plan with Bonus Room and Den - 23887JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,032 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 1,842 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 527 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

4-Bed Contemporary Northwest Home Plan with Bonus Room and Den

  • 3,032

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Wrapped in modern siding materials and oversized picture windows, this Contemporary Northwest home plan features 4 bedrooms, open communal spaces, and a double garage.
  • A grand fireplace anchors the left wall of the great room, which seamlessly flows into the eat-in kitchen. Plenty of cabinets offer storage space for kitchen items and a pocket door reveals a walk-in pantry in the corner.
  • Discover a quiet den, or home office, near the foyer with a powder bath next door.
  • Four bedrooms, a bonus and laundry rooms can be found upstairs, including the forward-facing master bedroom, which includes a 5-fixture bathroom and walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 23888JD.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.
