4-Bed Country Farmhouse Plan with Vaulted Great Room and Covered Porch

Plan 52325WM

  • 2,693

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

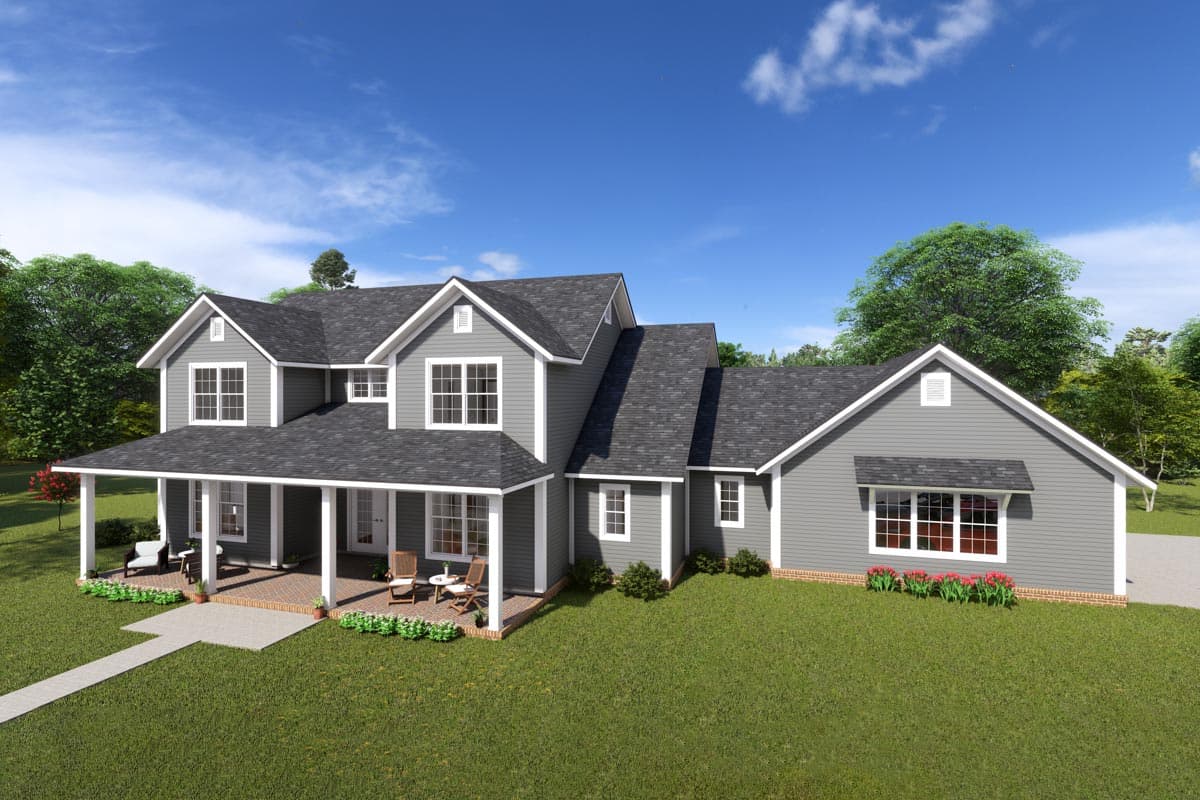

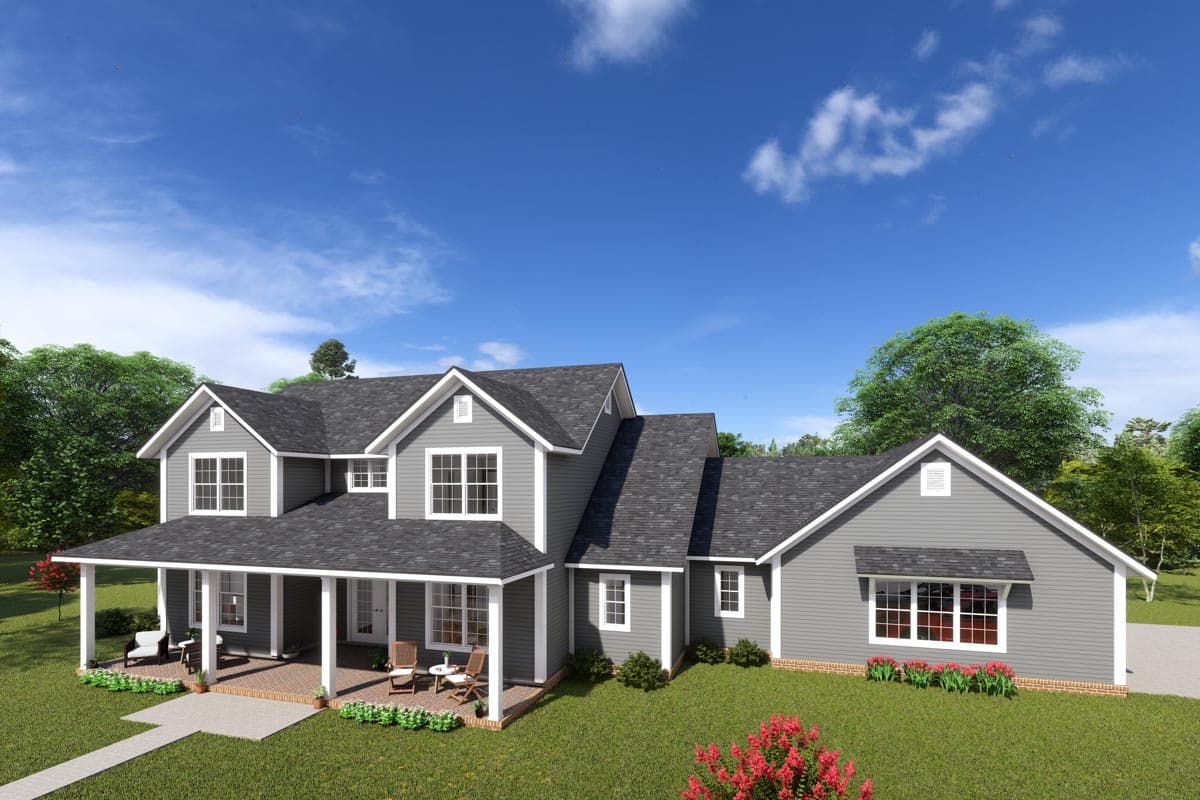

  • This 4 bed country home plan gives you 2,696 square feet of heated living with a 3-car (720 square foot) side-entry garage. A wide covered front porch provides shelter as you enter through a pair of French doors.

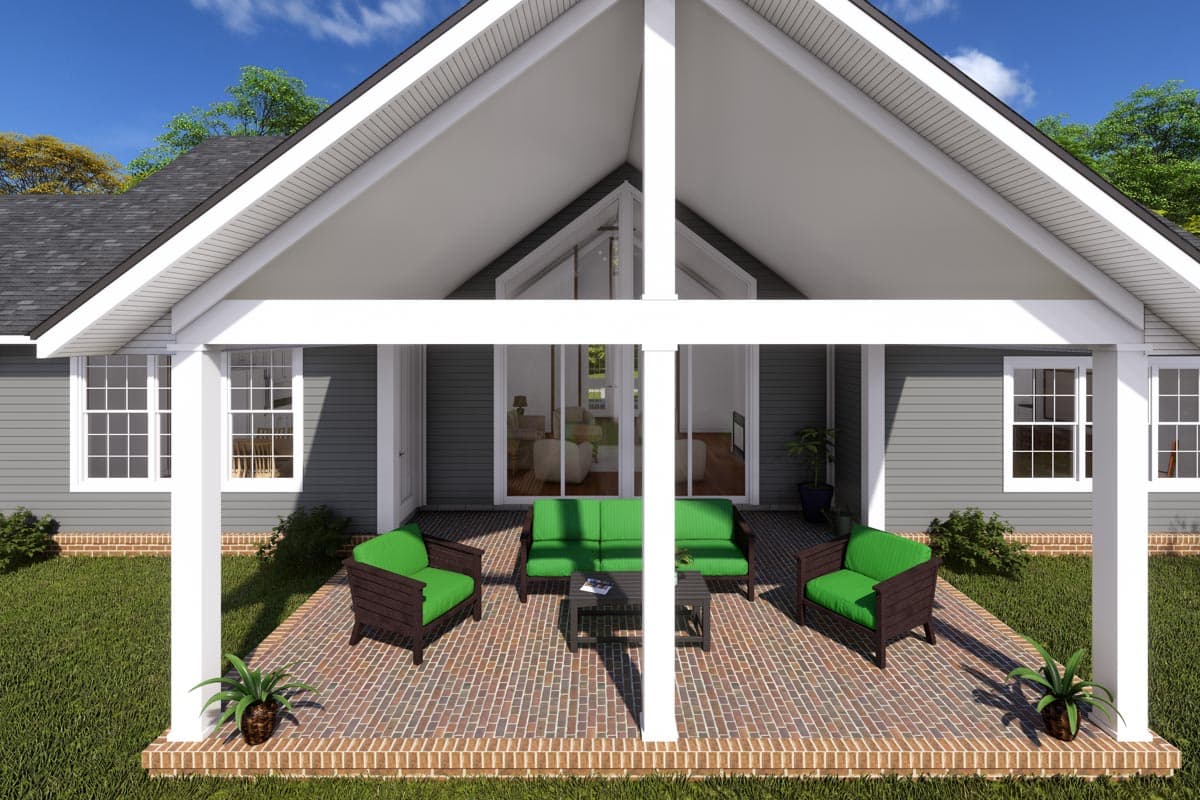

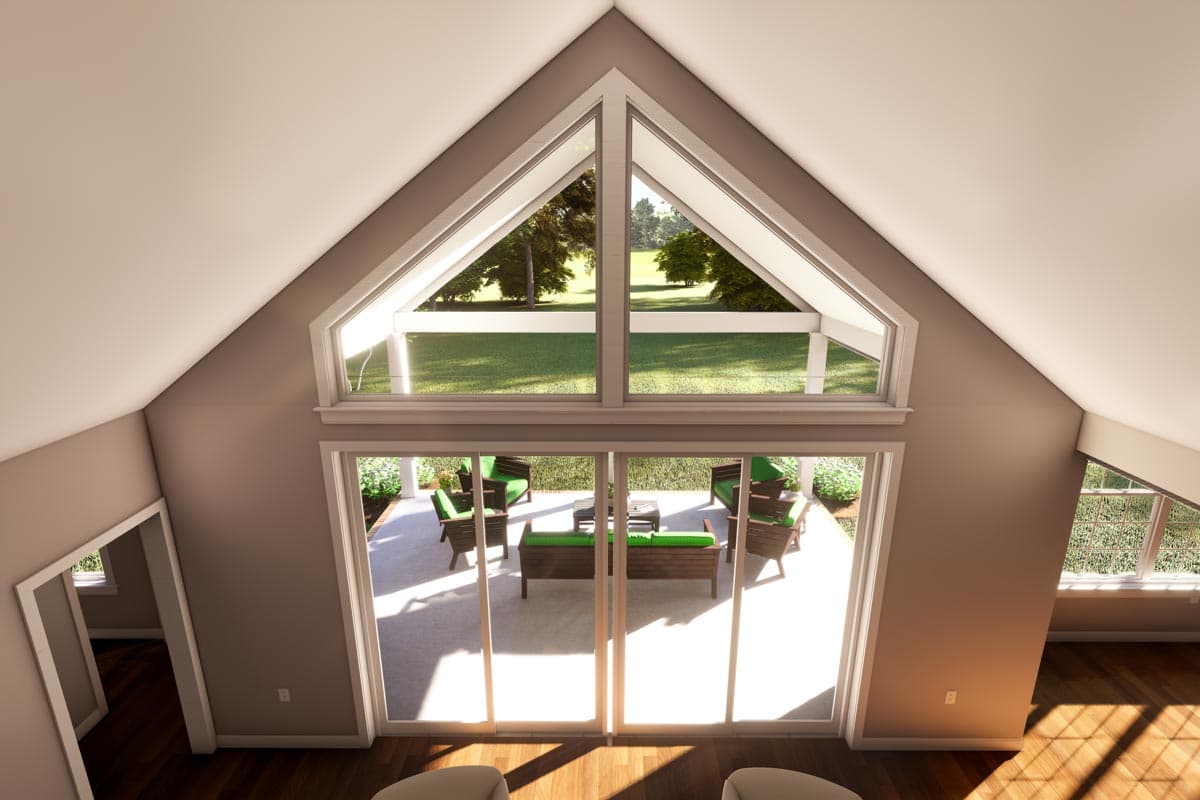

  • Centered on the front door, the 2-story (16'6" from floor to peak of vault) great room's vault extends through to the 20' by 16' rear porch which is accessible through sliding doors giving you the best of indoor/outdoor living.
  • The dining room has views to the back and direct access to the rear porch and is open to the kitchen with 9' by 4' island with double sink. An 8' by 8' walk-in pantry and easy access to the garage through the mudroom with lockers makes the kitchen a super-efficient space.
  • The master suite has views to the back and a large walk-in closet accessible through the bathroom with 6' by 4' shower, two vanities and a private toilet. Bed 4 is located in front and has its own bath and walk-in closet.
  • A study off the foyer completes the main floor and provides a dedicated work-from-home space.

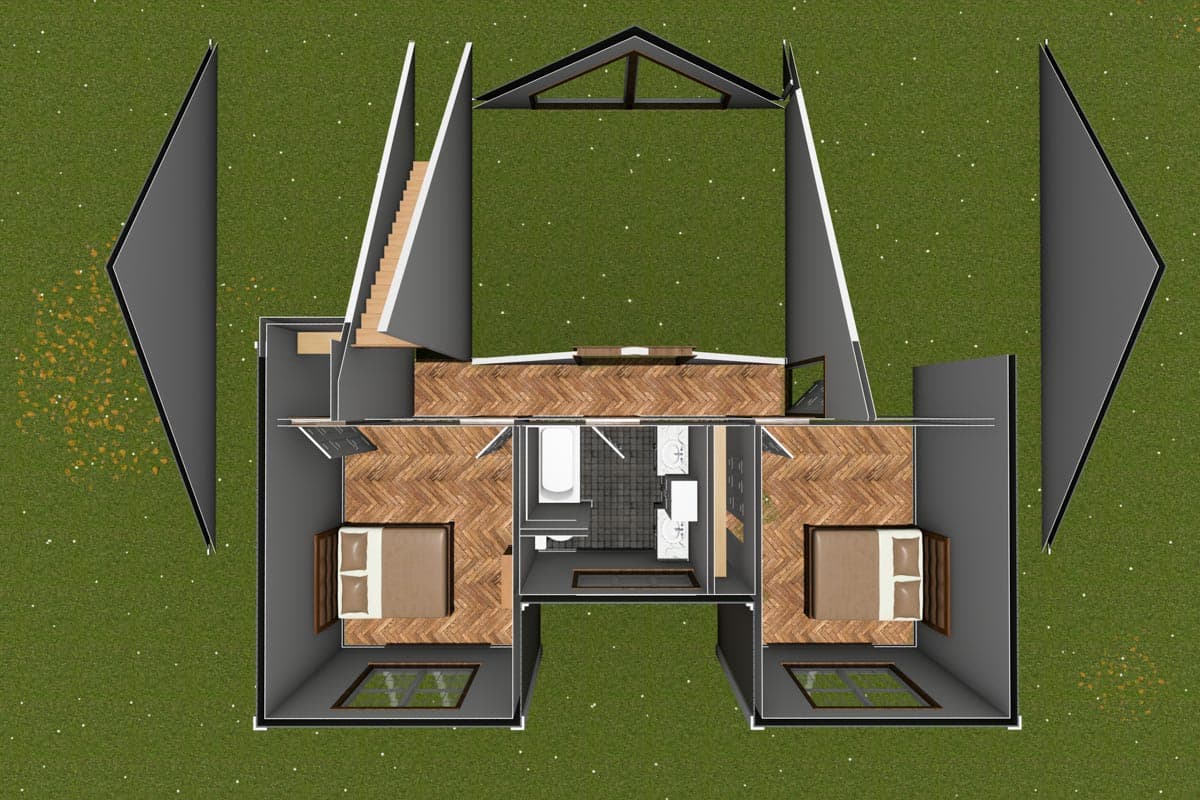

  • Upstairs, and additional two bedrooms are separated by a shared bathroom. Across the hall, an overlook is centered on the vaulted ceiling.
  • An optionally finished bonus room gives you 300 square feet of expansion space with the added rear dormer included and could be used as a game or playroom.
  • Related Plans: Get a smaller version with house plan 4122WM (2,252 sq. ft.) and get this layout with an alternate exterior with house plan 52321WM (2,625 sq. ft.).

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details

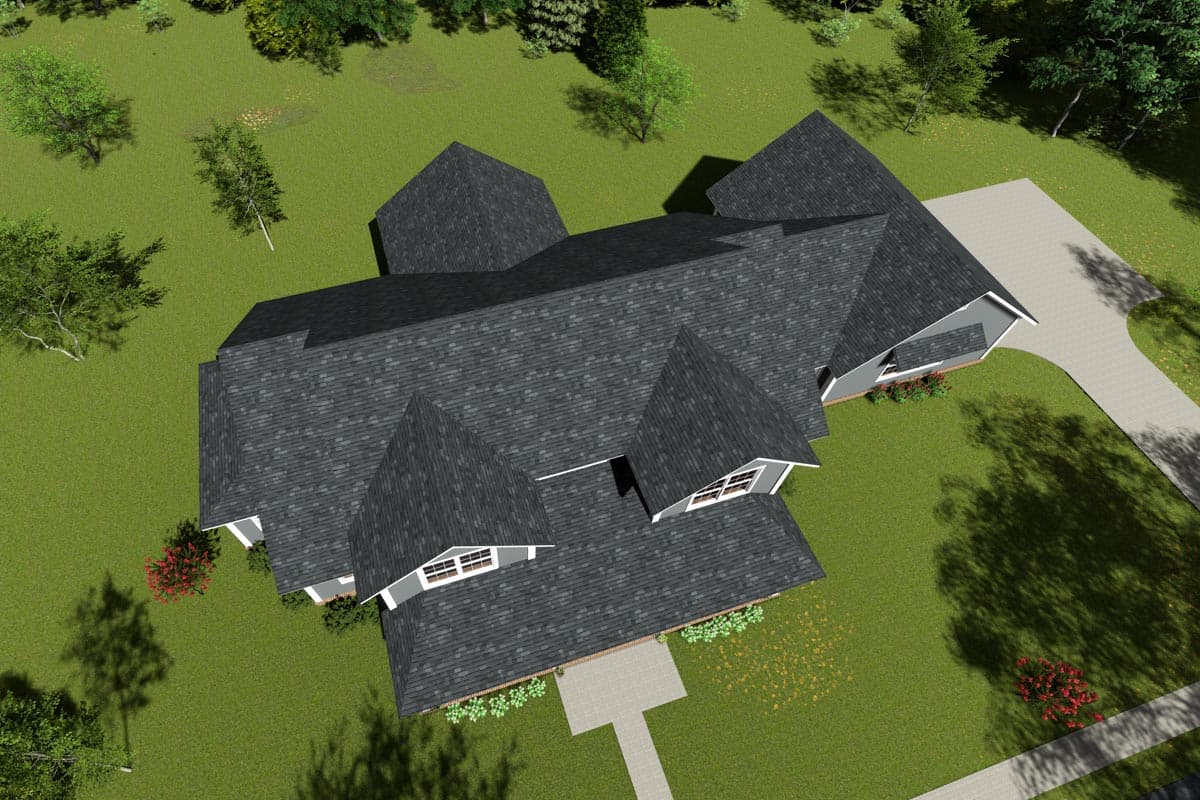

  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

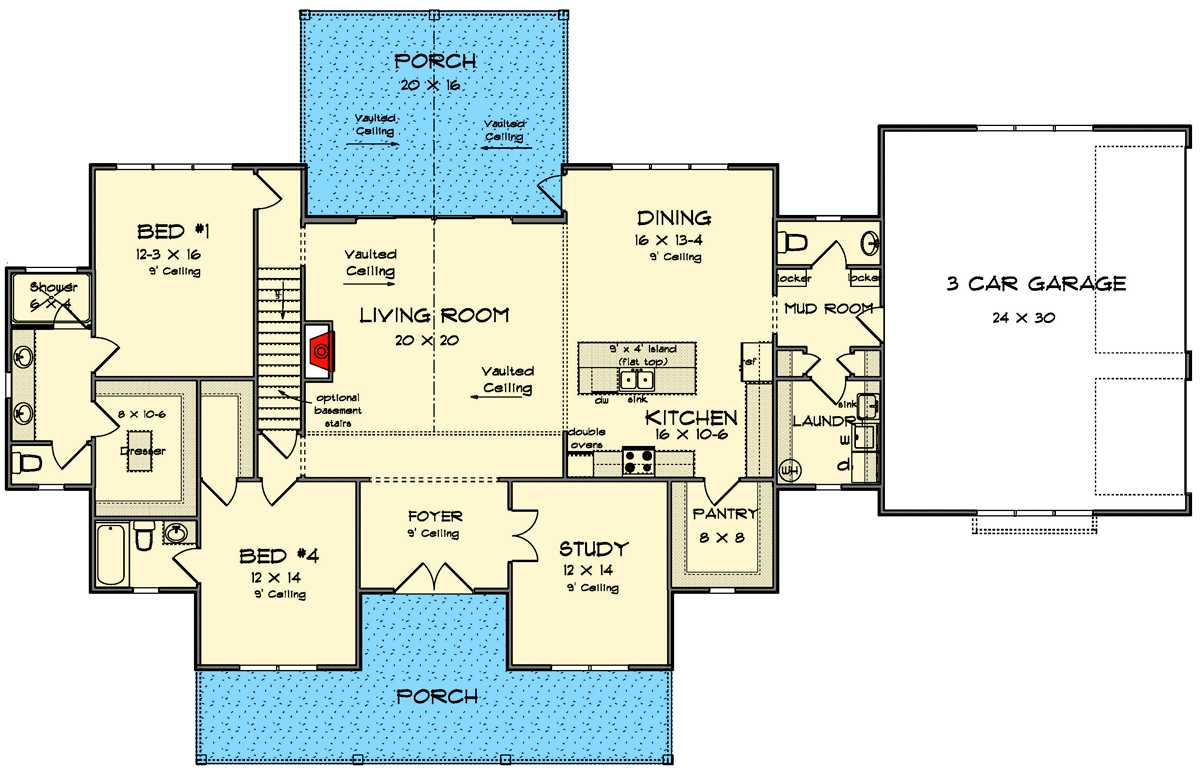

4-Bed Country Farmhouse Plan with Vaulted Great Room and Covered Porch - 52325WM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

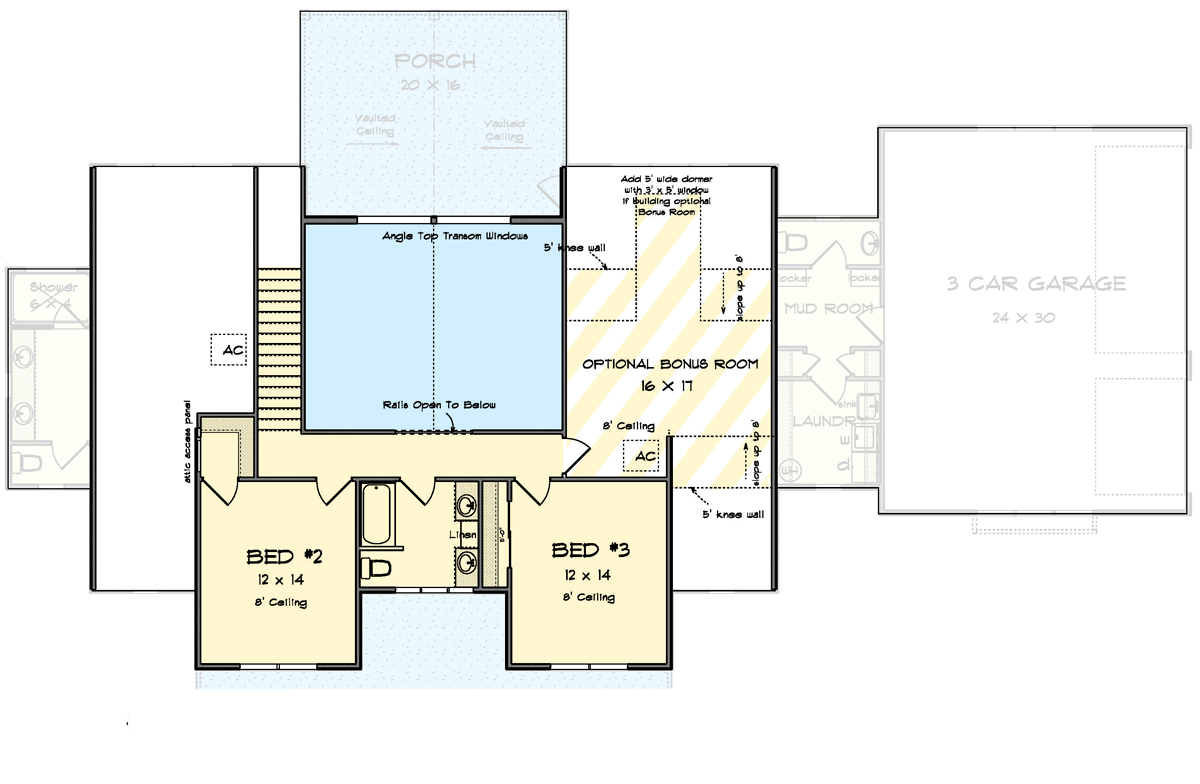

4-Bed Country Farmhouse Plan with Vaulted Great Room and Covered Porch - 52325WM floor plan - 2nd Floor

4-Bed Country Farmhouse Plan with Vaulted Great Room and Covered Porch

  • 2,693

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,693 sq. ft.
  • 1st Floor: 2,105 sq. ft.
  • 2nd Floor: 588 sq. ft.

Dimensions

  • Width: 91' 8"
  • Depth: 58' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick Or Truss
