Plan 42670DB

4-Bed Craftsman Home Plan with a Shingle Exterior

Heated S.F.
2,321
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 42670DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42670DB

M-F 9am-5pm EST |

1-203-761-8500

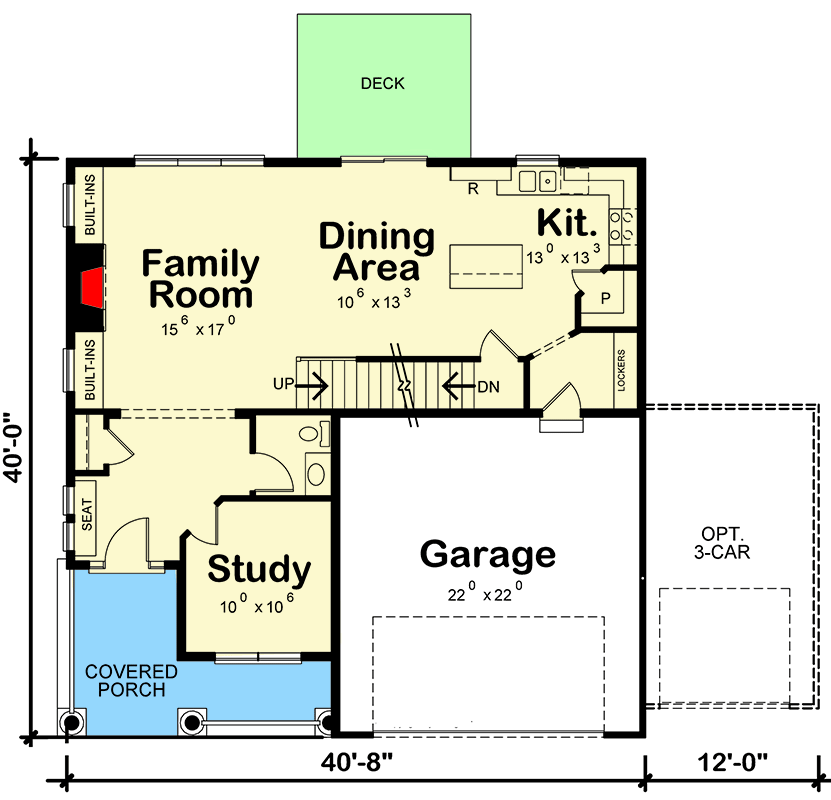

Main Level

Plan 42670DB: 4-Bed Craftsman Home Plan with a Shingle Exterior - Floor Plan - Main Level - Craftsman, Northwest, Prairie, Traditional

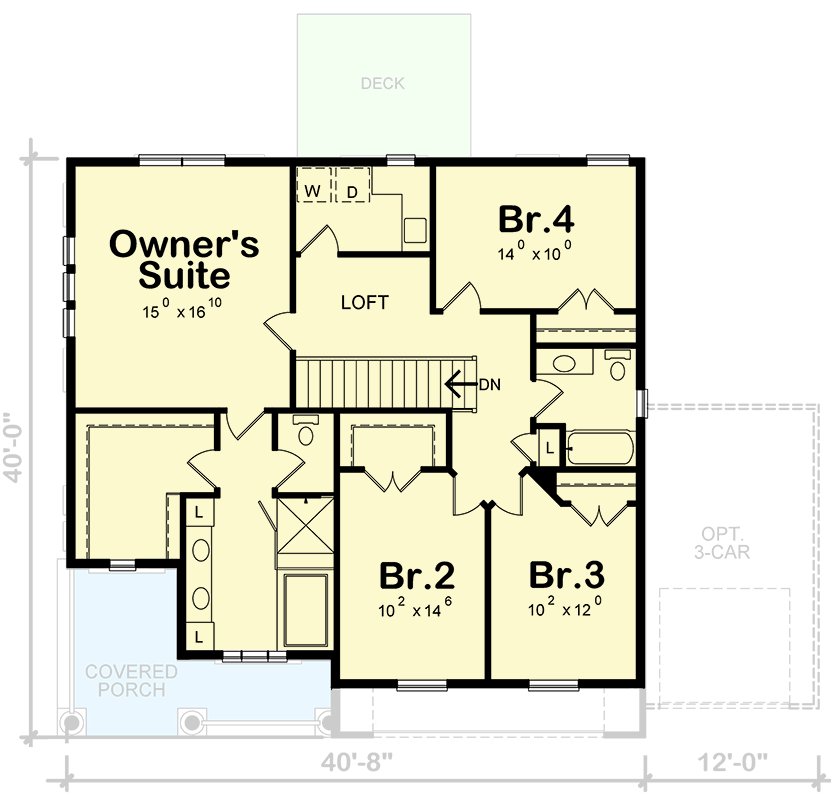

2nd Floor

Plan 42670DB: 4-Bed Craftsman Home Plan with a Shingle Exterior - Floor Plan - 2nd Floor - Craftsman, Northwest, Prairie, Traditional

Plan Details

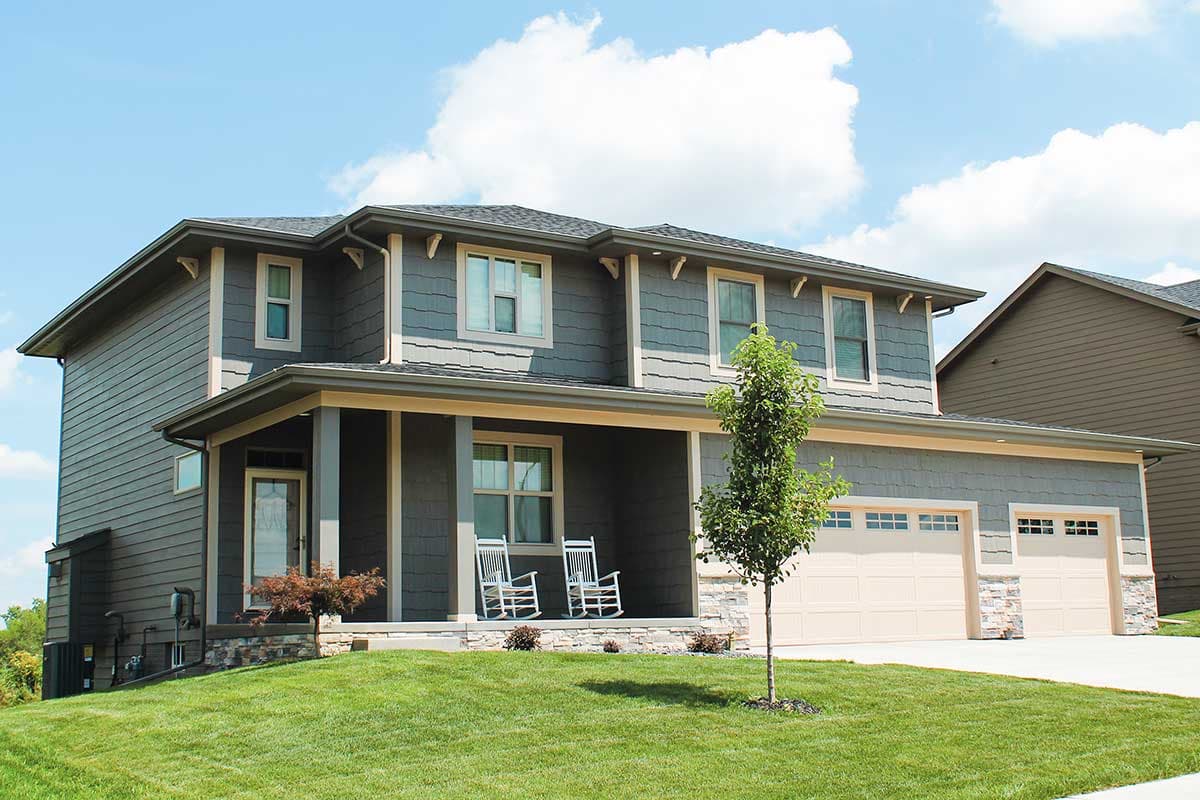

  • This 4-bed Craftsman home plan has an attractive shingle exterior with a touch of stone adding to the curb appeal.
  • The main floor consists of the shared living spaces in an open-concept floor plan, along with a quiet study in the front of the home. Sleeping rooms can be found on the second level.
  • Sliding doors off the dining area lead to a back deck, providing a space for a BBQ.
  • Upstairs, the owner's suite features a walk-in closet off the 5-fixture bath, and is conveniently located next to the laundry room. Three additional bedrooms share a central full bath.
  • Built-in lockers are provided in the mudroom to help organize personal items when coming or going from the garage.

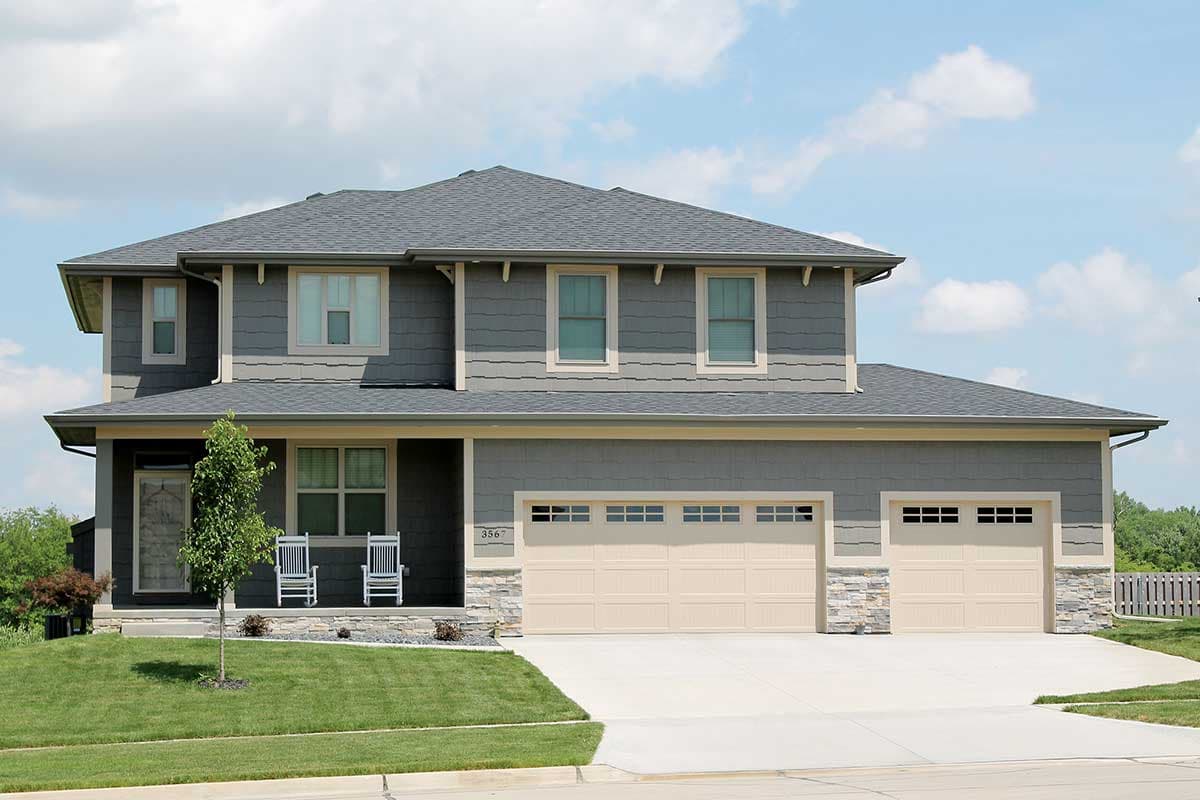

  • The optional third car garage adds 12’ to the width of this home plan for a total width of 52'.
  • Related Plans: Get an alternate exterior with house plans 42588DB and 42589DB.

What's Included

  • General Notes

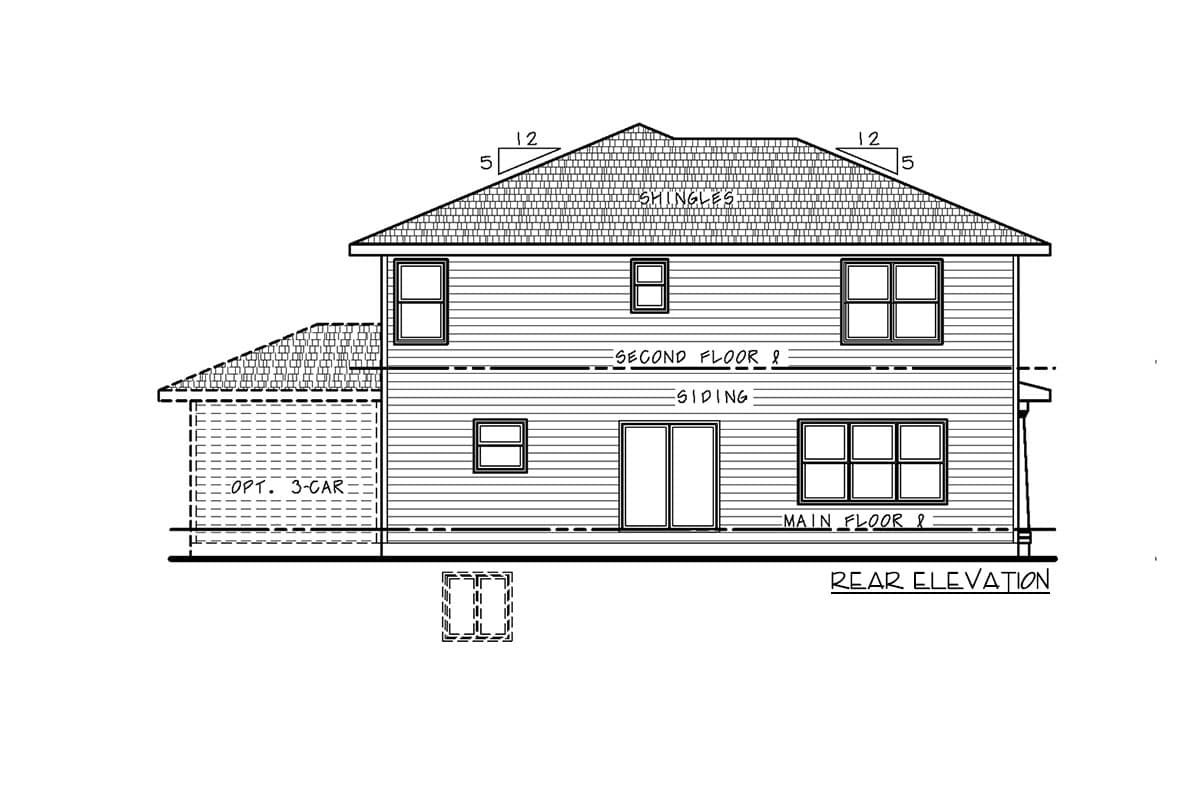

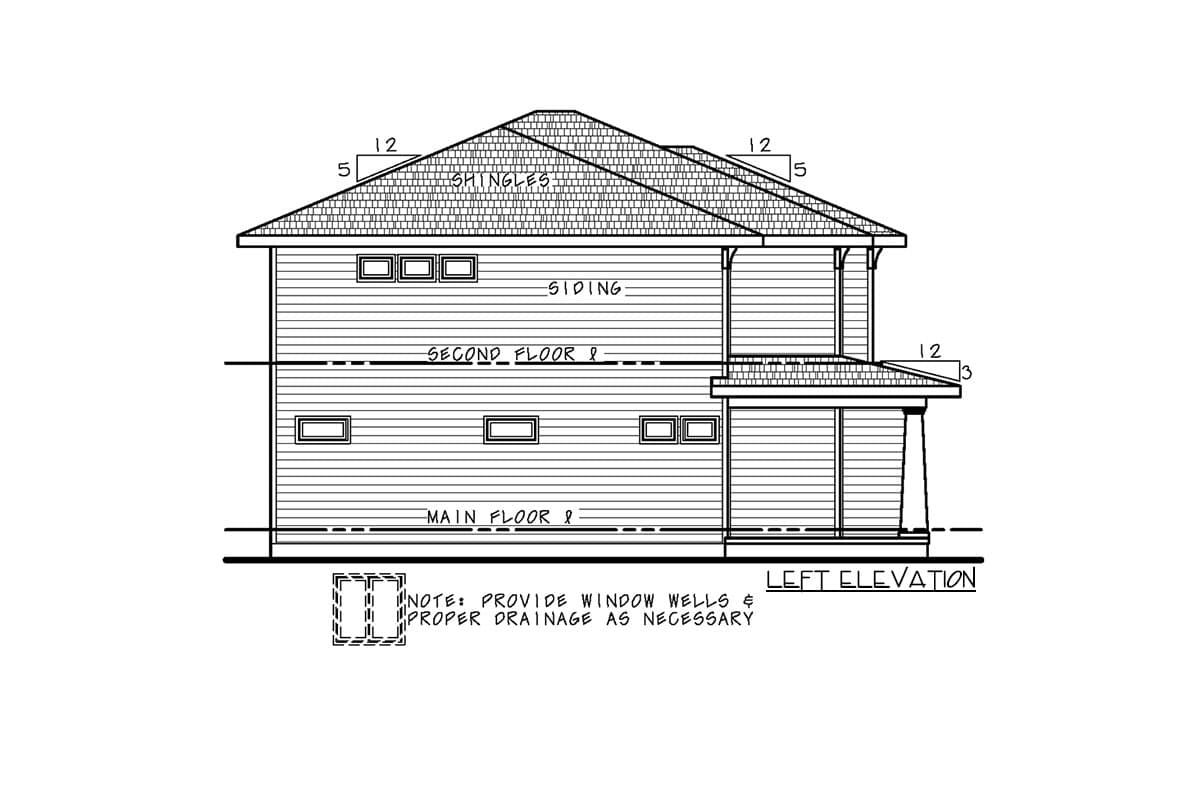

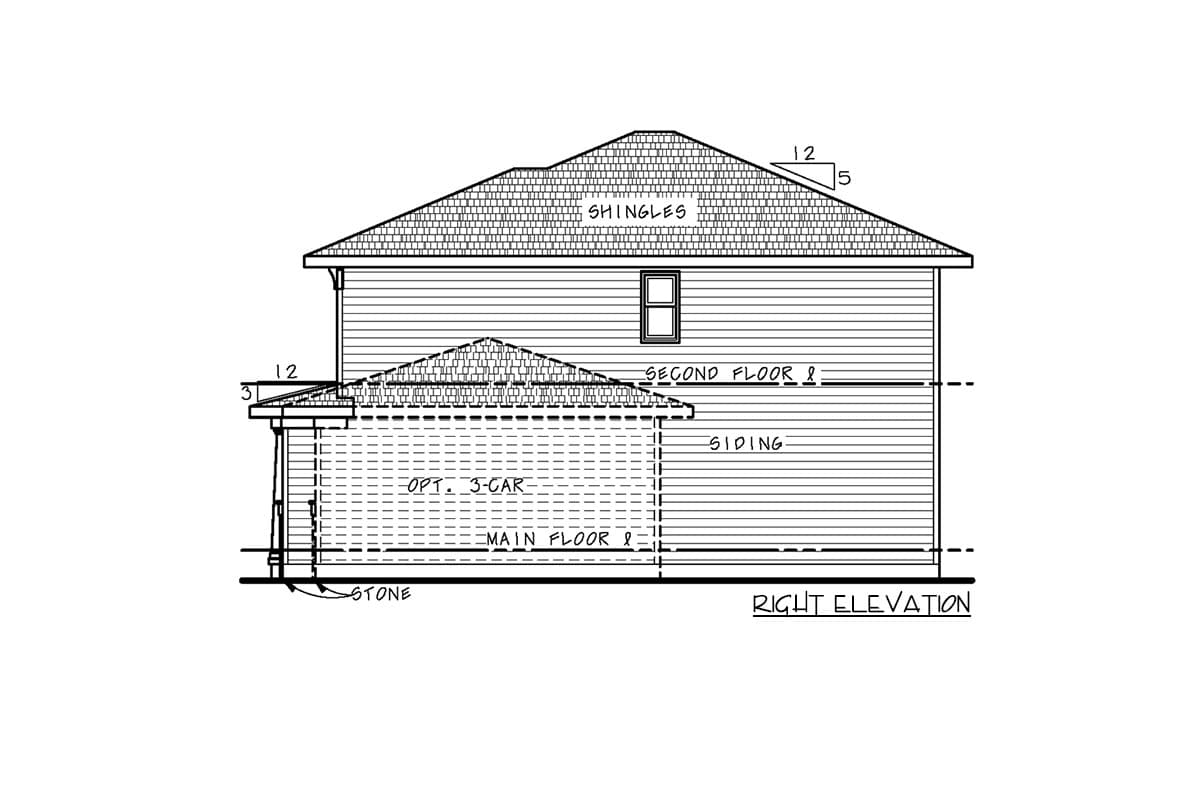

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,321 sq. ft.

1st Floor

982 sq. ft.

2nd Floor

1,339 sq. ft.

Porch, Front

155 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 8"

Depth

40' 0"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Prairie

Traditional

Special Features

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Plan Collections

Photo Gallery
