Darling Craftsman House Plan with Second-Level Bedrooms

Plan 42588DB

  • 2,314

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The main floor consists of the shared living spaces in an open-concept floor plan, along with a quiet study in the front of the home. Sleeping rooms can be found on the second level.
  • Sliding doors off the dining area lead to a back deck, providing a space for a BBQ.
  • Upstairs, the owner's suite features a walk-in closet off the 5-fixture bath, and is conveniently located next to the laundry room. Three additional bedrooms share a central full bath.
  • Built-in lockers are provided in the mudroom to help organize personal items when coming or going from the garage.
  • The optional third car garage adds 12’ to the width of this home plan for a total width of 52'.
  • Related Plans: Get an alternate exterior with house plan 42589DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

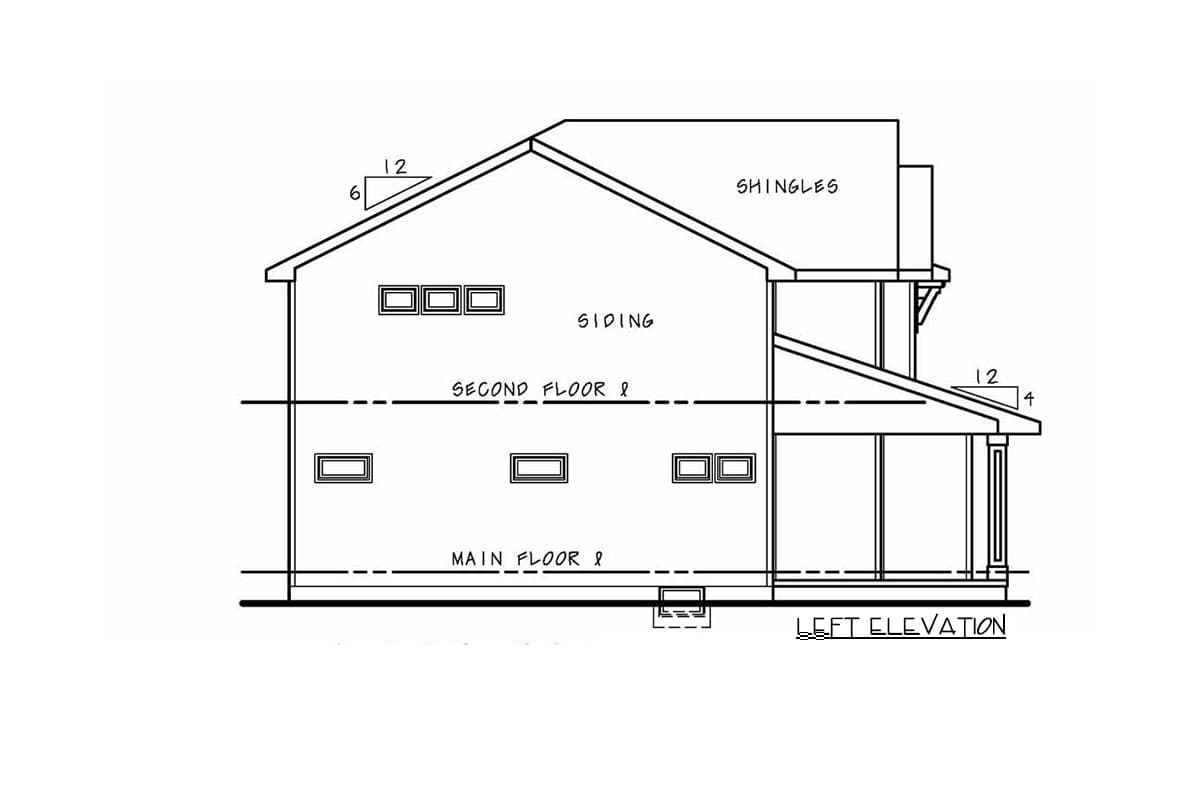

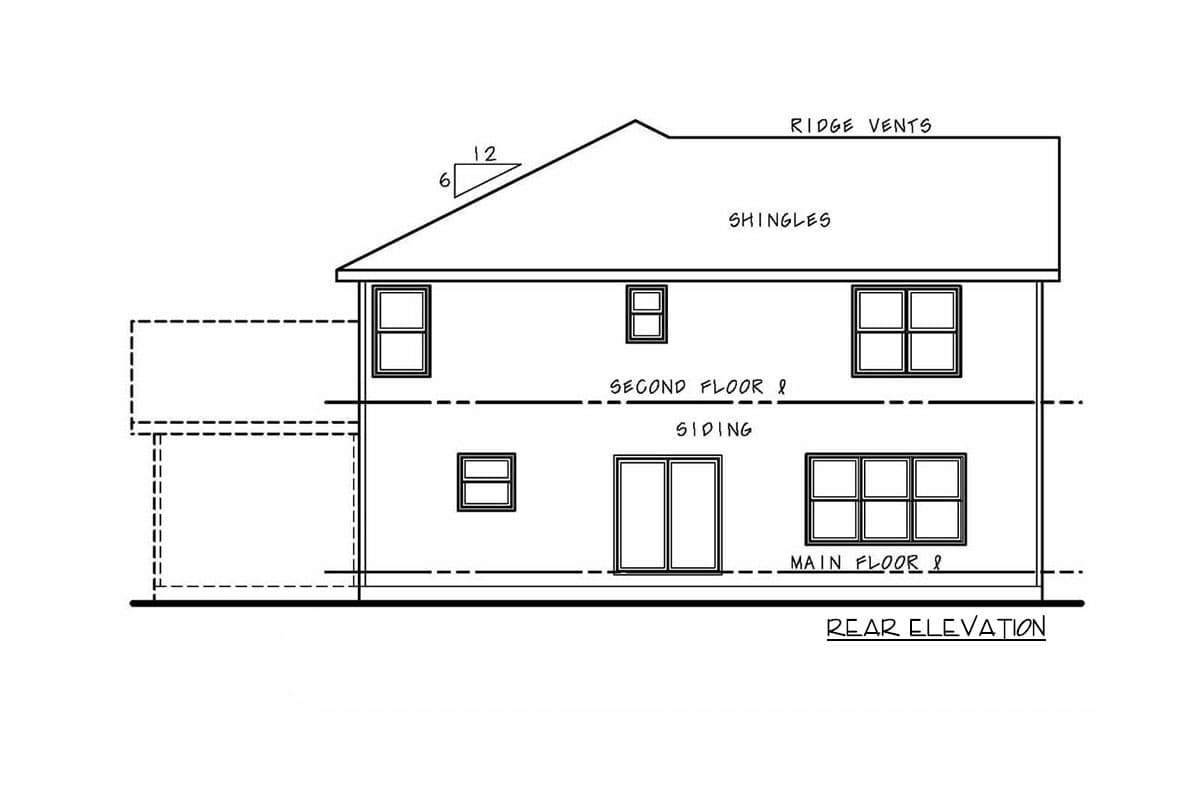

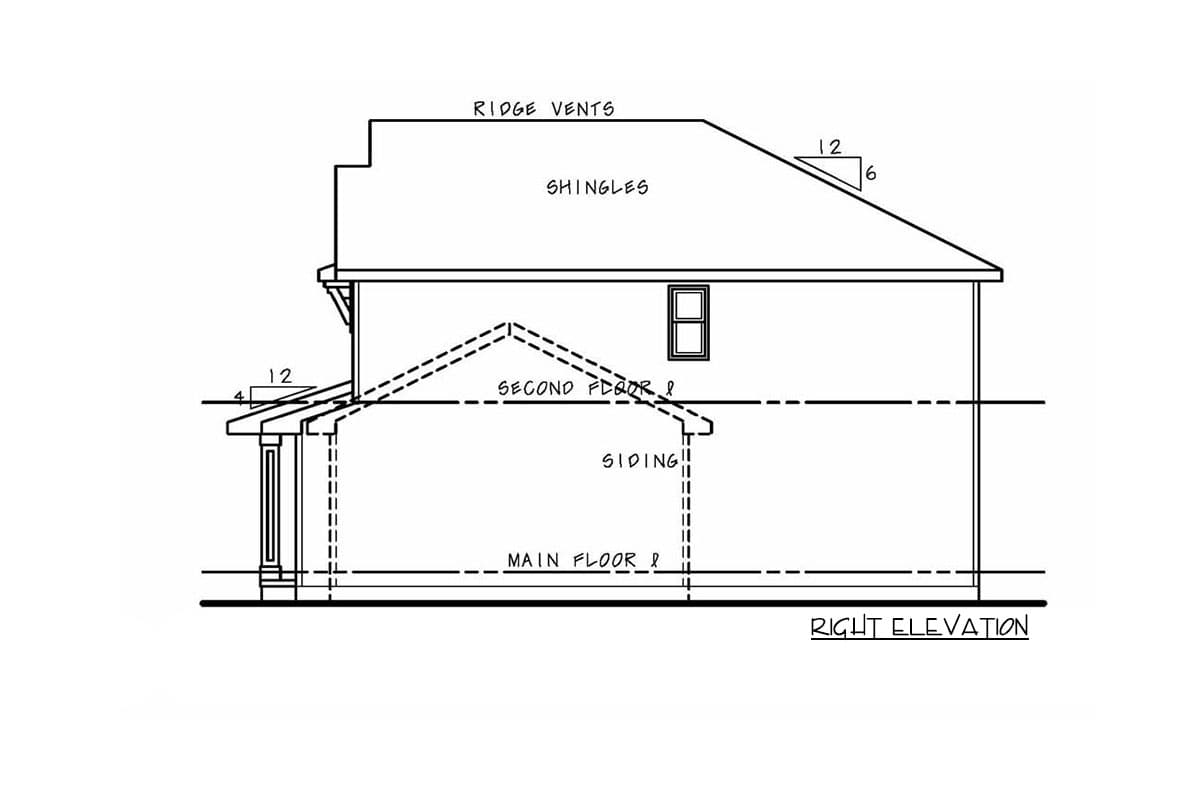

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Darling Craftsman House Plan with Second-Level Bedrooms

  • 2,314

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $665
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 5 Sets PLUS $1,185
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • The main floor consists of the shared living spaces in an open-concept floor plan, along with a quiet study in the front of the home. Sleeping rooms can be found on the second level.
  • Sliding doors off the dining area lead to a back deck, providing a space for a BBQ.
  • Upstairs, the owner's suite features a walk-in closet off the 5-fixture bath, and is conveniently located next to the laundry room. Three additional bedrooms share a central full bath.
  • Built-in lockers are provided in the mudroom to help organize personal items when coming or going from the garage.
  • The optional third car garage adds 12’ to the width of this home plan for a total width of 52'.
  • Related Plans: Get an alternate exterior with house plan 42589DB.

Floor Plans

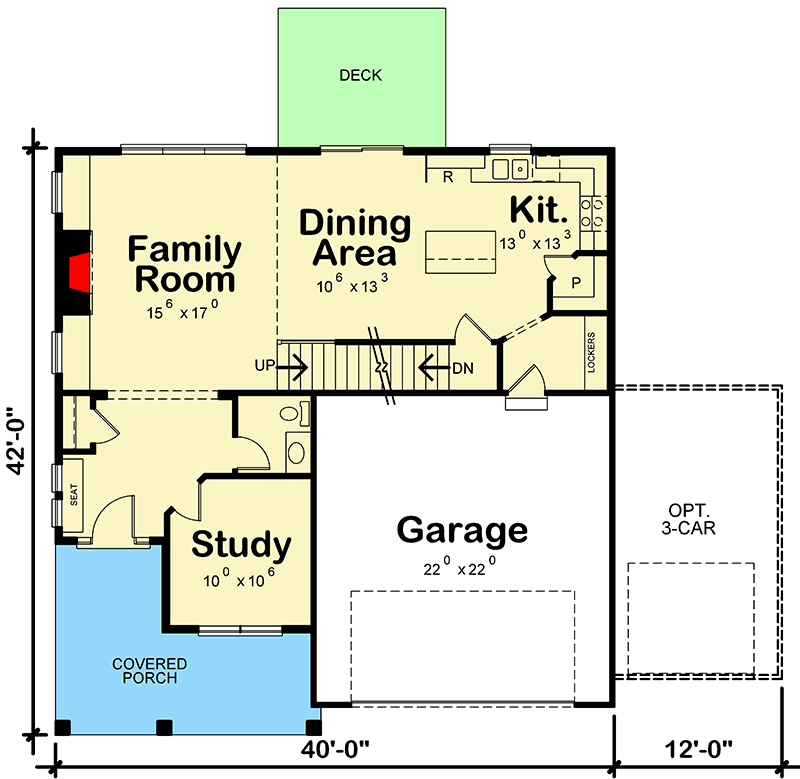

  • Main Level

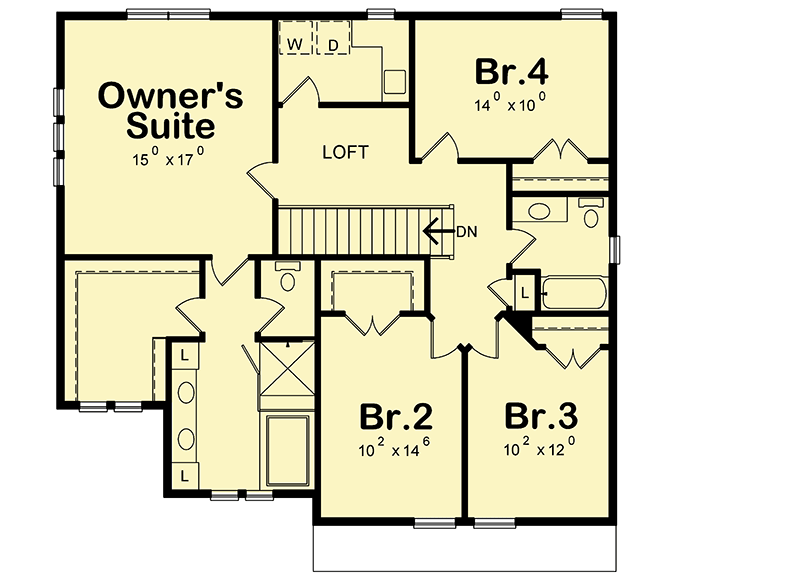

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,314 sq. ft.
  • 1st Floor: 975 sq. ft.
  • 2nd Floor: 1,339 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 479 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
