Plan 23590JD

4 Bed Craftsman with 2 Story Great Room

4,556 4 3.5 2 3
Pageloader

4 Bed Craftsman with 2 Story Great Room

Plan 23590JD

  • 4,556

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

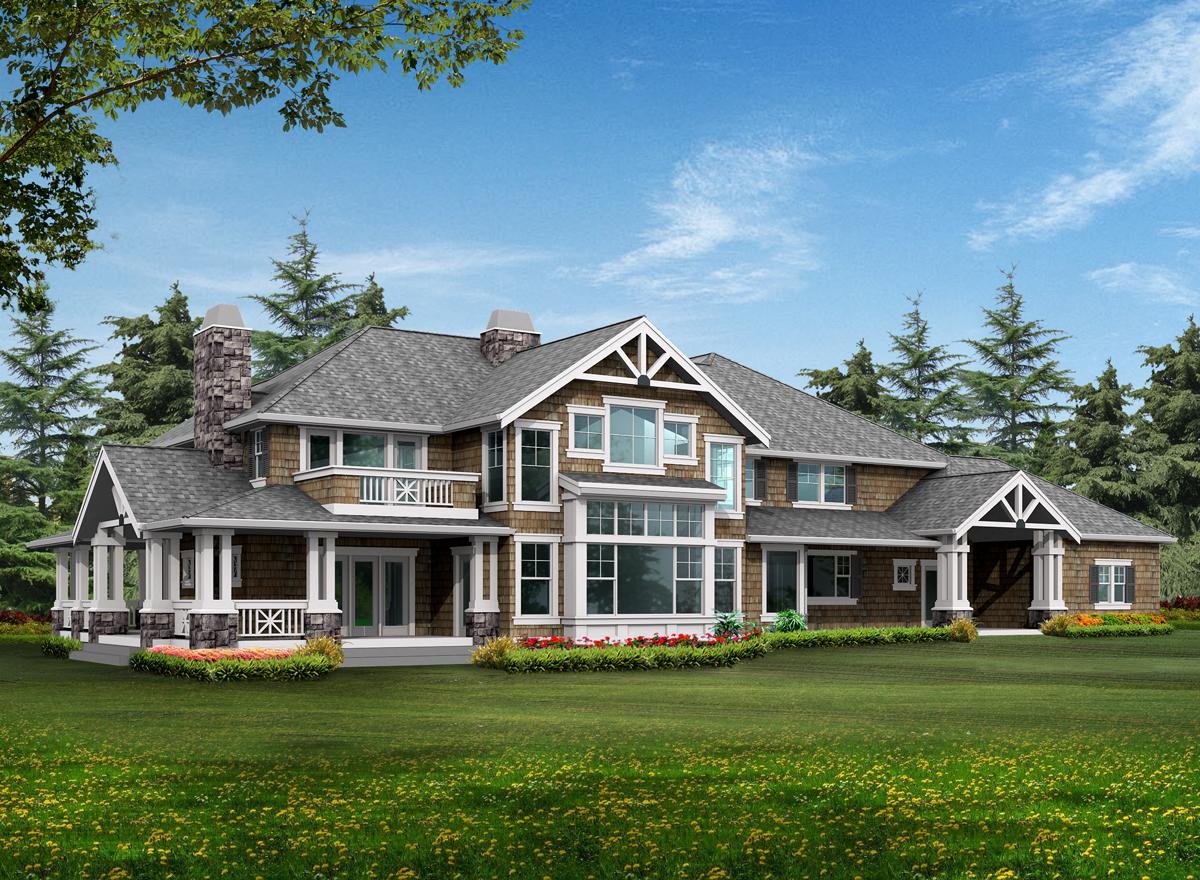

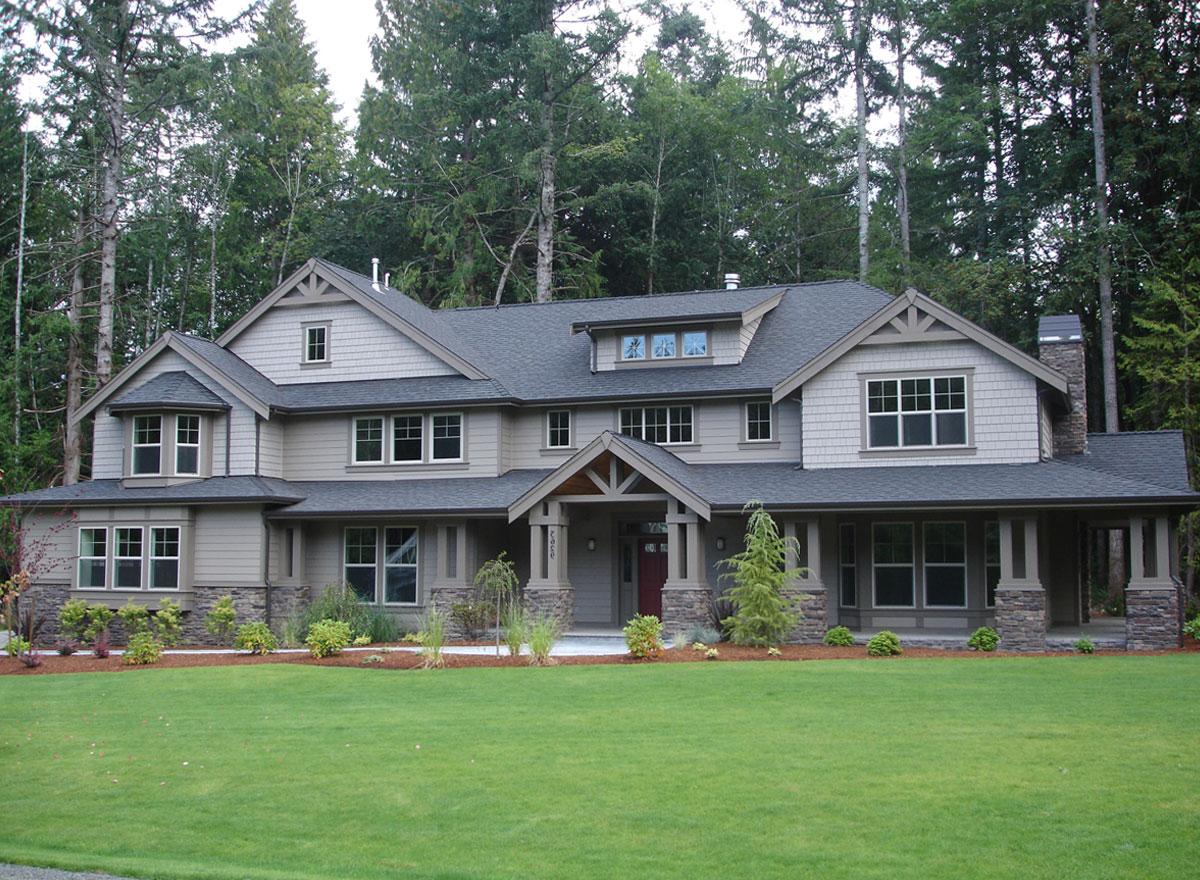

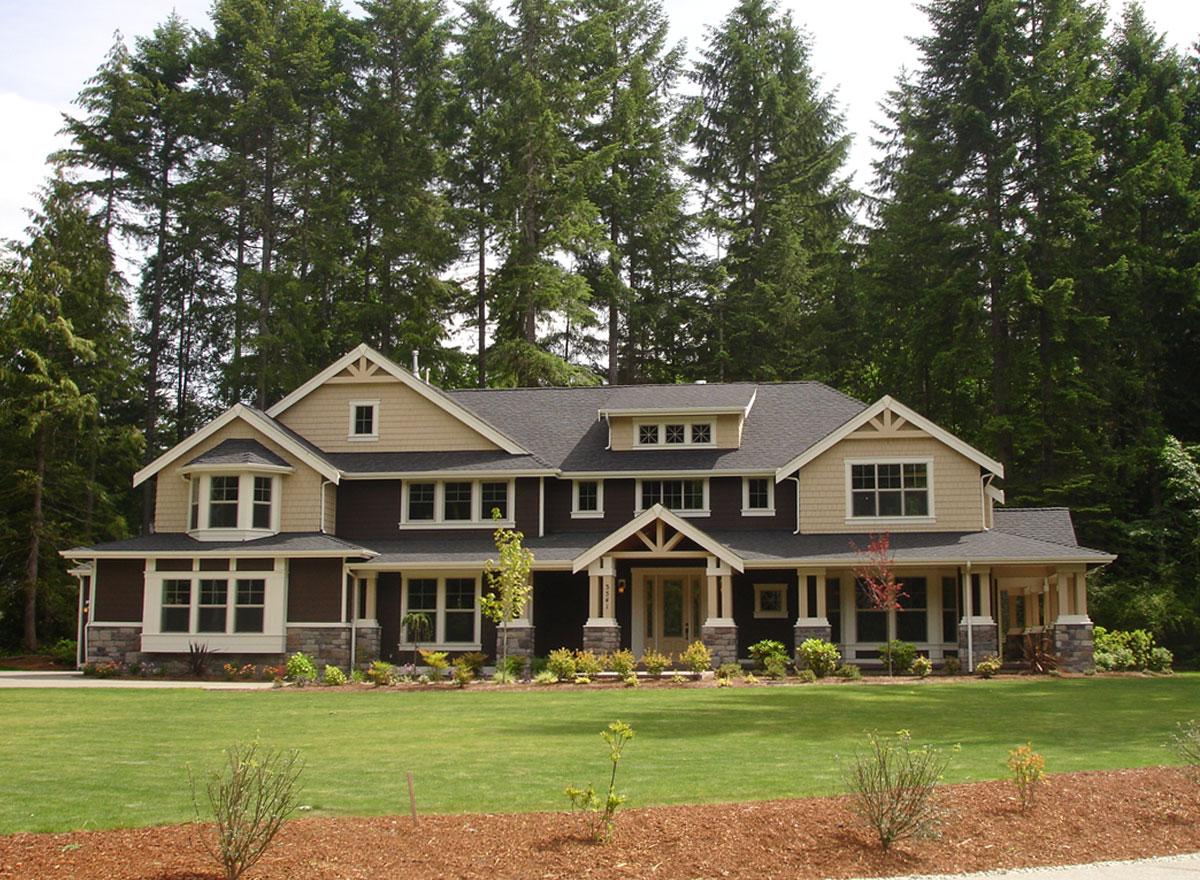

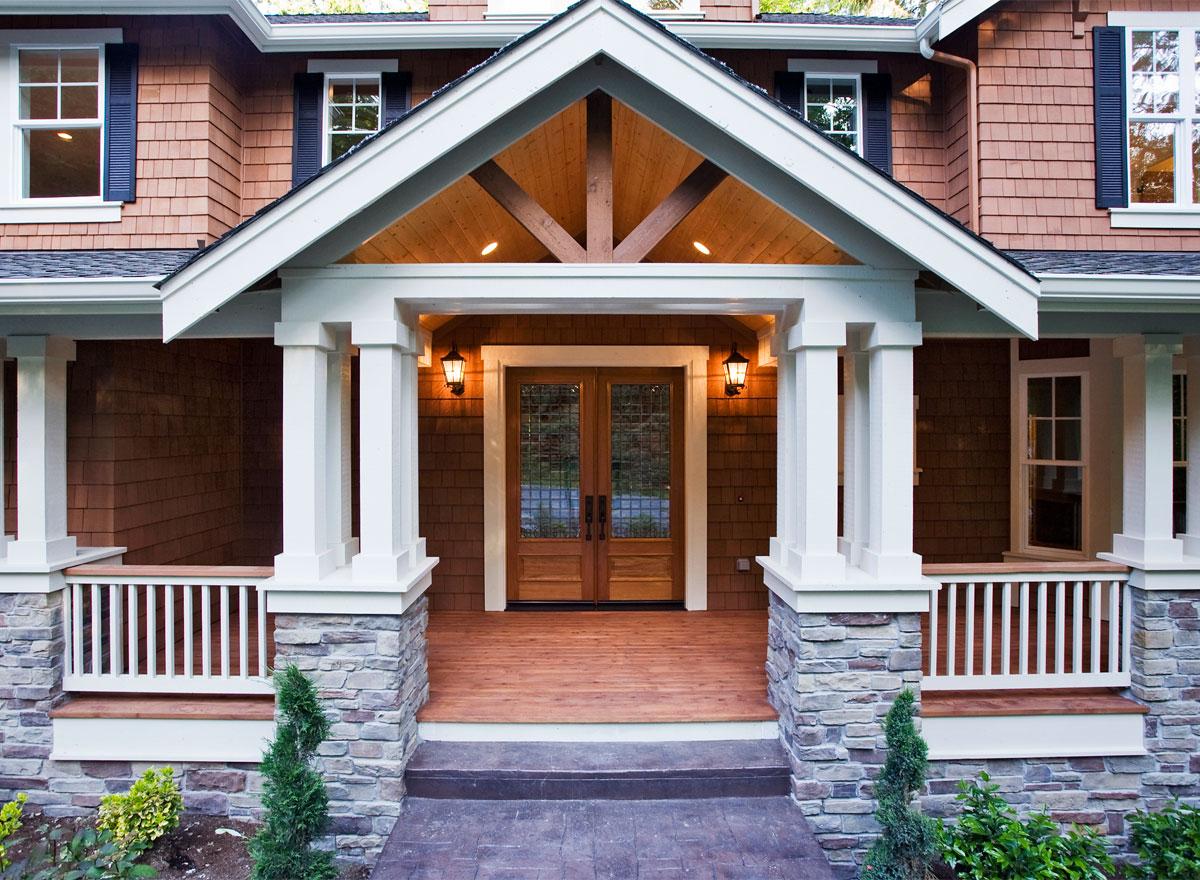

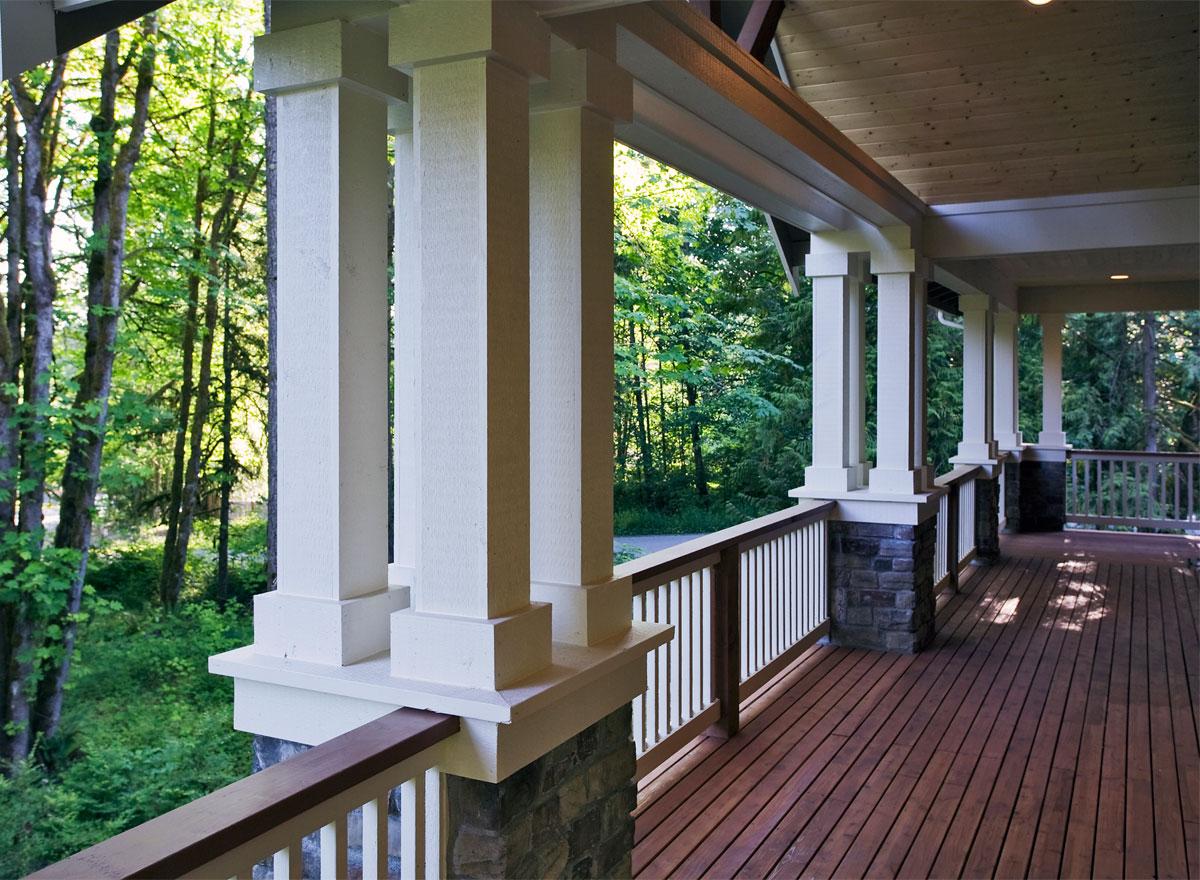

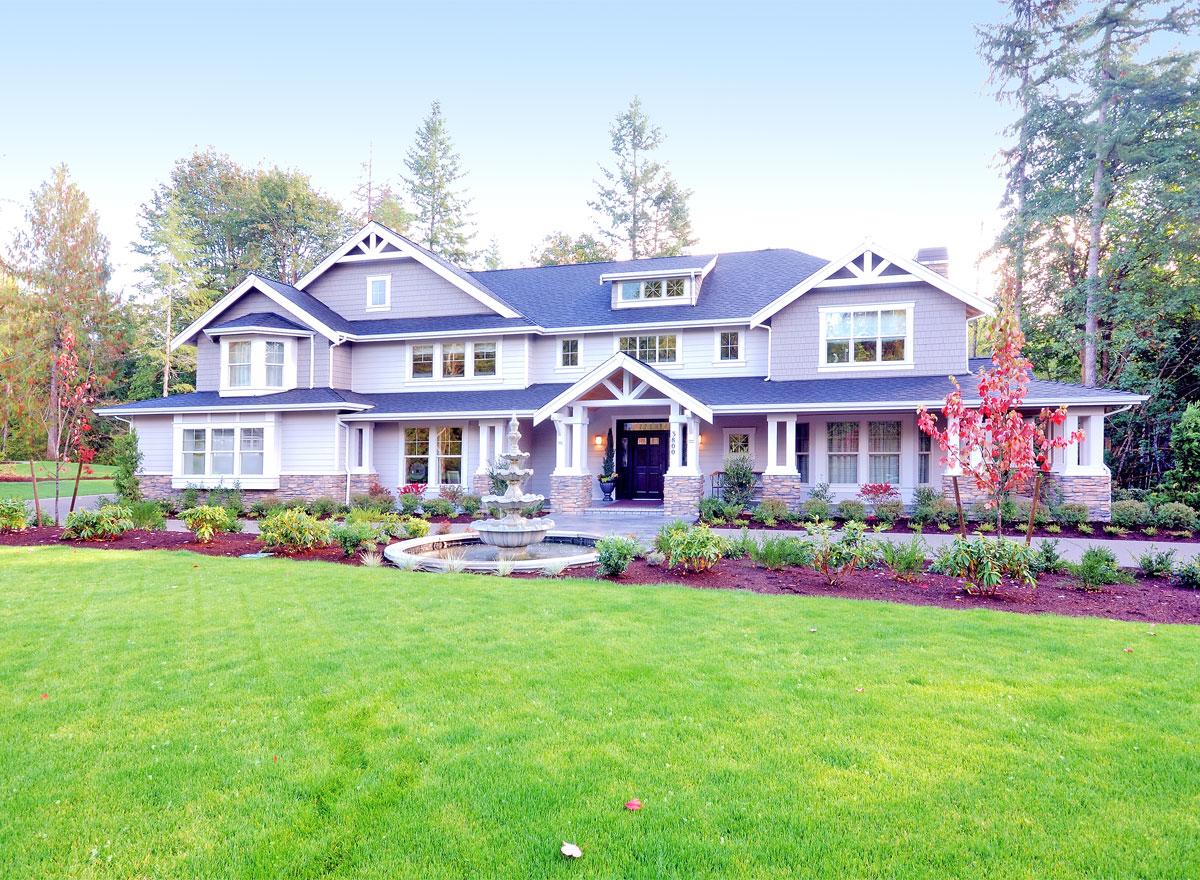

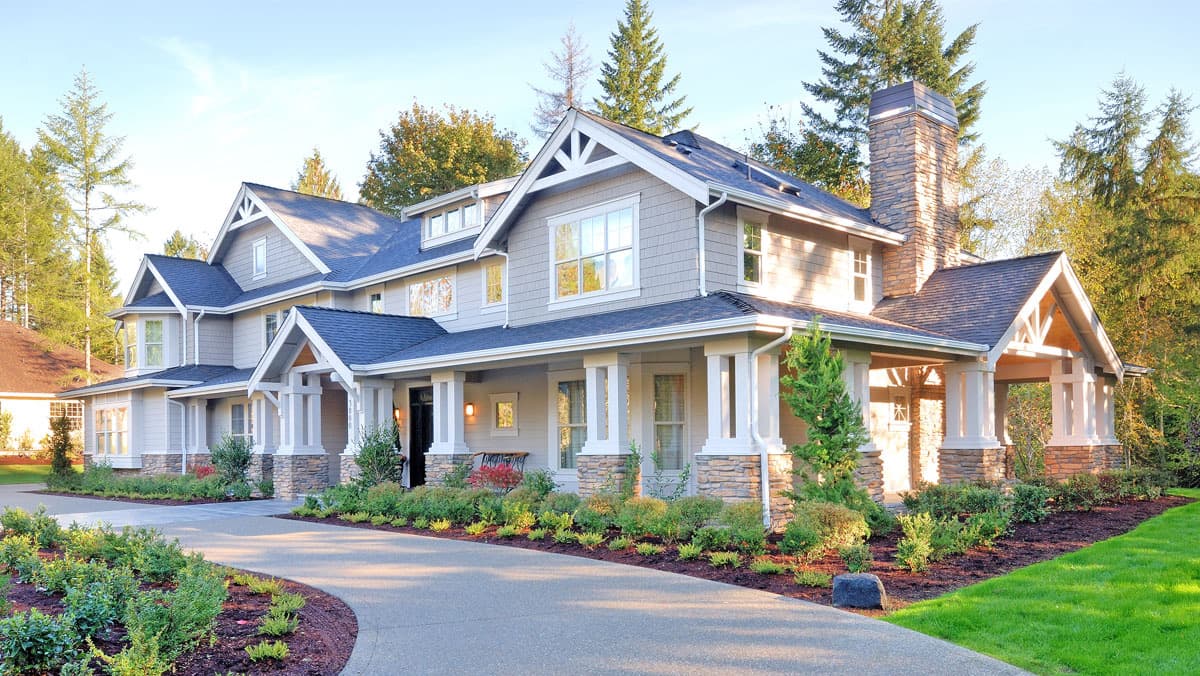

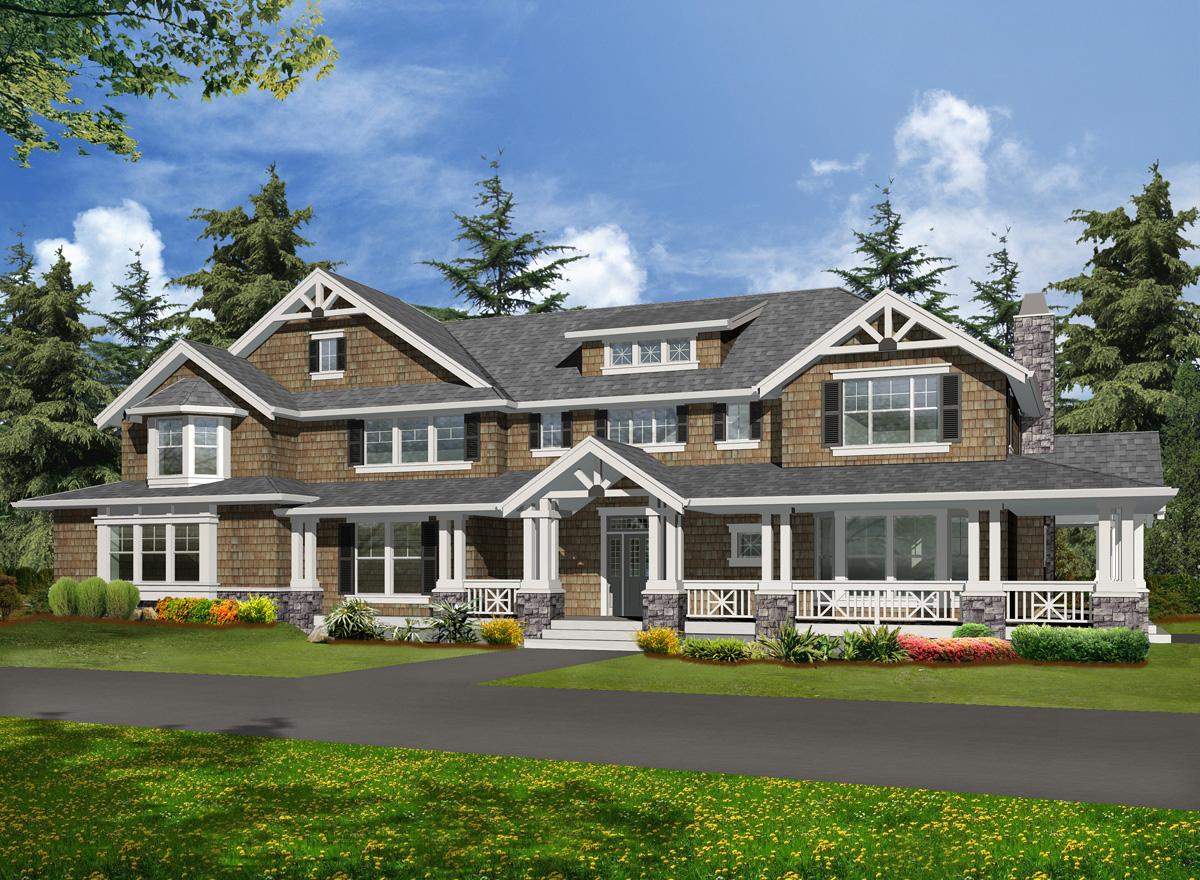

  • This luxury Craftsman house plan has a great exterior accented by a porch that wraps around three sides. A covered patio in back gives you more space to enjoy the fresh air and can be used as an outdoor living room.

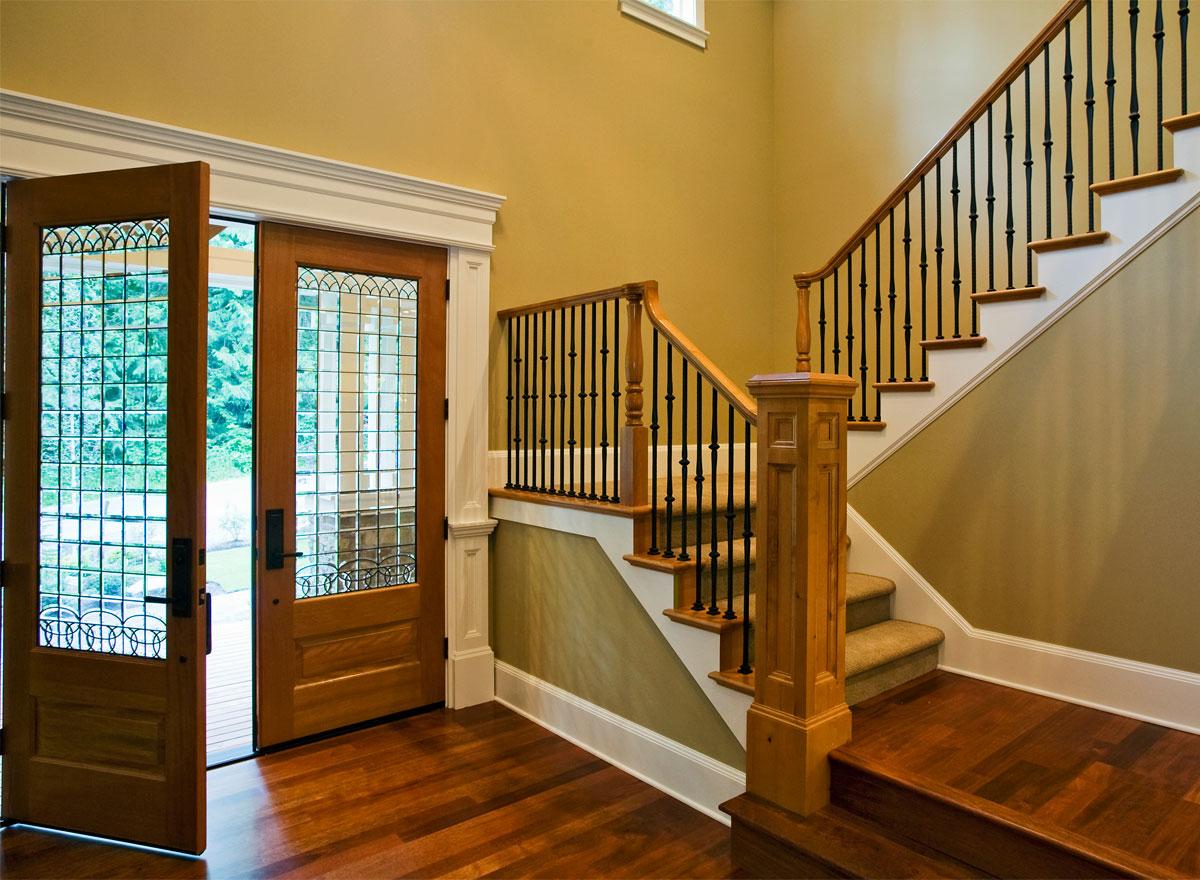

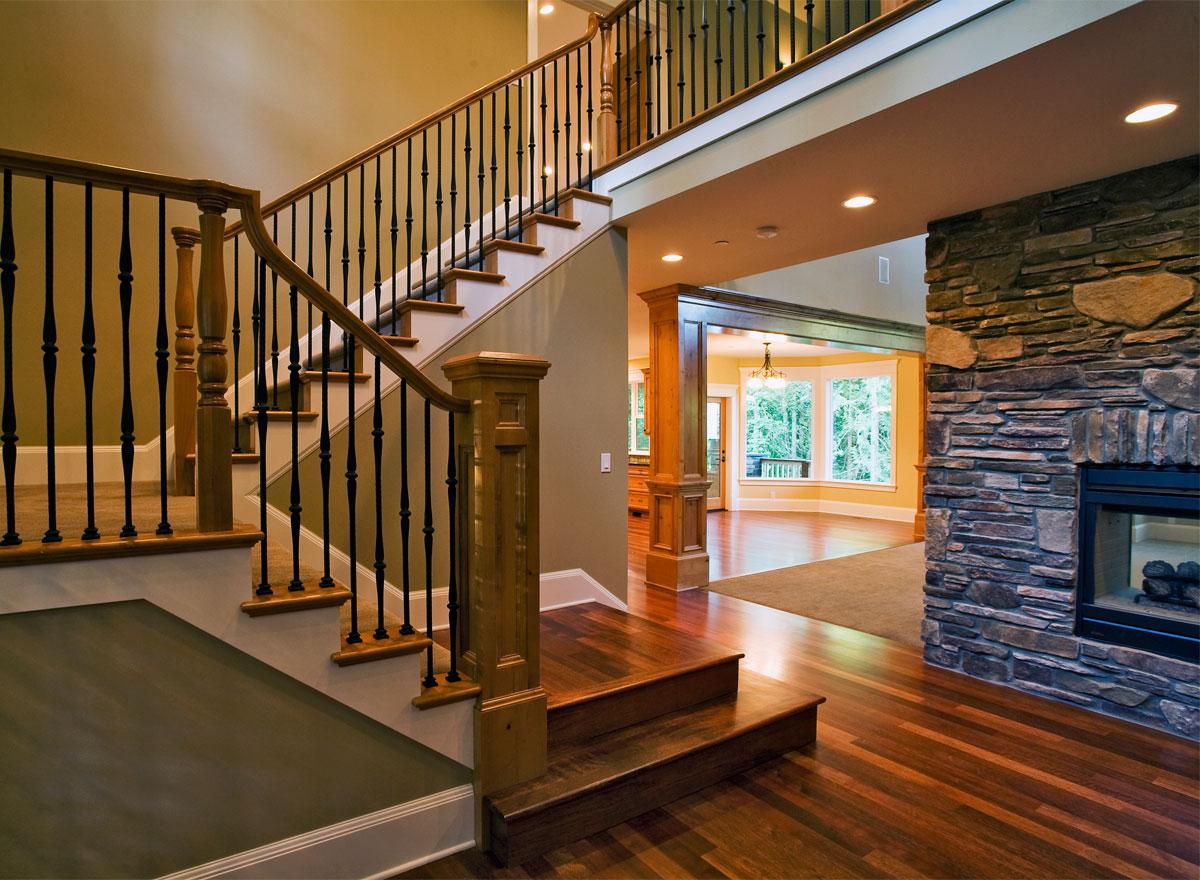

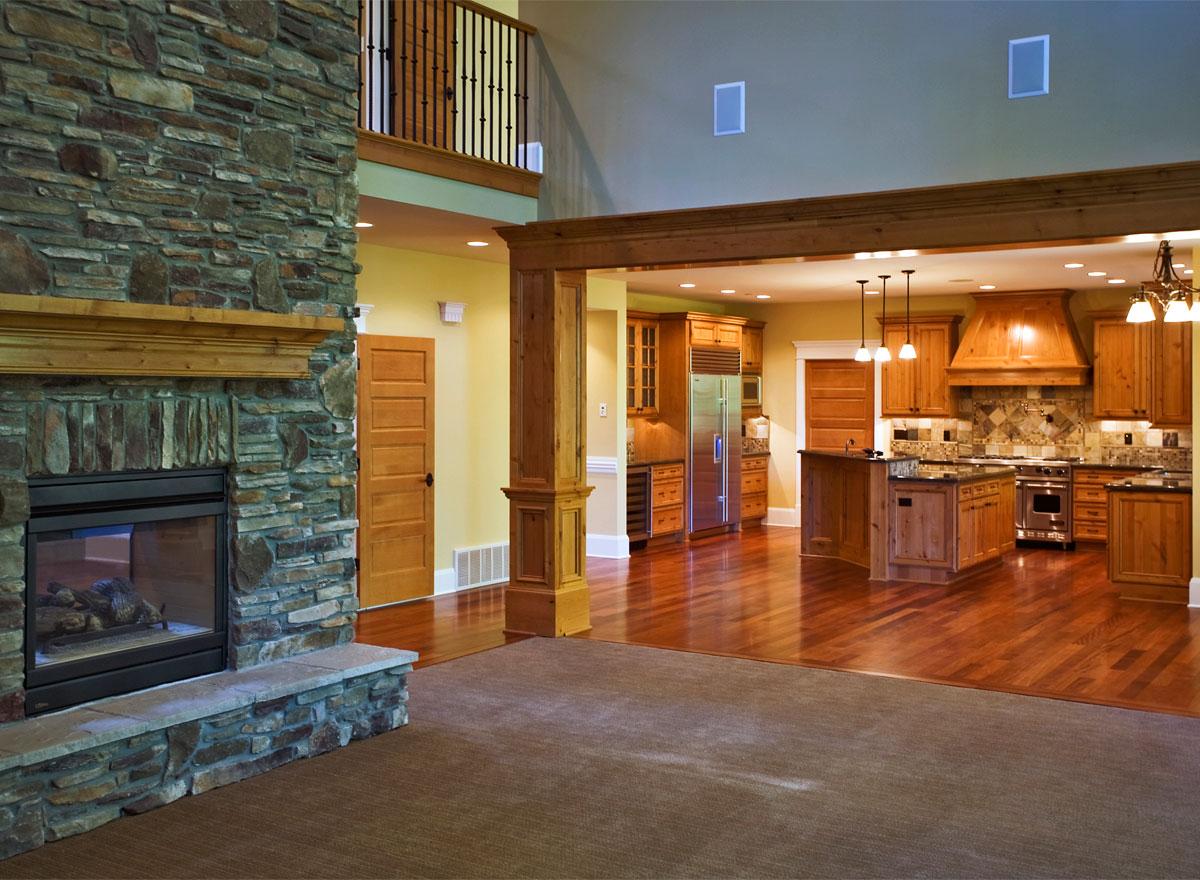

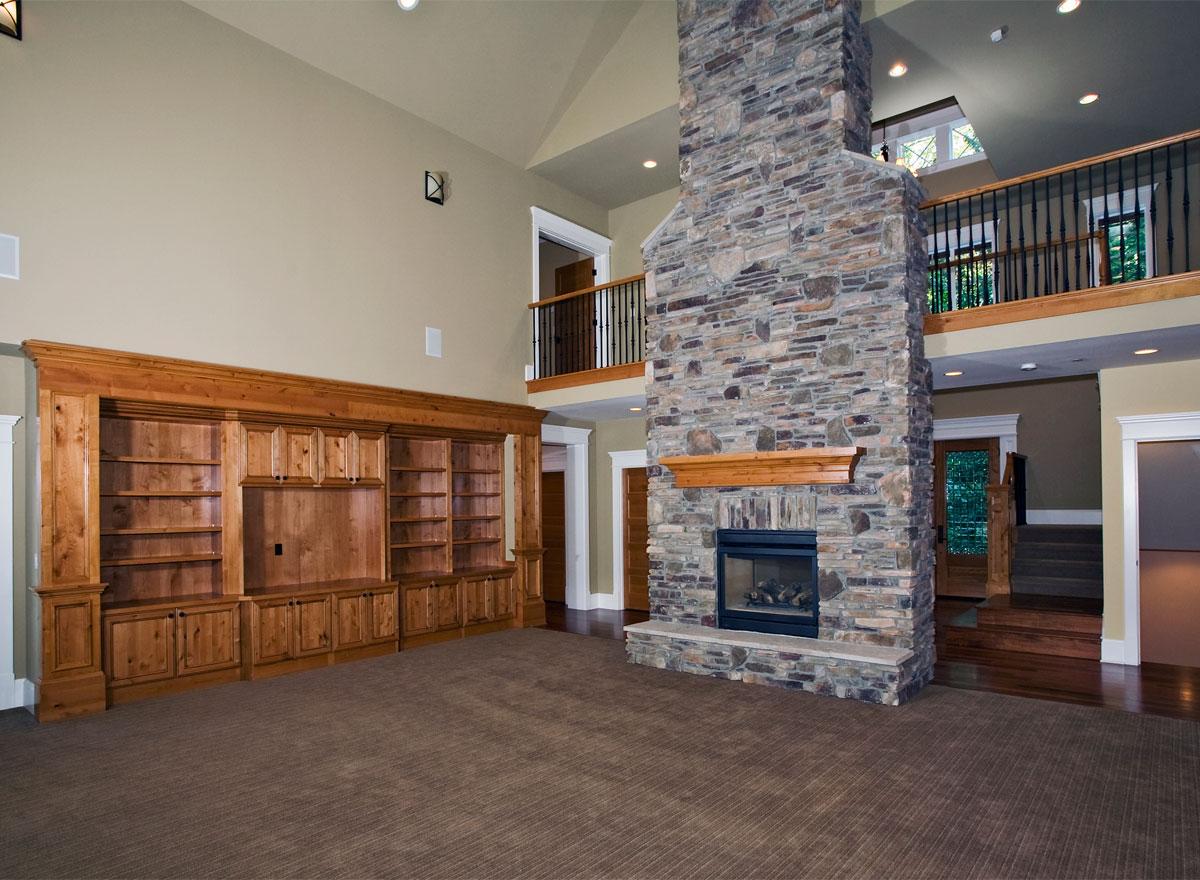

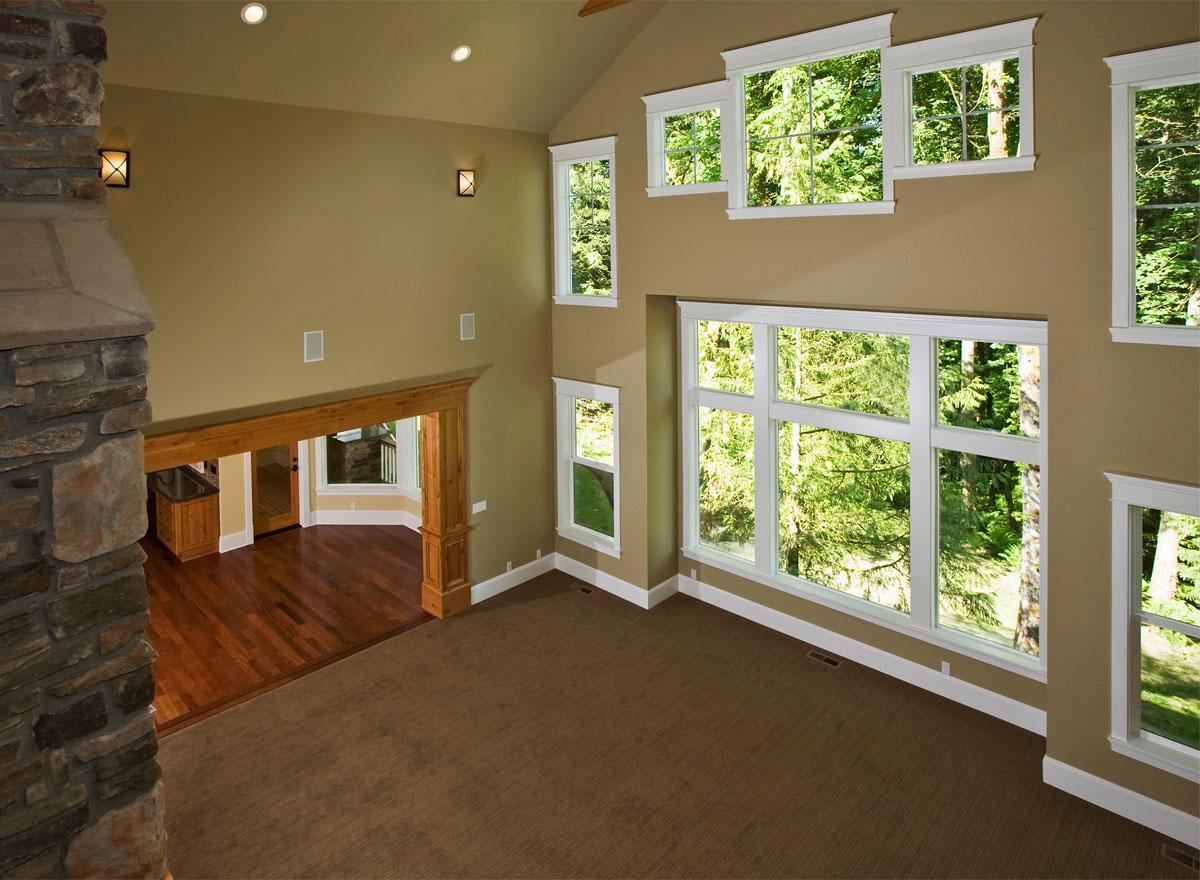

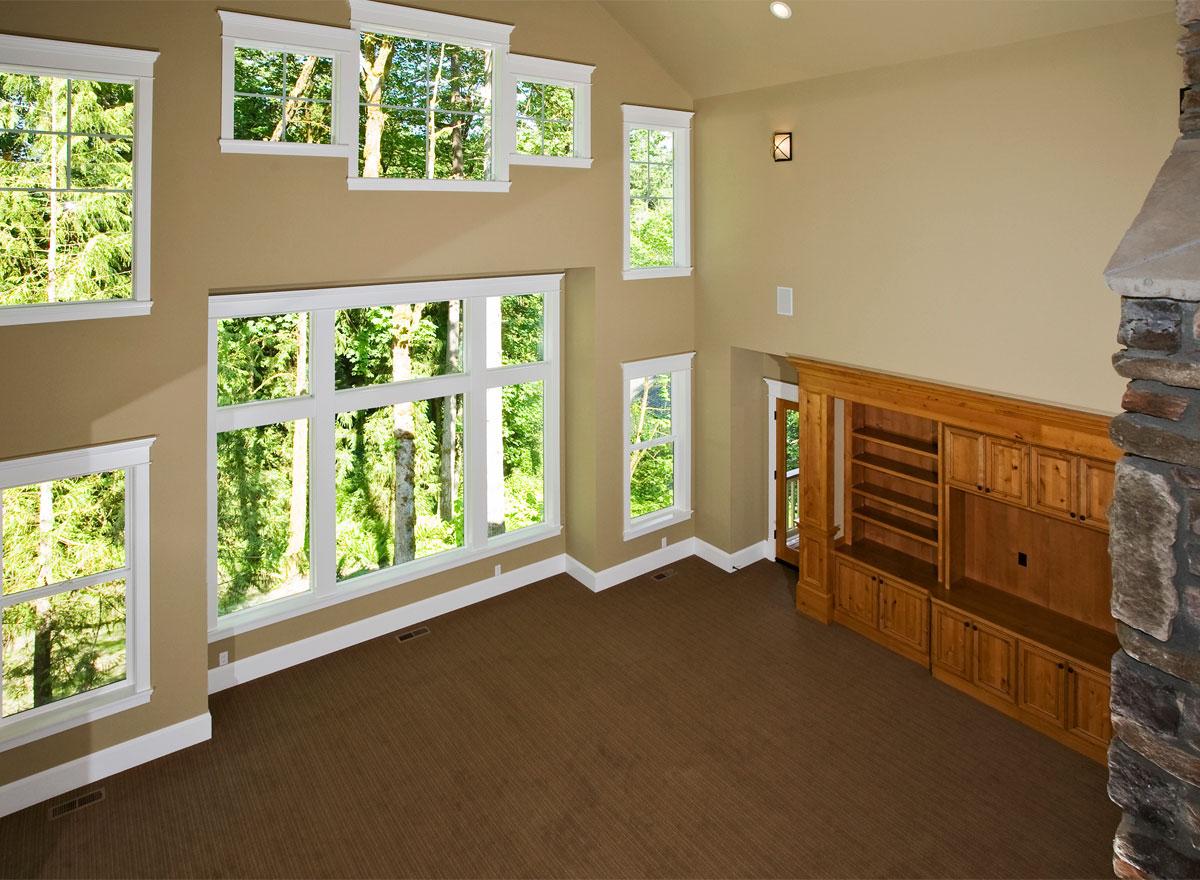

  • Enter the front door and enter the 2-story foyer and walk under the bridge above to the 2-story great room ahead. The great room has a dramatic fireplace and is open to the kitchen and nook providing great flow.

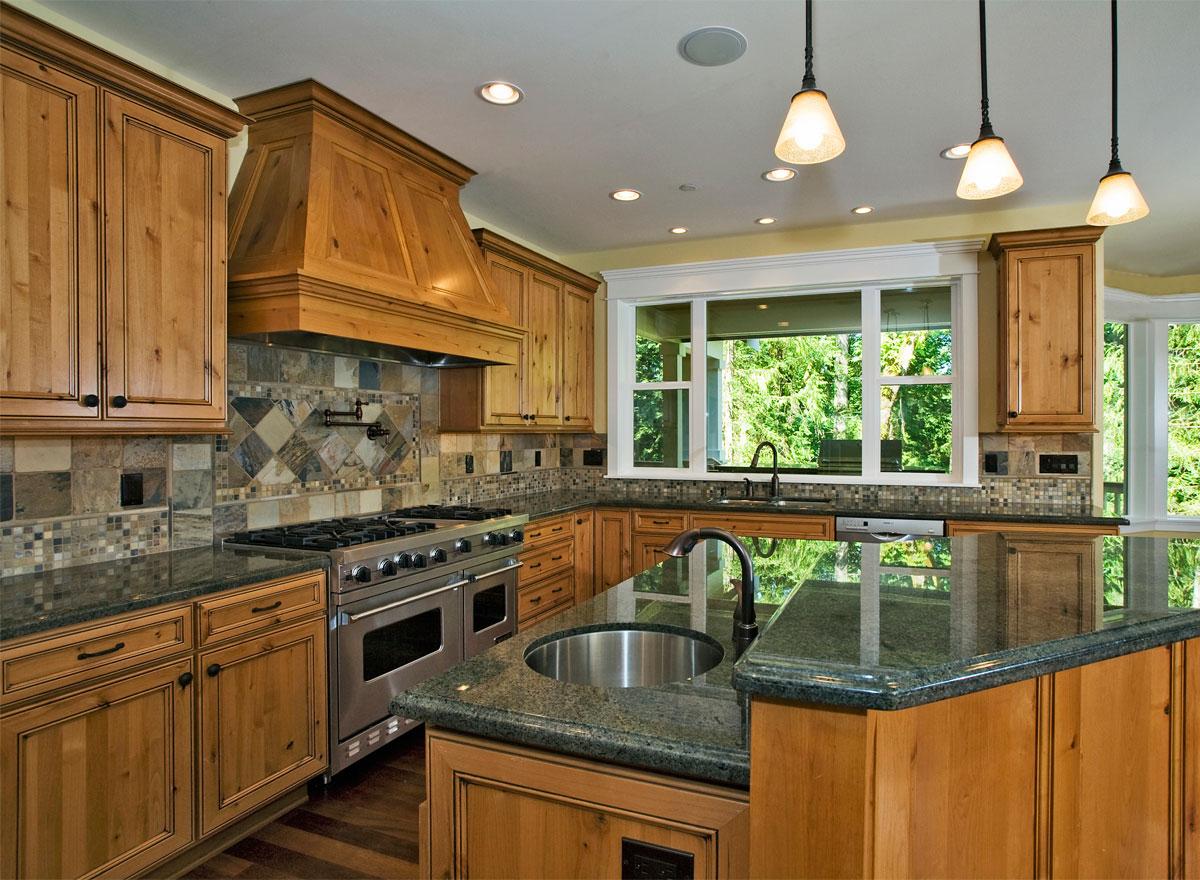

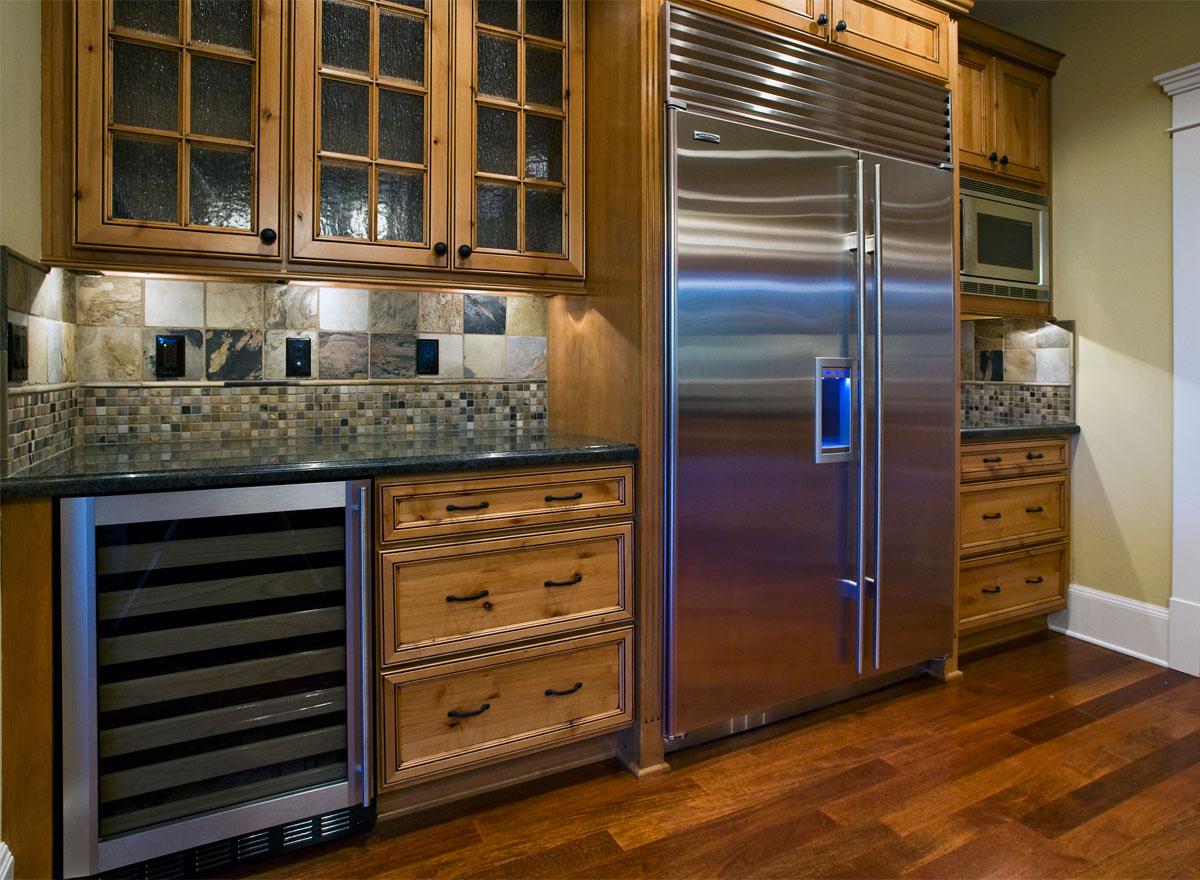

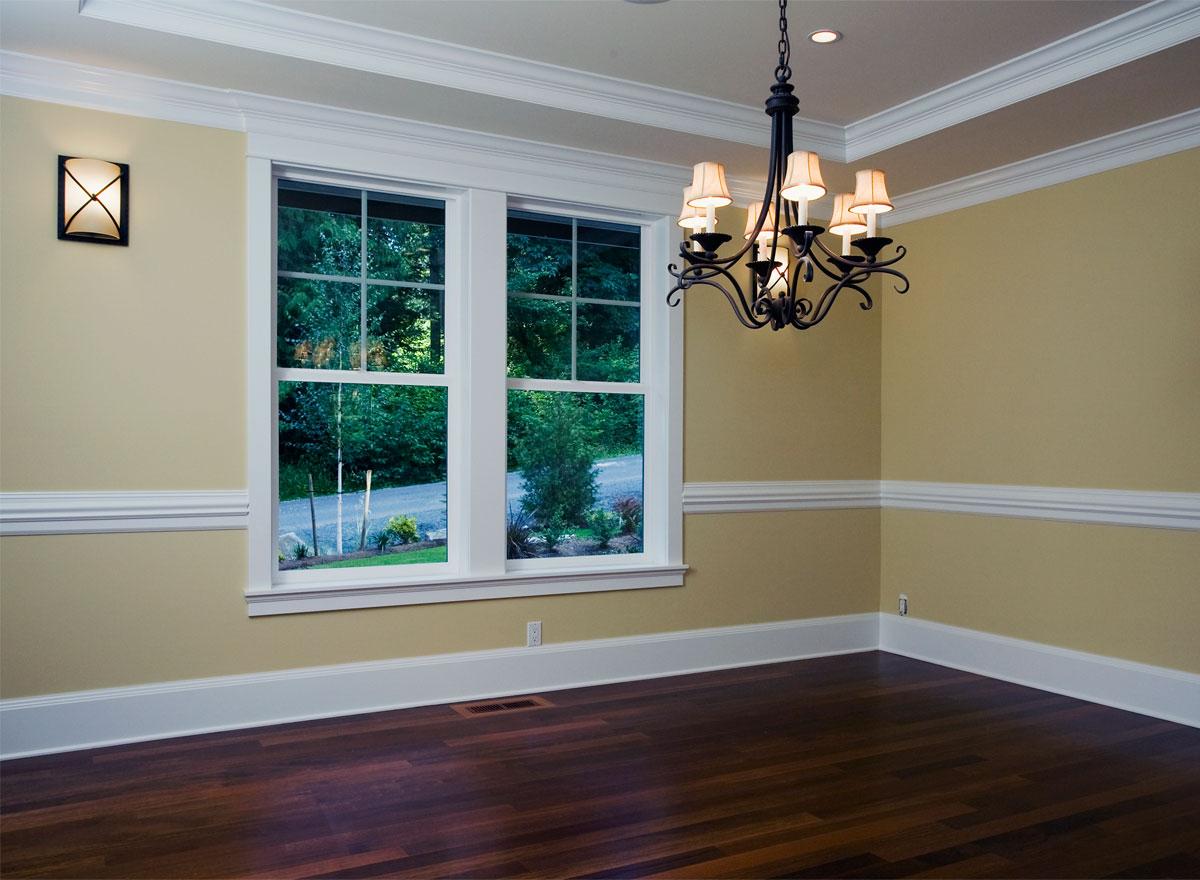

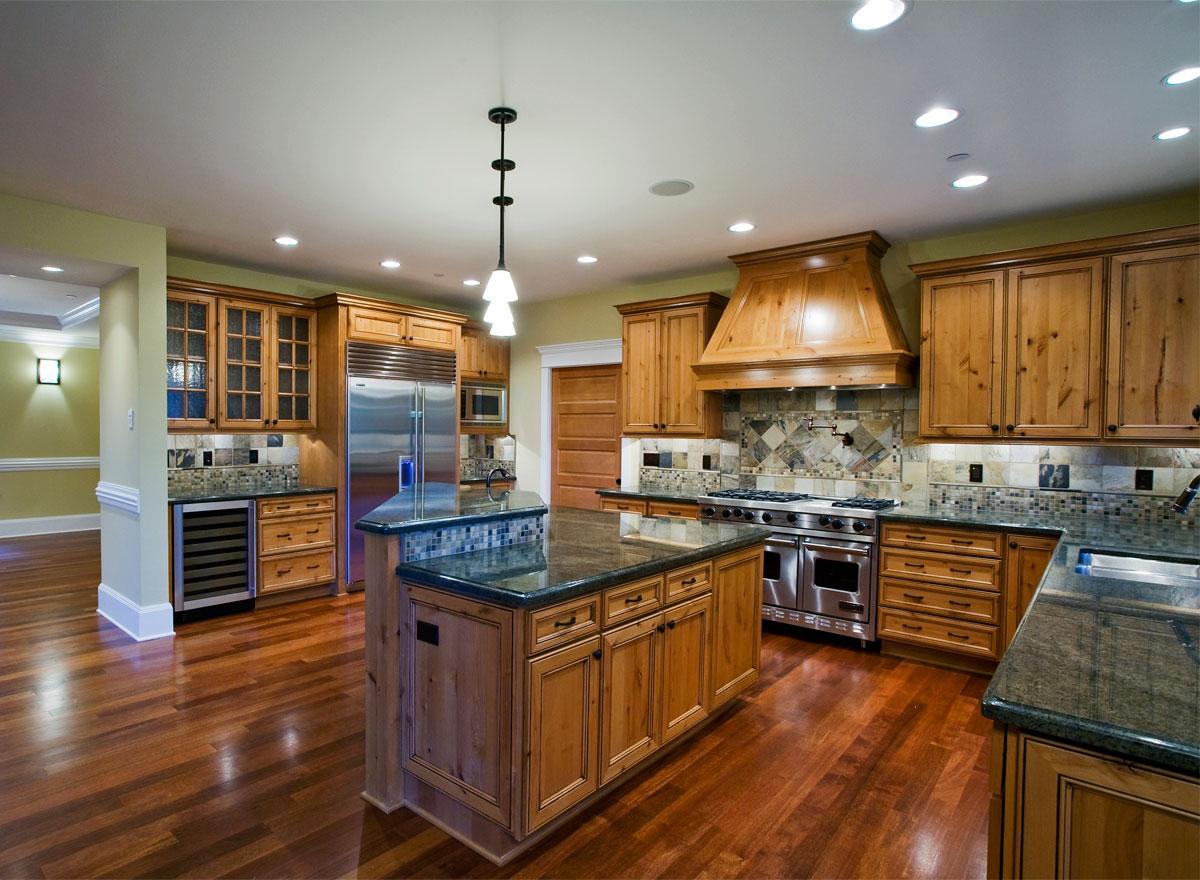

  • The kitchen has a massive island and is near the breakfast nook and the formal dining room. A guest suite and den provide more intimate spaces on this floor.
  • You have two stairs leading to the second floor - in the foyer and off the mudroom.

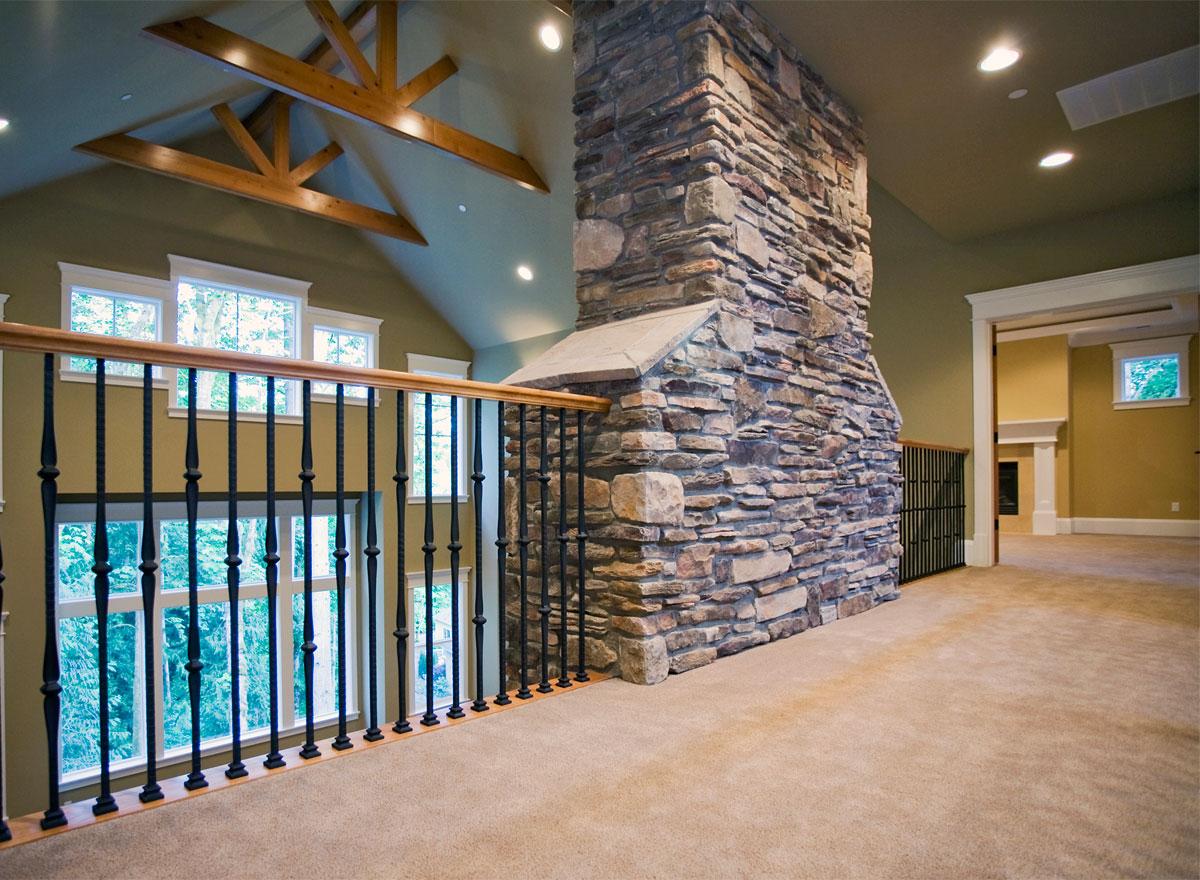

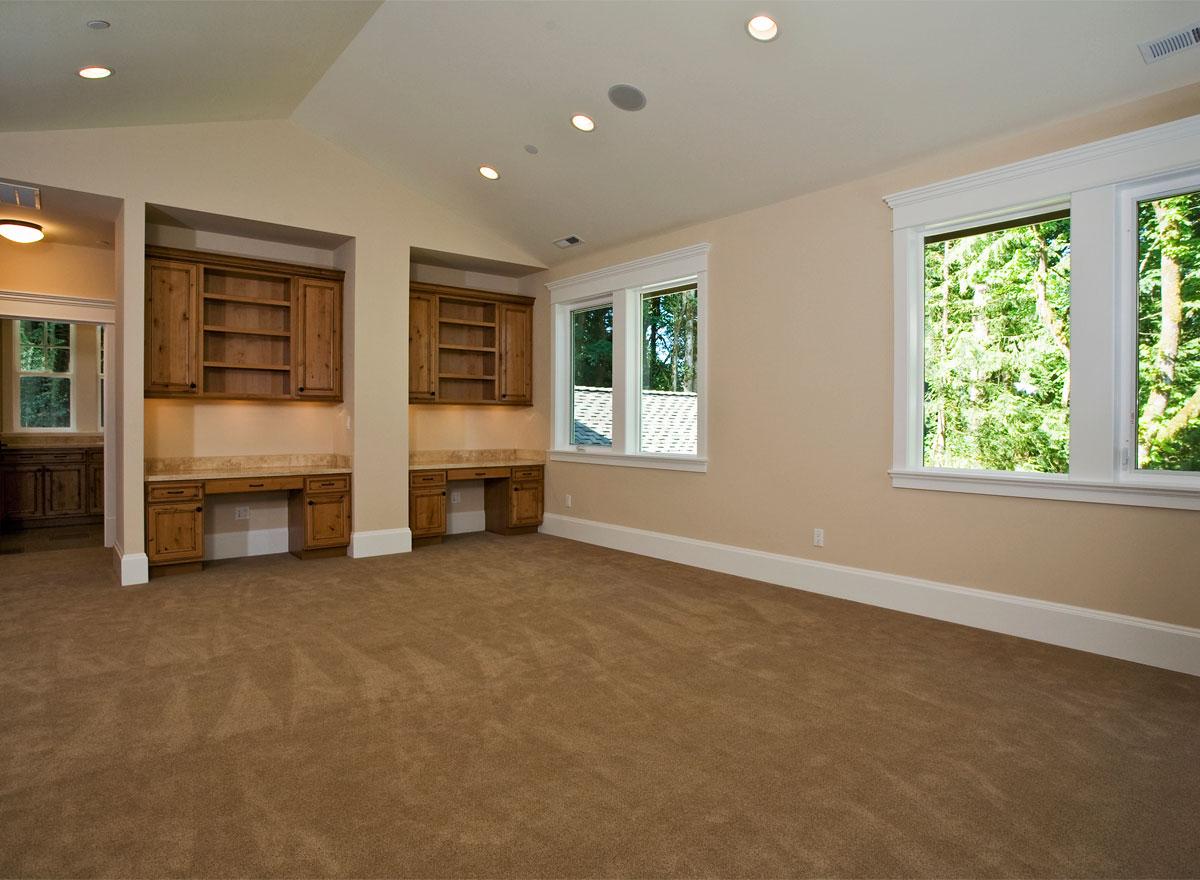

  • Upstairs, two bedrooms plus a play room take up half of this floor. Step across the bridge (note the views below) and enter your luxury master suite with its own private deck.
  • Related Plans: Eliminate the dining room and get more garage space with house plans 2325JD (master-up) and 23300JD (master down).
  • Downsize with house plan 23374JD (3,558 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

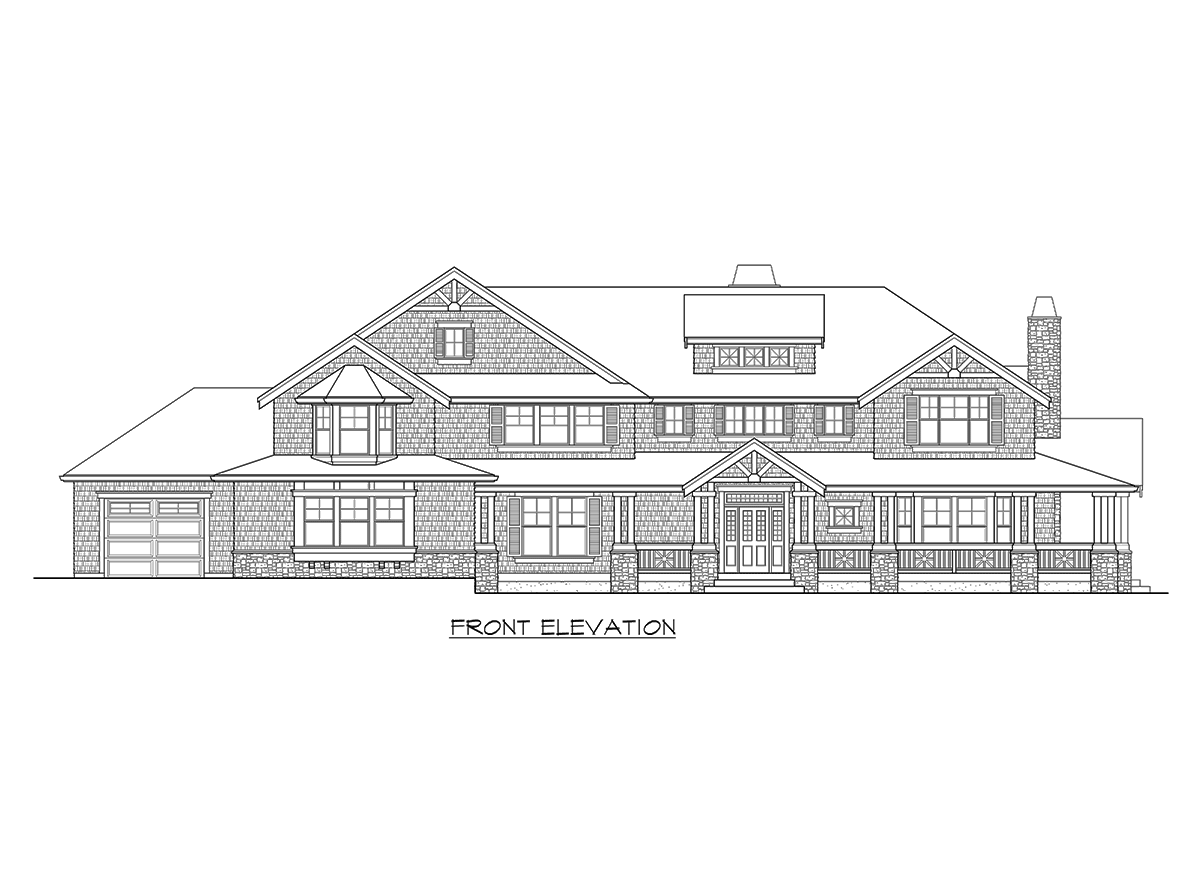

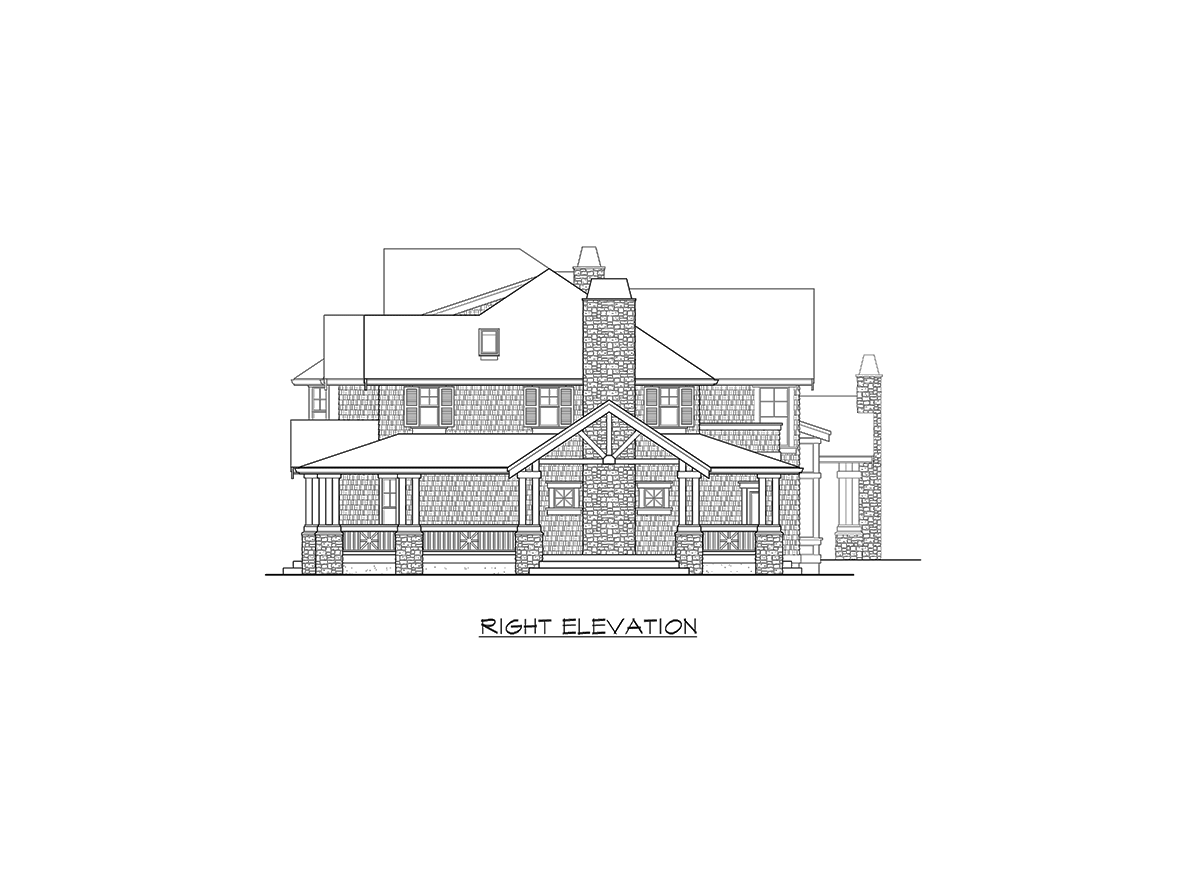

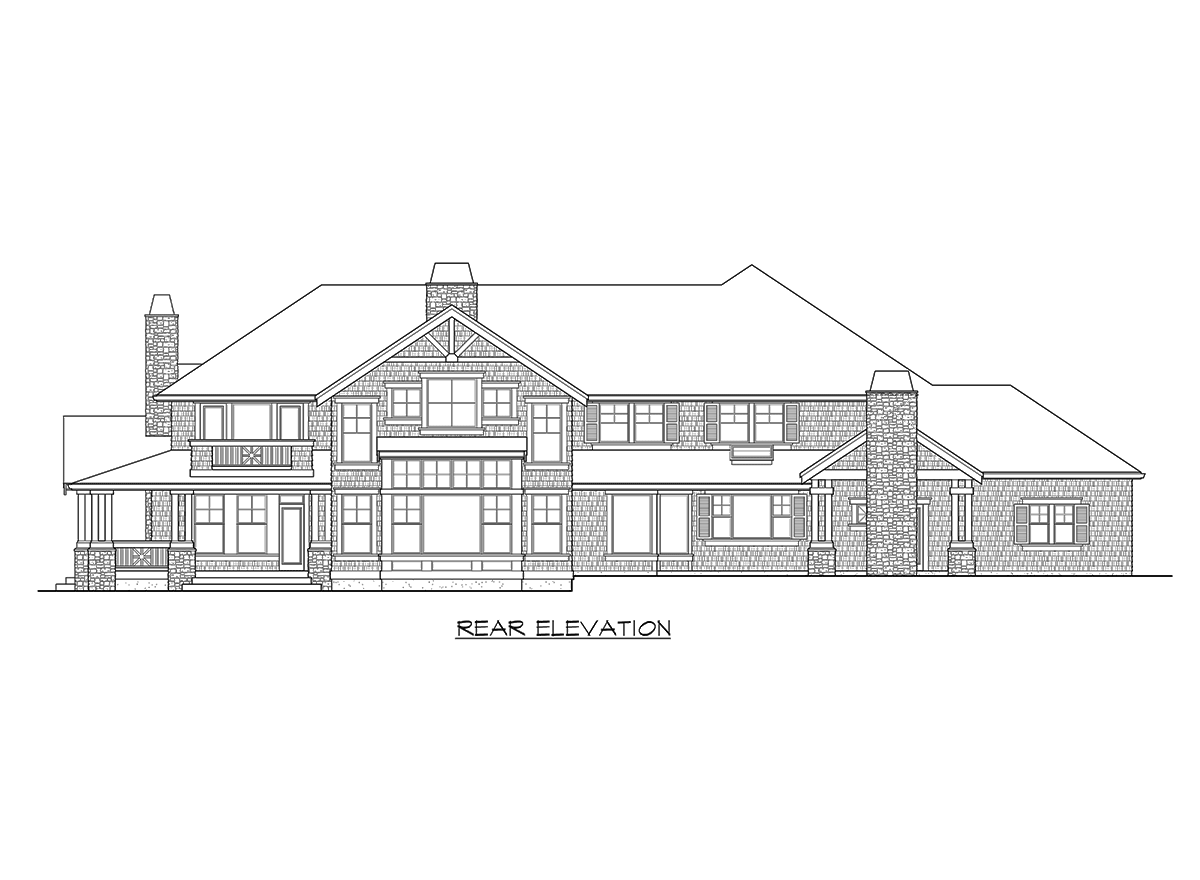

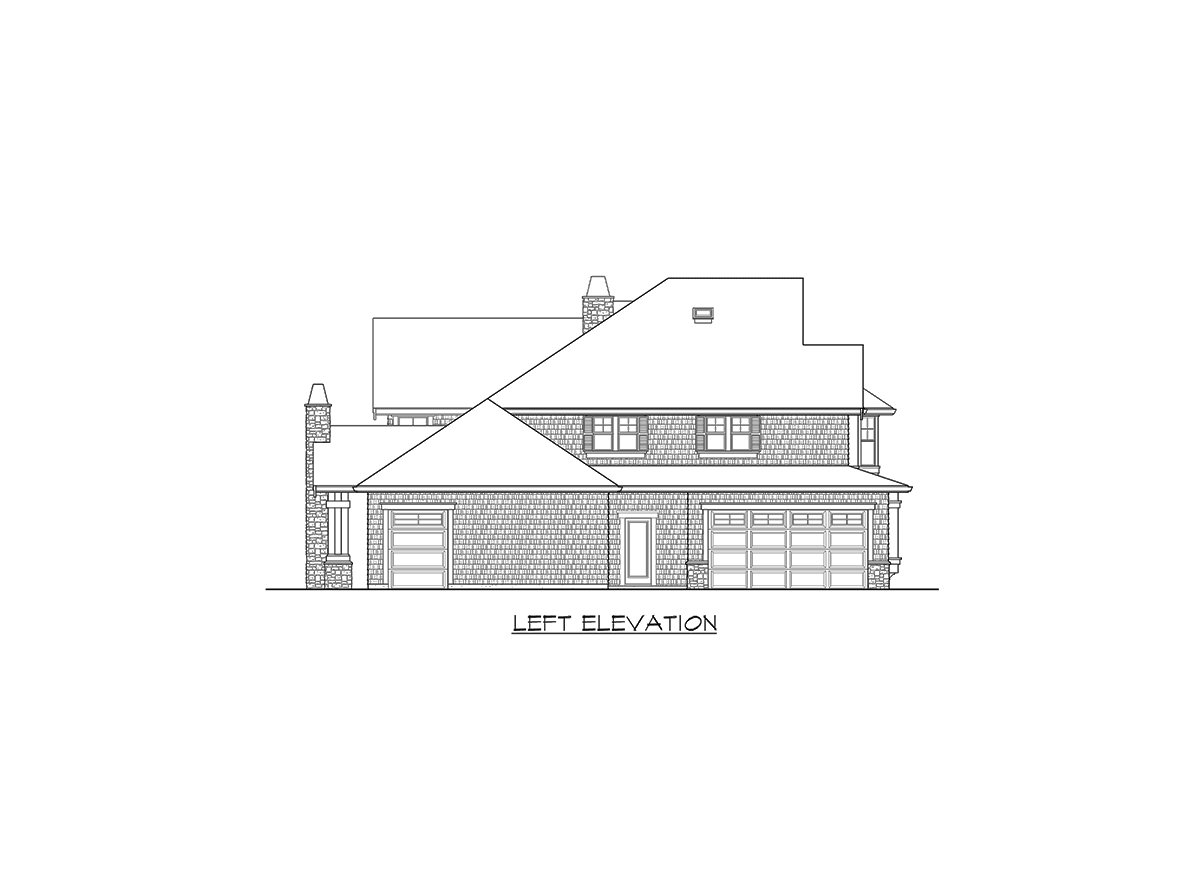

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



4 Bed Craftsman with 2 Story Great Room

  • 4,556

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,000
  • 5 Sets PLUS $2,150
  • CAD - multi-use $3,500
  • View all purchase option online

About This Plan

  • This luxury Craftsman house plan has a great exterior accented by a porch that wraps around three sides. A covered patio in back gives you more space to enjoy the fresh air and can be used as an outdoor living room.
  • Enter the front door and enter the 2-story foyer and walk under the bridge above to the 2-story great room ahead. The great room has a dramatic fireplace and is open to the kitchen and nook providing great flow.
  • The kitchen has a massive island and is near the breakfast nook and the formal dining room. A guest suite and den provide more intimate spaces on this floor.
  • You have two stairs leading to the second floor - in the foyer and off the mudroom.
  • Upstairs, two bedrooms plus a play room take up half of this floor. Step across the bridge (note the views below) and enter your luxury master suite with its own private deck.
  • Related Plans: Eliminate the dining room and get more garage space with house plans 2325JD (master-up) and 23300JD (master down).
  • Downsize with house plan 23374JD (3,558 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

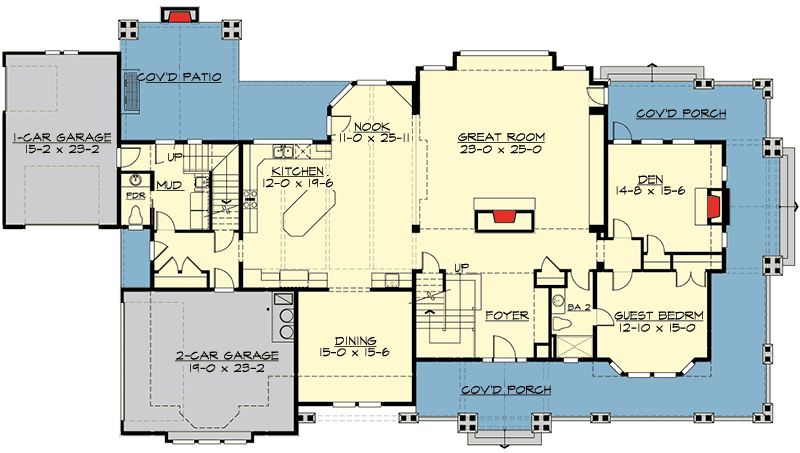

  • Main Level

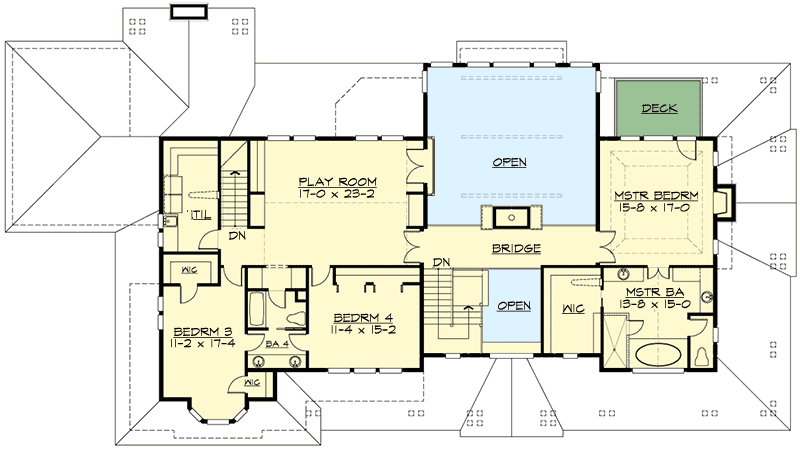

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,556 sq. ft.
  • 1st Floor: 2,616 sq. ft.
  • 2nd Floor: 1,940 sq. ft.
  • Porch, Combined: 784 sq. ft.
  • Deck: 96 sq. ft.
  • Covered Patio: 358 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 56' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 864 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
