Plan 51168MM

4 Bed Craftsman with Gabled Porch

2,789 4 4 1 2-3
Pageloader

4 Bed Craftsman with Gabled Porch

Plan 51168MM

  • 2,789

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2-3

    Cars

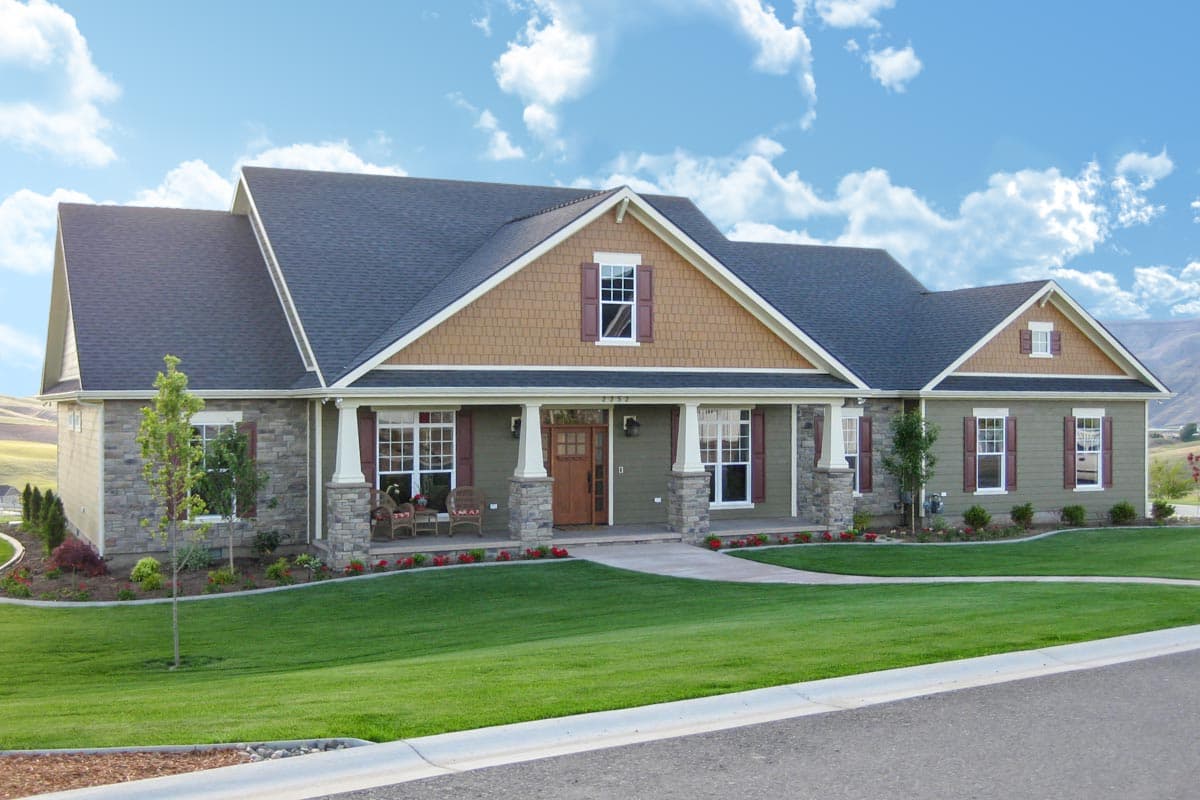

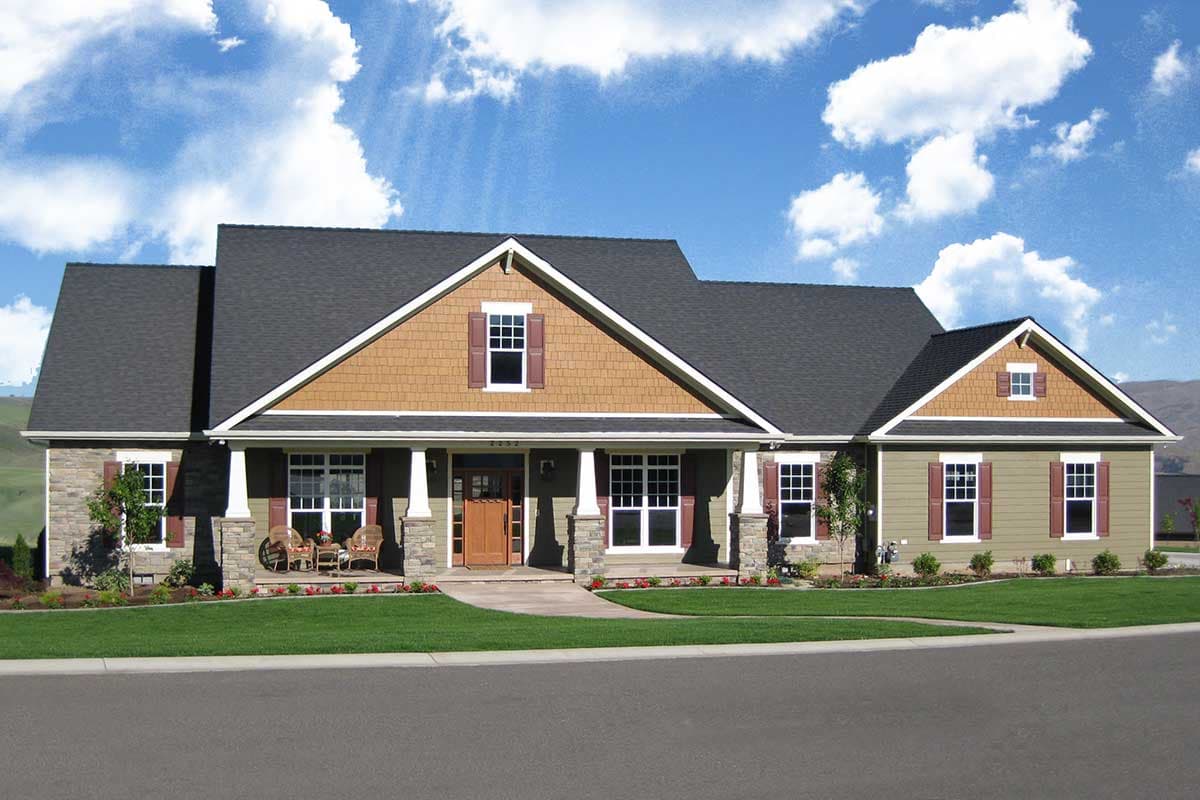

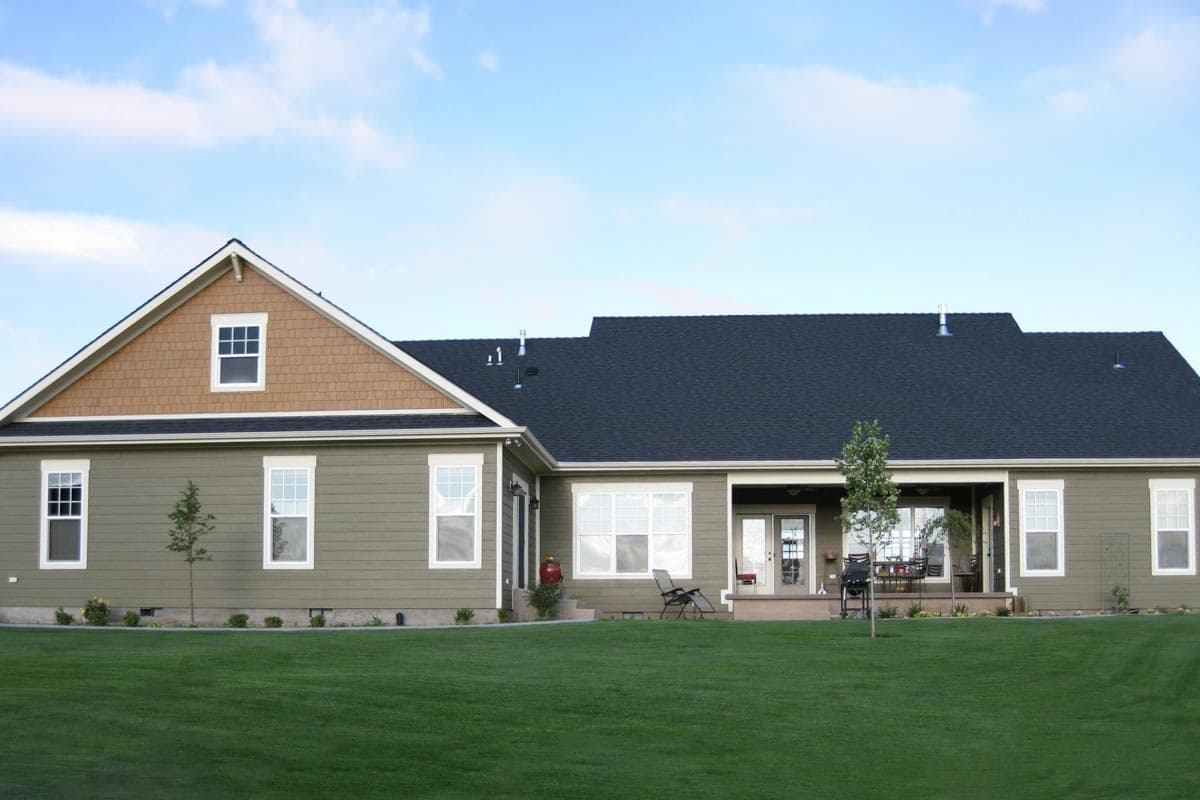

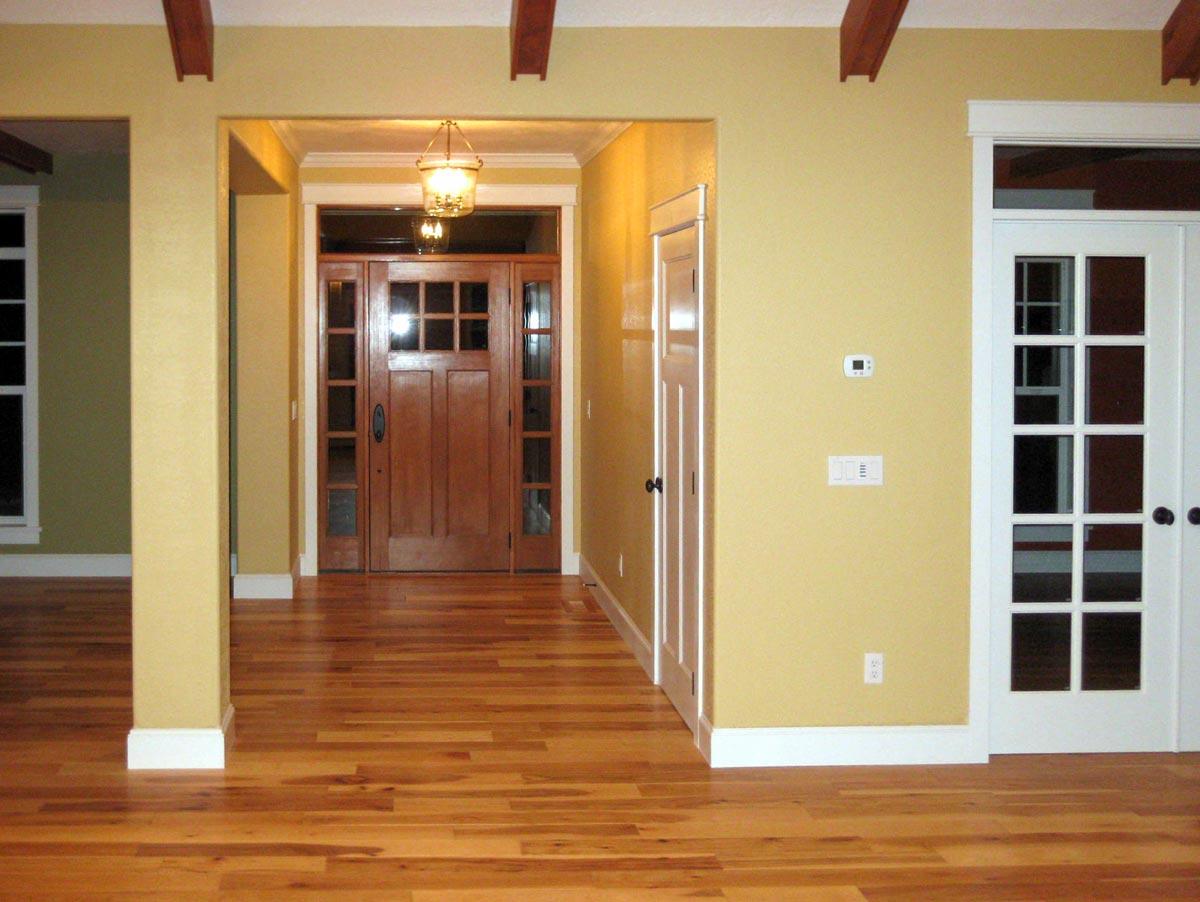

  • This home plan features an attractive Craftsman exterior. With a split-bedroom layout, this plan is perfect for a growing family. Large front and rear covered porches compliment the livability of this home.
  • Each bedroom has its own bath and a half bath by the kitchen is a plus. The master bath includes a large jet tub and a custom built shower.

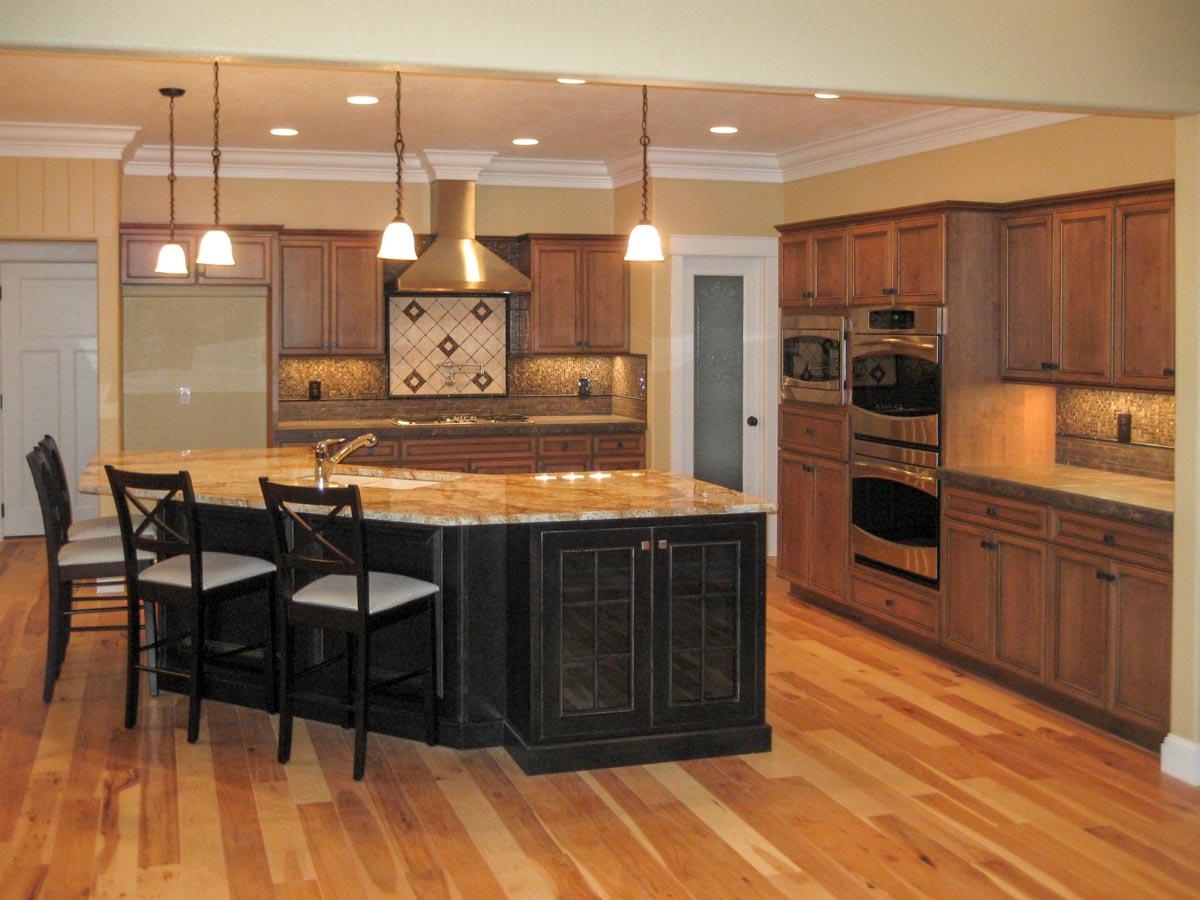

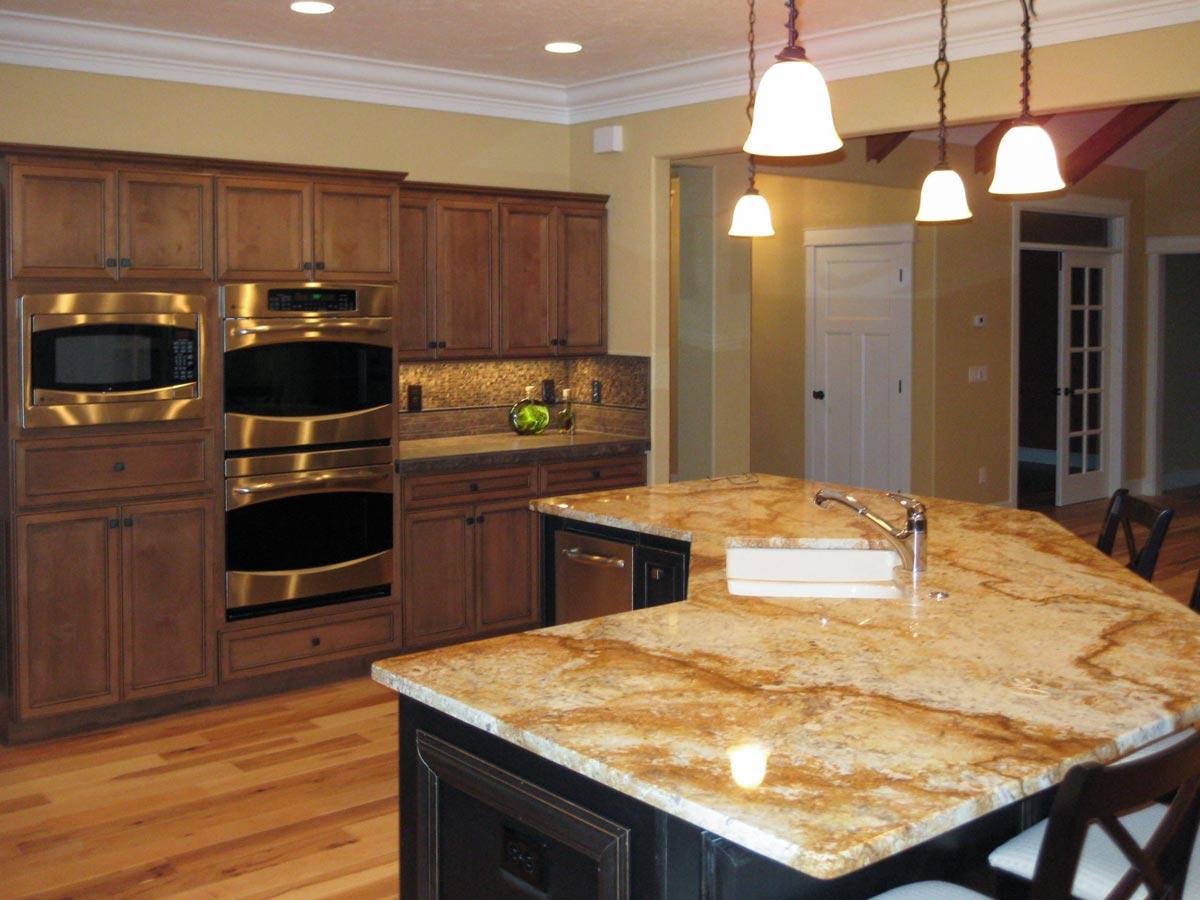

  • The kitchen is fully-equipped with a wraparound raised bar and a large pantry.

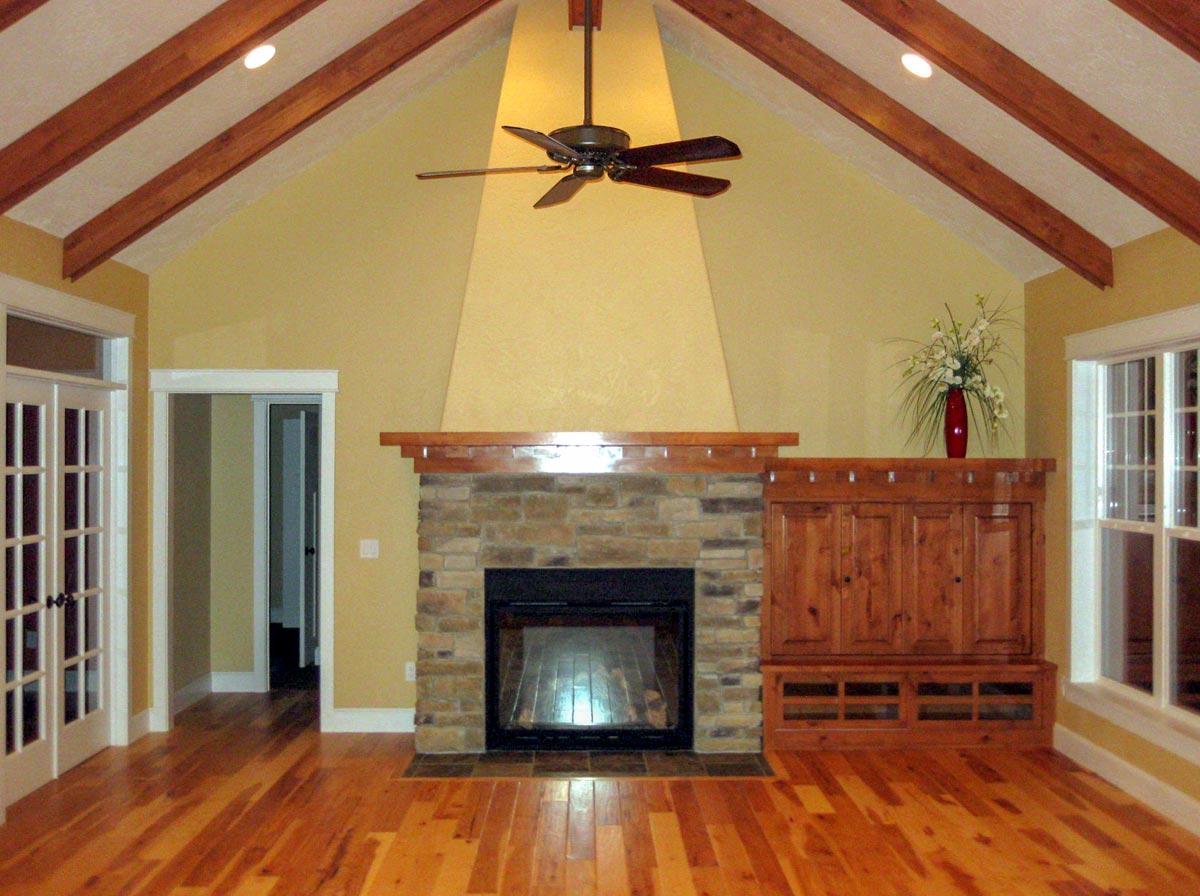

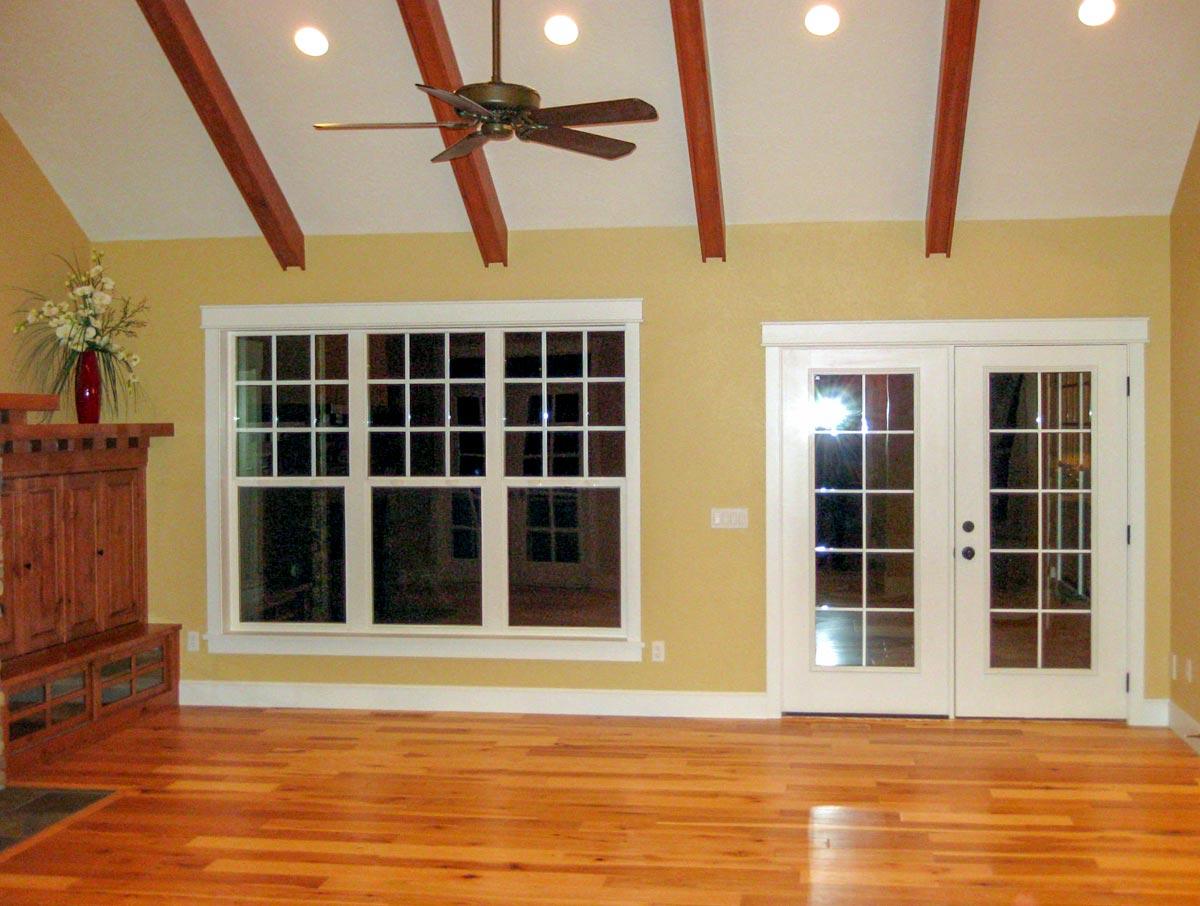

  • The expansive great room features a vaulted ceiling and a gas log fireplace.

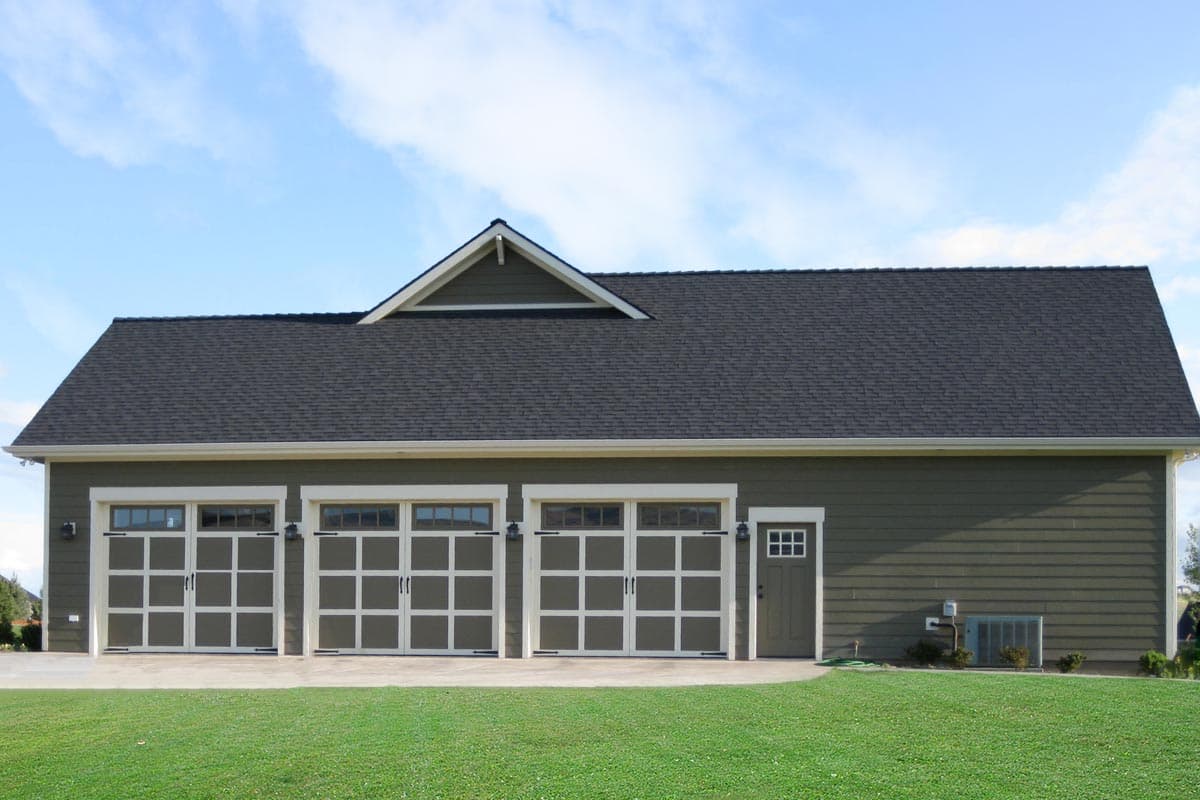

  • An oversized 3-car garage is provided for larger vehicles.
  • Related Plans: Get a slab or crawl foundation with house plan 51136MM.
  • Downsize with house plan 51093MM (2,447 sq. ft. and a 2-car garage) and 51084MM (2,118 sq. ft. with bonus room) and 51082MM (3 bedrooms, 1,919 sq. ft and bonus room).
  • Get an alternate exterior with house plan 51148MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

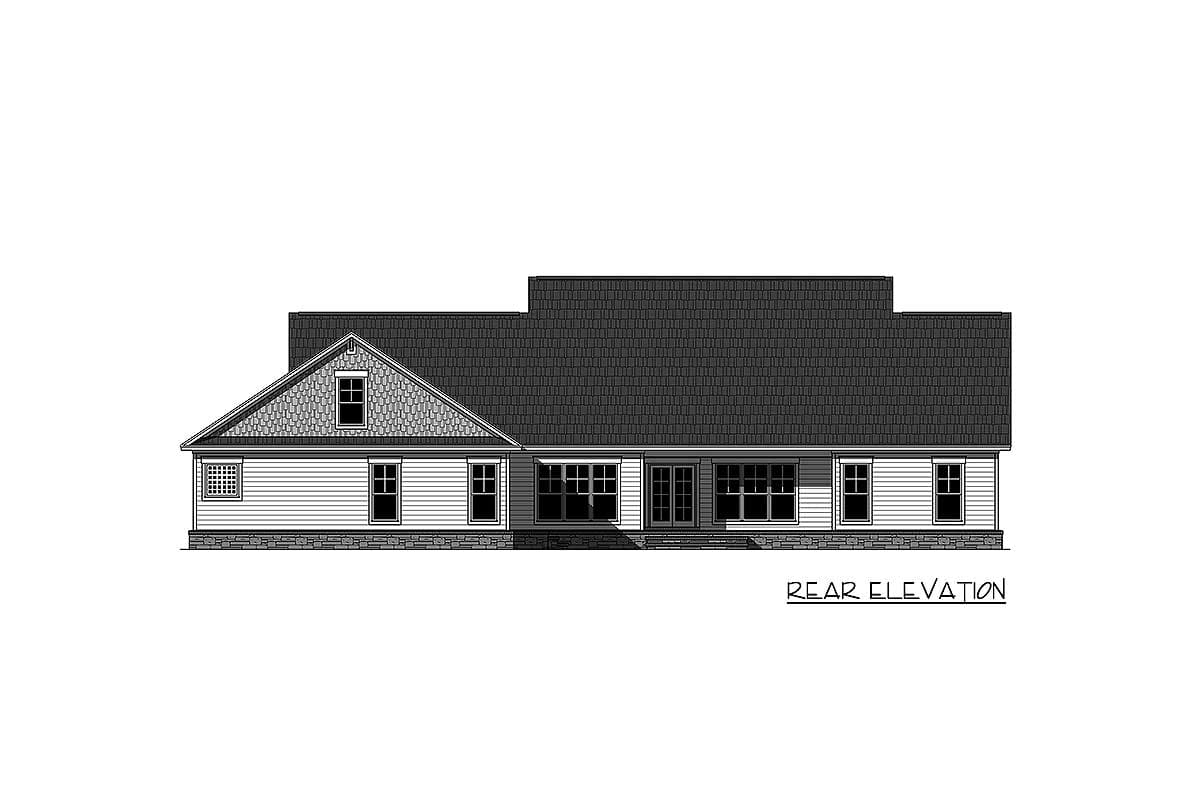

Exterior Elevations:
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Floor Plan

Plan details



4 Bed Craftsman with Gabled Porch

  • 2,789

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • 1 Set $1,075
  • 5 Sets $1,140
  • PDF - single-use $1,265
  • 8 Sets $1,320
  • 5 Sets PLUS $1,350
  • Reproducible Set $1,350
  • CAD $1,895
  • View all purchase option online

About This Plan

  • This home plan features an attractive Craftsman exterior. With a split-bedroom layout, this plan is perfect for a growing family. Large front and rear covered porches compliment the livability of this home.
  • Each bedroom has its own bath and a half bath by the kitchen is a plus. The master bath includes a large jet tub and a custom built shower.
  • The kitchen is fully-equipped with a wraparound raised bar and a large pantry.
  • The expansive great room features a vaulted ceiling and a gas log fireplace.
  • An oversized 3-car garage is provided for larger vehicles.
  • Related Plans: Get a slab or crawl foundation with house plan 51136MM.
  • Downsize with house plan 51093MM (2,447 sq. ft. and a 2-car garage) and 51084MM (2,118 sq. ft. with bonus room) and 51082MM (3 bedrooms, 1,919 sq. ft and bonus room).
  • Get an alternate exterior with house plan 51148MM.

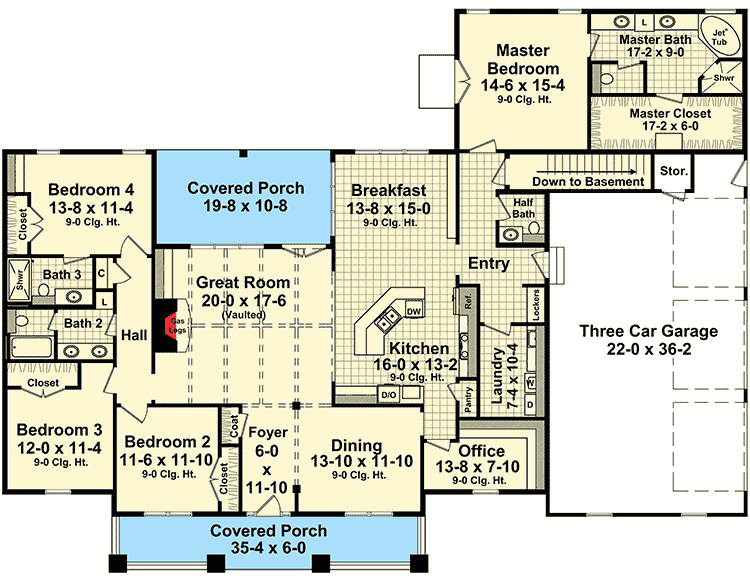

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,789 sq. ft.
  • 1st Floor: 2,789 sq. ft.
  • Porch, Rear: 210 sq. ft.
  • Porch, Front: 212 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 63' 2"
  • Max ridge height: 26' 2"

Garage

  • Type: Attached
  • Area: 842 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms

Plan Collections

  • Photo Gallery
  • USDA Approved
