4-Bed Hill Country Home Plan with Vaulted Family Room

Plan 818058JSS

  • 2,533

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Metal roof and natural wood elements accentuate the front elevation of this Hill Country home plan that gives you 2,533 square feet of living space.
  • The foyer presents a 12' ceiling and opens to the formal dining room, while the vaulted family room and kitchen are oriented to take advantage of the back porch and surrounding views.
  • A grand fireplace anchors the left wall, directly across from the kitchen island and range.
  • The primary suite delights in a private location and offers the convenience of a pass-through closet that connects to the laundry room. Three bedrooms line the left side of the home, or convert one into a home office.
  • A family foyer greets you when entering from the garage, complete with built-in lockers and access to a walk-in pantry.

  • Foundation plan
  • Detailed floorplans
  • Roof plan

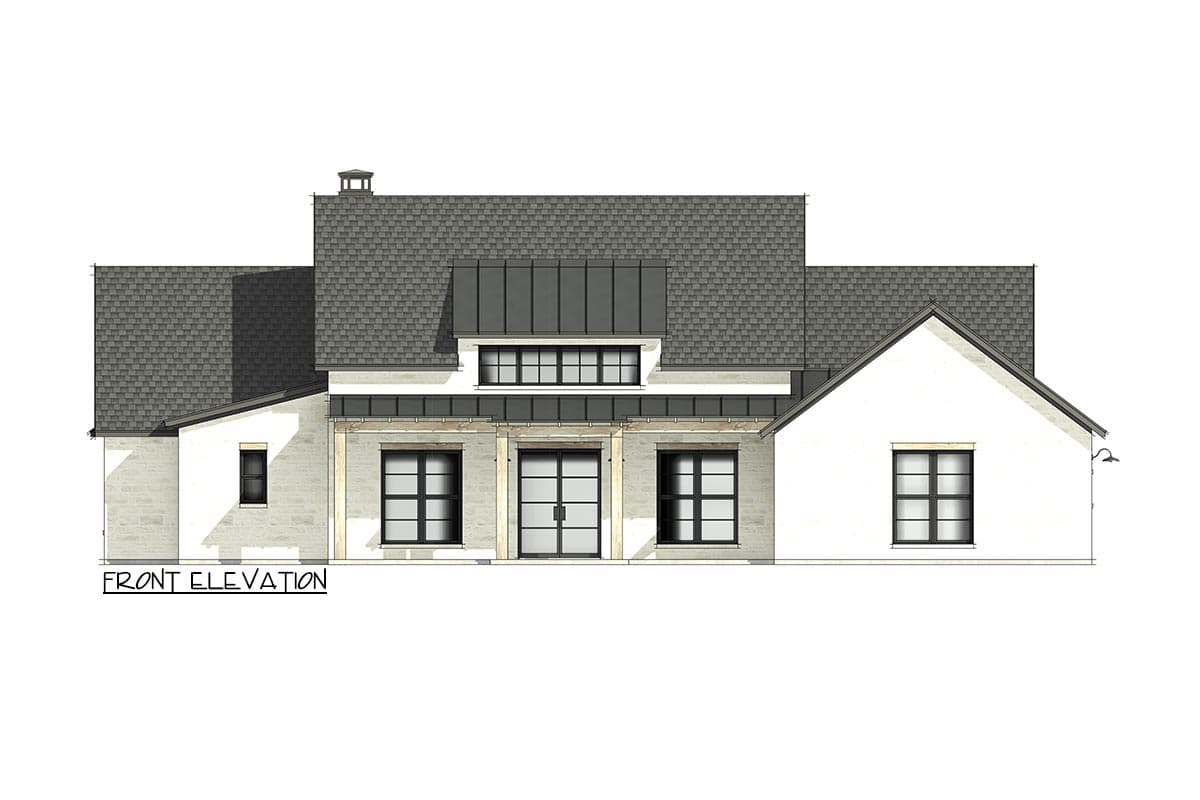

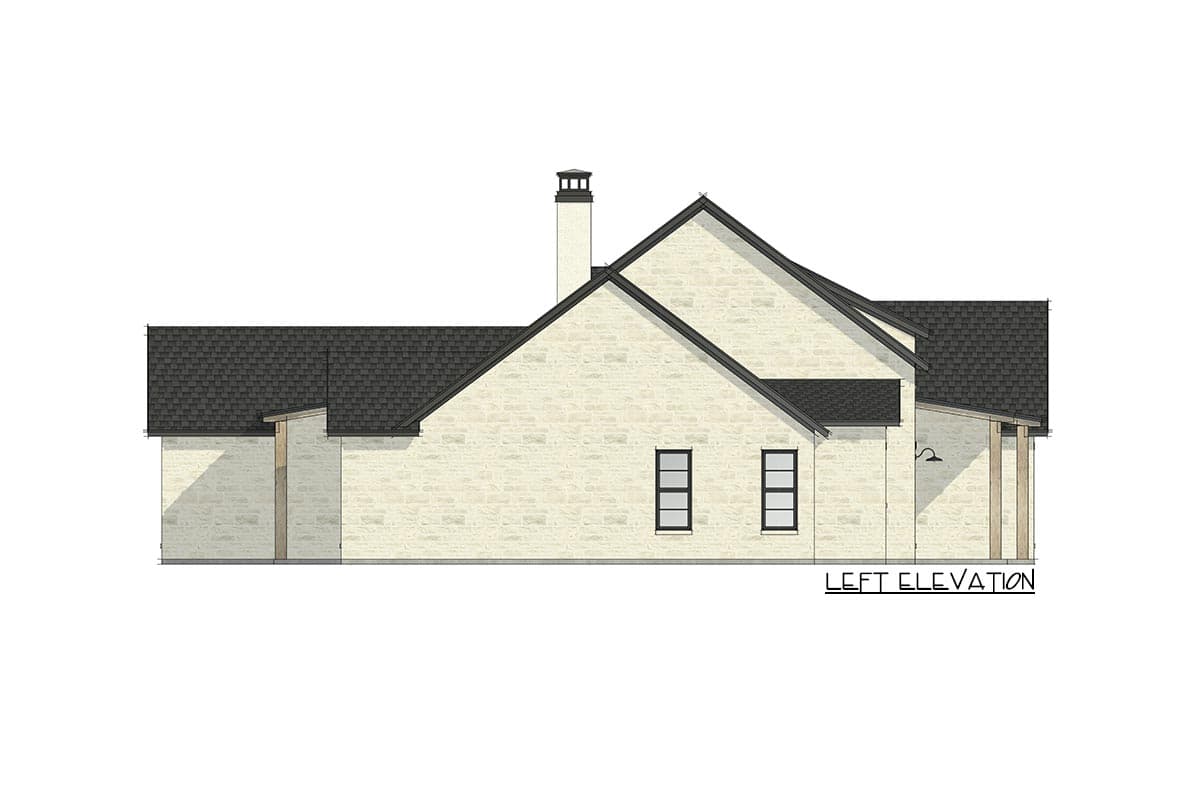

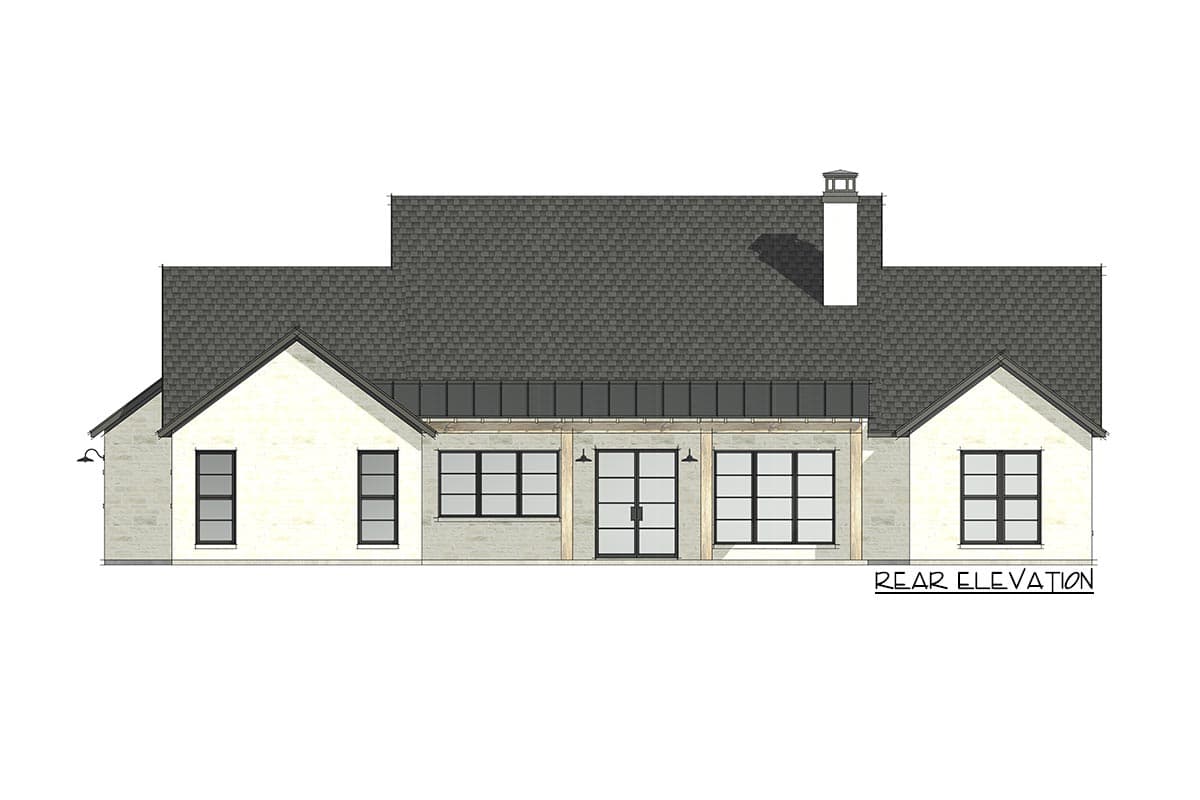

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

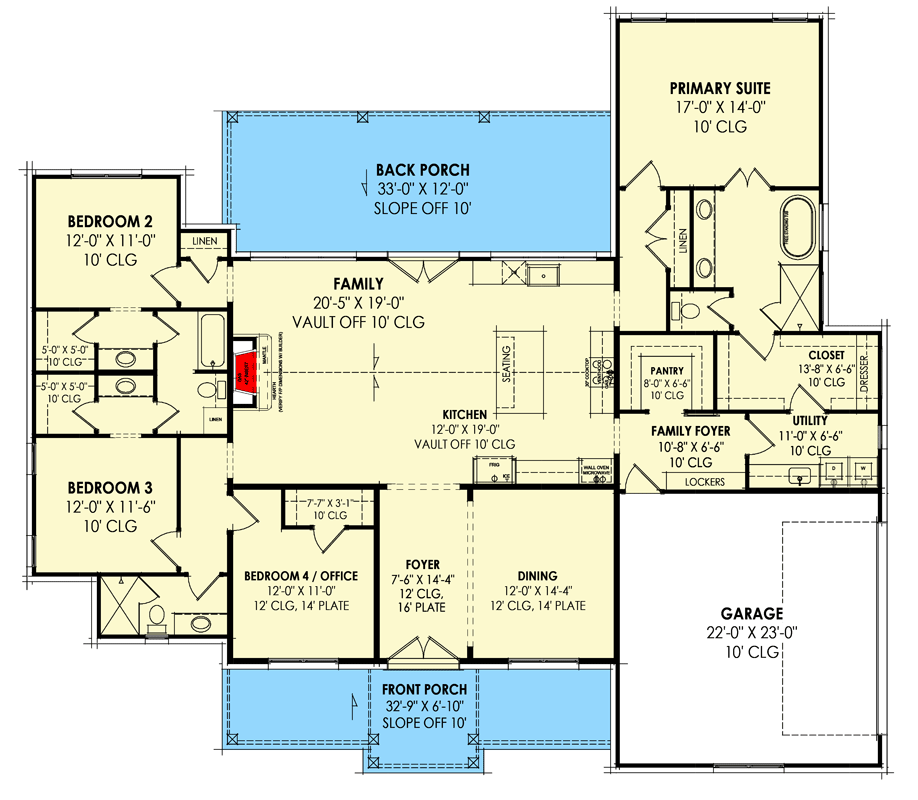

4-Bed Hill Country Home Plan with Vaulted Family Room - 818058JSS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,533 sq. ft.
  • 1st Floor: 2,533 sq. ft.
  • Porch, Combined: 640 sq. ft.
  • Porch, Rear: 394 sq. ft.
  • Porch, Front: 246 sq. ft.
  • BRICK LEDGE: 124 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 2"
  • Depth: 64' 8"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 1.5 on 12
  • Framing Type: Stick
