4-Bed Modern Cottage with 3 Porches and a Vaulted Main Floor Master Bedroom

Plan 623084DJ

  • 3,908

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This attractive 4-bed modern cottage house plan has a beautiful exterior with a mix of materials including board and batten siding, brick, metal accents, and wood garage doors. A front covered porch - one of three on the home - invites guests into the home through a set of french doors. Just inside, find yourself in the entry featuring exposed wood beams. To the right, the great room is warmed by a fireplace and allows ample natural light in through 8 windows.
  • The kitchen includes a large island with a snack bar and dual dishwashers. A walk-in pantry features built-in shelves and hides away behind a cabinet face. Just off the kitchen, there is a cozy hearth room that is perfect for escaping and reading a book.
  • This home plan features the master suite on the main level for your ultimate convenience and occupies the entire right side of the floor plan. It features a soaring cathedral ceiling and has its own door to access the rear covered porch. The master bathroom includes a free-standing soaking tub, his/her vanities, an enclosed toilet area, and a massive walk-in closet with a washer and dryer.
  • Upstairs, you'll find a great loft with a fireplace that is perfect for a kid's play area as well as 3 additional bedrooms and a laundry room. Bedrooms 3 and 4 share a Jack and Jill bathroom and each has its own walk-in closet. Bedroom 4 has access to its own private bathroom and 2 walk-in closets.
  • Back on the main floor, the home's 3-car side load garage the left-most bay has drive-through capability - enters the home through a convenient mudroom that includes a bench and lockers.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

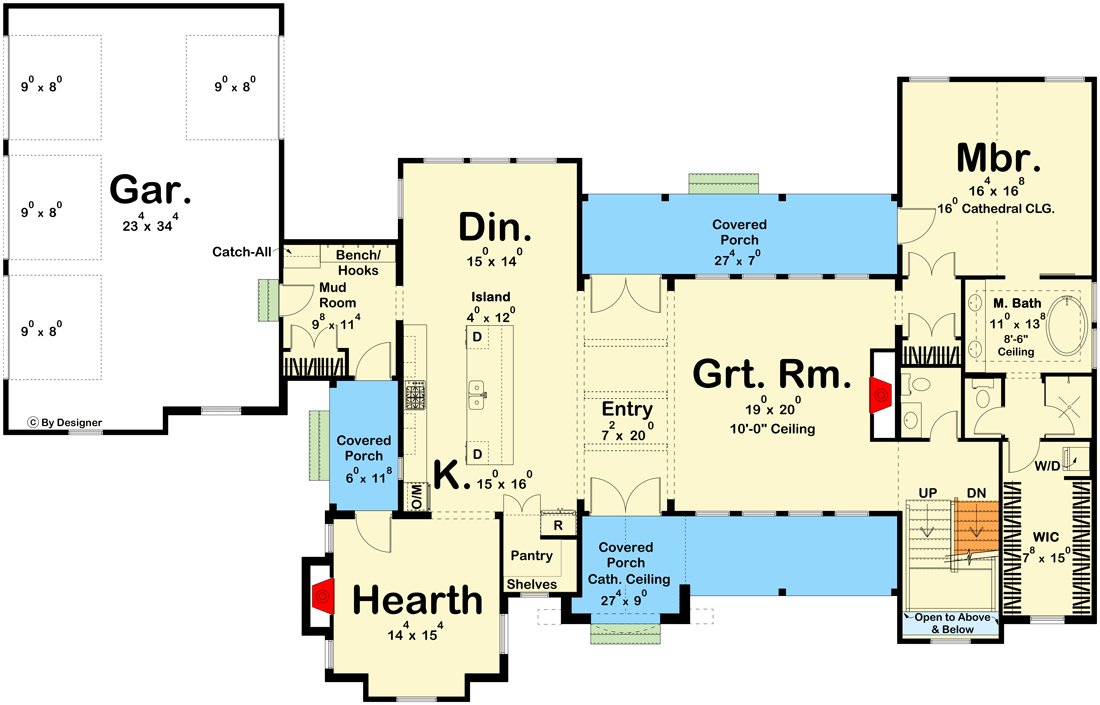

4-Bed Modern Cottage with 3 Porches and a Vaulted Main Floor Master Bedroom - 623084DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

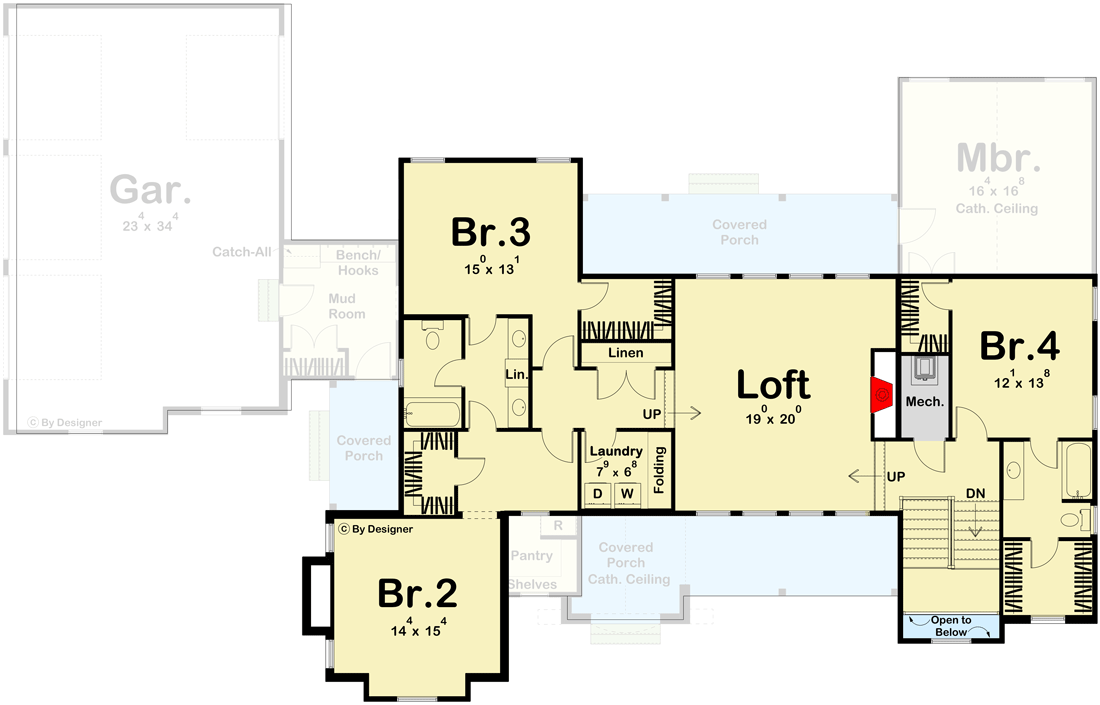

4-Bed Modern Cottage with 3 Porches and a Vaulted Main Floor Master Bedroom - 623084DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,908 sq. ft.
  • 1st Floor: 2,243 sq. ft.
  • 2nd Floor: 1,665 sq. ft.
  • Porch, Combined: 473 sq. ft.
  • Porch, Rear: 190 sq. ft.
  • Porch, Front: 214 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 864 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room 19' 0" 20' 0" 10' 0"
Master Bedroom Cathedral 16' 4" 16' 8"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 On 12; 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

4-Bed Modern Cottage with 3 Porches and a Vaulted Main Floor Master Bedroom

  • 3,908

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • 5 Sets + PDF $2,050
  • PDF - Unlimited Build $2,300
  • CAD + PDF - Single-Build $2,300
  • CAD - Unlimited Build $2,800
  • View all purchase option online

About This Plan

  • This attractive 4-bed modern cottage house plan has a beautiful exterior with a mix of materials including board and batten siding, brick, metal accents, and wood garage doors. A front covered porch - one of three on the home - invites guests into the home through a set of french doors. Just inside, find yourself in the entry featuring exposed wood beams. To the right, the great room is warmed by a fireplace and allows ample natural light in through 8 windows.
  • The kitchen includes a large island with a snack bar and dual dishwashers. A walk-in pantry features built-in shelves and hides away behind a cabinet face. Just off the kitchen, there is a cozy hearth room that is perfect for escaping and reading a book.
  • This home plan features the master suite on the main level for your ultimate convenience and occupies the entire right side of the floor plan. It features a soaring cathedral ceiling and has its own door to access the rear covered porch. The master bathroom includes a free-standing soaking tub, his/her vanities, an enclosed toilet area, and a massive walk-in closet with a washer and dryer.
  • Upstairs, you'll find a great loft with a fireplace that is perfect for a kid's play area as well as 3 additional bedrooms and a laundry room. Bedrooms 3 and 4 share a Jack and Jill bathroom and each has its own walk-in closet. Bedroom 4 has access to its own private bathroom and 2 walk-in closets.
  • Back on the main floor, the home's 3-car side load garage the left-most bay has drive-through capability - enters the home through a convenient mudroom that includes a bench and lockers.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,908 sq. ft.
  • 1st Floor: 2,243 sq. ft.
  • 2nd Floor: 1,665 sq. ft.
  • Porch, Combined: 473 sq. ft.
  • Porch, Rear: 190 sq. ft.
  • Porch, Front: 214 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 864 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 On 12; 12 on 12
  • Framing Type: Truss
Plan 623084DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623084DJ
|
