4-Bed Modern Florida Home Plan with Large Family Room

Plan 65627BS

  • 4,134

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Each of the living spaces within this modern, Florida home plan connect to the rear covered lanai for a true indoor / outdoor lifestyle.
  • The spacious great room features a fireplace directly across from the oversized kitchen island that includes casual seating, while accordion-style doors retract to connect the great room with the outdoor living spaces.
  • The well-appointed master suite occupies the right side of the design, and boasts a sitting area, dual walk-in closets, and a deluxe 5-fixture ensuite with a two-person shower and freestanding tub.
  • A quiet study and secondary family room provide additional space to unwind in private or in the company of family and friends.
  • Discover three additional bedroom suites, all equally sized, sprinkled throughout the layout, along with a laundry room and 3-car garage.
  • Related Plans: Eliminate the family room with house plan 65630BS and get an alternate version with house plan 65755BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

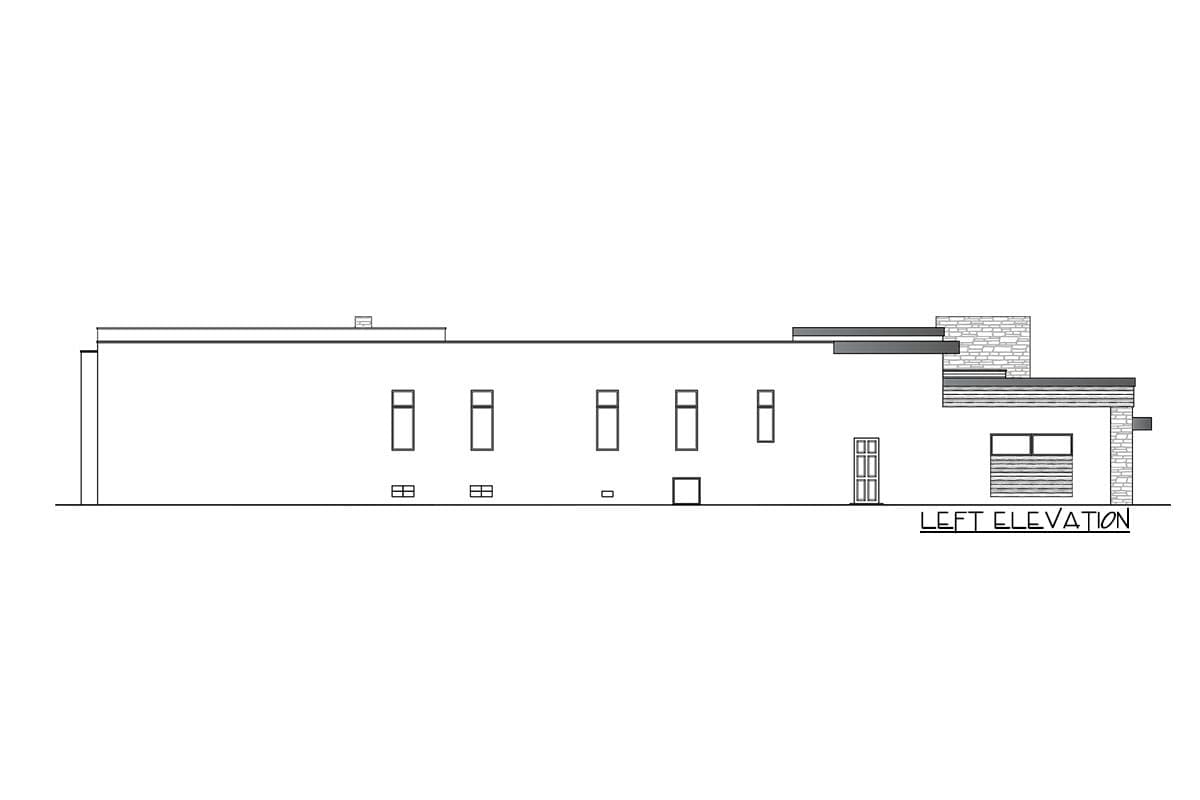

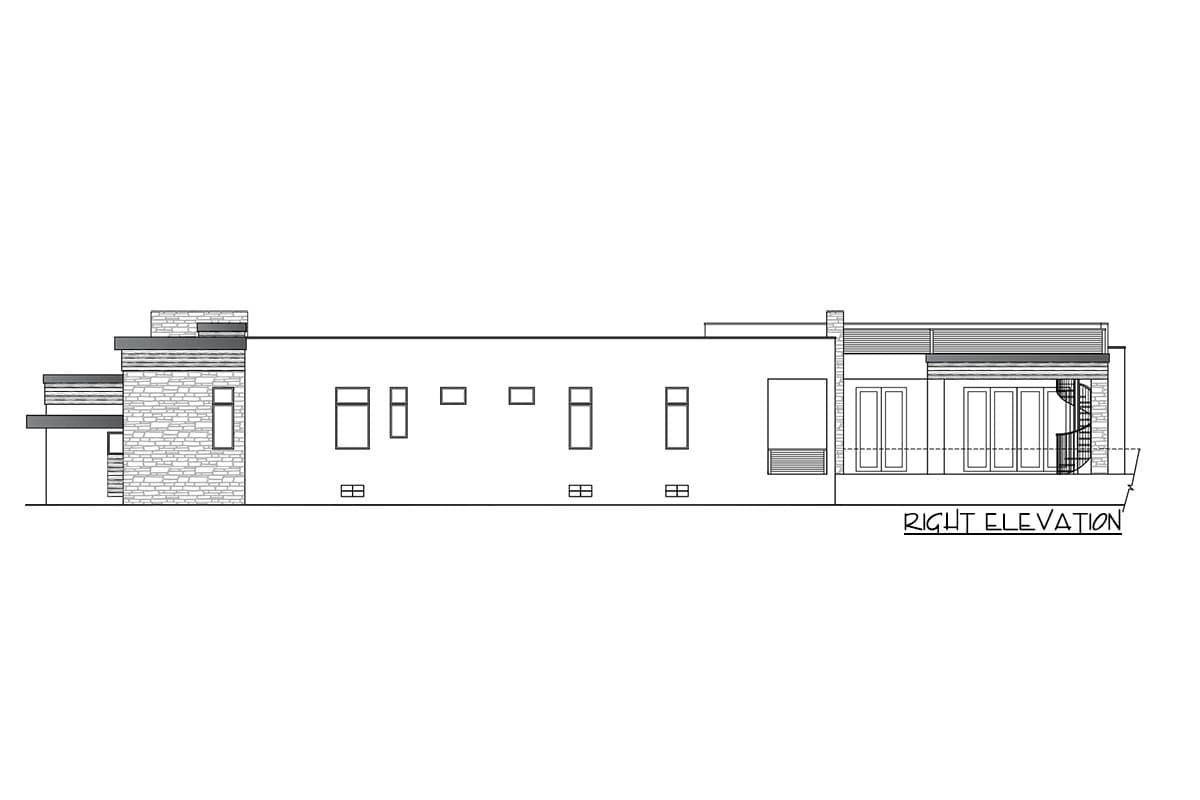

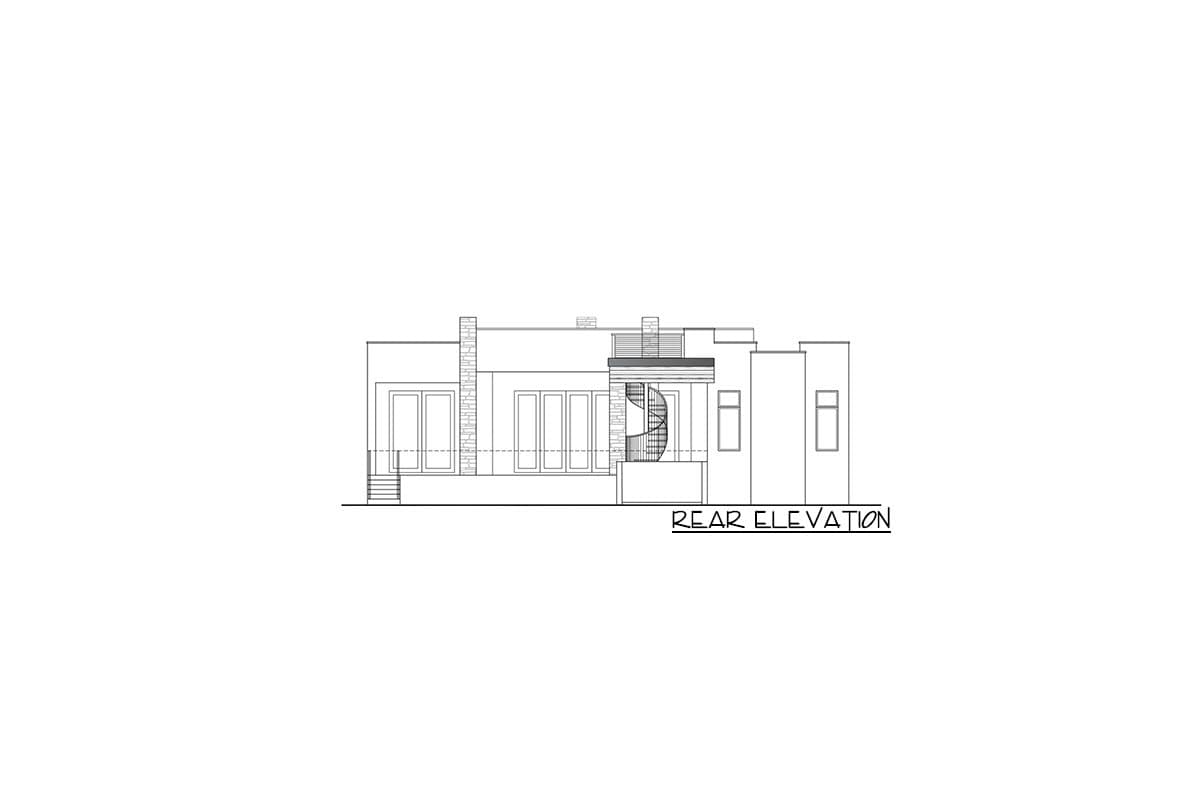

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

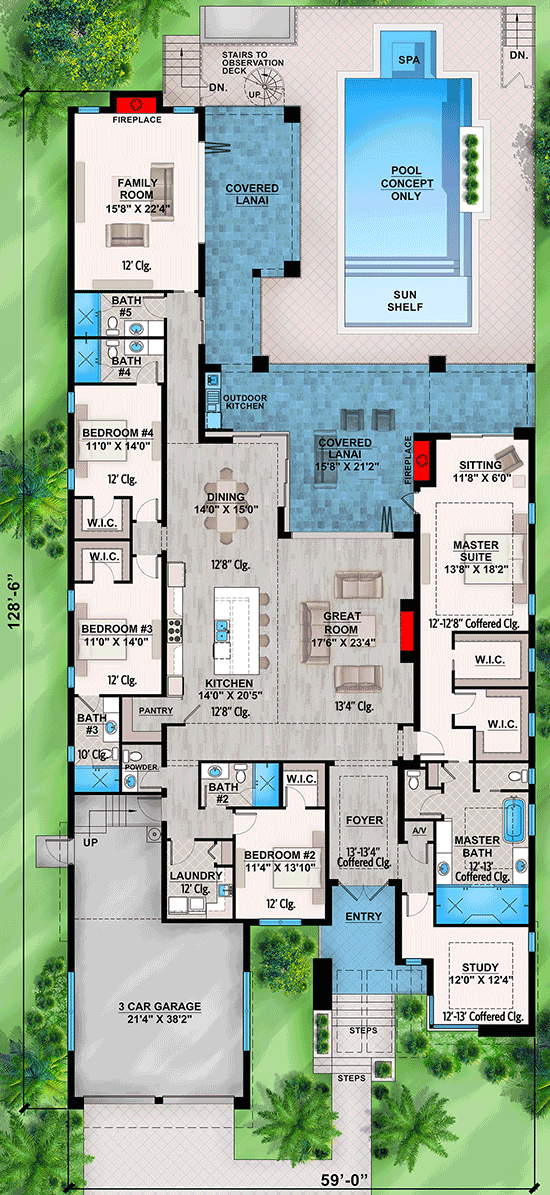

Floor Plan
