4-Bed Modern Home Plan with Outdoor Living Room

Plan 23864JD

  • 3,010

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4-bed modern house plan has an edgy exterior that fits into a small footprint making it appropriate for those hard-to-fit lots as well as ones that have lots of room.
  • A covered entry leads you into the foyer that is open to the great room and views to the back of the home. To your right, a den - just as easily used as a home office - gives you a quiet place to read or work.

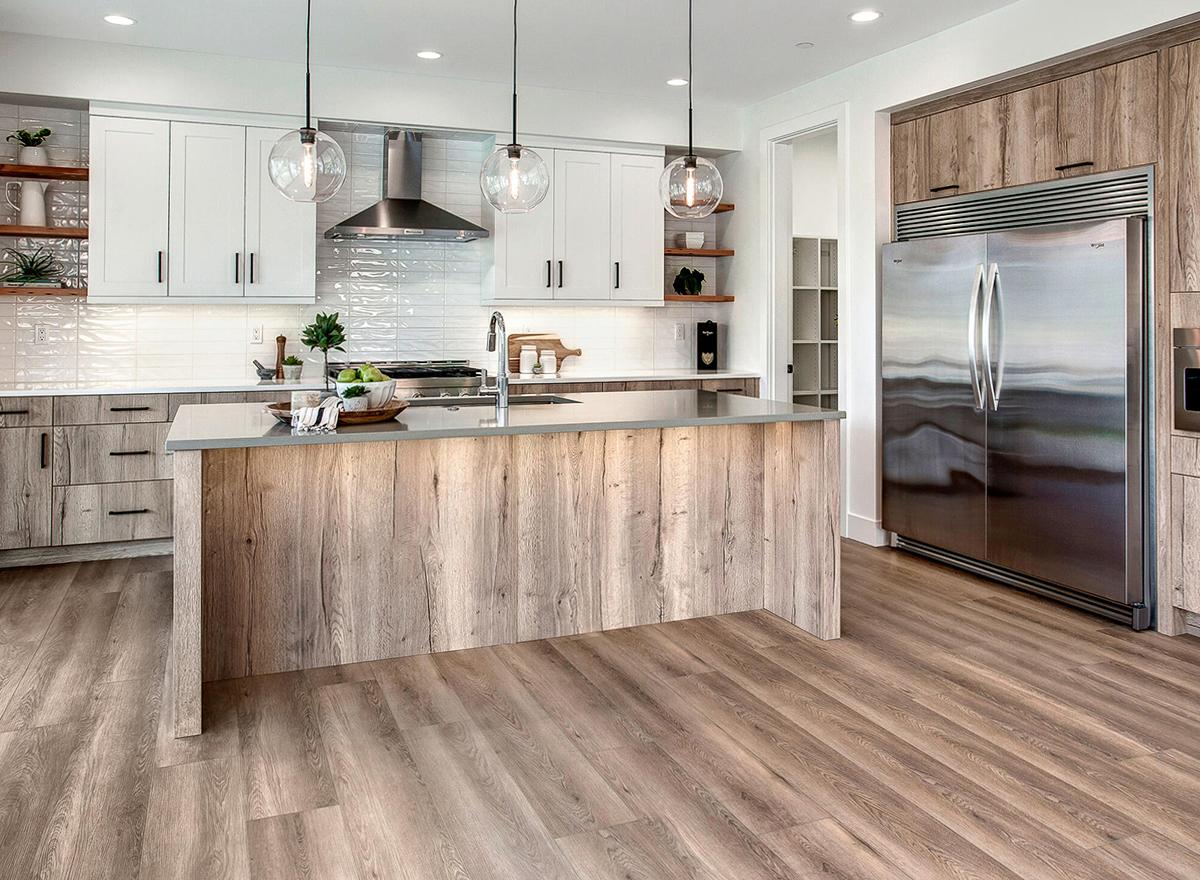

  • The kitchen is open to the dining room and has a functional island with two sinks on one side and room for up to three to sit on the other. A pocket door slides open to reveal your walk-in pantry.

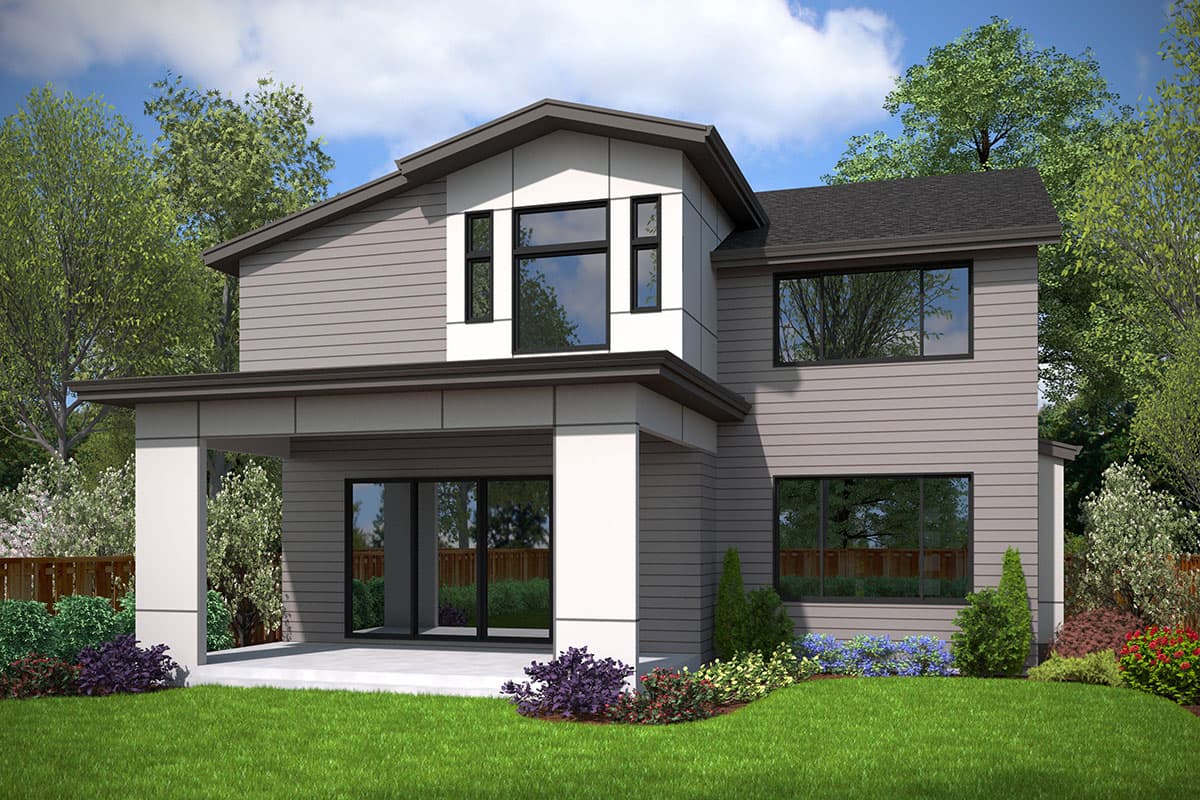

  • The back wall opens to the 12'-deep covered outdoor living room.
  • The stairs have an open and there is an overlook from the stair hall. Two of the four bedrooms upstairs have walk-in closets. The laundry is conveniently located for all of them.
  • The bonus room can be used as future space, a game or media room, or even an upstairs office. The space is included in the total living area figures.
  • Back on the main floor, the family foyer or mudroom off the back of the garage has cubbies and a walk-in closet to help manage clutter and is sealed off from the rest of the home by a pocket door.
  • Related Plan: Get an extra upstairs bathroom with house plan 23865JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

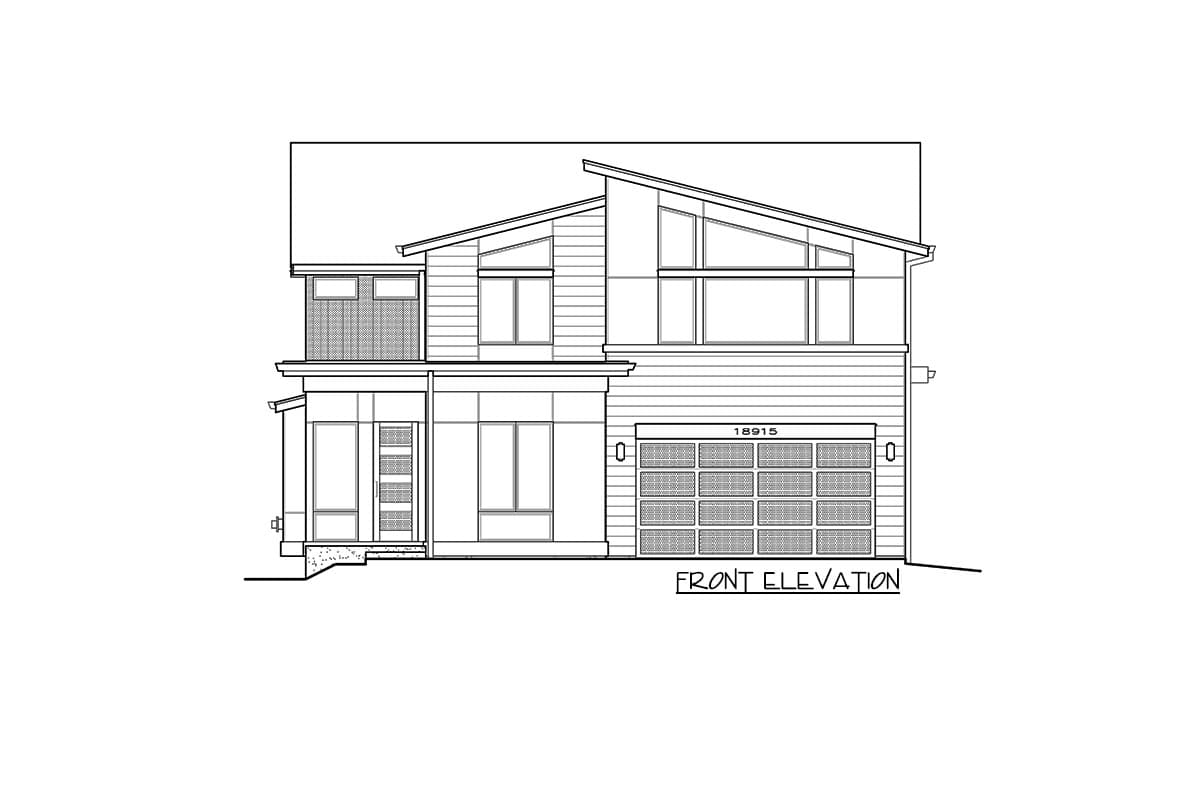

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

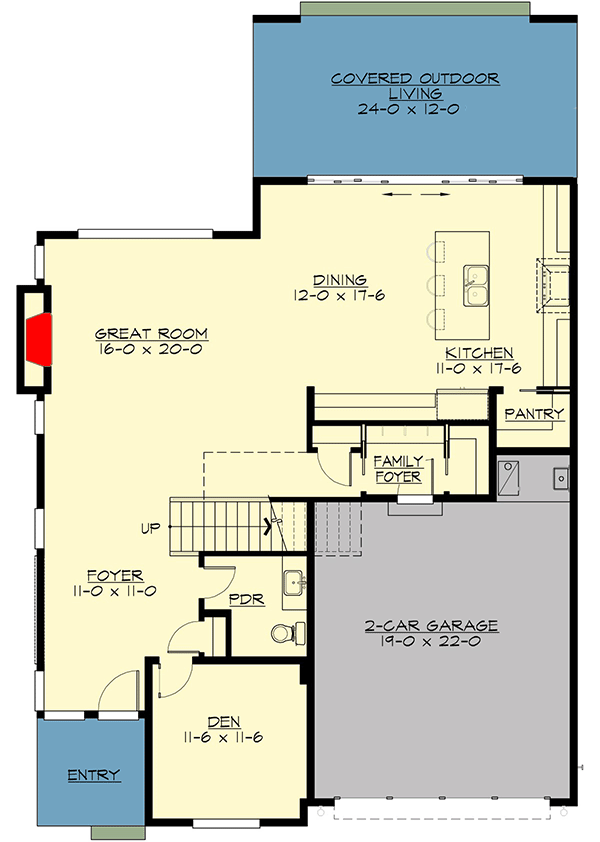

4-Bed Modern Home Plan with Outdoor Living Room - 23864JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

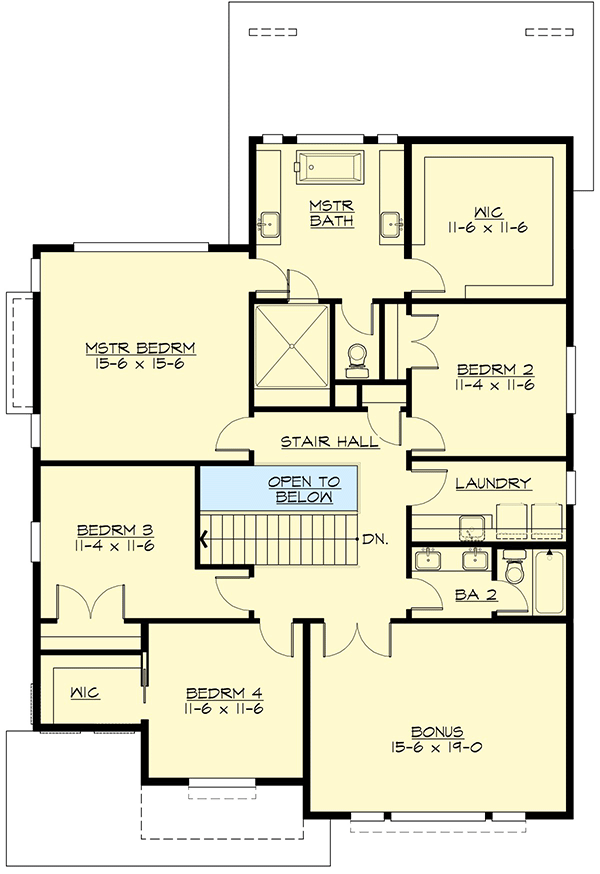

4-Bed Modern Home Plan with Outdoor Living Room - 23864JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 1,288 sq. ft.
  • 2nd Floor: 1,722 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 475 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 3 on 12

Architectural Style

Special features

Plan Collections

4-Bed Modern Home Plan with Outdoor Living Room

  • 3,010

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • This 4-bed modern house plan has an edgy exterior that fits into a small footprint making it appropriate for those hard-to-fit lots as well as ones that have lots of room.
  • A covered entry leads you into the foyer that is open to the great room and views to the back of the home. To your right, a den - just as easily used as a home office - gives you a quiet place to read or work.
  • The kitchen is open to the dining room and has a functional island with two sinks on one side and room for up to three to sit on the other. A pocket door slides open to reveal your walk-in pantry.
  • The back wall opens to the 12'-deep covered outdoor living room.
  • The stairs have an open and there is an overlook from the stair hall. Two of the four bedrooms upstairs have walk-in closets. The laundry is conveniently located for all of them.
  • The bonus room can be used as future space, a game or media room, or even an upstairs office. The space is included in the total living area figures.
  • Back on the main floor, the family foyer or mudroom off the back of the garage has cubbies and a walk-in closet to help manage clutter and is sealed off from the rest of the home by a pocket door.
  • Related Plan: Get an extra upstairs bathroom with house plan 23865JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 1,288 sq. ft.
  • 2nd Floor: 1,722 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 475 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 3 on 12
