Plan 680056VR 4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft

1,824 4 2 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft

Plan 680056VR

  • 1,824

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This contemporary mountain home plan pairs the simplicity of a square footprint with a modern presentation - sloped roof, cable-rail deck, mixed materials - delivering a beautiful home in a budget-friendly package.
  • The 2-car garage is on the main level, and includes additional storage space and room for mechanicals. Two bedrooms share a bath and laundry is convenient located to both.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room with fireplace are open to one another, and extend outdoors onto a spacious balcony.
  • Wrap-around, kitchen counters offer seating for five, and a nearby pantry closet increases storage space.
  • Bedrooms line the right side of the second floor and share a hall bath.
  • A ship ladder in the family room leads to a 200 square foot artist's loft, a sleeping or flexible creative space.
  • Related Plans: Remove a bedroom with house plans 68760VR and 68869VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

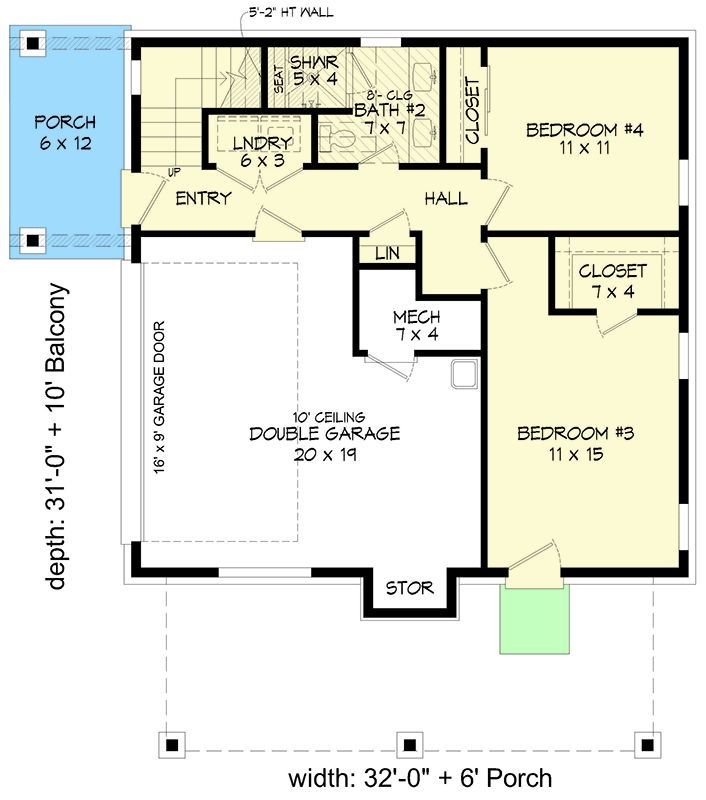

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft - 680056VR floor plan - Main Level

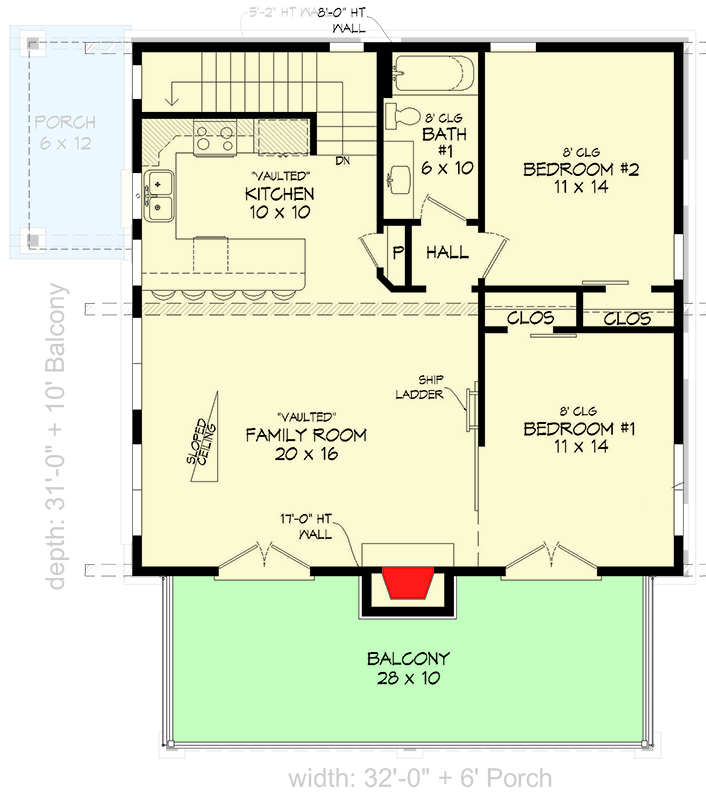

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft - 680056VR floor plan - 2nd Floor

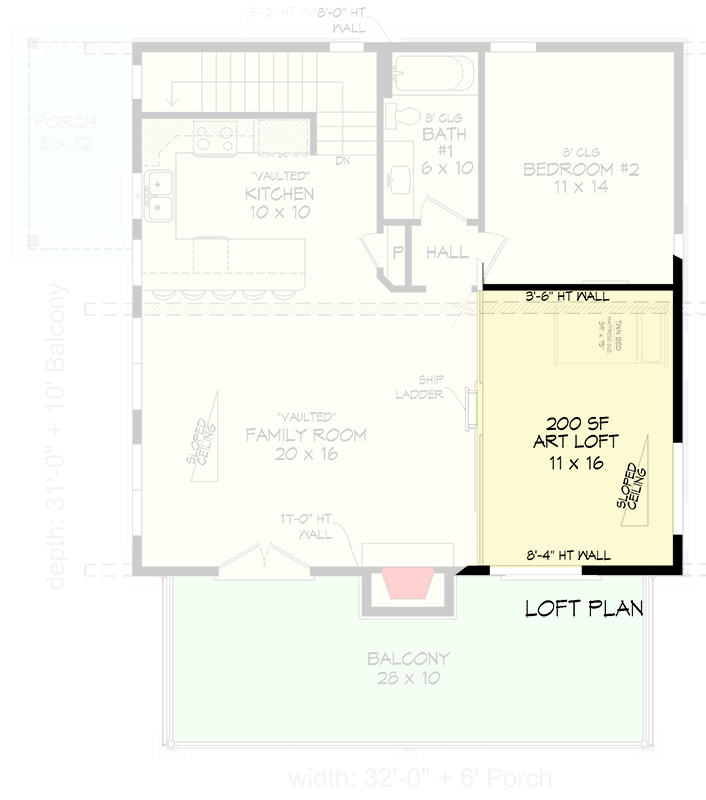

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft - 680056VR floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,824 sq. ft.
  • 1st Floor: 620 sq. ft.
  • 2nd Floor: 1,004 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Porch, Combined: 340 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 384 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed Modern Mountain House Plan with Ship-Ladder Access to Third Floor Loft

  • 1,824

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,175
  • 5 Sets $1,260
  • 5 Sets + PDF $1,390
  • CAD + PDF - Single-Build $1,725
  • View all purchase option online

About This Plan

  • This contemporary mountain home plan pairs the simplicity of a square footprint with a modern presentation - sloped roof, cable-rail deck, mixed materials - delivering a beautiful home in a budget-friendly package.
  • The 2-car garage is on the main level, and includes additional storage space and room for mechanicals. Two bedrooms share a bath and laundry is convenient located to both.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room with fireplace are open to one another, and extend outdoors onto a spacious balcony.
  • Wrap-around, kitchen counters offer seating for five, and a nearby pantry closet increases storage space.
  • Bedrooms line the right side of the second floor and share a hall bath.
  • A ship ladder in the family room leads to a 200 square foot artist's loft, a sleeping or flexible creative space.
  • Related Plans: Remove a bedroom with house plans 68760VR and 68869VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,824 sq. ft.
  • 1st Floor: 620 sq. ft.
  • 2nd Floor: 1,004 sq. ft.
  • 3rd Floor: 200 sq. ft.
  • Porch, Combined: 340 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 384 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
