4-Bed New American Home Plan with Vaulted Master Bedroom

Plan 23073JD

  • 2,441

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

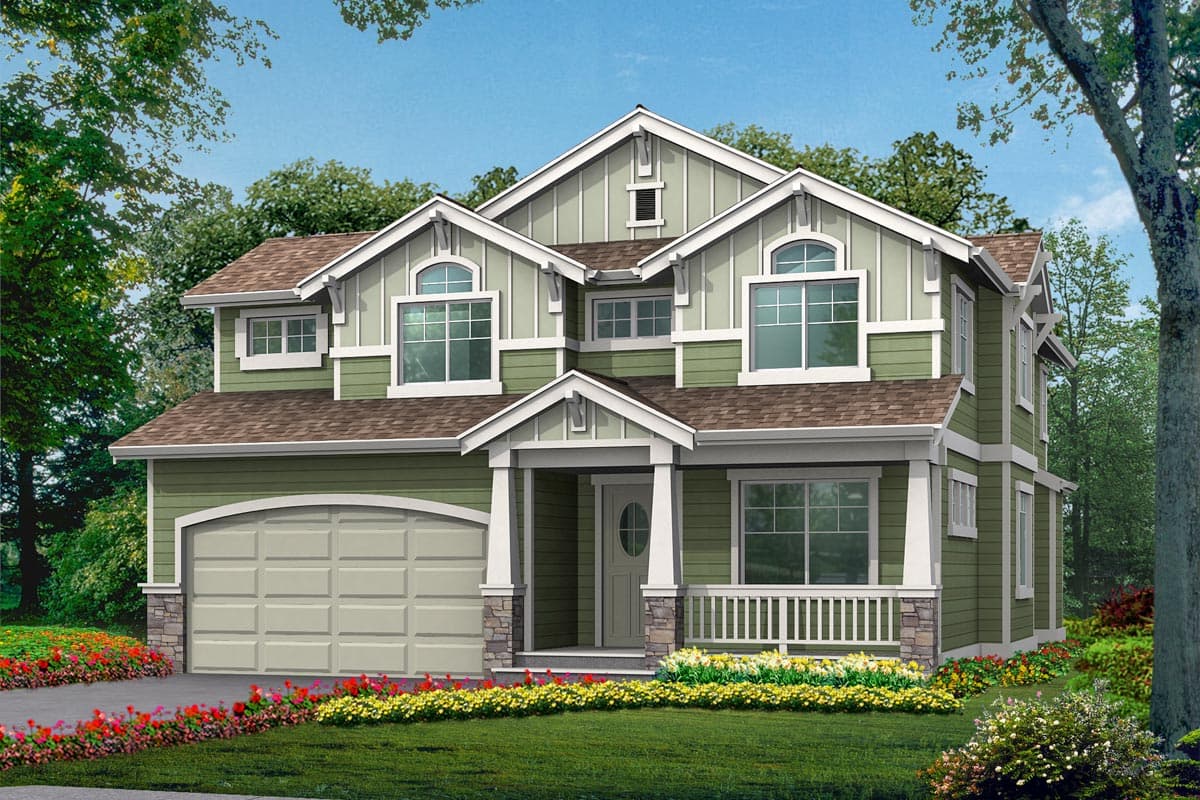

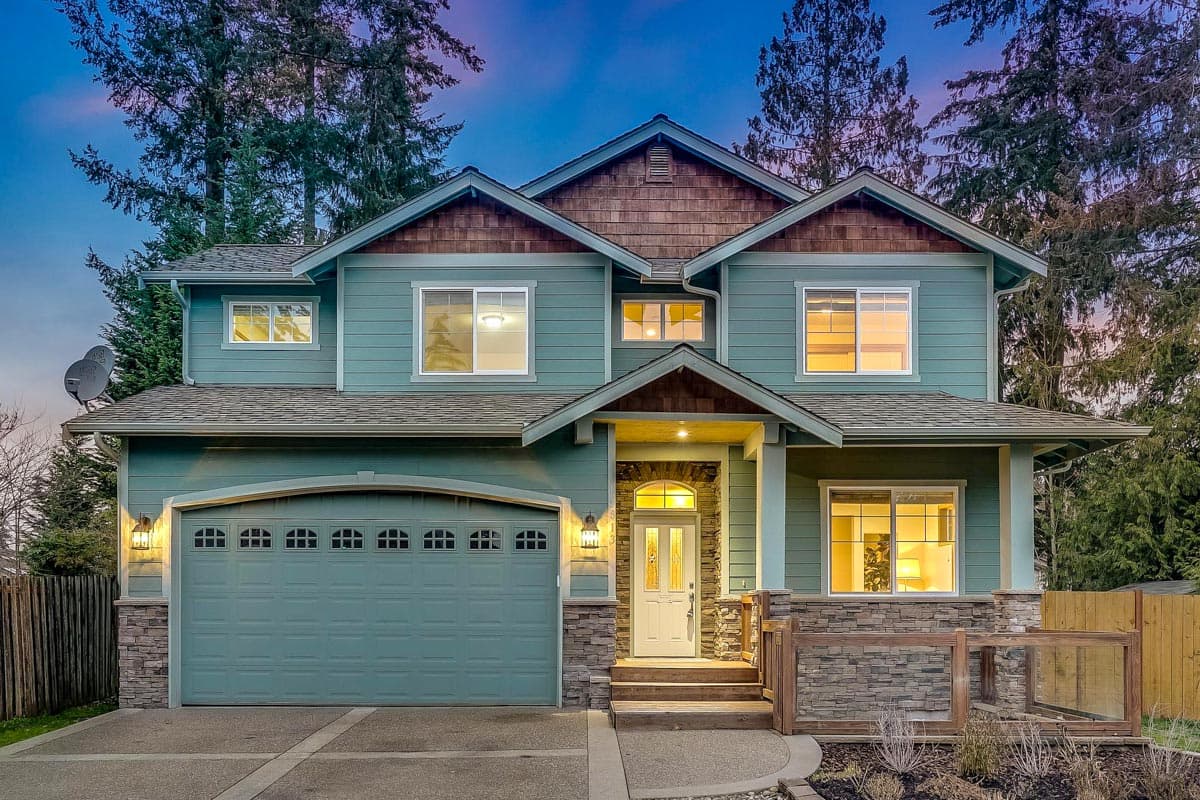

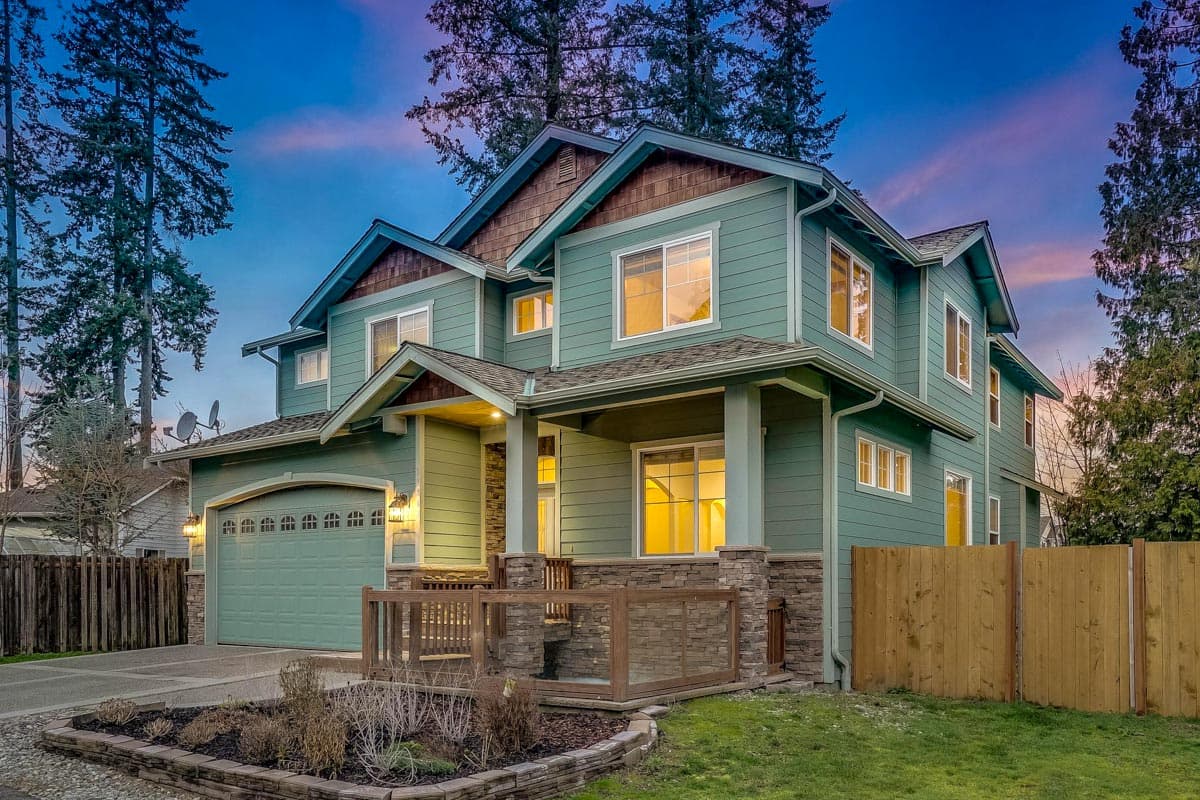

  • Two large gables sit above the entry porch giving this attractive New American house plan great curb appeal.

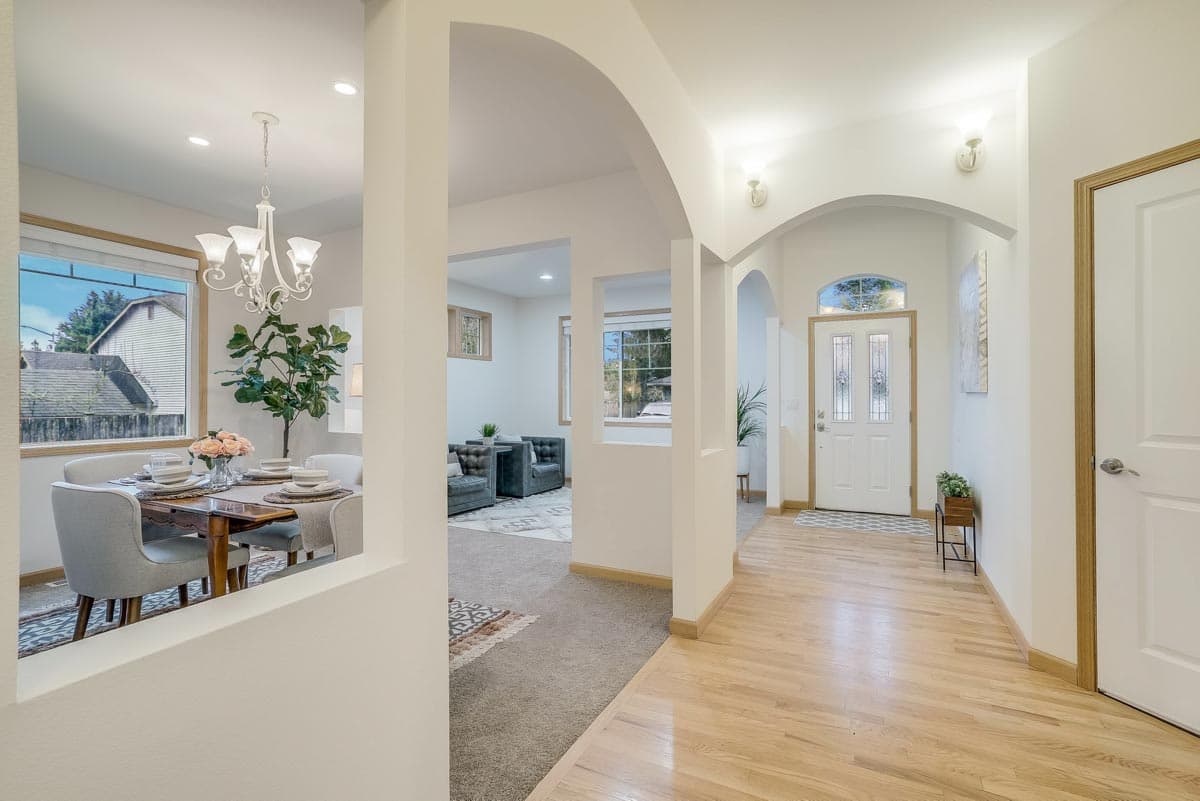

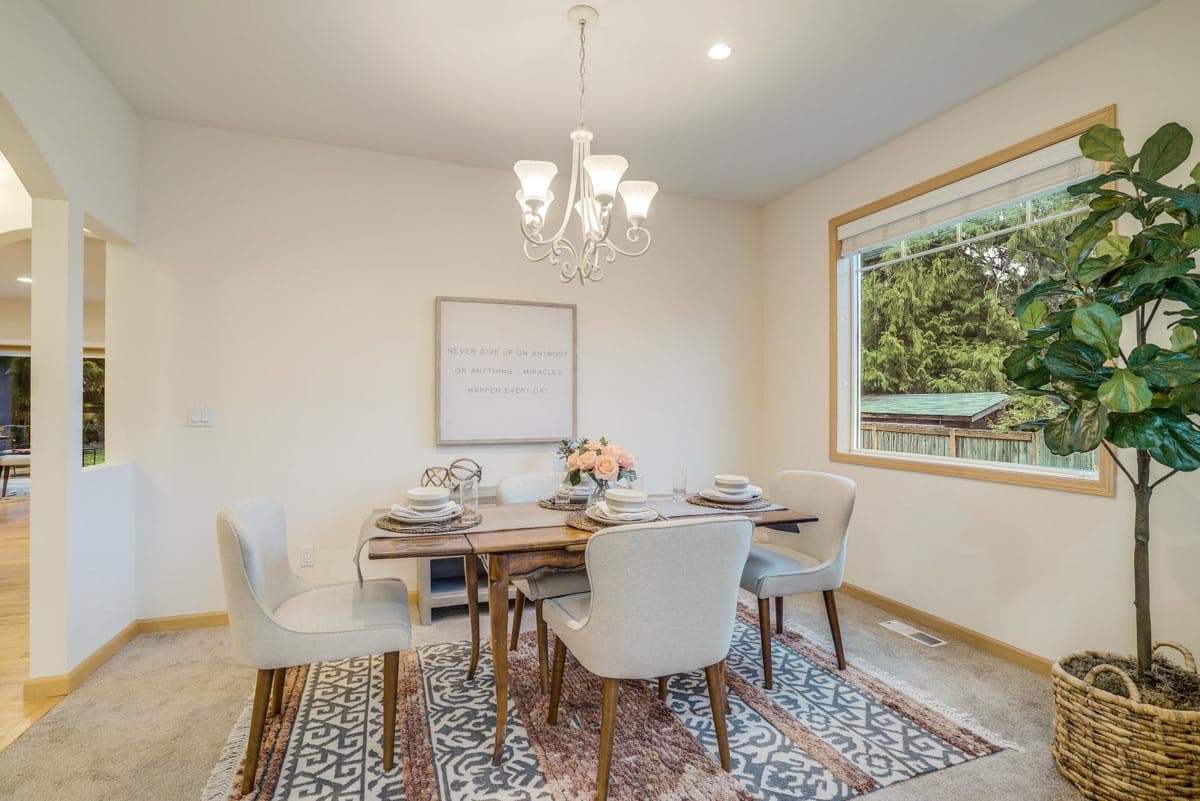

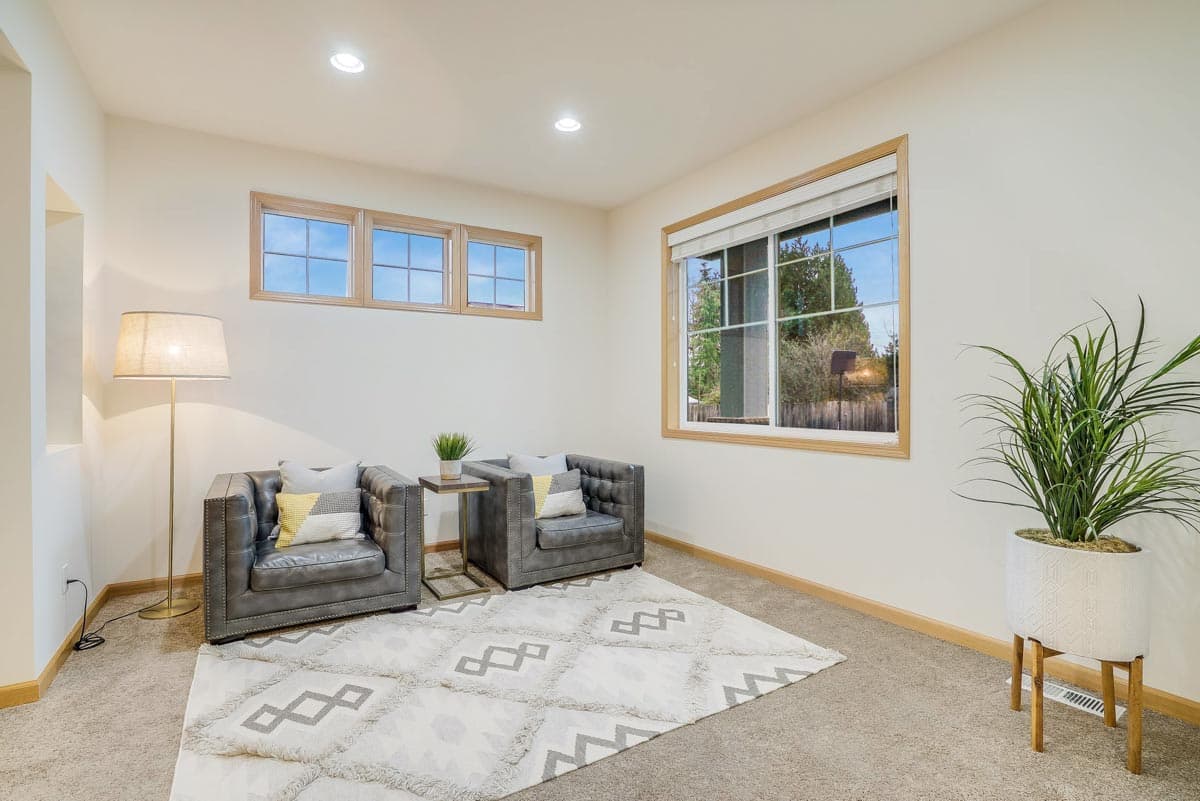

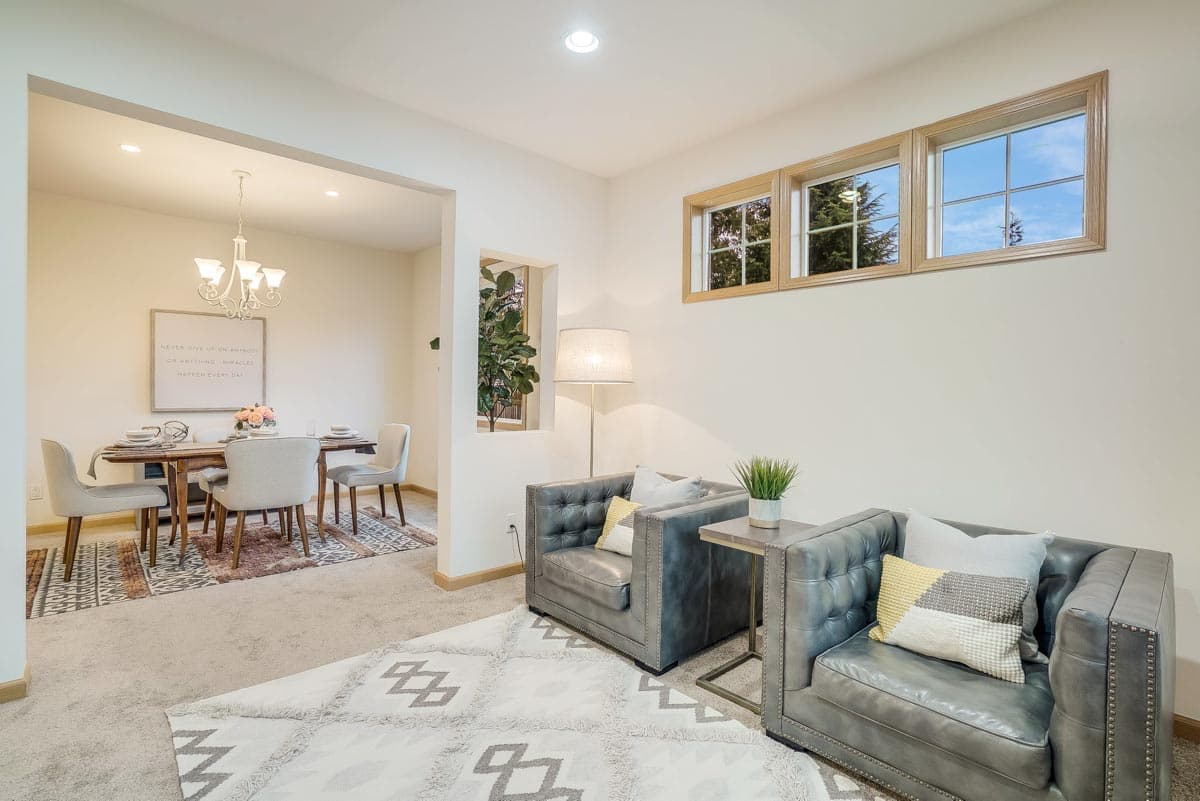

  • The foyer gives you a view all the way through the home and is open to the living and dining rooms.

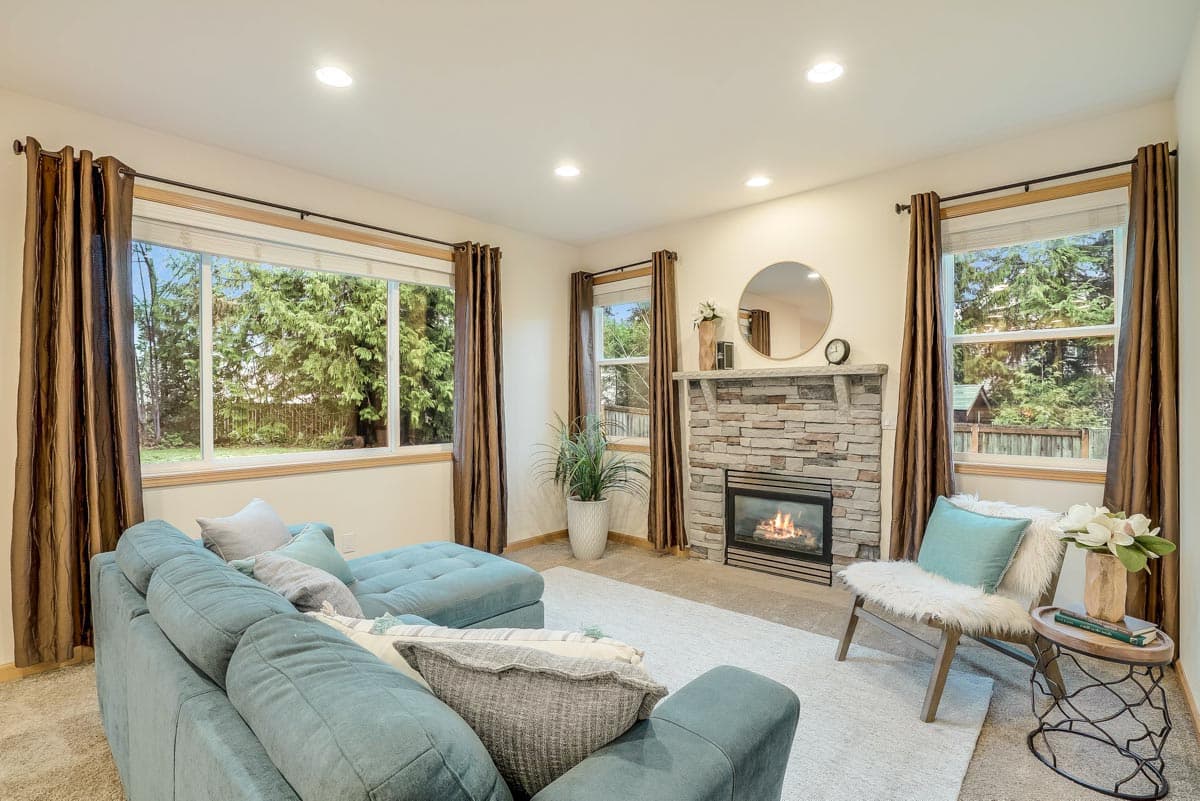

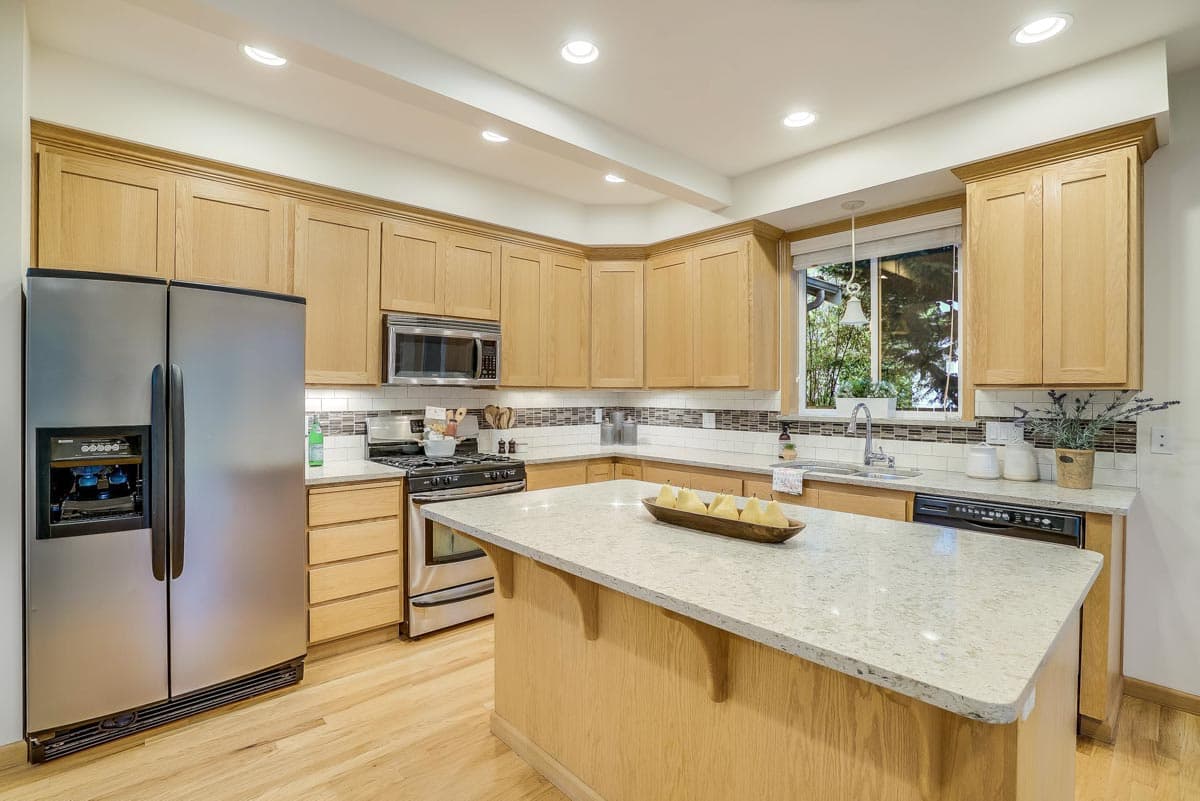

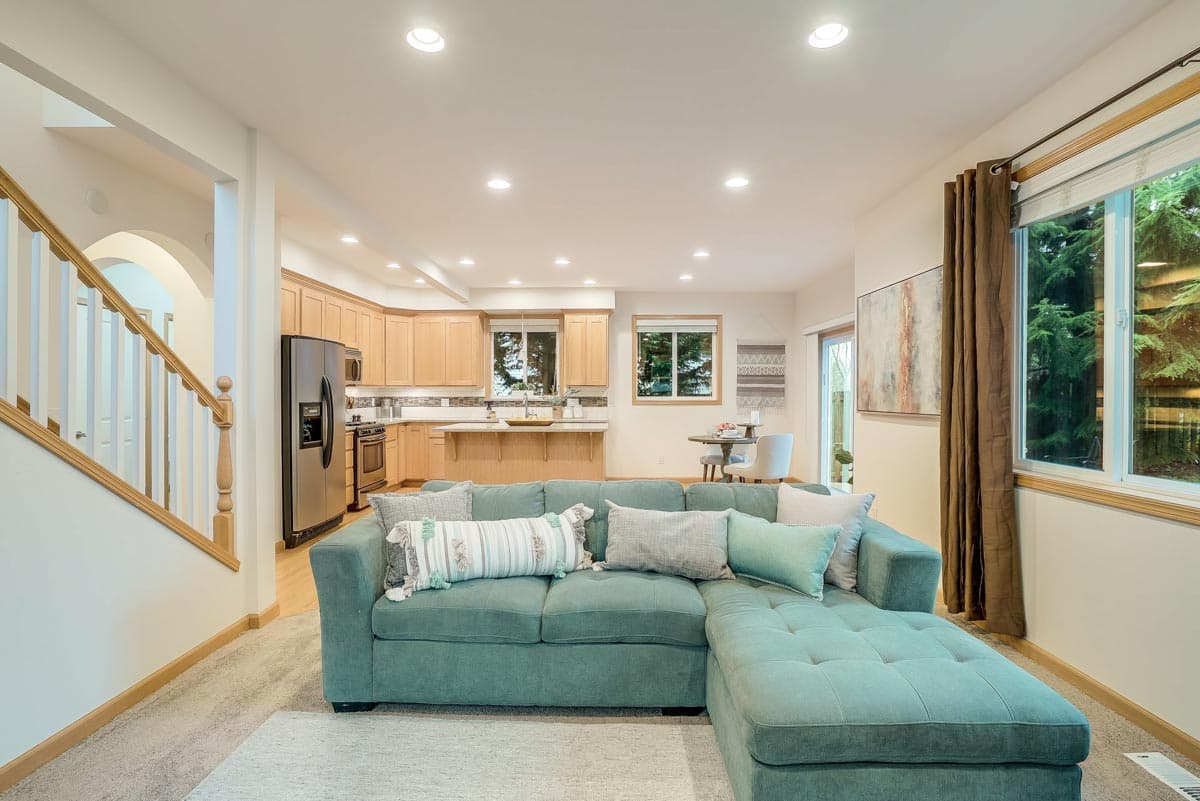

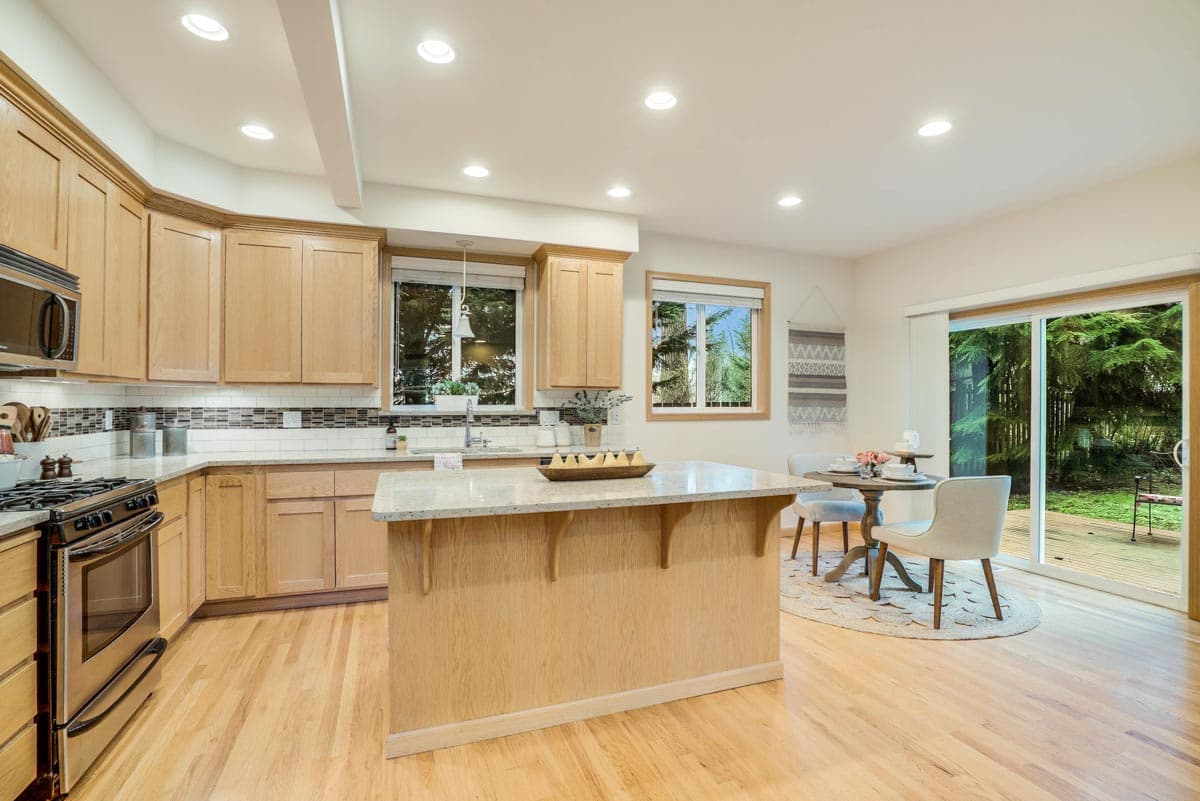

  • There is seating at the uniquely shaped island and a corner pantry in the kitchen. The family room has a fireplace and is open to the kitchen and nook.

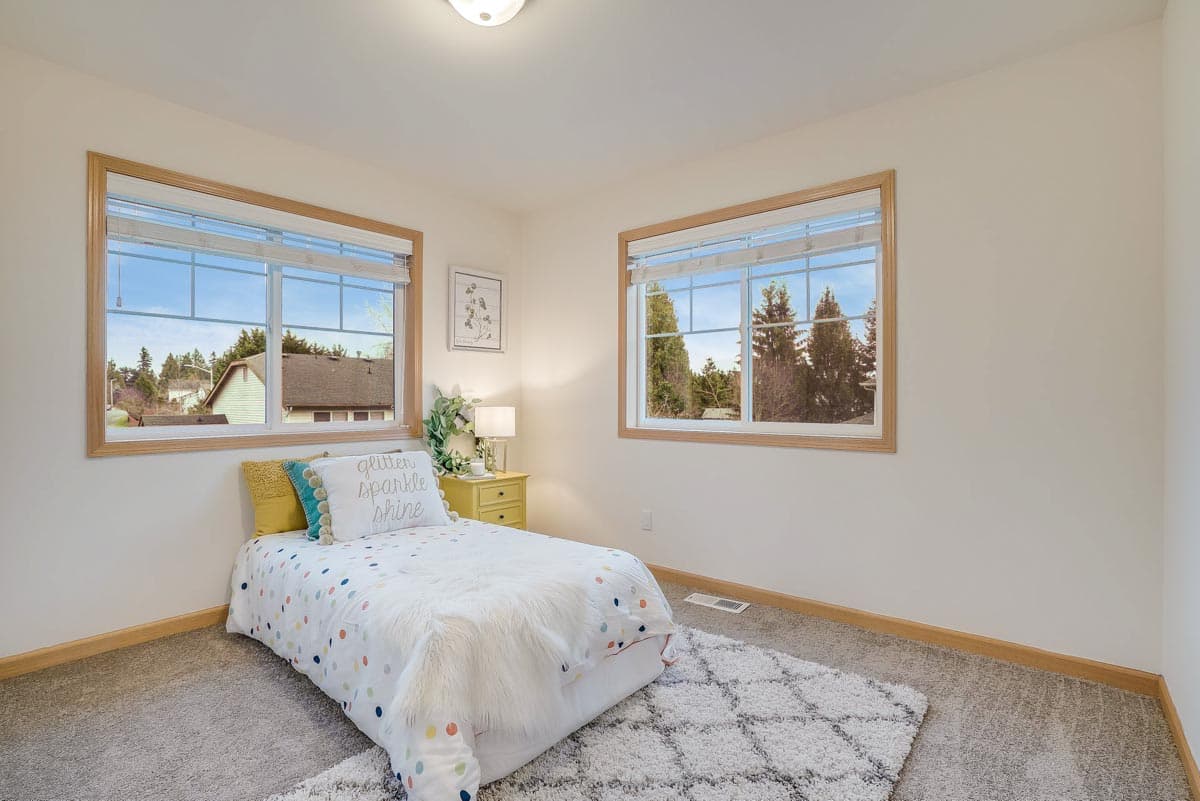

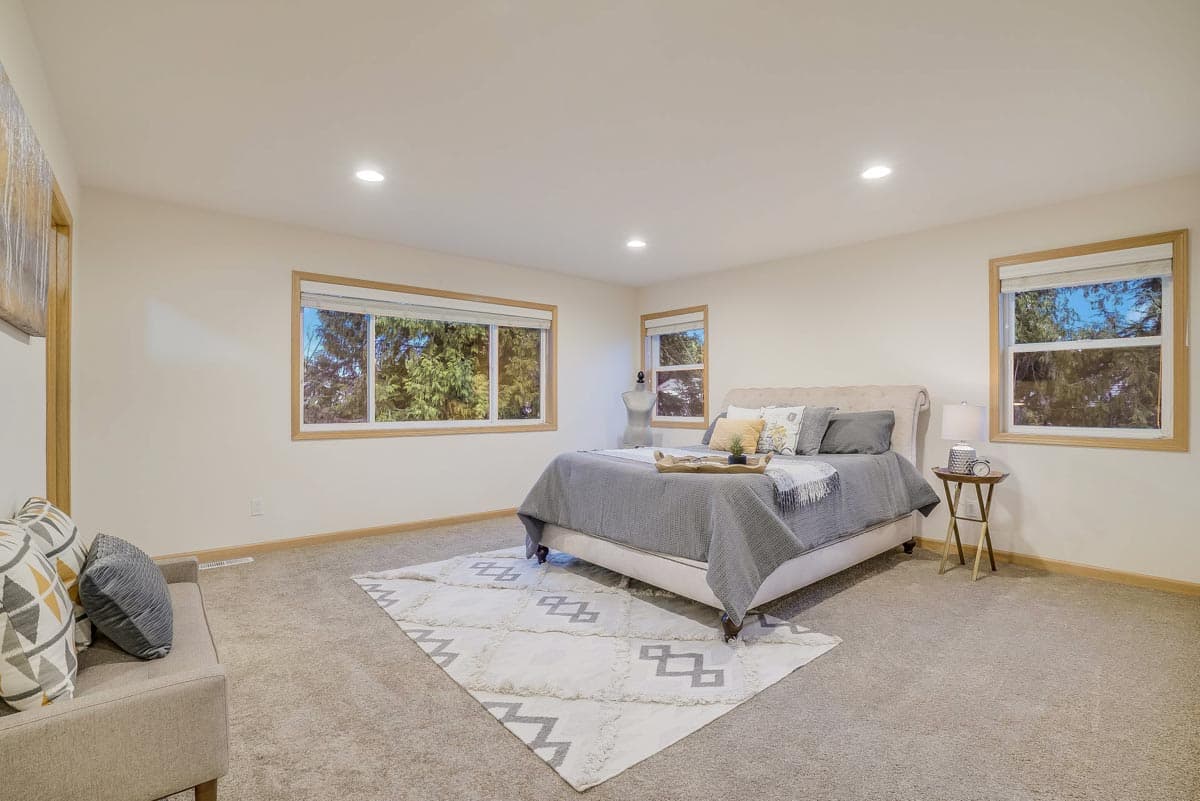

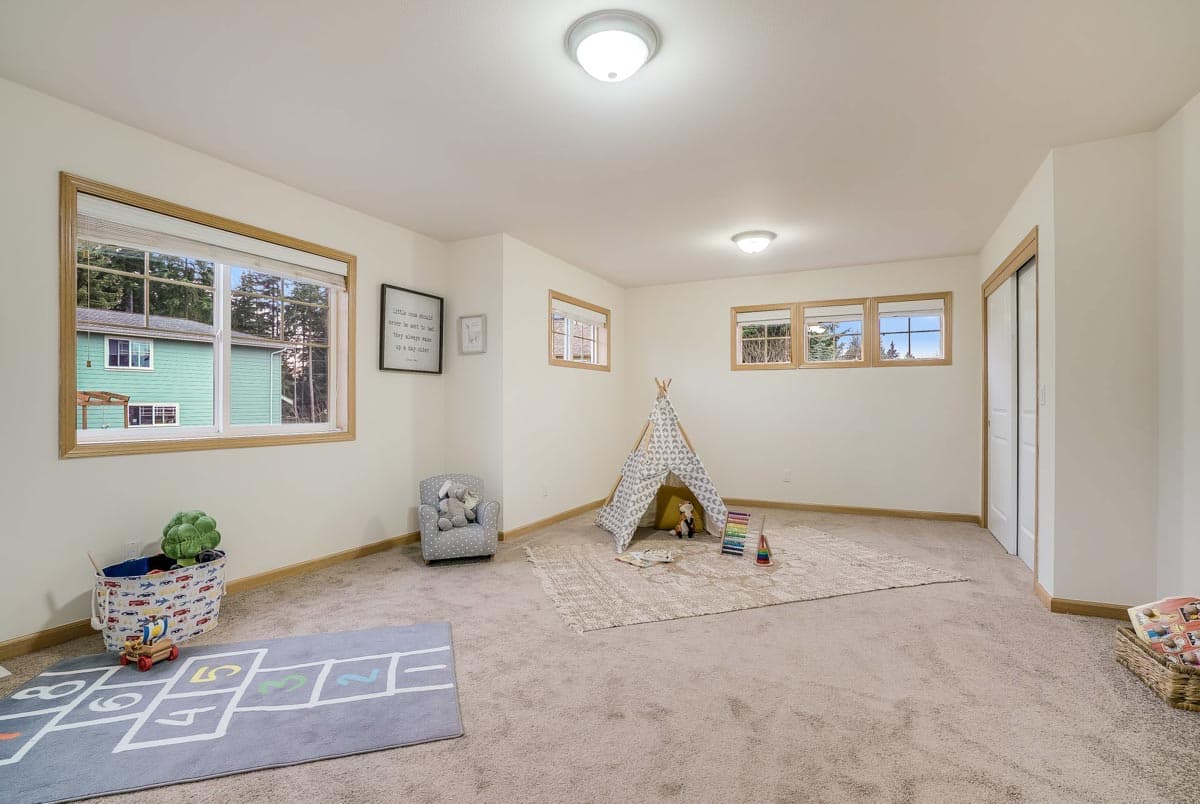

  •  Upstairs you'll find four bedrooms including the vaulted master bedroom. There is a bonus room as well - factored into the total living area - that can be put to many uses.
  • Related Plan: Get a little more room with house plan 23810JD (2,609 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

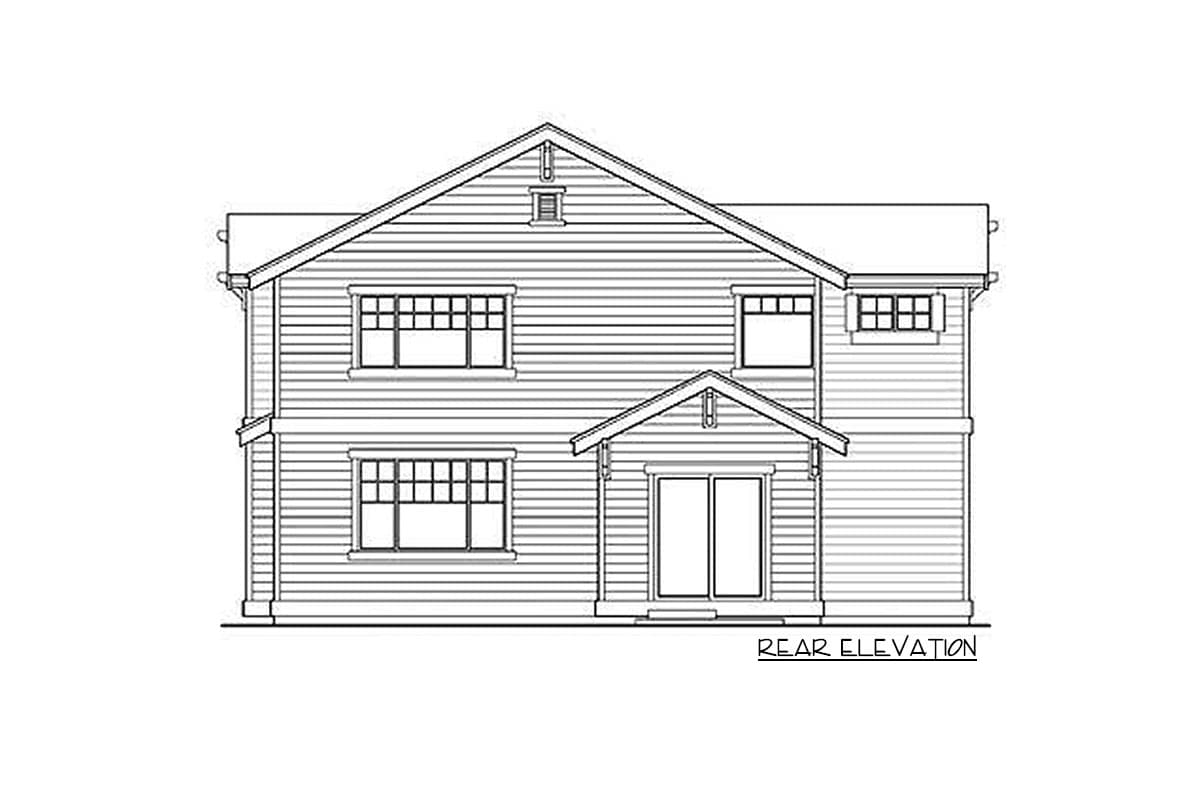

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

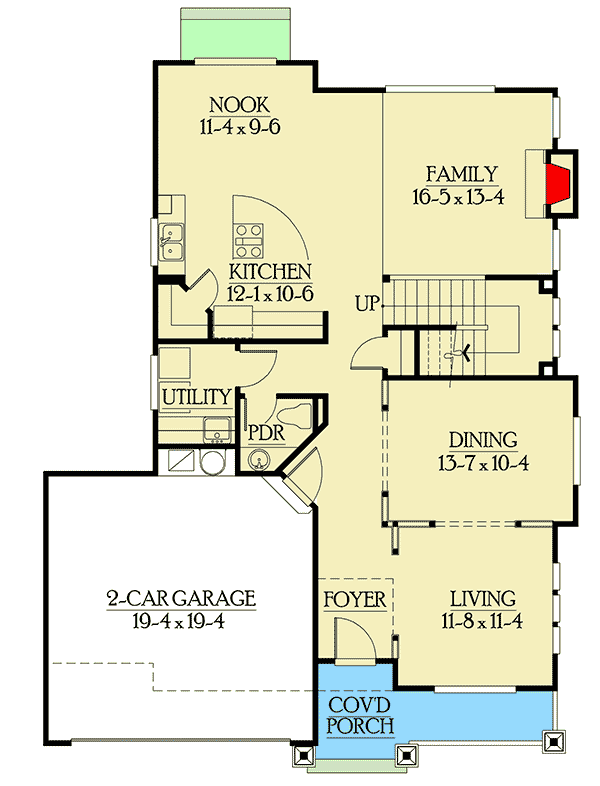

Floor Plan

Main Level

Pinit white
Reverse Floor Plan
4-Bed New American Home Plan with Vaulted Master Bedroom - 23073JD floor plan - Main Level

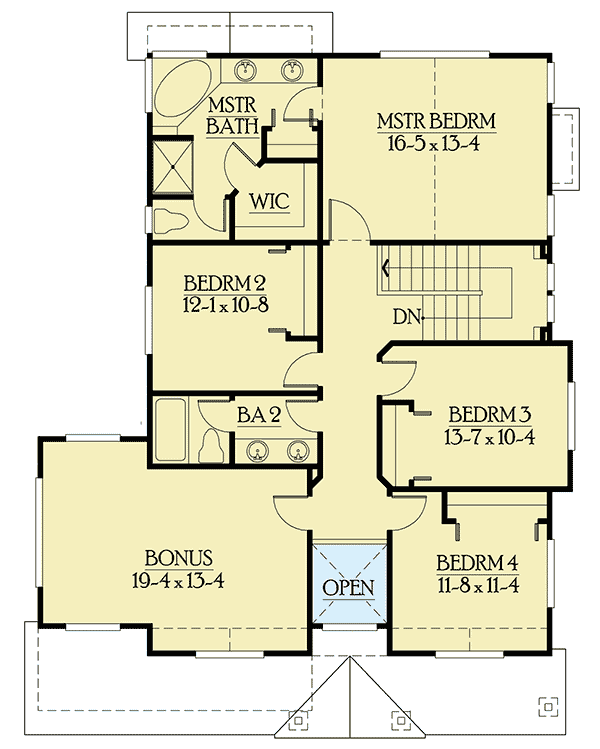

2nd Floor

Pinit white
Reverse Floor Plan
4-Bed New American Home Plan with Vaulted Master Bedroom - 23073JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,441 sq. ft.
  • 1st Floor: 1,138 sq. ft.
  • 2nd Floor: 1,303 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 51' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 397 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



4-Bed New American Home Plan with Vaulted Master Bedroom

  • 2,441

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
