Plan 710422BTZ 4-Bed New American House Plan Under 2700 Square Feet with Bonus Expansion

2,688 4 3 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed New American House Plan Under 2700 Square Feet with Bonus Expansion

Plan 710422BTZ

  • 2,688

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

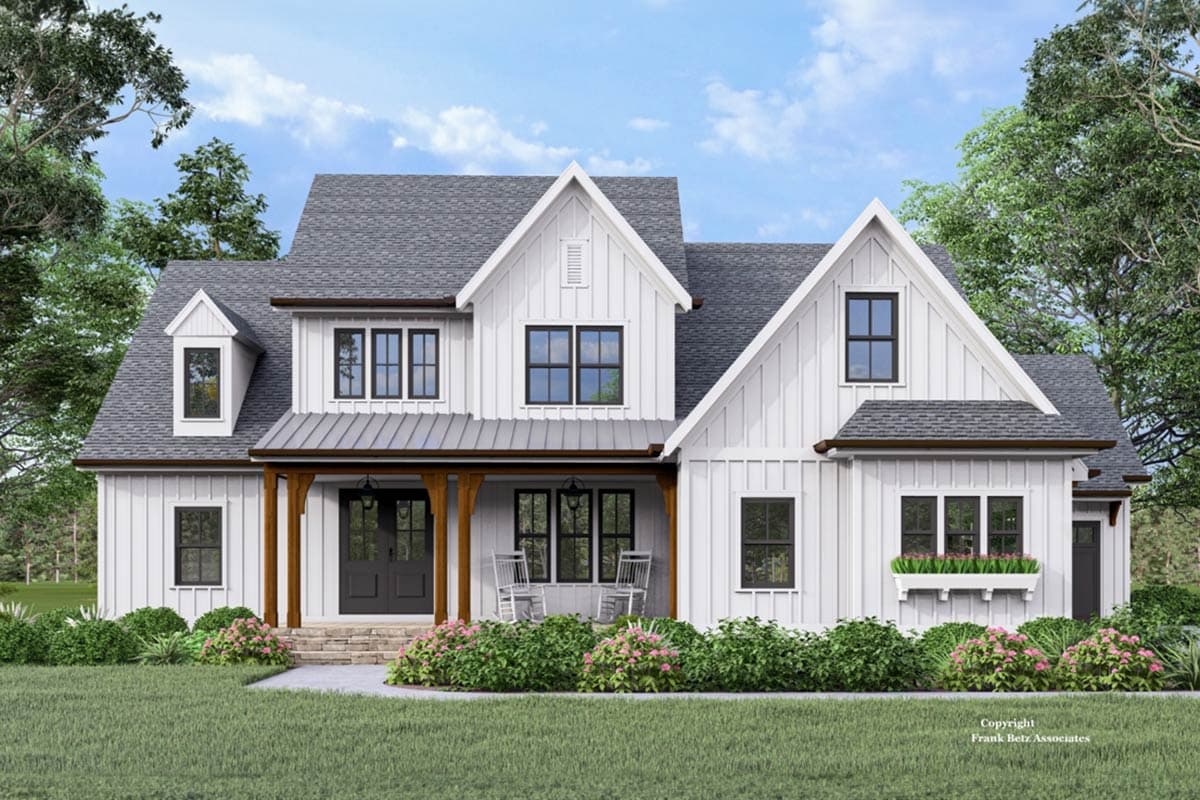

  • A real rocking chair porch (23'10" wide and 8' deep) is the perfect place to greet visitors, enjoy conversation or sit and relax. The front porch also provides cover for the entry doors and weather protection. Steep pitched gables and clean roof lines complete the design.
  • The main level is has tall ceilings throughout. The family room has a coffered ceiling and a warming fireplace and is open to the kitchen with large island and a walk-in-pantry.
  • The owner's suite is private and has a beamed 10' ceiling and a boxed window. The owner's bath has a soaking tub, large shower and walk-in-closet. There is a secondary bedroom on the main floor as well, perfect for an elderly parent or guests.
  • The upper level holds two additional bedrooms, each with a walk-in-closet. A compartmentalized bathroom services each bedroom. There is an optional bonus room on the second floor which can be finished later giving you an additional 318 square feet of usable space.

The plans include the following:

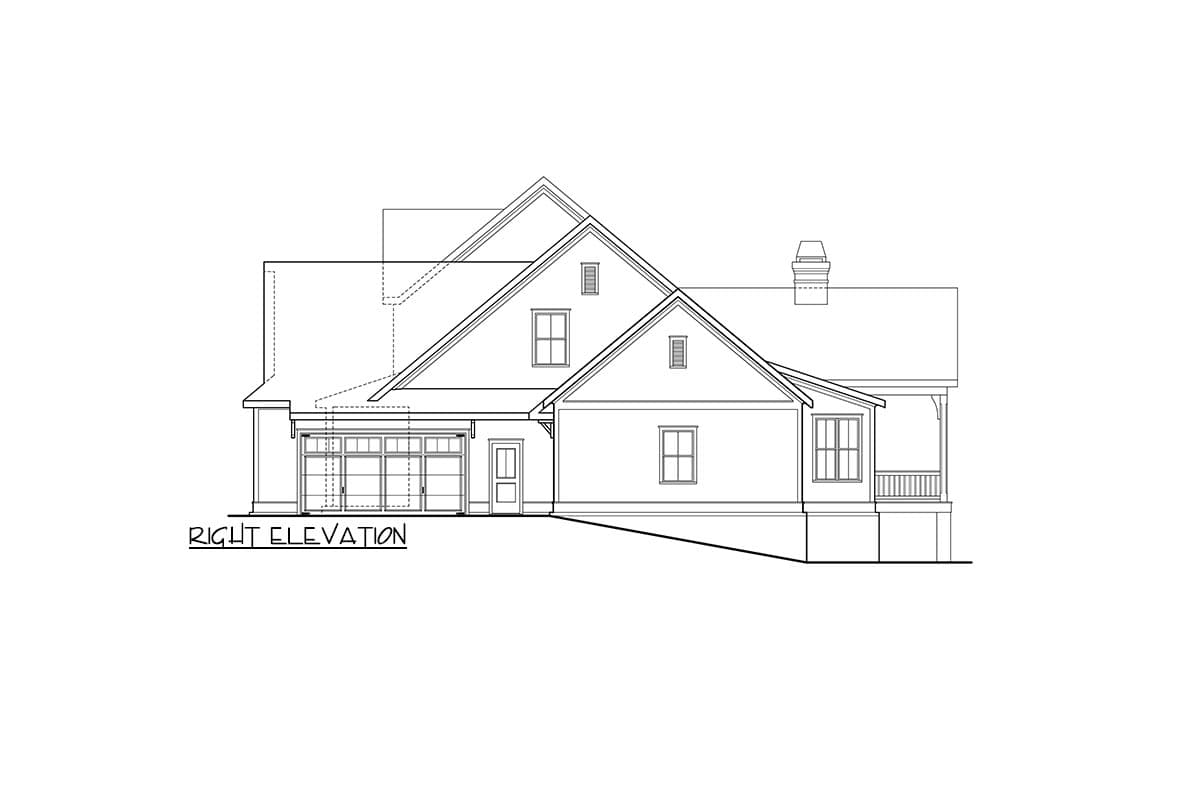

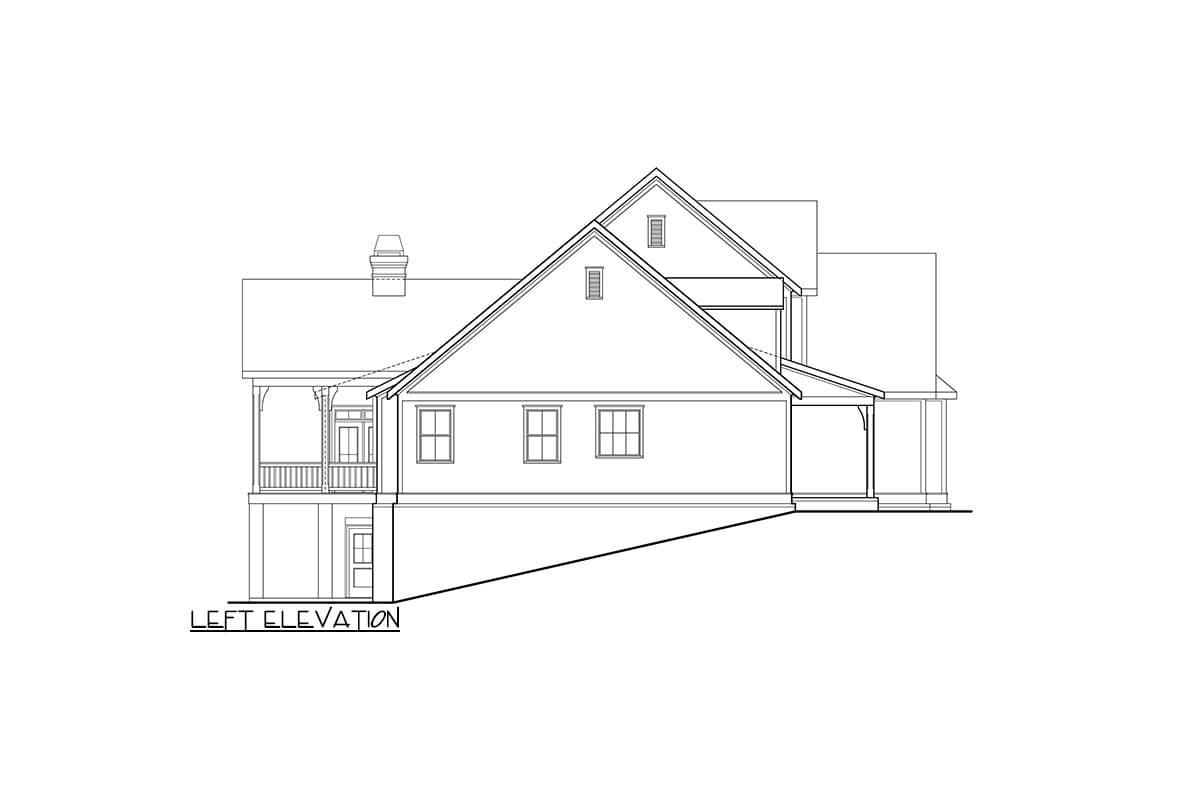

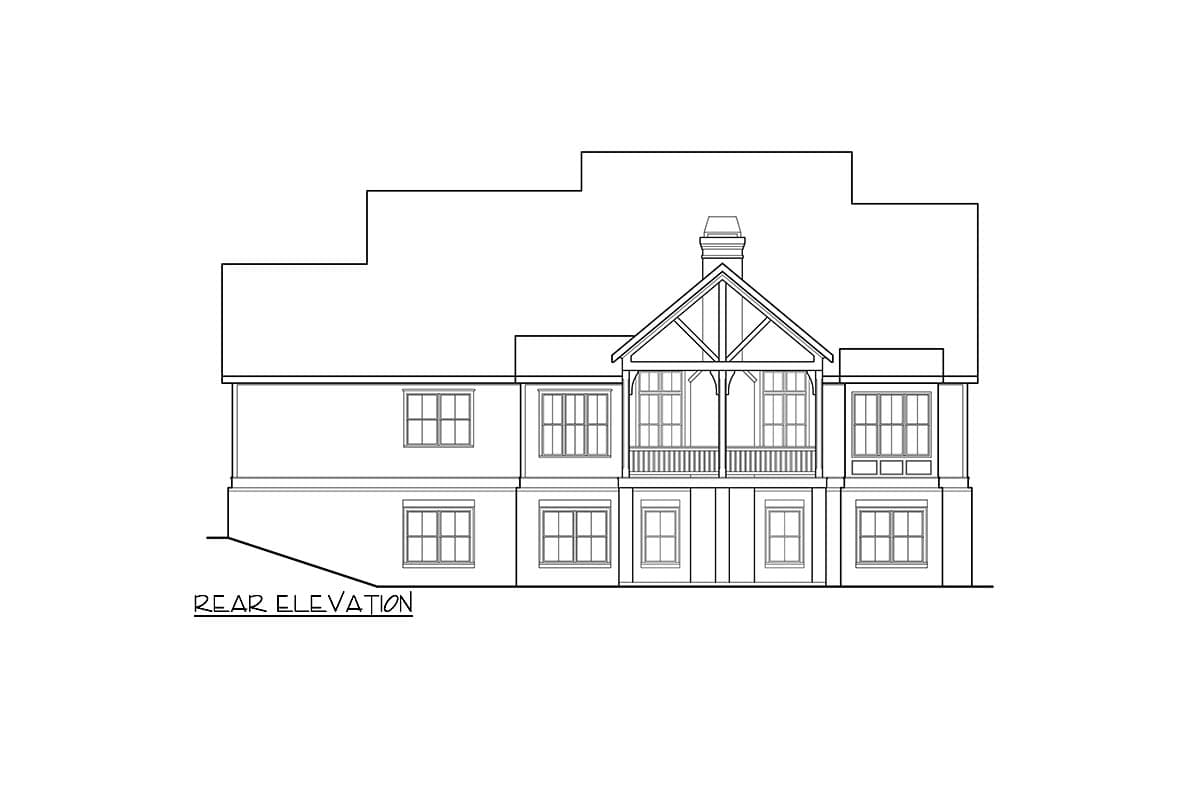

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

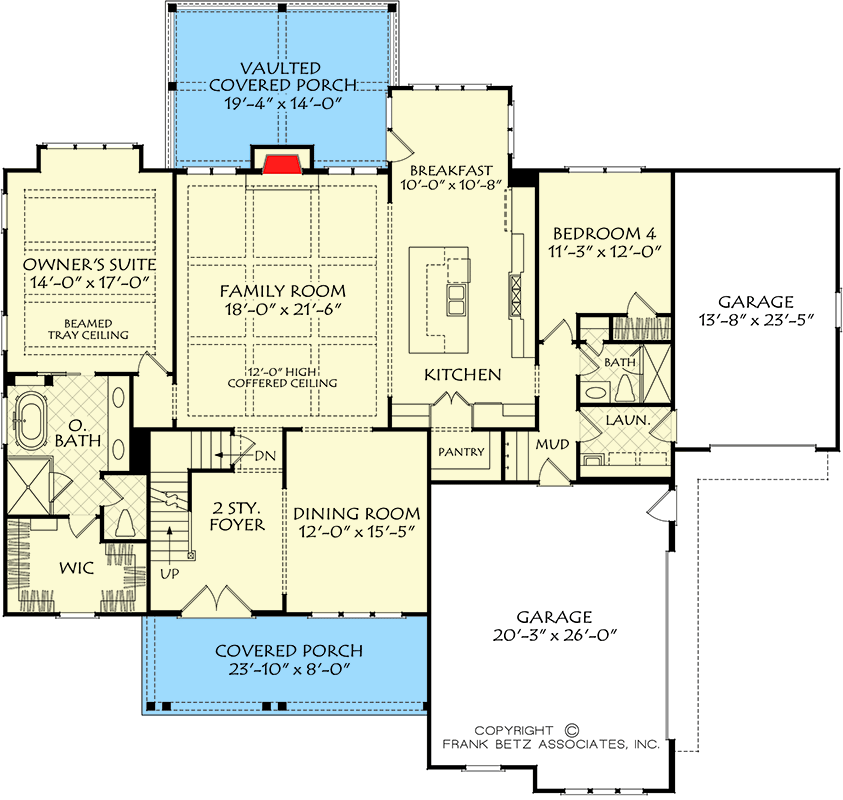

4-Bed New American House Plan Under 2700 Square Feet with Bonus Expansion - 710422BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

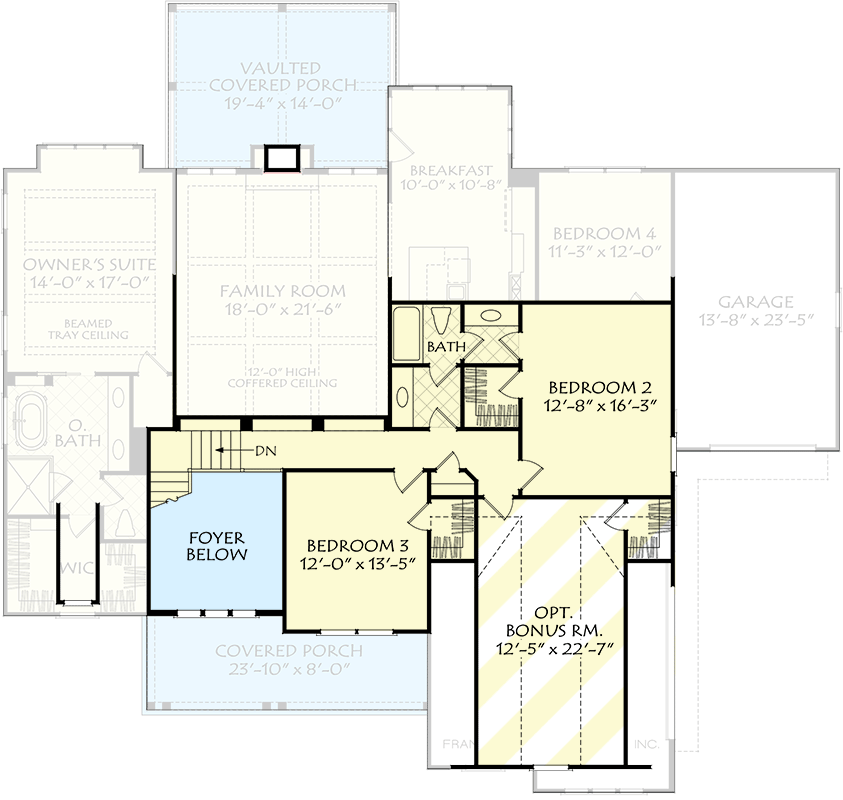

4-Bed New American House Plan Under 2700 Square Feet with Bonus Expansion - 710422BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,688 sq. ft.
  • 1st Floor: 2,025 sq. ft.
  • 2nd Floor: 663 sq. ft.
  • Bonus: 318 sq. ft.
  • Basement Unfinished: 2,025 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 0"
  • Depth: 67' 0"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed New American House Plan Under 2700 Square Feet with Bonus Expansion

  • 2,688

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets + PDF $2,175
  • PDF - Unlimited Build $2,195
  • PDF - Unlimited Build + 5-Sets $2,475
  • CAD - Unlimited Build $3,595
  • View all purchase option online

About This Plan

  • A real rocking chair porch (23'10" wide and 8' deep) is the perfect place to greet visitors, enjoy conversation or sit and relax. The front porch also provides cover for the entry doors and weather protection. Steep pitched gables and clean roof lines complete the design.
  • The main level is has tall ceilings throughout. The family room has a coffered ceiling and a warming fireplace and is open to the kitchen with large island and a walk-in-pantry.
  • The owner's suite is private and has a beamed 10' ceiling and a boxed window. The owner's bath has a soaking tub, large shower and walk-in-closet. There is a secondary bedroom on the main floor as well, perfect for an elderly parent or guests.
  • The upper level holds two additional bedrooms, each with a walk-in-closet. A compartmentalized bathroom services each bedroom. There is an optional bonus room on the second floor which can be finished later giving you an additional 318 square feet of usable space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,688 sq. ft.
  • 1st Floor: 2,025 sq. ft.
  • 2nd Floor: 663 sq. ft.
  • Bonus: 318 sq. ft.
  • Basement Unfinished: 2,025 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 0"
  • Depth: 67' 0"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
