4-Bed Southern House Plan with Main-Level Master

Plan 860037MCD

  • 3,254

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

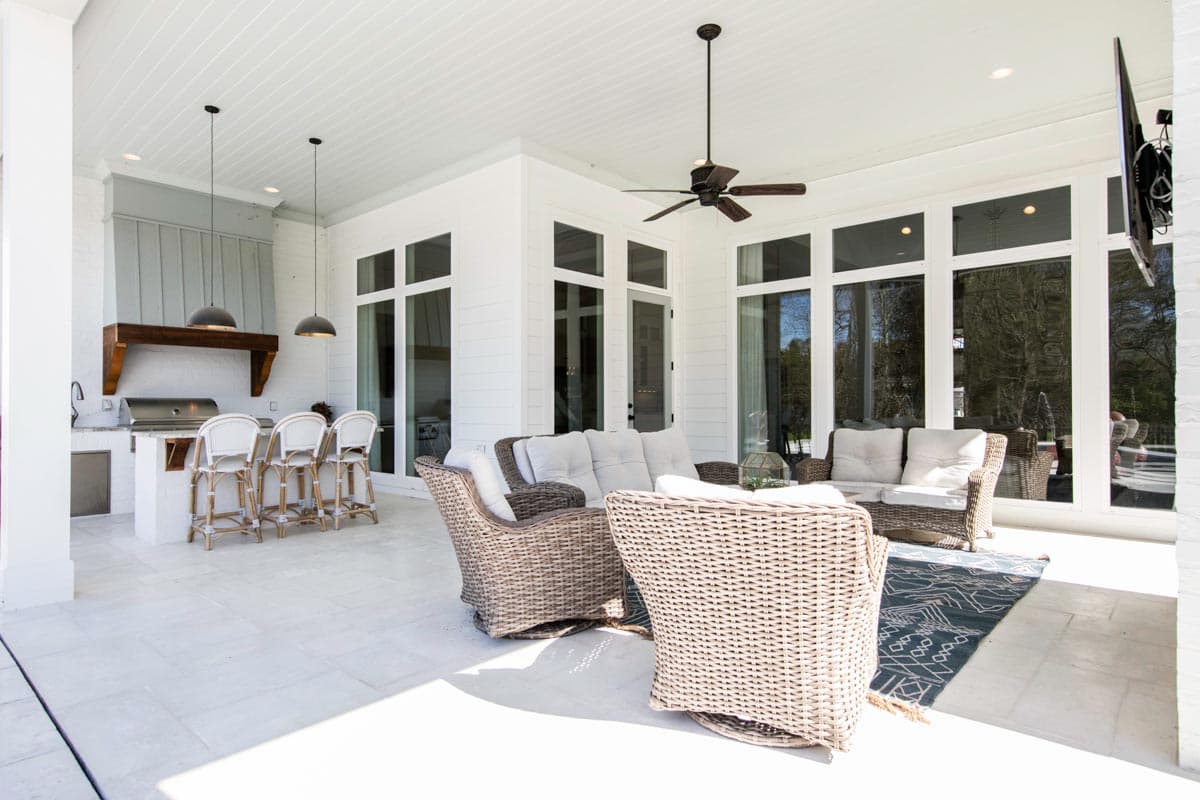

  • Double doors usher guests into a spacious foyer, with views through the living room and beyond to the sizable rear porch, complete with a fireplace and summer kitchen.
  • The desirable open-concept floor plan provides a comfortable space for everyday living, while the cathedral ceiling and exposed beams add character to the interior.
  • For maximum privacy, the master bedroom is located on the right side of the main level, and features a luxurious en suite with a barrel vaulted ceiling above the dual vanities and freestanding tub.
  • A hallway near the foyer leads to bedroom 2, including a full bath and walk-in closet, creating a great space for guests.
  • Above the 2-car garage, two additional bedrooms share a 4-fixture bath, and a den lends a quiet common space for the kids to enjoy.

This set of working drawings contains the following components
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

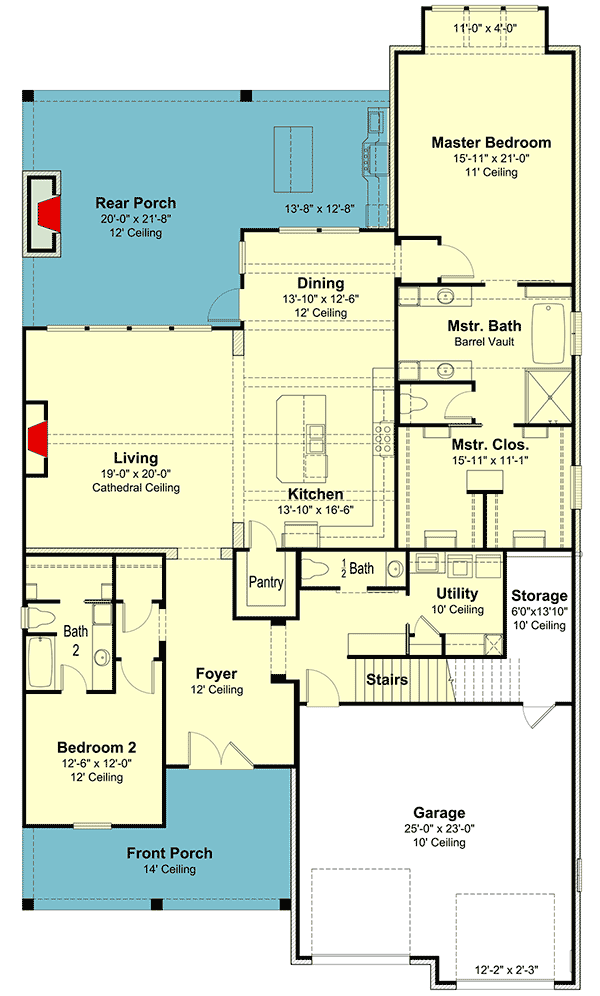

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Southern House Plan with Main-Level Master - 860037MCD floor plan - Main Level

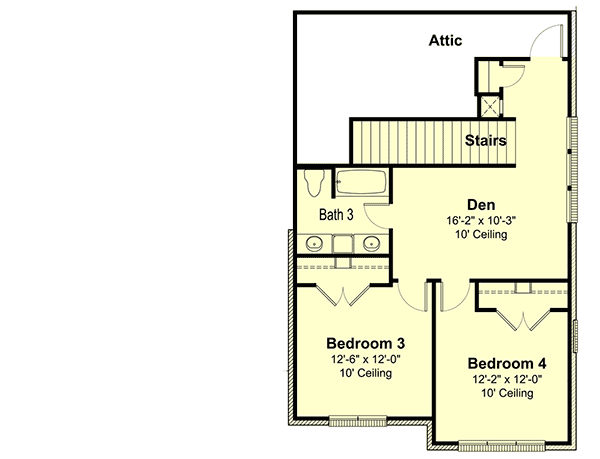

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Southern House Plan with Main-Level Master - 860037MCD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,254 sq. ft.
  • 1st Floor: 2,452 sq. ft.
  • 2nd Floor: 802 sq. ft.
  • Porch, Combined: 855 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 2"
  • Depth: 90' 1"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed Southern House Plan with Main-Level Master

  • 3,254

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,205
  • 5 Sets + PDF $2,305
  • 8 Sets + PDF $2,385
  • CAD - Single-Build $3,205
  • PDF - Unlimited Build $4,410
  • CAD - Unlimited Build $5,410
  • View all purchase option online

About This Plan

  • Double doors usher guests into a spacious foyer, with views through the living room and beyond to the sizable rear porch, complete with a fireplace and summer kitchen.
  • The desirable open-concept floor plan provides a comfortable space for everyday living, while the cathedral ceiling and exposed beams add character to the interior.
  • For maximum privacy, the master bedroom is located on the right side of the main level, and features a luxurious en suite with a barrel vaulted ceiling above the dual vanities and freestanding tub.
  • A hallway near the foyer leads to bedroom 2, including a full bath and walk-in closet, creating a great space for guests.
  • Above the 2-car garage, two additional bedrooms share a 4-fixture bath, and a den lends a quiet common space for the kids to enjoy.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,254 sq. ft.
  • 1st Floor: 2,452 sq. ft.
  • 2nd Floor: 802 sq. ft.
  • Porch, Combined: 855 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 2"
  • Depth: 90' 1"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
