4-Bed Transitional Farmhouse Under 3700 Square Feet with Outdoor Fireplace and a Home Office

Plan 93147EL

  • 3,696

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

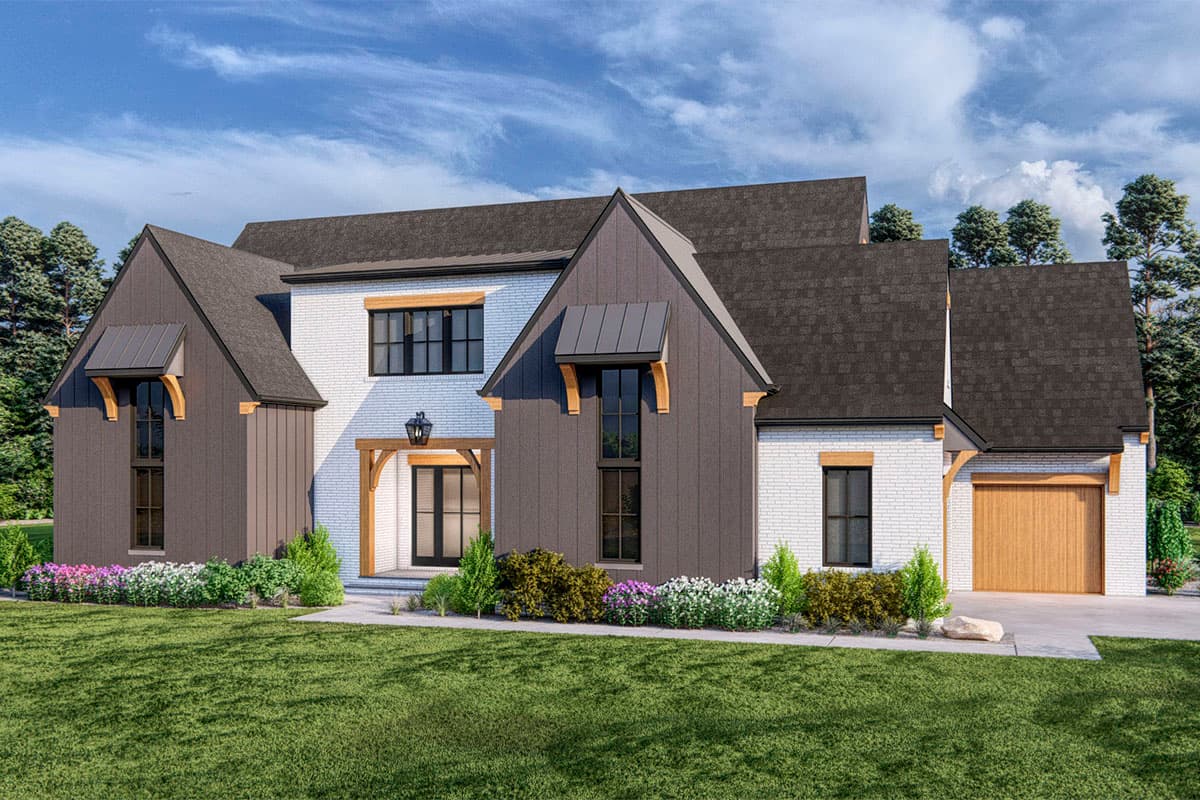

  • The two-story center portion of this Transitional farmhouse plan is painted brick with wood accents around the entry and the six-over-six second floor windows and flanked by two board and batten gables giving this 4 bed, 4.5 bath 3,696 square foot home plan great curb appeal.
  • The great room with beamed ceiling and fireplace opens into an island kitchen and dining area, the idyllic setting for family gatherings. A pantry / scullery doubles the workspace in the kitchen and includes a prep sink.
  • A generous lanai with a fireplace and built-in grill area invites you to spend time outdoors, while the owner's suite is conveniently located on the main level and features a spacious ensuite with a dresser island in the walk-in closet and access to the back yard through sliding doors.
  • Three bedroom suites share the second level with a game room and home office behind barn doors which is perfect for the work-at-home resident or homework. Future expansion space over the garage can be put to many uses.

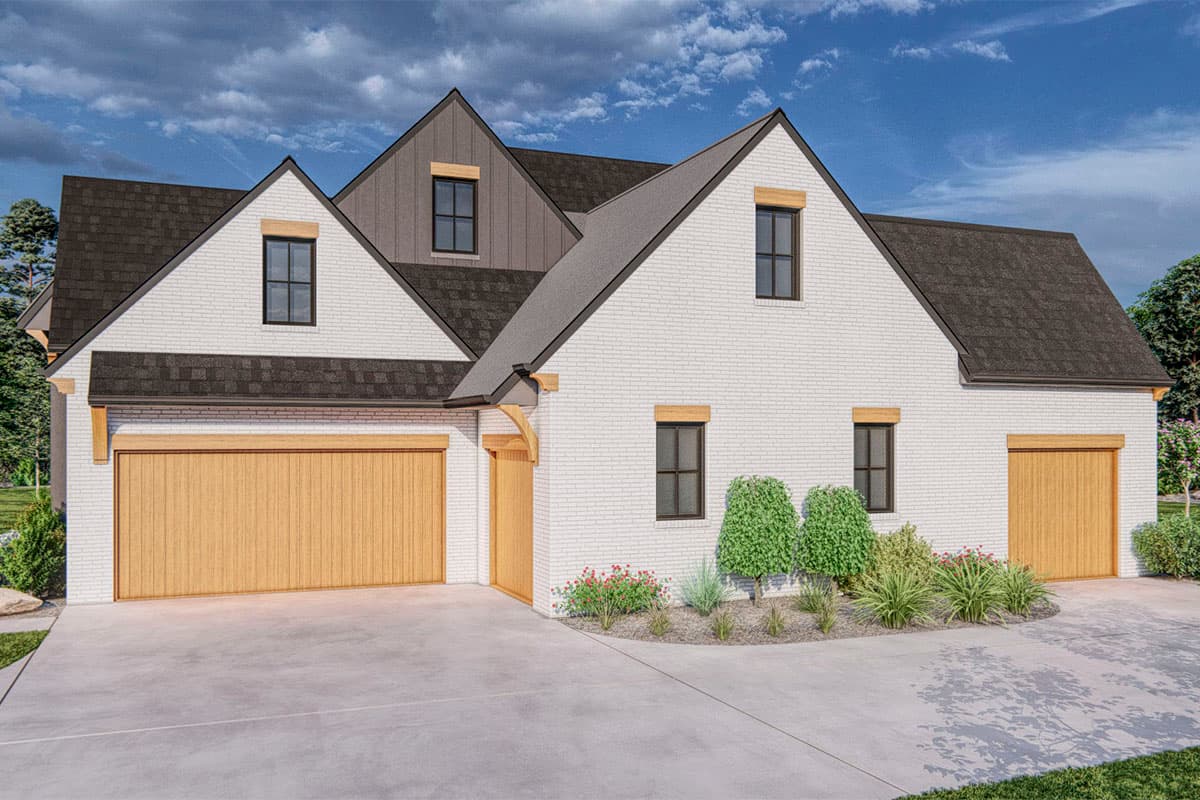

  • Three garage bays lead - two open to the side and one to the front - have access to the mud room and a workshop.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

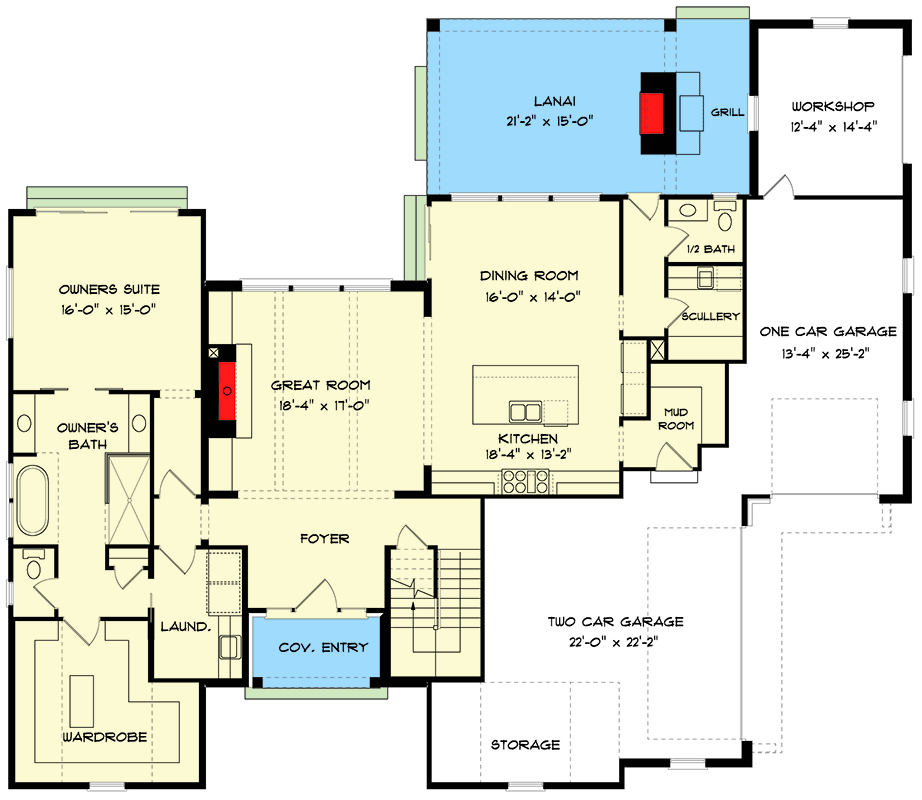

4-Bed Transitional Farmhouse Under 3700 Square Feet with Outdoor Fireplace and a Home Office - 93147EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

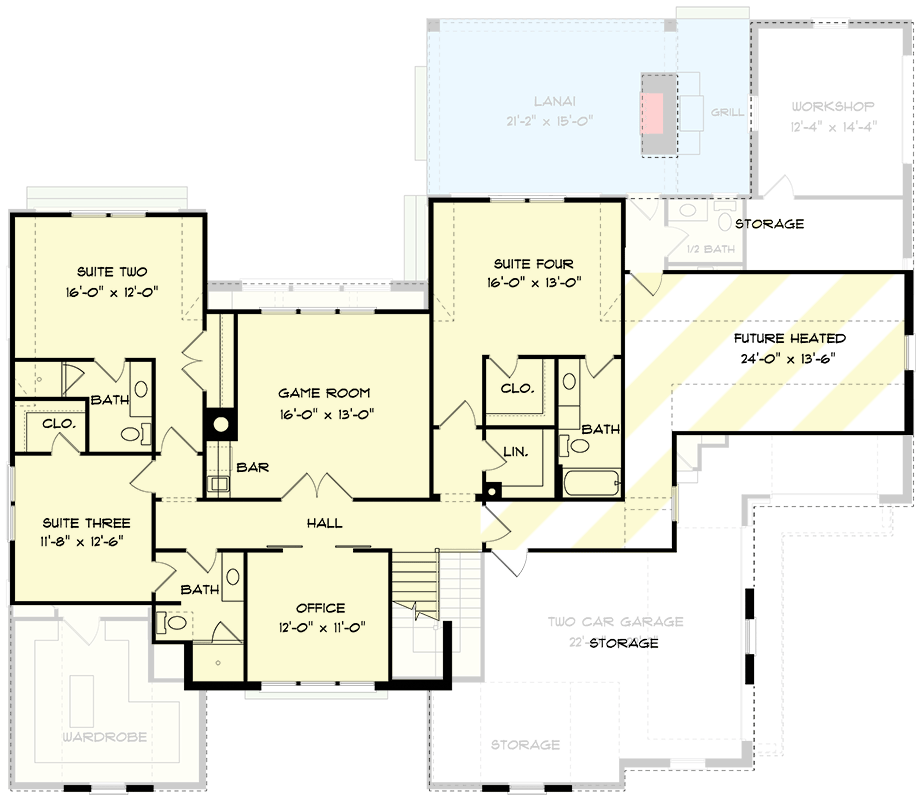

4-Bed Transitional Farmhouse Under 3700 Square Feet with Outdoor Fireplace and a Home Office - 93147EL floor plan - 2nd Floor

4-Bed Transitional Farmhouse Under 3700 Square Feet with Outdoor Fireplace and a Home Office

  • 3,696

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,696 sq. ft.
  • 1st Floor: 2,113 sq. ft.
  • 2nd Floor: 1,583 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 65' 7"
  • Max ridge height: 30' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1183 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
