Plan 270080AF
4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion
Heated S.F.
4,064
Beds
4-6
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

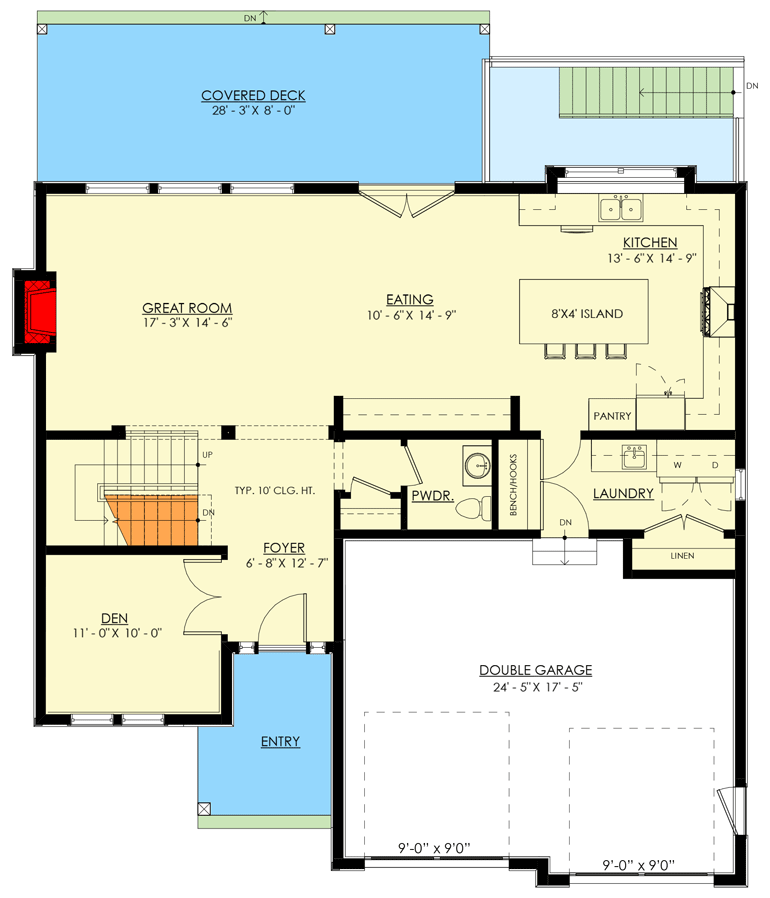

Main Level
Reverse Floor Plan
4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion - 270080AF floor plan - Main Level

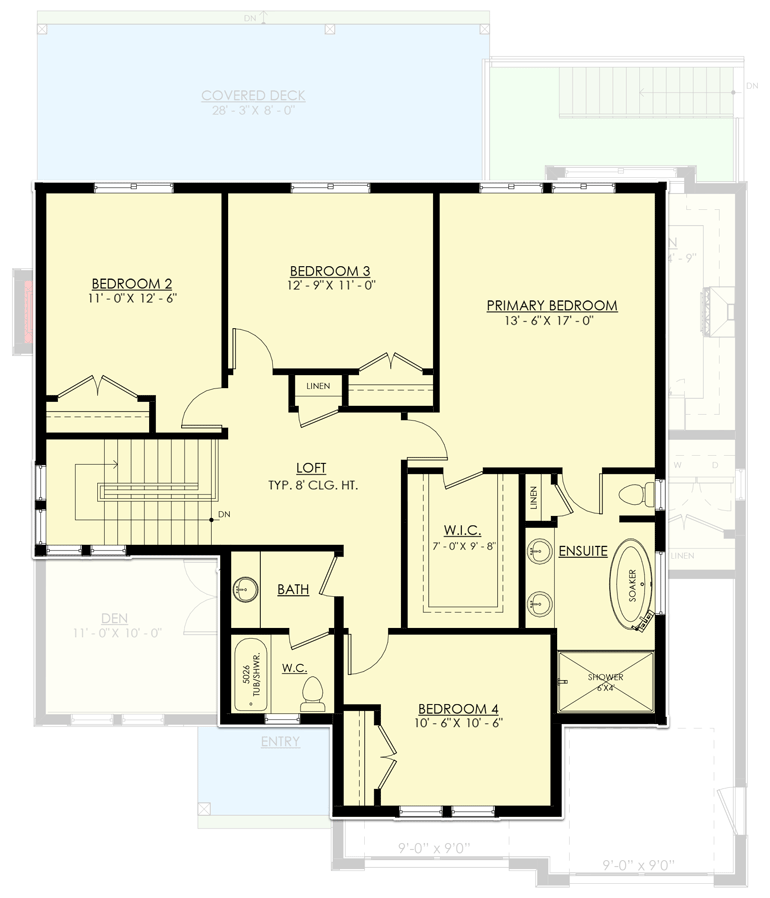

2nd Floor
Reverse Floor Plan
4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion - 270080AF floor plan - 2nd Floor

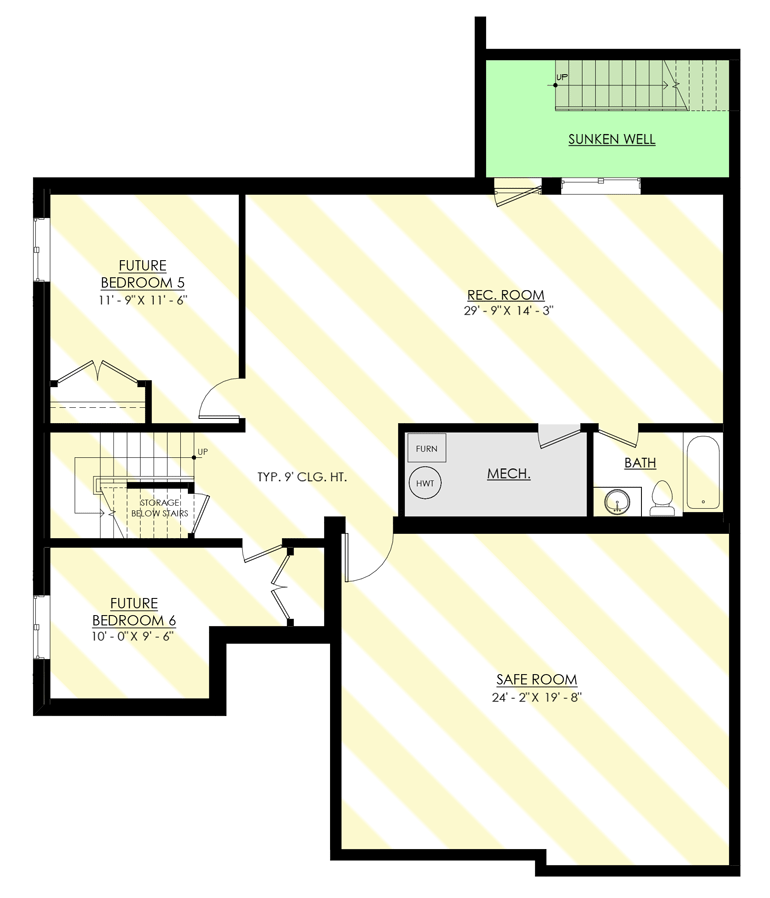

Optionally Finished Basement
Reverse Floor Plan
4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion - 270080AF floor plan - Optionally Finished Basement
Plan Details
  • This 2-story New American house plan gives you 4,064 square feet of heated living with 4 beds, and 2.5 baths. Finish the optional lower level as designed (the plans come with the lower level layout at no additional cost) and gain 2 more bedrooms and a bathroom.
  • A den off the entry sits behind a pair of  French doors and makes a great-work-from-home space.
  • The back of the main floor is open left to right, with the fireplace on the great room wall visible from the C-shaped kitchen with 8' by 4' island. The great room overlooks the back and a pair of French doors set in the middle of the back wall take you to an 8'-deep covered deck.
  • Upstairs is dedicated to bedrooms which are arranged around a central loft.
  • In addition to bedrooms and a rec room in the lower level, a large safe room is included in the layout.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

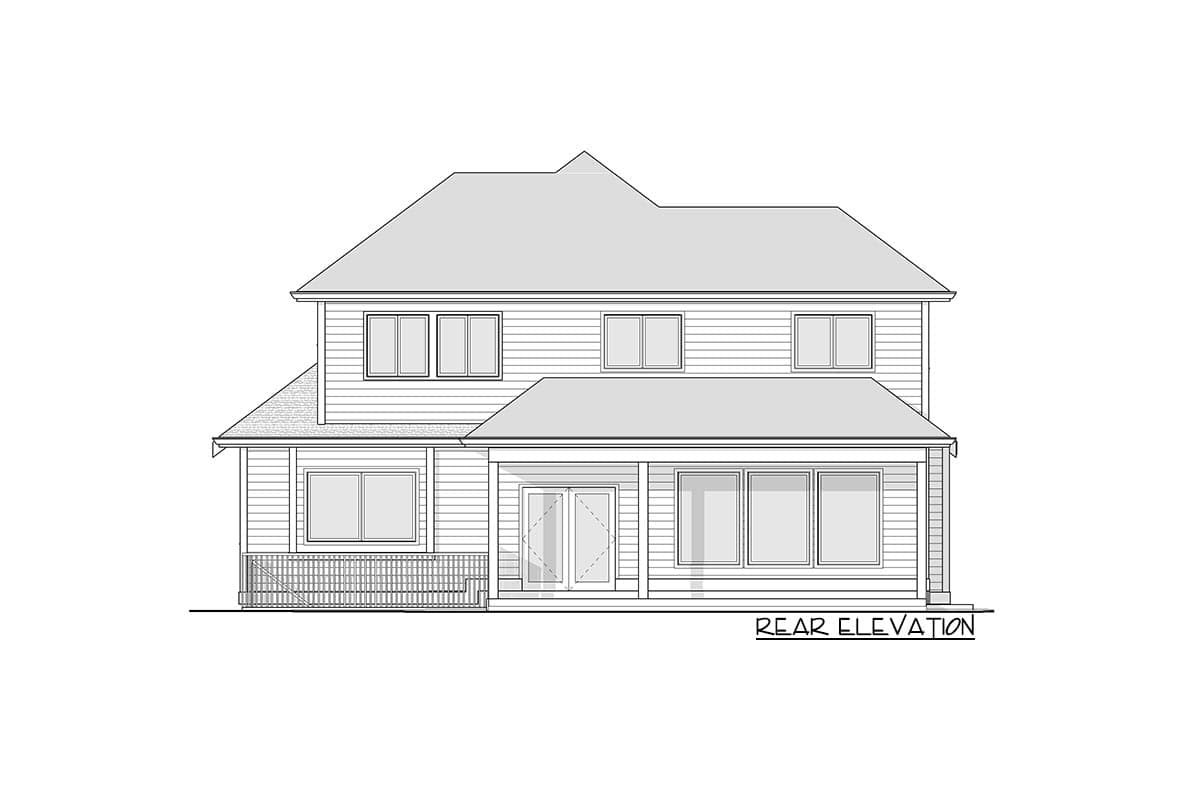

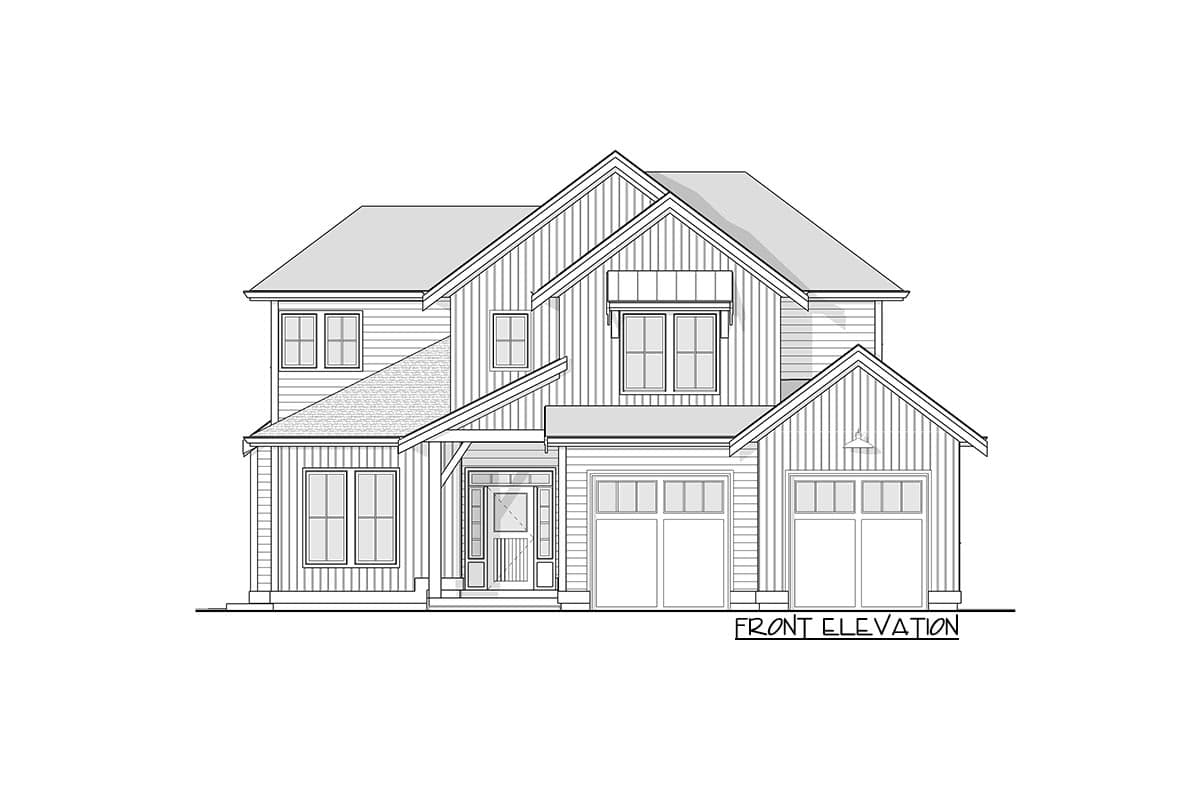

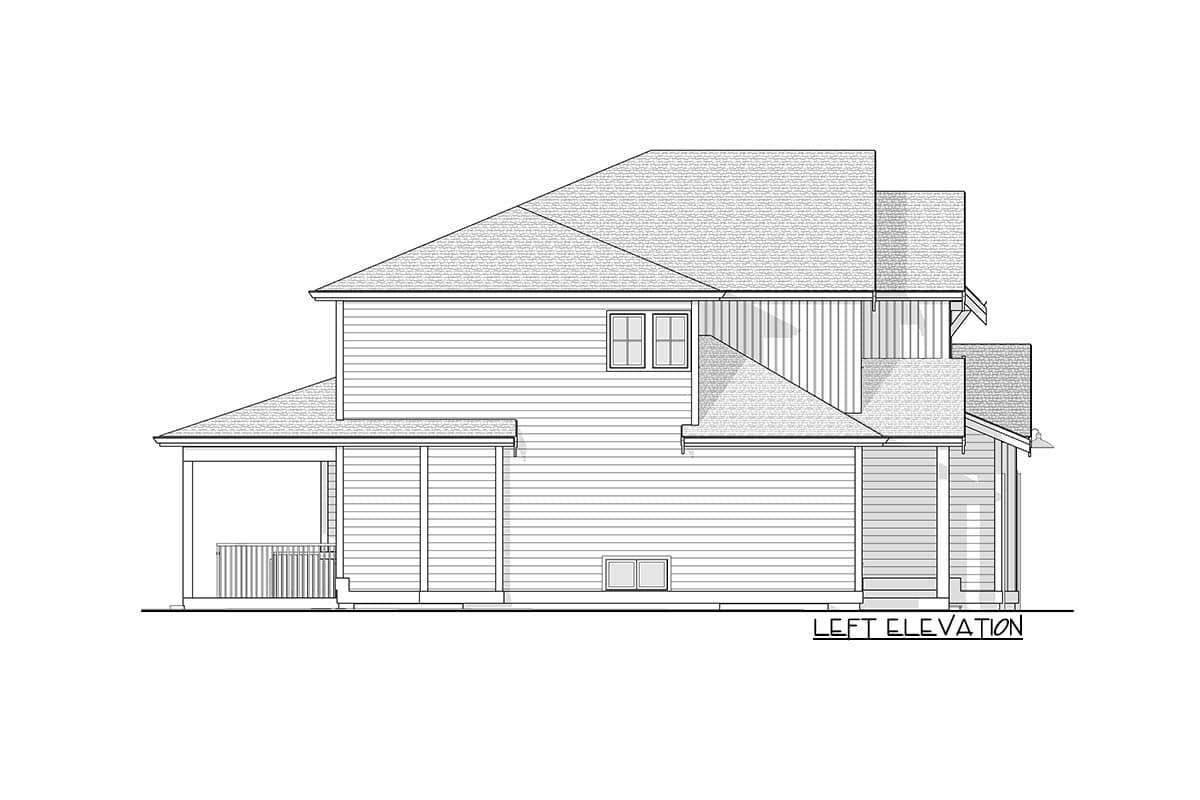

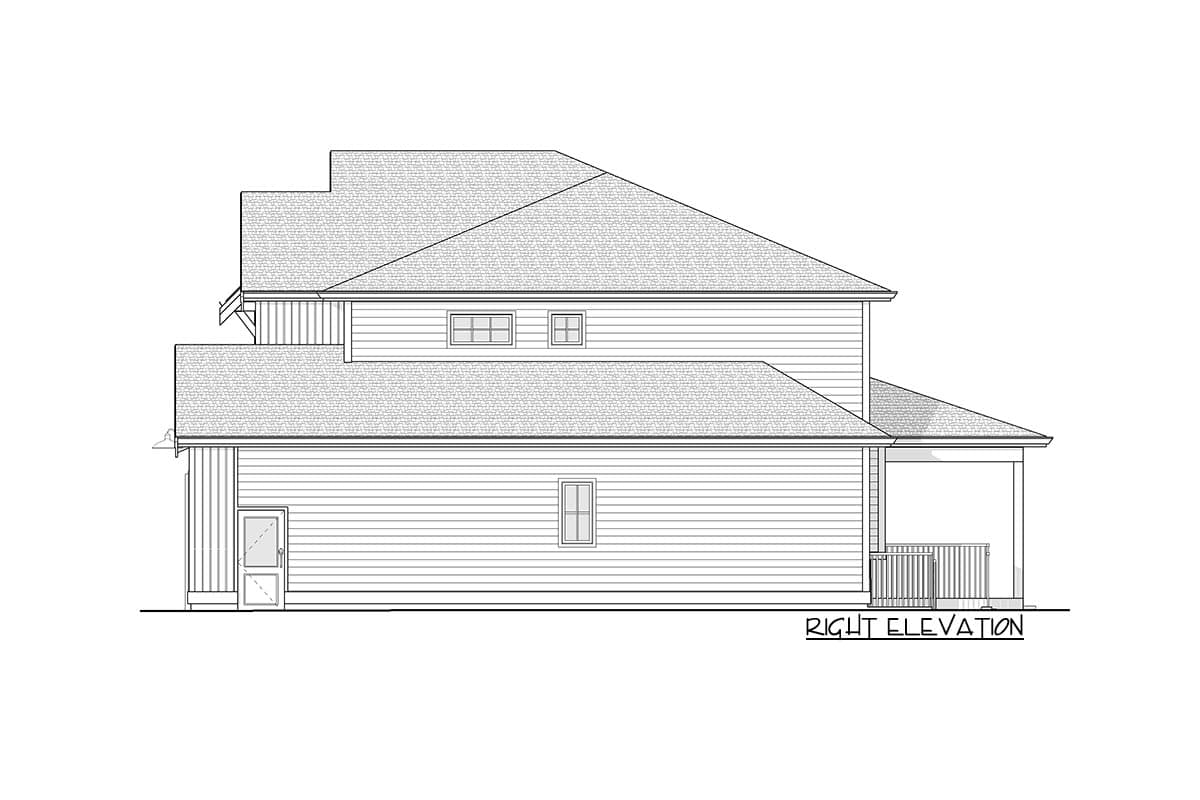

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion

  • 4,064

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Basement

Plan Details

Square Footage Breakdown

  • Total: 4,064 sq. ft.
  • Lower Level: 1,687 sq. ft.
  • 1st Floor: 1,179 sq. ft.
  • 2nd Floor: 1,198 sq. ft.

Dimensions

  • Width: 45' 4"
  • Depth: 53' 6"
  • Max ridge height: 29' 10"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion

  • 4,064

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

4064 Square Foot New American House Plan with 4 Upstairs Bedrooms and Lower Level Expansion

  • 4,064

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,064 sq. ft.
  • Lower Level: 1,687 sq. ft.
  • 1st Floor: 1,179 sq. ft.
  • 2nd Floor: 1,198 sq. ft.

Dimensions

  • Width: 45' 4"
  • Depth: 53' 6"
  • Max ridge height: 29' 10"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

    Main Level
