4300 Square Foot 4-Bed Contemporary Mediterranean-Style House Plan with Outdoor Fireplace

Plan 93145EL

  • 4,300

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4-bed, 4.5 bath contemporary Mediterranean-style house plan gives you 4,300 square feet of heated living area and has an attractive painted brick exterior with deep eaves and a distinctive covered entry.
  • Large windows line the rear wall of the living / dining room, topped by exposed beams and anchored by a fireplace. A wine room tucked beneath the stairwell is perfect for entertaining.
  • The island kitchen features a large range and scullery with a veggie sink, while glass doors retract to extend the living space onto the veranda.
  • The owner's suite is accompanied by a 5-fixture bathroom with a separate tub and shower and a large wardrobe with a dresser island.
  • Three bedroom suites reside upstairs, along with a flex room and bonus area (included in the total square footage) with a wet bar above the garage.
  • Related Plans: Get a main floor guest suite with house plan 93159EL. Get an alternate exterior with house plans 93140EL and 93142EL.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

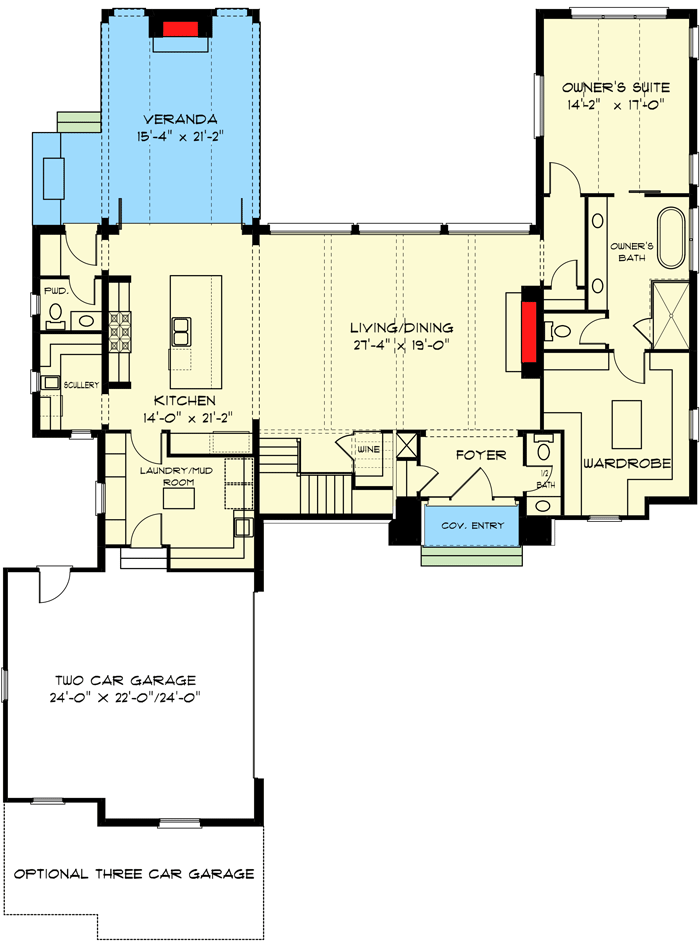

4300 Square Foot 4-Bed Contemporary Mediterranean-Style House Plan with Outdoor Fireplace - 93145EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4300 Square Foot 4-Bed Contemporary Mediterranean-Style House Plan with Outdoor Fireplace - 93145EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,300 sq. ft.
  • 1st Floor: 2,129 sq. ft.
  • 2nd Floor: 2,171 sq. ft.
  • Porch, Rear: 322 sq. ft.
  • Porch, Front: 96 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Daylight, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 0"
  • Depth: 91' 2"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 660 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style
