4509 Square Foot Transitional House Plan with Outdoor Fireplace and Flex Guest-Home Office

Plan 93159EL

  • 4,509

    Heated s.f.

  • 4-5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 5-bed, 5.5 bath contemporary Mediterranean-style house plan gives you 4,509 square feet of heated living area and has an attractive painted brick exterior with deep eaves and a distinctive covered entry.
  • Large windows line the rear wall of the living / dining room, topped by exposed beams and anchored by a fireplace. A wine room tucked beneath the stairwell is perfect for entertaining.
  • The island kitchen features a large range and scullery with a veggie sink, while glass doors retract to extend the living space onto the veranda.
  • The owner's suite is accompanied by a 5-fixture bathroom with a separate tub and shower and a large wardrobe with a dresser island. A guest suite can be turned into a home office and adds flexibility to the home.
  • Three bedroom suites reside upstairs, along with a flex room and bonus area (included in the total square footage) with a wet bar above the garage.
  • Related Plan: Eliminate the main floor guest suite with house plan 93145EL (4,300 sq. ft.).
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

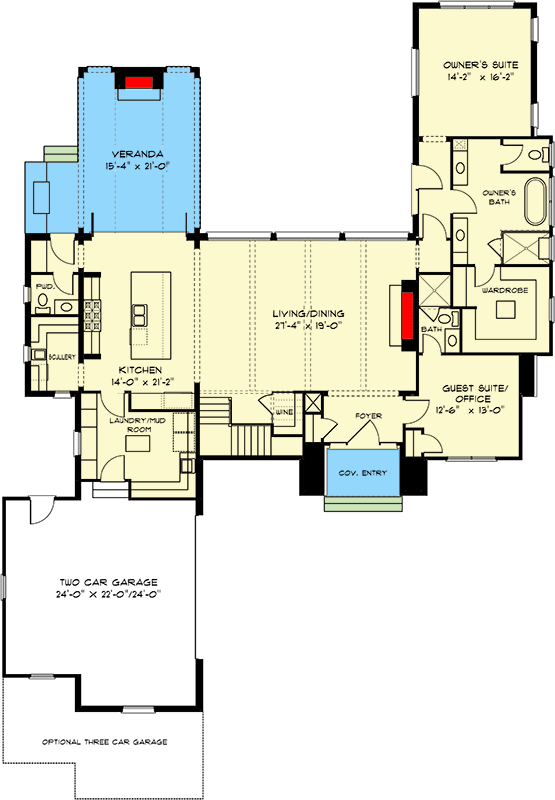

4509 Square Foot Transitional House Plan with Outdoor Fireplace and Flex Guest-Home Office - 93159EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

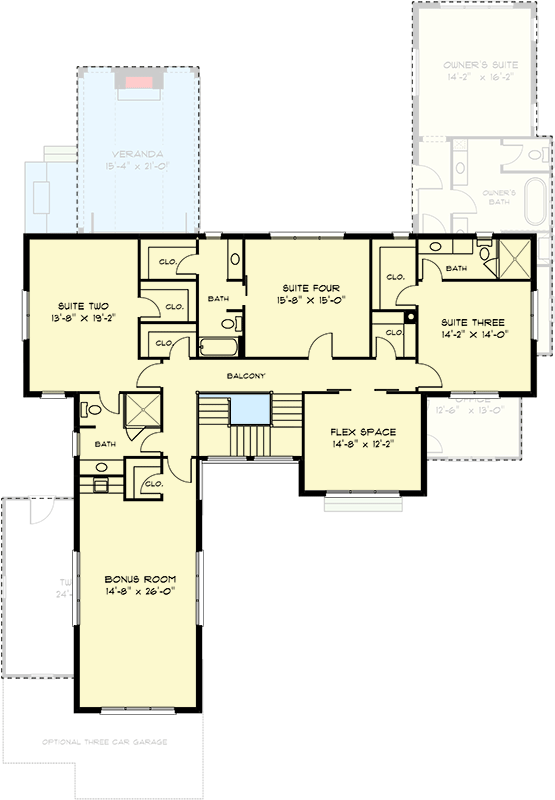

4509 Square Foot Transitional House Plan with Outdoor Fireplace and Flex Guest-Home Office - 93159EL floor plan - 2nd Floor
