Plan 666293RAF

5-Bed Contemporary House Plan with Lower Level Apartment - 4376 Sq Ft

Heated S.F.
4,376
Beds
5
Baths
4.5+
Stories
2
Cars
1

Floor Plan

Plan 666293RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666293RAF

M-F 9am-5pm EST |

1-203-761-8500

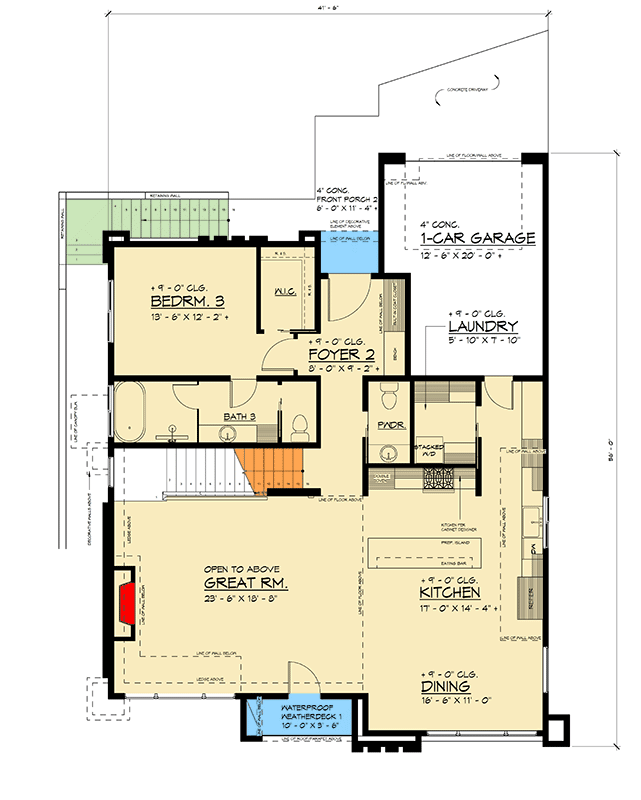

Main Level

Plan 666293RAF: 5-Bed Contemporary House Plan with Lower Level Apartment - 4376 Sq Ft - Floor Plan - Main Level - Contemporary, Modern

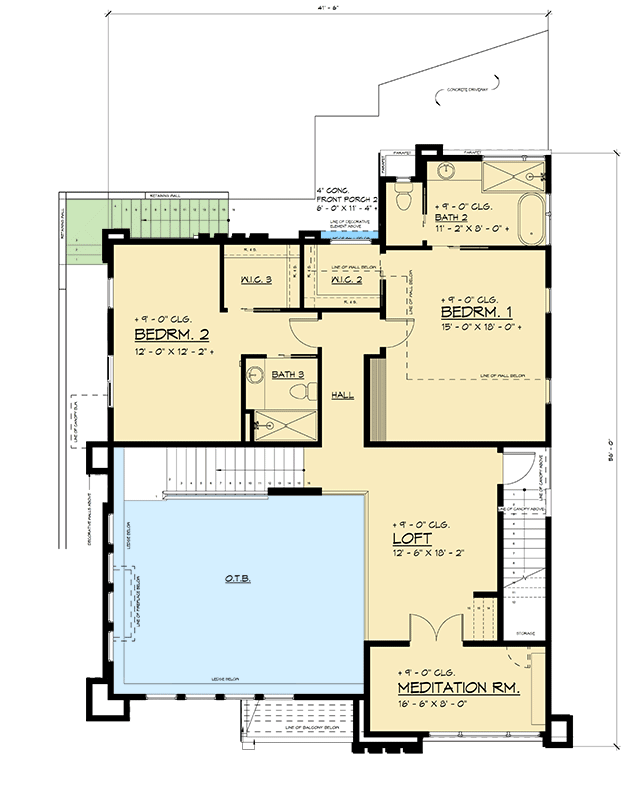

2nd Floor

Plan 666293RAF: 5-Bed Contemporary House Plan with Lower Level Apartment - 4376 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern

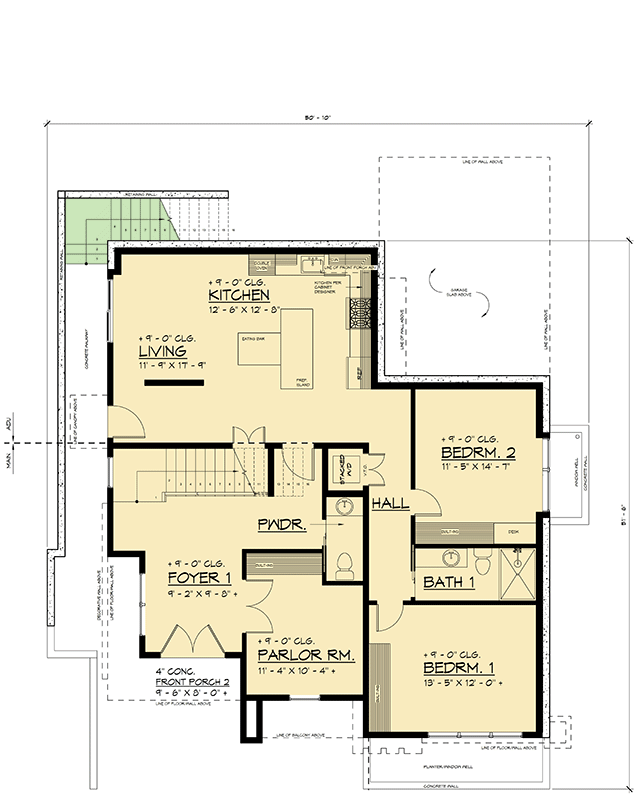

Lower Level

Plan 666293RAF: 5-Bed Contemporary House Plan with Lower Level Apartment - 4376 Sq Ft - Floor Plan - Lower Level - Contemporary, Modern

Plan Details

  • This contemporary house plan offers you 4,376 square feet of heated living space with 5 beds, 4 full baths, 2 half baths and a 299 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,376 sq. ft.

Lower Level

464 sq. ft.

1st Floor

1,577 sq. ft.

2nd Floor

1,346 sq. ft.

Apartment

989 sq. ft.

Porch, Front

276 sq. ft.

Deck

819 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 6"

Depth

43' 2"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

299 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

0.5 on 12

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Lower Level

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Two Master Suites

Two Story Great Room

Plan Collections

Attached Apartments

Home Office

Two Master Suites
