Plan 890119AH
5-Bed Craftsman House Plan with a Finished Walkout Basement - 3661 Sq Ft
Heated S.F.
3,661
Beds
5
Baths
3
Stories
1
Cars
3
Plan Details
  • This Craftsman style ranch home is adorned with wooden columns, shingle and stone siding and corbels in the peaks of the roof to create a modern look with a style of yesterday.
  • Inside you'll find a graciously spaced great room with fireplace that leads to a dining and kitchen area through graceful columns that define the space.
  • The master lies to the right of the home and features a tray ceiling, walk-in closet and on suite bath with Jacuzzi tub.
  • Two additional bedrooms are found to the left of the entry and share the full bath off the hallway.
  • A 3-stall garage with extra storage gives you lots of room for your vehicles and toys.
  • Related Plans: Eliminate the finished lower level with house plans 89868AH and 89852AH.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed Craftsman House Plan with a Finished Walkout Basement - 3661 Sq Ft

  • 3,661

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

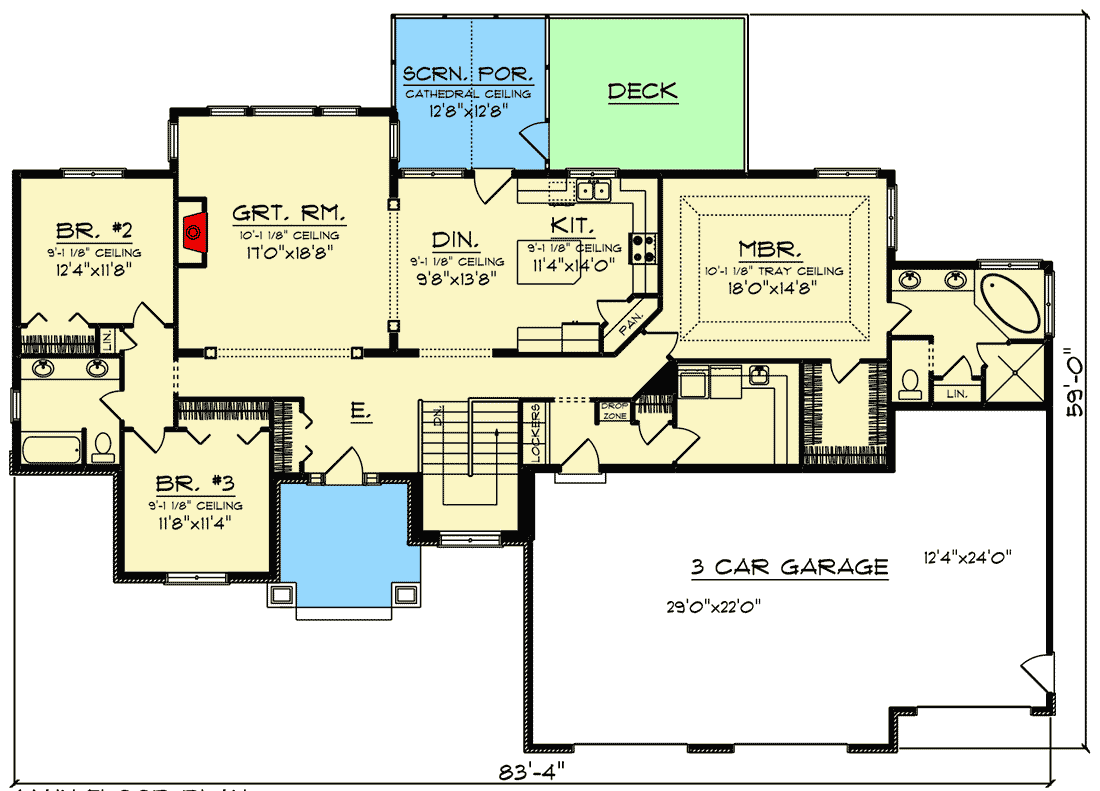

Floor Plan

  • Main Level

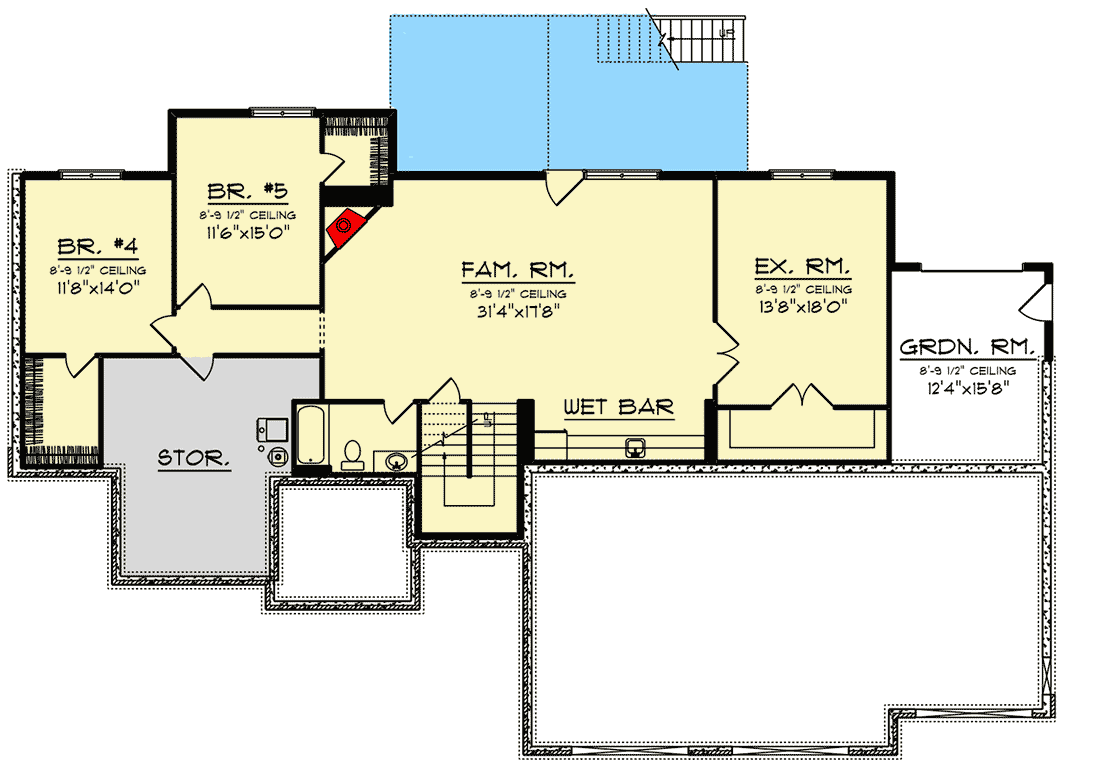

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,661 sq. ft.
  • Lower Level: 2,105 sq. ft.
  • 1st Floor: 2,105 sq. ft.

Dimensions

  • Width: 83' 4"
  • Depth: 59' 0"
  • Max ridge height: 20' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 960 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
