Plan 86396HH

5-Bed Farmhouse Plan with Upper Level Game Room and 2-Car Side-Garage

Heated S.F.
3,748
Beds
5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 86396HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86396HH

M-F 9am-5pm EST |

1-203-761-8500

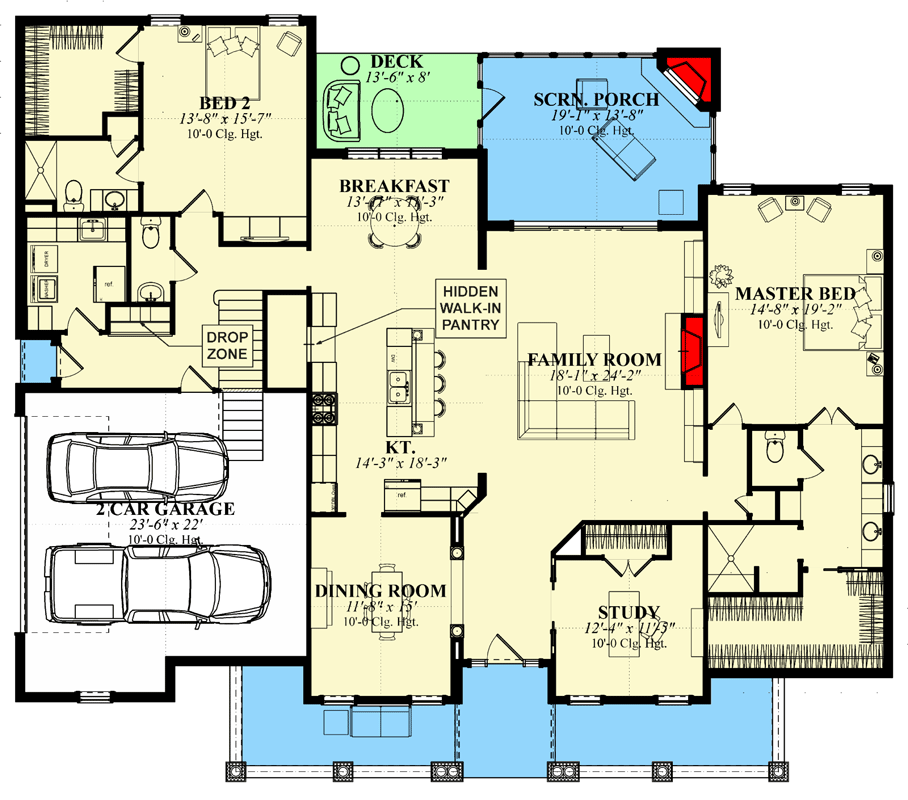

Main Level

Plan 86396HH: 5-Bed Farmhouse Plan with Upper Level Game Room and 2-Car Side-Garage - Floor Plan - Main Level - Country, Farmhouse, New American, Traditional

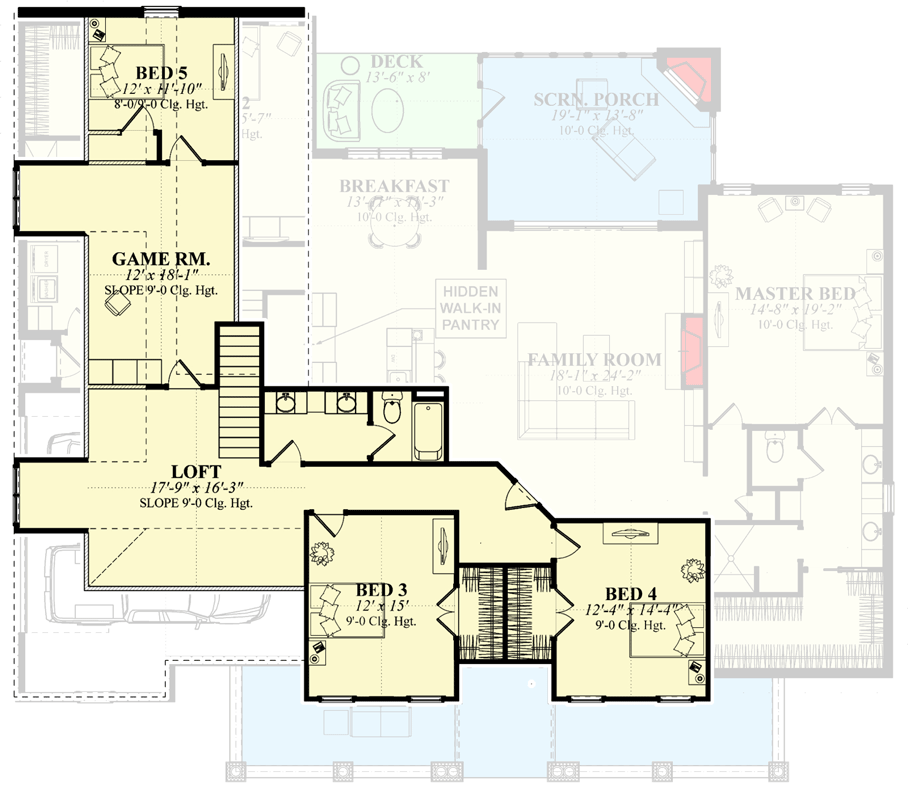

2nd Floor

Plan 86396HH: 5-Bed Farmhouse Plan with Upper Level Game Room and 2-Car Side-Garage - Floor Plan - 2nd Floor - Country, Farmhouse, New American, Traditional

Plan Details

  • This house plan gives you 3,748 square feet of heated living space with 5 beds, 3.5 baths and a 2-car side-garage (591 sq. ft.).

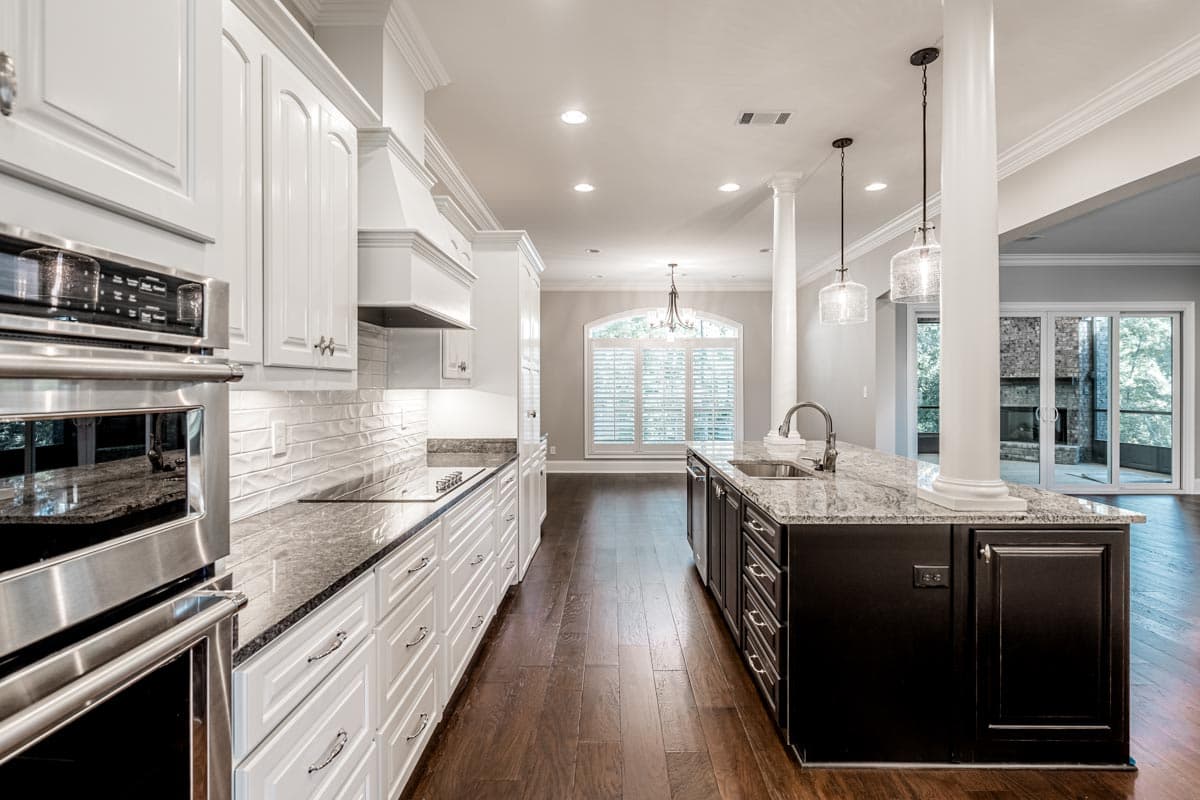

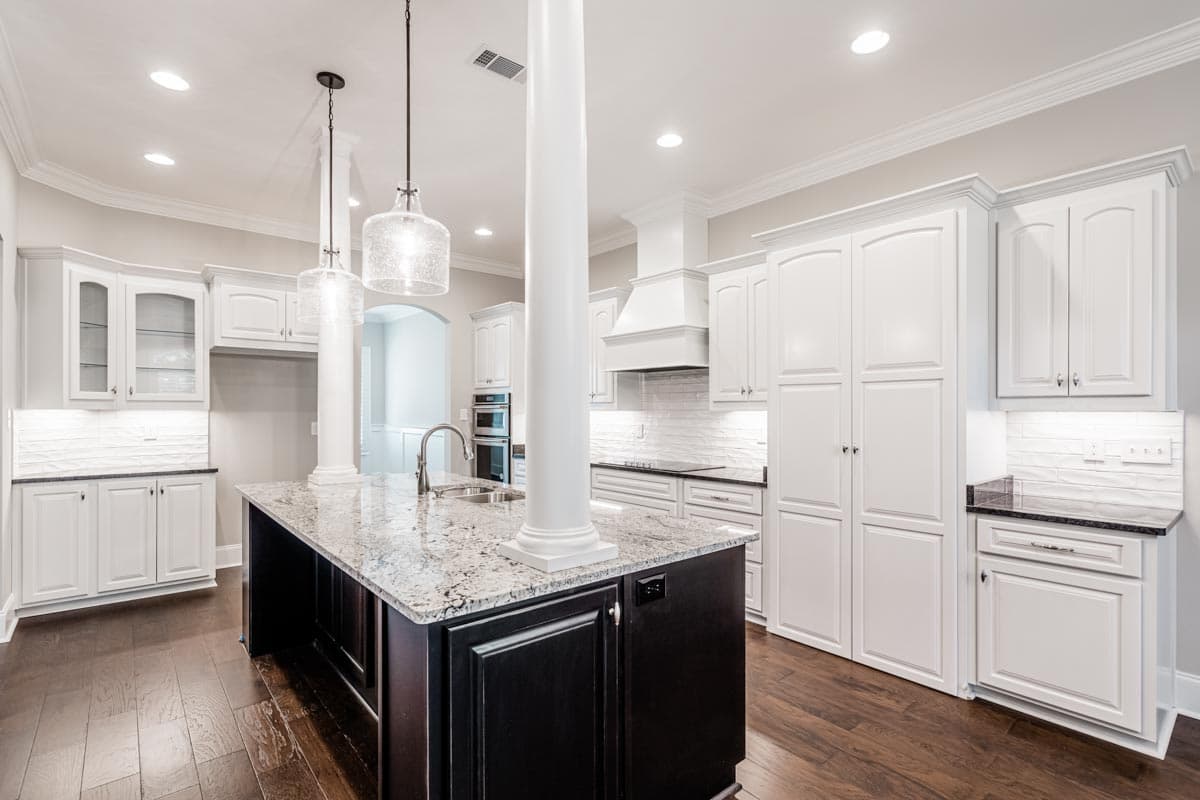

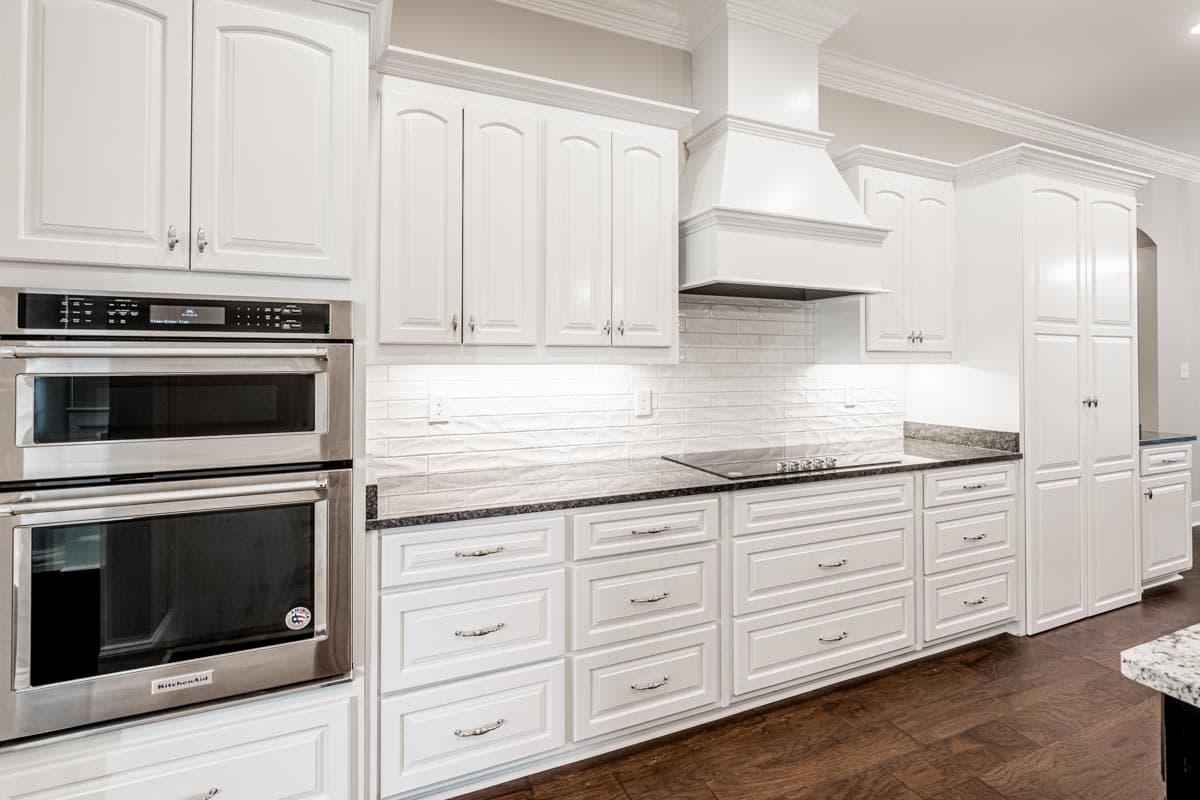

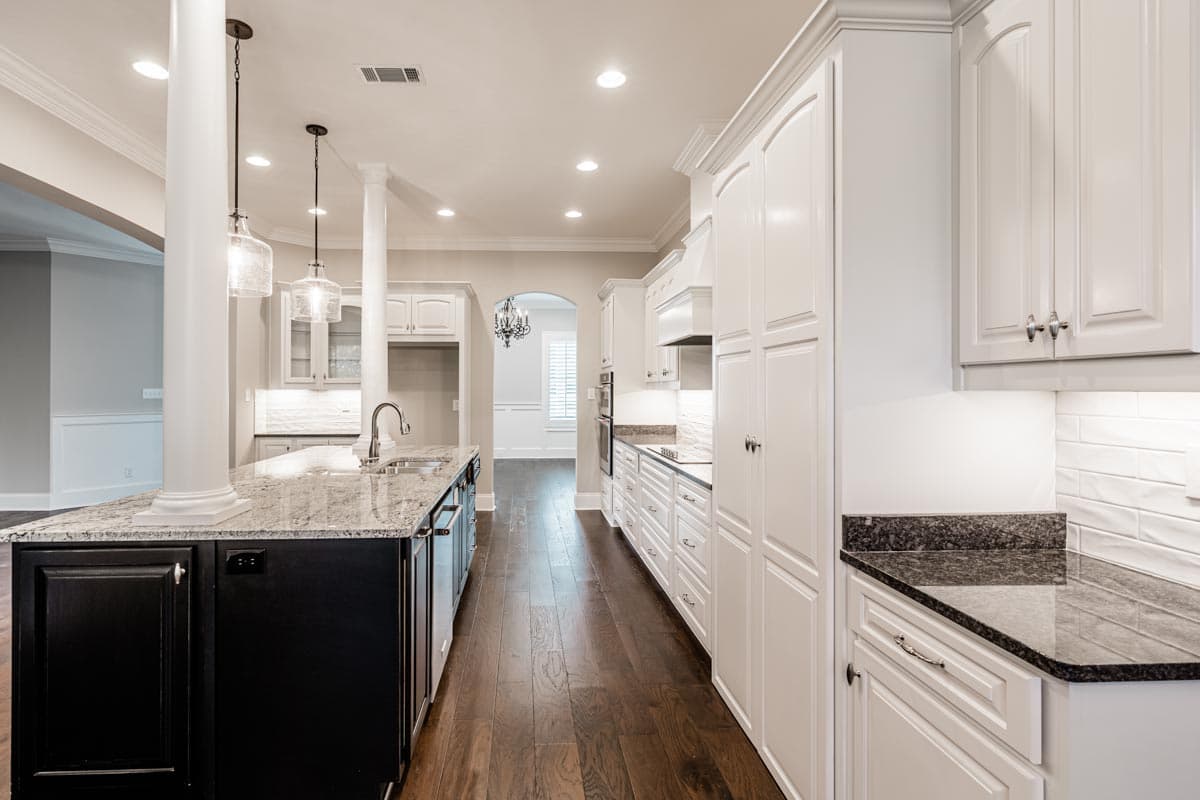

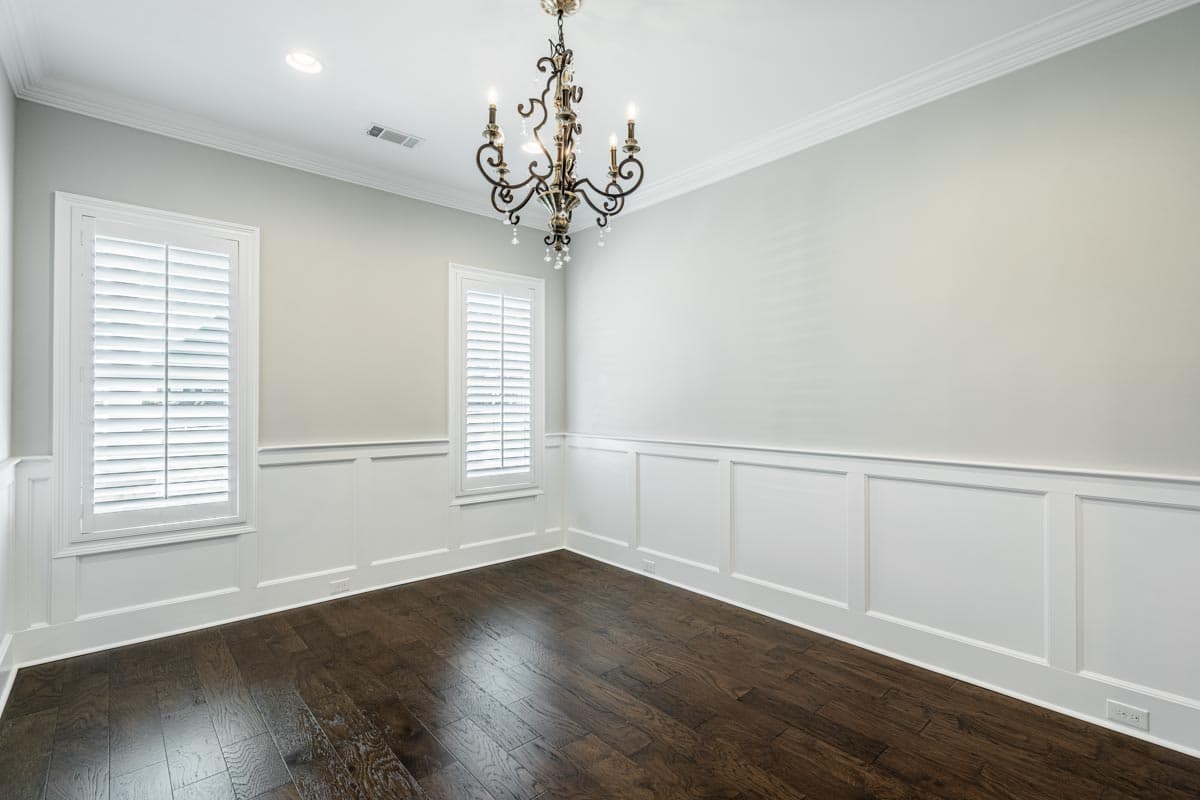

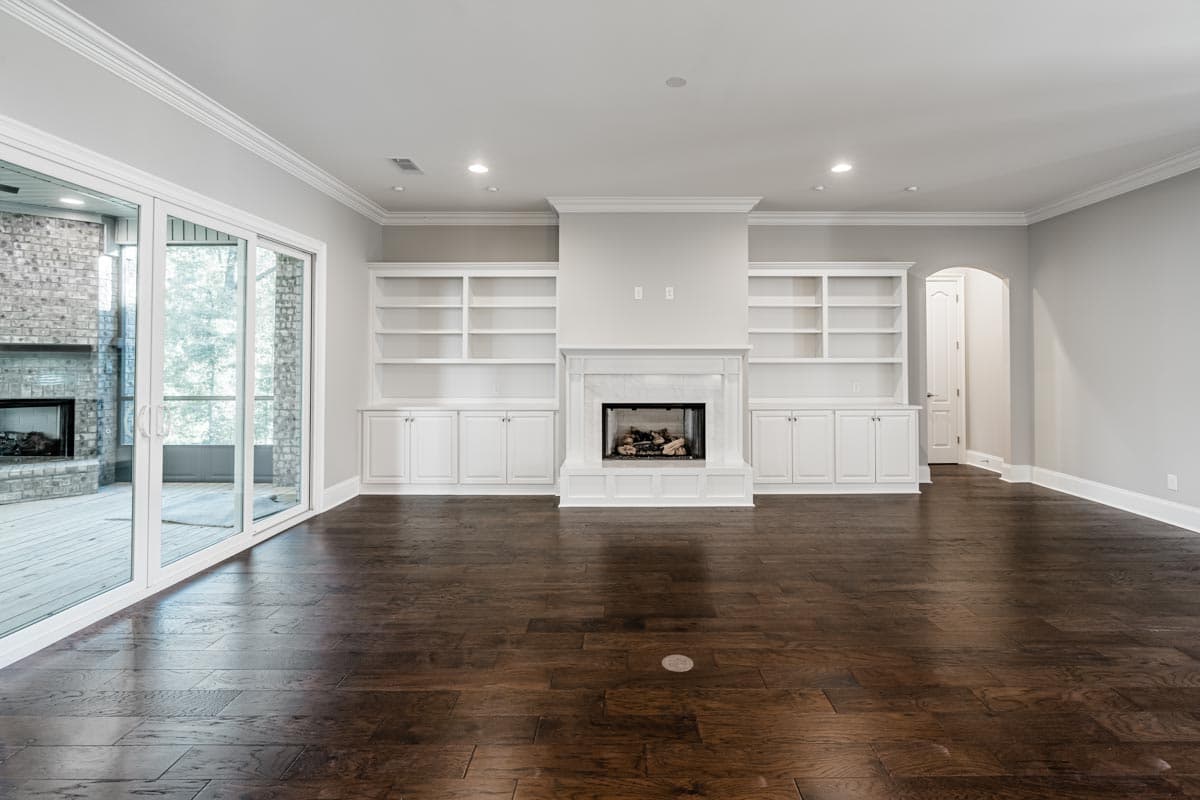

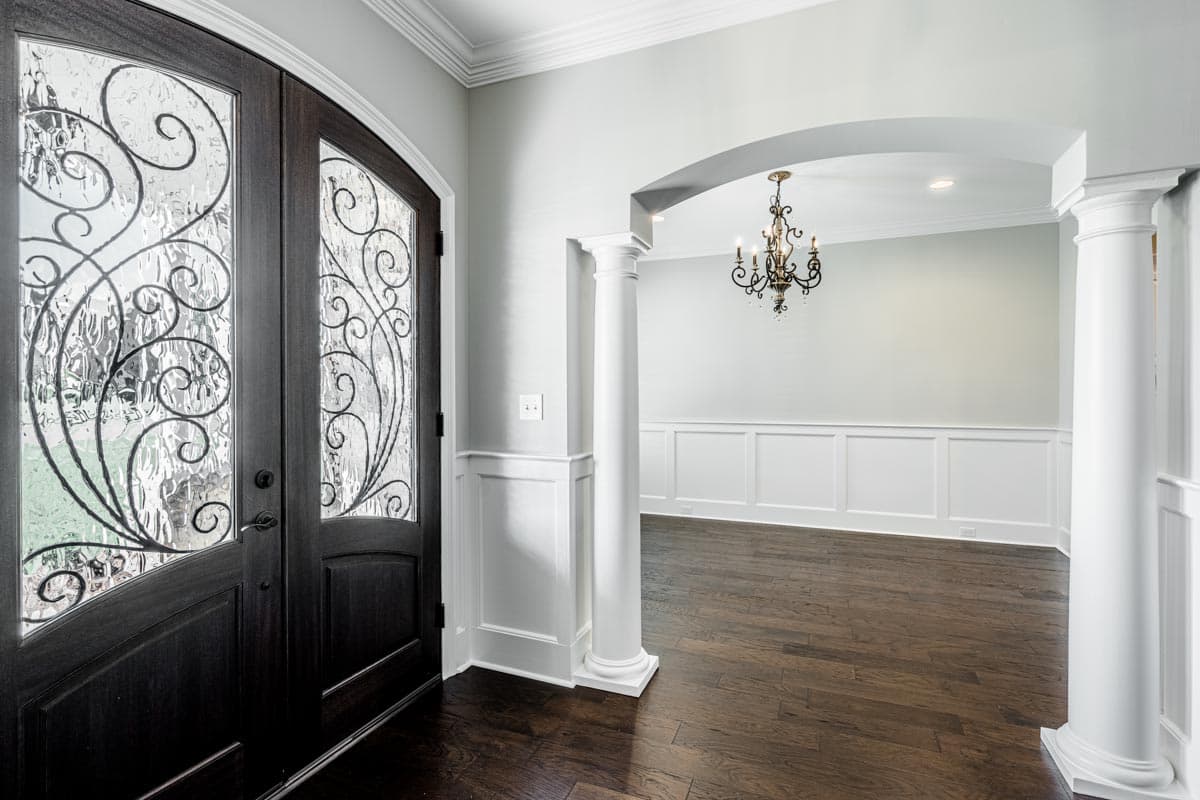

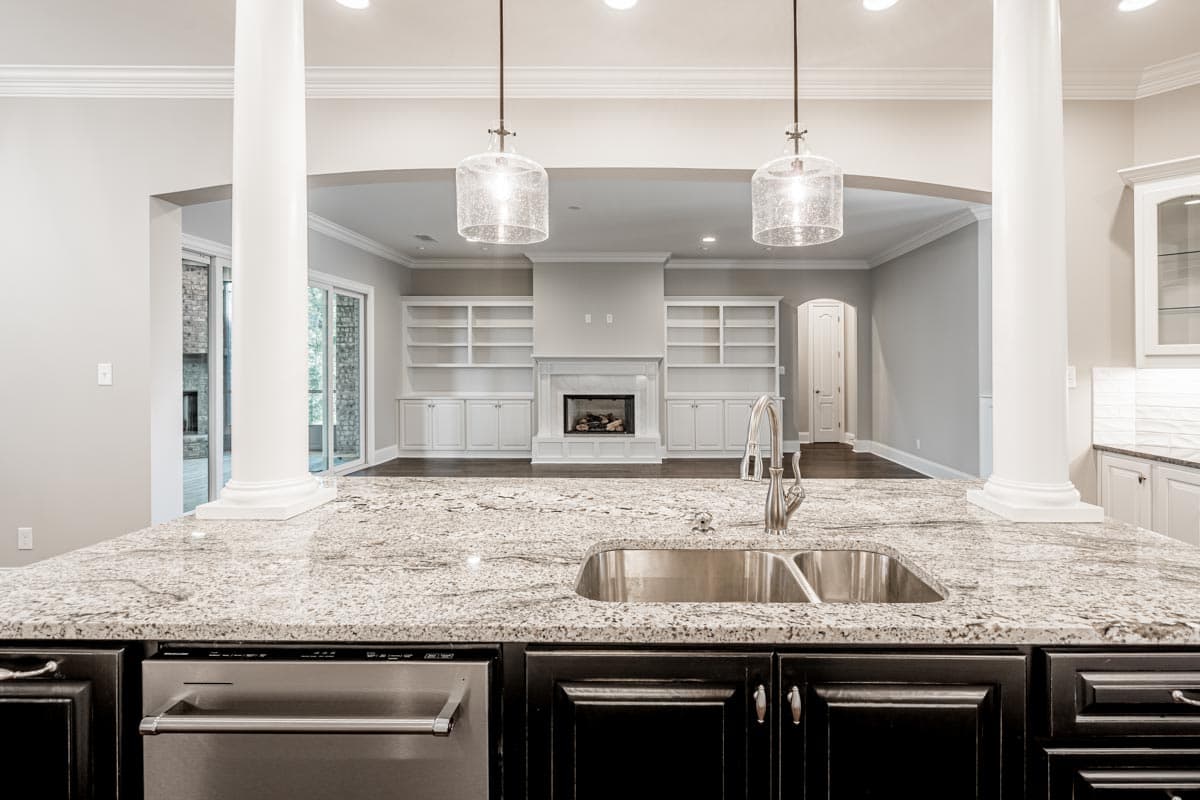

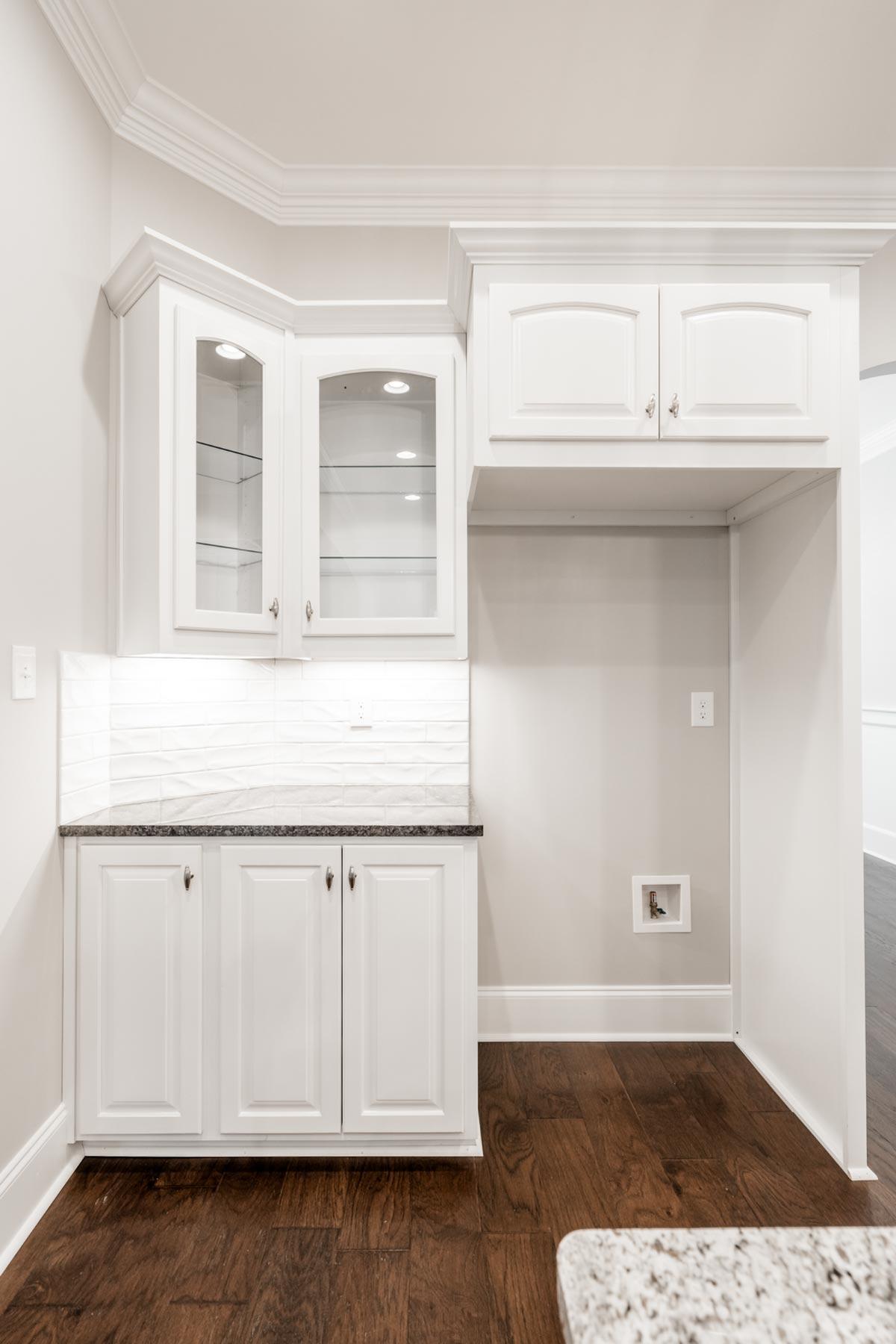

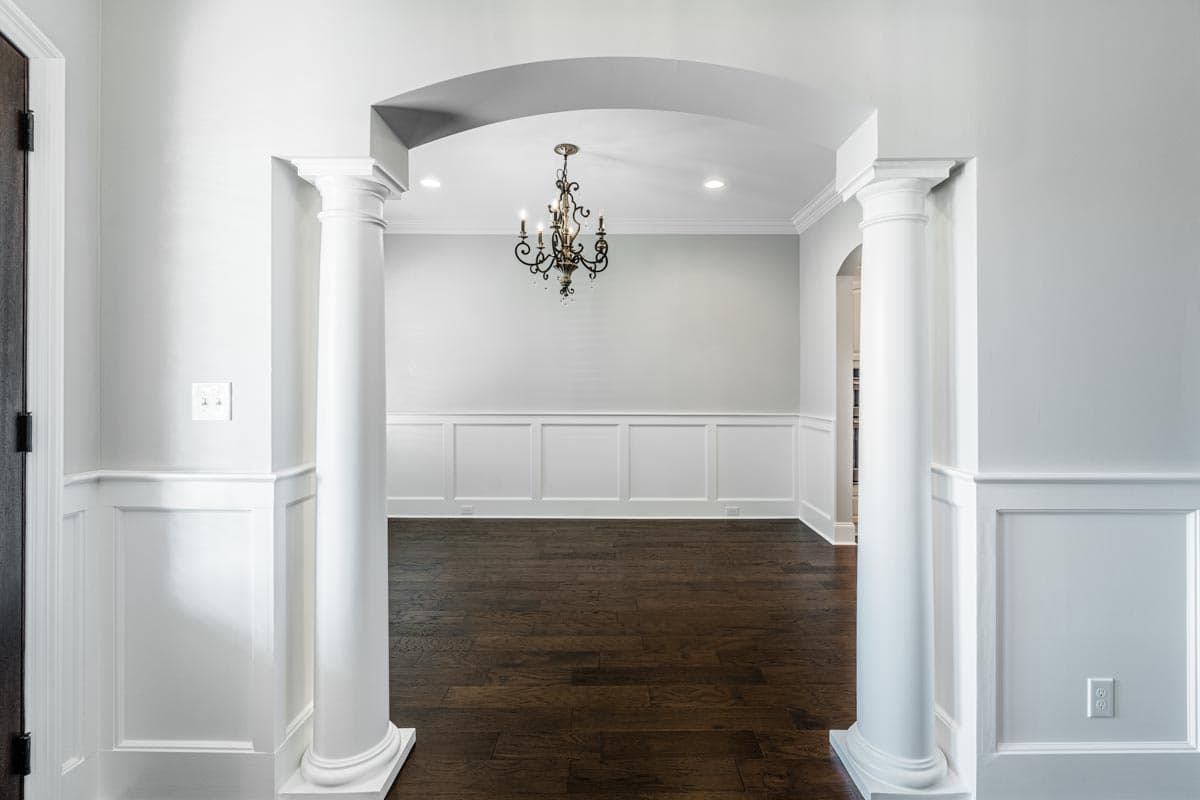

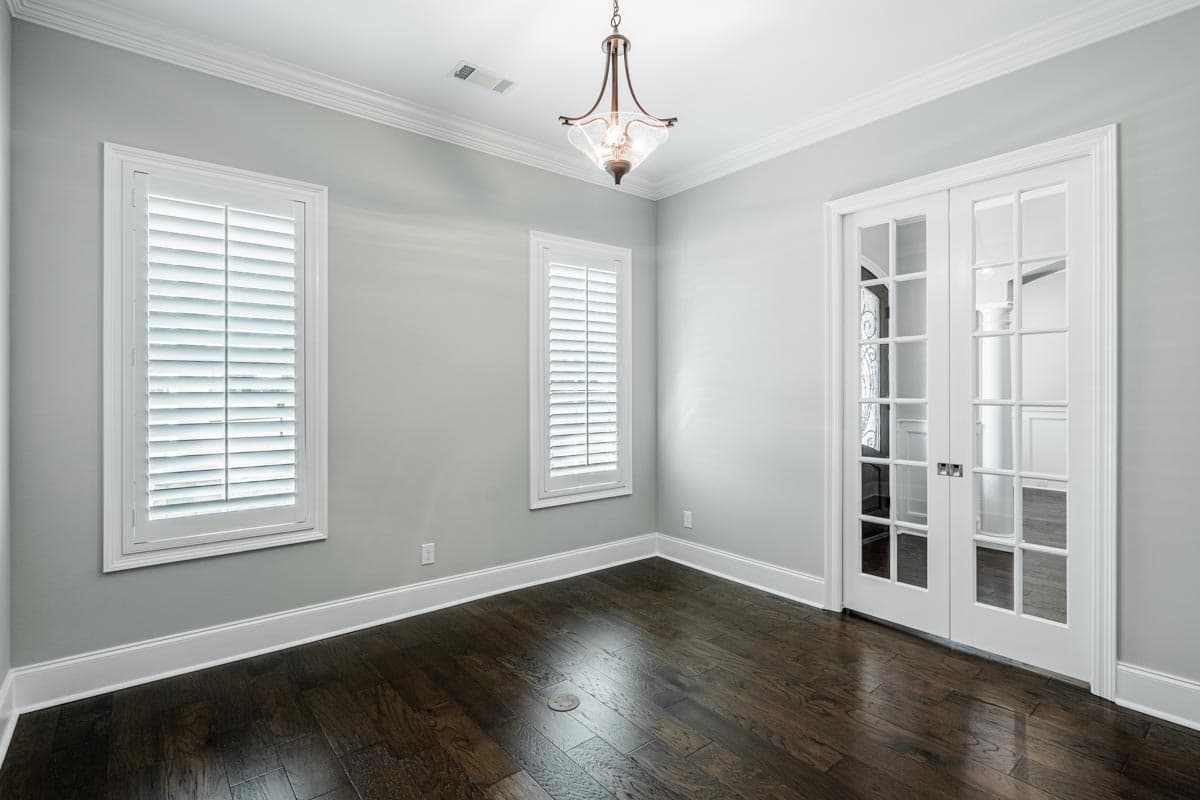

  • Past the front porch, step into your entry with a formal dining room to your left and a study to your right. Straight ahead, a family room is open to the kitchen and a breakfast nook.

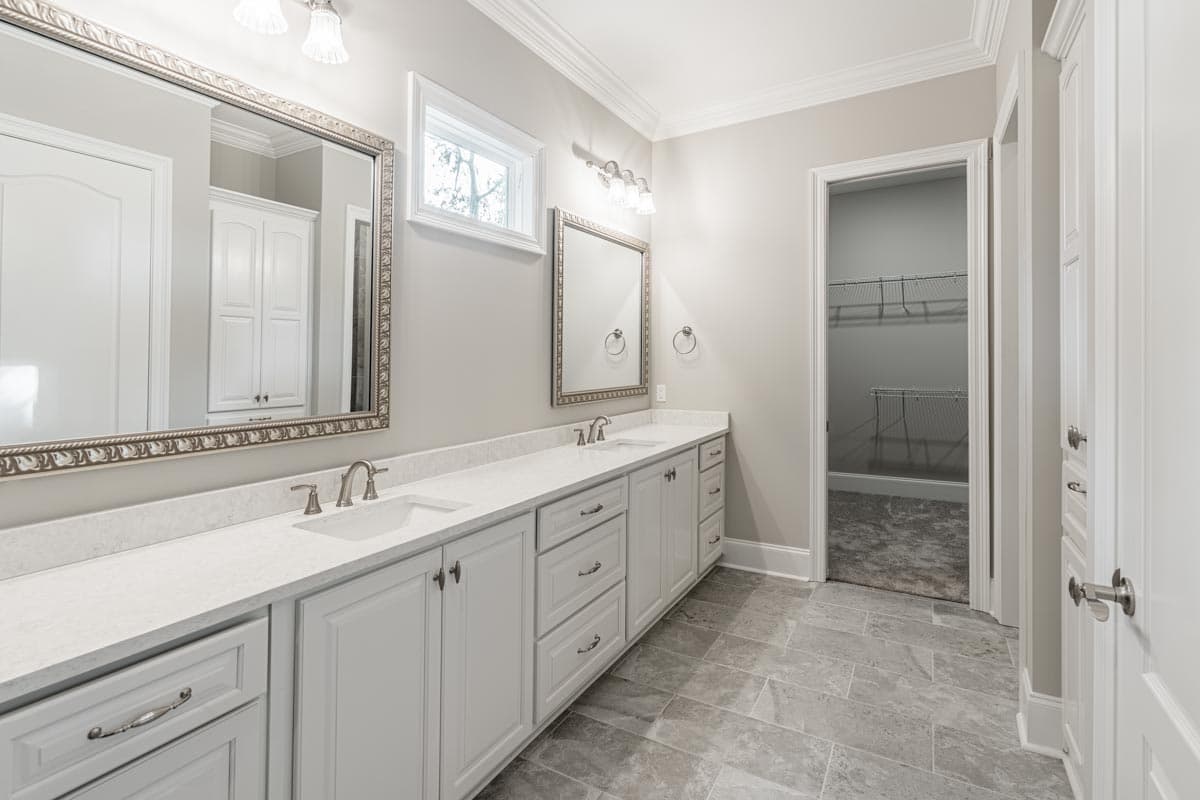

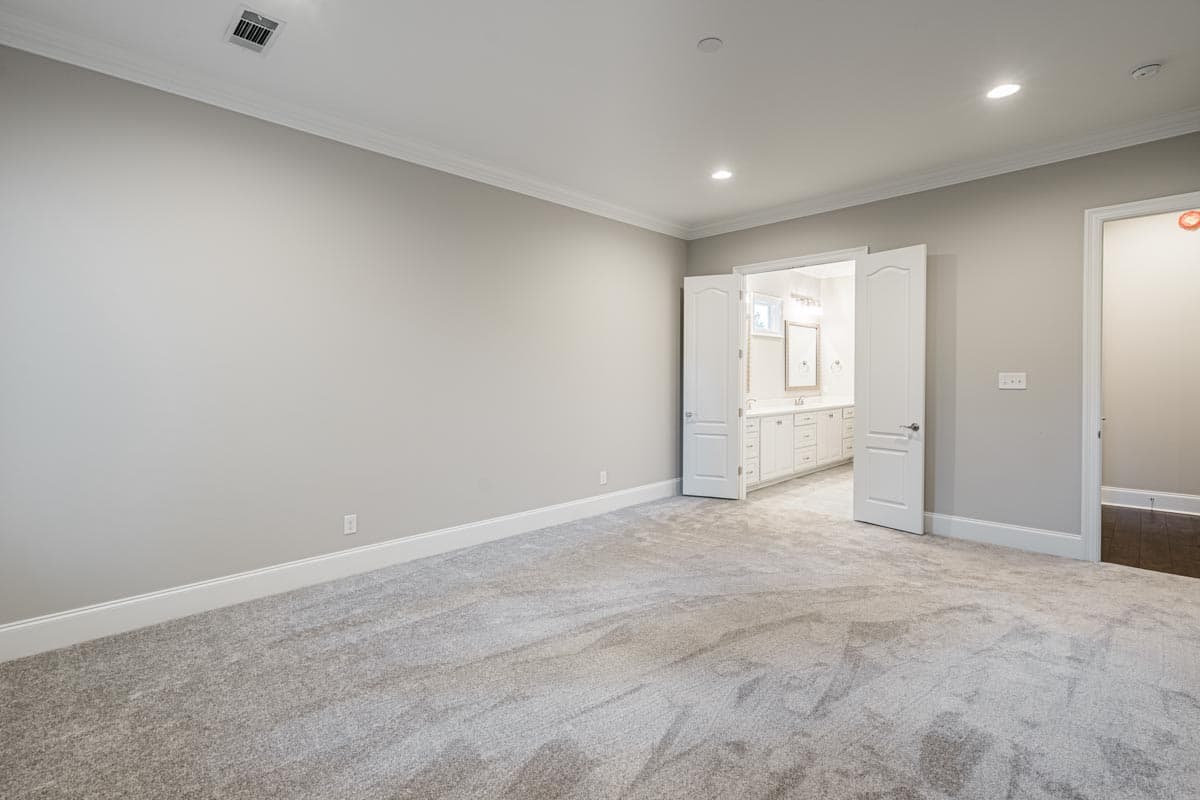

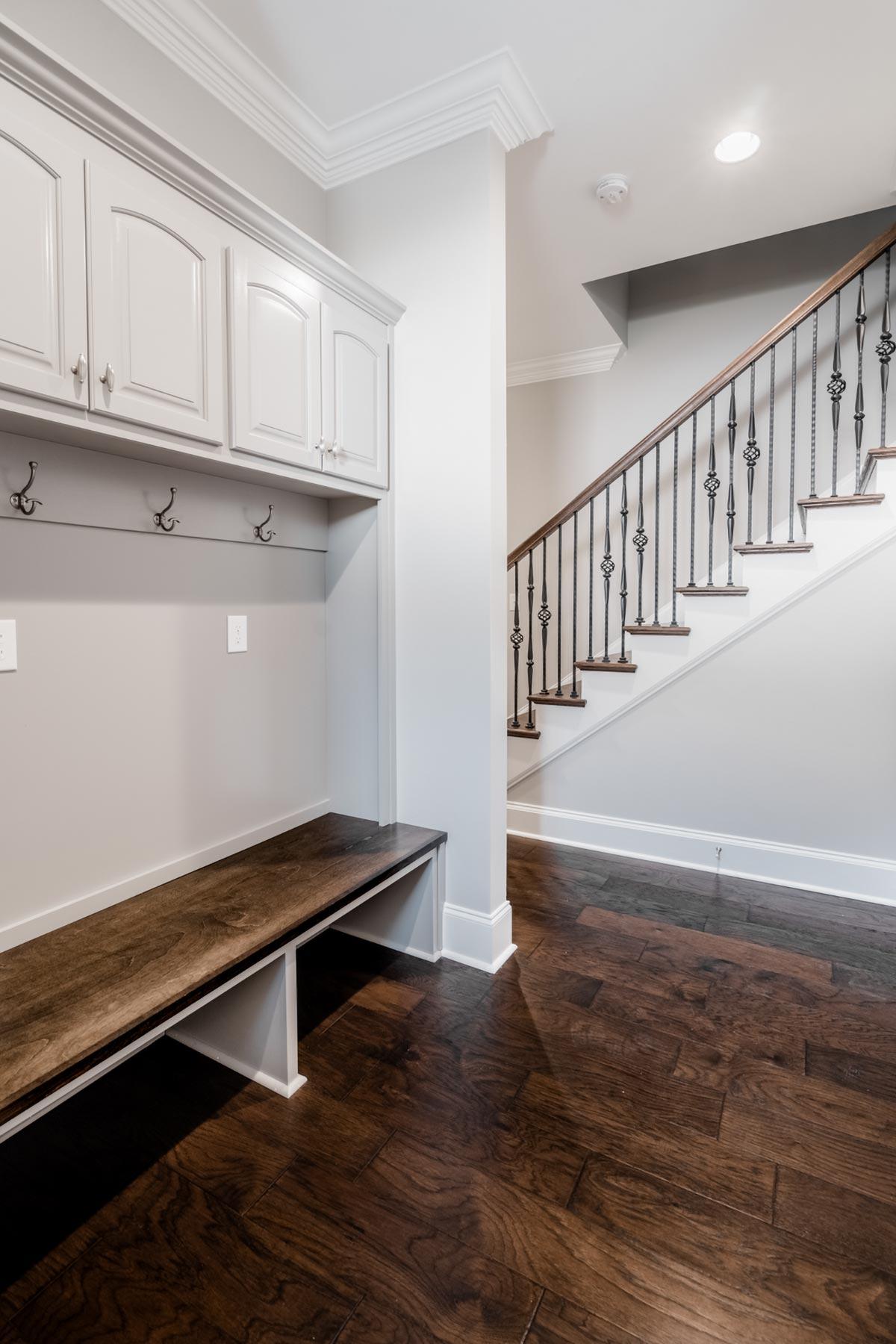

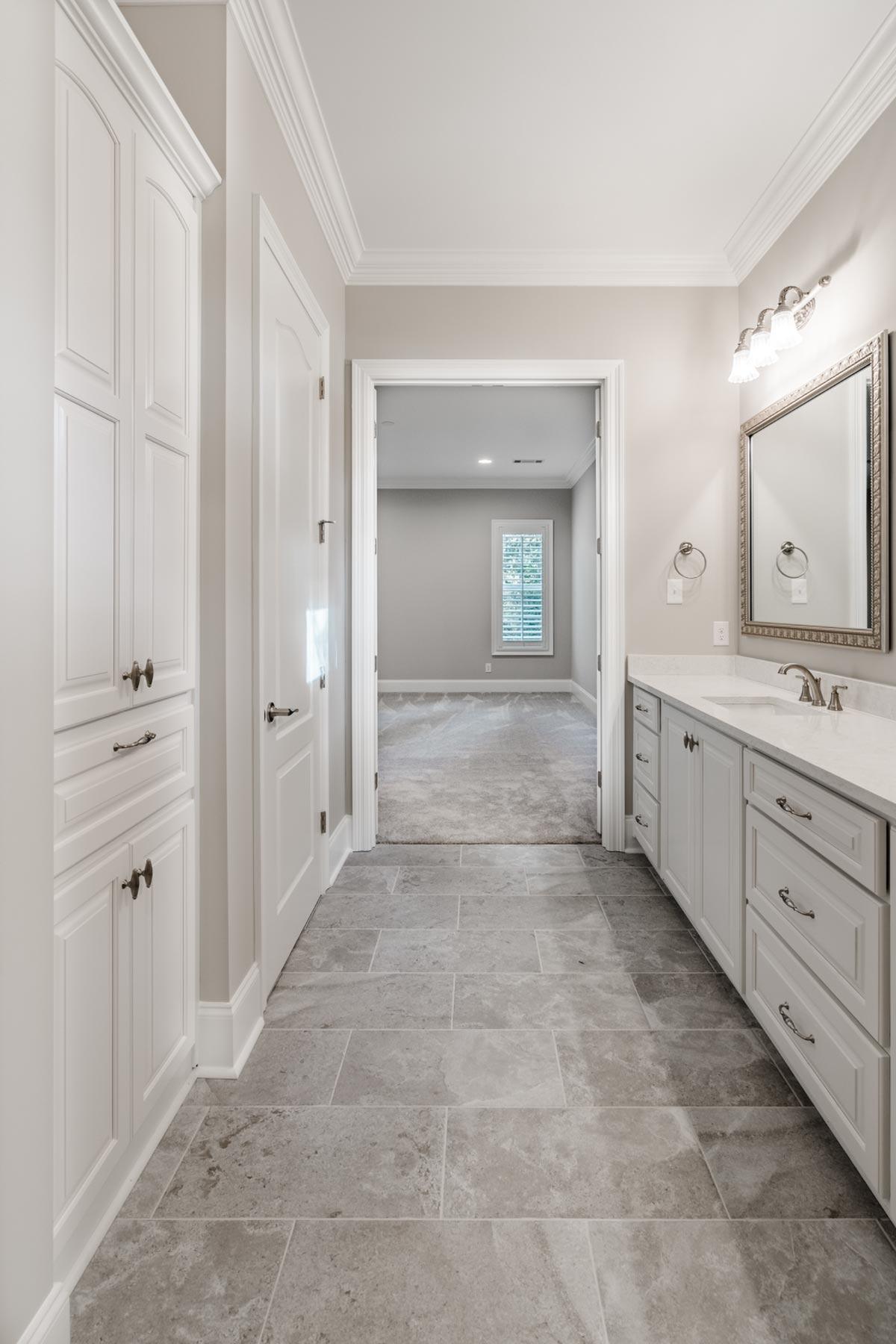

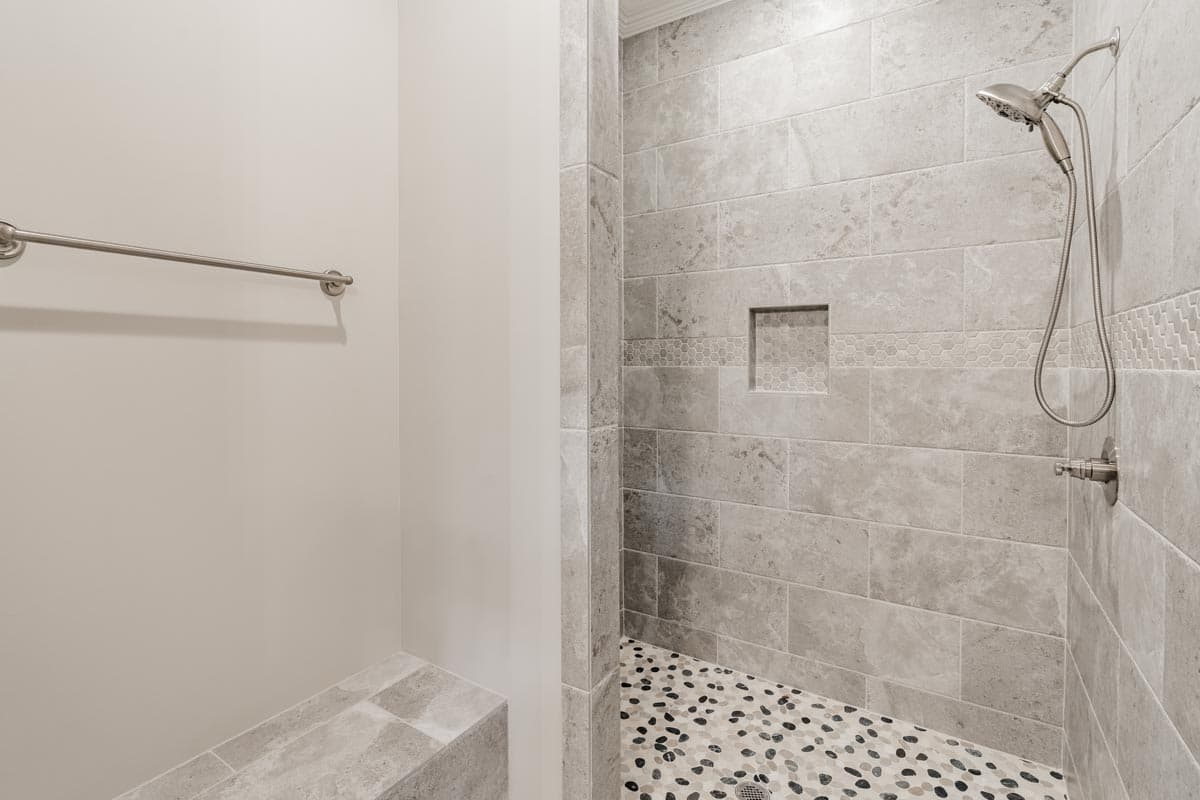

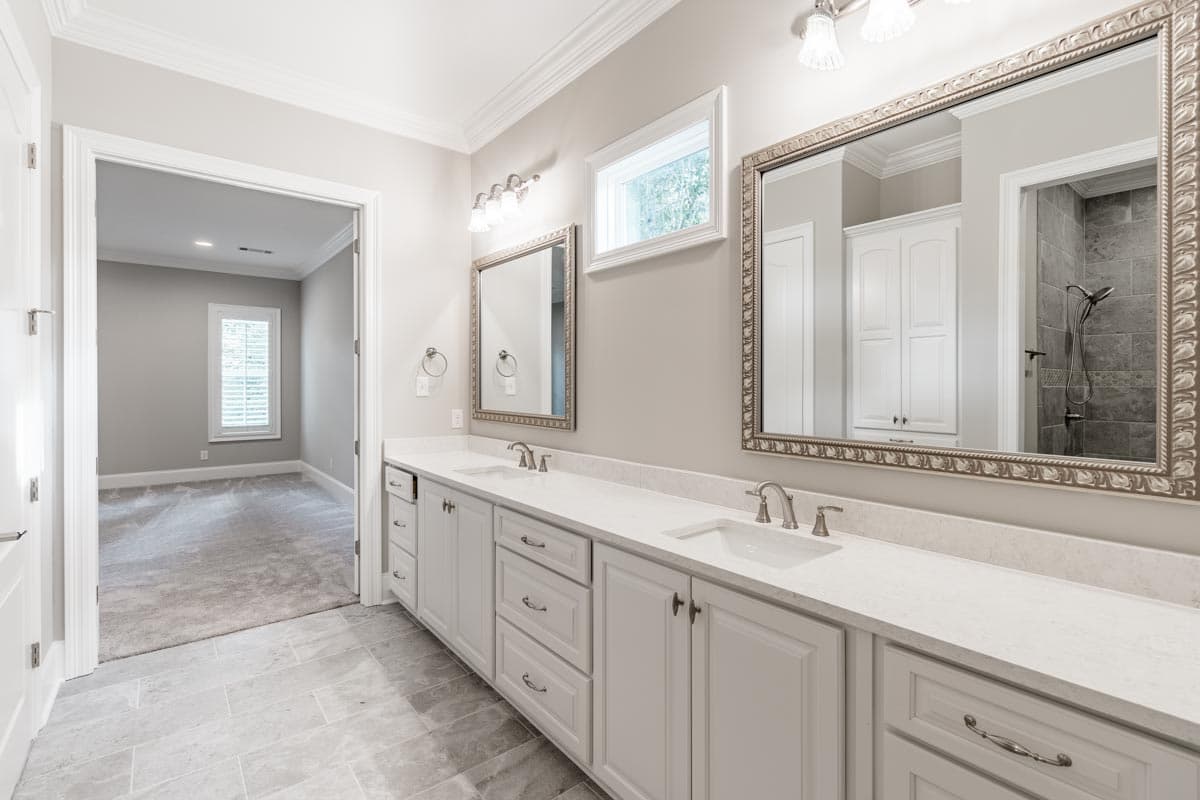

  • The right side of the home is taken by the master suite, complete with private bath and walk-in closet. On the left is a second bedroom, sharing walls with a powder room and the laundry, conveniently nearby a mudroom which grants access to the 2-car garage.

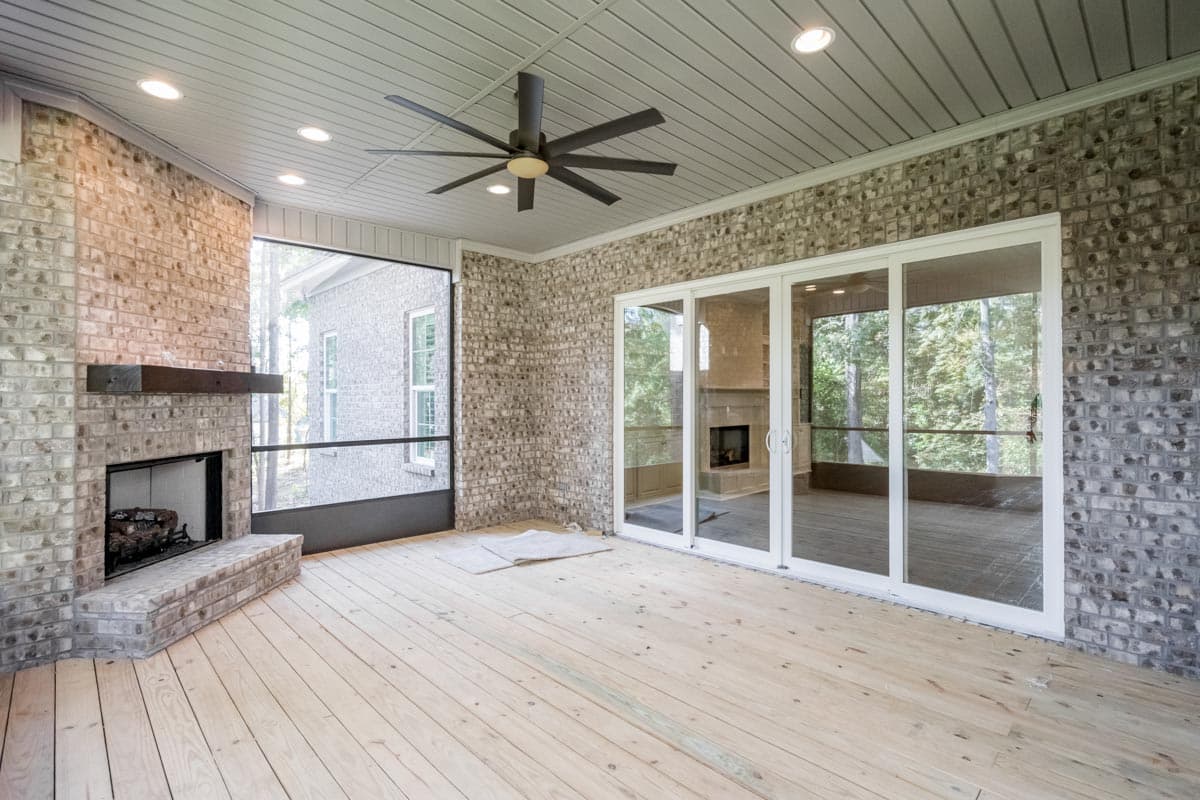

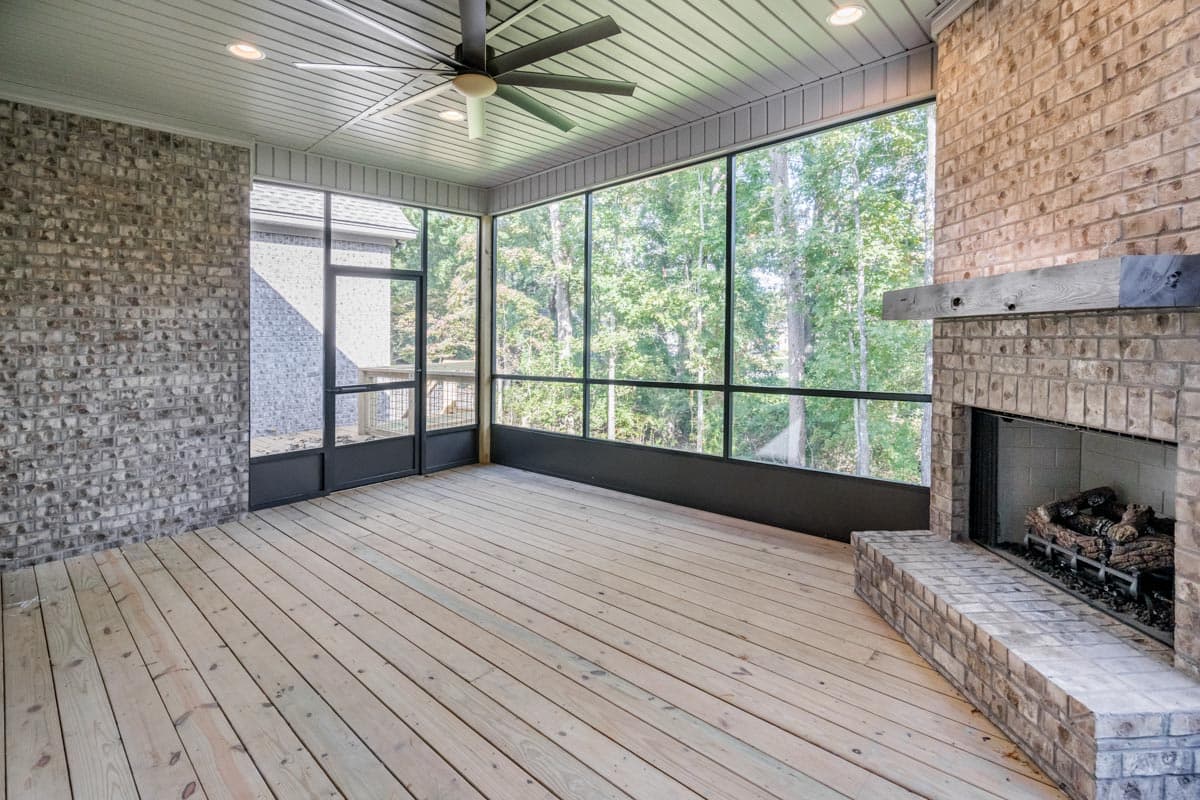

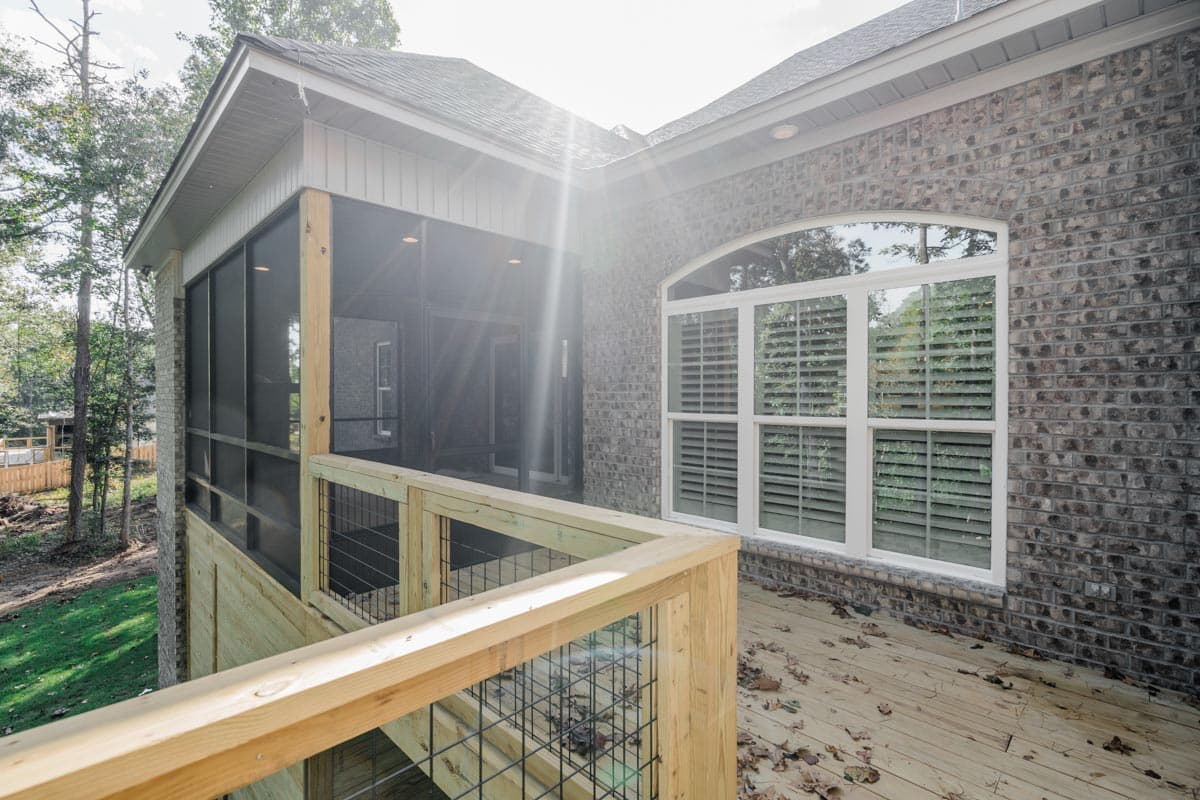

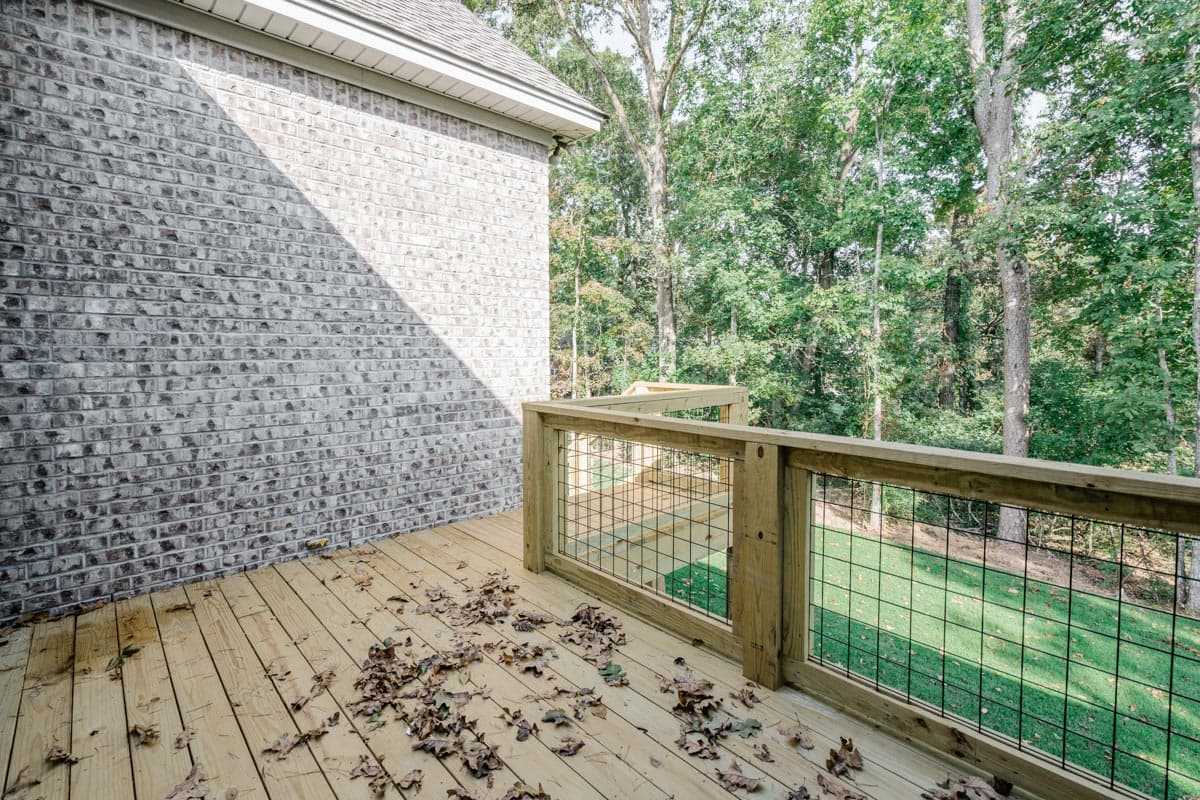

  • In back, a screened porch with fireplace and an open deck combine to give you 386 square feet of fresh air space.

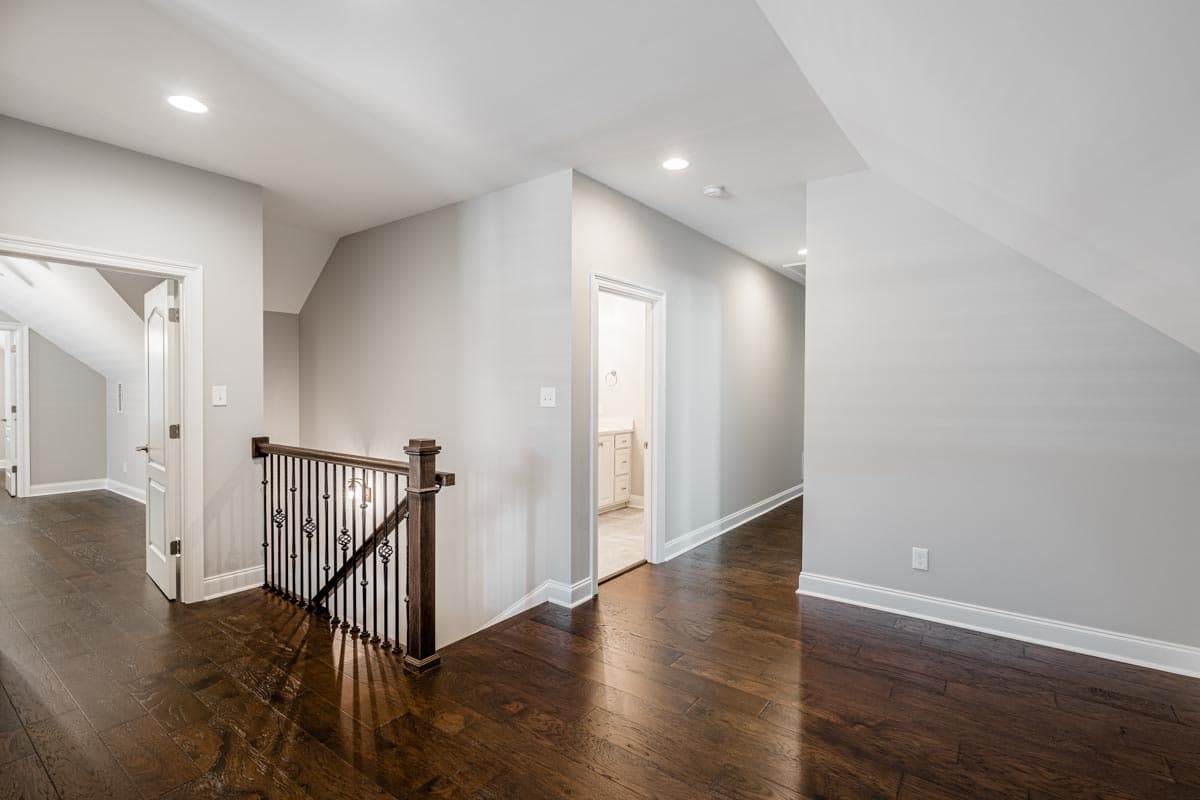

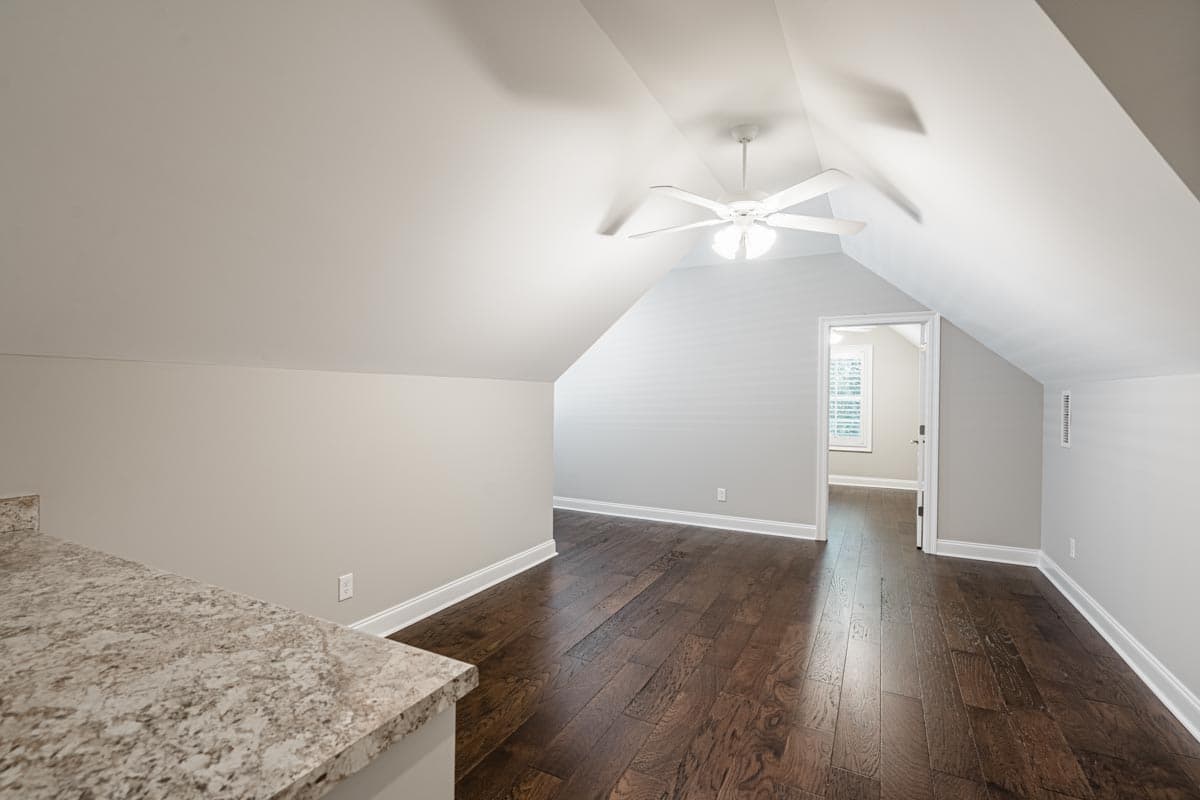

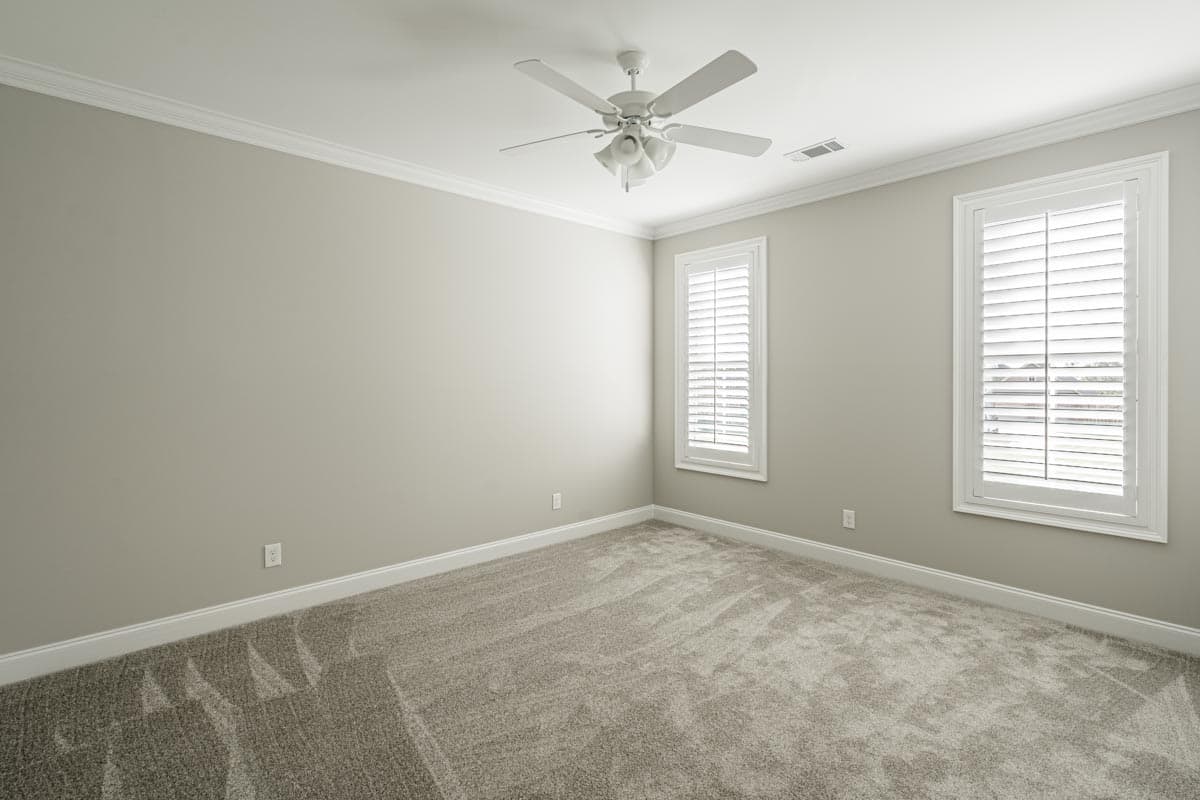

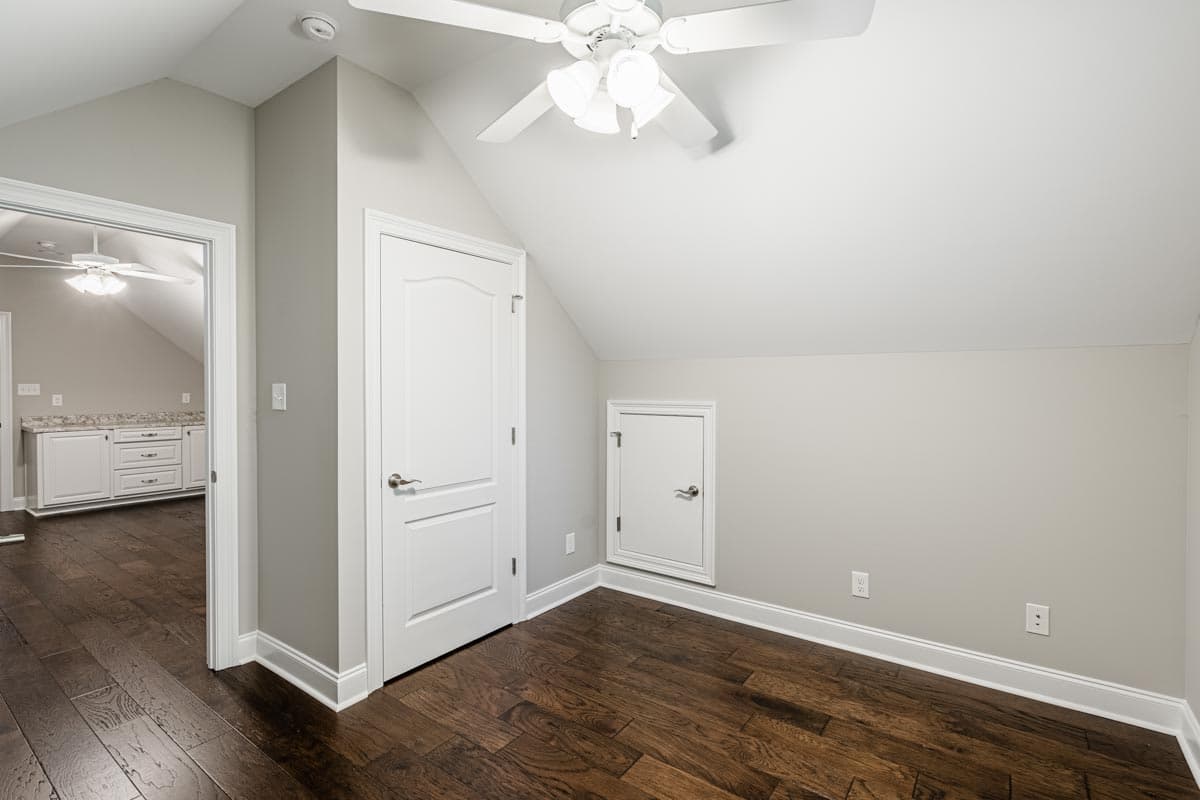

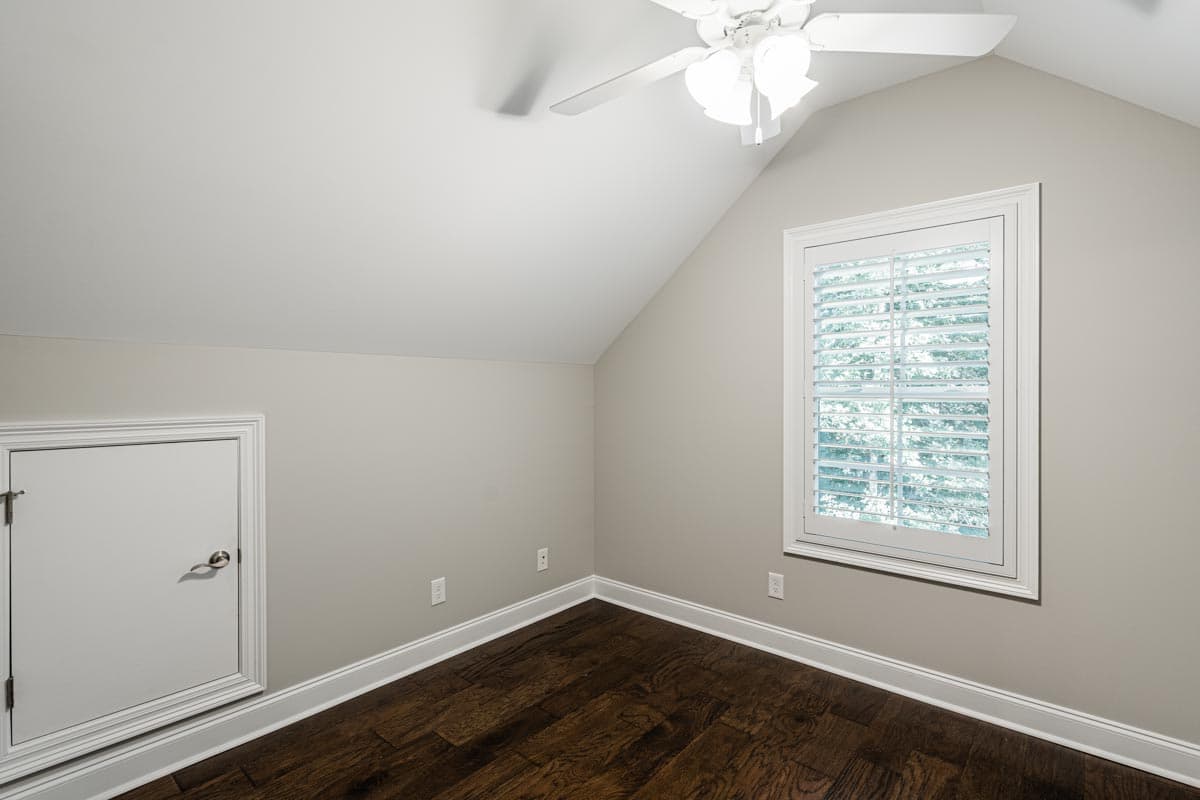

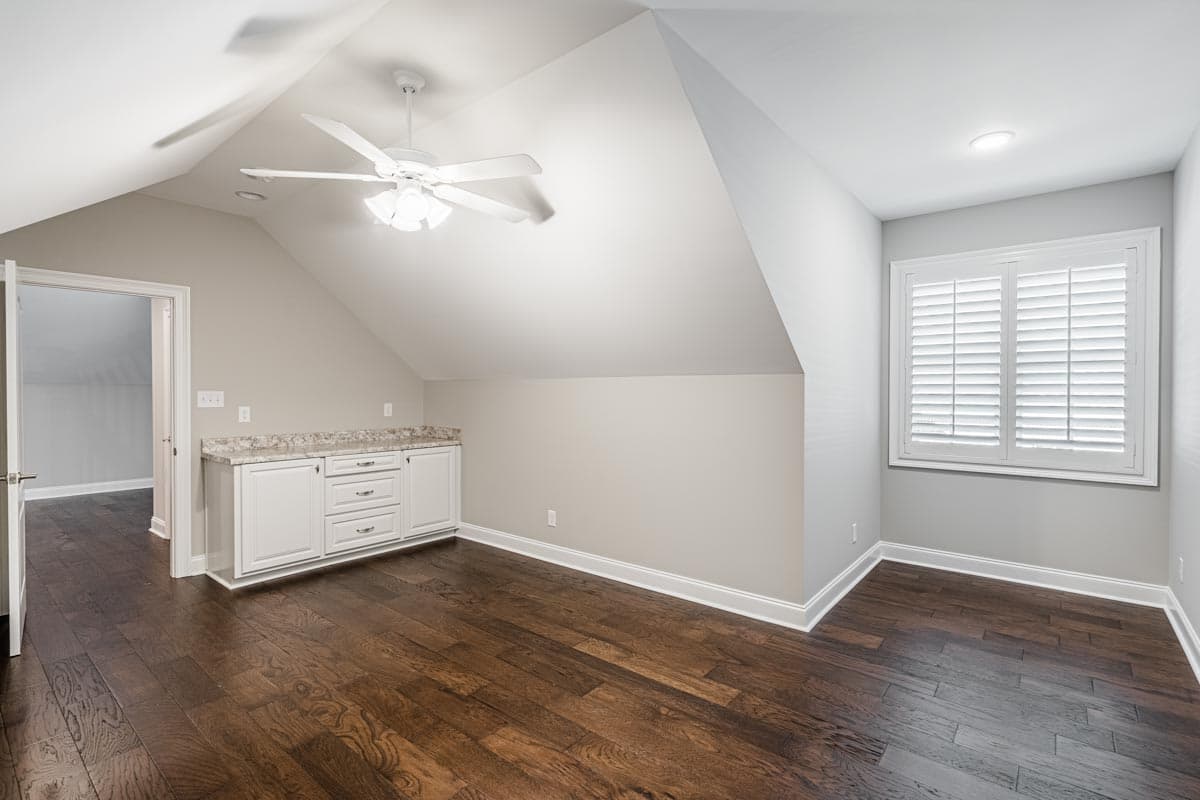

  • Three bedrooms are on the second floor and are to either side of the loft and game room.
  • Related Plans: 86390HH and 86321HH.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,748 sq. ft.

1st Floor

2,797 sq. ft.

2nd Floor

951 sq. ft.

Porch, Rear

368 sq. ft.

Porch, Combined

617 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 0"

Depth

63' 8"

Max Ridge Height

30' 11"

Garage

Type

Attached

Area

591 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,748 sq. ft.

1st Floor

2,797 sq. ft.

2nd Floor

951 sq. ft.

Porch, Rear

368 sq. ft.

Porch, Combined

617 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 0"

Depth

63' 8"

Max Ridge Height

30' 11"

Garage

Type

Attached

Area

591 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom
