Plan 23921JD

5-Bed House Plan with Large Covered Deck Behind the 2-Car Garage

Name: Plan 23921JD: 5-Bed House Plan with Large Covered Deck Behind the 2-Car Garage
Brand: Architectural Designs
SKU: 23921JD
Price: 1878.50 USD
Availability: InStock

Heated S.F.

4,294

Beds

Baths

3.5

Stories

Cars

Floor Plan

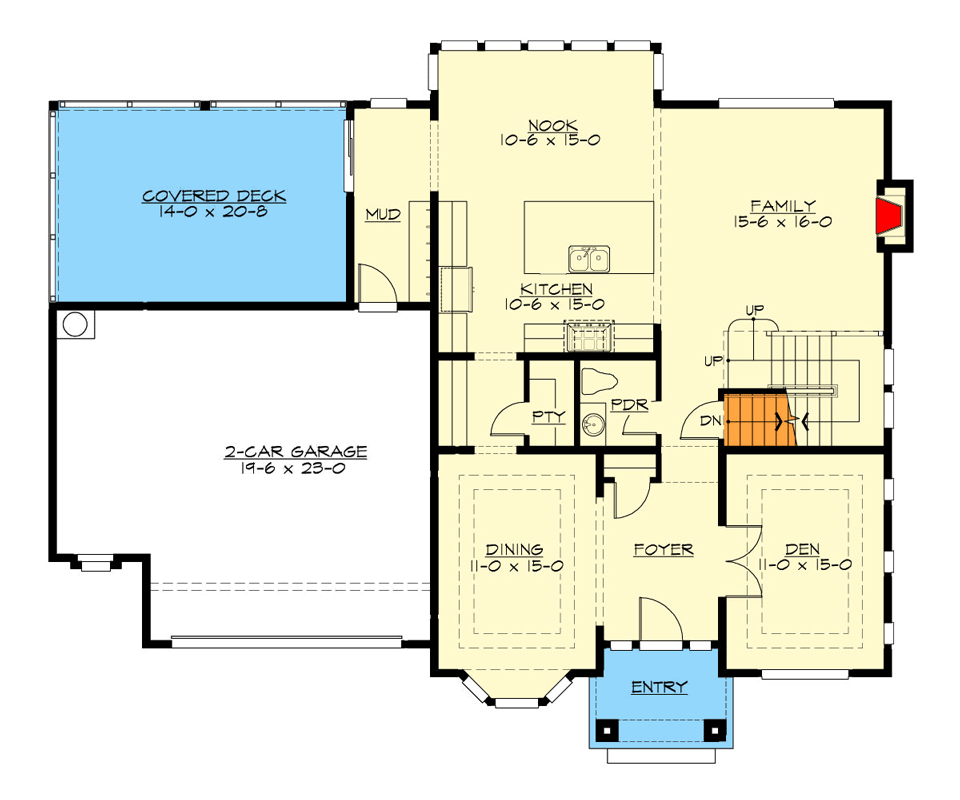

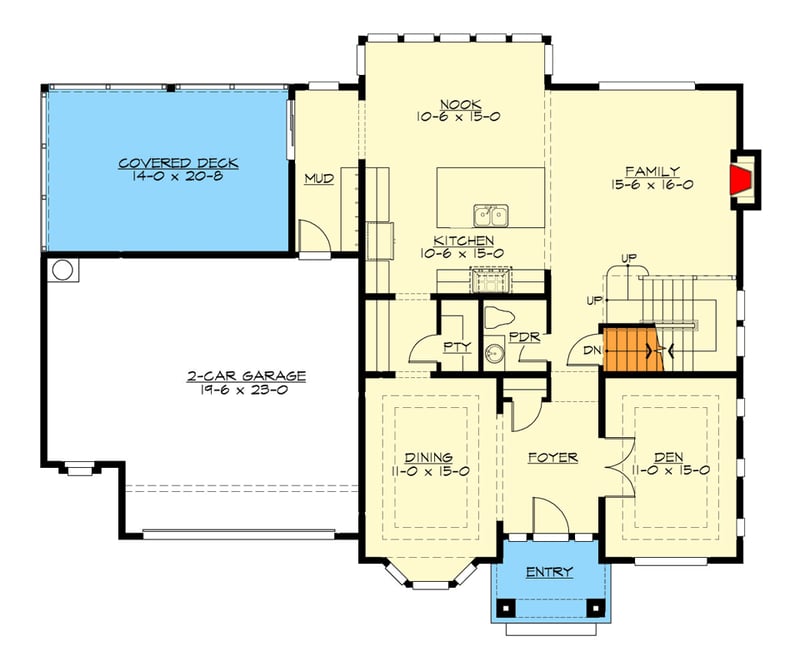

Main Level

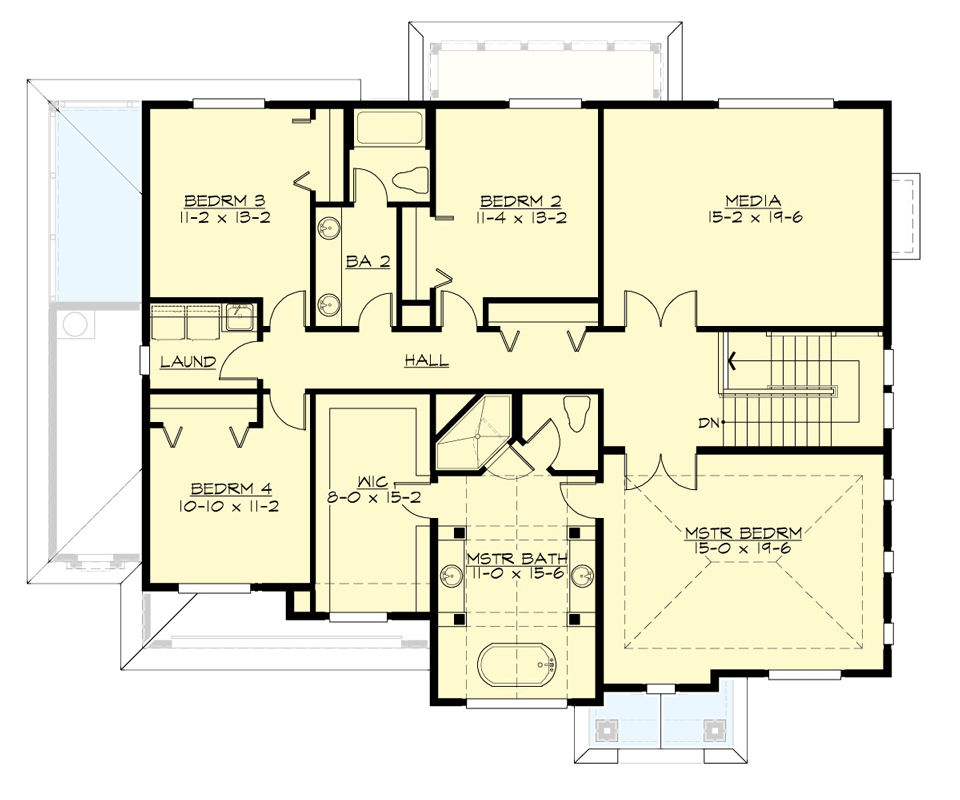

2nd Floor

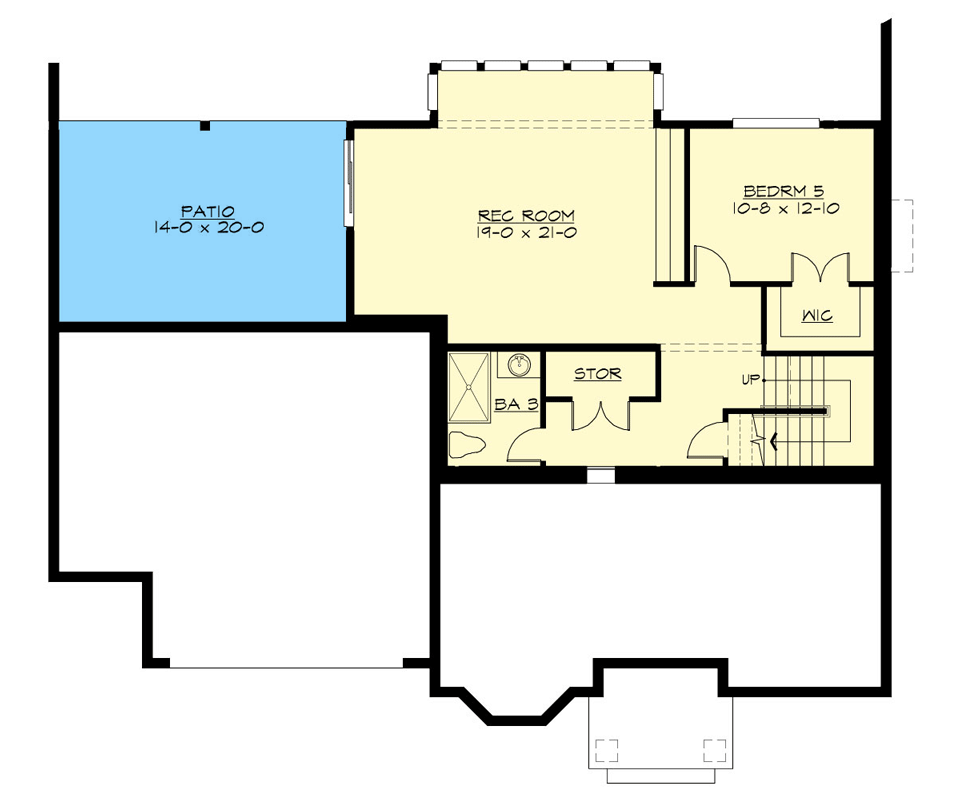

Basement

Plan Details

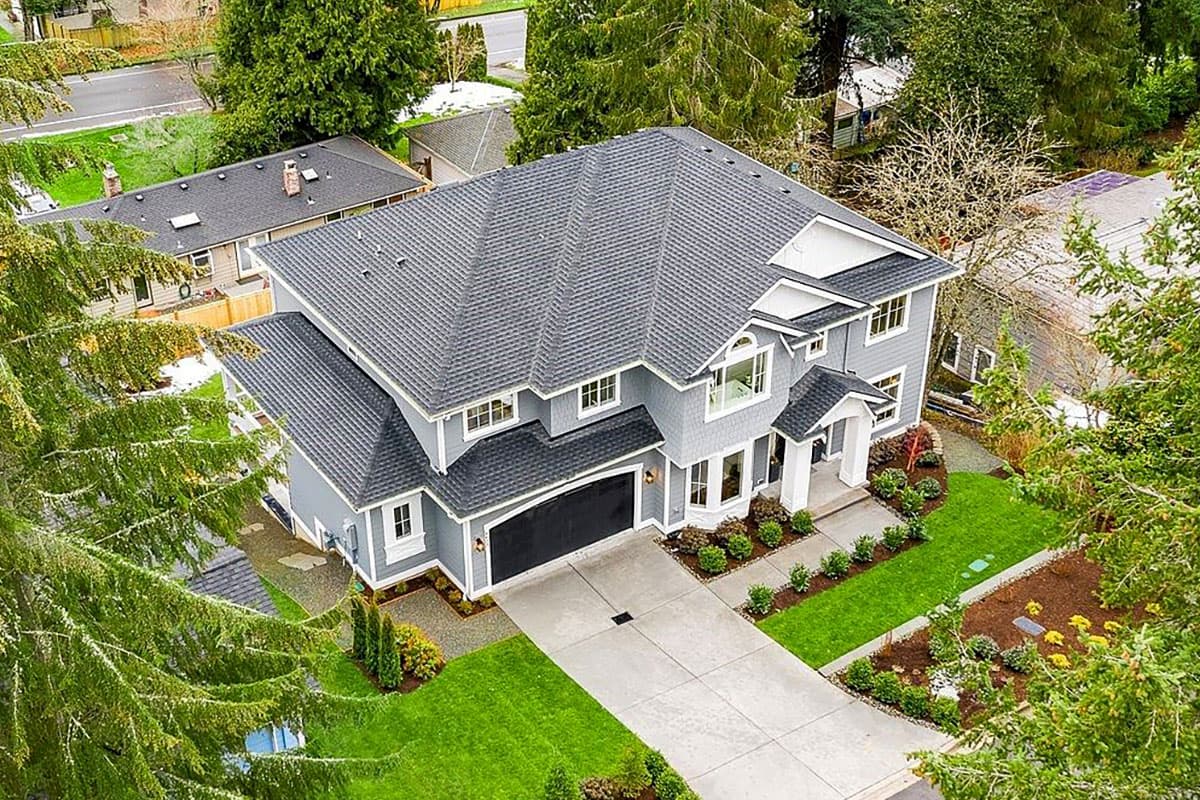

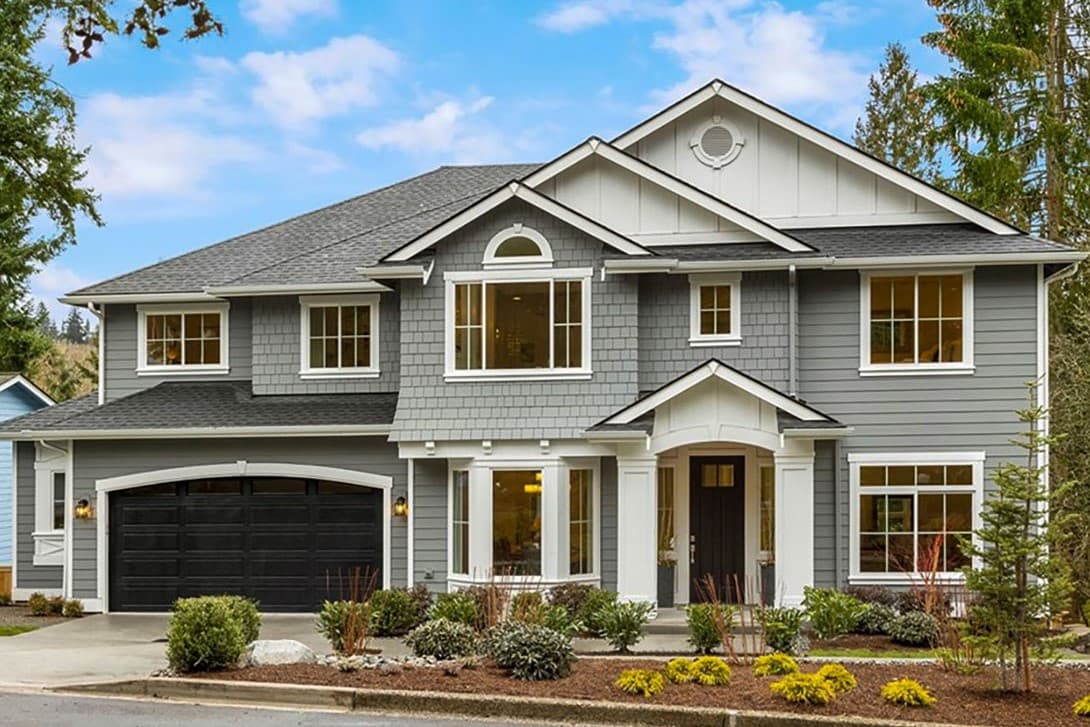

Richly detailed on the outside, this 5-bed house plan has a board and batten and shingle exterior and a beautiful covered entry.

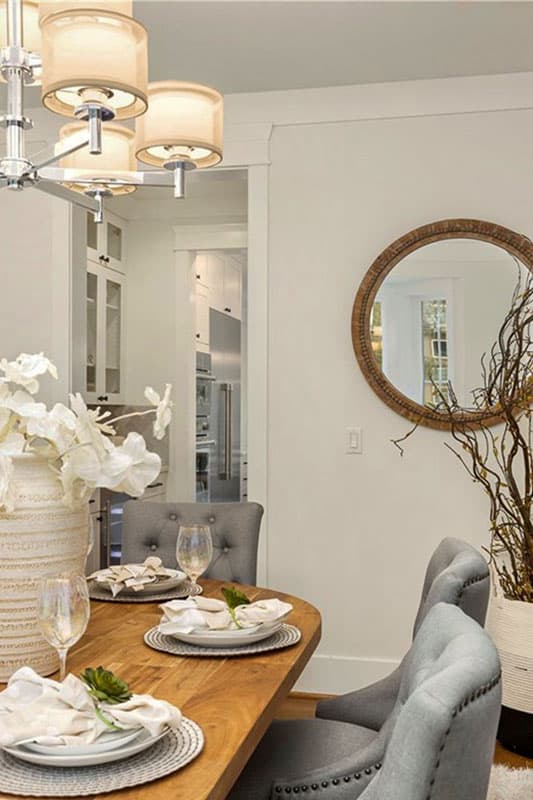

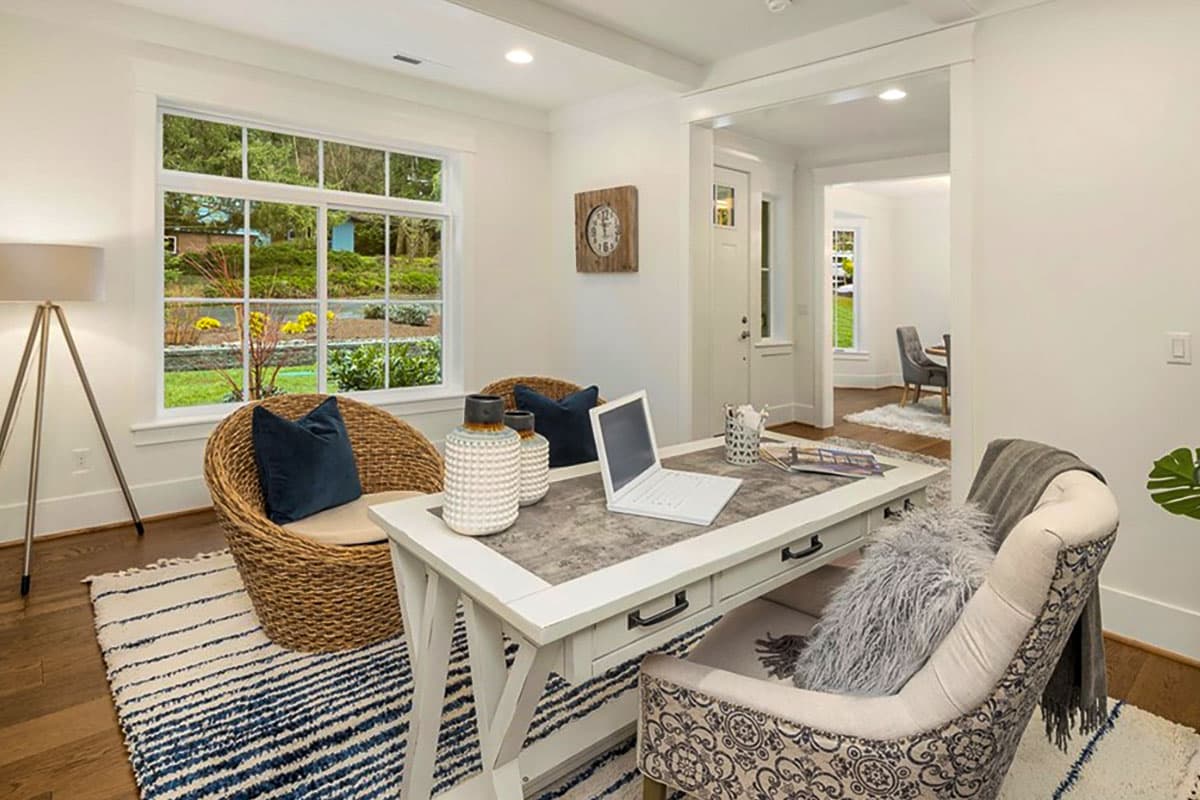

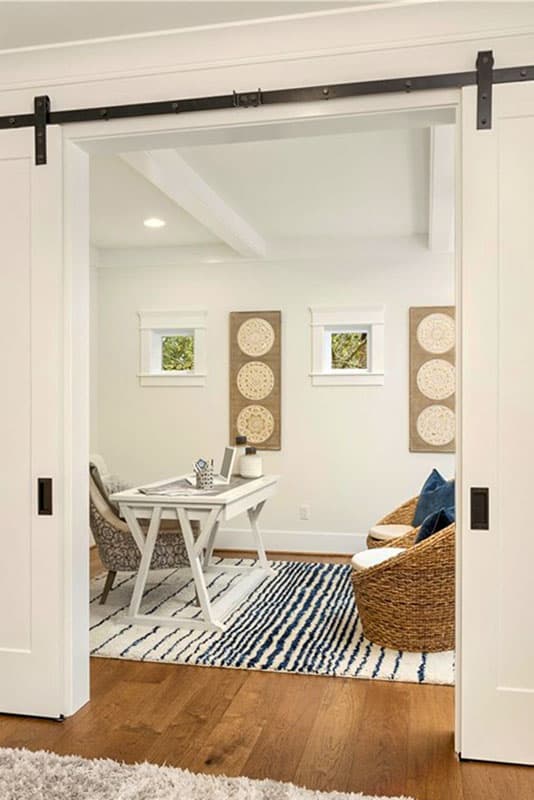

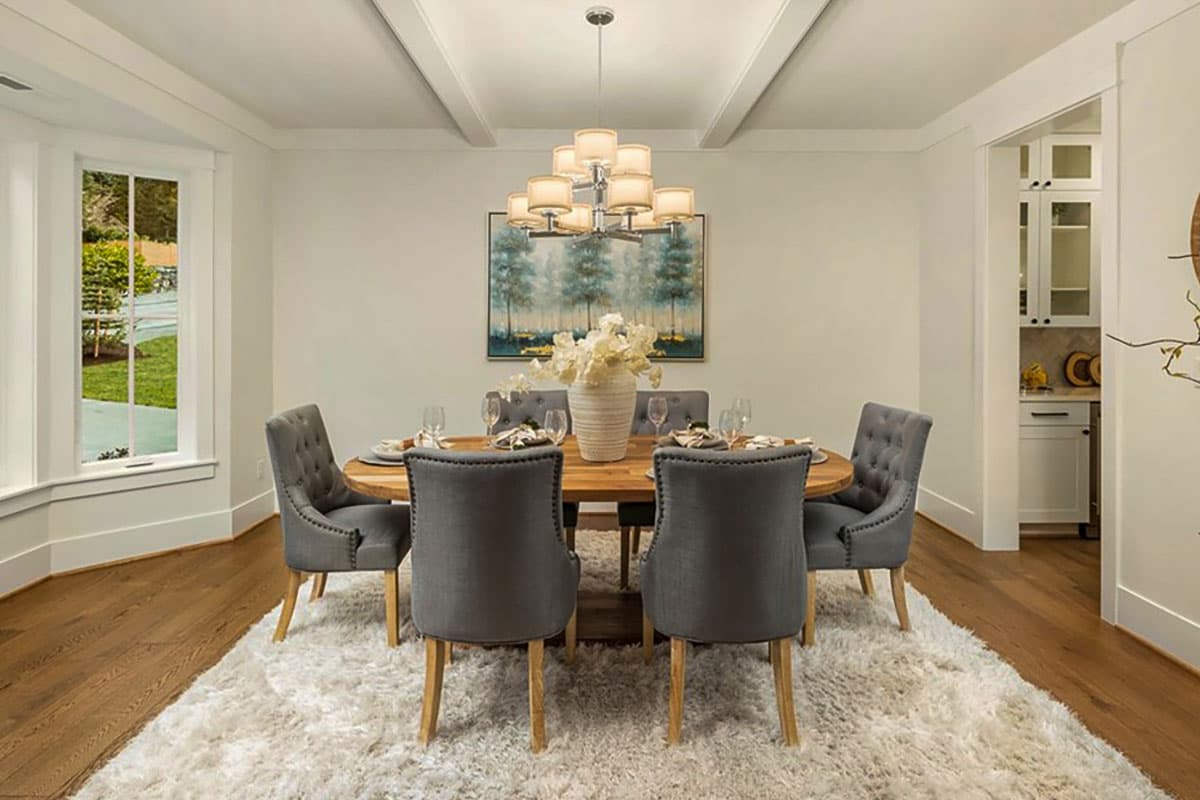

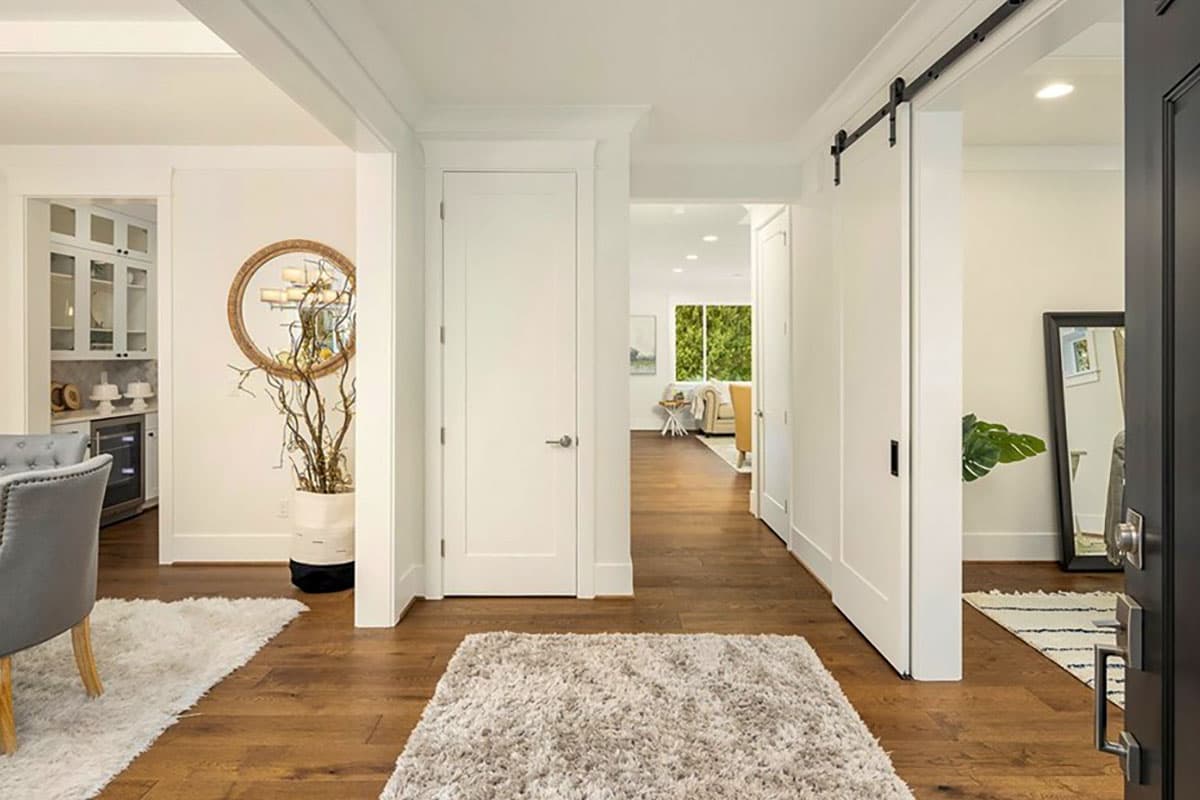

The wide foyer will never feel cramped and is open on both sides to the formal dining room and a den which would make a great home office.

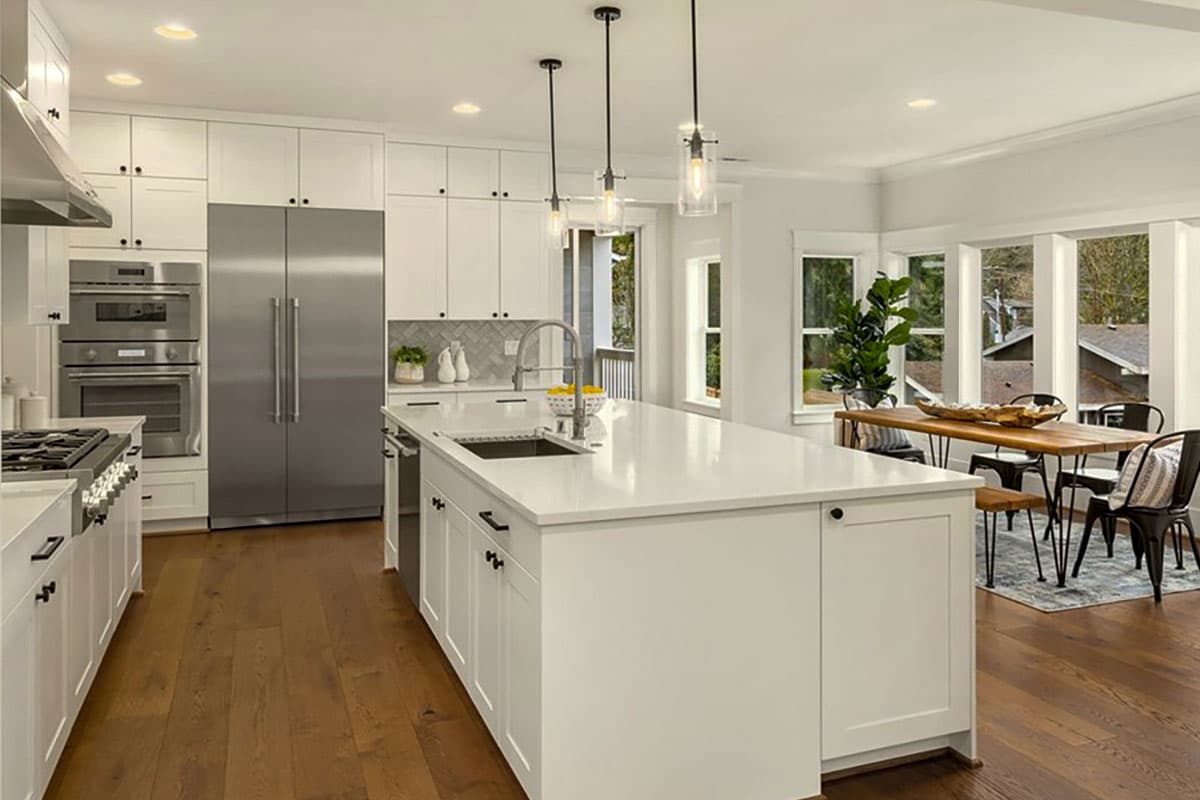

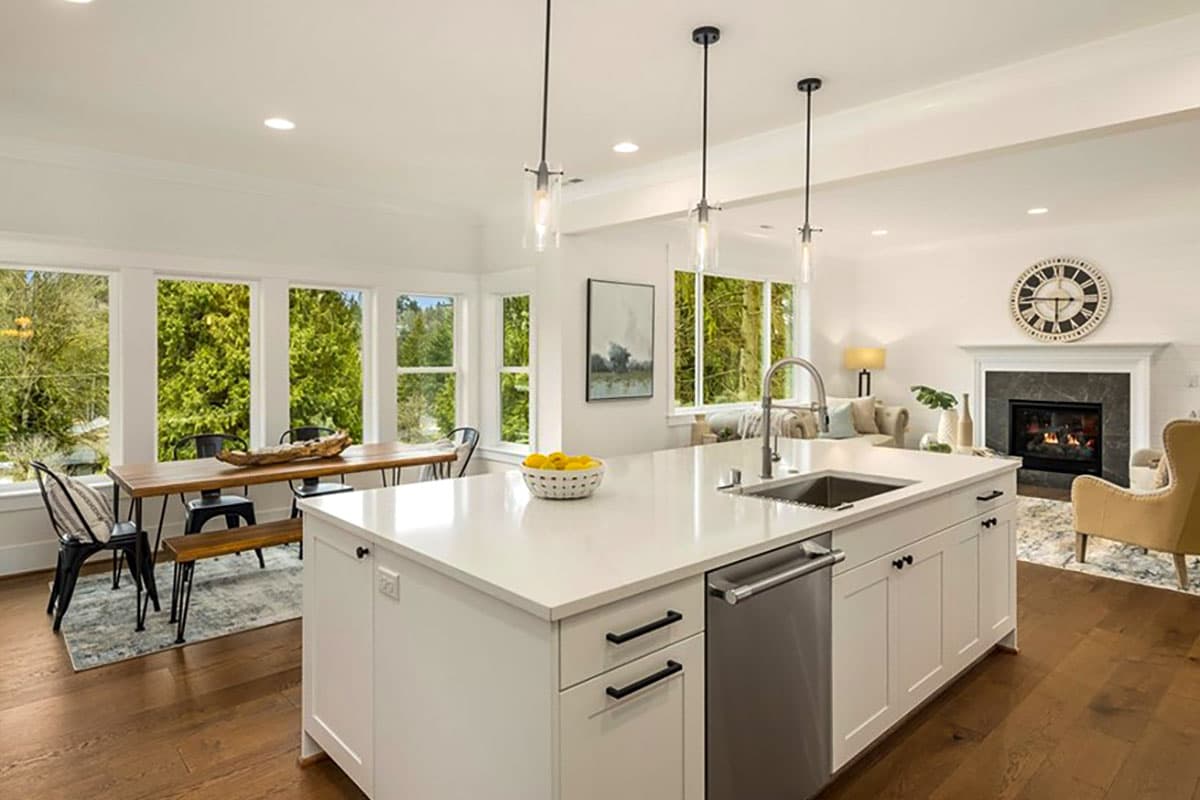

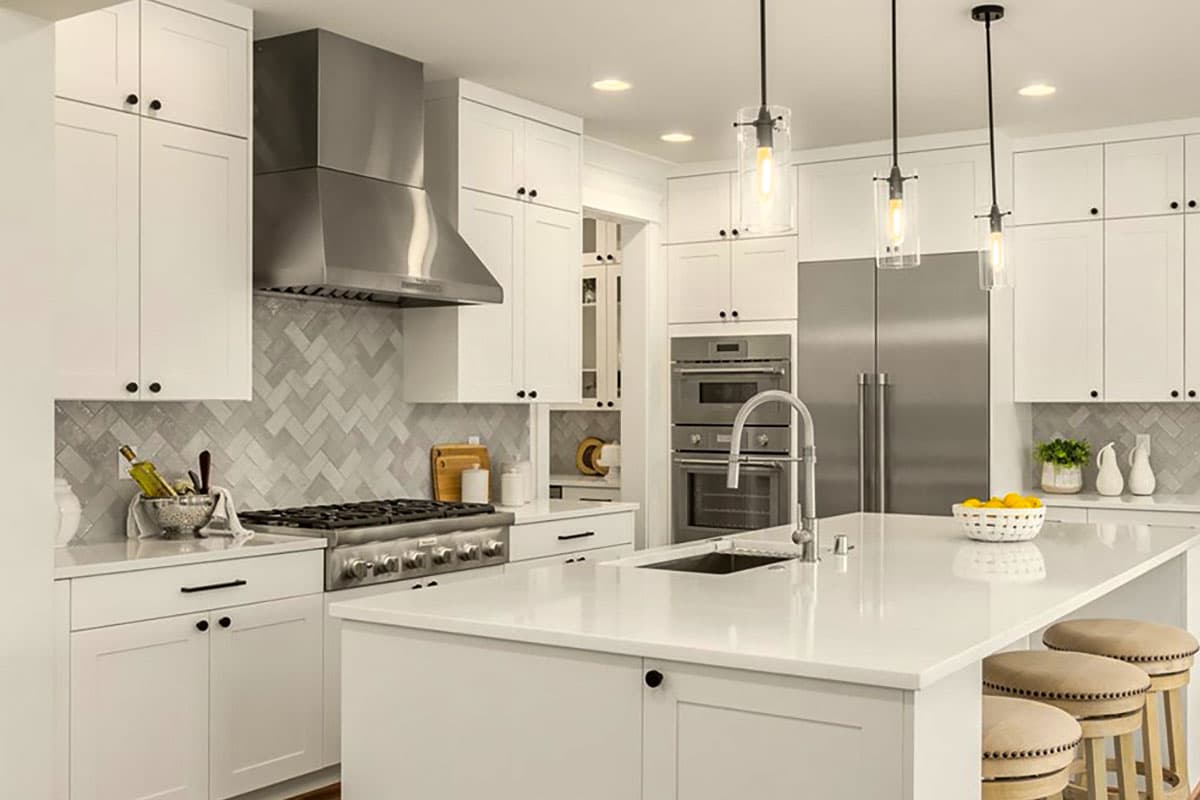

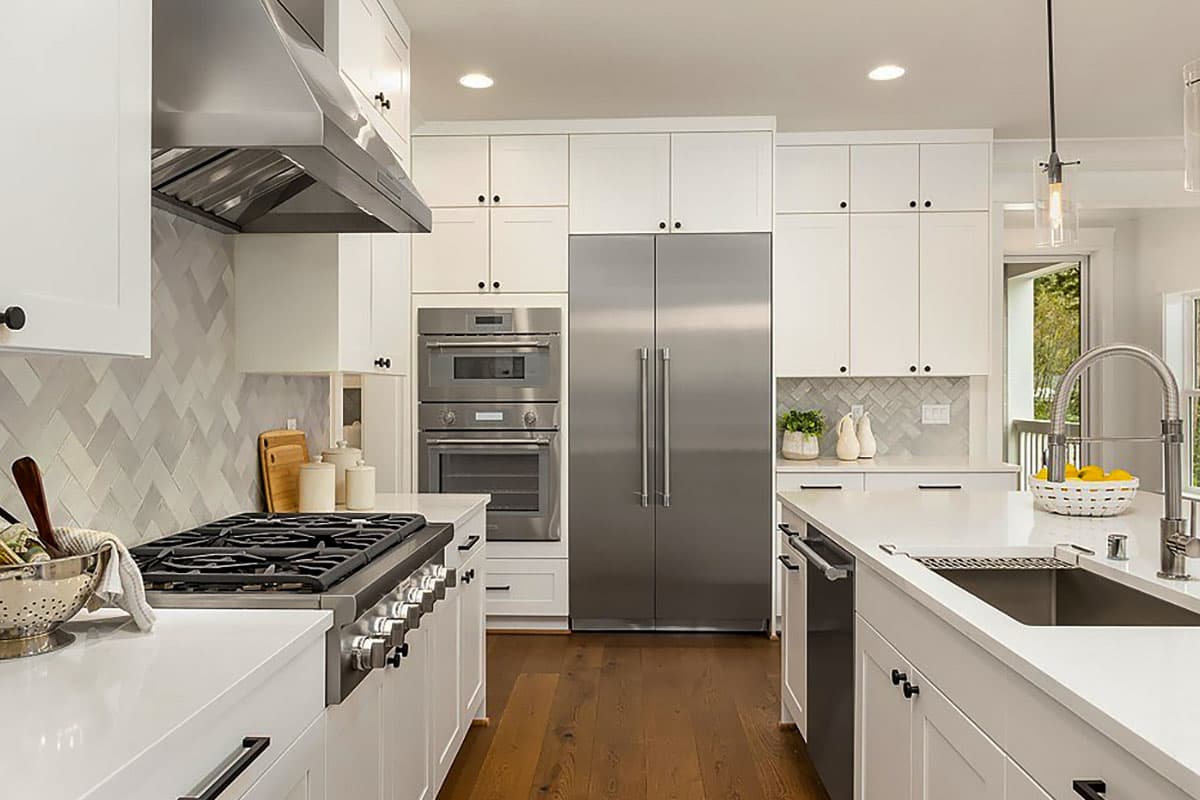

The L-shaped living area in back holds the kitchen, family room and large breakfast nook, all open to each other.

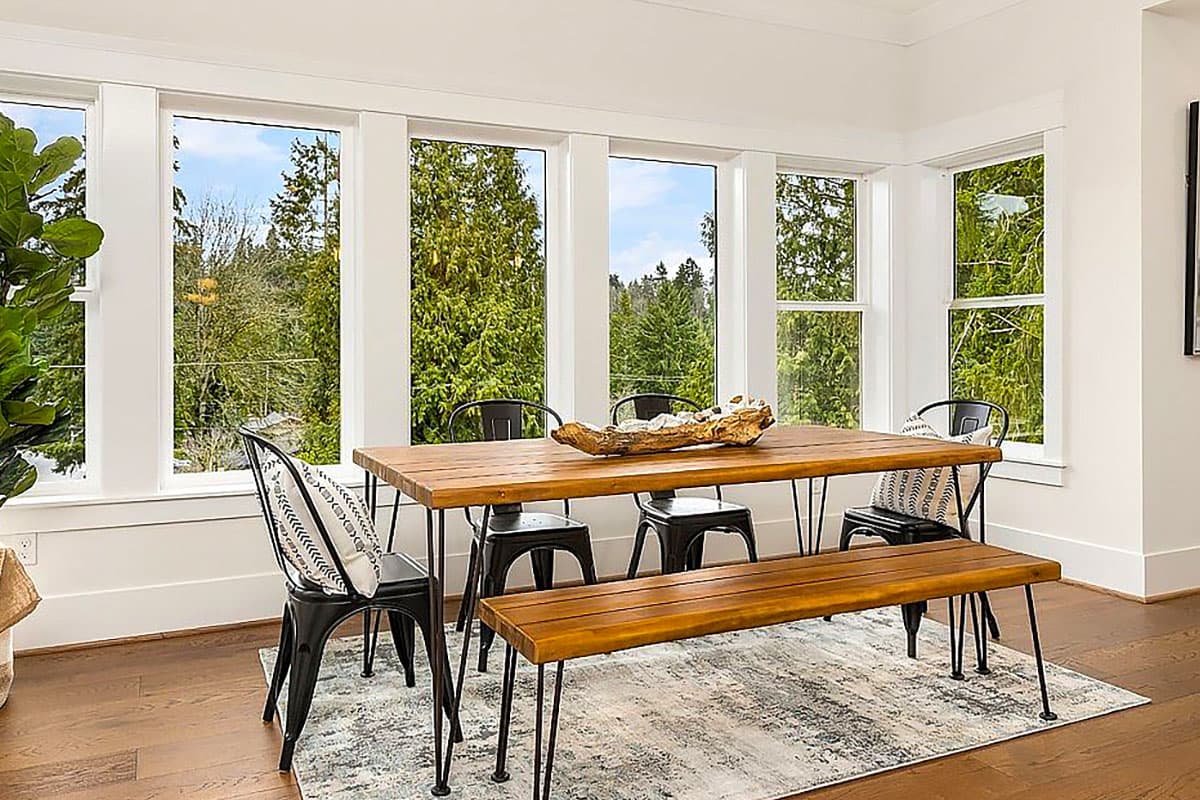

Windows on 3 sides flood the nook with light.

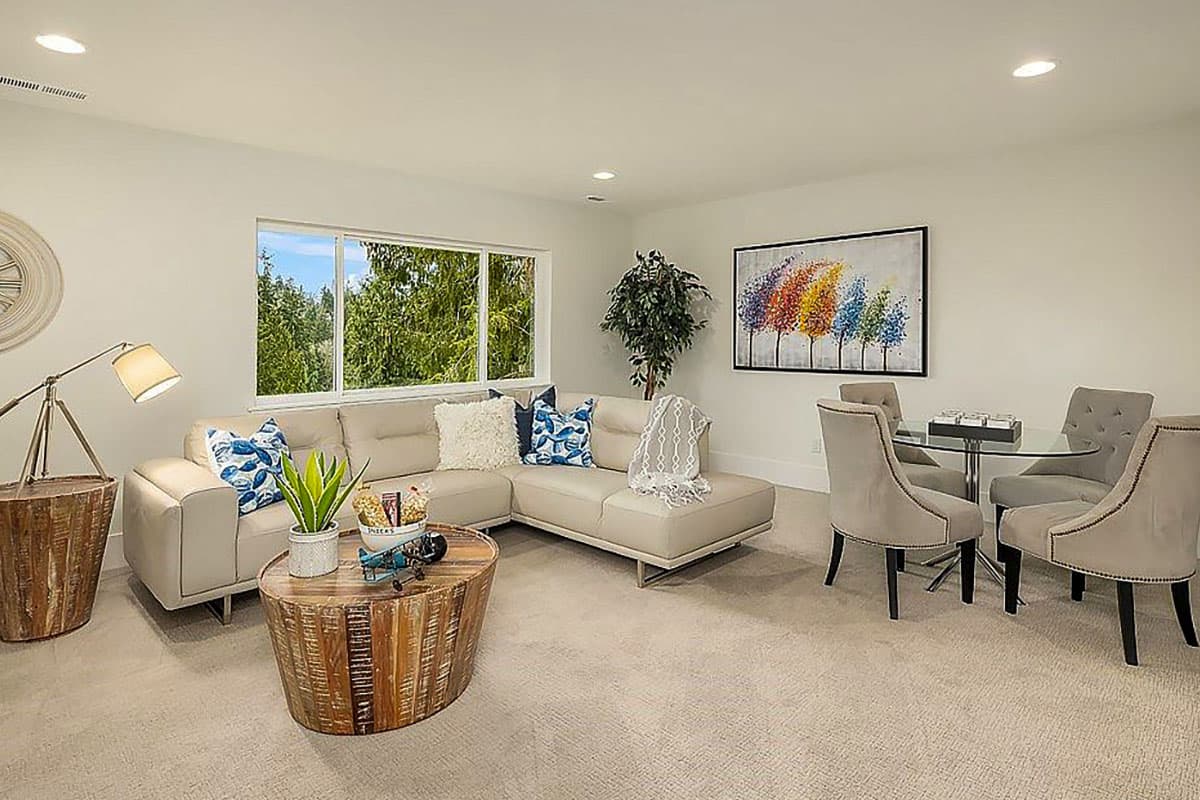

The upper floor is even bigger than the first floor and gives you a huge bonus room - included in the total living area - with double doors for a grand entry.

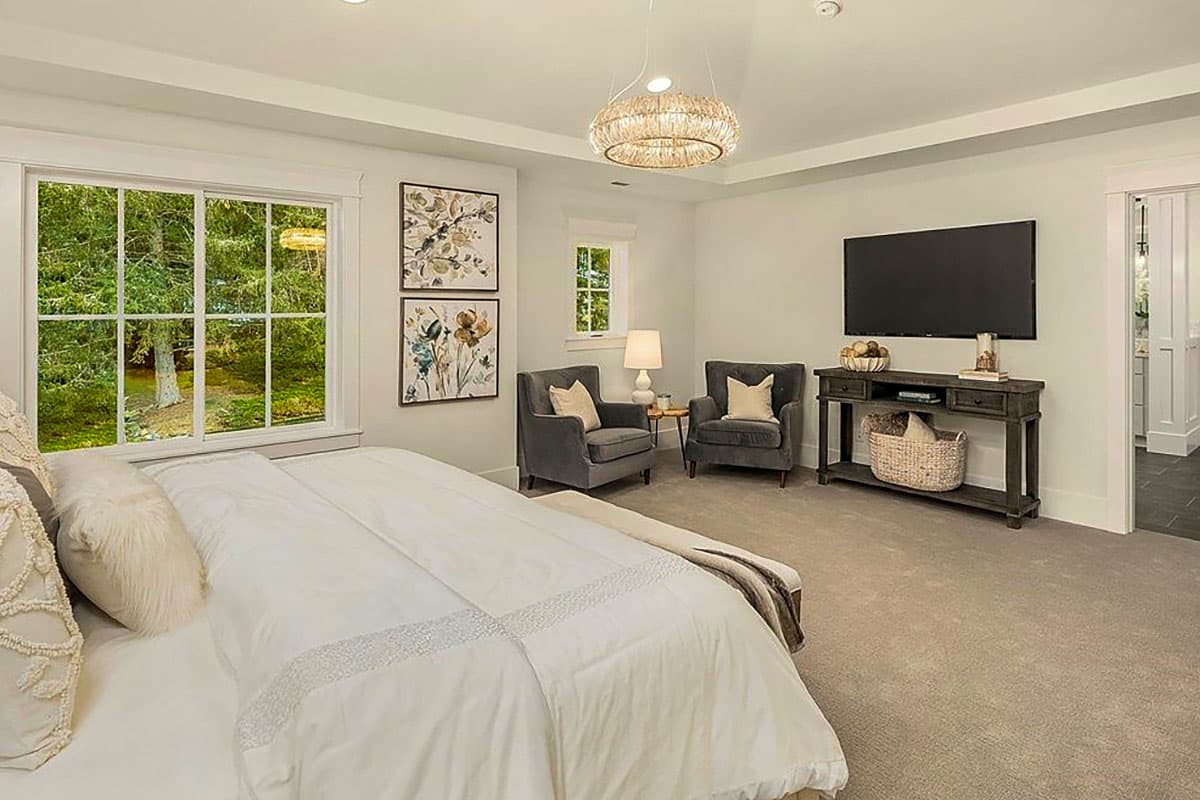

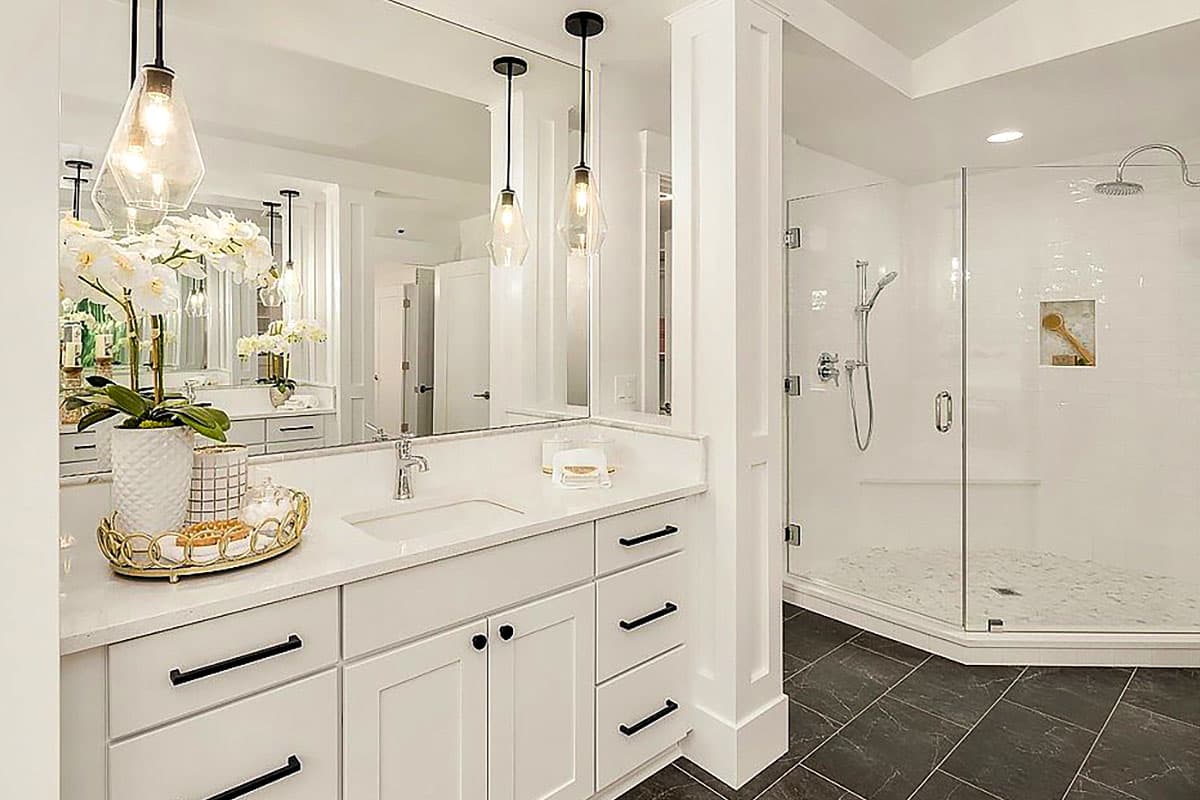

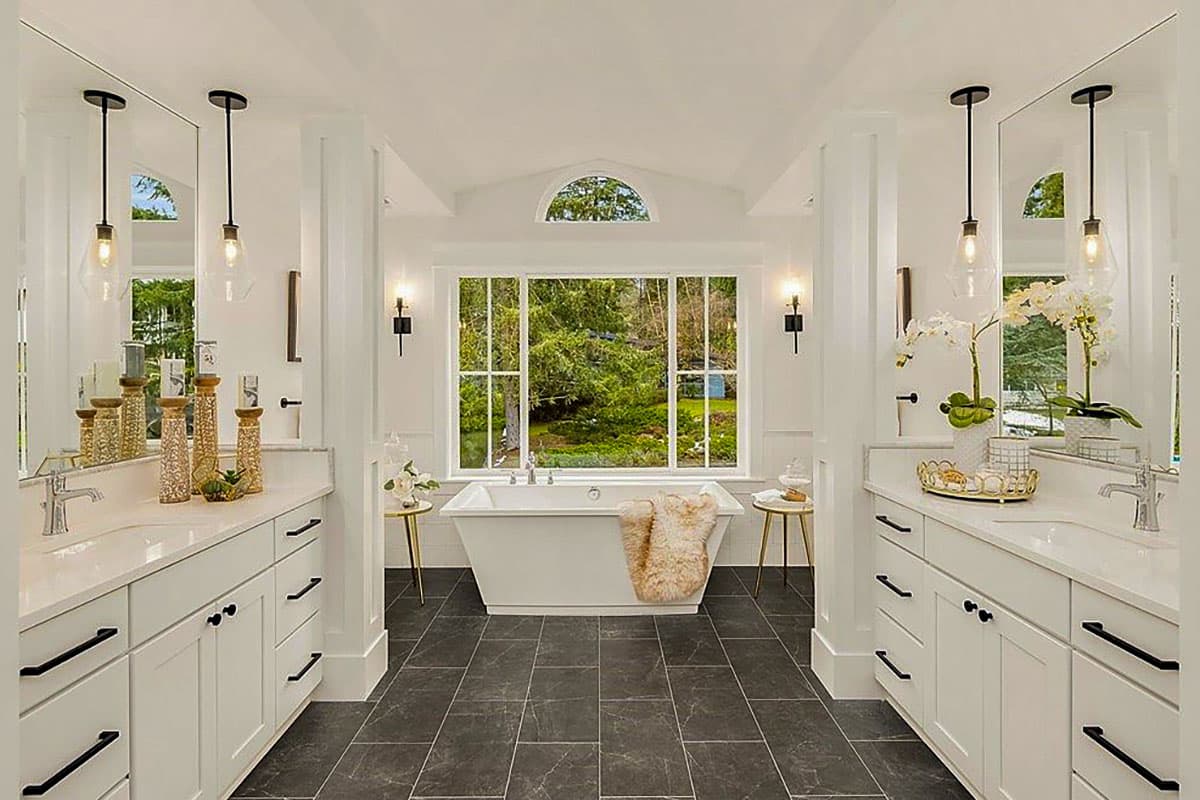

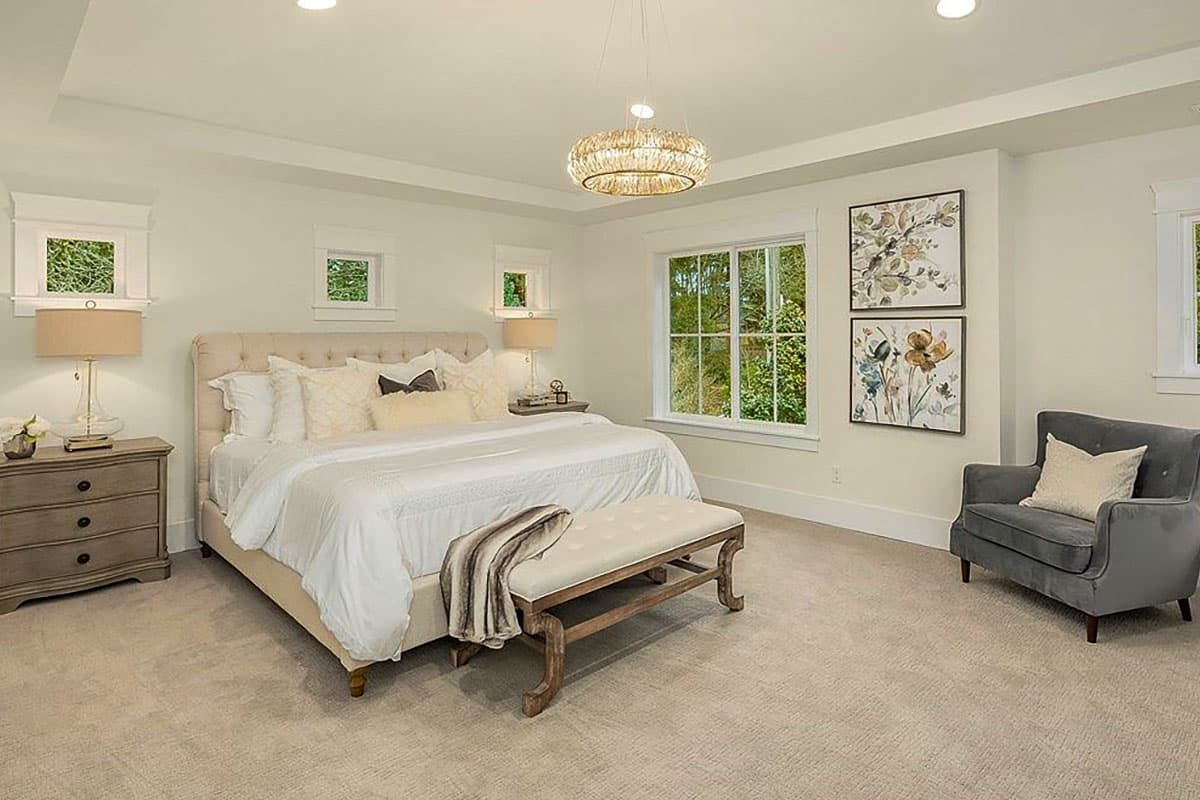

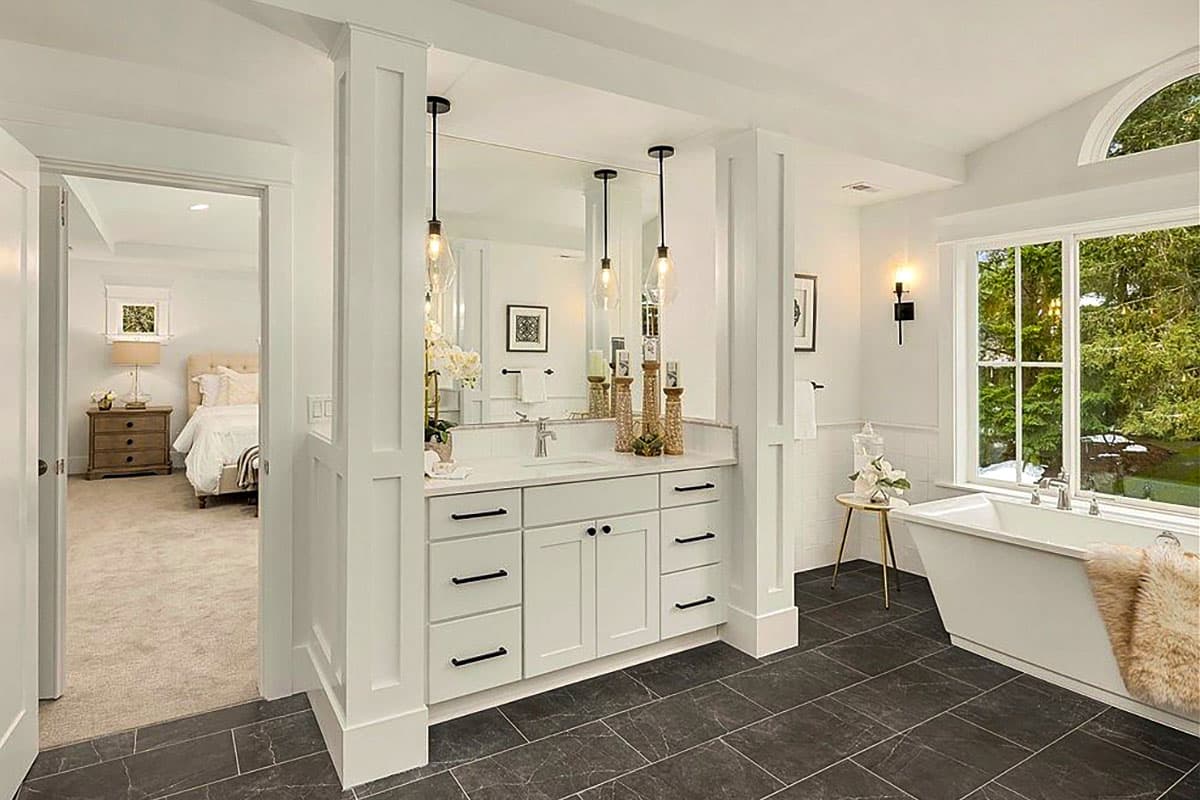

Homeowners also get a double door entry, a lovely vaulted ceiling with a large vaulted bathroom just steps away.

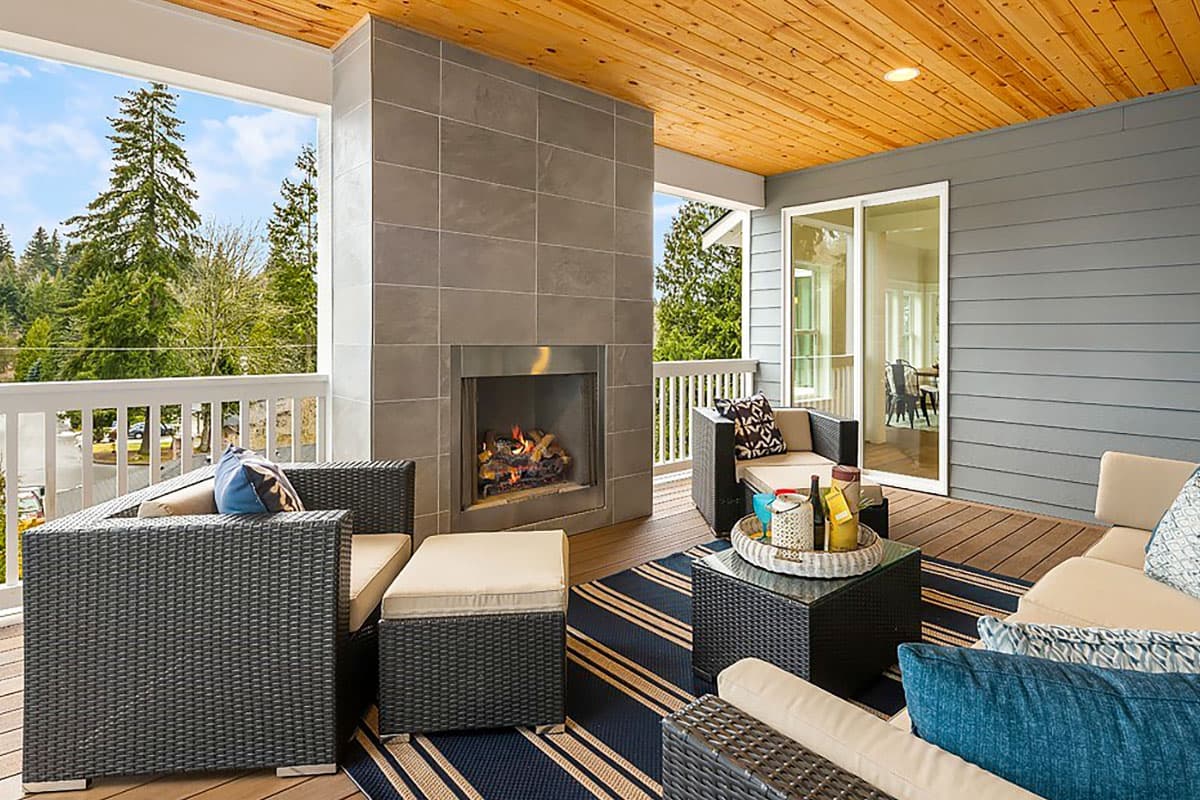

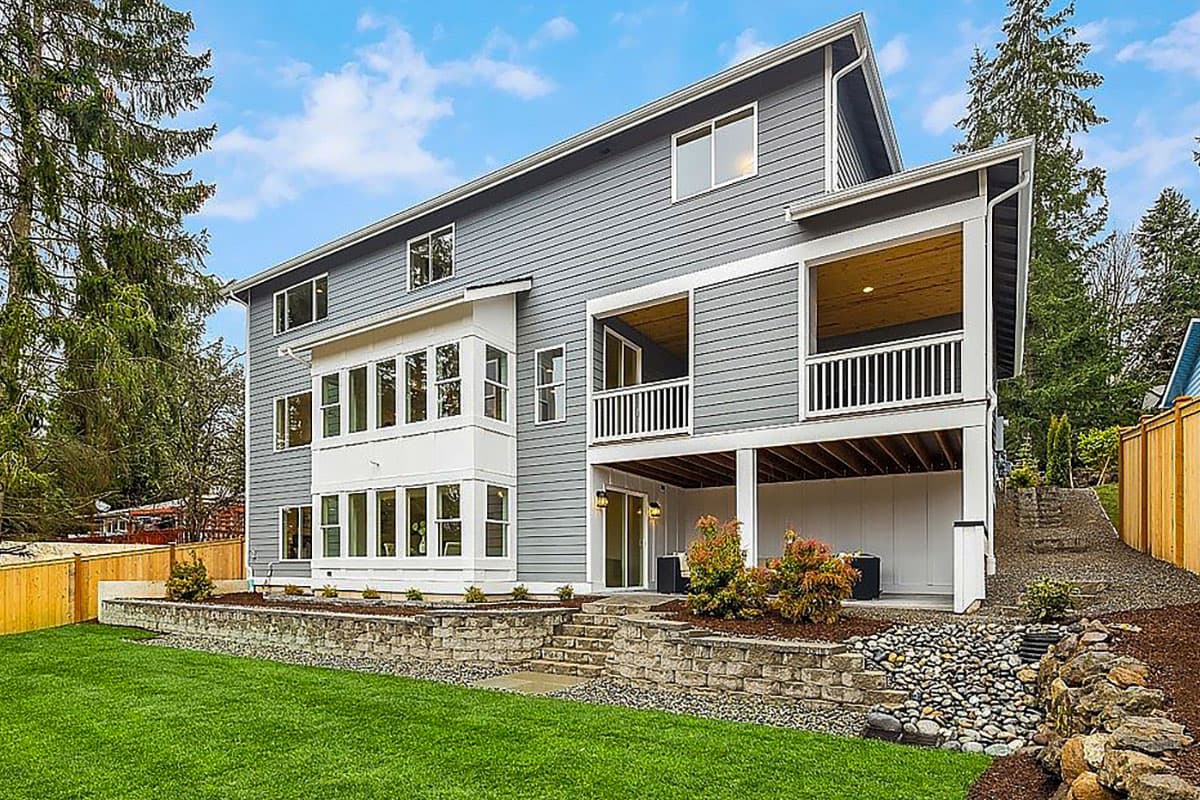

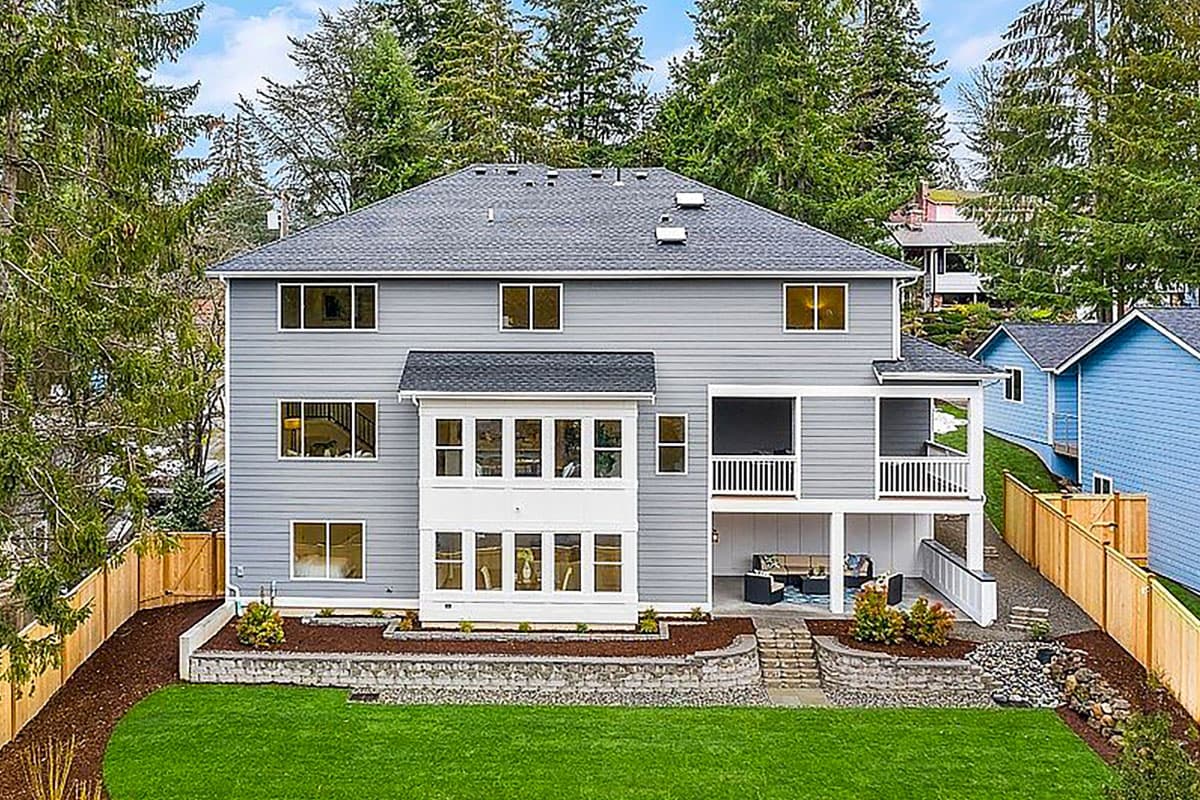

Sliding doors off the mud room take you to a large covered deck.

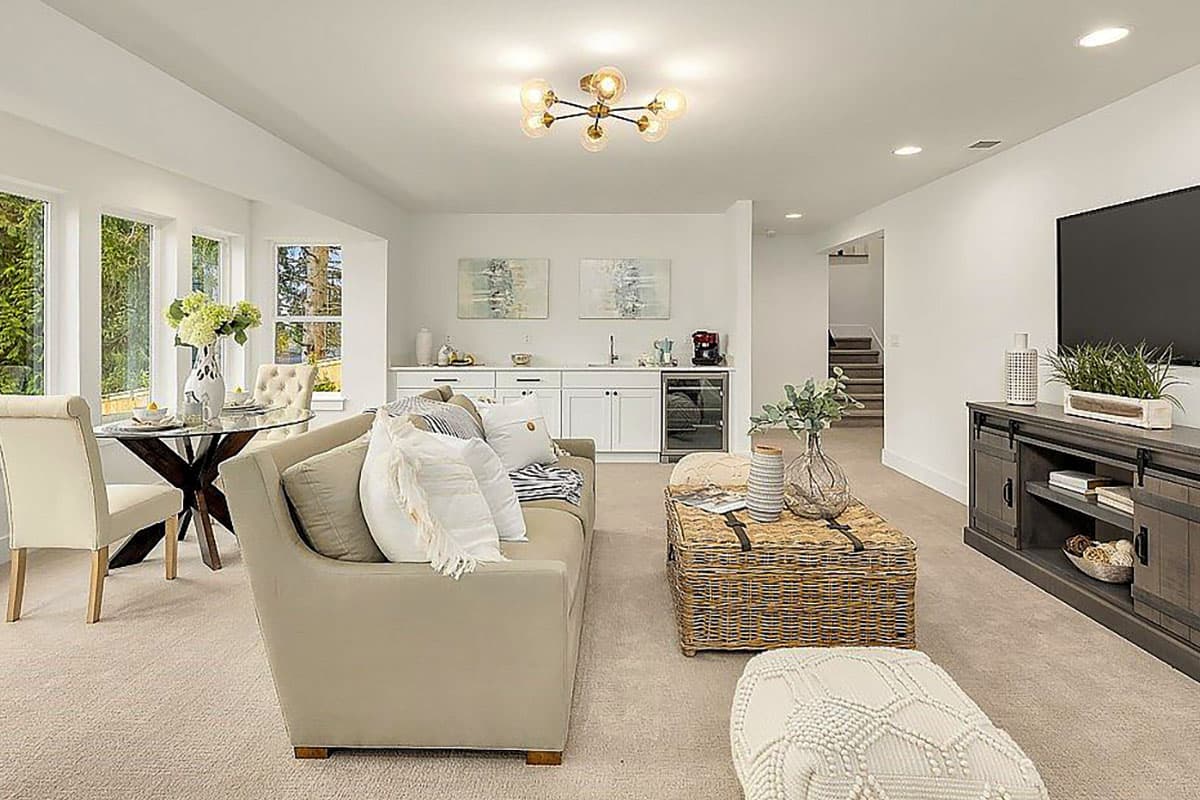

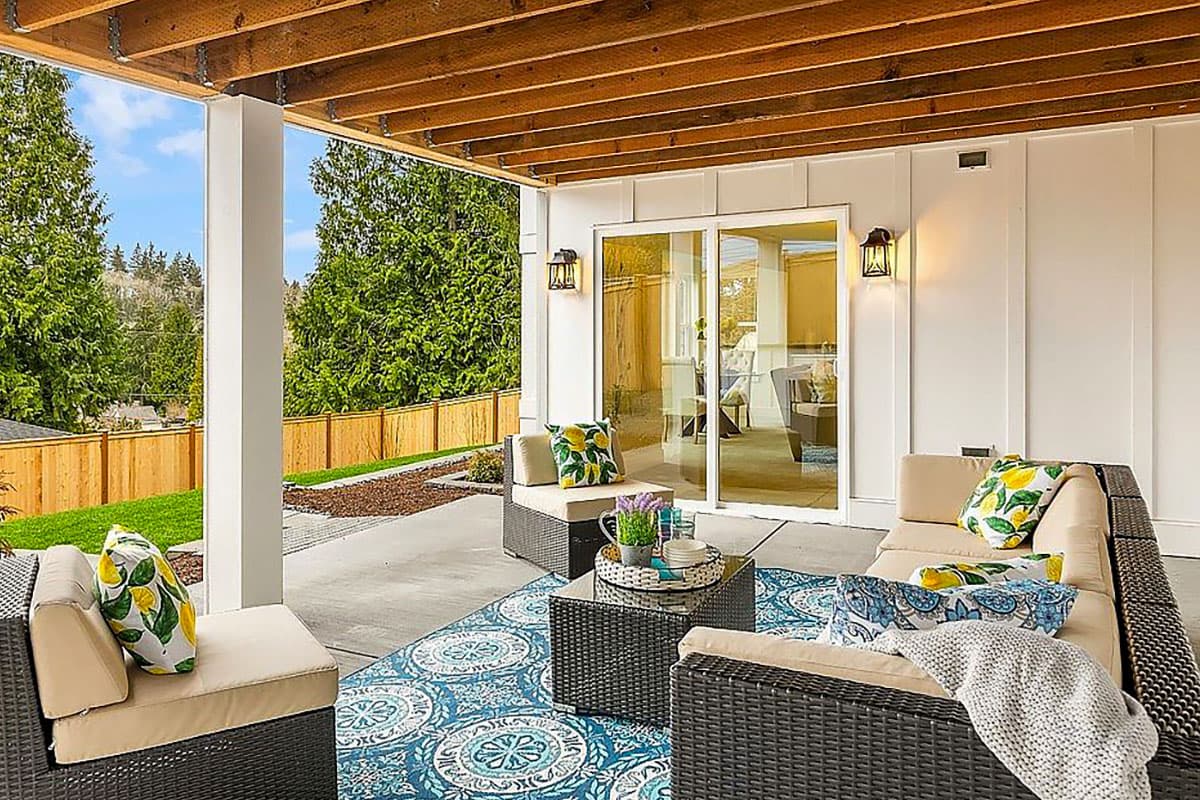

The lower level gives you a rec room with sliding door access to a patio under the deck as well as the fifth bedroom and a bath.
Related Plan: Get an alternate exterior with house plan 2369JD.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

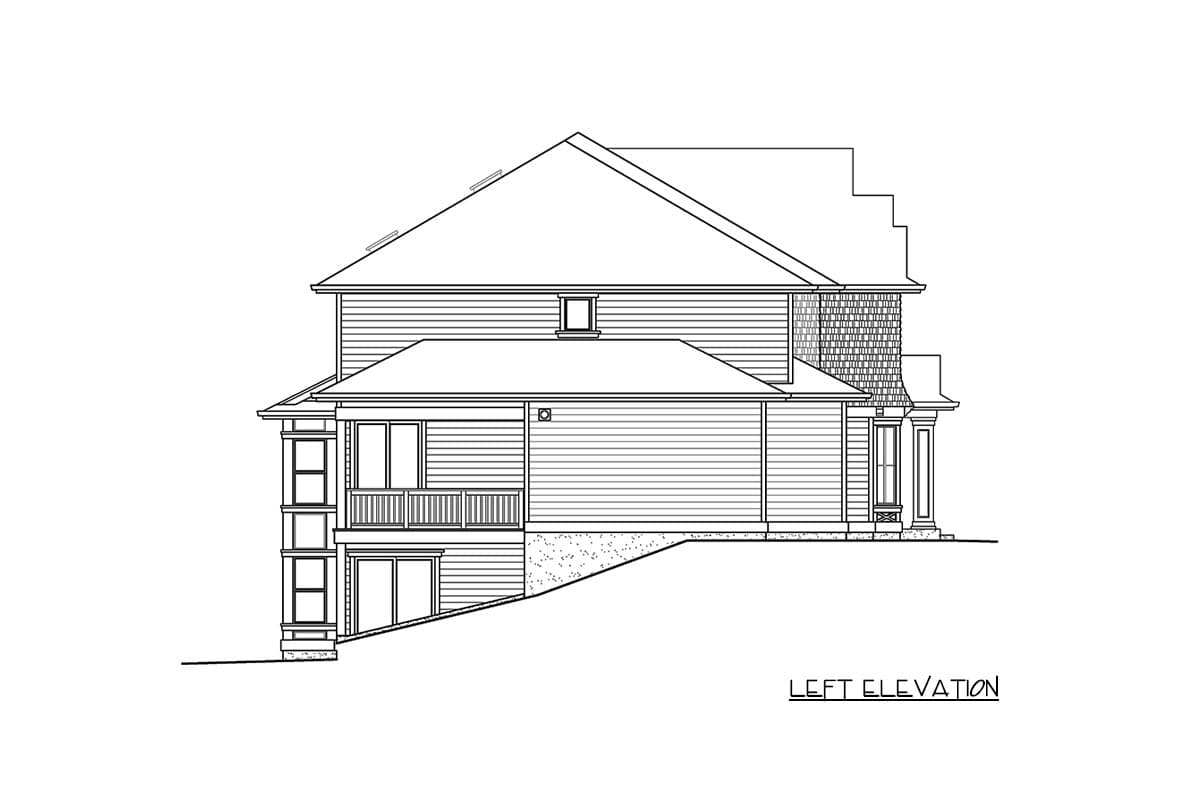

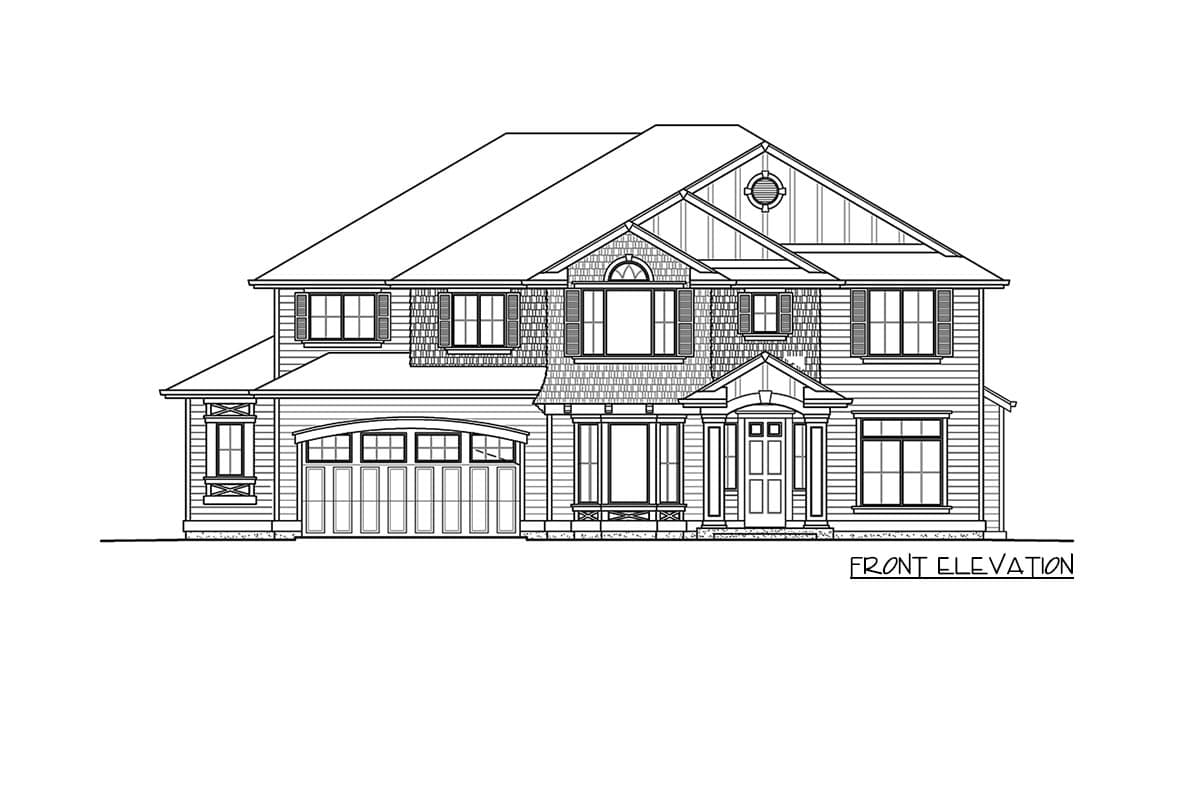

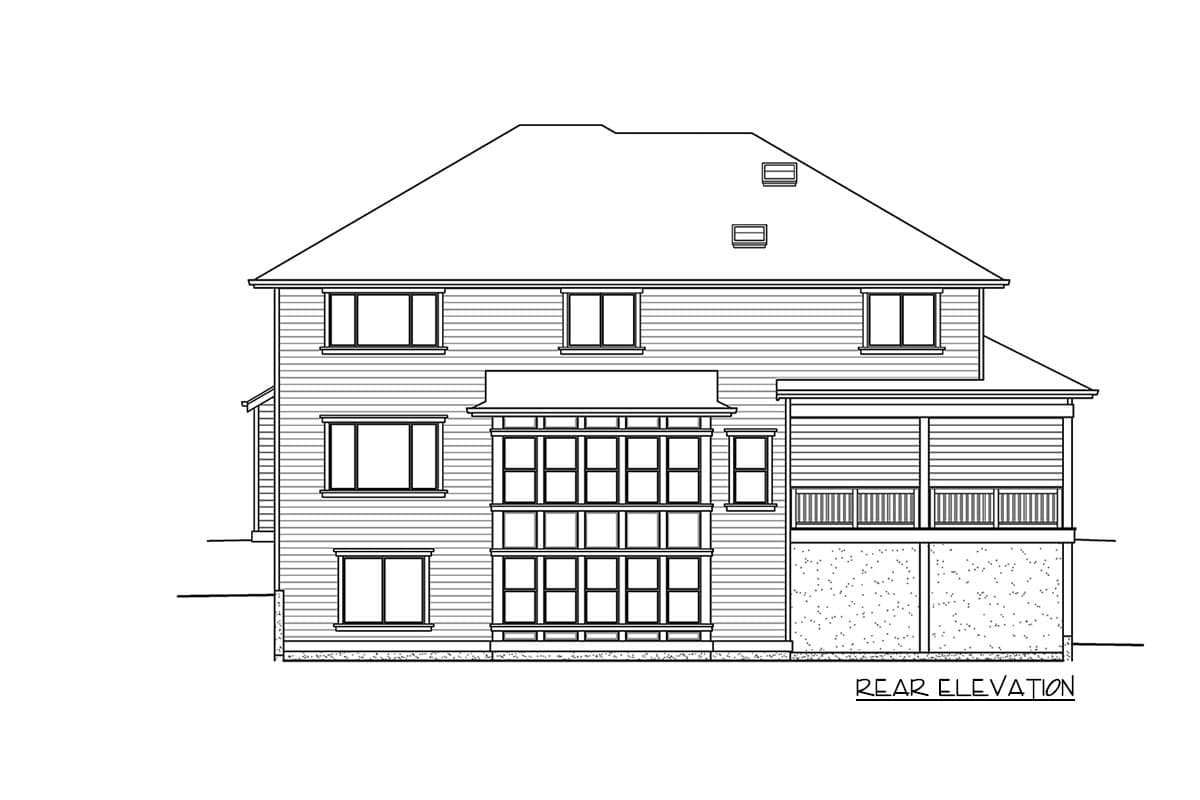

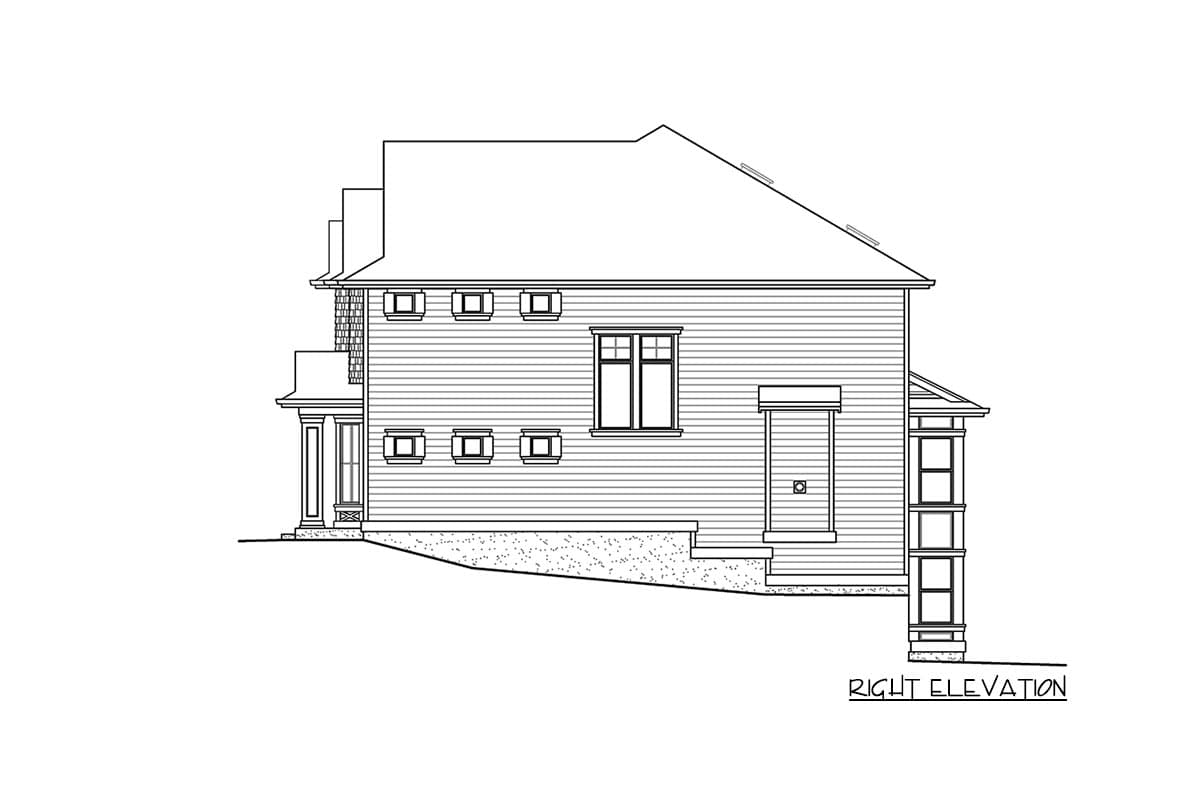

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
