Plan 680182VR

5-Bed House Plan with Two Home Offices and an Upstairs Rec Room

Heated S.F.
5,032
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 680182VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680182VR

M-F 9am-5pm EST |

1-203-761-8500

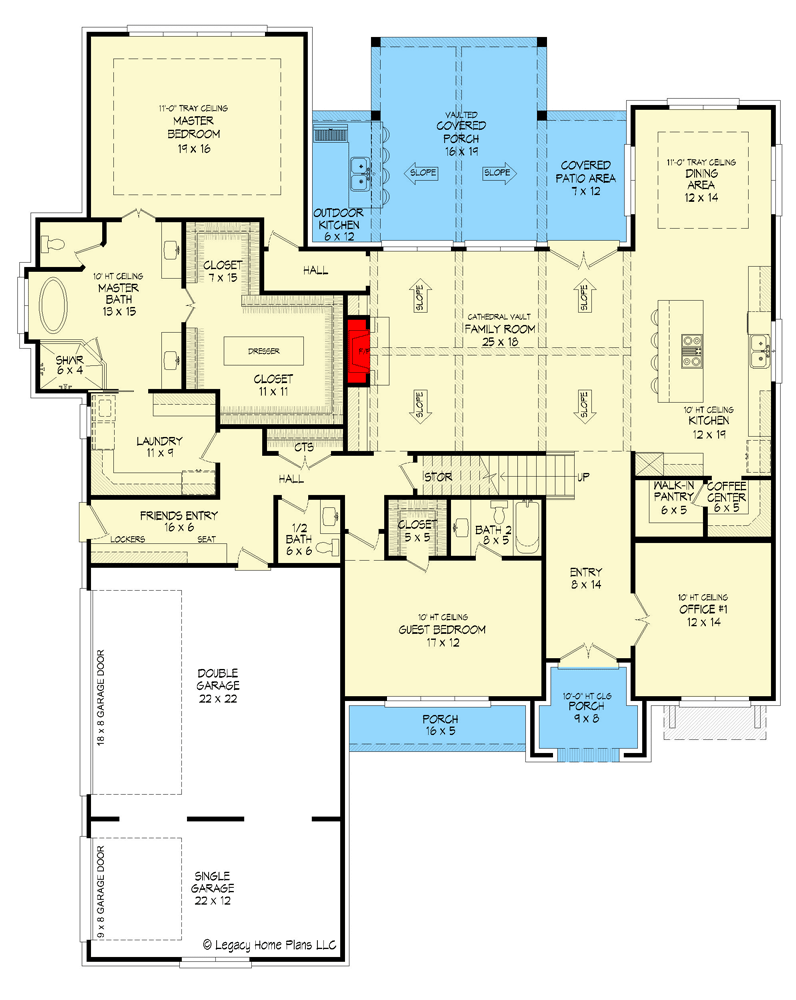

Main Level

Plan 680182VR: 5-Bed House Plan with Two Home Offices and an Upstairs Rec Room - Floor Plan - Main Level - European, Southern, Transitional

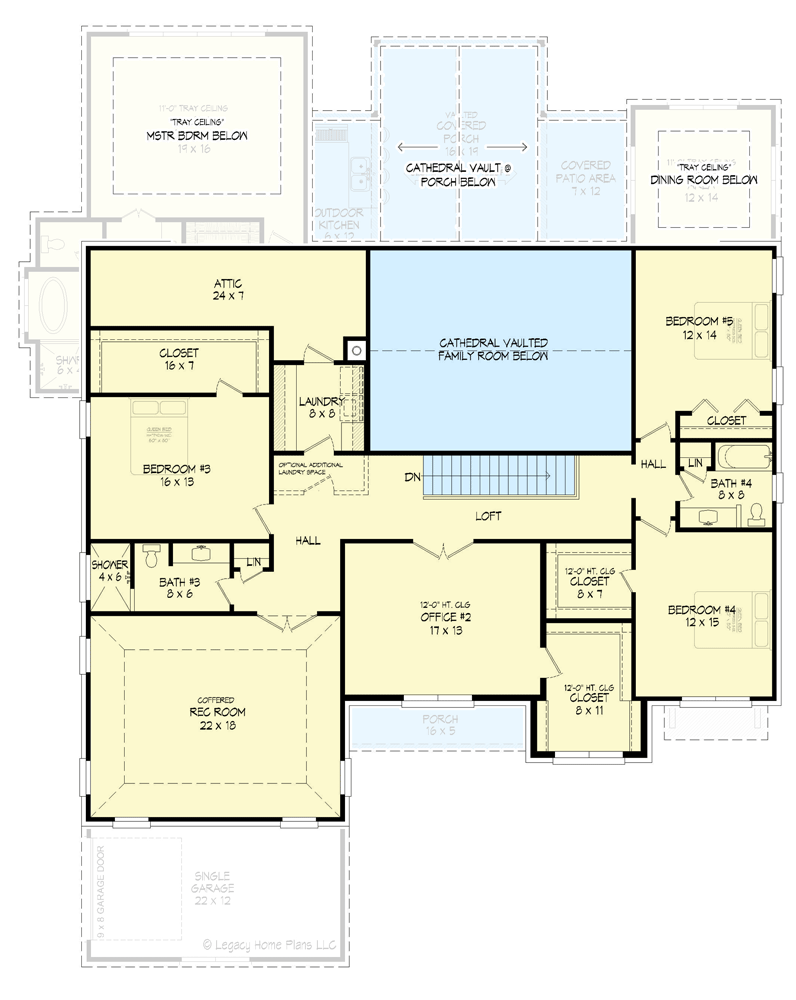

2nd Floor

Plan 680182VR: 5-Bed House Plan with Two Home Offices and an Upstairs Rec Room - Floor Plan - 2nd Floor - European, Southern, Transitional

Plan Details

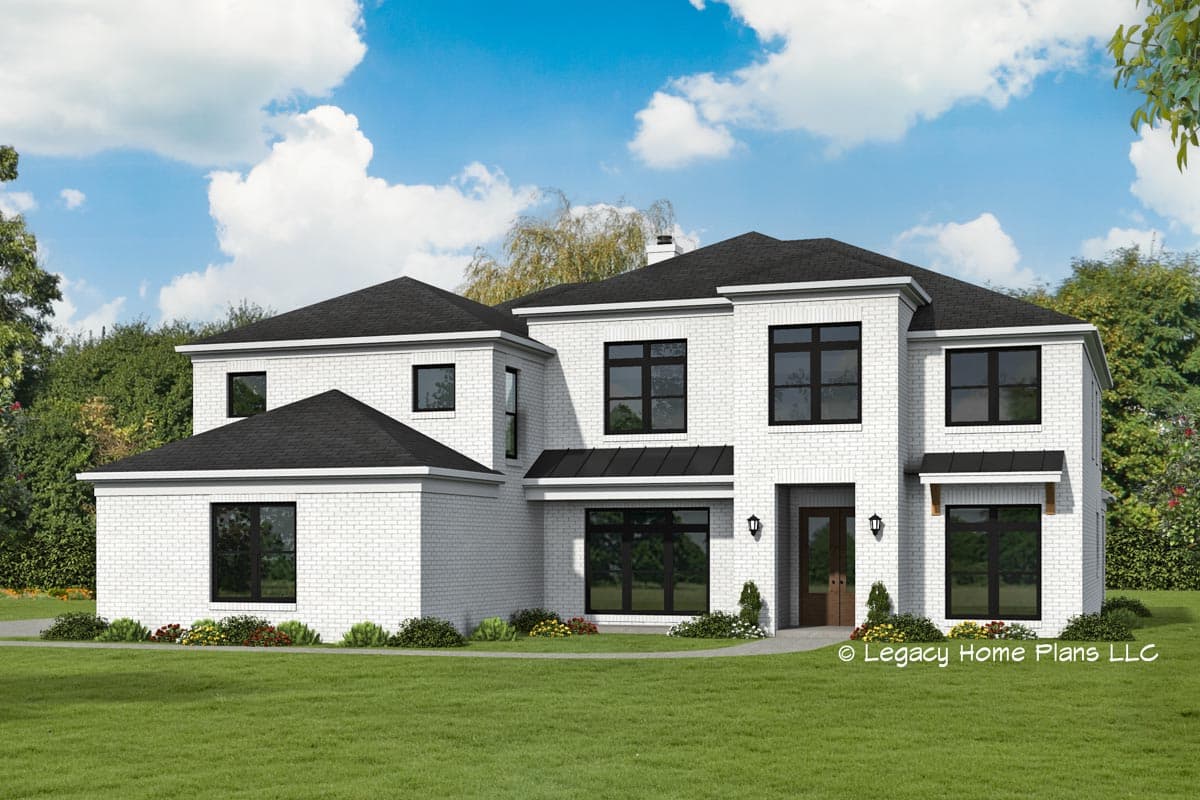

  • This 5-bed, 4.5 bath house plan has a painted brick exterior and gives you 5,032 square feet of heated living and a 3-car side entry garage (820 square feet).
  • A home office sits behind French doors off the foyer which leads to the 2-story family room. A pair of French doors - aligned with the ones in the foyer - take you to the covered patio in back which has an outdoor kitchen.
  • The master suite is on the main floor and has a roomy 2-person walk-in closet and direct access to the laundry room and adjacent mudroom/friend's entry which leads to the 3-car garage.
  • Upstairs, three bedrooms share two baths. A large rec room is located above the garage and a second office can be put to alternate uses.
  • Related Plans: Get a 6-bed version with house plan 680225VR (5,622 sq. ft.). Add a porte-cochere and get more parking with house plan 680181VR. Get an alternate exterior with house plan 680063VR.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

2,854 sq. ft.

2nd Floor

2,178 sq. ft.

Porch, Combined

561 sq. ft.

Attic

205 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

67' 1"

Depth

82' 0"

Max Ridge Height

30' 8"

Garage

Type

Attached

Area

820 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

Southern

Transitional

Special Features

Bedrooms - Split

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Home Office
