Plan 340039STR 5-Bed Mediterranean House Plan with Large Veranda

5-Bed Mediterranean House Plan with Large Veranda

Plan 340039STR

  • 5,816

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Stories

  • 3

    Cars

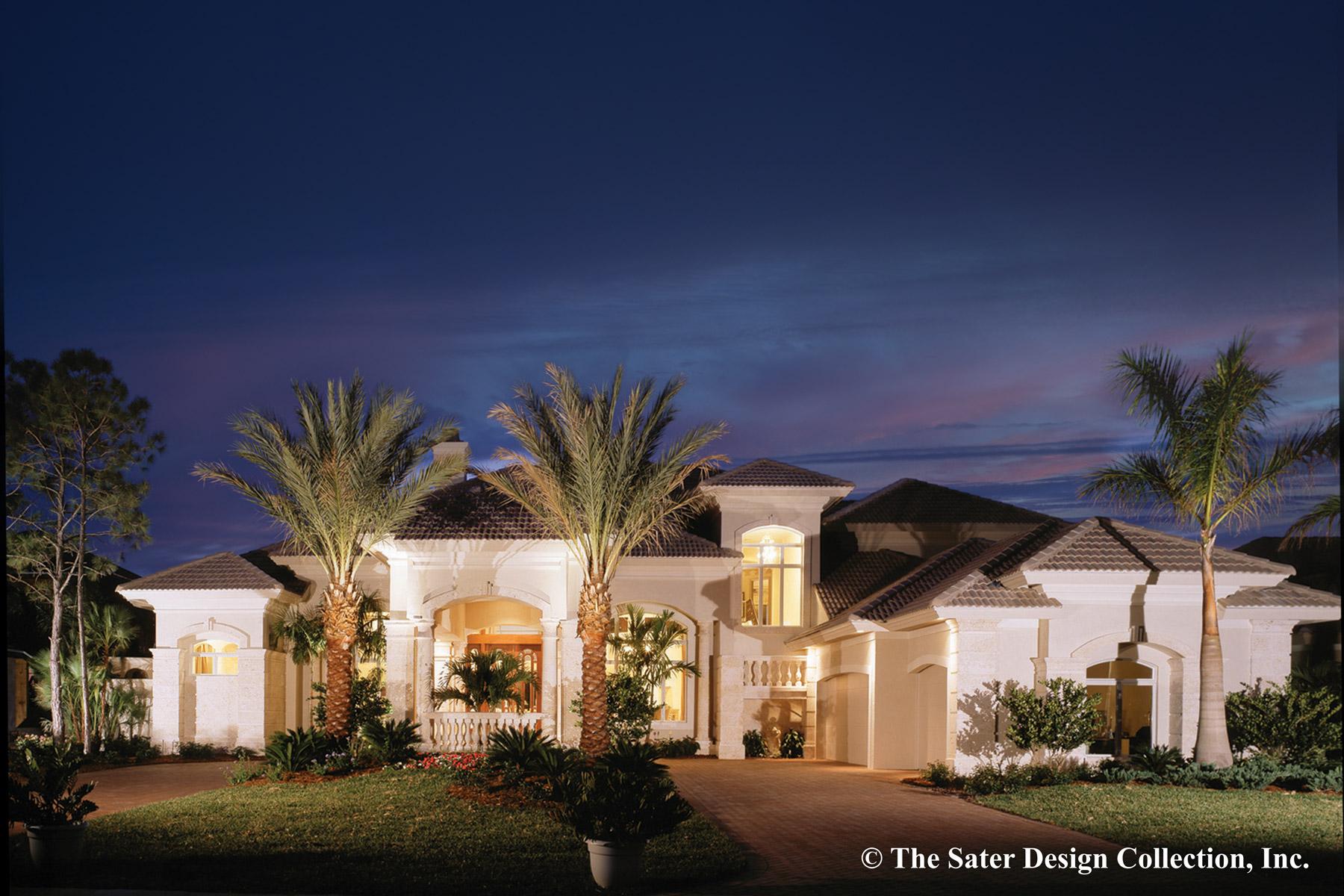

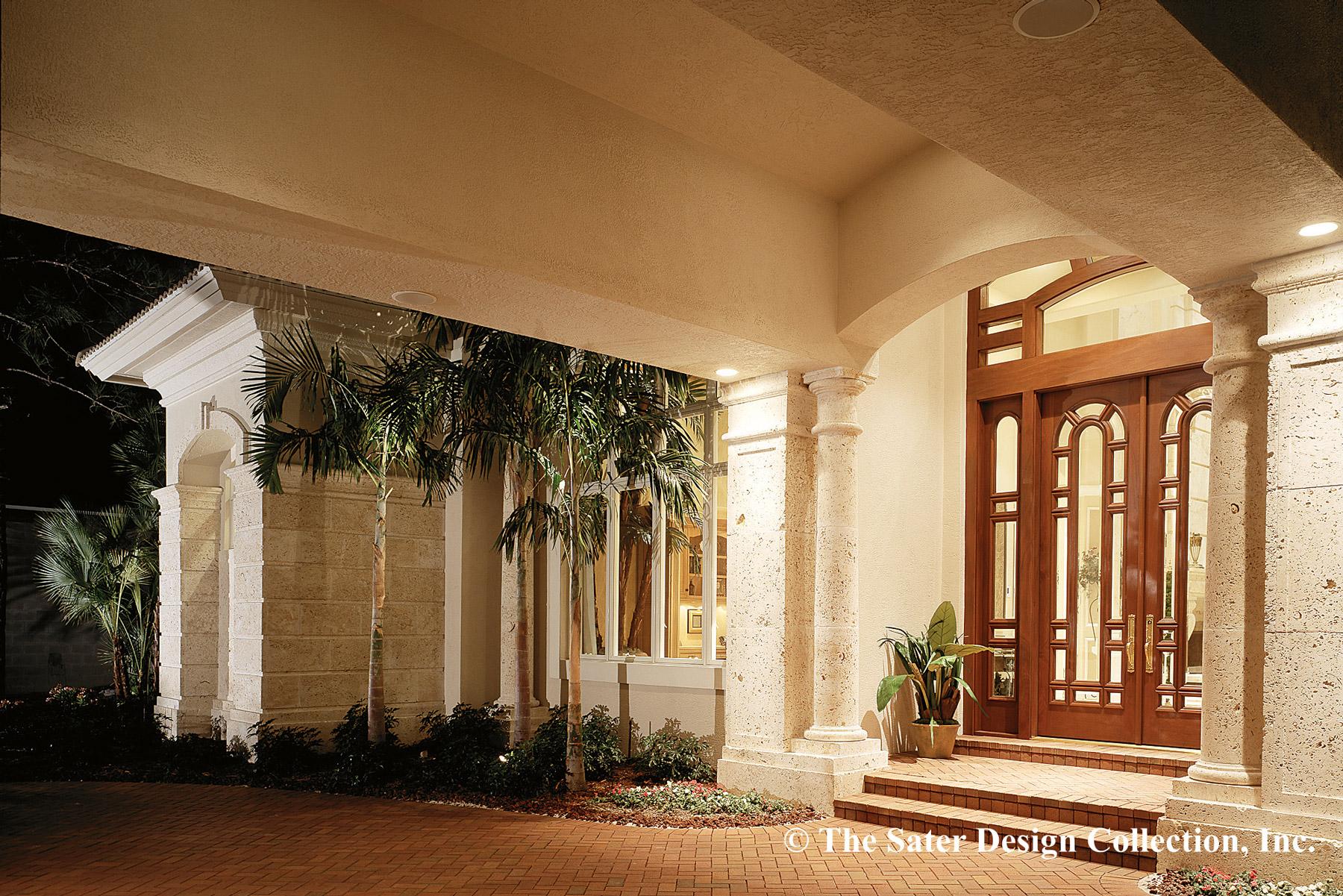

  • This European inspired gem is a popular Mediterranean house plan that features 5,820 square feet of living area with five bedrooms and six baths. A dramatic entry leads you into the two-storied grand interior.

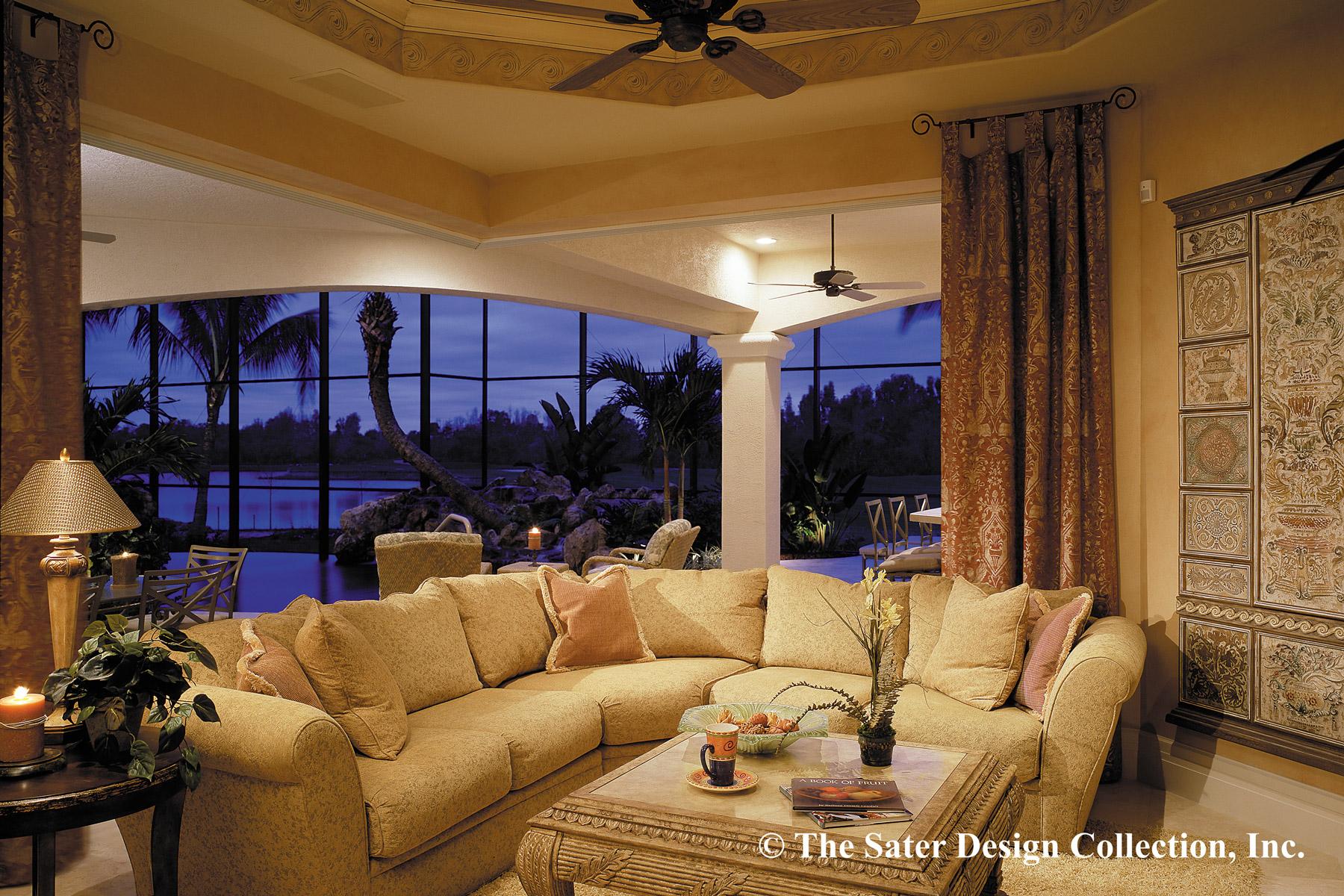

  • A stunning living room takes center stage, with a soaring curved and coffered ceiling and a 22' bowed glass wall. A pass-thru wet bar connects the formal living room to the common living areas, and a nearby dining room offers frontal views.

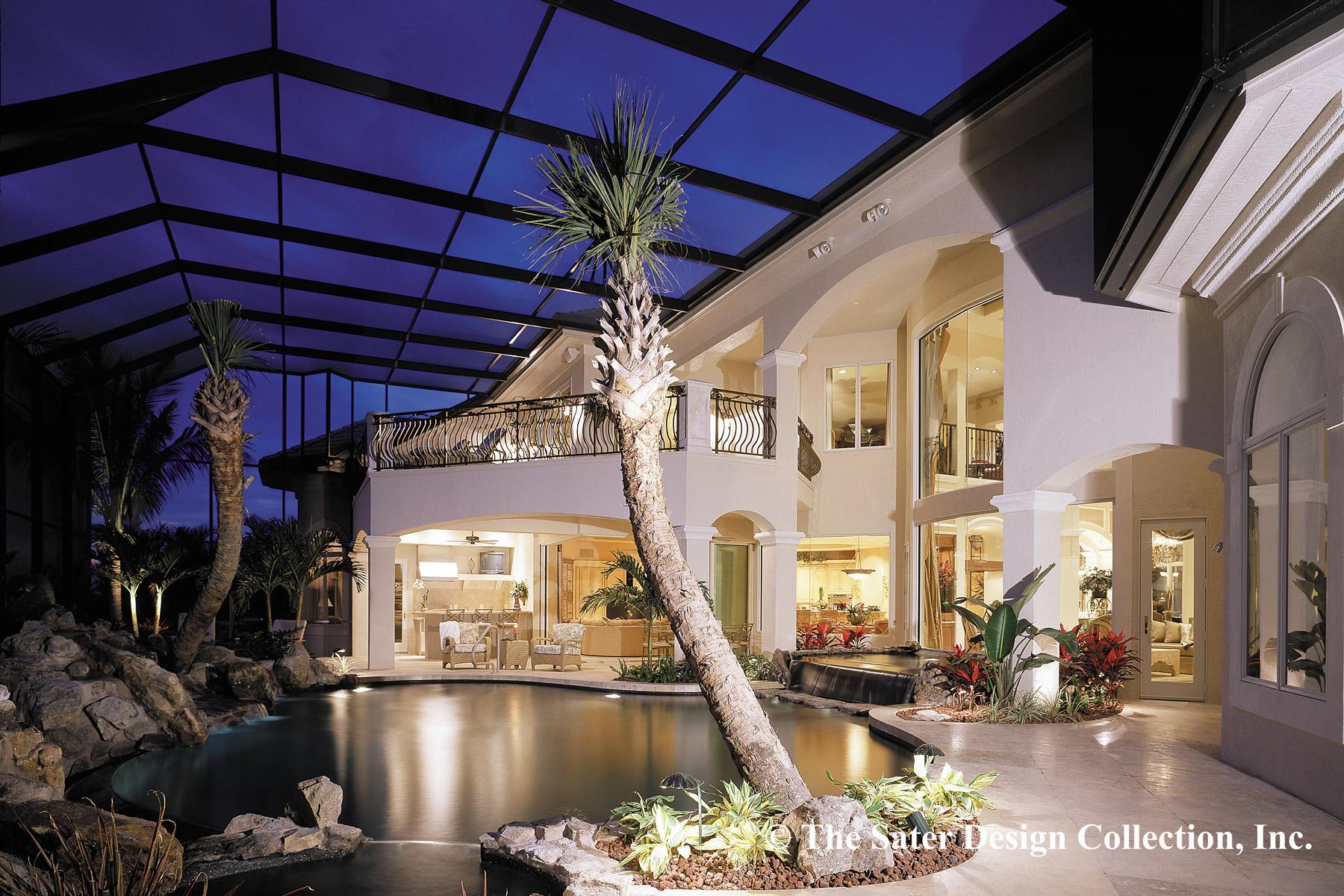

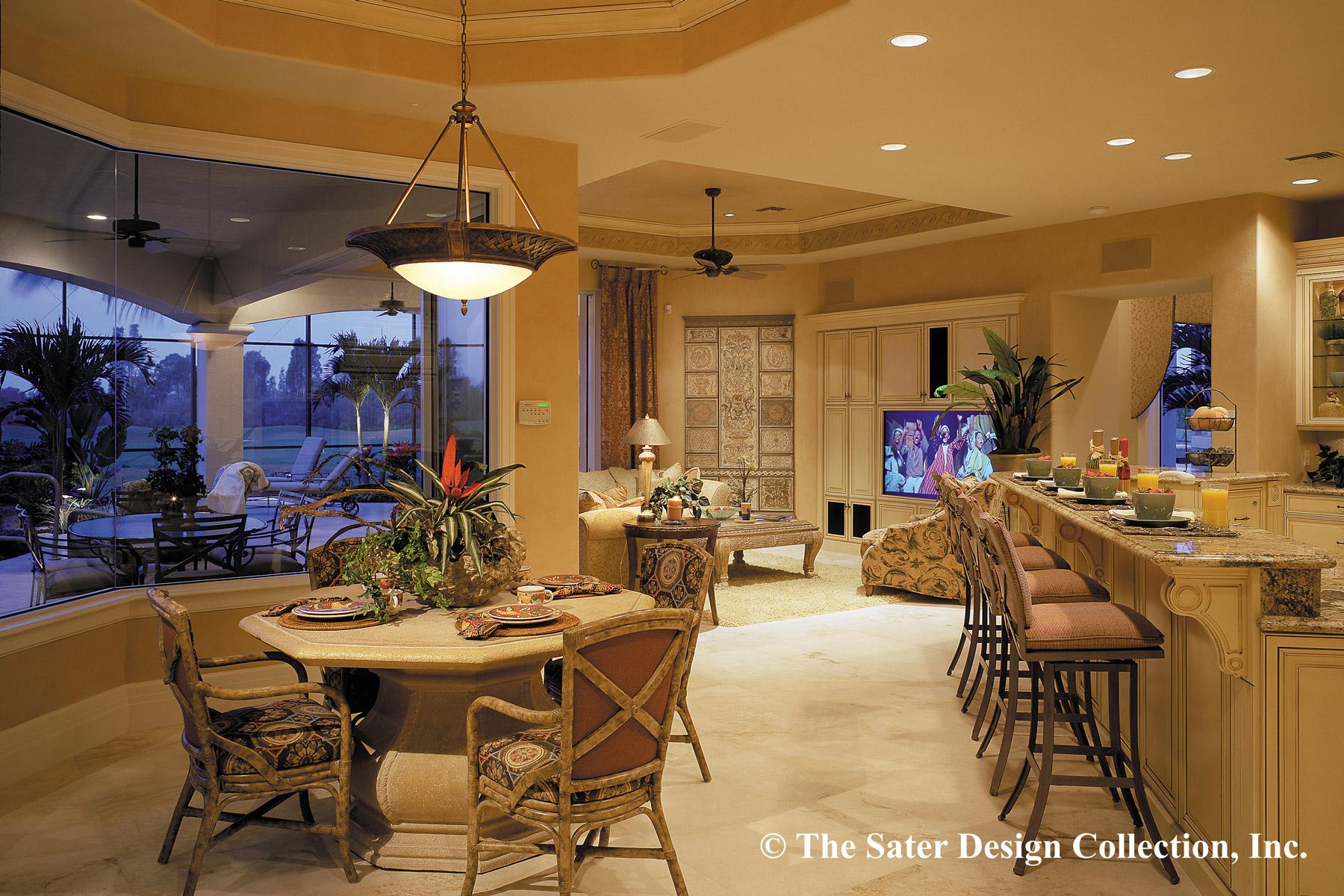

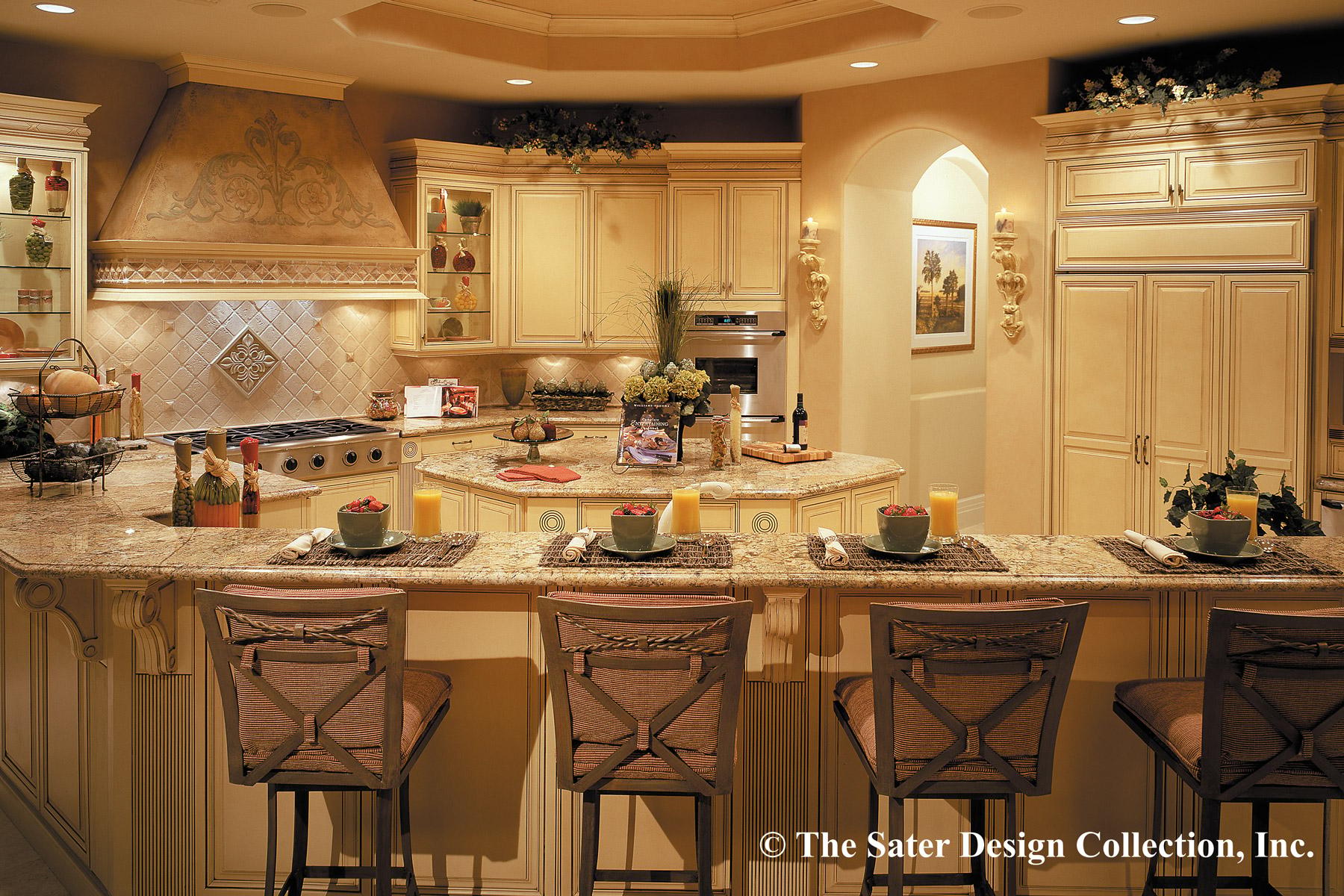

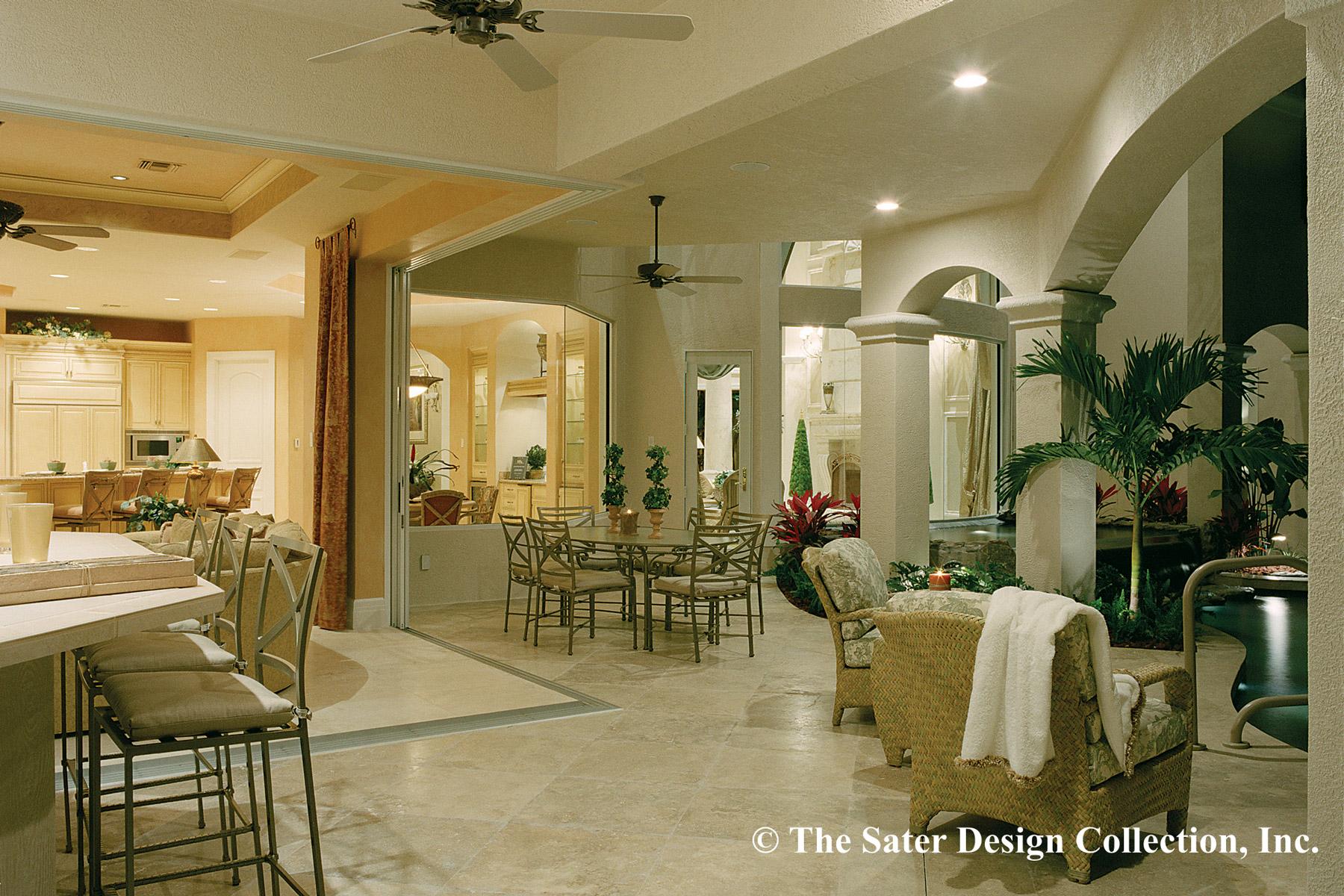

  • Central to the informal family area is the leisure room, kitchen, and nook; all defined with stepped ceilings. This core area for family gatherings melds into one and connects to the verandah via retreating glass walls.

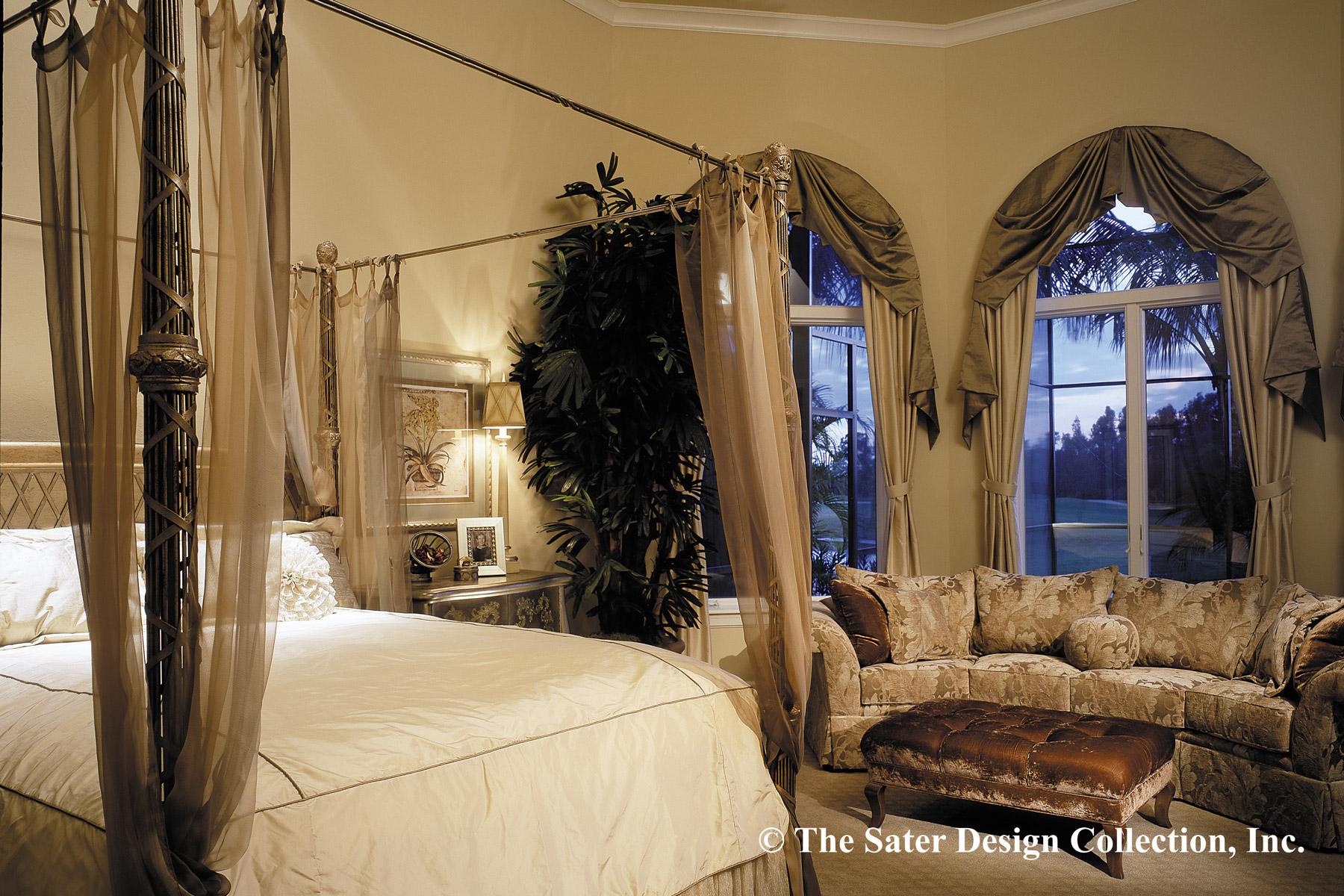

  • The master foyer leads into the master suite showcasing stepped ceilings and spacious his and her closets. The master bath is a relaxing haven with a large walk-in shower, whirlpool tub, dual sink vanity, and a master garden.

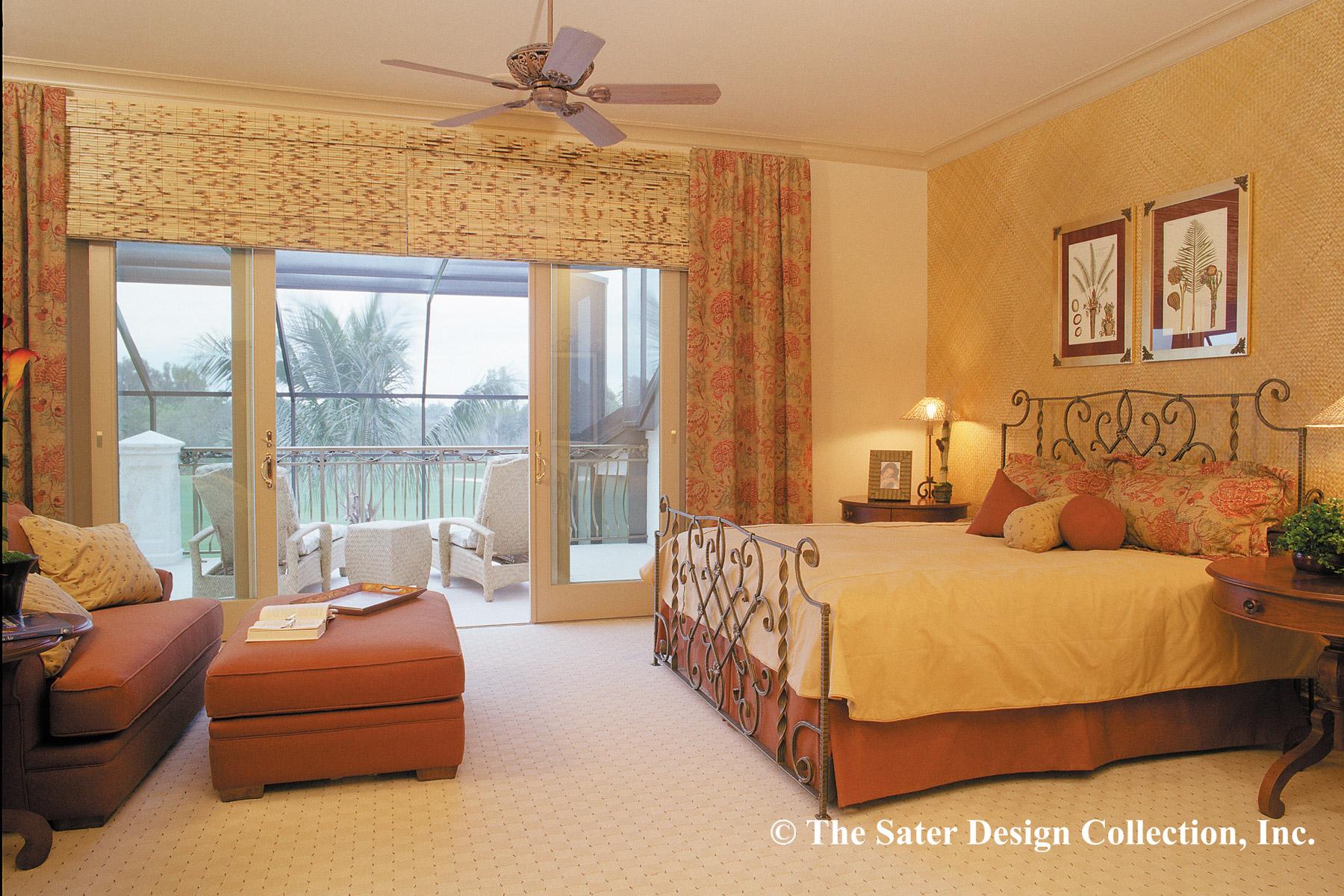

  • The guest bedrooms are cozily sequestered on the opposite side of the home. Each guest bedroom boasts a full, luxurious bath with walk-in closets and they lead out to the veranda.

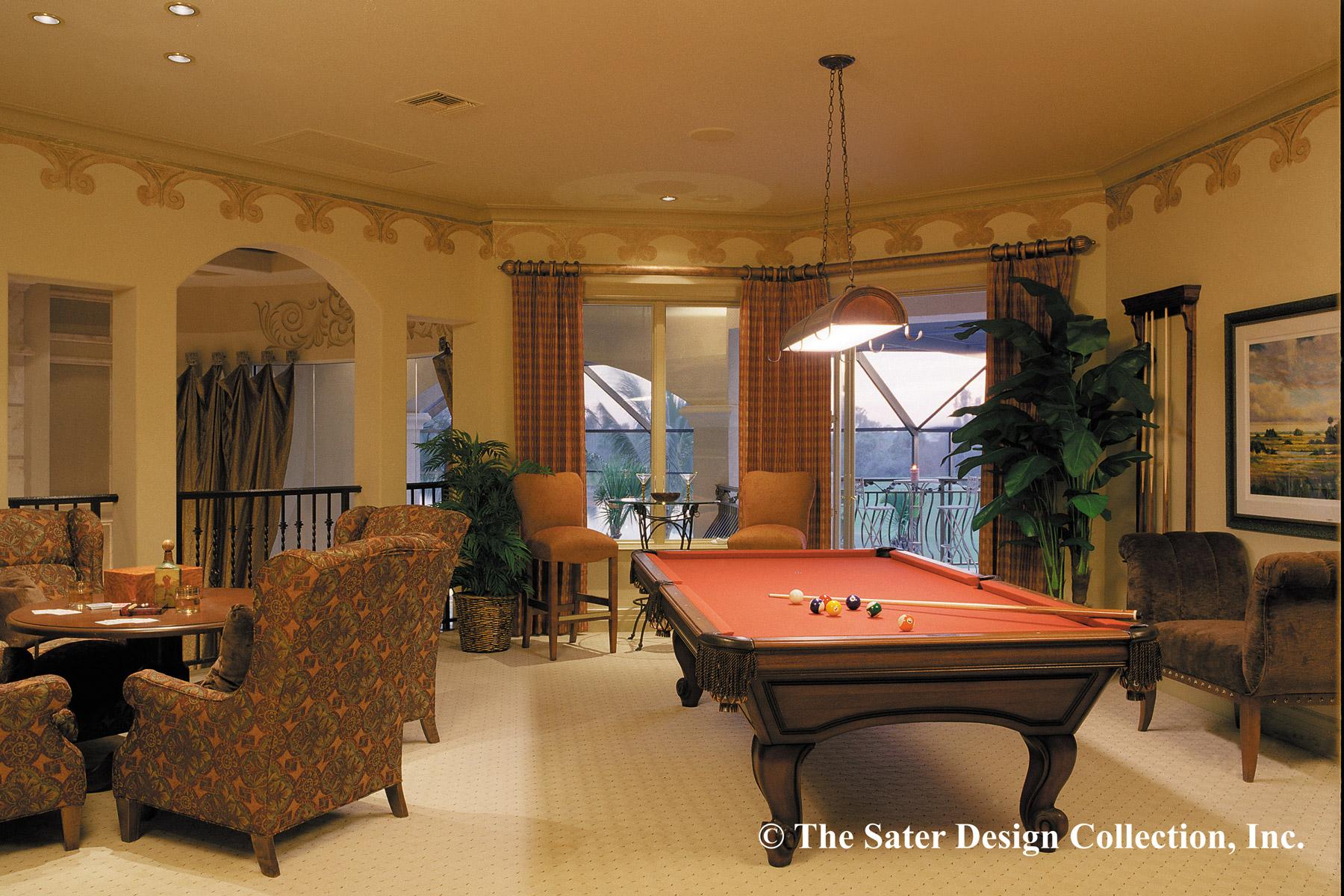

  • At the top of a staircase, the second floor offers limitless entertaining and living possibilities with a multi-purpose loft and two spacious guests suites with private decks.
  • Related Plan: Find a slightly larger floor plan with 340033STR.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

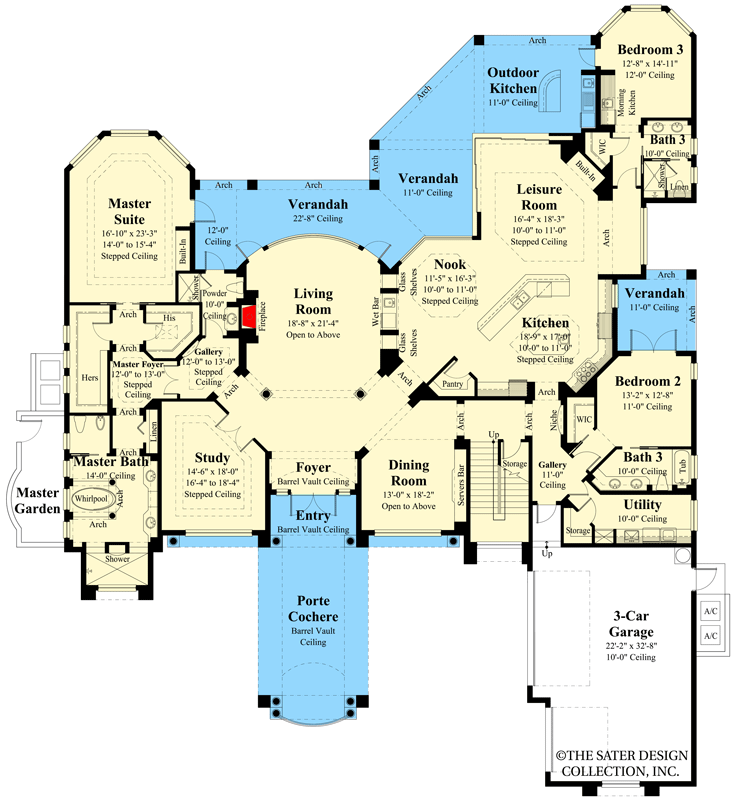

5-Bed Mediterranean House Plan with Large Veranda - 340039STR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

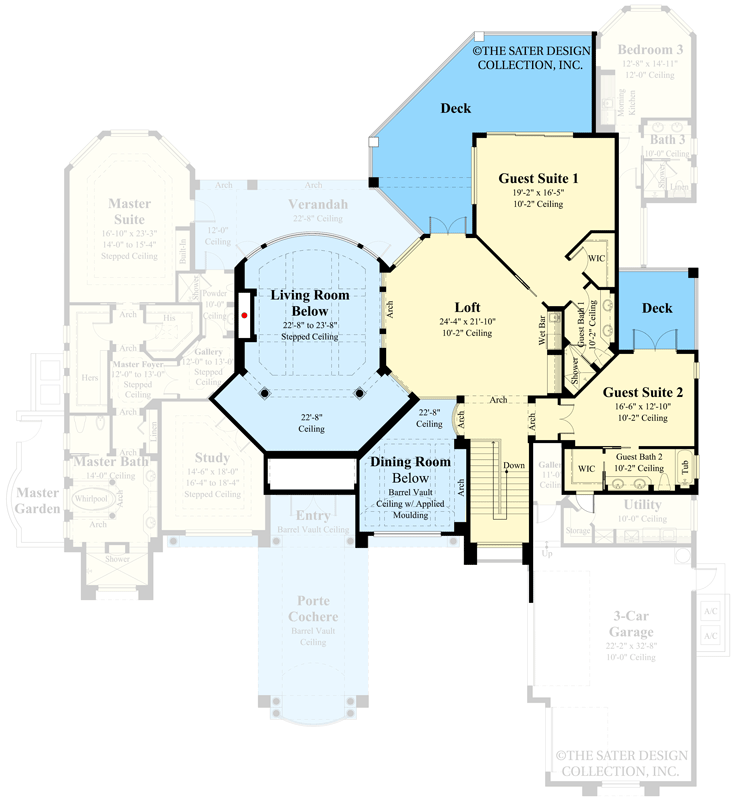

5-Bed Mediterranean House Plan with Large Veranda - 340039STR floor plan - 2nd Floor

Plan details

5-Bed Mediterranean House Plan with Large Veranda

  • 5,816

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $4,656
  • CAD - Single-Build $8,730
  • View all purchase option online

About This Plan

  • This European inspired gem is a popular Mediterranean house plan that features 5,820 square feet of living area with five bedrooms and six baths. A dramatic entry leads you into the two-storied grand interior.
  • A stunning living room takes center stage, with a soaring curved and coffered ceiling and a 22' bowed glass wall. A pass-thru wet bar connects the formal living room to the common living areas, and a nearby dining room offers frontal views.
  • Central to the informal family area is the leisure room, kitchen, and nook; all defined with stepped ceilings. This core area for family gatherings melds into one and connects to the verandah via retreating glass walls.
  • The master foyer leads into the master suite showcasing stepped ceilings and spacious his and her closets. The master bath is a relaxing haven with a large walk-in shower, whirlpool tub, dual sink vanity, and a master garden.
  • The guest bedrooms are cozily sequestered on the opposite side of the home. Each guest bedroom boasts a full, luxurious bath with walk-in closets and they lead out to the veranda.
  • At the top of a staircase, the second floor offers limitless entertaining and living possibilities with a multi-purpose loft and two spacious guests suites with private decks.
  • Related Plan: Find a slightly larger floor plan with 340033STR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,816 sq. ft.
  • 1st Floor: 4,385 sq. ft.
  • 2nd Floor: 1,431 sq. ft.
  • Balcony / Veranda: 782 sq. ft.
  • Deck: 633 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Walkout, Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 110' 1"
  • Max ridge height: 36' 8"

Garage

  • Type: Attached
  • Area: 778 sq. ft.
  • Count: 3 Cars
