Plan 66349WE

5 Bed Mediterranean Inspired Villa

Name: Plan 66349WE: 5 Bed Mediterranean Inspired Villa
Brand: Architectural Designs
SKU: 66349WE
Price: 7500.0 USD
Availability: InStock

Heated S.F.

8,359

Beds

Baths

5.5+

Stories

Cars

Floor Plan

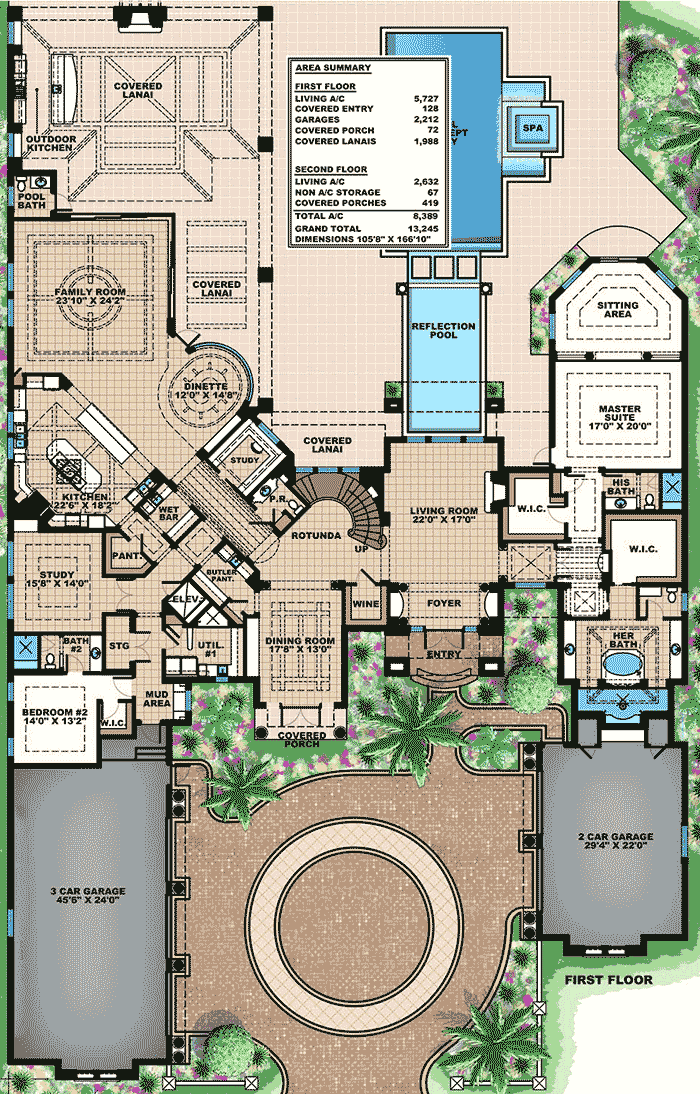

Main Level

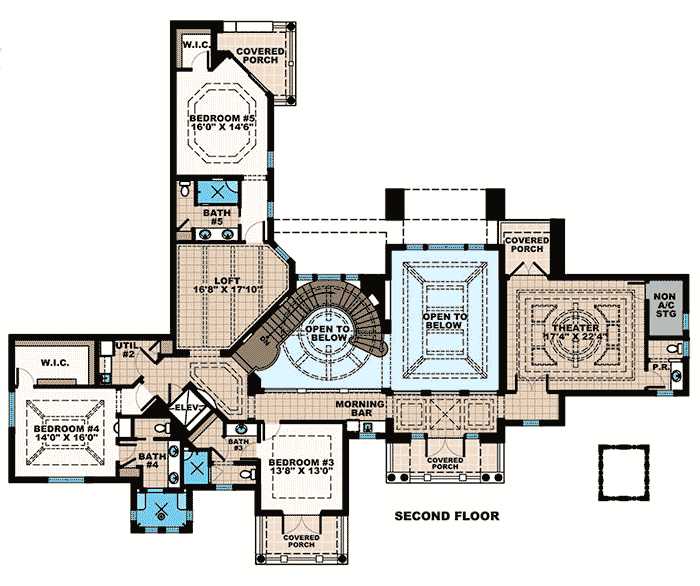

2nd Floor

Plan Details

This stunningly beautiful Mediterranean house plan is loaded with every imaginable luxury including a residential elevator, a gorgeous curved staircase, a wine cellar and special ceiling treatments in every room of the house.
Sightlines are amazing as your views sweep through room after room.
The opulent master suite takes up the whole right wing of the home and is designed to pamper homeowners in a grand way including his and her bathrooms.
Put your feet up on a chaise lounge in the master sitting room where there are lots of windows and a sliding glass door to the back yard.
The outdoor space is enormous, bigger than most people's houses, and boasts a summer kitchen and an outdoor fireplace to keep you and your guests warm.
On the second floor, a huge home theater room has a spectacular ceiling and a half bathroom plus a large walk-in storage closet.
Two of the luxurious bedrooms on this floor have their own private covered porches and there's a morning bar in the hall for all three bedrooms.

What's Included

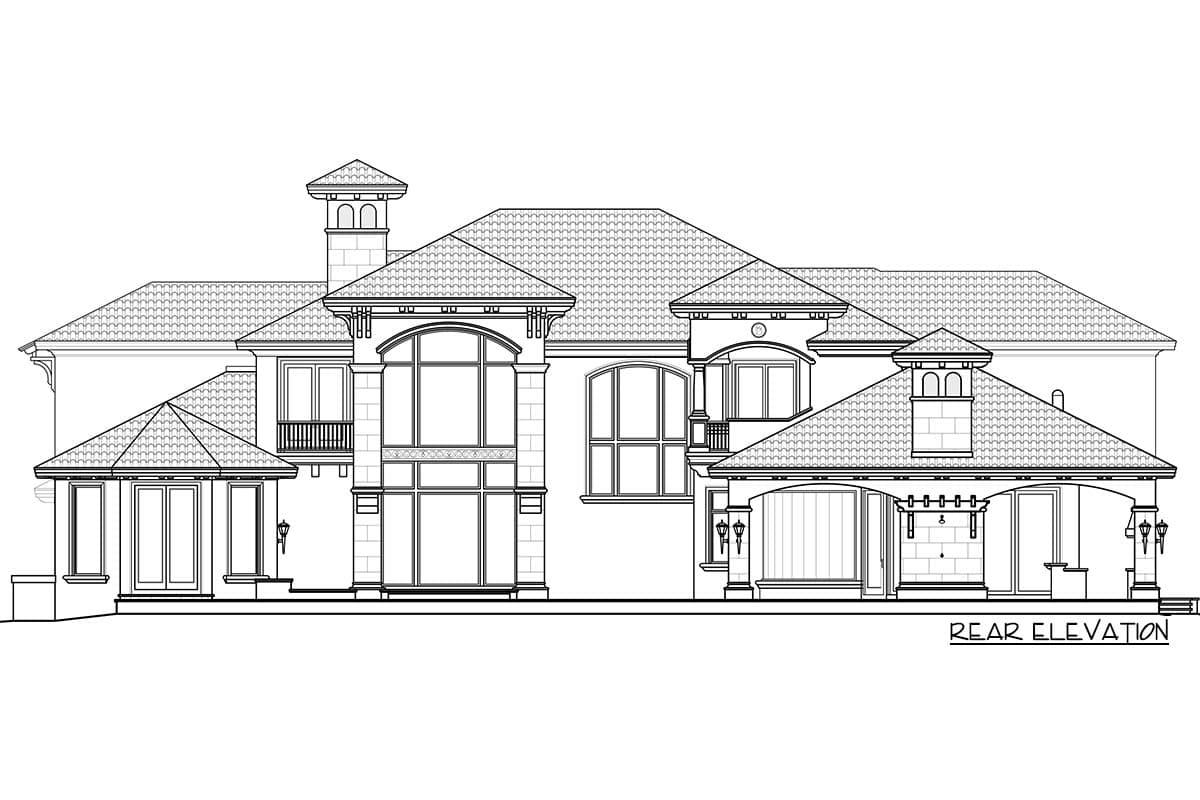

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
