5-Bed Modern Mountain Home Plan with Office and Formal Dining Room

Heated S.F.
4,643
Beds
5
Baths
4.5+
Stories
2
Cars
3

Floor Plan

Plan 666216RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666216RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

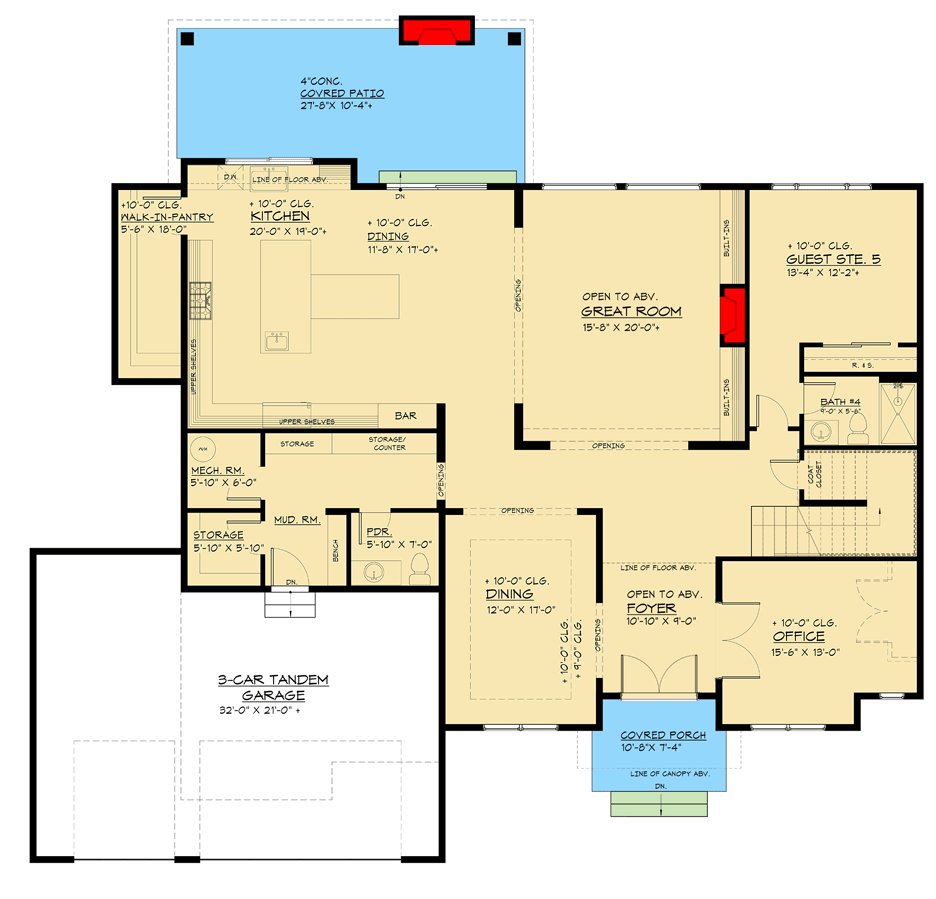

Plan 666216RAF: 5-Bed Modern Mountain Home Plan with Office and Formal Dining Room - Floor Plan - Main Level

2nd Floor

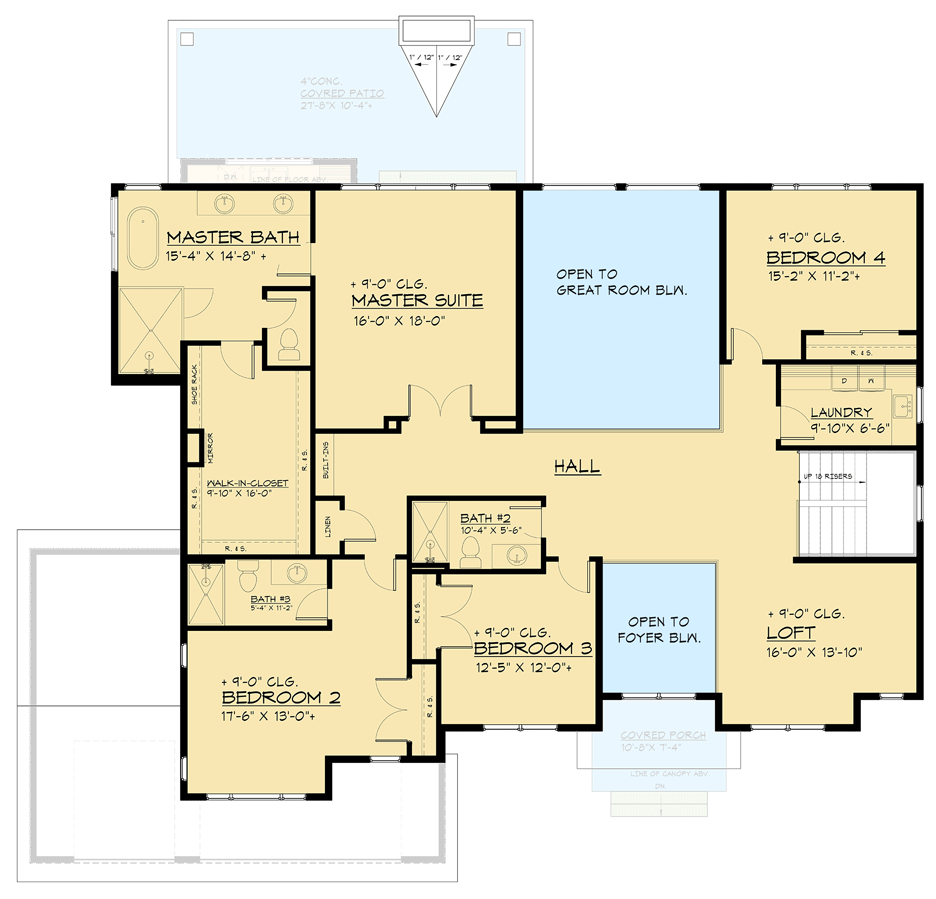

Plan 666216RAF: 5-Bed Modern Mountain Home Plan with Office and Formal Dining Room - Floor Plan - 2nd Floor

Plan Details

  • Vertical siding, a ribbed metal roof, and oversized windows add a modern edge to this 5-bedroom Mountain home plan that totals 4,643 square feet of living space.
  • The gourmet kitchen is spacious and ideal for entertaining with a T-shaped island providing a space for casual meals, while a formal dining room near the foyer lends a more intimate space to dine.
  • The defined great room boasts tall ceilings, along with a fireplace surrounded by builtins, and the rear porch is covered to enjoy outdoor living throughout the seasons.
  • Upstairs, french doors reveal the master suite that is accompanied by a spa bath with a freestanding tub and walk-in closet. Three family bedrooms, a loft, and laundry room complete the second level.
  • Other notable features include a home office and guest suite on the main level, as well as a mudroom just inside from the 3-car garage.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,643 sq. ft.

1st Floor

2,422 sq. ft.

2nd Floor

2,221 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

313 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

56' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

746 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Kitchen Islands

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

4,643 sq. ft.

1st Floor

2,422 sq. ft.

2nd Floor

2,221 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

313 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

56' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

746 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Kitchen Islands

Two Story Great Room

Walk-in Pantry
