Plan 23793JD

5-Bed Northwest House Plan with Two Master Beds

5-Bed Northwest House Plan with Two Master Beds

Plan 23793JD

  • 5,437

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

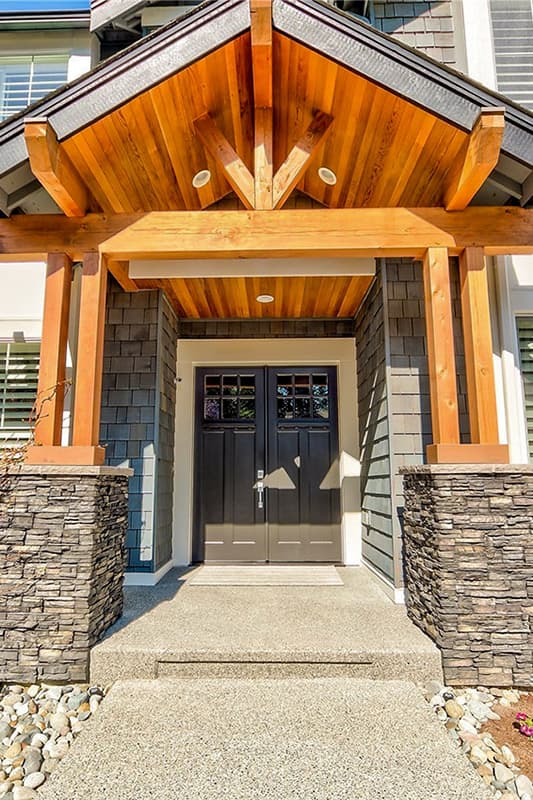

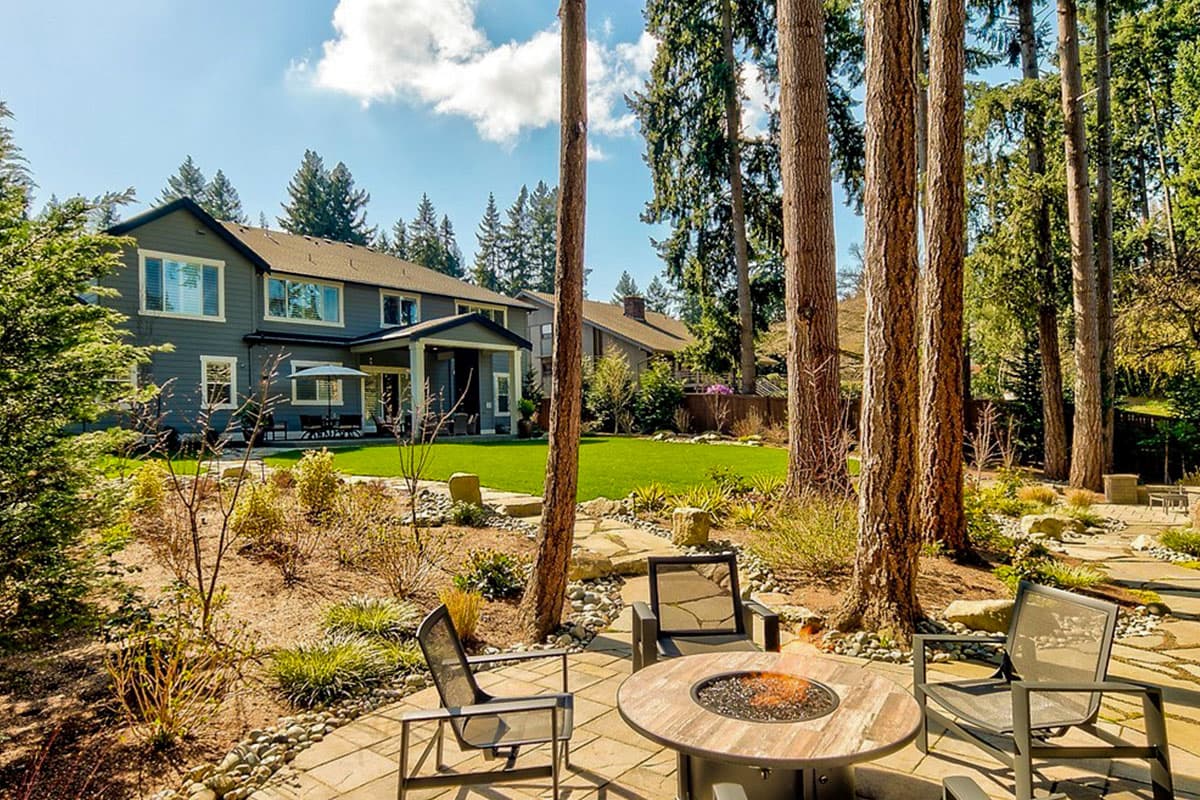

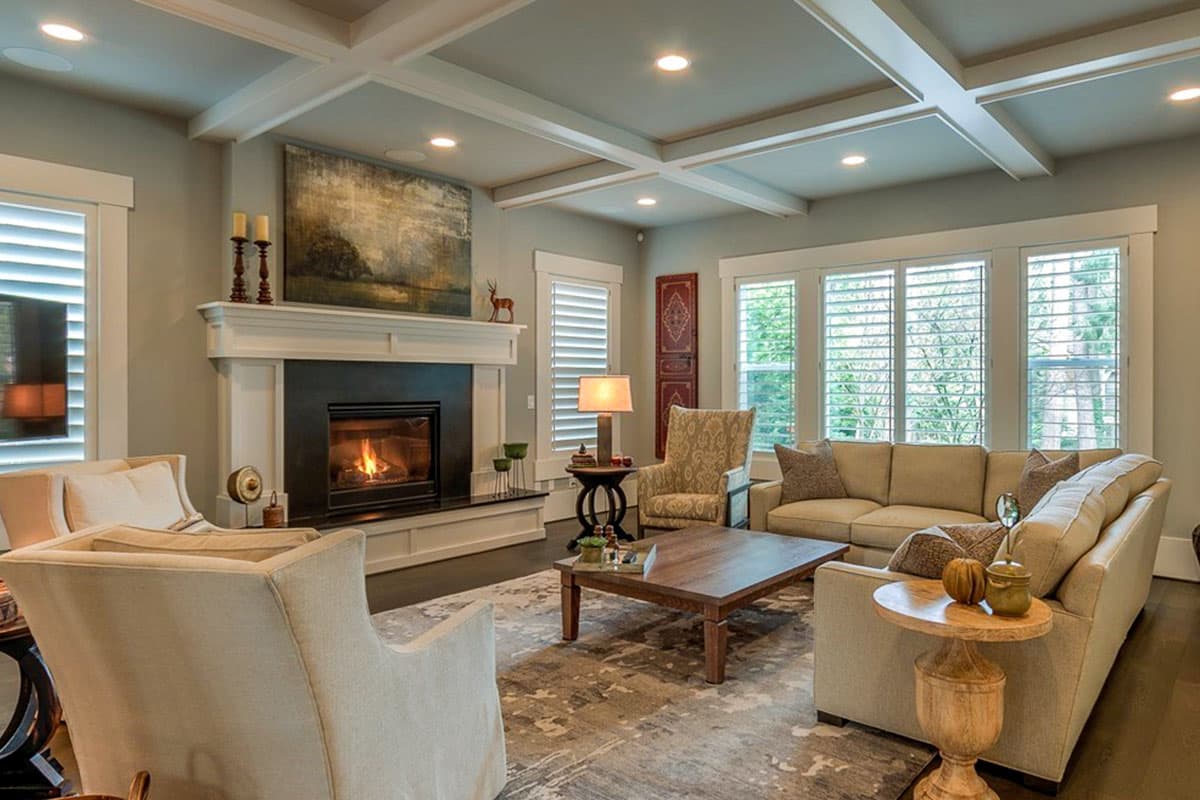

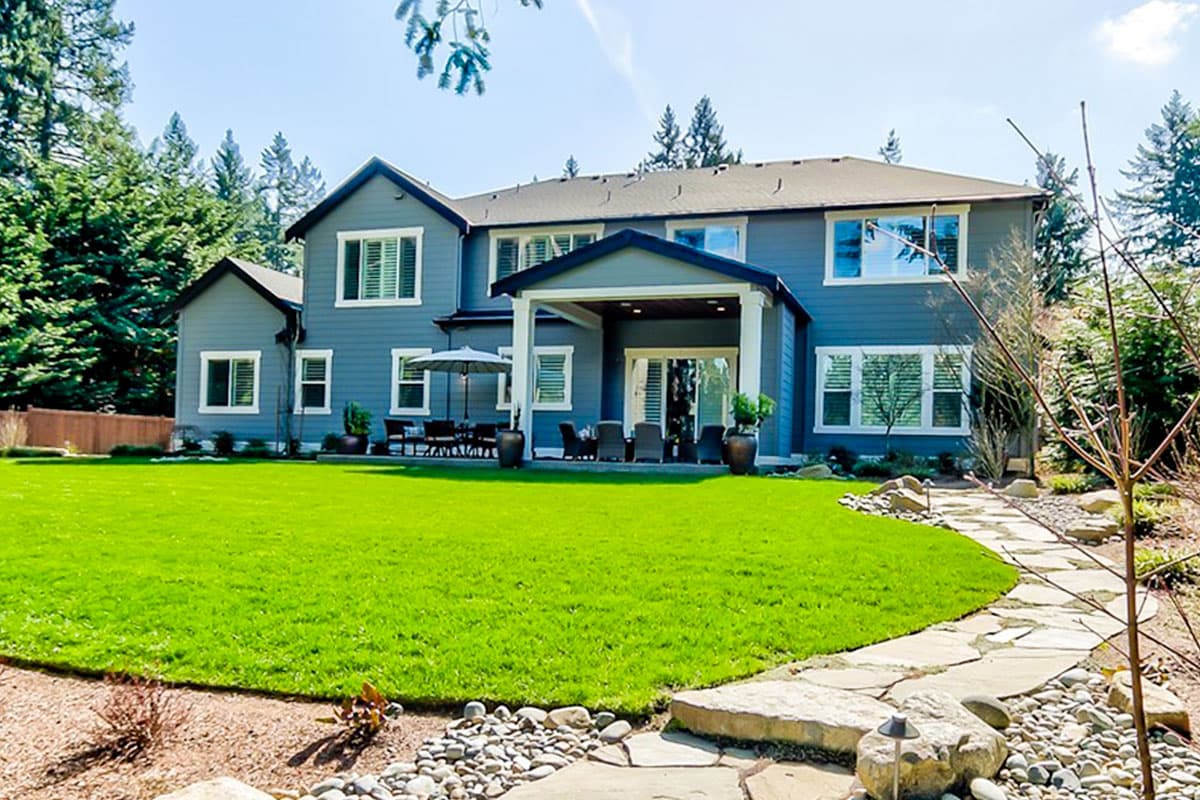

  • Shake siding, decorative pergolas, and a timber-frame gabled porch compliment one another on the exterior of this gorgeous, 5-bedroom house plan, featuring tray and coffered ceilings, two fireplaces, a media room, bonus room, and two master bedrooms.

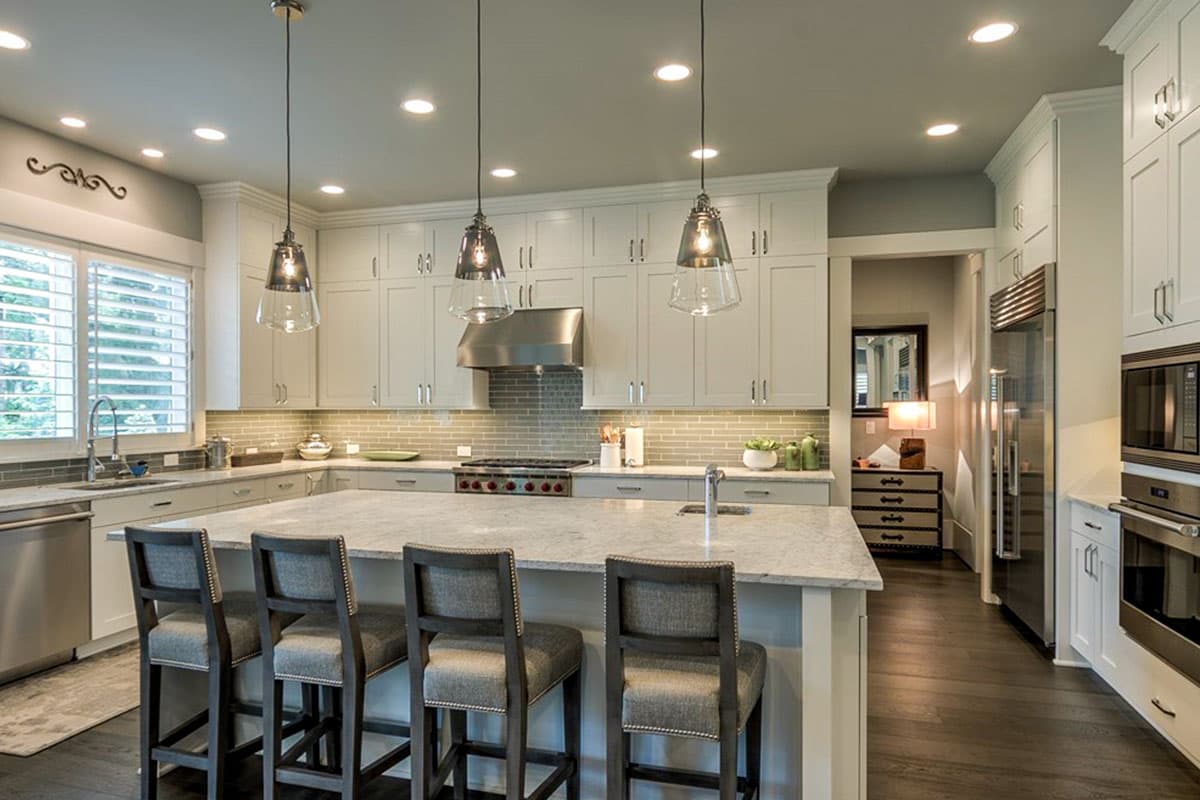

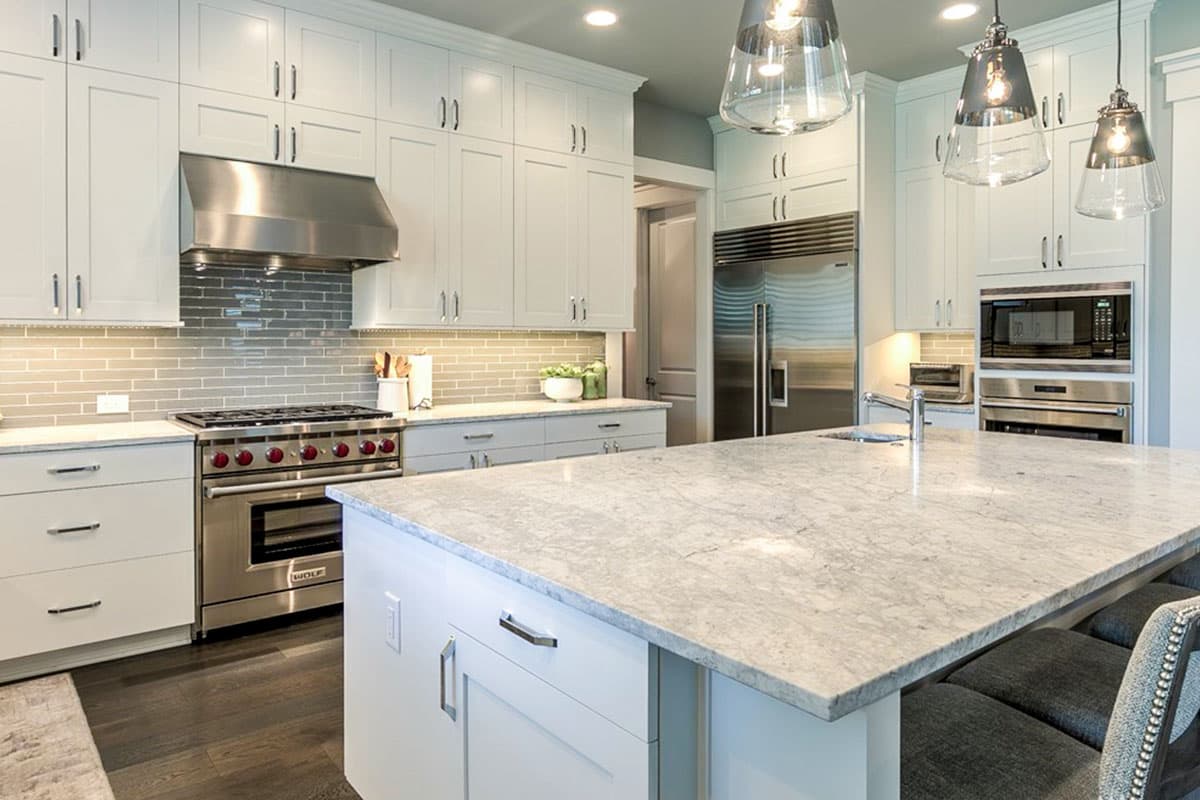

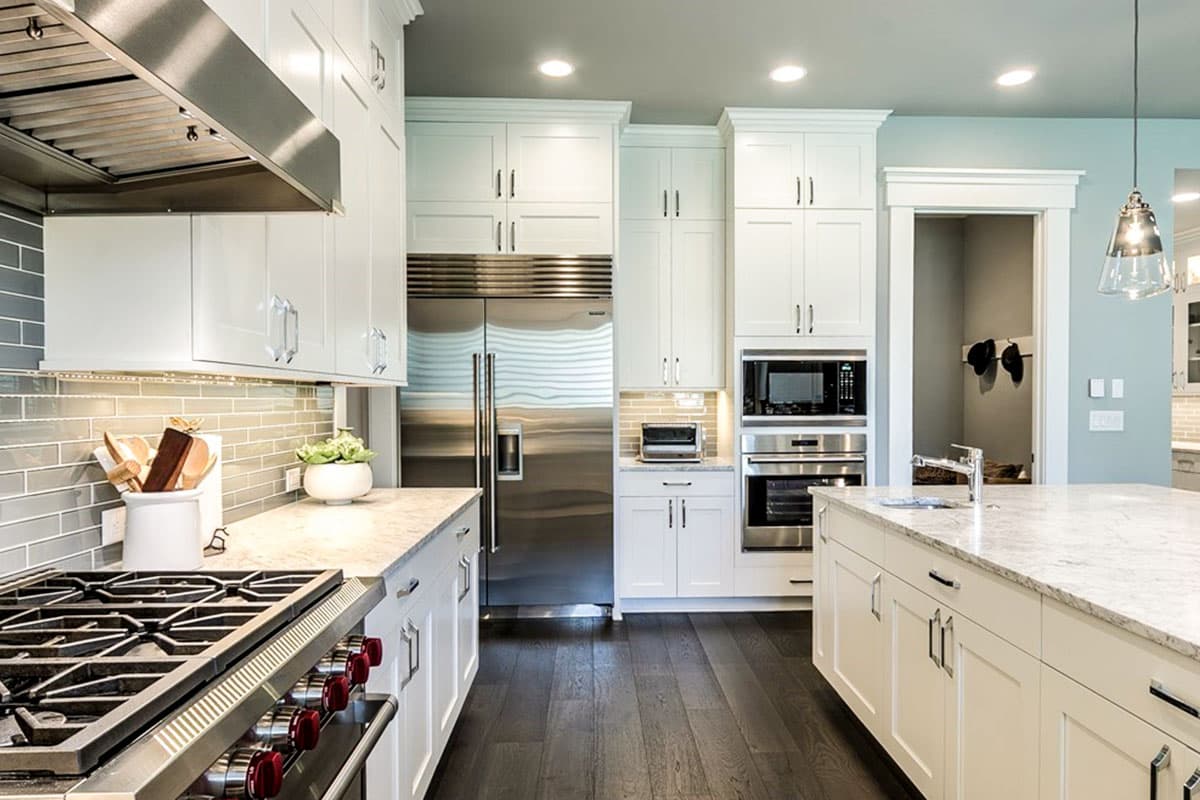

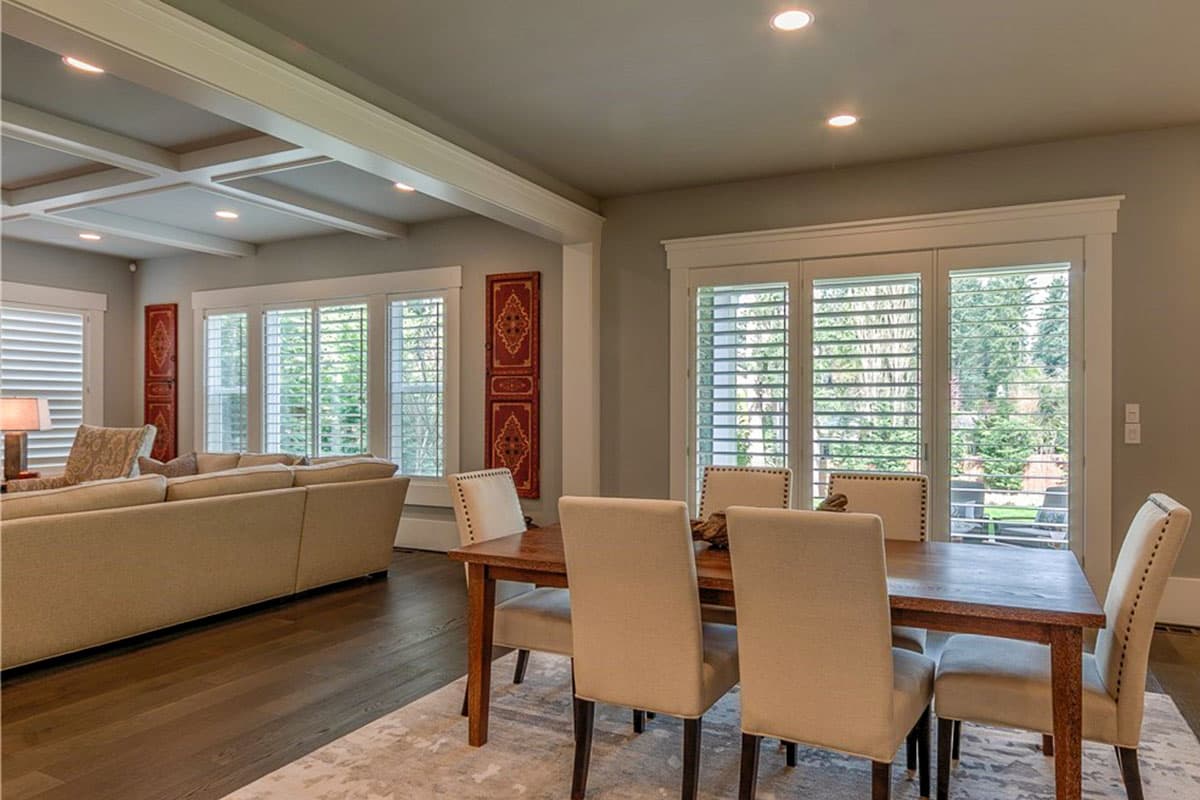

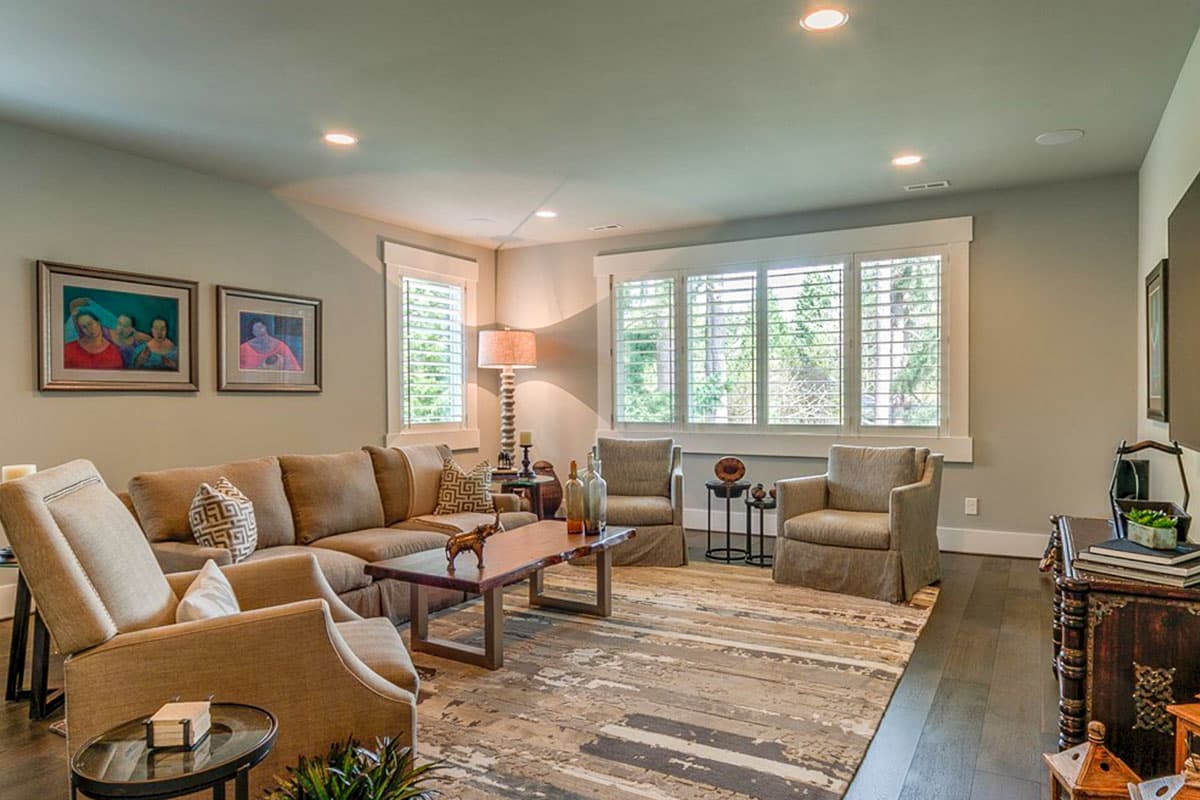

  • Clean sight lines between the great room, breakfast nook, and kitchen are provided due to an open floor plan, making entertaining easy and comfortable. A spacious kitchen encourages creativity when cooking, and a walk-in pantry helps the homeowner remain organized.

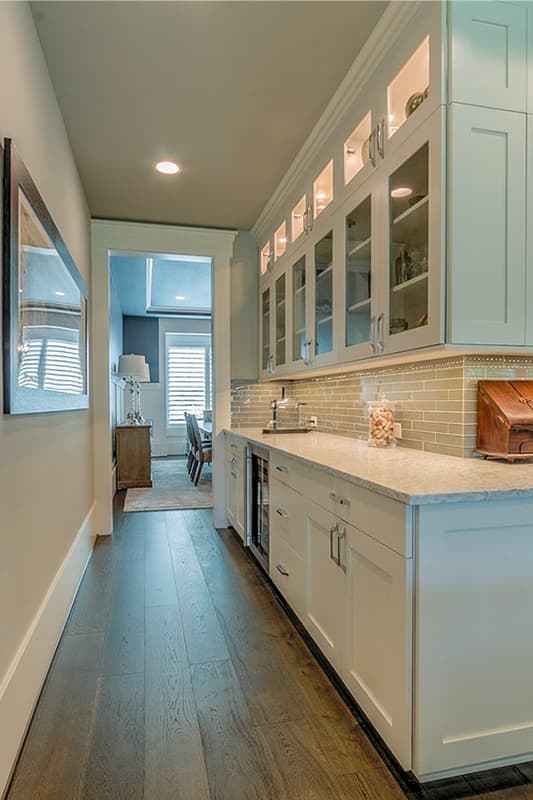

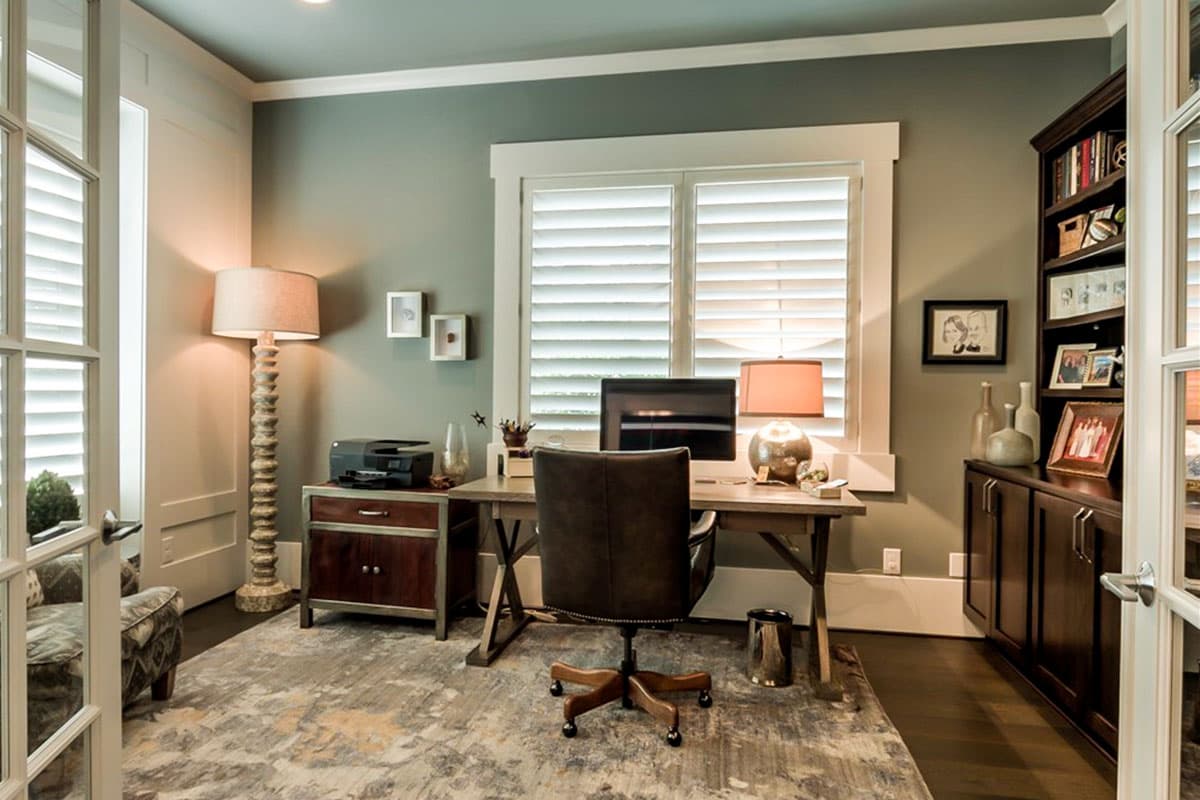

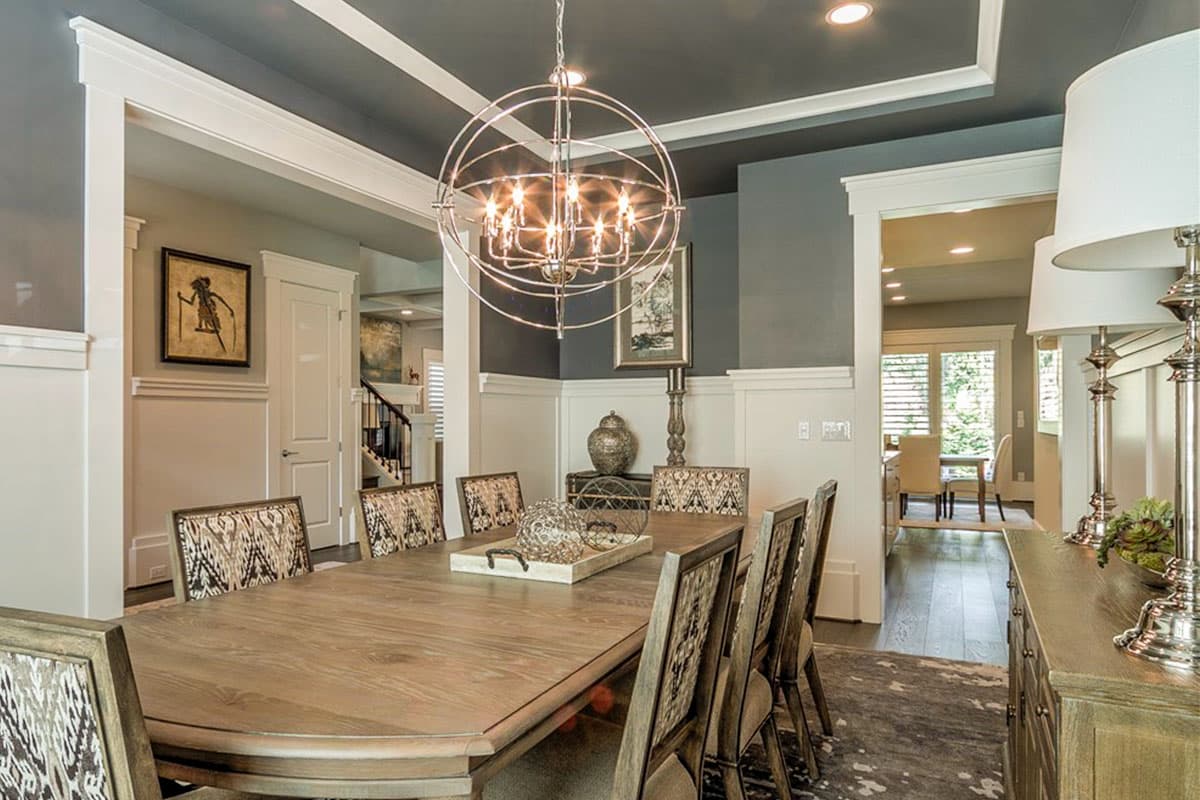

  • A butler's pantry connects the kitchen to the dining room which is located towards the front of the home, across from a private den.

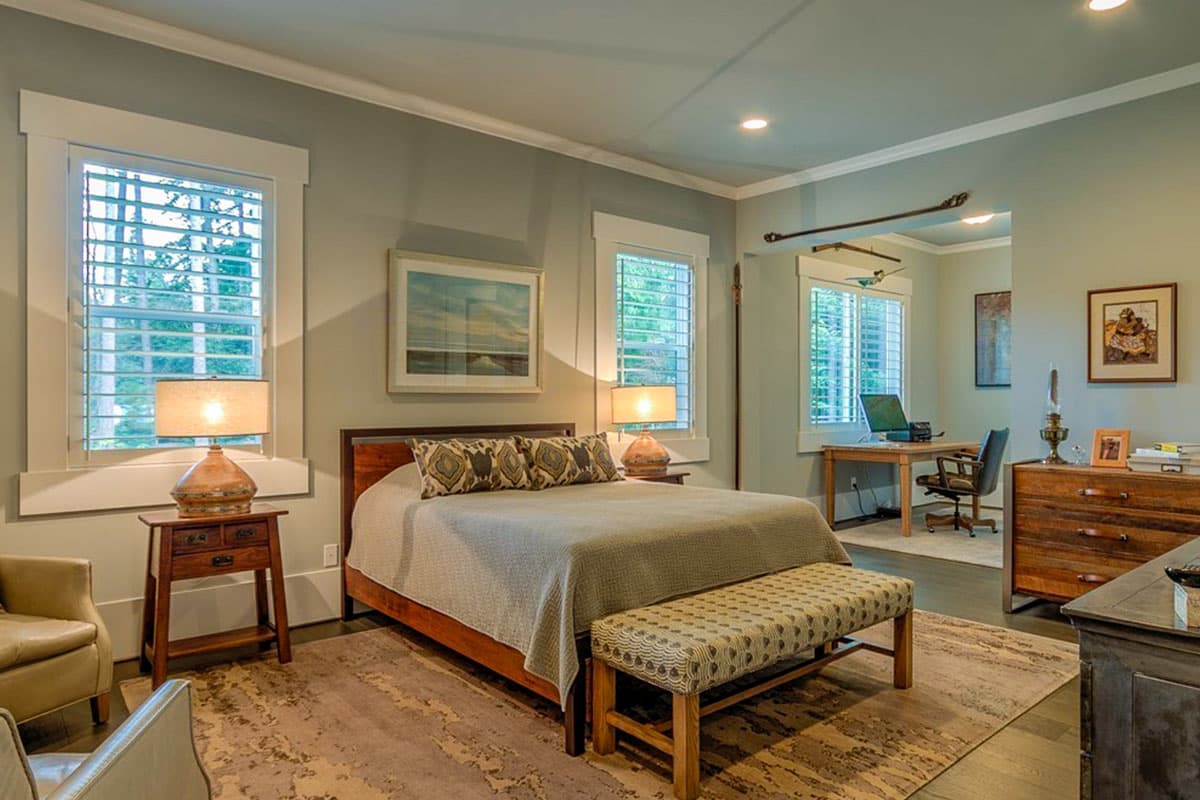

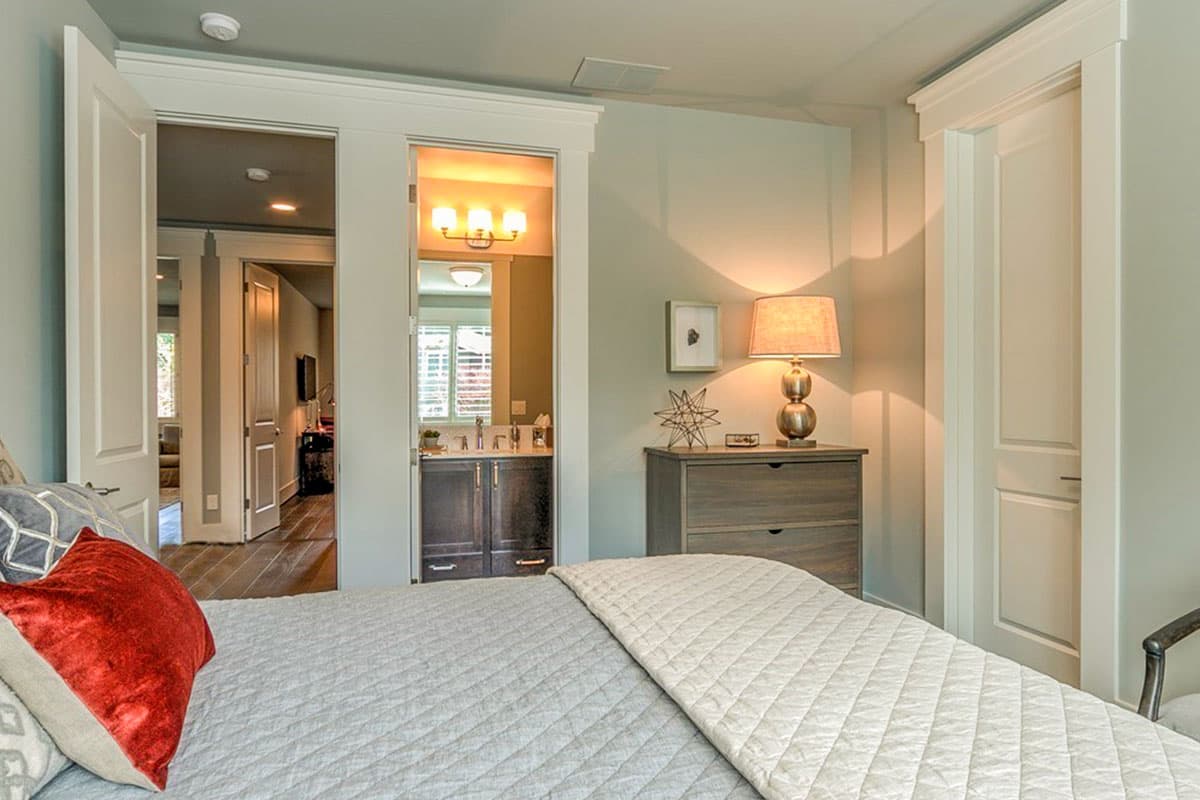

  • The main level provides a master bedroom, or guest bedroom, which includes a sitting nook, 5-fixture bathroom, and walk-in closet.

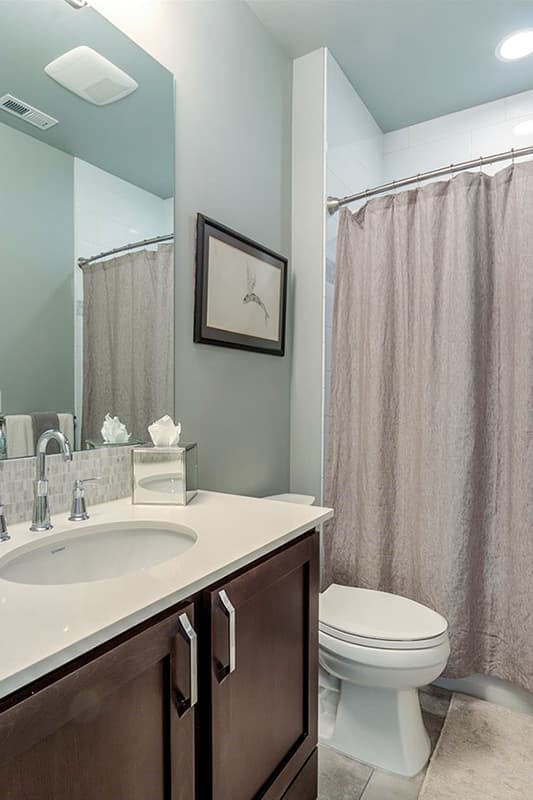

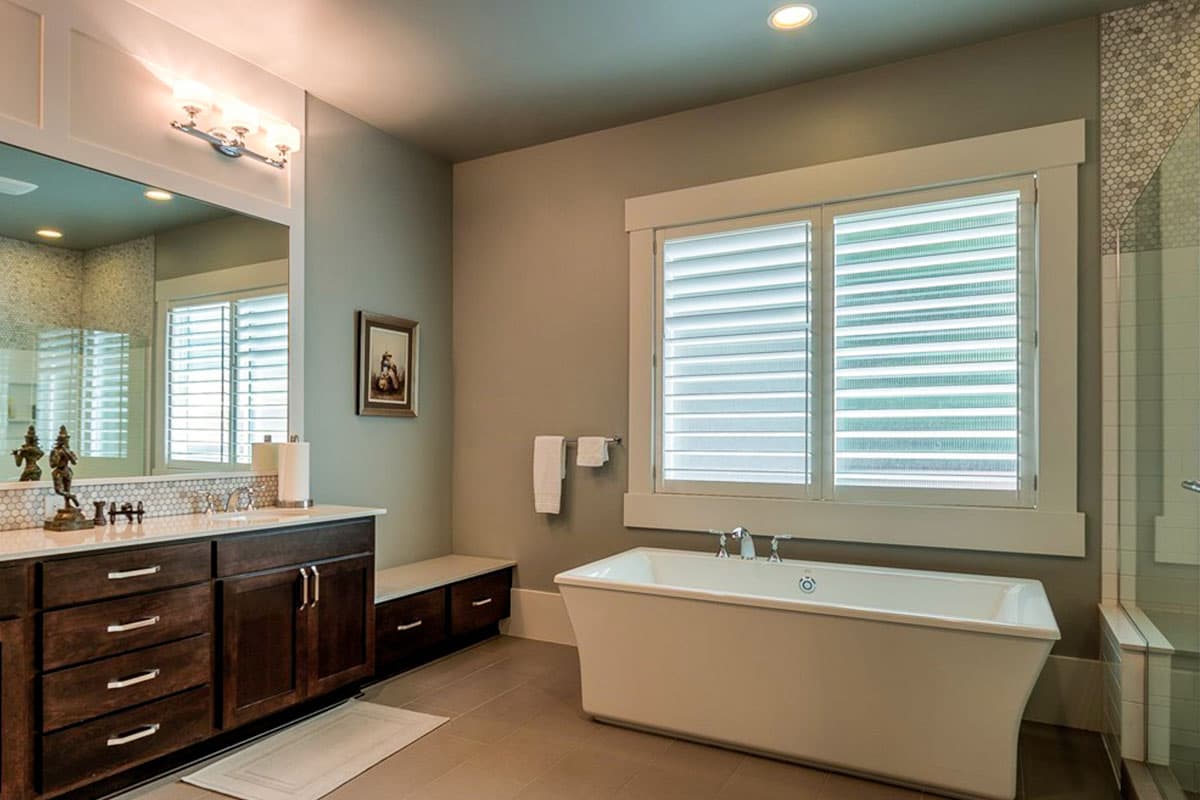

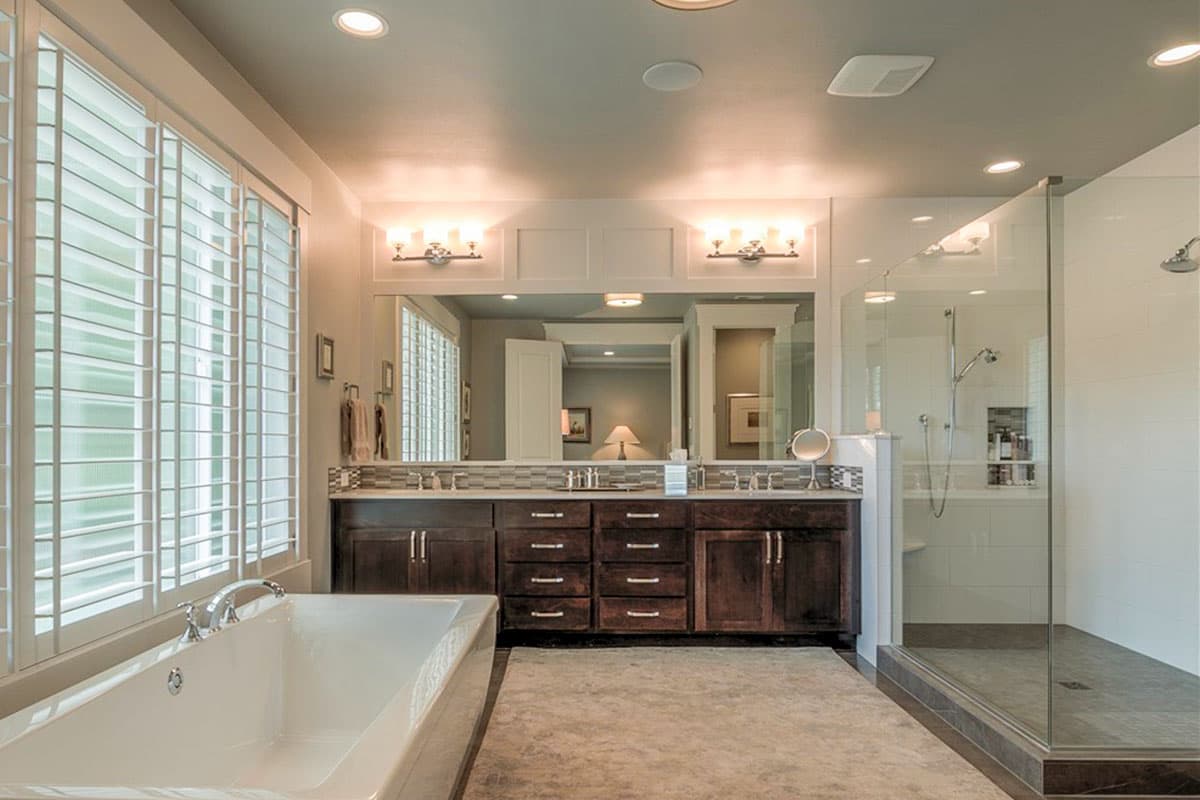

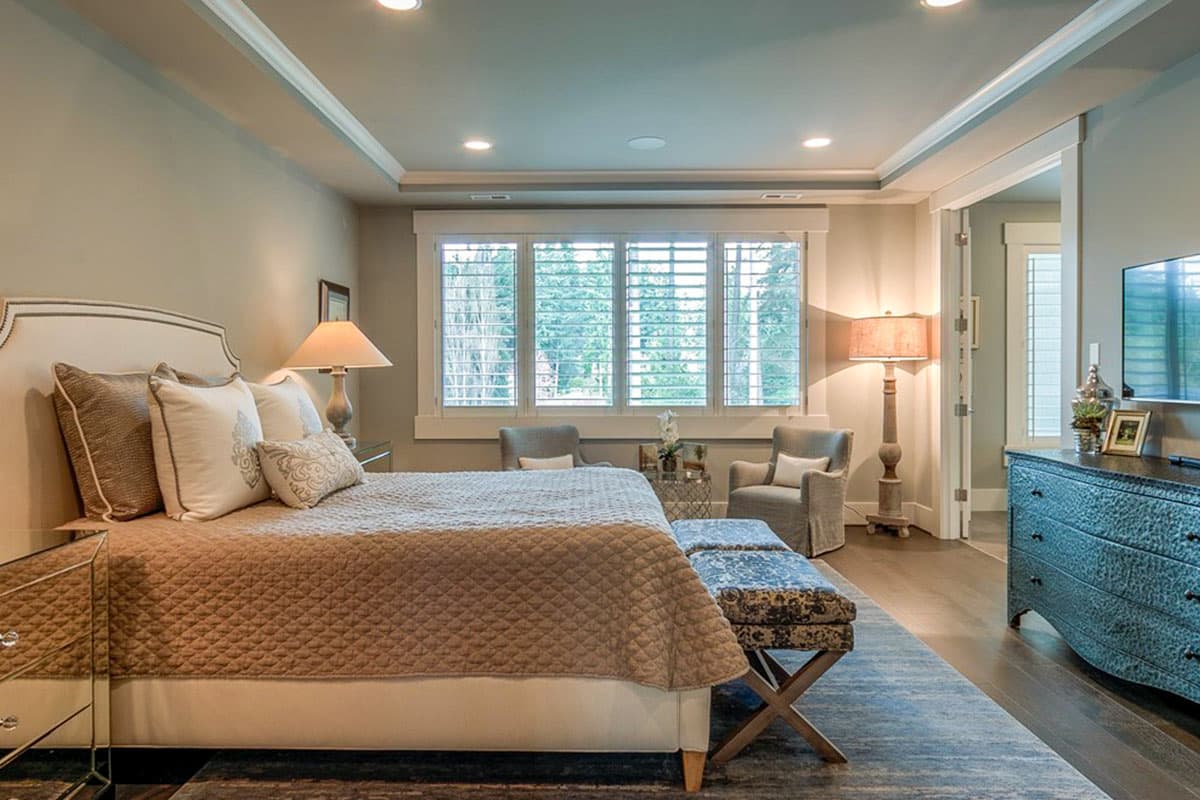

  • Upstairs, a second master bedroom boasts a tray ceiling, roomy walk-in closet, and bathroom with dual vanities and a separate tub and shower. Three additional bedrooms include full bathrooms, and a second-level laundry room simplifies the chore.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

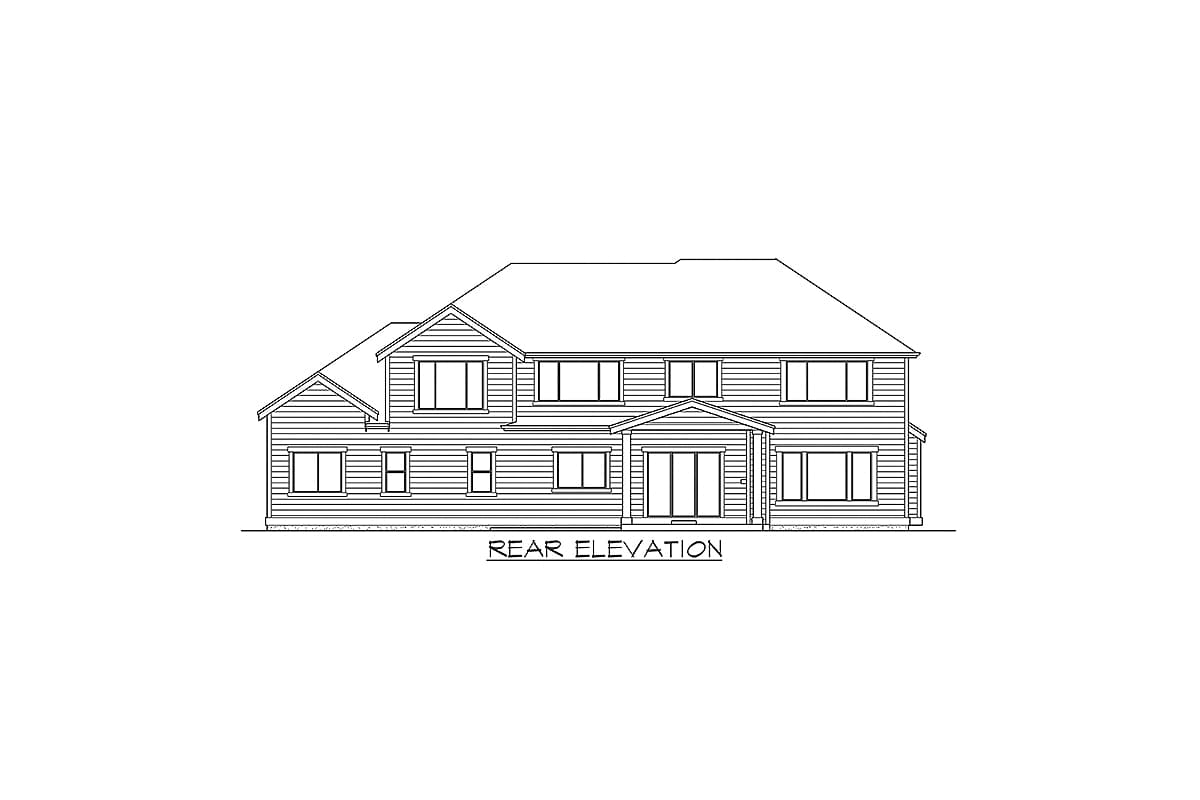

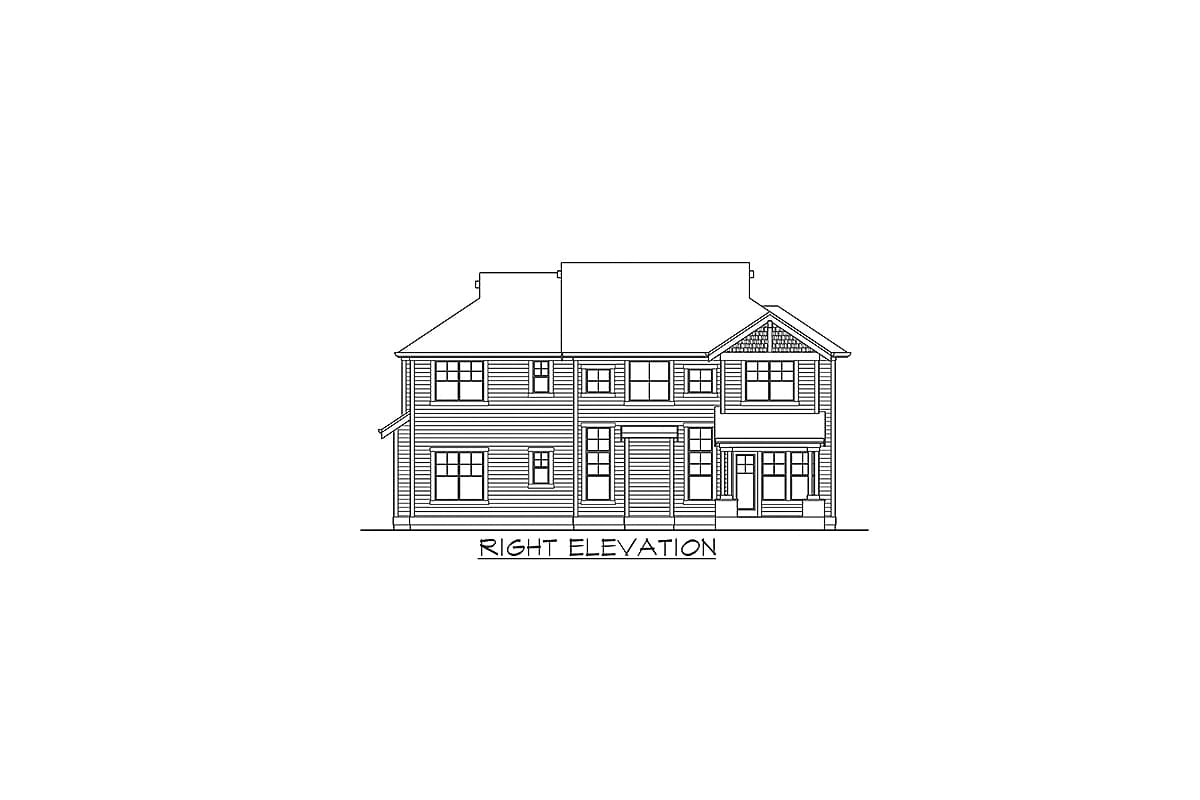

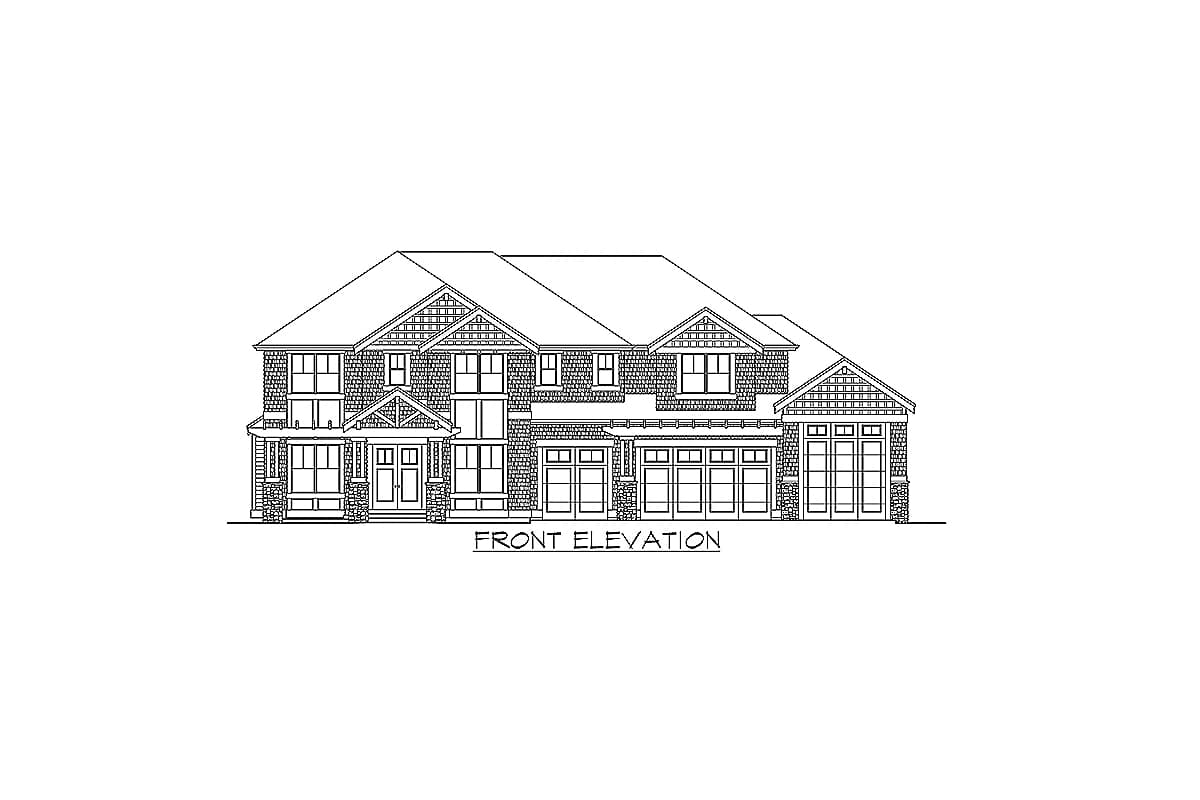

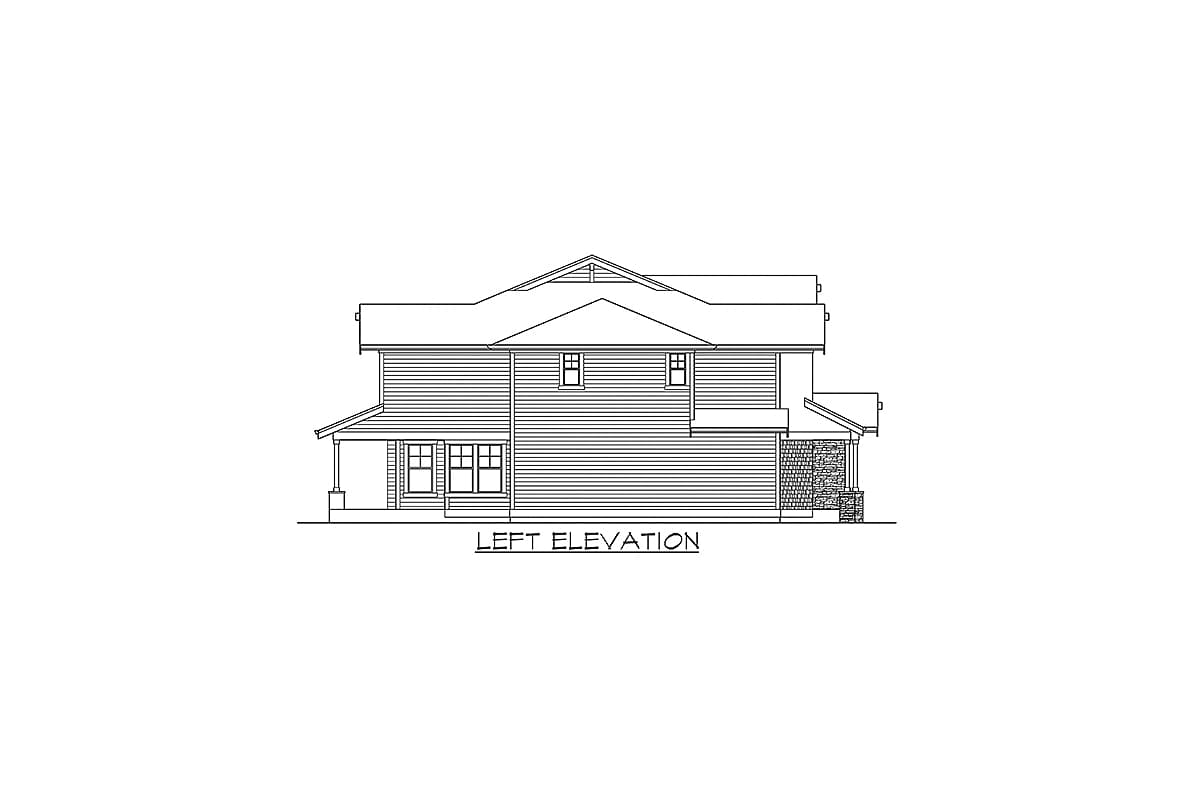

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



5-Bed Northwest House Plan with Two Master Beds

  • 5,437

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $2,400
  • 5 Sets PLUS $2,650
  • CAD - multi-use $4,000
  • View all purchase option online

About This Plan

  • Shake siding, decorative pergolas, and a timber-frame gabled porch compliment one another on the exterior of this gorgeous, 5-bedroom house plan, featuring tray and coffered ceilings, two fireplaces, a media room, bonus room, and two master bedrooms.
  • Clean sight lines between the great room, breakfast nook, and kitchen are provided due to an open floor plan, making entertaining easy and comfortable. A spacious kitchen encourages creativity when cooking, and a walk-in pantry helps the homeowner remain organized.
  • A butler's pantry connects the kitchen to the dining room which is located towards the front of the home, across from a private den.
  • The main level provides a master bedroom, or guest bedroom, which includes a sitting nook, 5-fixture bathroom, and walk-in closet.
  • Upstairs, a second master bedroom boasts a tray ceiling, roomy walk-in closet, and bathroom with dual vanities and a separate tub and shower. Three additional bedrooms include full bathrooms, and a second-level laundry room simplifies the chore.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

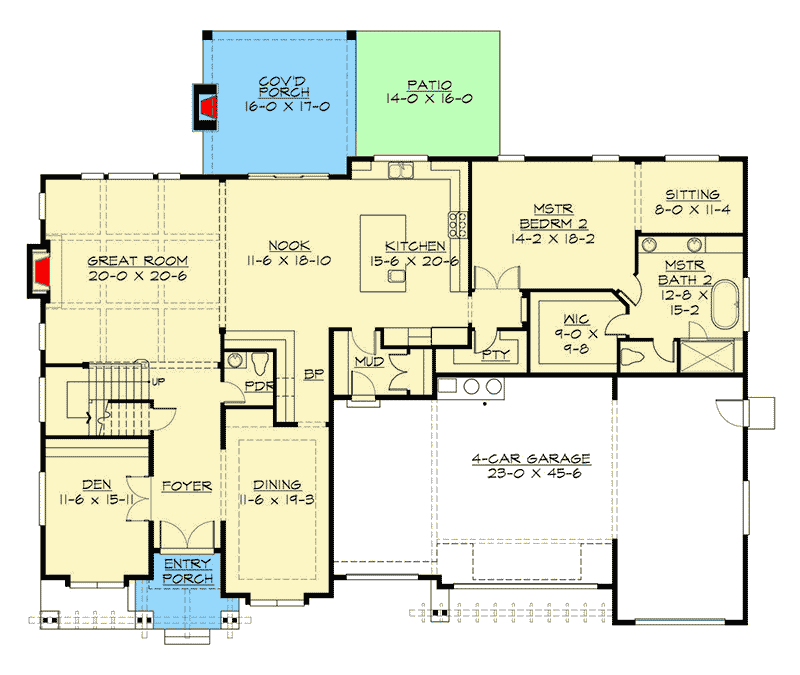

  • Main Level

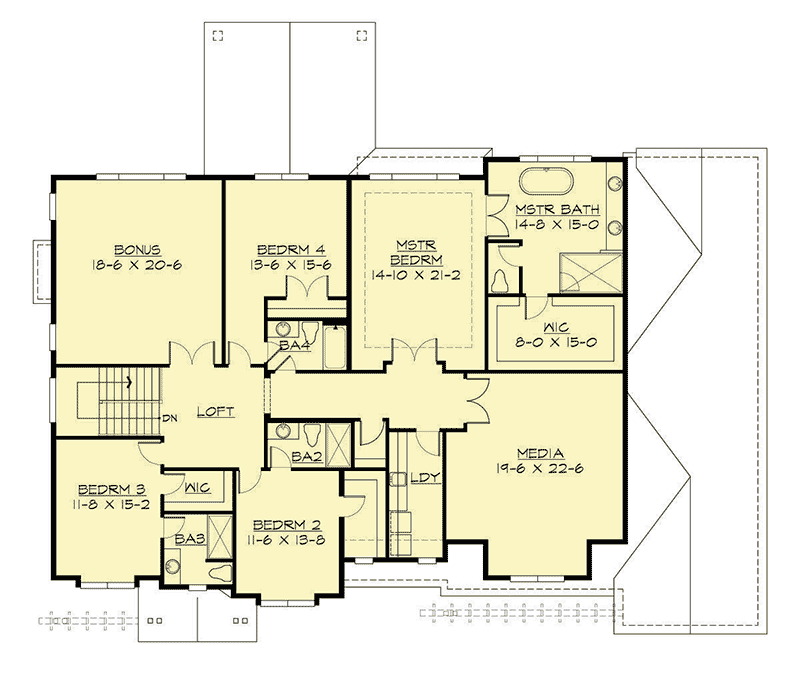

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,437 sq. ft.
  • 1st Floor: 2,628 sq. ft.
  • 2nd Floor: 2,809 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 6"
  • Depth: 66' 0"
  • Max ridge height: 32' 0"

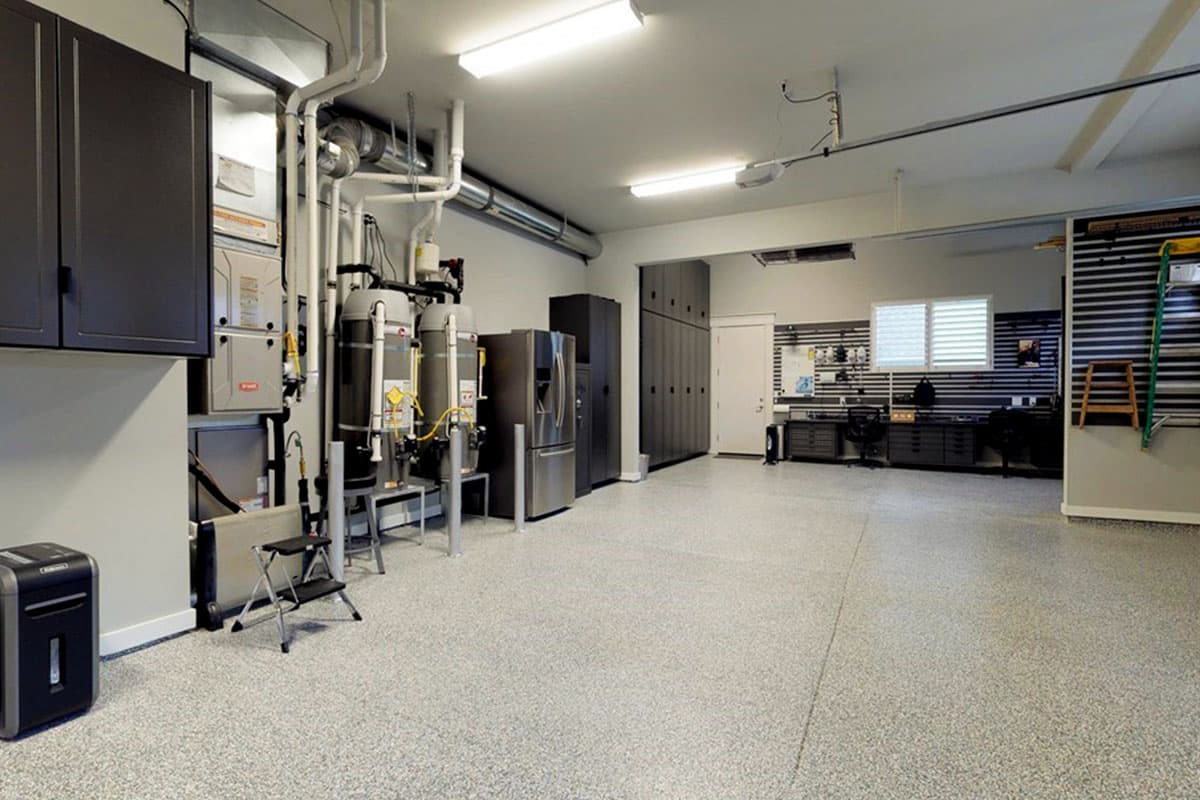

Garage

  • Type: Attached
  • Area: 1101 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
