5-Bedroom 3028 Square Foot Angled Garage Farmhouse Plan

Plan 85420MS

  • 3,028

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • From the extra-deep angled 2-car garage with rear overhead door with unfinished bonus room above to the open concept kitchen and dining area and 2-story Great room and adjoining laundry/mud room, this 3.028 square foot house plan was designed to please. Out the back, quad opening glass doors lead to a generous enclosed outdoor living space with built-in outdoor kitchen.
  • Centered on the broad front porch, the 2-story foyer has an open stair to the right and a private study (or home office) to the left.
  • The owner's suite is on the the right side of the home and has a vaulted ceiling, a dynamic bathroom with free-standing tub plus a built-in glass walled shower, a large double vanity and a generous walk-in wardrobe. Across the home, bedrooms share a bath.
  • Upstairs, find two more bedrooms plus a flexible loft that overlooks the great room and a hallway leading to a full height vaulted bonus space.
  • Related Plans: Get alternate versions with house plans 85421MS (2,639 sq. ft.), 85265MS (3,465 sq. ft.) and 85390MS (2,238 sq. ft.)

Each plan set is drawn to 1/4" scale and includes the following:

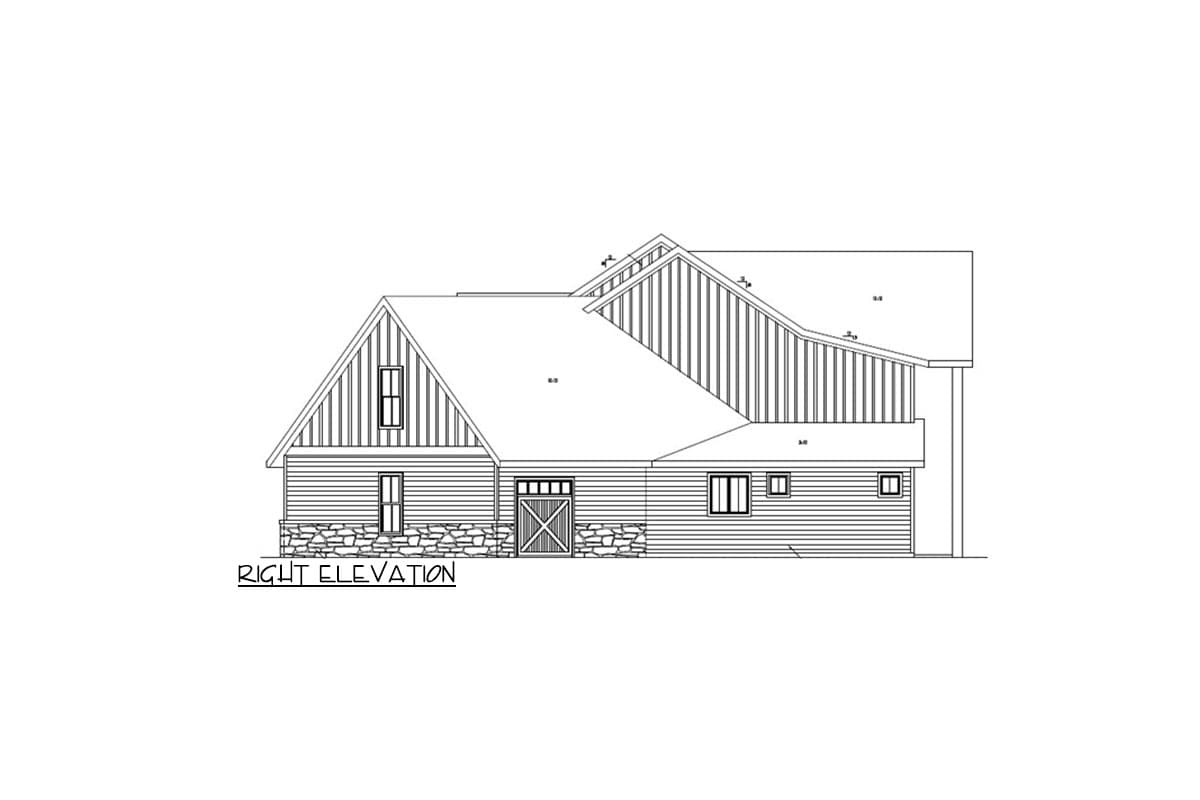

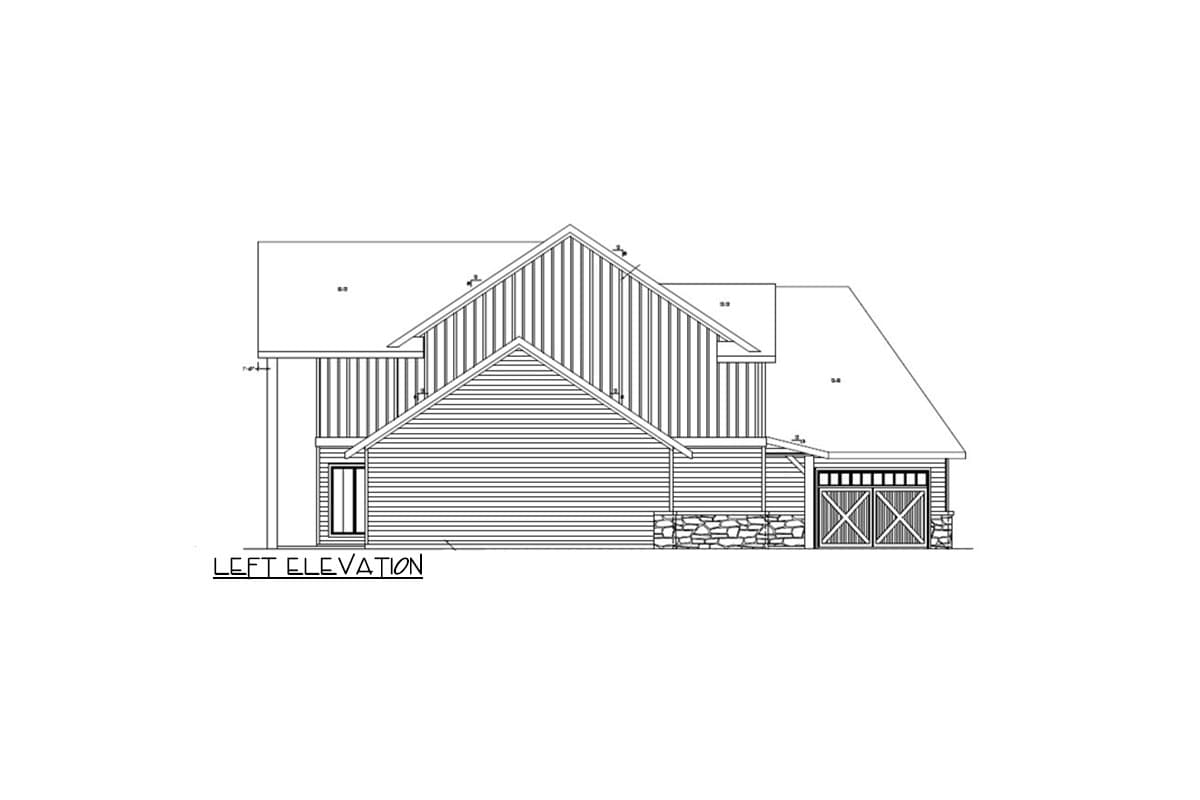

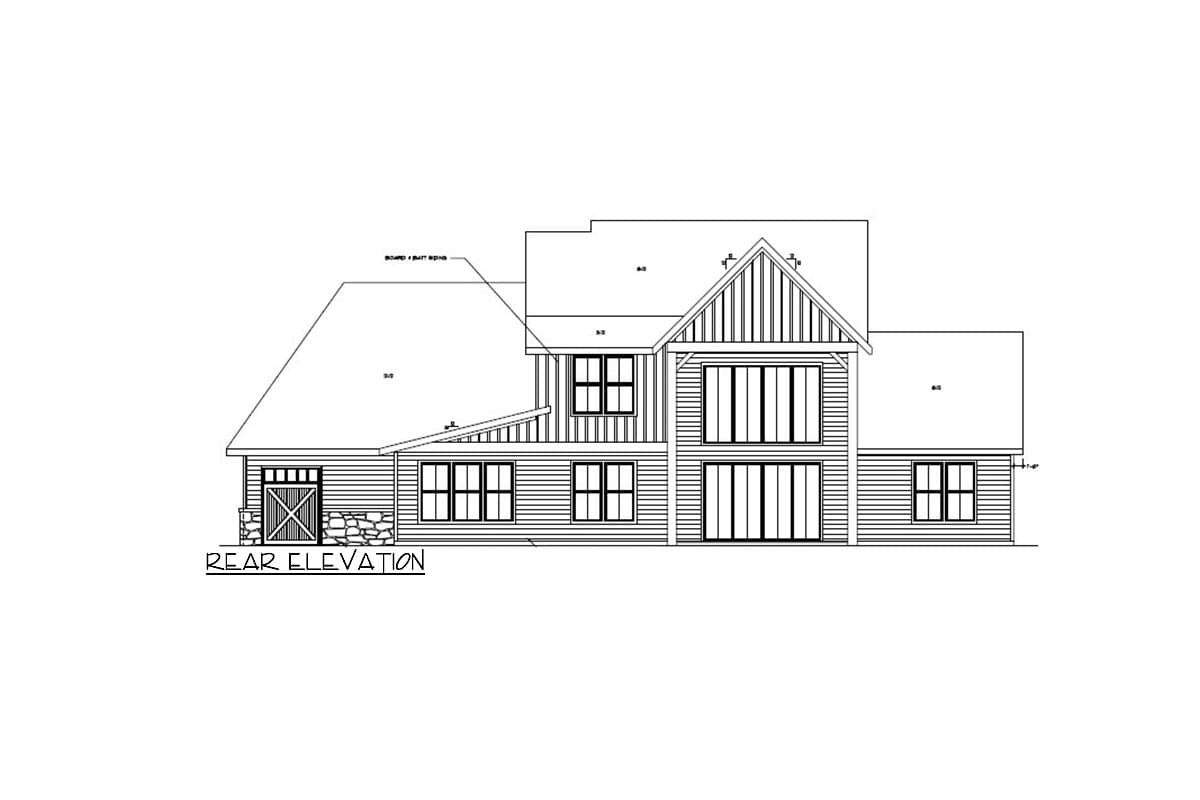

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

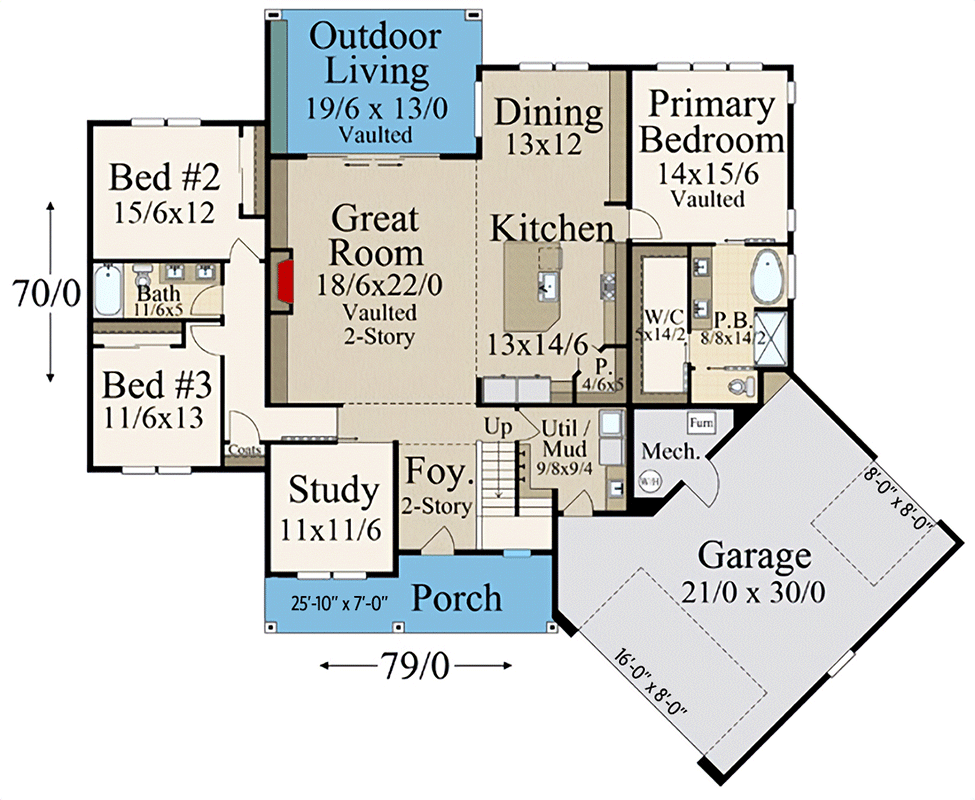

5-Bedroom 3028 Square Foot Angled Garage Farmhouse Plan - 85420MS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

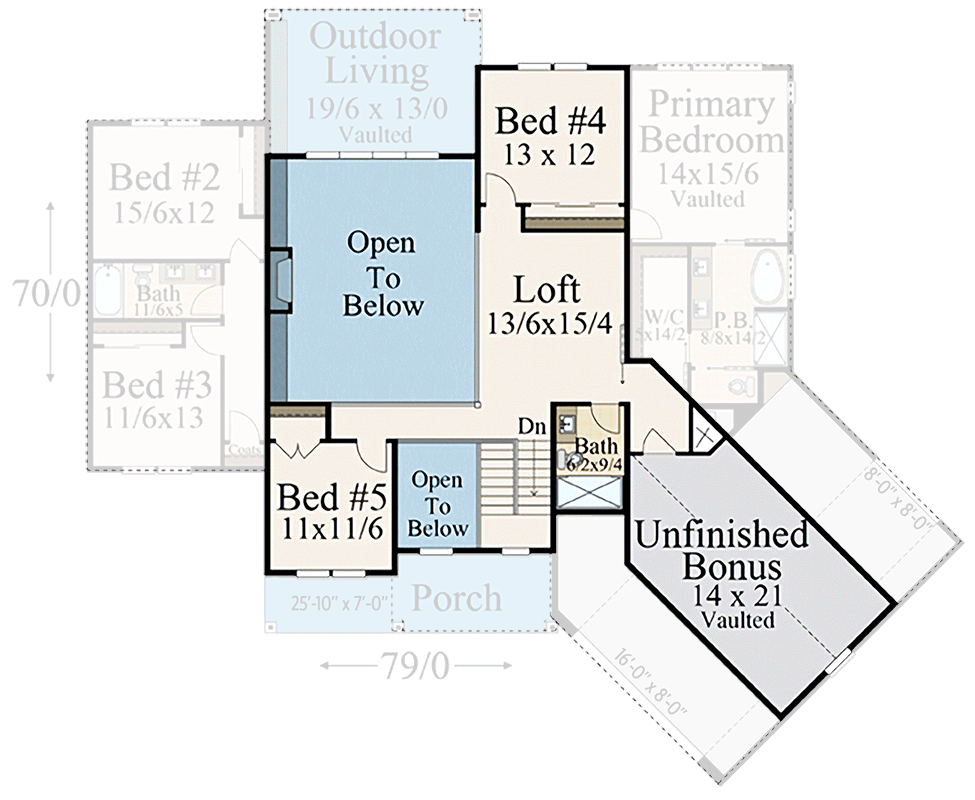

5-Bedroom 3028 Square Foot Angled Garage Farmhouse Plan - 85420MS floor plan - 2nd Floor

5-Bedroom 3028 Square Foot Angled Garage Farmhouse Plan

  • 3,028

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,028 sq. ft.
  • 1st Floor: 2,248 sq. ft.
  • 2nd Floor: 780 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 70' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6
