Plan 4253MJ

6-bed Mediterranean-style House Plan with 3-car Garage

Heated S.F.
4,510
Beds
6
Baths
4.5+
Stories
2
Cars
3

Floor Plan

Plan 4253MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 4253MJ

M-F 9am-5pm EST |

1-203-761-8500

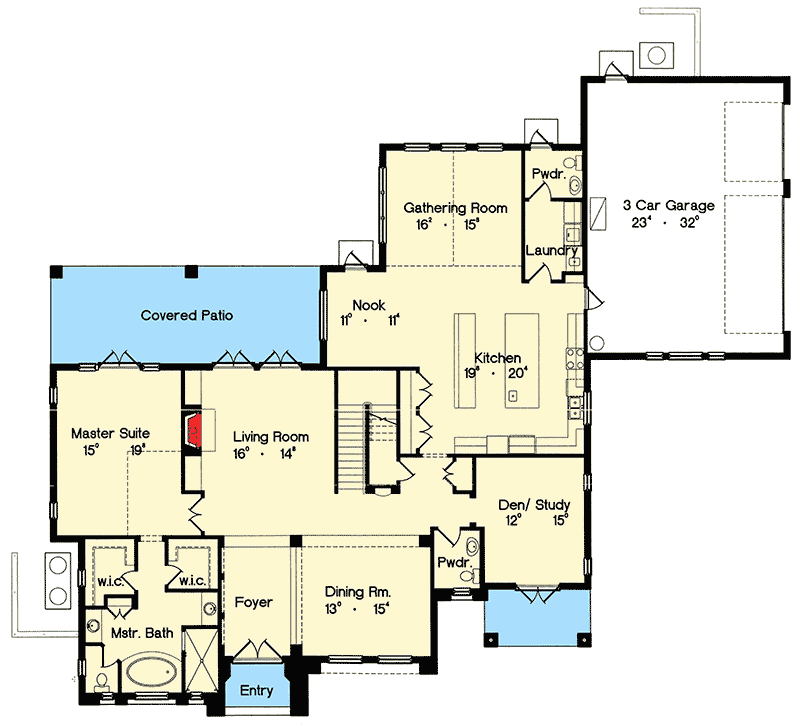

Main Level

Plan 4253MJ: 6-bed Mediterranean-style House Plan with 3-car Garage - Floor Plan - Main Level - European, Florida-Style, Mediterranean, Spanish

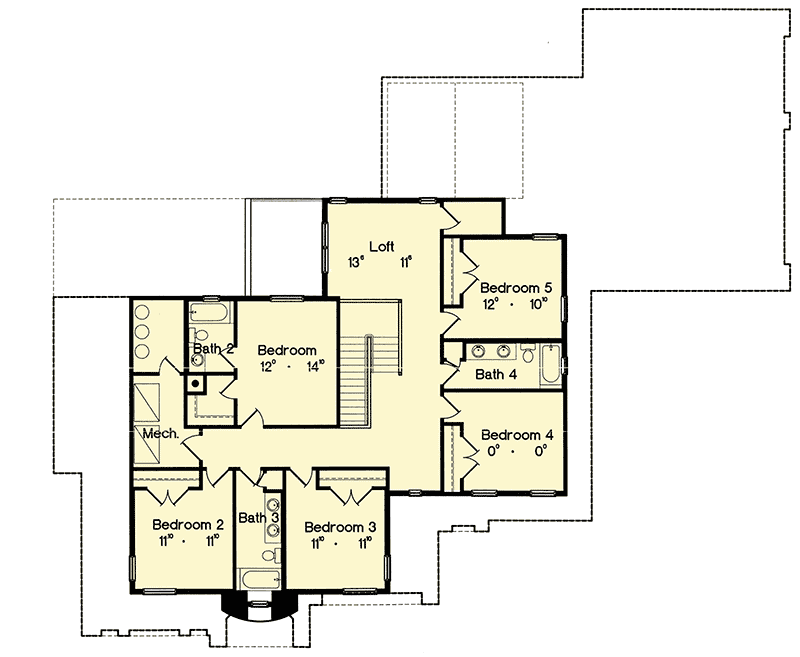

2nd Floor

Plan 4253MJ: 6-bed Mediterranean-style House Plan with 3-car Garage - Floor Plan - 2nd Floor - European, Florida-Style, Mediterranean, Spanish

Plan Details

  • Delicate Corinthian columns welcome you into this very unique Mediterranean home plan.
  • The garage is in the rear of this house, making a perfect buffer for poolside privacy.
  • Privacy is assured in the master suite which has French doors off the front entry portico.
  • The gathering room, kitchen, and nook, all are amply sized and view the pool.
  • The second floor bedrooms share a bath big enough for two.
  • Note the guest room downstairs, the hall closets near the foyer, and also the gazebo off the pool the area.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,510 sq. ft.

1st Floor

2,868 sq. ft.

2nd Floor

1,642 sq. ft.

Entry

162 sq. ft.

Covered Patio

377 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

88' 0"

Depth

75' 8"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

805 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Architectural Style

European

Florida-Style

Mediterranean

Spanish

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Luxury
