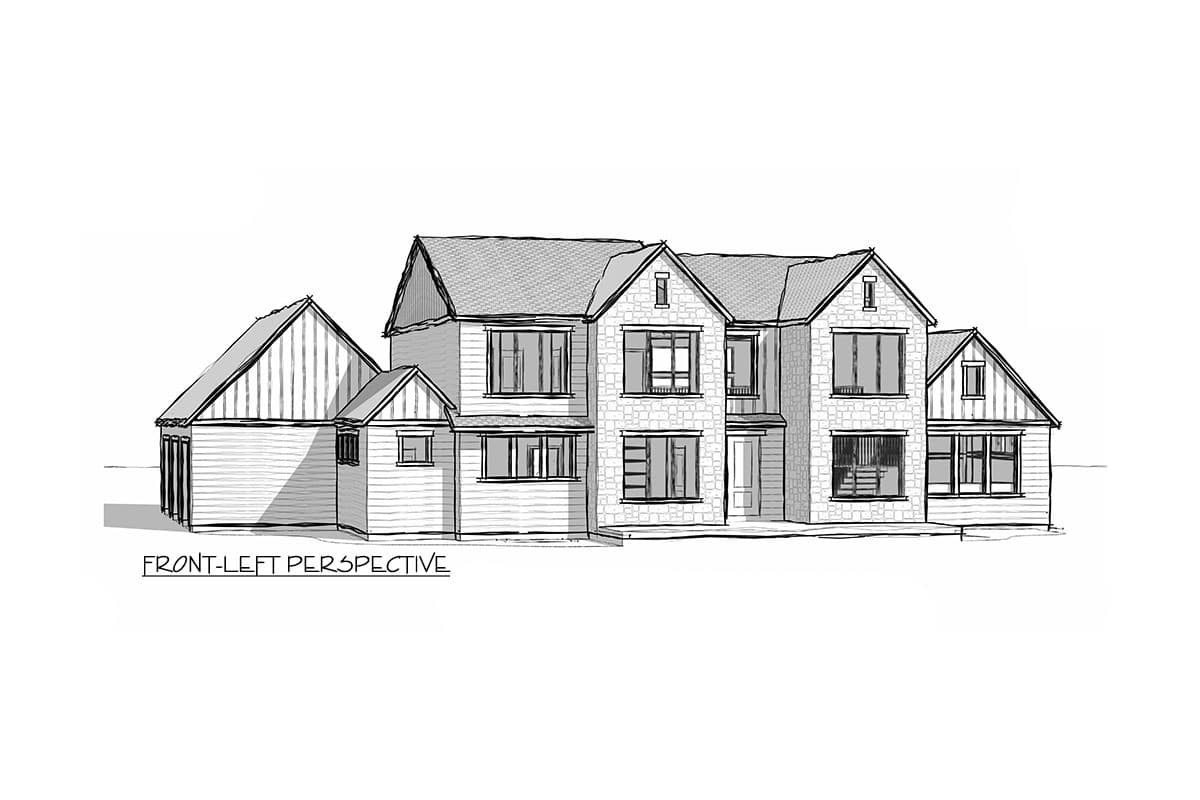

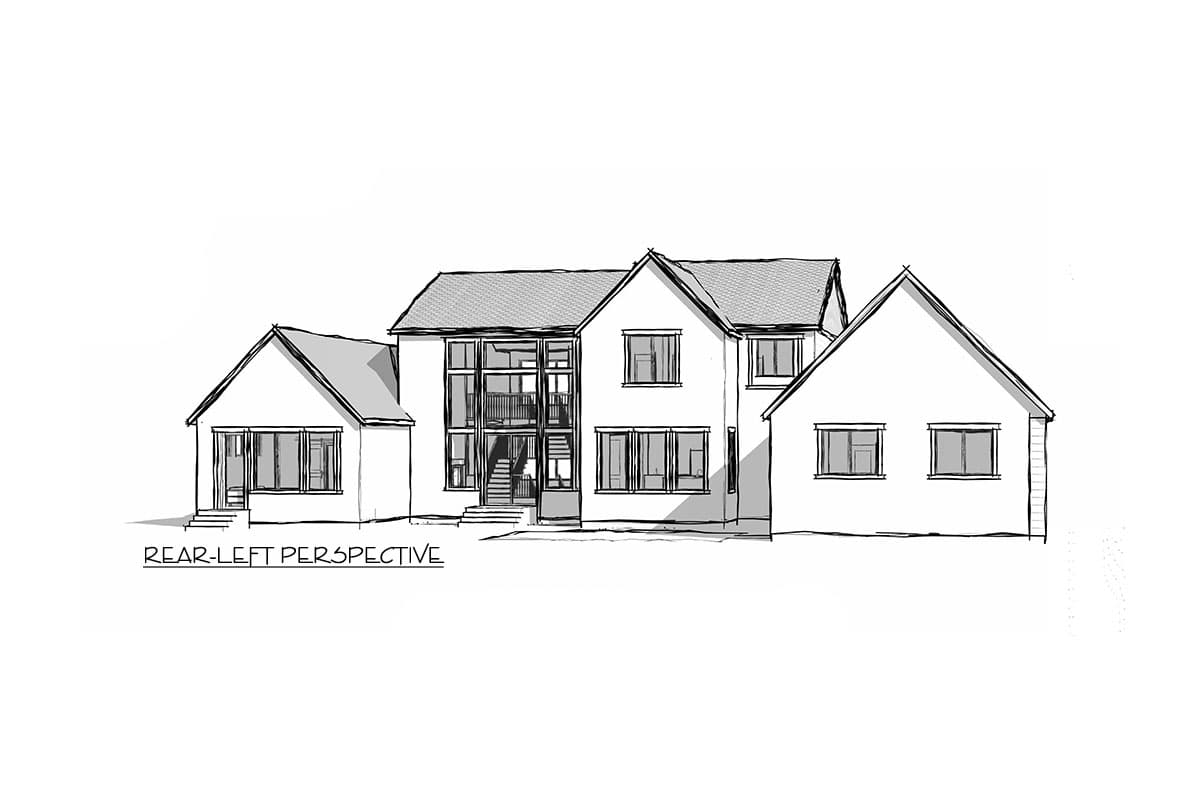

7-Bedroom Transitional House Plan with Finished Lower Level - 5894 Sq Ft
Heated S.F.
5,894
Beds
7
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 490115NAH

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 490115NAH

1-800-854-7852

1-262-521-4596

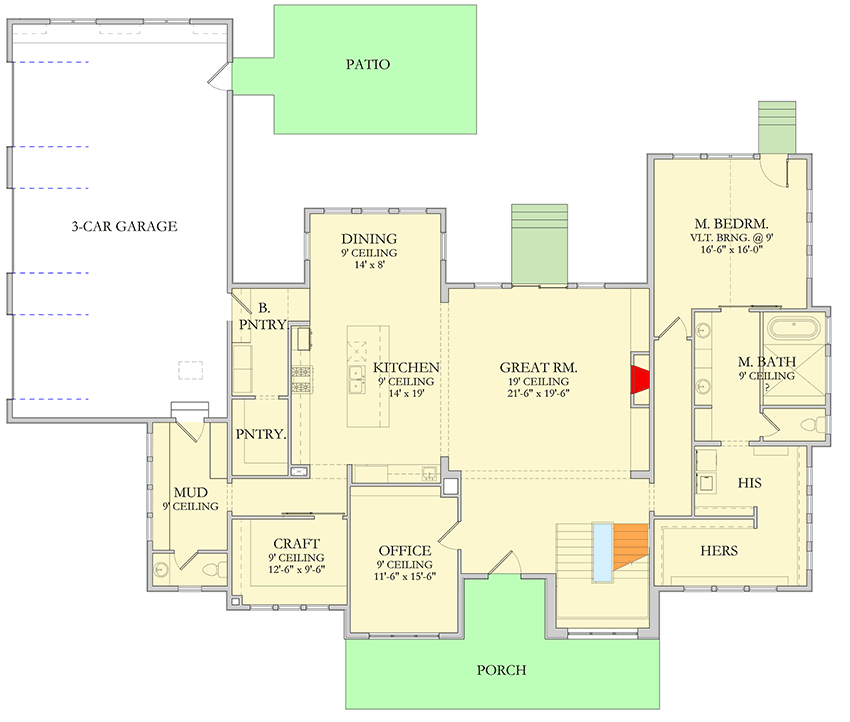

Main Level
floor plan image Main Level

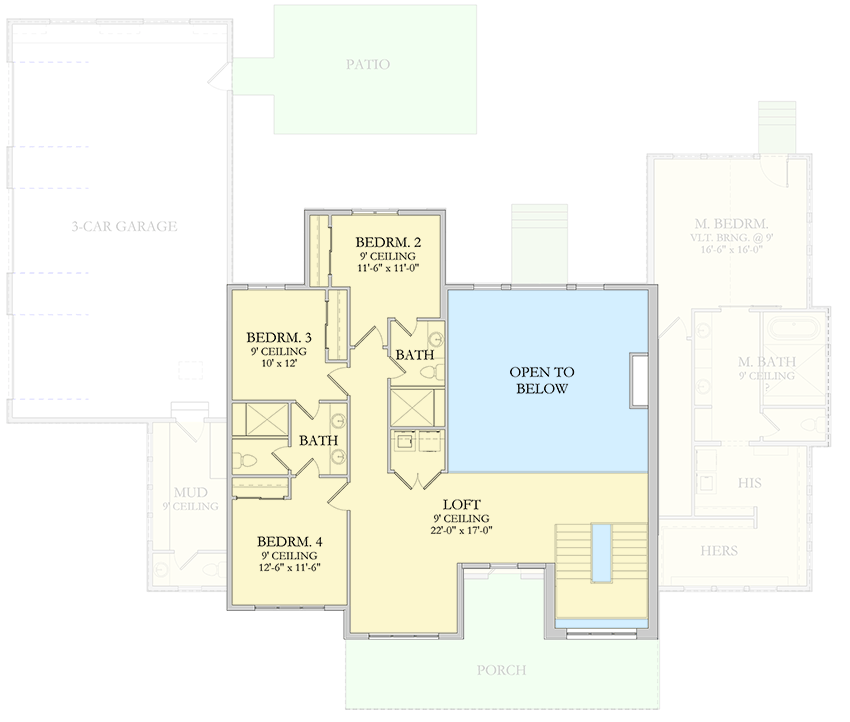

2nd Floor
floor plan image 2nd Floor

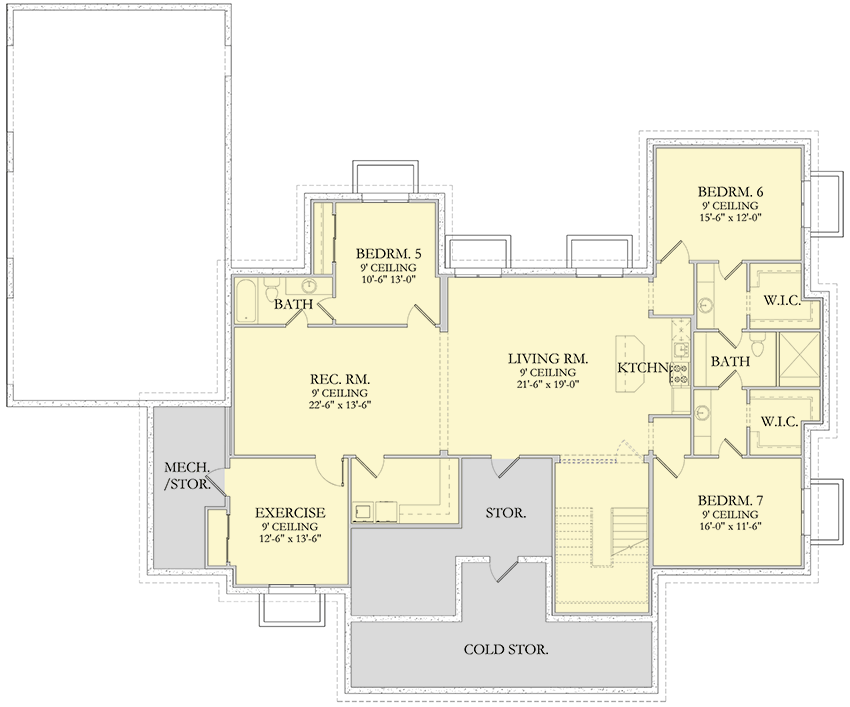

Lower Level
floor plan image Lower Level
Plan Details
  • This Transitional house plan offers impressive curb appeal combined with ample space for a large family.
  • Inside, an open concept design has the kitchen and dining room located just off the living room. As well as the master bedroom on the main.
  • A mudroom separates the kitchen from the 3-car garage, allowing convenient access when unloading groceries.
  • The primary bedroom suite has a his and hers closet with laundry access. Three bedrooms are located upstairs with two full bathrooms.
  • This house plan offers basement expansion (2,120 square feet when finished, as shown) with another living room, recreation room, exercise room, three more bedrooms, and plenty of storage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

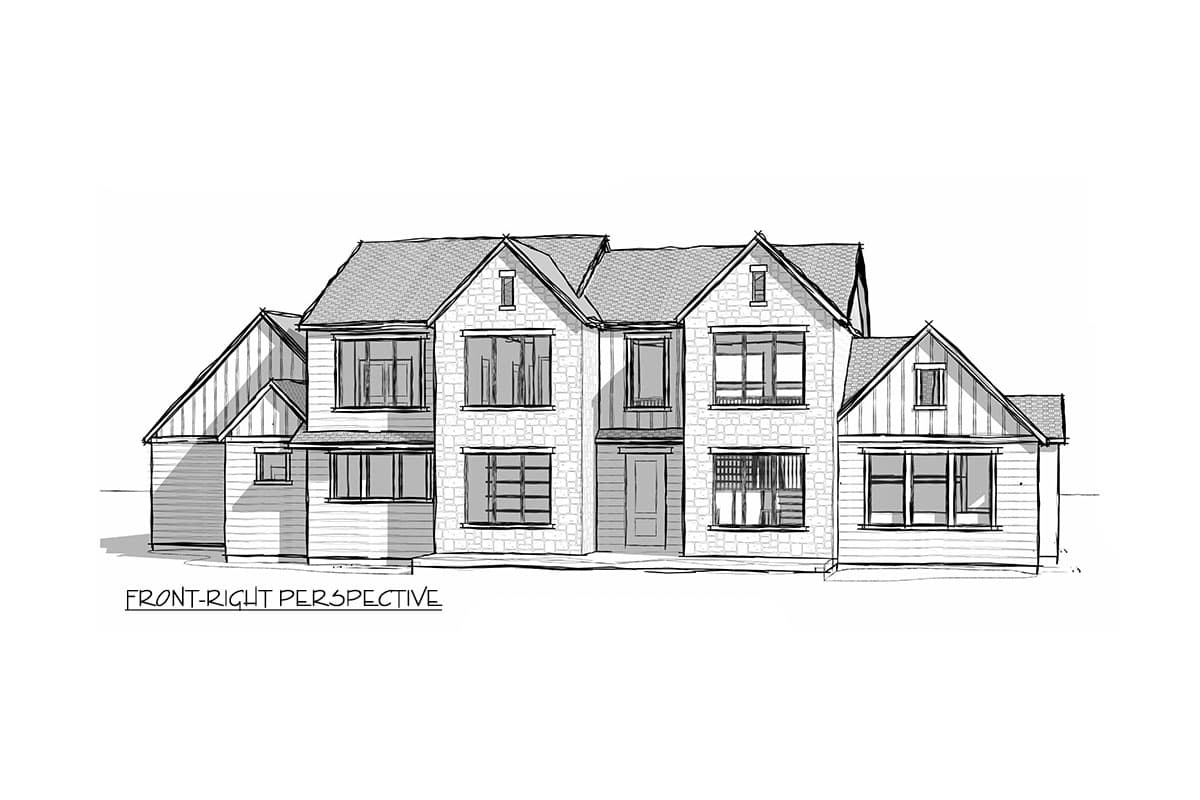

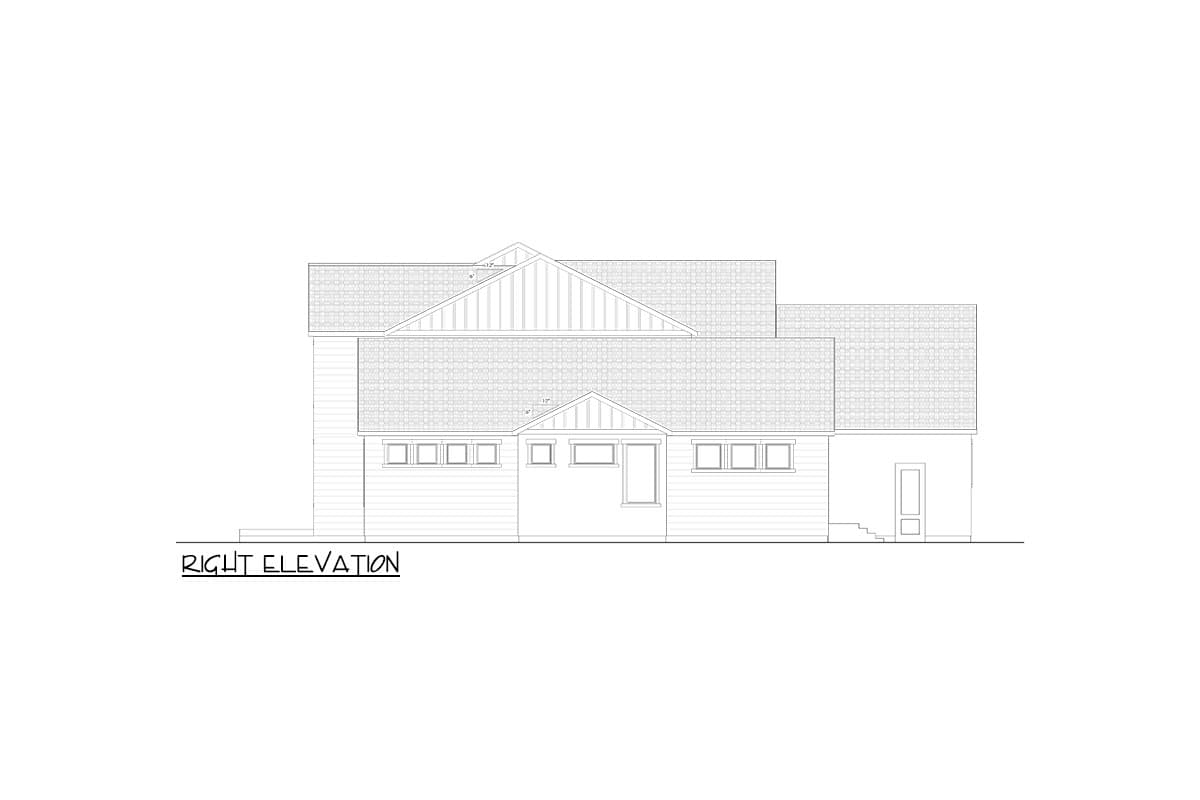

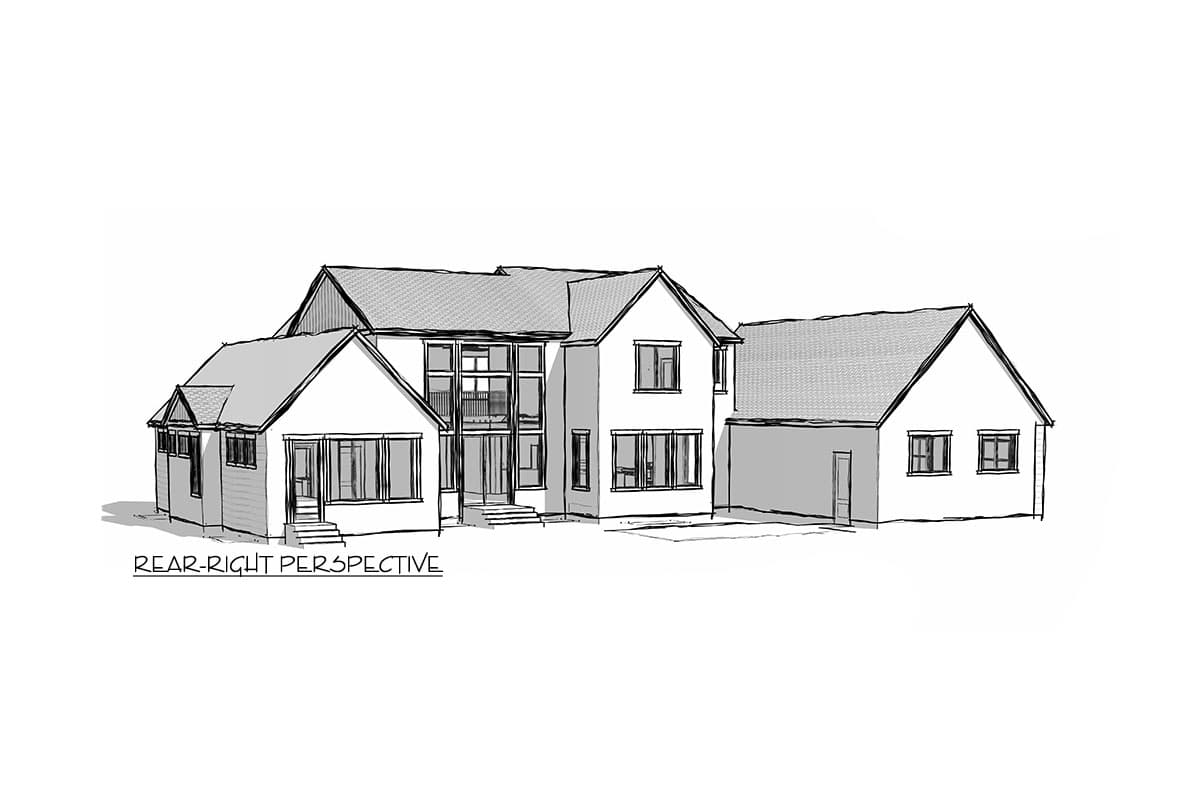

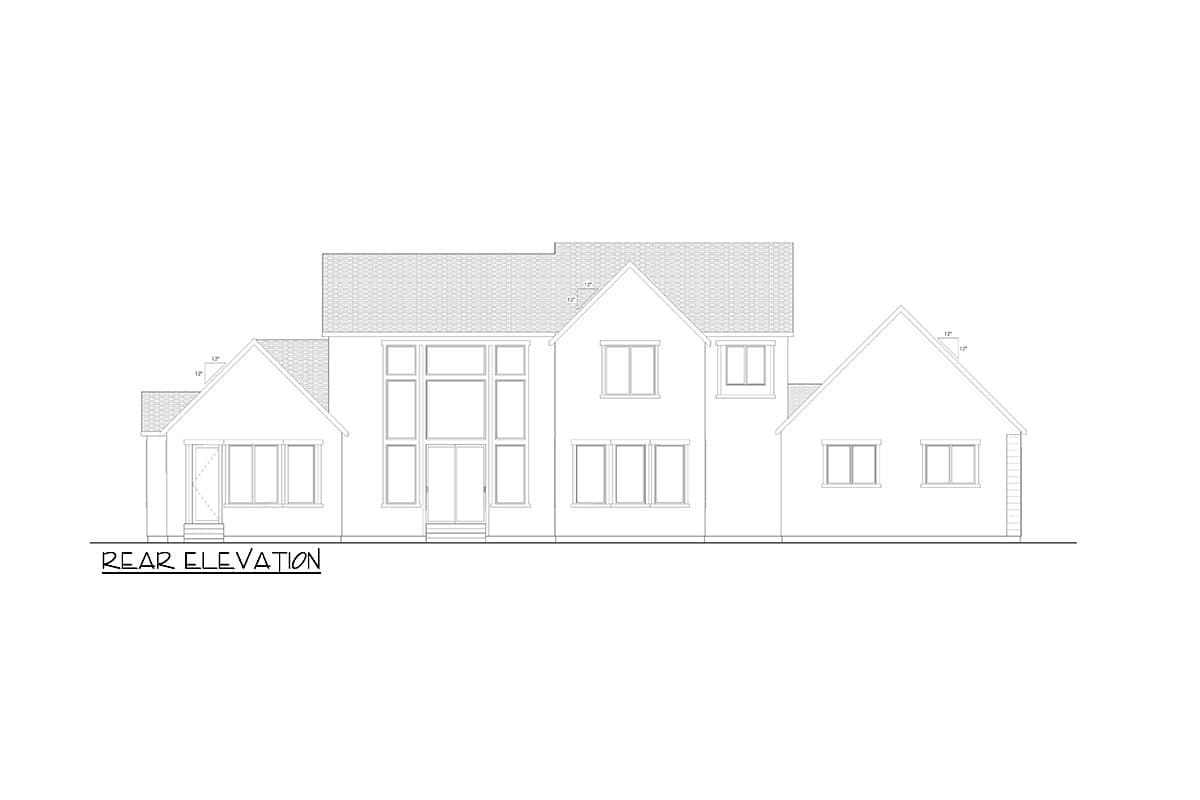

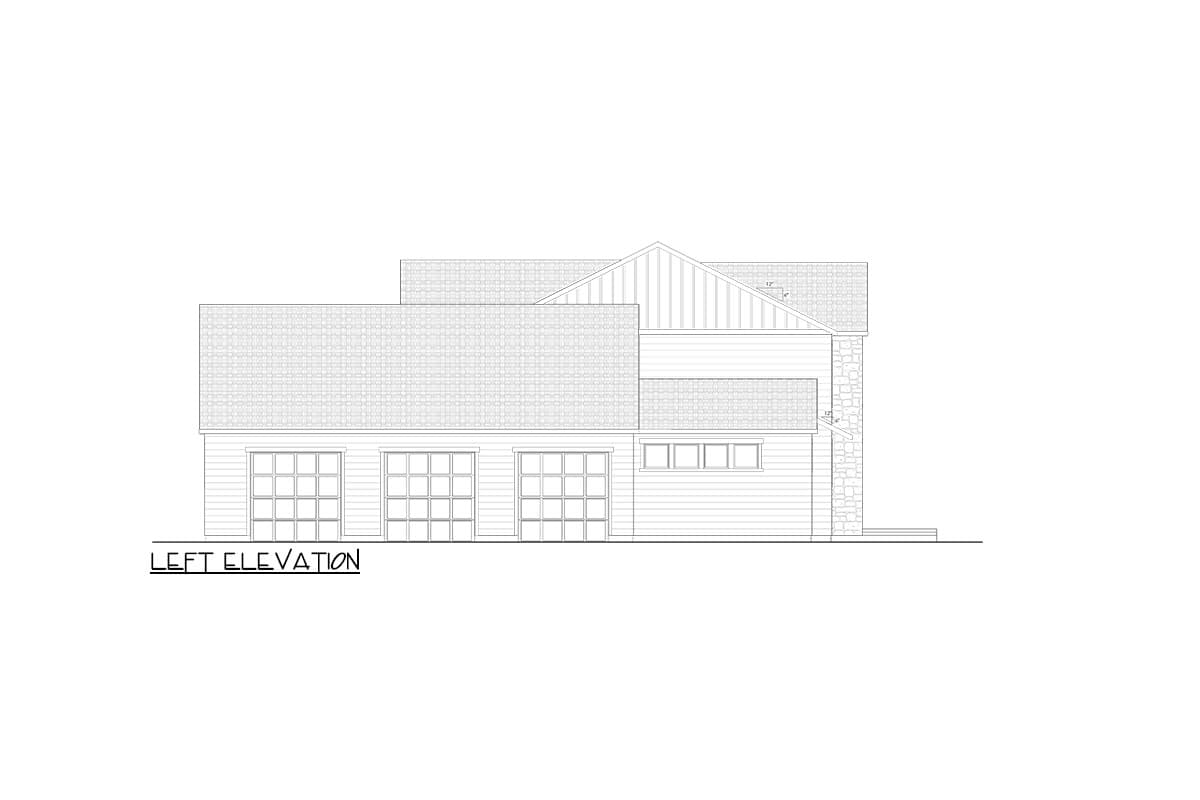

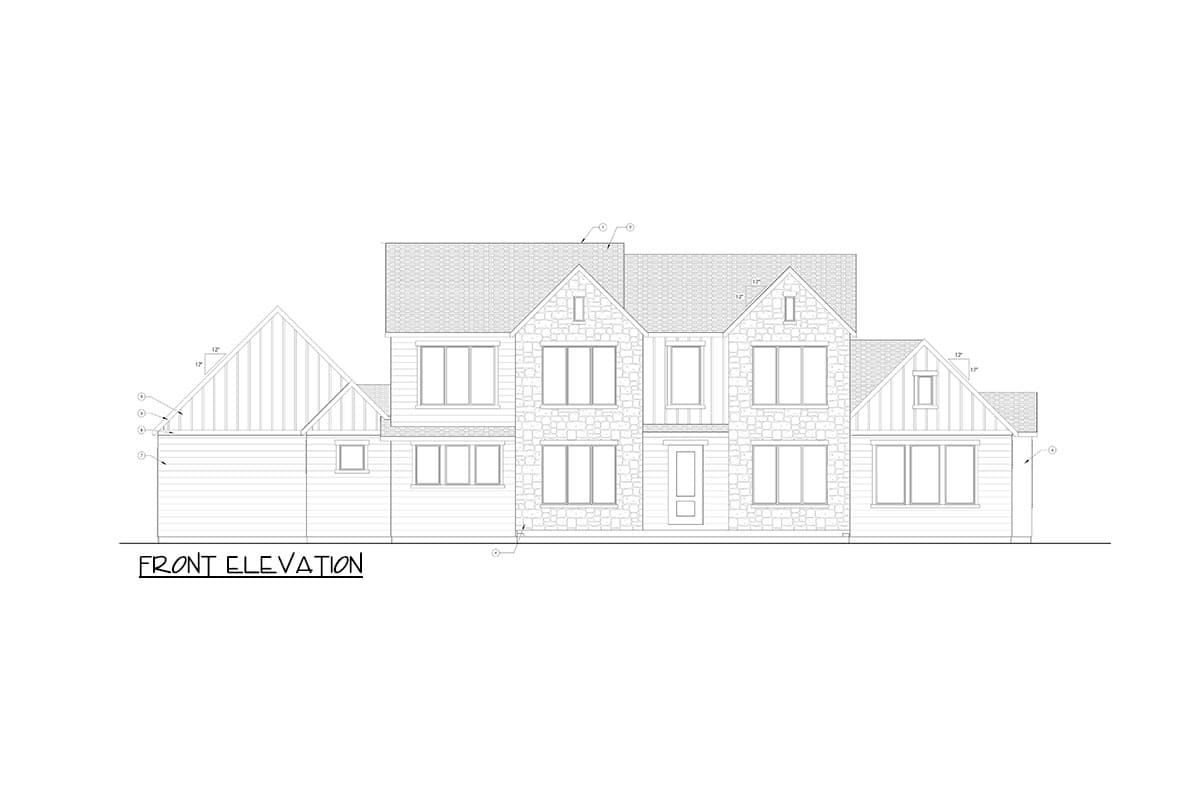

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,894 sq. ft.

Lower Level

2,120 sq. ft.

1st Floor

2,606 sq. ft.

2nd Floor

1,168 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

74' 0"

Garage

Type

Attached

Area

968 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Contemporary

Square Footage Breakdown

Total Heated Area

5,894 sq. ft.

Lower Level

2,120 sq. ft.

1st Floor

2,606 sq. ft.

2nd Floor

1,168 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

74' 0"

Garage

Type

Attached

Area

968 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
